engine coolant Lexus GS350 2010 User Guide

530
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor
GS_U_G.book Page 530 Wednesday, January 27, 2010 4:48 PM

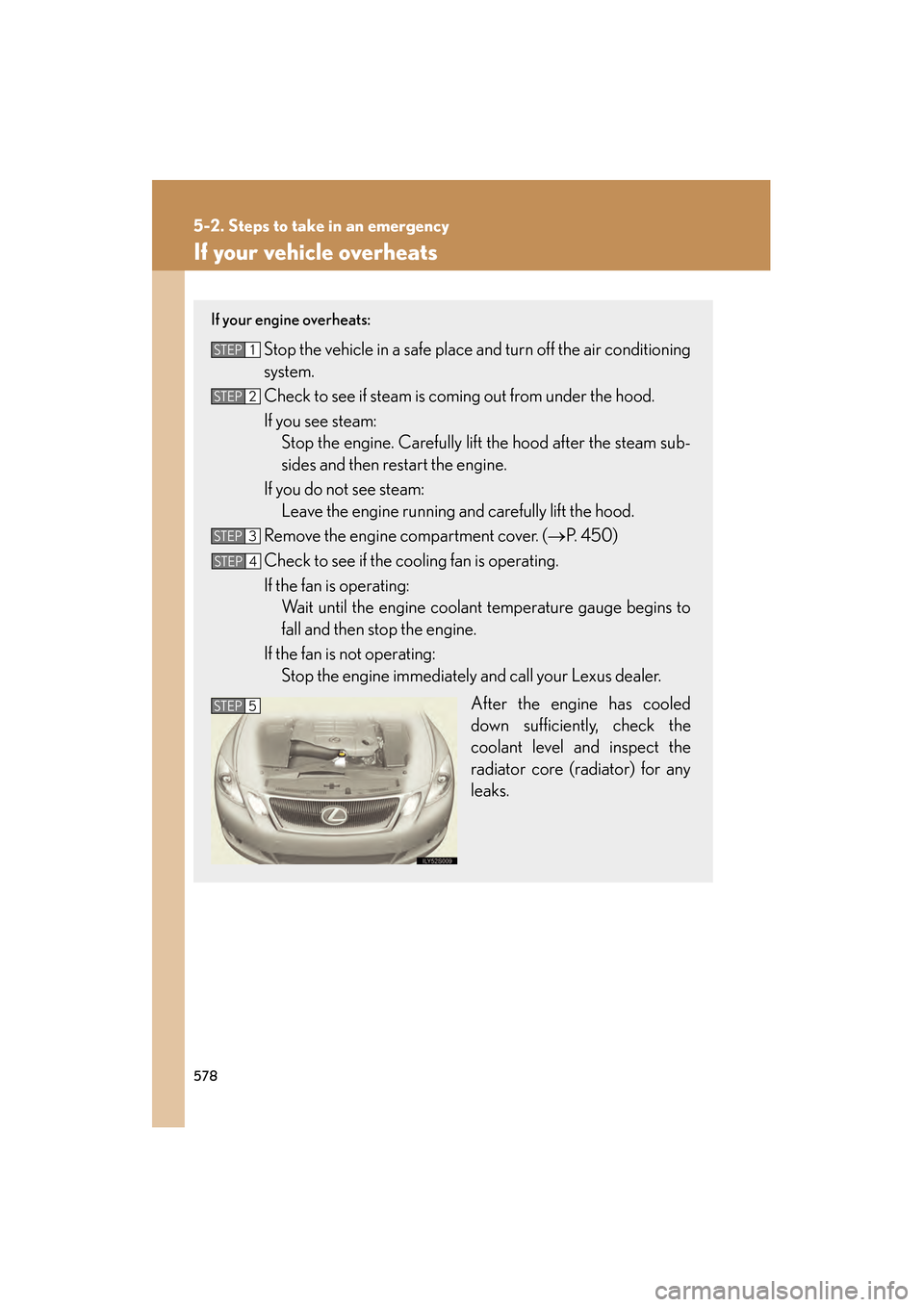

578
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Carefully lift the hood after the steam sub-
sides and then restart the engine.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. ( →P. 4 5 0 )
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: Stop the engine immediately and call your Lexus dealer.
After the engine has cooled
down sufficiently, check the
coolant level and inspect the
radiator core (radiator) for any
leaks.STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 578 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises

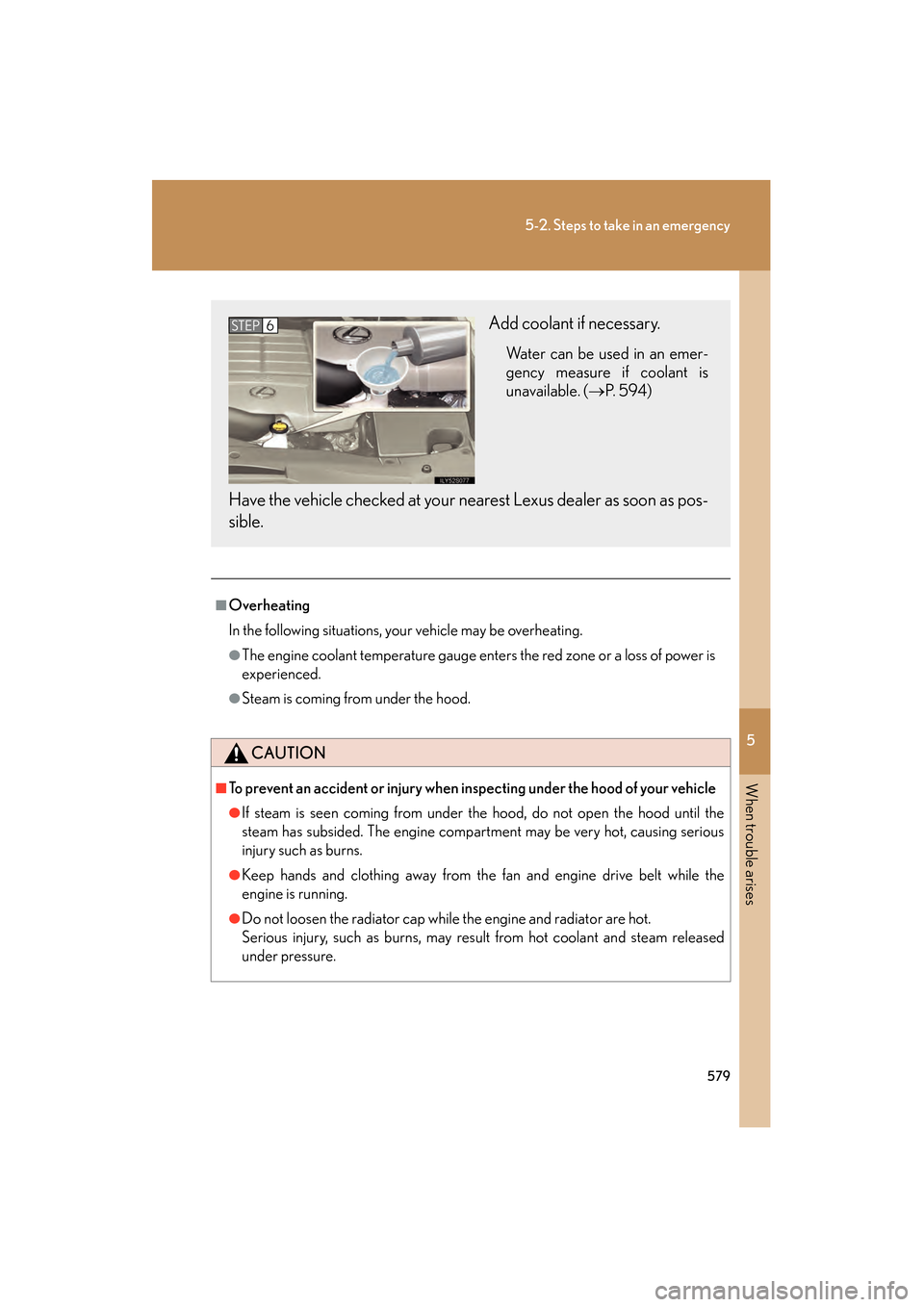

579
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injury such as burns.
●Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add coolant if necessary.
Water can be used in an emer-
gency measure if coolant is
unavailable. (→P. 5 9 4 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6
GS_U_G.book Page 579 Wednesday, January 27, 2010 4:48 PM

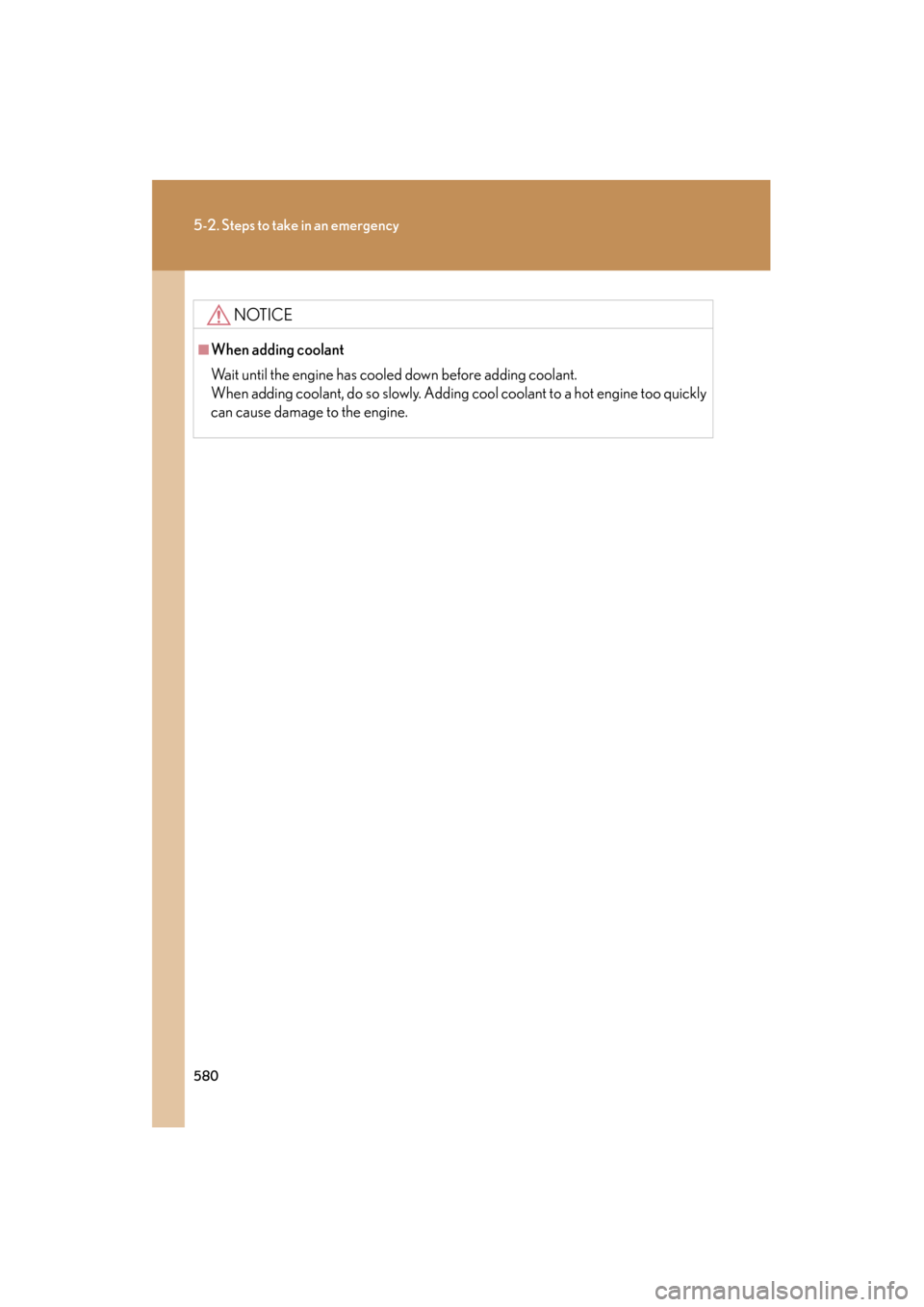

580
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
NOTICE
■When adding coolant
Wait until the engine has cooled down before adding coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the engine.
GS_U_G.book Page 580 Wednesday, January 27, 2010 4:48 PM

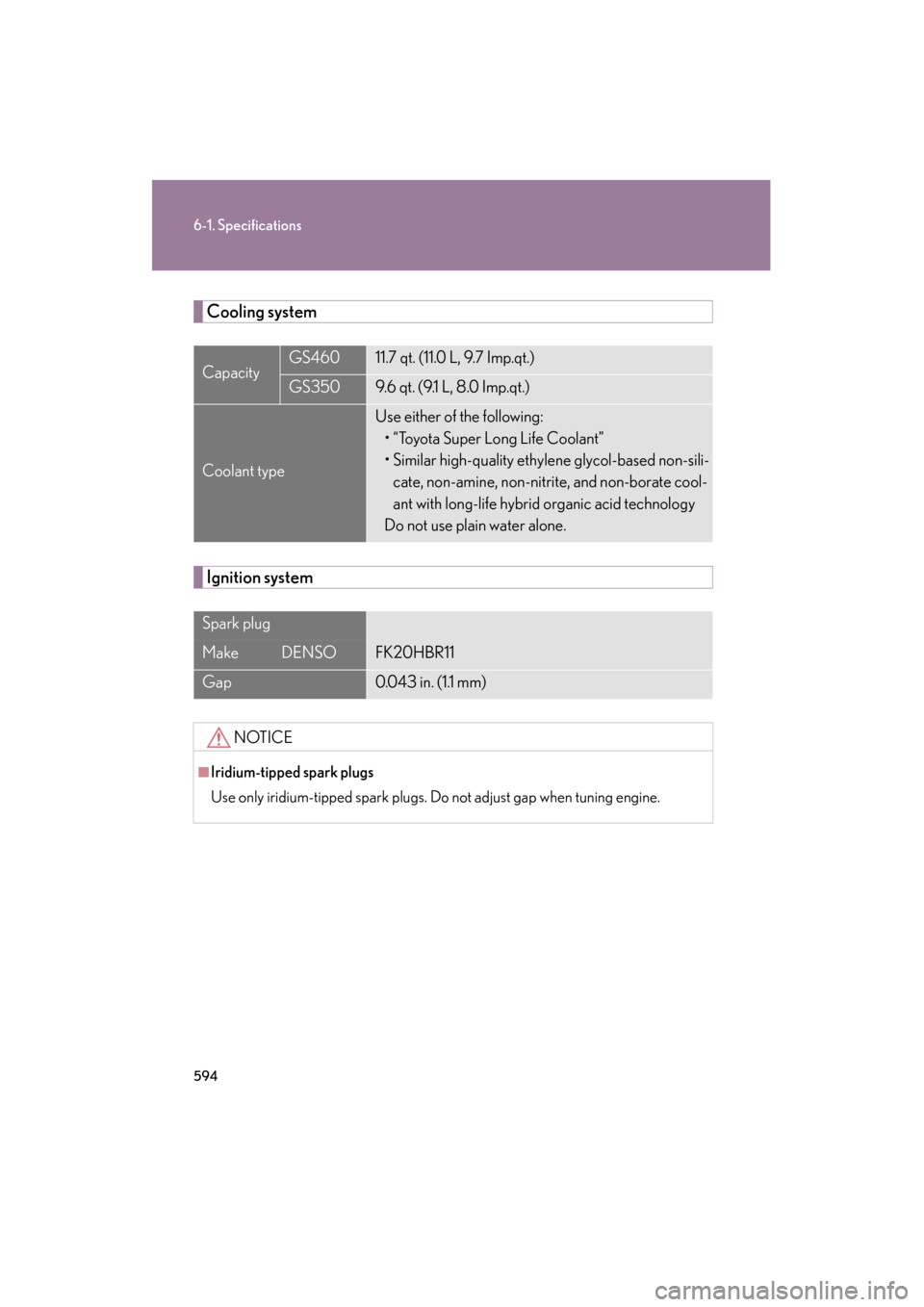

594
6-1. Specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Cooling system
Ignition system
CapacityGS46011.7 qt. (11.0 L, 9.7 Imp.qt.)
GS3509.6 qt. (9.1 L, 8.0 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make DENSOFK20HBR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
GS_U_G.book Page 594 Wednesday, January 27, 2010 4:48 PM

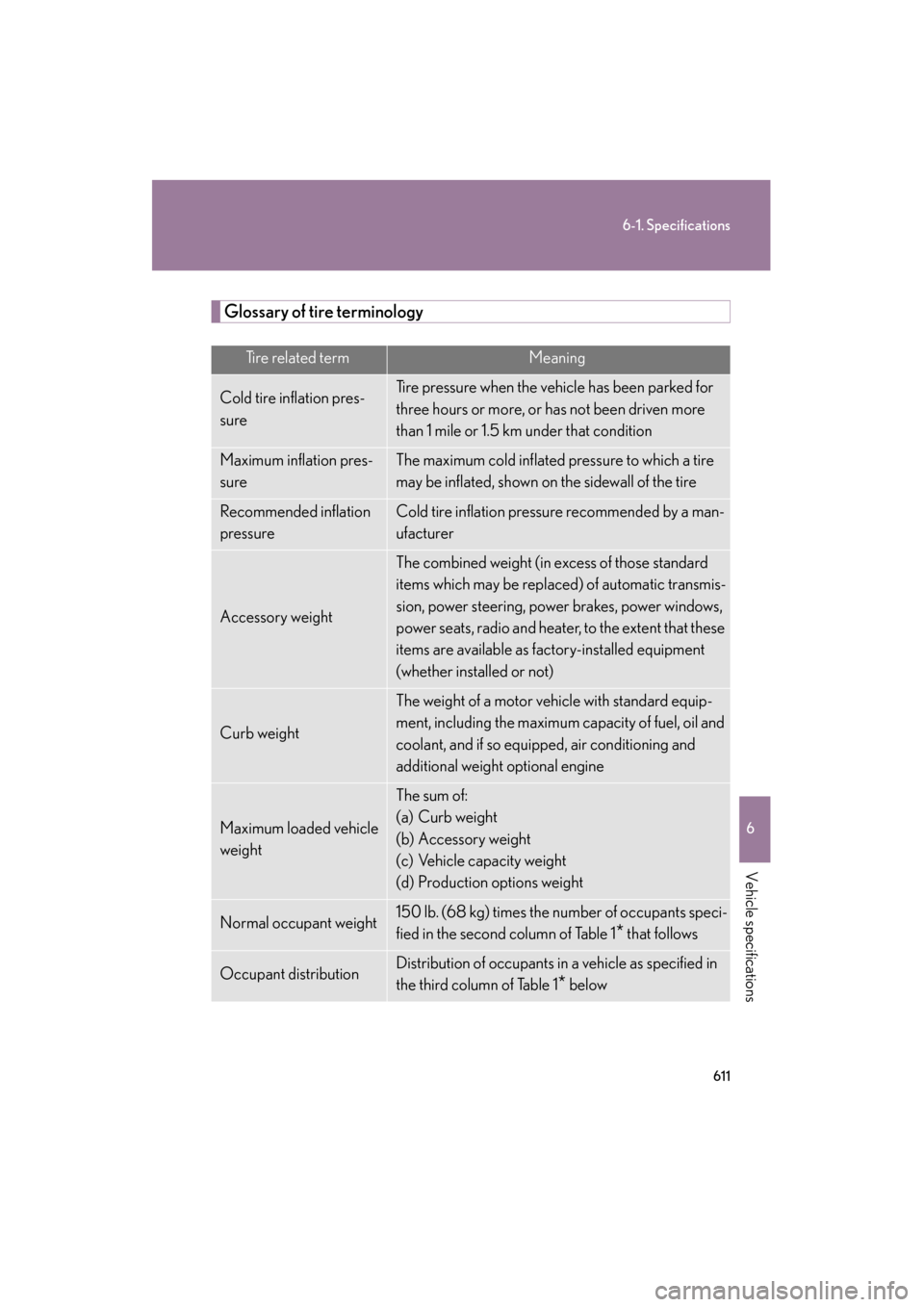

611
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
GS_U_G.book Page 611 Wednesday, January 27, 2010 4:48 PM

634
Alphabetical index
GS_G_U (OM30C80U)
February 1, 2010 9:58 am
Daytime running light system ........... 158
DefoggerRear window........................................255
Side mirror ............................................255
Dimension ............................................... 586
Dinghy towing ........................................ 225
Display Multi-information display.................154
Touch screen ....................................... 228
Trip information ................................... 155
Warning message............................. 543
Do-it-yourself maintenance ............. 442
Door courtesy lights ............................382
Door pocket............................................392
Doors Door lock...................................29, 41, 43
Rear door child protector ................ 44
Driver’s seat belt reminder light .....536
Driver’s seat position memory ...........55
Driving
Correct posture ...................................... 91
Procedures ............................................. 126
DVD player/changer......................... 280
Electric power steering ..................... 200
Electronic key If the electronic key does not operate properly ...................... 571
Replacing battery .............................. 482 Emergency, in case of
If a warning light turns on .............. 534
If a warning message is displayed ............................................ 543
If the electronic key does not operate properly ..................... 571
If the engine will not start .......................................................568
If the shift lever cannot be shifted from “P” ............................... 569
If the 12 volt battery is discharged ........................................574
If you have a flat tire ........... 556, 566
If you lose your keys ........................ 570
If you think something is wrong .................................................. 530
If your vehicle becomes stuck ......581
If your vehicle has to be stopped in an emergency ............................ 583
If your vehicle needs to be
towed ................................................... 520
If your vehicle overheats................ 578
Engine ACCESSORY mode....................... 136
Compartment ..................................... 448
Engine (ignition) switch.................... 135
Hood ....................................................... 445
How to start the engine ................... 135
If the engine will not start ...............568
Overheating ........................................ 578
Engine compartment cover ............. 450
Engine coolant temperature gauge ....................................................... 147D
E
sec_08-02.fm Page 634 Monday, February 1, 2010 9:59 AM

635
Alphabetical index
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Engine coolantCapacity................................................. 594
Checking ............................................... 455
Preparing and checking
before winter...................................... 219
Engine oil
Capacity.................................................590
Checking ................................................. 451
Preparing and checking before winter...................................... 219
Engine oil maintenance data ........... 453
Engine (ignition) switch ....................... 135
Enhanced vehicle stability control ................................................... 200
Event data recorder ............................ 532
First-aid kit storage belt..................... 408
Floor mats................................................ 406
Fluid Brake ....................................................... 457
Washer ................................................... 462
Fog lights
Switch ........................................................160
Wattage ................................................ 600
Foot light .................................................. 382
Front passenger occupant classification system ..........................105
Front passenger’s seat belt
reminder light ......................................537
Front seats
Adjustment .............................................. 53
Driver’s seat position memory ...... 55
Front turn signal lights Wattage ................................................ 600 Fuel
Capacity ................................................ 589
Fuel gauge...............................................147
Gas station information ................. 648
Information ............................................. 601
Refueling.................................................... 82
Fuel door ..................................................... 82
Fuel filler door ........................................... 82
Fuses ..........................................................484
Garage door opener ............................. 411
Gas station information......................648
Gauges .......................................................147
Glove box ................................................ 387
Hands-free system (for cellular phone) .......................... 332
Head restraints .........................................60
Headlight aim ........................................ 509
Headlight cleaner .................................. 166
Headlights Adaptive front lighting system...... 158
Discharge headlights precautions......................................... 518
Replacing light bulbs ......................... 512
Switch.........................................................157
Wattage................................................. 600
Heaters
Seat heaters ......................................... 400
Side mirror.............................................255
Hill-start assist control ....................... 200
Hood .......................................................... 445
Hooks Cargo ..................................................... 408
Shopping bag ..................................... 408
Horn ............................................................ 146
F
G
H
GS_U_G.book Page 635 Wednesday, January 27, 2010 4:48 PM

642
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
What to do if...
What to do if...
A tire puncturesP. 5 5 6 /566If you have a flat tire
The engine does not start
P. 8 5Immobilizer system
P. 5 6 8If the engine will not start
P. 5 74If the 12 volt battery is discharged
The shift lever cannot be
moved outP. 5 6 9If the shift lever cannot be shifted
from “P”
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 5 7 8If your vehicle overheats
The key is lostP. 5 7 0If you lose your keys
The 12 volt battery runs outP. 5 74If the 12 volt battery is discharged
The doors cannot be lockedP. 4 3Doors
The horn begins to soundP. 8 7Alarm
The vehicle is stuck in mud or
sandP. 5 8 1If the vehicle becomes stuck
GS_U_G.book Page 642 Wednesday, January 27, 2010 4:48 PM
