Lexus GS350 2010 Owner's Manual

290
3-3. Using the audio system
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

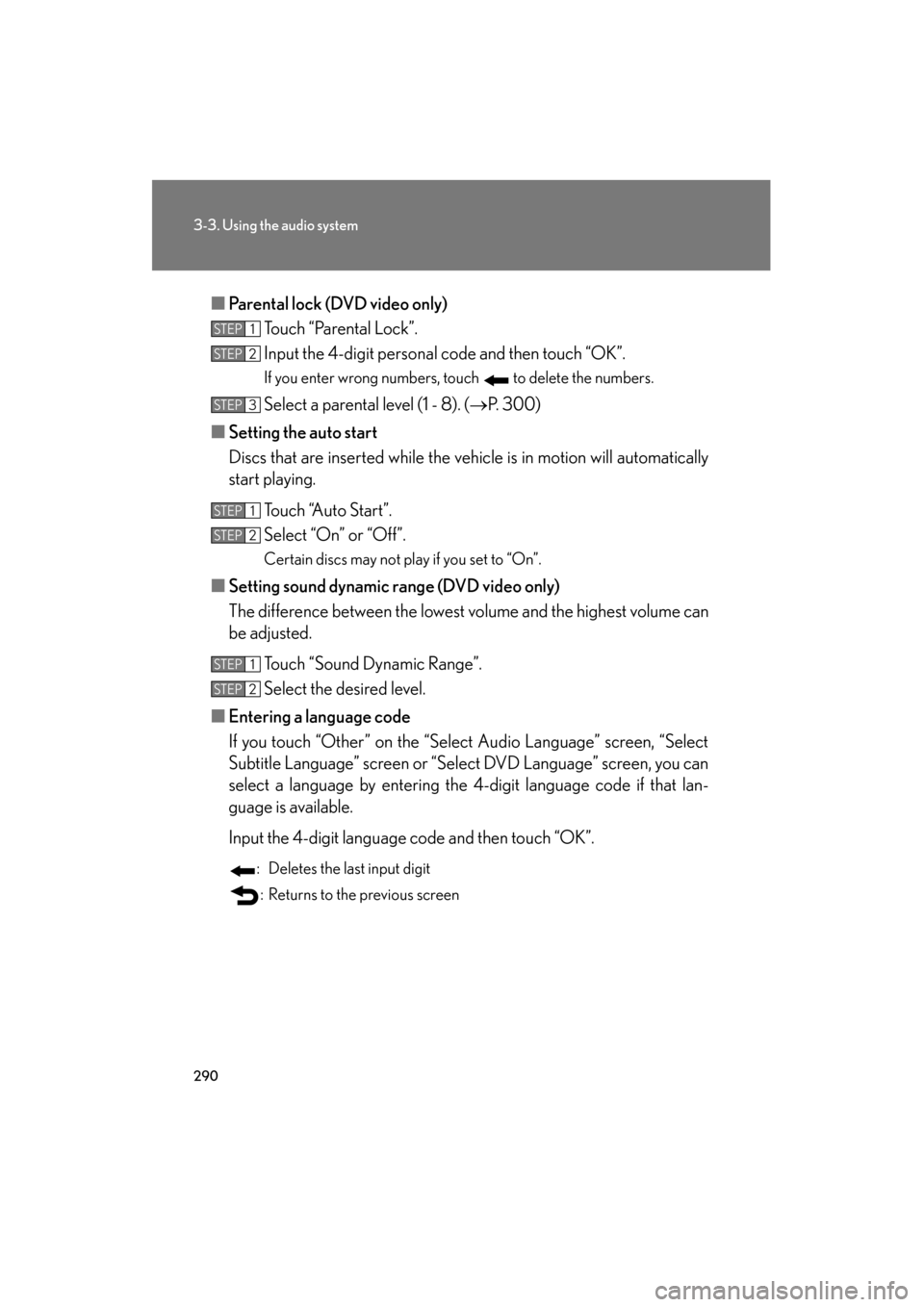

■Parental lock (DVD video only)
Touch “Parental Lock”.
Input the 4-digit personal code and then touch “OK”.
If you enter wrong numbers, touch to delete the numbers.
Select a parental level (1 - 8). ( →P. 300)
■ Setting the auto start
Discs that are inserted while the vehicle is in motion will automatically
start playing.
Touch “Auto Start”.
Select “On” or “Off”.
Certain discs may not play if you set to “On”.
■Setting sound dynamic range (DVD video only)
The difference between the lowest volume and the highest volume can
be adjusted.
Touch “Sound Dynamic Range”.
Select the desired level.
■ Entering a language code
If you touch “Other” on the “Select Audio Language” screen, “Select
Subtitle Language” screen or “Select DVD Language” screen, you can
select a language by entering the 4-digit language code if that lan-
guage is available.
Input the 4-digit language code and then touch “OK”.
: Deletes the last input digit
: Returns to the previous screen
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
GS_U_G.book Page 290 Wednesday, January 27, 2010 4:48 PM

291
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
●Language codes
CodeLanguageCodeLanguageCodeLanguage
0514English0207Bulgarian0712Galician
0618French0208Bihari0714Guarani
0405German0209Bislama0721Gujarati
0920Italian0214Bengali0801Hausa
0519Spanish0215Ti b e t a n0809Hindi
2608Chinese0218Breton0818Croatian
1412Dutch0301Catalan0821Hungarian
1620Portuguese0315Corsican0825Armenian
1922Swedish0319Czech0901Interlingua
1821Russian0325We l s h0905Interlingue
1115Korean0401Danish0911Inupiak
0512Greek0426Bhutani0914Indonesian
0101Afar0515Esperanto0919Icelandic
0102Abkhazian0520Estonian0923Hebrew
0106Afrikaans0521Basque1001Japanese
0113Amharic0601Pe r s i a n1009Yiddish
0118Arabic0609Finnish1023Javanese
0119Assamese0610Fiji1101Georgian
0125Ay m ara0615Faroe se1111Kazakh
0126Azerbaijani0625Frisian1112Greenlandic
0201Bashkir0701Irish1113Cambodian
0205Byelorussian0704Scots-Gaelic1114Kannada
GS_U_G.book Page 291 Wednesday, January 27, 2010 4:48 PM

292
3-3. Using the audio system
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

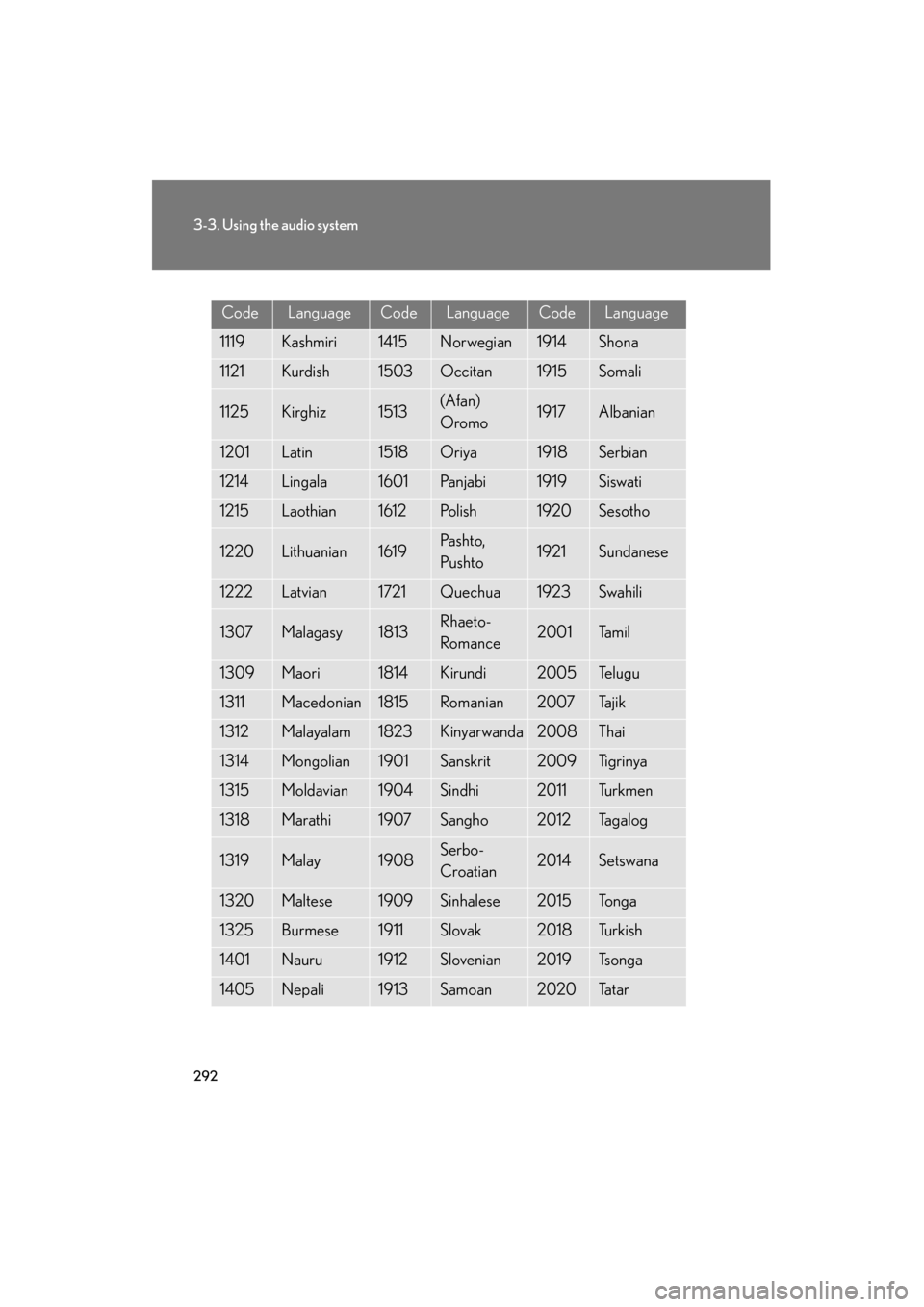

CodeLanguageCodeLanguageCodeLanguage
1119Kashmiri1415Norwegian1914Shona
1121Kurdish1503Occitan1915Somali
1125Kirghiz1513(Afan)
Oromo1917Albanian
1201Latin1518Oriya1918Serbian
1214Lingala1601Pa n j a b i1919Siswati
1215Laothian1612Po l i s h1920Sesotho
1220Lithuanian1619Pa s h t o,
Pushto1921Sundanese
1222Latvian1721Quechua1923Swahili
1307Malagasy1813Rhaeto-
Romance2001Ta m i l
1309Maori1814Kirundi2005Te l u g u
1311Macedonian1815Romanian2007Ta j i k
1312Malayalam1823Kinyarwanda2008Thai
1314Mongolian1901Sanskrit2009Ti g r i n y a
1315Moldavian1904Sindhi2011Tu r k m e n
1318Marathi1907Sangho2012Ta g a l o g
1319Malay1908Serbo-
Croatian2014Setswana
1320Maltese1909Sinhalese2015To n g a
1325Burmese1911Slovak2018Tu r k i s h
1401Nauru1912Slovenian2019Ts o n g a
1405Nepali1913Samoan2020Ta t a r
GS_U_G.book Page 292 Wednesday, January 27, 2010 4:48 PM

293
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CodeLanguageCodeLanguageCodeLanguage
2023Tw i2209Vietnamese2515Yo r u b a
2111Ukrainian2215Vo l a p ü k2621Zulu
2118Urdu2315Wo l o f
2126Uzbek2408Xhosa
■Error messages
If “Region Code Error” is displayed, check that the region code printed on the DVD
matches the player’s region code.
If a different message is displayed: →P. 2 9 7
GS_U_G.book Page 293 Wednesday, January 27, 2010 4:48 PM

294
3-3. Using the audio system
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Playing a video CD (with DVD player)
For safety reasons, you can enjoy the visual contents of discs only when the
vehicle is completely stopped with the “ENGINE START STOP” switch in
ACCESSORY or IGNITION ON mode and the parking brake applied.
While you are driving, only audio contents may be played.
Setting the
sound
(→
P. 3 2 6)
Disc slot
Disc eject
Disc load
Video control screen display button
Po w e r Vo l u m e Select disc
Track selection/
fast forward/rewind Playback
Disc selection
Vid e o CD
operation
GS_U_G.book Page 294 Wednesday, January 27, 2010 4:48 PM

295
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Loading, ejecting and selecting discs→ P. 2 7 0
Fast forwarding/rewinding a video CD
Touch and hold or on the control icon screen or press and hold
∧ or ∨ on until a beep is heard.
Slow playback
Touch and then touch on the control icon screen. Video is played
slowly while you are touching .
■ Settings screen
Touch “Settings” on the “Video CD” screen, the following screen
appears.
Change sound multiplex
Return to previous page
Search by track number
(→P. 2 8 4 )
Display the predetermined
scene and start playing from
there.
Change screen size
Go to next page
If appears on the screen when you touch an icon, the operation rel-
evant to that control is not permitted.
GS_U_G.book Page 295 Wednesday, January 27, 2010 4:48 PM

296
3-3. Using the audio system
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Using the video CD menuTouch “Return” on the “Settings” screen.
Refer to the manual that comes with the video CD for specific menu items.
Changing the sound-multiplex modeTouch “Main/Sub” on the “Settings” screen. The mode cycles through
each time the switch is touched. “Main/Sub” → “Main” → “Sub”
Changing the page
Disc menu displaying
Touch “Prev. Page” or “Next Page” to change the previous/next page.
While playing the video
Touch “Prev. Page” or “Next Page” to change the previous/next track.
Selecting a desired screen→ P. 2 8 4
■Error messages
→ P. 2 9 7
GS_U_G.book Page 296 Wednesday, January 27, 2010 4:48 PM

297
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CD/DVD player and DVD video disc information
■Error messages
Refer to the following table and take the appropriate measures. If the
problem is not rectified, take the vehicle to your Lexus dealer.
MessageCauseCorrection
Procedures
No CD or
No discThere is no disc in the CD
or DVD changerInsert a disc
Check CD X or
Check disc X
• The disc X is dirty or
damaged
• The disc X is inserted
upside down
• The disc X is not play- able with the player
• Clean the disc
• Insert the disc correctly
• Confirm the disc is play-
able with the player
CD Error or
DVD Error
• There is a malfunction within the system
• Operation is stopped due to a high tempera-
ture inside the player
• Eject the disc
• Eject the disc and allow the player to cool down
NO MUSIC FILE
This indicates that no
playable data is included
in the disc
Eject the disc
GS_U_G.book Page 297 Wednesday, January 27, 2010 4:48 PM

298
3-3. Using the audio system
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■DVD video discs
●The DVD player conforms to NTSC color TV formats.
● Region code: Some DVD video discs have a region code indicating
the region in which you can use the DVD video disc. If the DVD
video disc is not labeled as “ALL” or “1”, you cannot use it on this
DVD player. If you attempt to play an inappropriate DVD video disc
on this player, “Region Code Error” appears on the screen. Even if
the DVD video disc does not have a region code, you may not be
able to use it.
● The DVD player supports multi-channel sound output.
■Symbols shown on DVD video discs
MarkMeaning
Indicates NTSC format.
Indicates the number of audio tracks.
Indicates the number of language subtitles.
Indicates the number of angles.
Indicates the screen display ratios available.
Wide screen: 16:9
Standard: 4:3
Indicates the disc’s region code.
ALL: In all countries
Number: Region code
GS_U_G.book Page 298 Wednesday, January 27, 2010 4:48 PM

299
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.Without DV D player
With DVD player
Discs with copy-protection features may not play correctly.
■CD/DVD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected.
■If discs are left inside the CD/DVD player or in the ejected position for extended
periods
Discs may be damaged and may not play properly.
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD/DVD player.
