Lexus GS350 2010 Owner's Manual

380
3-4. Using the hands-free system (for cellular phone)
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Detailed settings
Changing the incoming call display mode
Changing the display phone status
To display the screen above, follow the steps below. Display the “Phone Settings” screen. (
→P. 353)
Touch “Details” on the “Phone Settings” screen.STEP1
STEP2
GS_U_G.book Page 380 Wednesday, January 27, 2010 4:48 PM

381
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Changing the incoming call display mode
You can select the method of the incoming call display.
Display the “Detailed Phone Settings” screen. (
→P. 380)
Touch “Incoming Call Display Mode” on the “Detailed Phone
Settings” screen.
Touch “Full Screen” or “Drop
Down”, and touch “Save”.
“Full Screen”:
The hands-free screen is dis-
played when a call is received,
and you can operate the system
from that screen.
“Drop Down”:
A message is displayed at the
top of the screen, and you can
only operate the system with the
steering switches.
■Changing the display phone status
You can set the system to show th e status confirmation display when
connecting.
Display the “Detailed Phone Settings” screen. (
→P. 380)
Touch “Display Phone Status” on the “Detailed Phone Settings”
screen.
Touch “On” or “Off”, and then “Save”.
STEP1
STEP2
STEP3
■To return to the default detailed phone settings
Touch “Default”, and then “Yes”.
STEP1
STEP2
STEP3
GS_U_G.book Page 381 Wednesday, January 27, 2010 4:48 PM

382
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
3-5. Using the interior lights
Interior lights list
Illuminated entry system: The various lights automatically turn on/off
according to the presence of the electronic key, whether the doors are
locked/unlocked, whether the doors are open/closed, and the “ENGINE
START STOP” switch mode.
When the instrument panel light control switch is turned to minimum, the foot
lights, inside door handle lights and shift lever light will turn off. (→P. 1 4 8 )
Outer foot light
Steering spot light
Front personal lights
(→P. 384)
Shift lever light
Front interior lights( →P. 383)
Inside door handle lightsRear personal lights (→P. 384)
Rear interior lights
Door courtesy lights
Foot light
Front scuff light
GS_U_G.book Page 382 Wednesday, January 27, 2010 4:48 PM

383
3-5. Using the interior lights
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

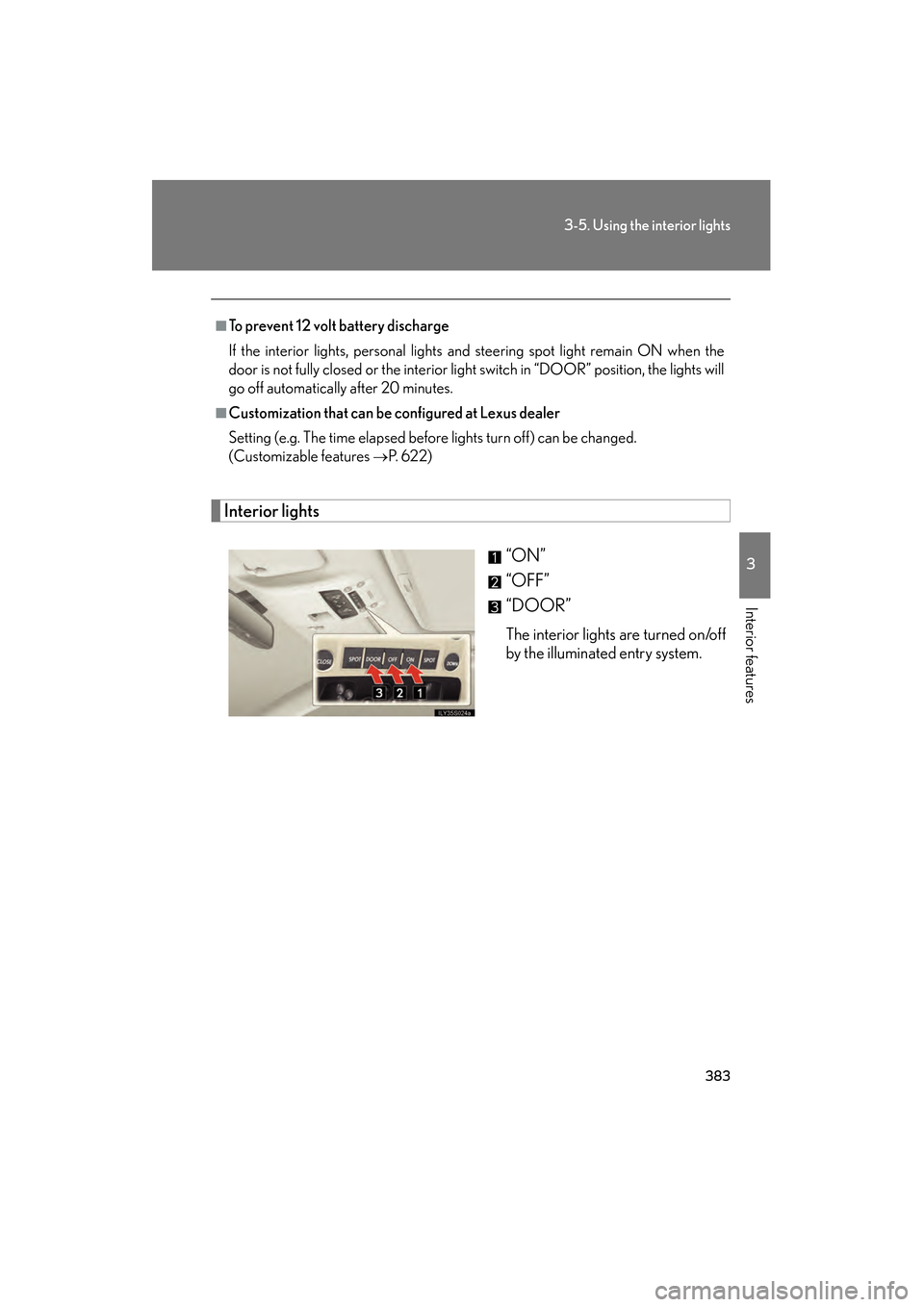

Interior lights“ON”
“OFF”
“DOOR”
The interior lights are turned on/off
by the illuminated entry system.
■To prevent 12 volt battery discharge
If the interior lights, personal lights and steering spot light remain ON when the
door is not fully closed or the interior light switch in “DOOR” position, the lights will
go off automatically after 20 minutes.
■Customization that can be configured at Lexus dealer
Setting (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
→P. 622)
GS_U_G.book Page 383 Wednesday, January 27, 2010 4:48 PM

384
3-5. Using the interior lights
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

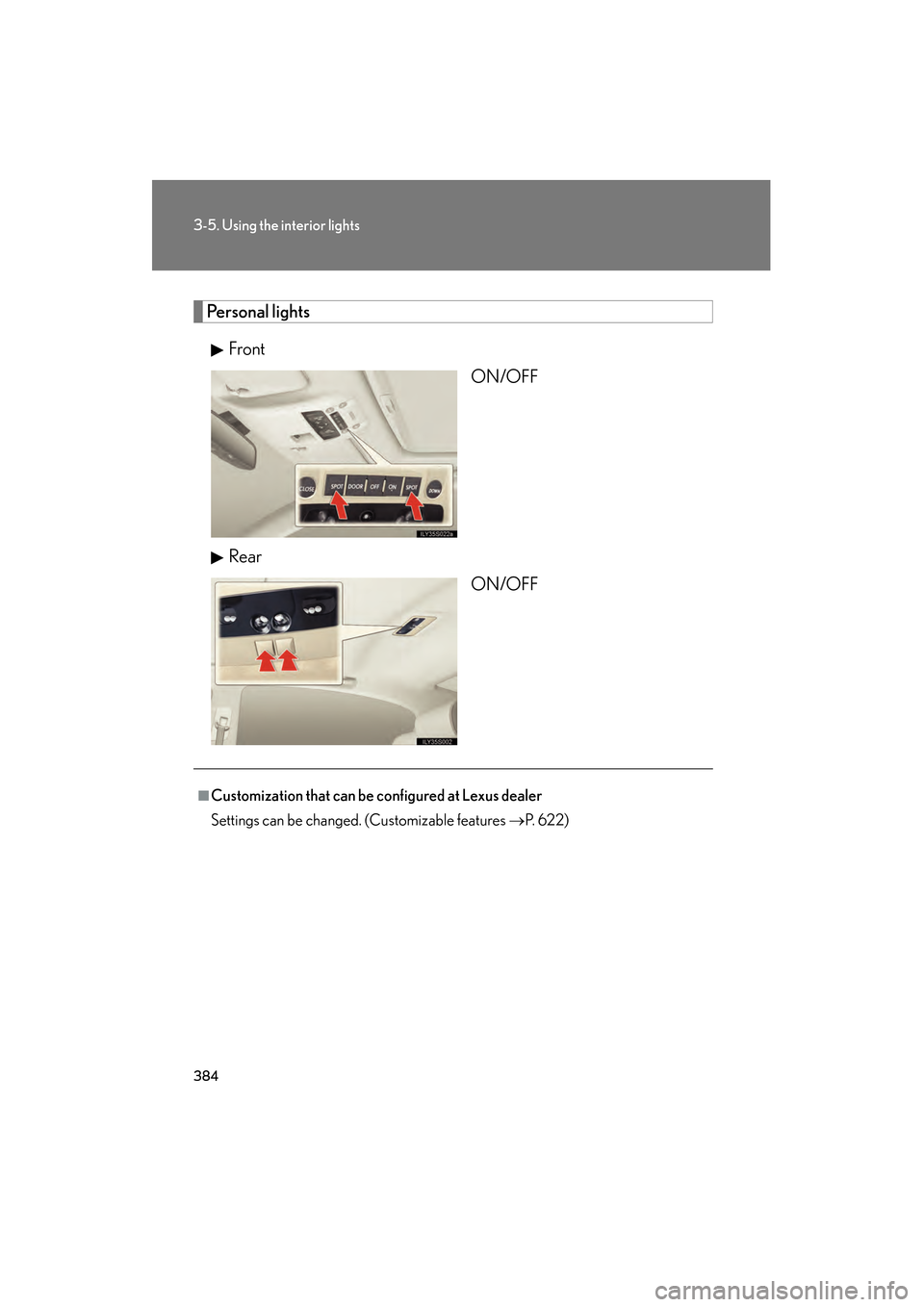

Personal lightsFront ON/OFF
Rear ON/OFF
■Customization that can be configured at Lexus dealer
Settings can be changed. (Customizable features →P. 622)
GS_U_G.book Page 384 Wednesday, January 27, 2010 4:48 PM

385
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

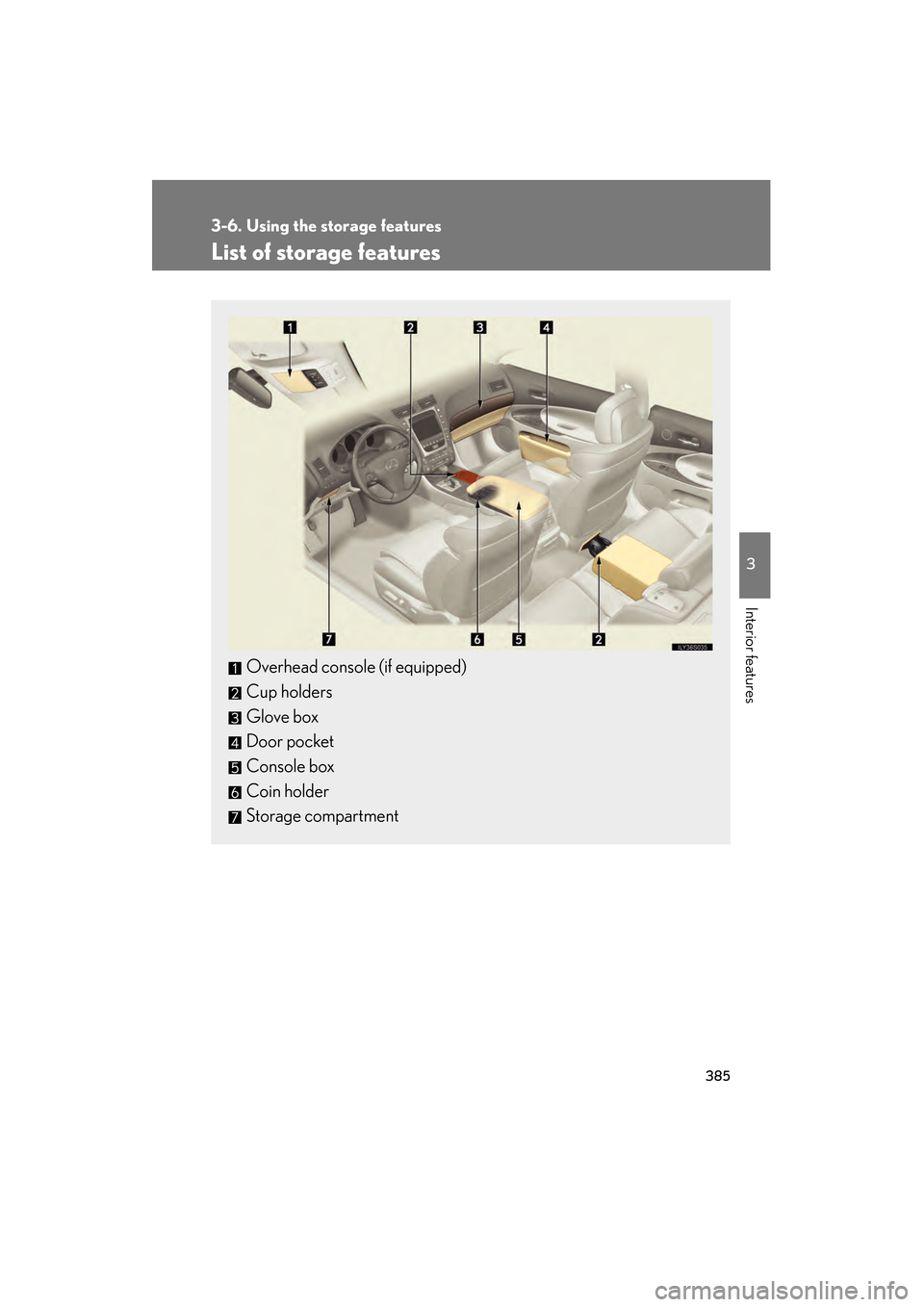

3-6. Using the storage features
List of storage features
Overhead console (if equipped)
Cup holders
Glove box
Door pocket
Console box
Coin holder
Storage compartment
GS_U_G.book Page 385 Wednesday, January 27, 2010 4:48 PM

386
3-6. Using the storage features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with
other stored items.
●Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
GS_U_G.book Page 386 Wednesday, January 27, 2010 4:48 PM

387
3-6. Using the storage features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Glove boxOpen (push button)
Unlock with the mechanical key
Lock with the mechanical key
■Glove box light
The glove box light turns on when the headlight switch is on.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( →P. 4 8 )
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of sudden braking, sudden swerving or an accident.
GS_U_G.book Page 387 Wednesday, January 27, 2010 4:48 PM

388
3-6. Using the storage features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

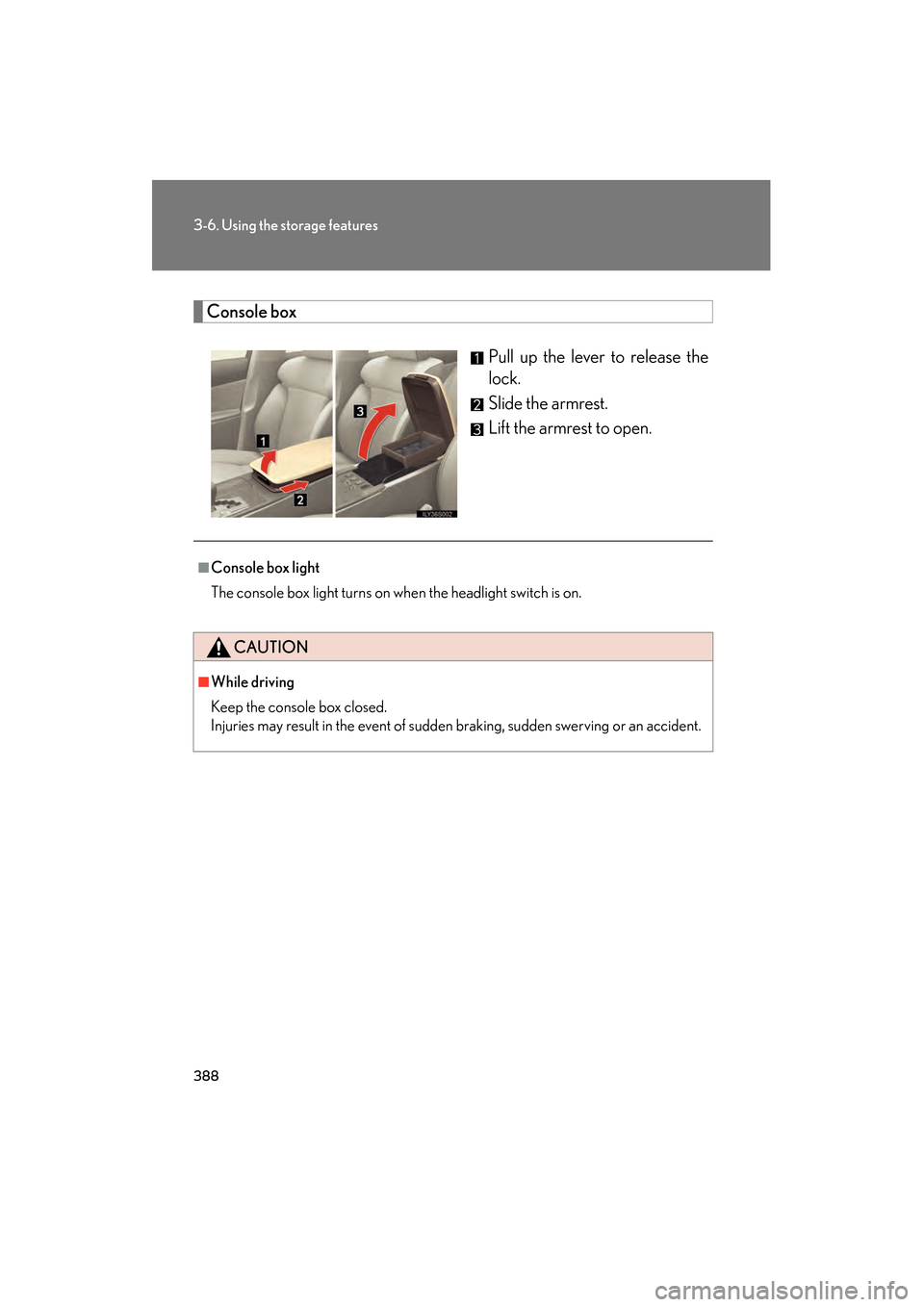

Console boxPull up the lever to release the
lock.
Slide the armrest.
Lift the armrest to open.
■Console box light
The console box light turns on when the headlight switch is on.
CAUTION
■While driving
Keep the console box closed.
Injuries may result in the event of sudden braking, sudden swerving or an accident.
GS_U_G.book Page 388 Wednesday, January 27, 2010 4:48 PM

389
3-6. Using the storage features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

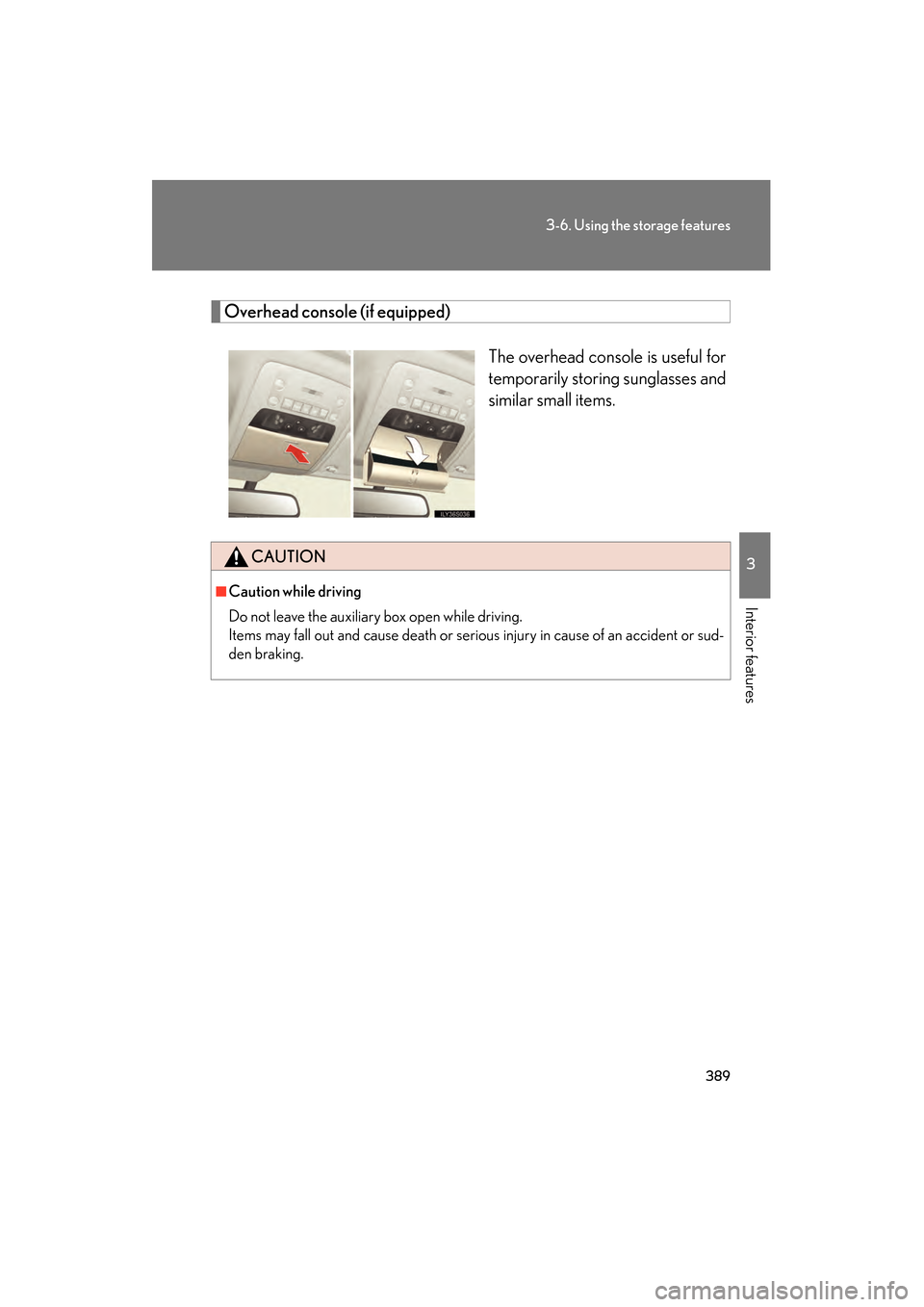

Overhead console (if equipped)The overhead console is useful for
temporarily storing sunglasses and
similar small items.
CAUTION
■Caution while driving
Do not leave the auxiliary box open while driving.
Items may fall out and cause death or serious injury in cause of an accident or sud-
den braking.
GS_U_G.book Page 389 Wednesday, January 27, 2010 4:48 PM
