Lexus GS350 2010 Owner's Manual

400
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Seat heaters/ventilators∗
■The seat heaters/ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Set the dial to “0”. The indicator light turns off.
∗: If equipped
The temperature of the seats can be adjusted individually.
■ Seat heaters
Heats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.
■Seat heaters/ventilators
Heats the seats
The indicator light (red) comes
on.
The higher the number, the
warmer the seats become.
Blows air from the seats
The indicator light (green)
comes on.
The higher the number, the
stronger the airflow becomes.
GS_U_G.book Page 400 Wednesday, January 27, 2010 4:48 PM

401
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
●Do not use seat heater more than necessary.
Doing so may cause minor burns or overheating.
NOTICE
■To prevent damage to the seat heaters/ventilators
Do not put heavy objects on the seat and do not stick sharp objects (needles, nails,
etc.) into the seat.
■To prevent 12 volt battery discharge
Turn the switches off when the engine is off.
GS_U_G.book Page 401 Wednesday, January 27, 2010 4:48 PM

402
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

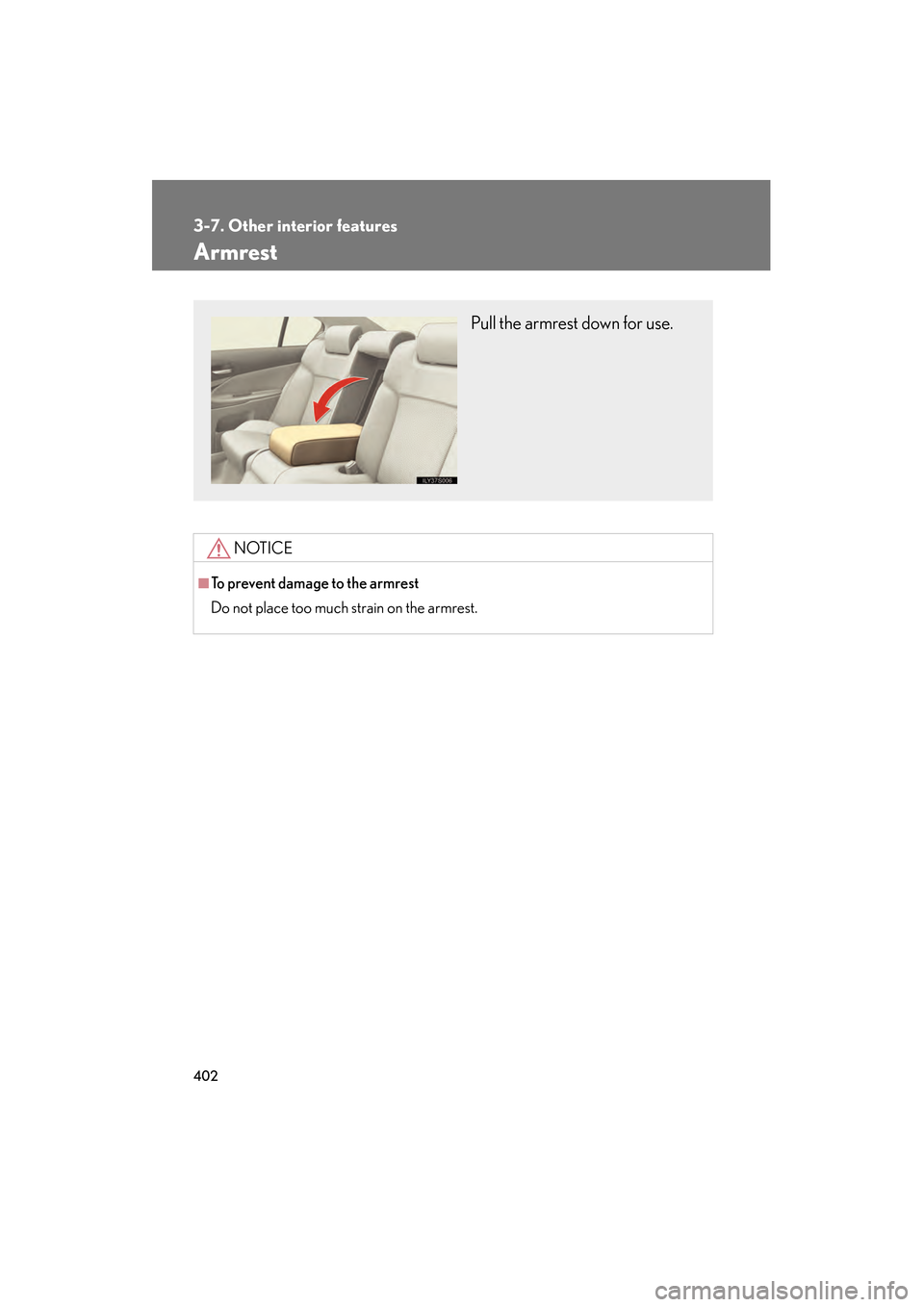

Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.
GS_U_G.book Page 402 Wednesday, January 27, 2010 4:48 PM

403
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Rear sunshade∗
∗: If equipped
The rear sunshade can be raised and lowered by pressing the switch shown
below.
Raise/lower
GS_U_G.book Page 403 Wednesday, January 27, 2010 4:48 PM

404
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■The rear sunshade can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Reverse operation feature
This function will become operational when the rear sunshade is in the raised posi-
tion and the vehicle has been driven at 9 mph (15 km/h) or more or with the shift
lever in P.
To ensure adequate rear visibility, the sunshade automatically lowers when the shift
lever is shifted to “R” and the function is in an operational condition.
However, the rear sunshade is raised again if any of the following occurs:
●Shift the shift lever into “P”.
●The shift lever is shifted out of “R”, and the vehicle reaches a speed of 9 mph
(15 km/h).
●The switch is pressed again.*
*
: Occasionally, the reverse function may not be carried out after the switch has been pressed. Repeat the above operation to operate the function.
If the engine is turned off when the rear sunshade has been lowered due to the
reverse operation feature, it will not be raised even when the engine is turned on
again and the vehicle reaches a speed of 9 mph (15 km/h). To raise the sunshade
again, press the switch.
■After the “ENGINE START STOP” switch is turned to OFF
The rear sunshade can be raised and lowered for approximately 1 minute.
■Customization that can be configured at Lexus dealer
Time elapsed before the reverse operation feature activates can be changed.
(Customizable features →P. 6 2 2 )
GS_U_G.book Page 404 Wednesday, January 27, 2010 4:48 PM

405
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■When the rear sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the opening.
They may get caught, causing injury.
NOTICE
■To prevent 12 volt battery discharge
Do not operate the rear sunshade when the engine is off.
■To ensure normal operation of the sunshade
Observe the following precautions.
●Do not place excessive load on the motor or other components.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear sunshade.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade continuously over long periods of time.
GS_U_G.book Page 405 Wednesday, January 27, 2010 4:48 PM

406
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

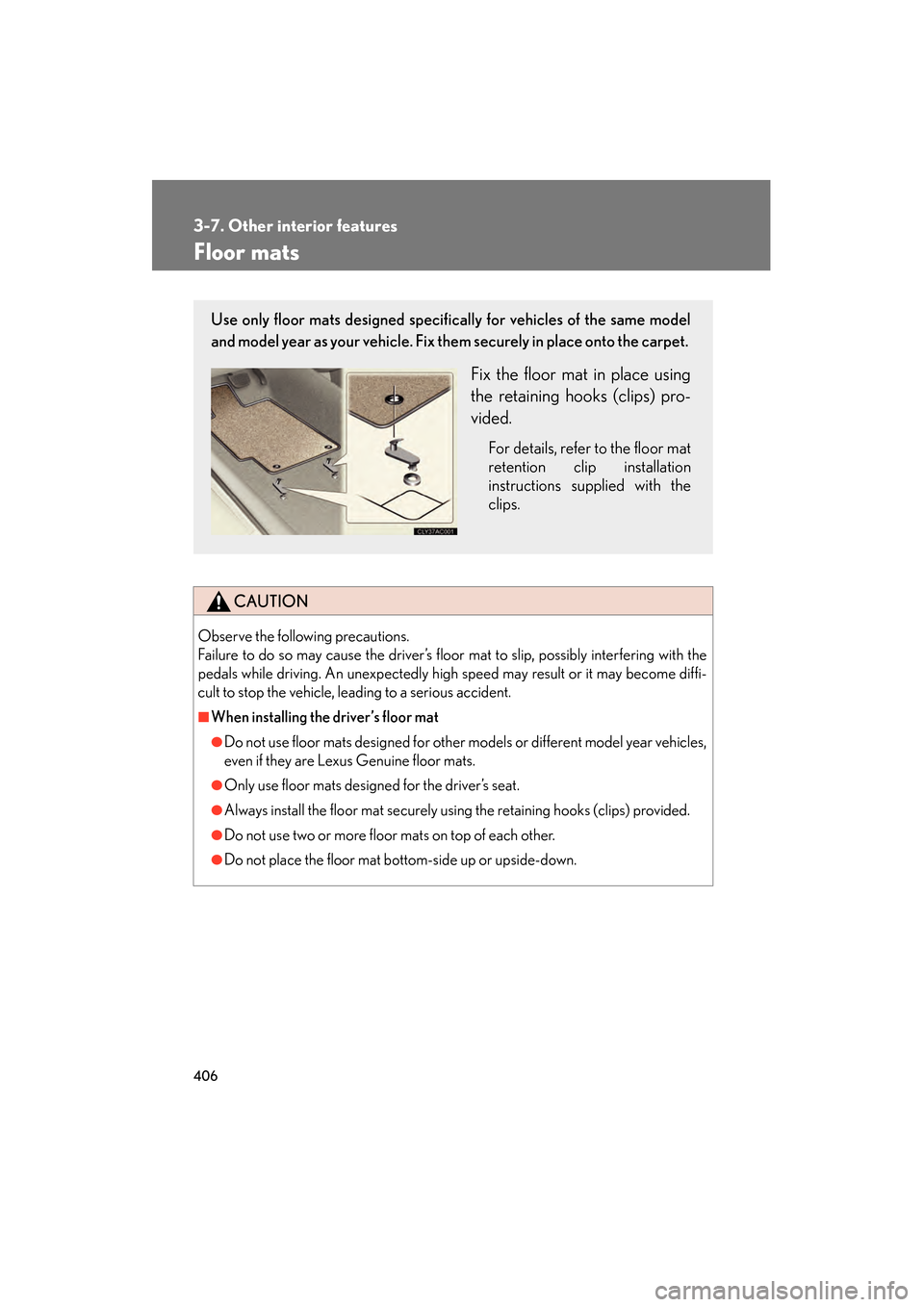

Floor mats
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the
pedals while driving. An unexpectedly high speed may result or it may become diffi-
cult to stop the vehicle, leading to a serious accident.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix them securely in place onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
For details, refer to the floor mat
retention clip installation
instructions supplied with the
clips.
GS_U_G.book Page 406 Wednesday, January 27, 2010 4:48 PM

407
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■Before driving
●Check that the floor mat is securely fixed in
the right place with all the provided retain-
ing hooks (clips). Be especially careful to
perform this check after cleaning the floor.
●With the engine stopped and the shift lever
in “P”, fully depress each pedal to the floor
to make sure it does not interfere with the
floor mat.
GS_U_G.book Page 407 Wednesday, January 27, 2010 4:48 PM

408
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

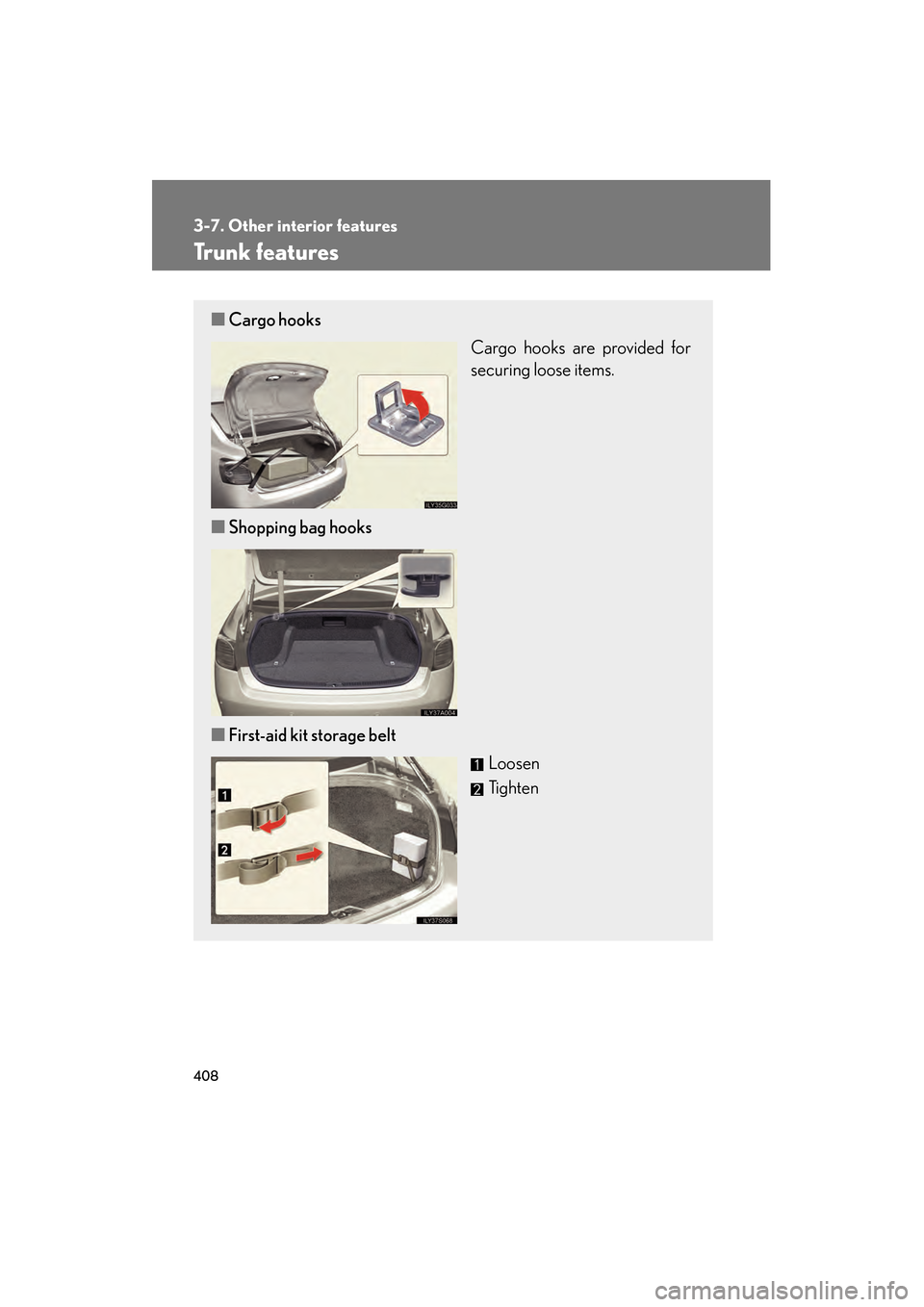

Trunk features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Shopping bag hooks
■ First-aid kit storage belt
Loosen
Tighten
GS_U_G.book Page 408 Wednesday, January 27, 2010 4:48 PM

409
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Trunk storage extensionPull down the rear armrest.Open (push down the handle)
Unlock with the mechanical key
Lock with the mechanical key
■Luggage mat
Pull the lever upwards when lift-
ing the luggage mat up.
The lever can be hooked on the
edge of the trunk.
GS_U_G.book Page 409 Wednesday, January 27, 2010 4:48 PM
