CD player Lexus GS350 2010 Owner's Guide

314
3-3. Using the audio system
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Compatible models
Portable players must correspond to the following specifications:
●Bluetooth® specification
Ve r. 1 .1 o r h i g h e r
(Recommended: Ver. 2.0+EDR or higher)
●Profile
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Recommended: Ver. 1.3 or higher)
However, please note that some functions may be limited depending on the type of
portable player.
Please go to the website at http://www.lexus.com/
to find approved portable play-
ers for this system.
■Certification
→ P. 3 3 6
■Reconnecting the portable player
If the portable player is disconnected with a poor reception when the “ENGINE
START STOP” switch is in ACCESSORY or IGNITION ON mode, the system
automatically reconnects the portable player.
If you have switched off the portable player yourself, follow the instructions below to
reconnect:
●Select the portable player again
●Enter the portable player
■When transferring ownership of your vehicle
Be sure to remove the registered portable player from the system.
GS_U_G.book Page 314 Wednesday, January 27, 2010 4:48 PM

315
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■While driving
Do not use the portable player or connect the Bluetooth
® system.
NOTICE
■When leaving the vehicle
Do not leave your portable player in the vehicle. The inside of the vehicle may
become hot, causing damage to the portable player.
GS_U_G.book Page 315 Wednesday, January 27, 2010 4:48 PM

317
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

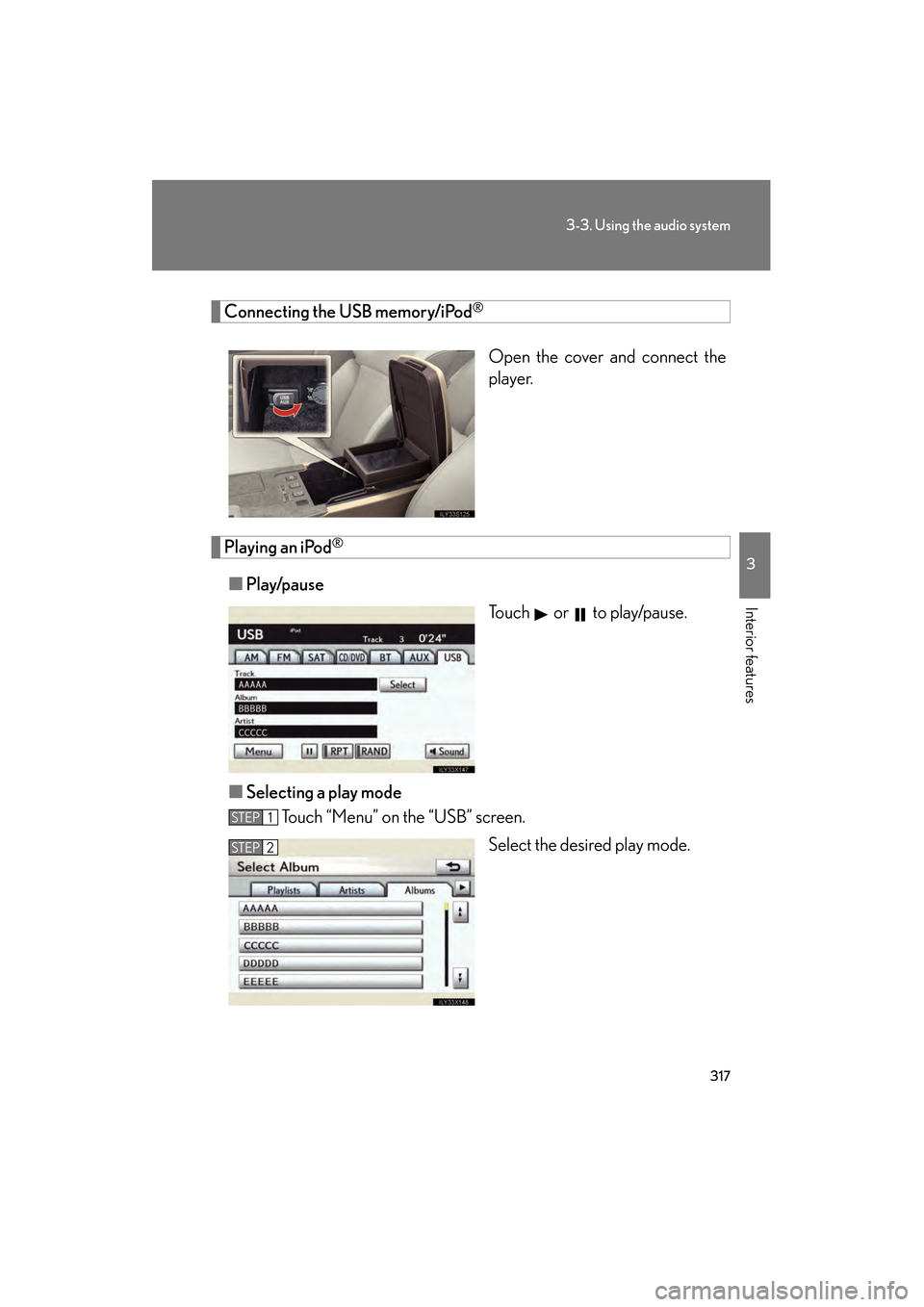

Connecting the USB memory/iPod®
Open the cover and connect the
player.
Playing an iPod®
■Play/pause
Touch or to play/pause.
■ Selecting a play mode
Touch “Menu” on the “USB” screen.
Select the desired play mode.
STEP1
STEP2
GS_U_G.book Page 317 Wednesday, January 27, 2010 4:48 PM

325
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

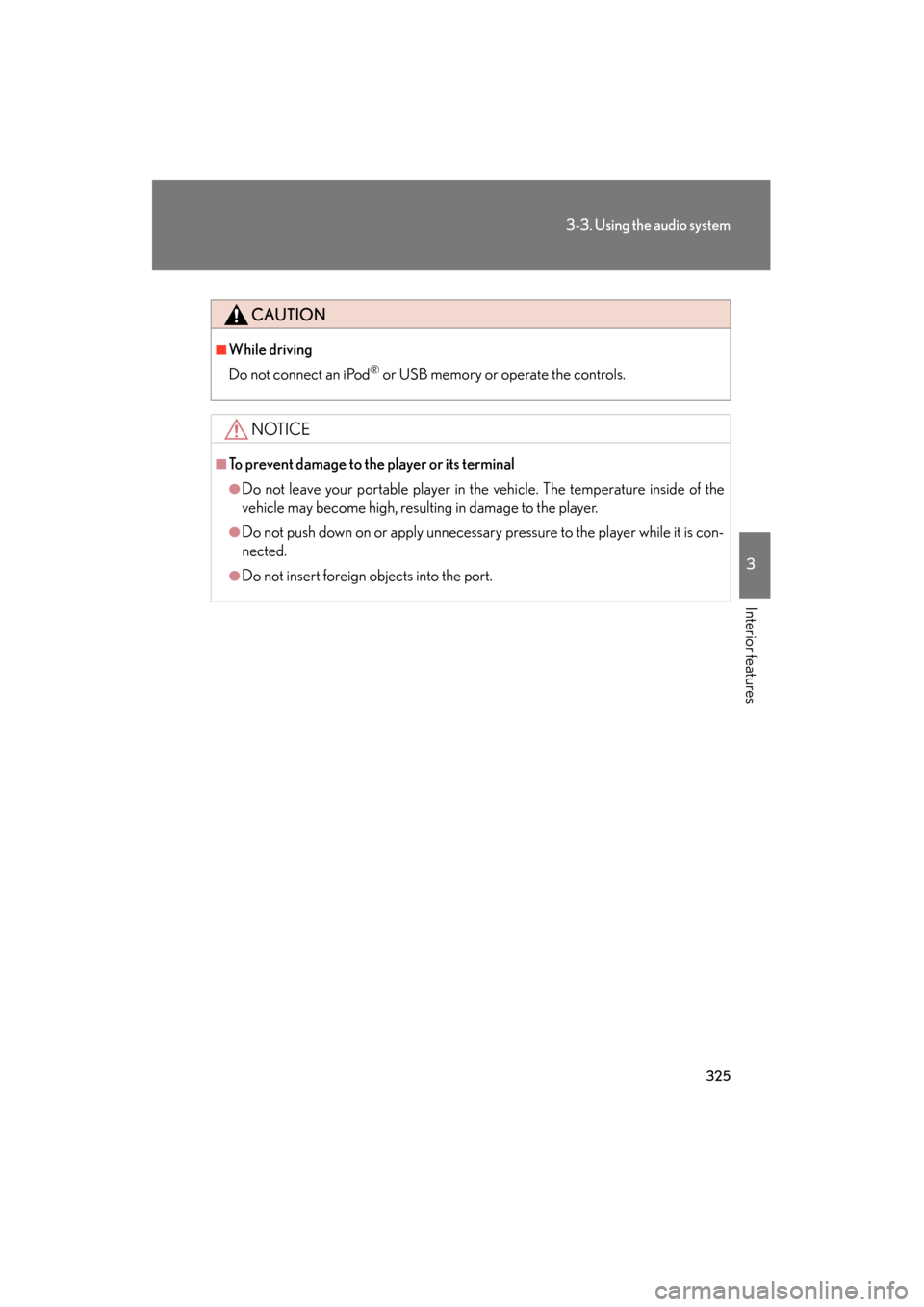

CAUTION
■While driving
Do not connect an iPod
® or USB memory or operate the controls.
NOTICE
■To prevent damage to the player or its terminal
●Do not leave your portable player in the vehicle. The temperature inside of the
vehicle may become high, resulting in damage to the player.
●Do not push down on or apply unnecessary pressure to the player while it is con-
nected.
●Do not insert foreign objects into the port.
GS_U_G.book Page 325 Wednesday, January 27, 2010 4:48 PM

329
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Using the steering switches
Some audio features can be controlled using the steering switches.
Power on, select audio
source
Vo l u m e
Radio mode: Selects a radiostation
CD mode: Selects a track, file
(MP3 and
WMA) and
disc
DVD mode
*: Selects a track, chapter
and disc
Bluetooth
® audio mode: Selects a track
and album
iPod
® mode: Selects a song
USB memory mode: Selects a file
and folder
*: DVD player only
GS_U_G.book Page 329 Wednesday, January 27, 2010 4:48 PM

330
3-3. Using the audio system
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Turning on the powerPress when the audio system is off.
The audio system can be turned off by holding the switch down for 1 second
or more.
Changing the audio sourcePress when the audio system is on. The audio source changes as fol-
lows each time the switch is pressed. If a mode cannot be used, it will be
skipped. FM (1, 2) → SAT (1, 2, 3) → CD/DVD player → Bluetooth
® audio
→ AUX → iPod
®/USB memory → AM
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down the switch to continue increasing or decreasing the volume.
Selecting a radio station Press to select the radio mode.
Press ∧ or ∨ on to select a radio station.
To seek stations, press and hold the switch until you hear a beep.
Selecting a track/file or chapter
Press to select CD/DVD, Bluetooth
® audio, iPod® or USB
memory mode.
Press ∧ or ∨ on to select the desired track/file or
chapter.
STEP1
STEP2
STEP1
STEP2
GS_U_G.book Page 330 Wednesday, January 27, 2010 4:48 PM

331
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Selecting a disc in the CD or DVD playerPress to select the CD or DVD mode.
Press and hold ∧ or ∨ on until you hear a beep.
Selecting an album
Press to select Bluetooth
® audio mode.
Press and hold ∧ or ∨ on until you hear a beep.
Selecting a folder
Press to select CD (only when MP3/WMA disc is in use) or
USB memory mode.
Press and hold ∧ or ∨ on until you hear a beep.
■Canceling automatic seek station
Push the same switch.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2
GS_U_G.book Page 331 Wednesday, January 27, 2010 4:48 PM

632
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Alphabetical index
Alphabetical index
A/C ............................................................ 246
ABS............................................................ 200
ACCESSORY mode .......................... 136
Active stabilizer suspension system.................................................... 200
Adaptive variable
suspension system ............................. 199
Air conditioning system
Air conditioning filter ....................... 479
Automatic air conditioning system .................................................. 246
Airbags
Airbag operating conditions........... 96
Airbag precautions for your child............................................. 100
Airbag warning light ........................535
Curtain shield airbag precautions ........................................ 103
General airbag pr ecautions ......... 100
Locations of airbags............................ 93
Modification and disposal of airbags .................................................. 104
Proper driving posture ........................ 91
Side airbag precautions .................. 100
Side and curtain shield airbags operating conditions ....................... 96
SRS airbags ............................................. 93 Alarm............................................................ 87
Antenna .................................................... 266
Anti-lock brake system ......................200
Armrest .................................................... 402
Ashtrays.................................................... 397
Audio input.............................................. 328
Audio system
Antenna.................................................. 266
Audio input........................................... 328
AUX port .............................................. 328
Bluetooth
® audio..............................308
CD player/changer ......................... 269
DVD information ...............................297
DVD player/changer ..................... 280
DVD video/audio............................. 280
iPod
®........................................................ 316
MP3/WMA disc................................276
Optimal use ..........................................326
Portable music player ..................... 328
Radio ....................................................... 260
Steering switches ...............................329
USB memory ........................................ 316
Video CD ..............................................294
Automatic headlight leveling
system ..................................................... 159
Automatic light control system.........157
Automatic transmission If the shift lever cannot be
shifted from “P” ............................... 569
Mode select switch ............................ 140
S mode ....................................................... 141
AUX port................................................. 328
A
GS_U_G.book Page 632 Wednesday, January 27, 2010 4:48 PM

633
Alphabetical index
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Back-up lightsWattage ................................................ 600
Battery 12 volt battery ...................................... 459
Checking ............................................... 459
If the 12 volt battery is
discharged ........................................ 574
Preparing and checking
before winter...................................... 219
Bluetooth
® audio ................................. 308
Bluetooth
® phone ............................... 332
Brake
Fluid .......................................................... 457
Parking brake ........................................ 145
Brake assist ............................................. 200
Care Exterior ................................................... 430
Interior..................................................... 433
Seat belts ............................................... 434
Cargo capacity ....................................... 214
Cargo hooks .......................................... 408
CD player/changer .............................269
Chains....................................................... 220
Child-protectors ......................................44
Child restraint system Definition................................................... 110
Installation.................................................. 114
Installing CRS with lower anchors ...................................................115
Installing CRS with seatbelts ........... 117
Installing CRS with top straps ......... 121 Child safety
Airbag precautions ............................100
Battery precautions ............. 460, 577
Child restraint system ......................... 110
Child-protectors ................................... 44
How your child should wear
the seatbelt............................................66
Installing child restraints..................... 114
Moon roof precautions....................... 81
Power window lock switch .............. 75
Power window precautions ............ 75
Removed electronic key battery
precautions....................................... 483
Seat belt comfort guide ..................... 64
Seat belt precautions .......................... 67
Seat heater precautions.................. 401
Trunk precautions................................ 50
Cigarette lighter................................... 398
Cleaning Exterior................................................... 430
Interior .....................................................433
Seat belts ................................................434
Clock .........................................................395
Coin holder .............................................390
Compass ....................................................417
Condenser .............................................. 457
Console box .......................................... 388
Cooling system Engine overheating.......................... 578
Cruise control
Cruise control........................................167
Dynamic radar cruise control......... 171
Cup holders ............................................. 391
Curtain shield airbags............................ 93
Customizable features ........................ 618
B
C
GS_U_G.book Page 633 Wednesday, January 27, 2010 4:48 PM

634
Alphabetical index
GS_G_U (OM30C80U)
February 1, 2010 9:58 am
Daytime running light system ........... 158
DefoggerRear window........................................255
Side mirror ............................................255
Dimension ............................................... 586
Dinghy towing ........................................ 225
Display Multi-information display.................154
Touch screen ....................................... 228
Trip information ................................... 155
Warning message............................. 543
Do-it-yourself maintenance ............. 442
Door courtesy lights ............................382
Door pocket............................................392
Doors Door lock...................................29, 41, 43
Rear door child protector ................ 44
Driver’s seat belt reminder light .....536
Driver’s seat position memory ...........55
Driving
Correct posture ...................................... 91
Procedures ............................................. 126
DVD player/changer......................... 280
Electric power steering ..................... 200
Electronic key If the electronic key does not operate properly ...................... 571
Replacing battery .............................. 482 Emergency, in case of
If a warning light turns on .............. 534
If a warning message is displayed ............................................ 543
If the electronic key does not operate properly ..................... 571
If the engine will not start .......................................................568
If the shift lever cannot be shifted from “P” ............................... 569
If the 12 volt battery is discharged ........................................574
If you have a flat tire ........... 556, 566
If you lose your keys ........................ 570
If you think something is wrong .................................................. 530
If your vehicle becomes stuck ......581
If your vehicle has to be stopped in an emergency ............................ 583
If your vehicle needs to be
towed ................................................... 520
If your vehicle overheats................ 578
Engine ACCESSORY mode....................... 136
Compartment ..................................... 448
Engine (ignition) switch.................... 135
Hood ....................................................... 445
How to start the engine ................... 135
If the engine will not start ...............568
Overheating ........................................ 578
Engine compartment cover ............. 450
Engine coolant temperature gauge ....................................................... 147D
E
sec_08-02.fm Page 634 Monday, February 1, 2010 9:59 AM
