engine Lexus GS350 2010 Manual Online

396
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Outside temperature display
■The outside temperature is displayed when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When “--” or “E” is displayed
The system may be malfunctioning. Take your vehicle to your Lexus dealer.
■On the multi-information display
→P. 1 5 6
■Display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
The displayed temperature ranges from -40°F (-40°C) up to 122°F
(50°C).
GS_U_G.book Page 396 Wednesday, January 27, 2010 4:48 PM

398
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Cigarette lighter
■The cigarette lighter can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
●Do not hold the cigarette lighter down. It could overheat and cause a fire.
●Do not insert anything other than the cigarette lighter into the outlet.
■When not in use
Keep the ashtray lid closed.
Injuries may result in the event of sudden braking, sudden swerving or an accident.
Slide the lid to open, and push
the cigarette lighter down.
The cigarette lighter will pop up
when ready for use.
GS_U_G.book Page 398 Wednesday, January 27, 2010 4:48 PM

399
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Power outlet
■The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12V/10A.
■To prevent 12 volt battery discharge
Do not use the power outlet longer than necessary when the engine is off.
The power outlet can be used for 12V accessories that run on less than
10A.
GS_U_G.book Page 399 Wednesday, January 27, 2010 4:48 PM

400
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Seat heaters/ventilators∗
■The seat heaters/ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Set the dial to “0”. The indicator light turns off.
∗: If equipped
The temperature of the seats can be adjusted individually.
■ Seat heaters
Heats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.
■Seat heaters/ventilators
Heats the seats
The indicator light (red) comes
on.
The higher the number, the
warmer the seats become.
Blows air from the seats
The indicator light (green)
comes on.
The higher the number, the
stronger the airflow becomes.
GS_U_G.book Page 400 Wednesday, January 27, 2010 4:48 PM

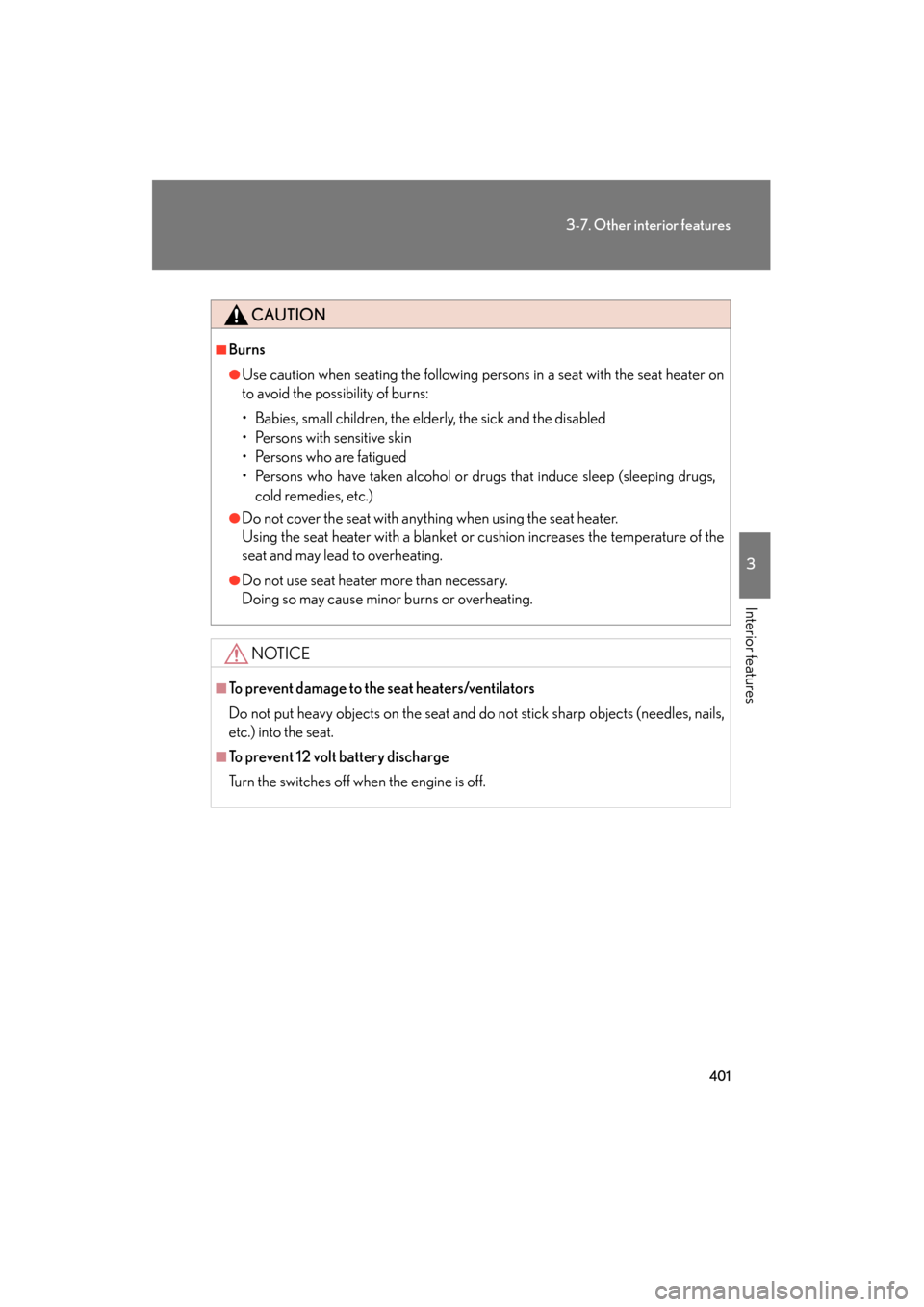

401
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
●Do not use seat heater more than necessary.
Doing so may cause minor burns or overheating.
NOTICE
■To prevent damage to the seat heaters/ventilators
Do not put heavy objects on the seat and do not stick sharp objects (needles, nails,
etc.) into the seat.
■To prevent 12 volt battery discharge
Turn the switches off when the engine is off.
GS_U_G.book Page 401 Wednesday, January 27, 2010 4:48 PM

404
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■The rear sunshade can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Reverse operation feature
This function will become operational when the rear sunshade is in the raised posi-
tion and the vehicle has been driven at 9 mph (15 km/h) or more or with the shift
lever in P.
To ensure adequate rear visibility, the sunshade automatically lowers when the shift
lever is shifted to “R” and the function is in an operational condition.
However, the rear sunshade is raised again if any of the following occurs:
●Shift the shift lever into “P”.
●The shift lever is shifted out of “R”, and the vehicle reaches a speed of 9 mph
(15 km/h).
●The switch is pressed again.*
*
: Occasionally, the reverse function may not be carried out after the switch has been pressed. Repeat the above operation to operate the function.
If the engine is turned off when the rear sunshade has been lowered due to the
reverse operation feature, it will not be raised even when the engine is turned on
again and the vehicle reaches a speed of 9 mph (15 km/h). To raise the sunshade
again, press the switch.
■After the “ENGINE START STOP” switch is turned to OFF
The rear sunshade can be raised and lowered for approximately 1 minute.
■Customization that can be configured at Lexus dealer
Time elapsed before the reverse operation feature activates can be changed.
(Customizable features →P. 6 2 2 )
GS_U_G.book Page 404 Wednesday, January 27, 2010 4:48 PM

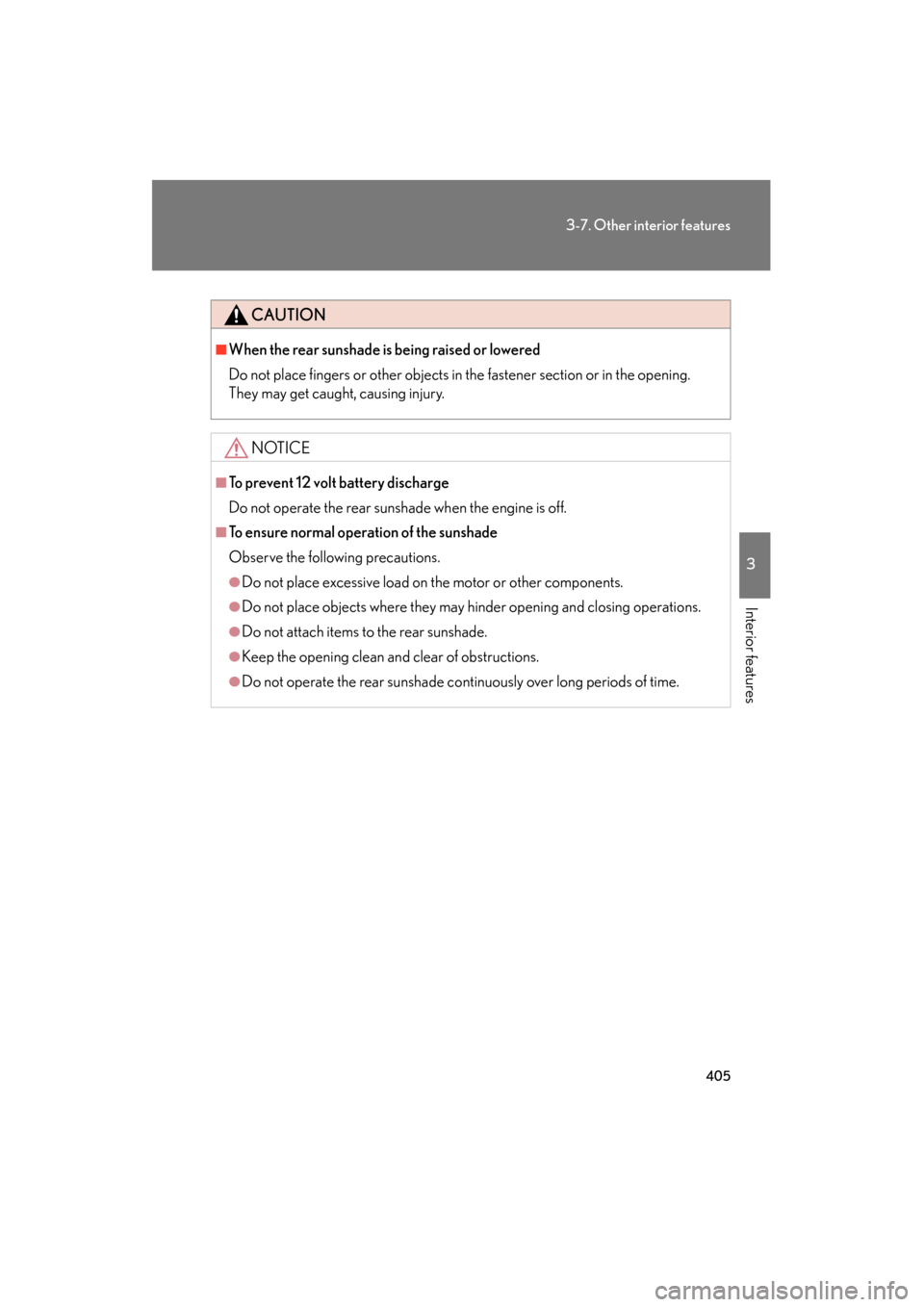

405
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■When the rear sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the opening.
They may get caught, causing injury.
NOTICE
■To prevent 12 volt battery discharge
Do not operate the rear sunshade when the engine is off.
■To ensure normal operation of the sunshade
Observe the following precautions.
●Do not place excessive load on the motor or other components.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear sunshade.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade continuously over long periods of time.
GS_U_G.book Page 405 Wednesday, January 27, 2010 4:48 PM

407
3-7. Other interior features
3
Interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■Before driving
●Check that the floor mat is securely fixed in
the right place with all the provided retain-
ing hooks (clips). Be especially careful to
perform this check after cleaning the floor.
●With the engine stopped and the shift lever
in “P”, fully depress each pedal to the floor
to make sure it does not interfere with the
floor mat.
GS_U_G.book Page 407 Wednesday, January 27, 2010 4:48 PM

424
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Safety Connect LED light IndicatorsWhen the “ENGINE START STOP” switch is turned to IGNITION ON
mode, the red indicator light comes on for 2 seconds then turns off.
Afterward, the green indicator light comes on, indicating that the service
is active.
The following indicator light patterns indicate specific system usage con-
ditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
● No indicator light (off) = Safety Connect service not active
Safety Connect services
■ Automatic Collis ion Notification
In case of either airbag deployment or severe collision, the system is
designed to automatically call the response center. The responding
agent receives the vehicle’s location and attempts to speak with the
vehicle occupants to assess the level of emergency. If the occupants
are unable to communicate, the agent automatically treats the call as
an emergency, contacts the nearest emergency services provider to
describe the situation, and requests that assistance be sent to the loca-
tion.
GS_U_G.book Page 424 Wednesday, January 27, 2010 4:48 PM

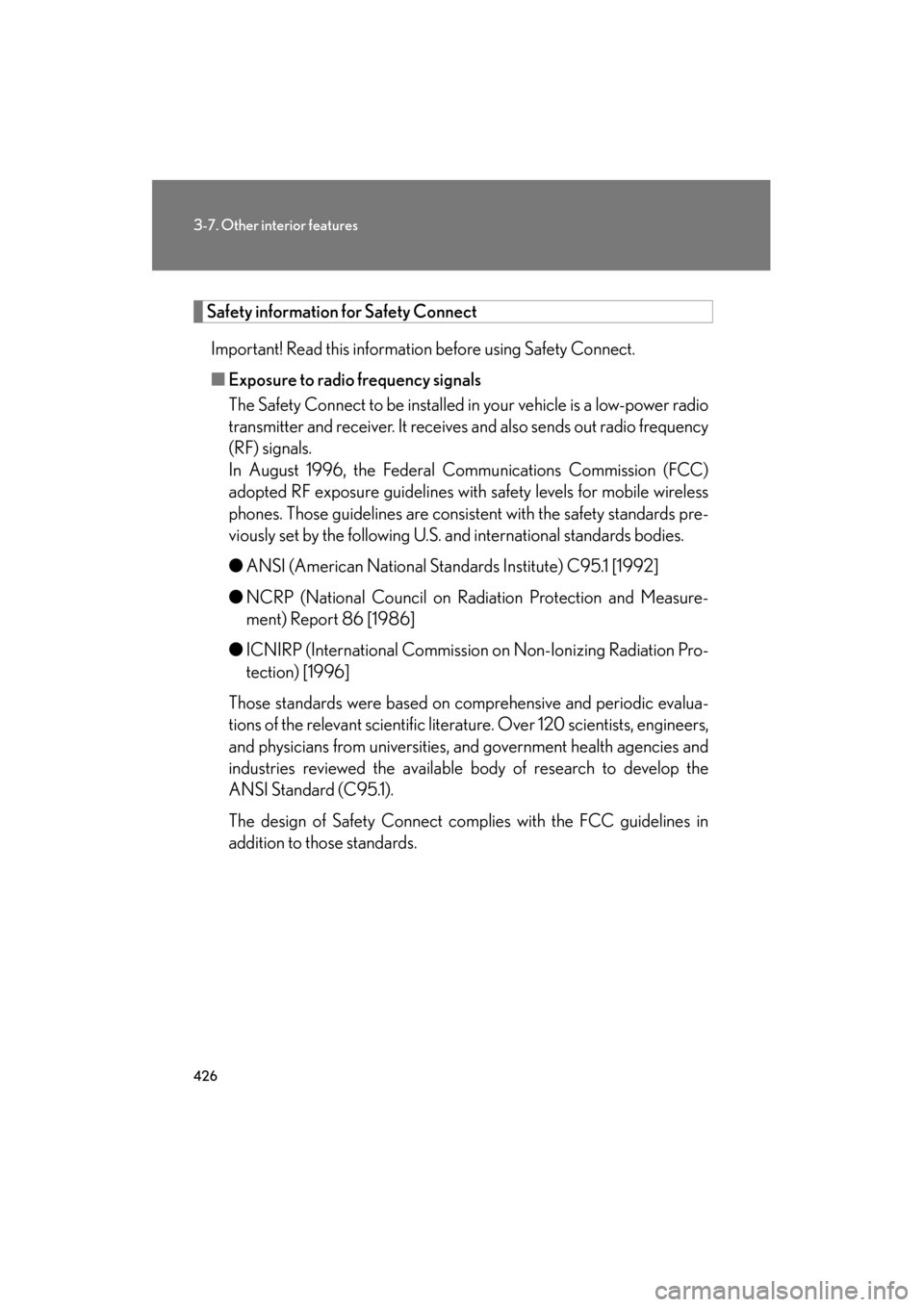

426
3-7. Other interior features
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Safety information for Safety ConnectImportant! Read this information before using Safety Connect.
■ Exposure to radio frequency signals
The Safety Connect to be installed in your vehicle is a low-power radio
transmitter and receiver. It receives and also sends out radio frequency
(RF) signals.
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wireless
phones. Those guidelines are consistent with the safety standards pre-
viously set by the following U.S. and international standards bodies.
● ANSI (American National Standards Institute) C95.1 [1992]
● NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]
● ICNIRP (International Commission on Non-Ionizing Radiation Pro-
tection) [1996]
Those standards were based on comprehensive and periodic evalua-
tions of the relevant scientific literature. Over 120 scientists, engineers,
and physicians from universities, and government health agencies and
industries reviewed the available body of research to develop the
ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.
GS_U_G.book Page 426 Wednesday, January 27, 2010 4:48 PM
