engine Lexus GS350 2010 Owner's Manual

When trouble arises5
519
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
5-1. Essential informationEmergency flashers.............. 520
If your vehicle needs to be towed ............................. 521
If you think something is wrong ..................................... 530
Fuel pump shut off system ...................................... 531
Event data recorder .............. 532 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds..................................... 534
If a warning message is displayed................................ 543
If you have a flat tire (Vehicles with standard tires) ............. 556
If you have a flat tire (Vehicles with run-flat tires)................ 566
If the engine will not start .... 568
If the shift lever cannot be shifted from “P”.................... 569
If you lose your keys .............. 570
If the electronic key does not operate properly............ 571
If the 12 volt battery is discharged ............................. 574
If your vehicle overheats ..... 578
If the vehicle becomes stuck......................................... 581
If your vehicle has to be stopped in an emergency .................. 583
GS_U_G.book Page 519 Wednesday, January 27, 2010 4:48 PM

520
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
5-1. Essential information

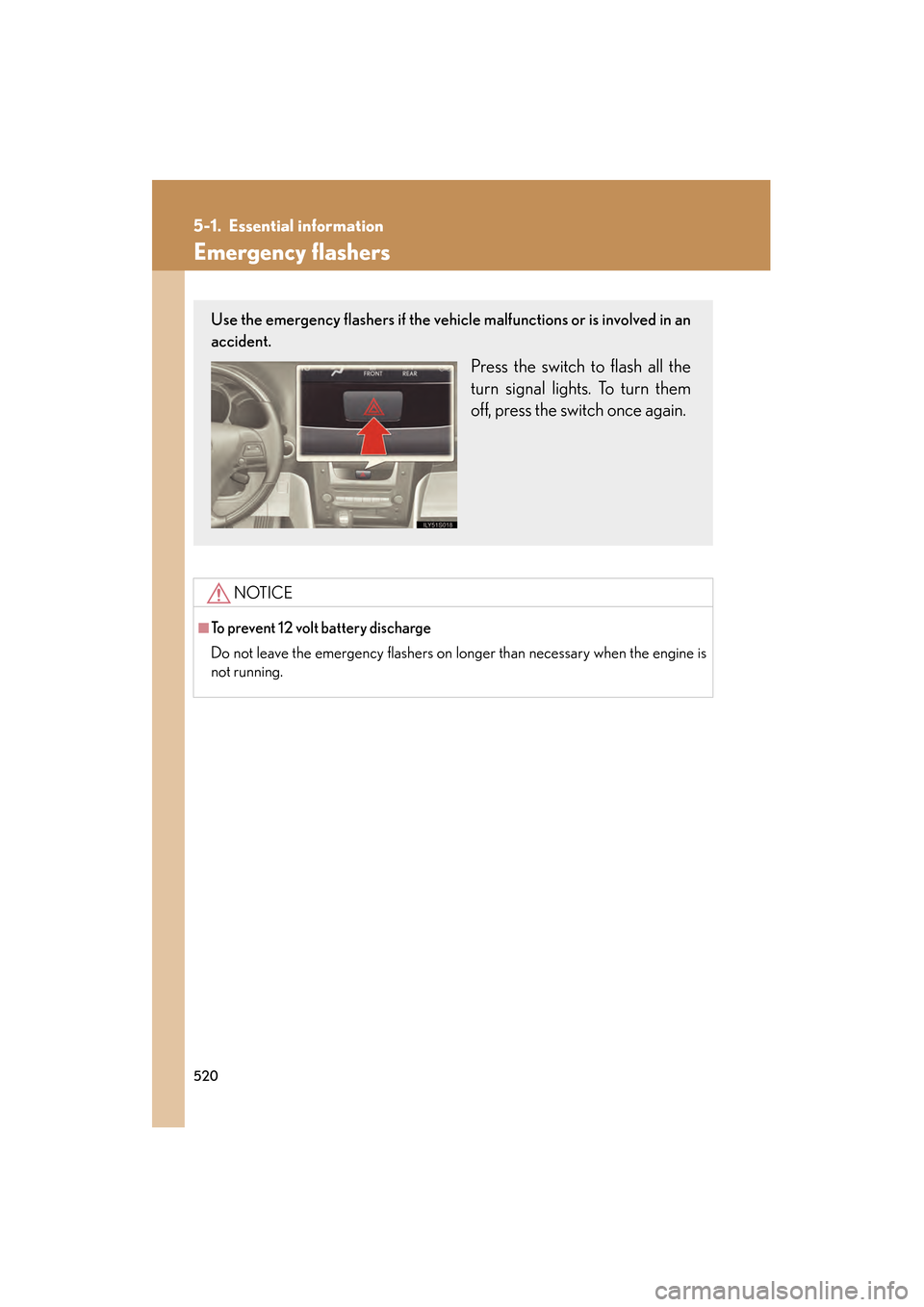

Emergency flashers
NOTICE
■To prevent 12 volt battery discharge
Do not leave the emergency flashers on longer than necessary when the engine is
not running.
Use the emergency flashers if the vehicle malfunctions or is involved in an
accident.
Press the switch to flash all the
turn signal lights. To turn them
off, press the switch once again.
GS_U_G.book Page 520 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
521
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

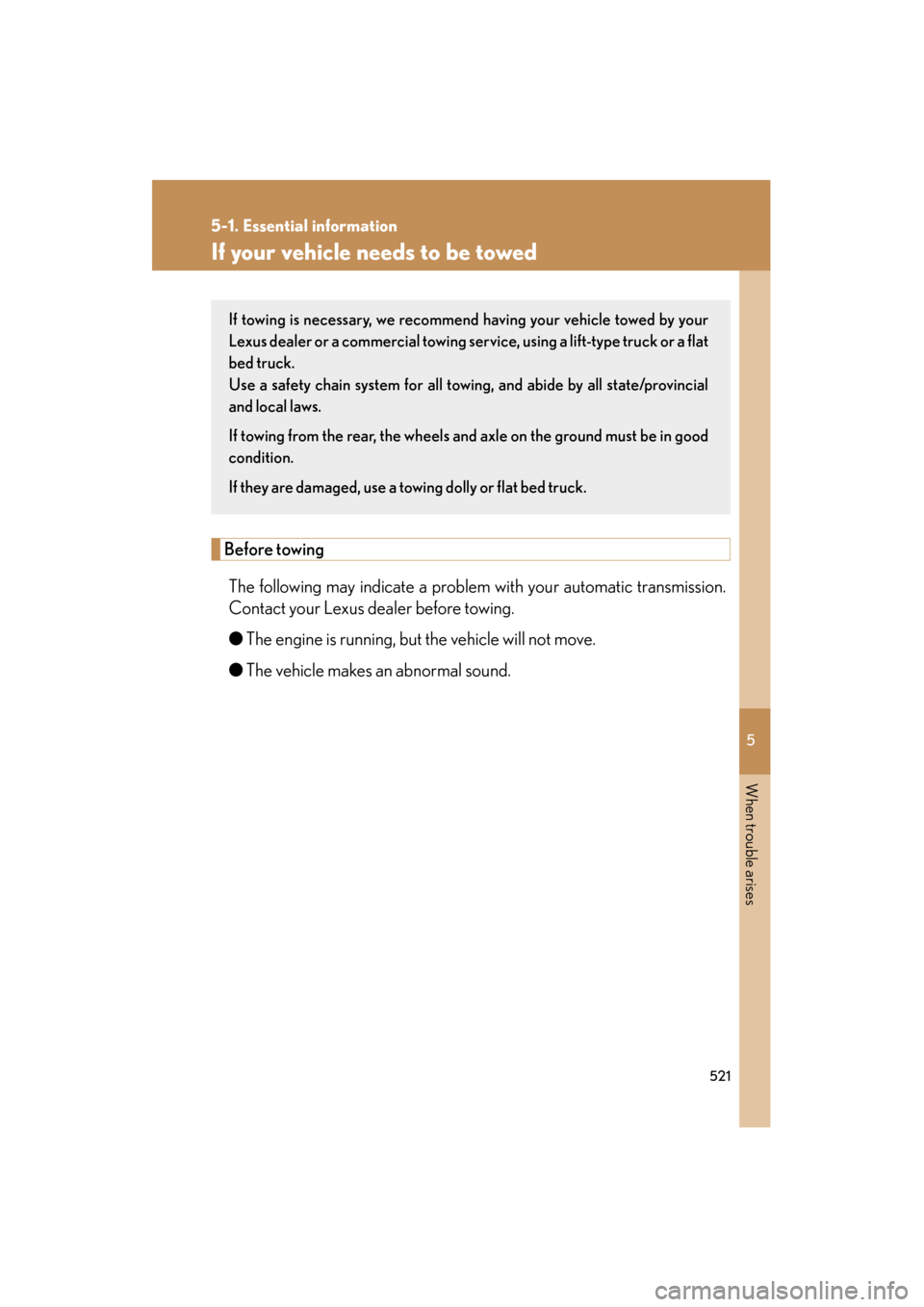

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your automatic transmission.
Contact your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the rear, the wheels and axle on the ground must be in good
condition.
If they are damaged, use a towing dolly or flat bed truck.
GS_U_G.book Page 521 Wednesday, January 27, 2010 4:48 PM

522
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Emergency towingIf a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only be attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steer ing and brakes must be in good condi-
tion.
Towing eyelet
■Emergency towing procedure Release the parking brake.
Put the shift lever in “N”.
The “ENGINE START STOP” switch must be in the ACCESSORY mode
(engine off) or the IGNITION ON mode (engine on).
STEP1
STEP2
STEP3
GS_U_G.book Page 522 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
523
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

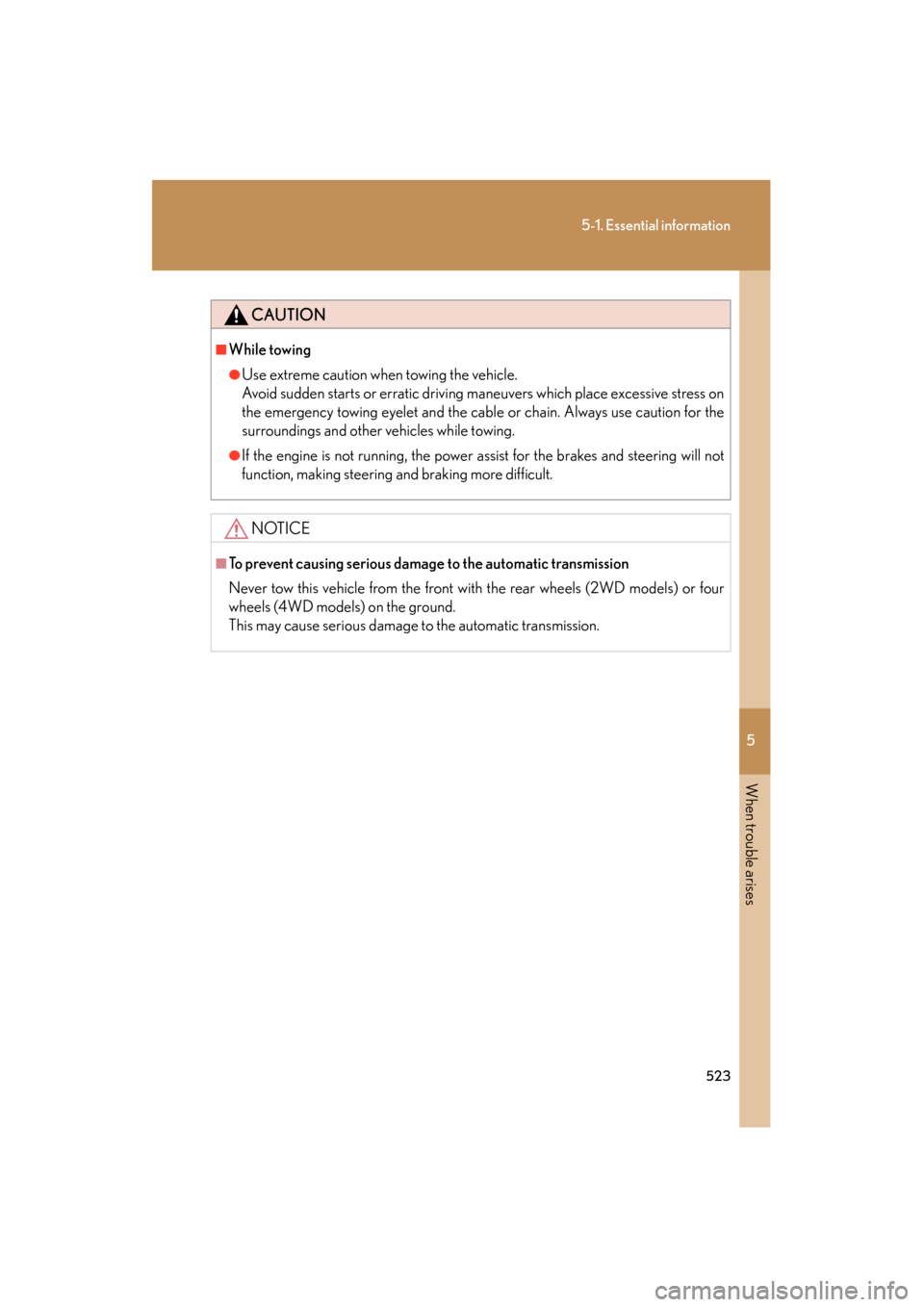

CAUTION
■While towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain. Always use caution for the
surroundings and other vehicles while towing.
●If the engine is not running, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the automatic transmission
Never tow this vehicle from the front with the rear wheels (2WD models) or four
wheels (4WD models) on the ground.
This may cause serious damage to the automatic transmission.
GS_U_G.book Page 523 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
527
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Towing with a wheel lift-type truckFrom front Use a towing dolly under the rear
wheels.
From rear (2WD models) Turn the “ENGINE START STOP”
switch to the ACCESSORY mode
so that the steering wheel is
unlocked.
From rear (4WD models) Use a towing dolly under the front
wheels.
GS_U_G.book Page 527 Wednesday, January 27, 2010 4:48 PM

528
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
NOTICE
■To prevent causing serious damage to the automatic transmission
Never tow this vehicle from the front with the rear wheels on the ground.
■To prevent damaging the vehicle
●Do not tow the vehicle with the “ENGINE START STOP” switch is OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle
could be damaged while being towed.
GS_U_G.book Page 528 Wednesday, January 27, 2010 4:48 PM

530
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor
GS_U_G.book Page 530 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
531
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is acti-
vated.Turn the “ENGINE START STOP” switch to the ACCESSORY
mode or OFF.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an airbag
inflates upon collision, the fuel pump shut off system stops supplying fuel to
the engine.
STEP1
STEP2
GS_U_G.book Page 531 Wednesday, January 27, 2010 4:48 PM

532
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly contains the EDR. In a crash or a near
car crash event, this device may record some or all of the following infor-
mation:
● Engine speed
● Whether the brake pedal was applied or not
● Ve h i c l e s p e e d
● To what extent the accelerator pedal was depressed
● Position of the automatic transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver’s seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
● Front passenger’s occupant classification
Your vehicle has computers that monitor and control certain aspects of
your vehicle. These computers assist in driving and maintaining optimal
vehicle performance.
Besides storing data useful for troubleshooting, there is a system to record
data in a crash or a near car crash event. This is called an Event Data
Recorder (EDR).
GS_U_G.book Page 532 Wednesday, January 27, 2010 4:48 PM
