hood release Lexus GS350 2010 Owner's Manual

14
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 157
P. 144
P. 160
Gauges and meters P. 147
Multi-information display P. 154Windshield wipers and
washer switch
P. 161
Parking brake pedal P. 145
Trunk opener main switch
P. 48
Glove box
P. 387
Hood lock release lever P. 445
Engine (ignition) switch P. 135
Trunk opener P. 48
Fuel filler door opener P. 82
Horn P. 146
Pre-collision braking off switch∗ P. 207
GS_U_G.book Page 14 Wednesday, January 27, 2010 4:48 PM

445
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

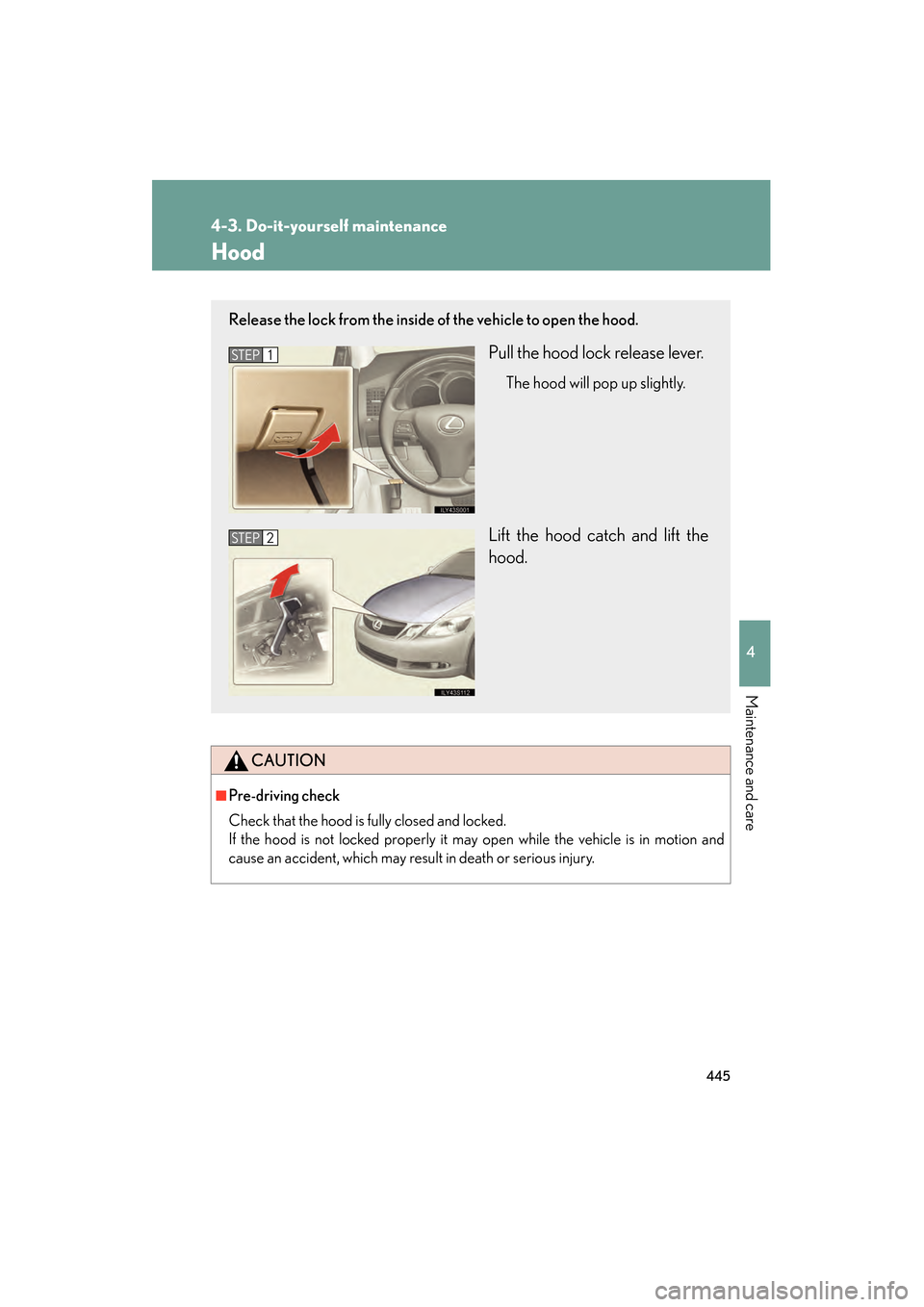

Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release lever.
The hood will pop up slightly.
Lift the hood catch and lift the
hood.
STEP1
STEP2
GS_U_G.book Page 445 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
579
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injury such as burns.
●Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add coolant if necessary.
Water can be used in an emer-
gency measure if coolant is
unavailable. (→P. 5 9 4 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6
GS_U_G.book Page 579 Wednesday, January 27, 2010 4:48 PM

648
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
GAS STATION INFORMATION
Auxiliary catch lever
P. 4 4 5
Trunk opener
P. 4 8
Fuel filler door
P. 8 2
Hood lock release lever
P. 4 4 5
Fuel filler door opener
P. 8 2
Tire inflation pressure
P. 5 9 8
Fuel tank capacity18.7 gal. (71 L, 15.6 Imp.gal.)
Fuel typePremium unleaded gasoline onlyP. 83, 589
Cold tire inflation
pressureP. 5 9 8
Engine oil capacity
(Drain and refill)
With filter
Without filterqt. (L, Imp.qt.)
GS460 GS350 (2WD) GS350 (4WD)
9.1 (8.6, 7.6) 6.6 (6.3, 5.5) 6.7 (6.4, 5.6)
8.9 (8.4, 7.4) 6.2 (5.9, 5.2) 6.3 (6.0, 5.3)
Engine oil type“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil P. 590
GS_U_G.book Page 648 Wednesday, January 27, 2010 4:48 PM
