Lexus GS350 2010 Specifications / LEXUS 2010 GS460 GS350 OWNERS MANUAL (OM30C80U)

271
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
Selecting a disc
■To select a disc to play
Touch “Change Discs” on the screen.
Touch the desired disc on the
screen or press  or on .
STEP1
STEP2
■When loading a disc
If you do not insert a disc within 15 seconds, loading will be canceled automatically.
■Vehicles with DVD player
This screen appears when the video screen is
first displayed after the “ENGINE START
STOP” switch in ACCESSORY or IGNI-
TION ON mode.

272
3-3. Using the audio system
GS_G_U (OM30C80U)
June 29, 2011 10:30 am

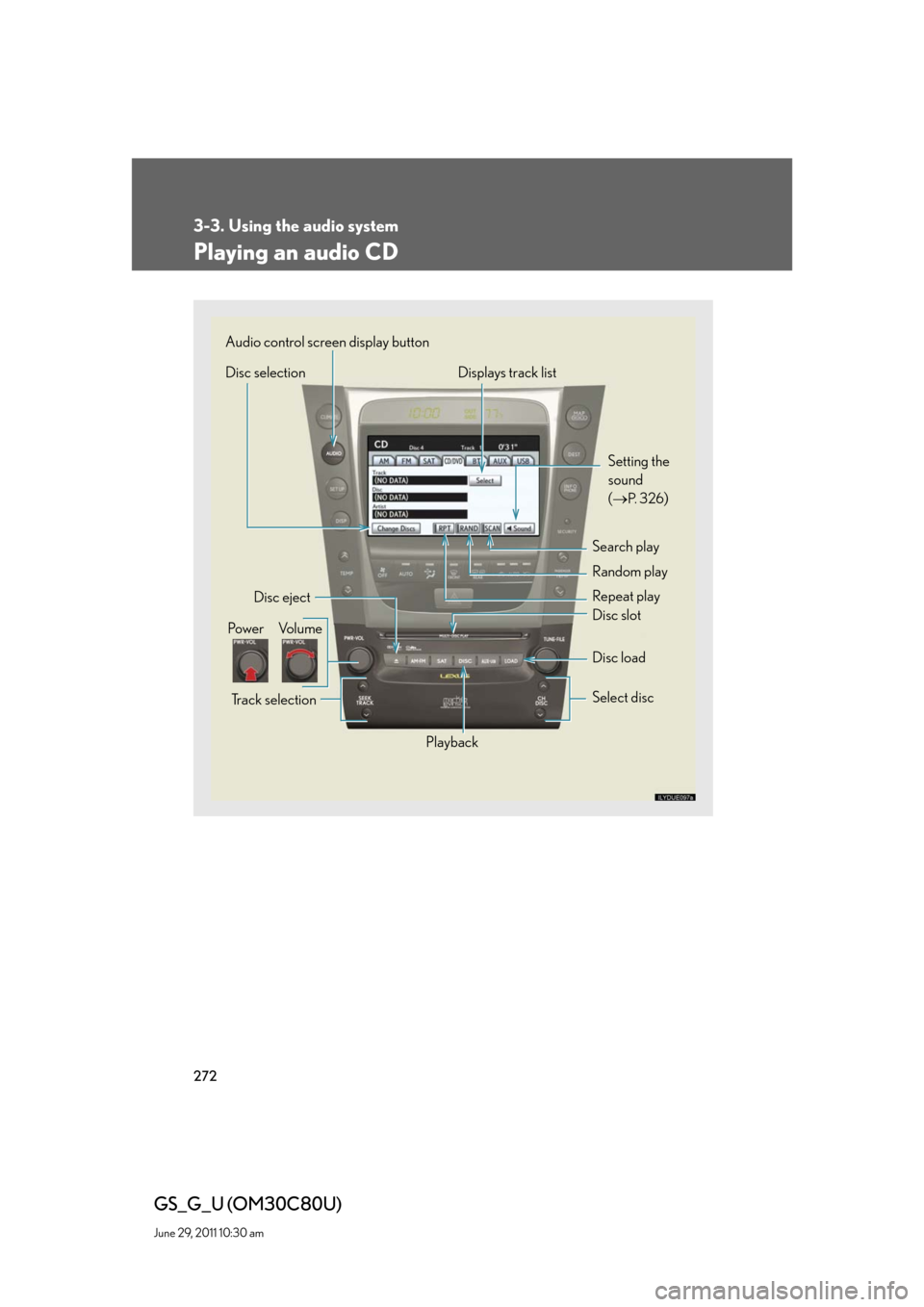

Playing an audio CD
Select disc Displays track list Disc selection
Search play
Disc load Random play
Repeat play
Playback Track selection Audio control screen display button
Vo l u m eDisc slot
Pow e rDisc eject
Setting the 
sound 
(
P. 3 2 6)

273
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
Loading and ejecting discs
P. 2 7 0
Selecting, fast forwarding and scanning tracks
■Selecting a track
Press  to move up and  to move down using until the desired
track number appears on the screen.
To fast forward or rewind, press and hold  or  on .
■Selecting a track from the track list
Touch “Select” on the screen.
Touch the desired track number.
or : Moves the list in steps of 5
This function is available only when
the vehicle is not moving.
■Scanning a disc
Touch “SCAN” on the screen.
“SCAN” appears on the screen.
The first 10 seconds of each track will be played.
Touch “SCAN” once again when the desired track is reached.
STEP1
STEP2
STEP1
STEP2

274
3-3. Using the audio system
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
Searching a disc
■Selecting a disc to play
P. 2 7 1
■Scanning loaded discs
Touch and hold “SCAN” on the screen until “D.SCAN” appears.
The first 10 seconds of the first track on each disc will be played.
Touch “SCAN” once again when the desired disc is reached.
Random playback
■Current disc
Touch “RAND” on the screen.
Songs are played in random order.
■All discs
Touch and hold “RAND” on the screen until “D.RAND” appears.
Tracks on all loaded discs are played in random order.
Repeating a track or a disc
■Repeating a track
Touch “RPT” on the screen.
■Repeating a disc
Touch “RPT” on the screen and hold until “D.RPT” appears.
STEP1
STEP2

275
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
■Canceling random, repeat and scan playback
Touch “RAND”, “RPT” or “SCAN” on the screen once again.
■Displaying the title and artist name
If a CD-TEXT disc is inserted, the titles of the disc and track will be displayed. Up to
32 letters can be displayed.
■Error messages
P. 2 9 7

276
3-3. Using the audio system
GS_G_U (OM30C80U)
June 29, 2011 10:30 am

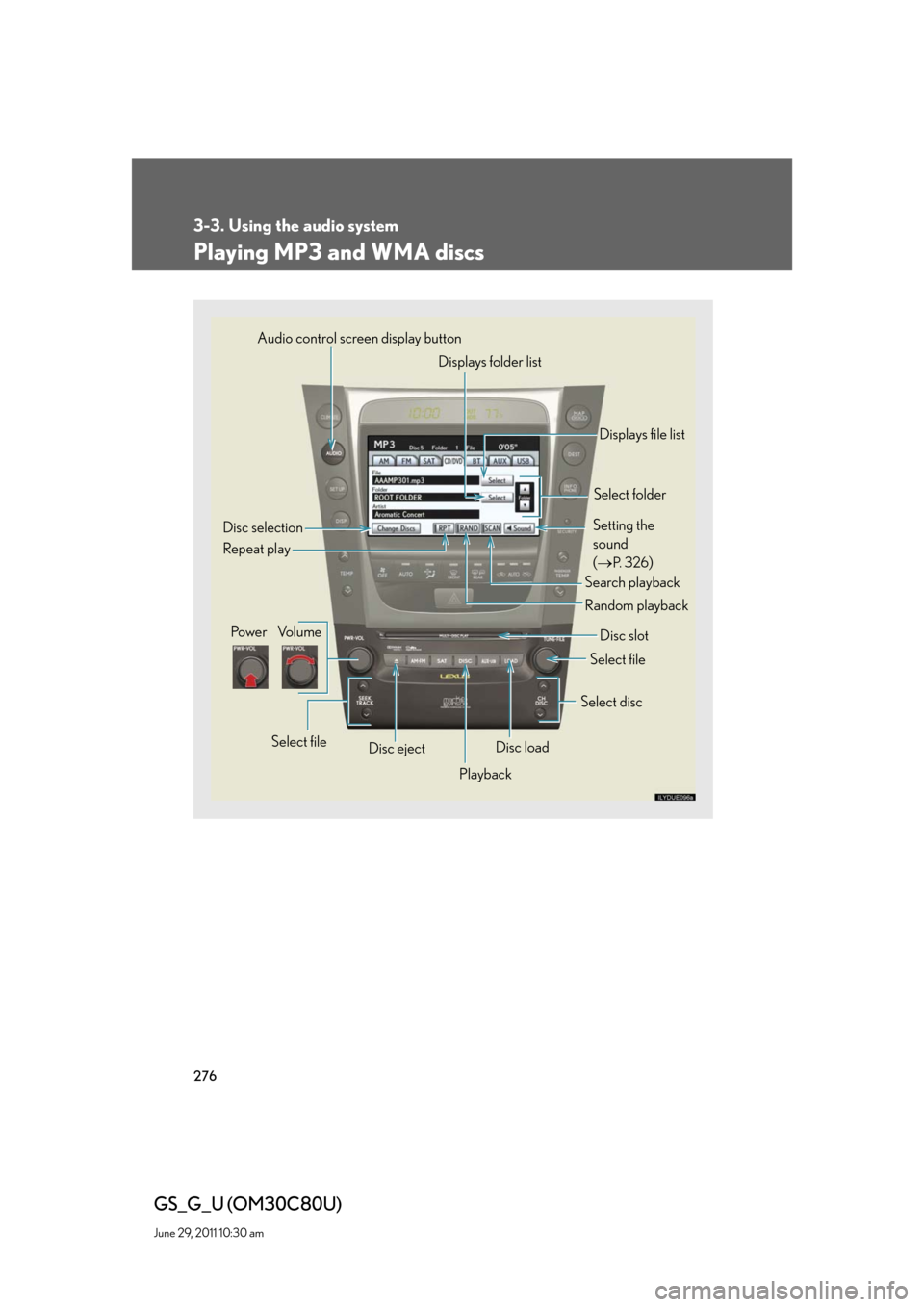

Playing MP3 and WMA discs
Po w e r Vo l u m e
Disc eject
PlaybackSelect folder
Search playback
Disc slot Random playback Repeat play
Select file
Disc loadSelect disc Audio control screen display button
Select file Displays folder list
Setting the 
sound 
(
P. 3 2 6) Displays file list
Disc selection

277
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
Loading and ejecting MP3 and WMA discs
P. 2 7 0
Selecting MP3 and WMA discs
P. 2 7 1
Selecting a folder
■Selecting a folder
Touch “Folder ” or “ ” on the screen to select the next/previous
folder.
■Selecting a folder from the folder list
Touch “Select” for Folder on the screen.
Touch the desired folder number.
or : Moves the list in steps of 5
This function is available only when
the vehicle is not moving.
■Selecting the desired folder by cueing the first file of each folder
Touch and hold “SCAN” on the screen until “FLD.SCAN” appears.
Touch “SCAN” once again when the desired folder is reached.
STEP1
STEP2

278
3-3. Using the audio system
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
Selecting and scanning files
■Selecting one file at a time
Turn or press  or  on to select the desired file.
■Selecting a file from the file list
Touch “Select” for File on the screen.
Touch the desired file number.
or : Moves the list in steps of 5
This function is available only when
the vehicle is not moving.
■Selecting a desired file by cueing the files in the folder
Touch “SCAN” on the screen.
Touch “SCAN” once again when the desired file is reached.
STEP1
STEP2

279
3-3. Using the audio system
3
Interior features
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
Random playback
■Playing files from a particular folder in random order
Touch “RAND” on the screen.
■Playing all the files on a disc in random order
Touch and hold “RAND” on the screen until “FLD.RAND” appears.
Repeat play
■Repeating a file
Touch “RPT” on the screen.
■Repeating all of the files in a folder
Touch and hold “RPT” on the screen until “FLD.RPT” appears.
■Canceling random, repeat and scan playback
Touch “RAND”, “RPT” or “SCAN” on the screen once again.
■Error messages
P. 2 9 7

280
3-3. Using the audio system
GS_G_U (OM30C80U)
June 29, 2011 10:30 am

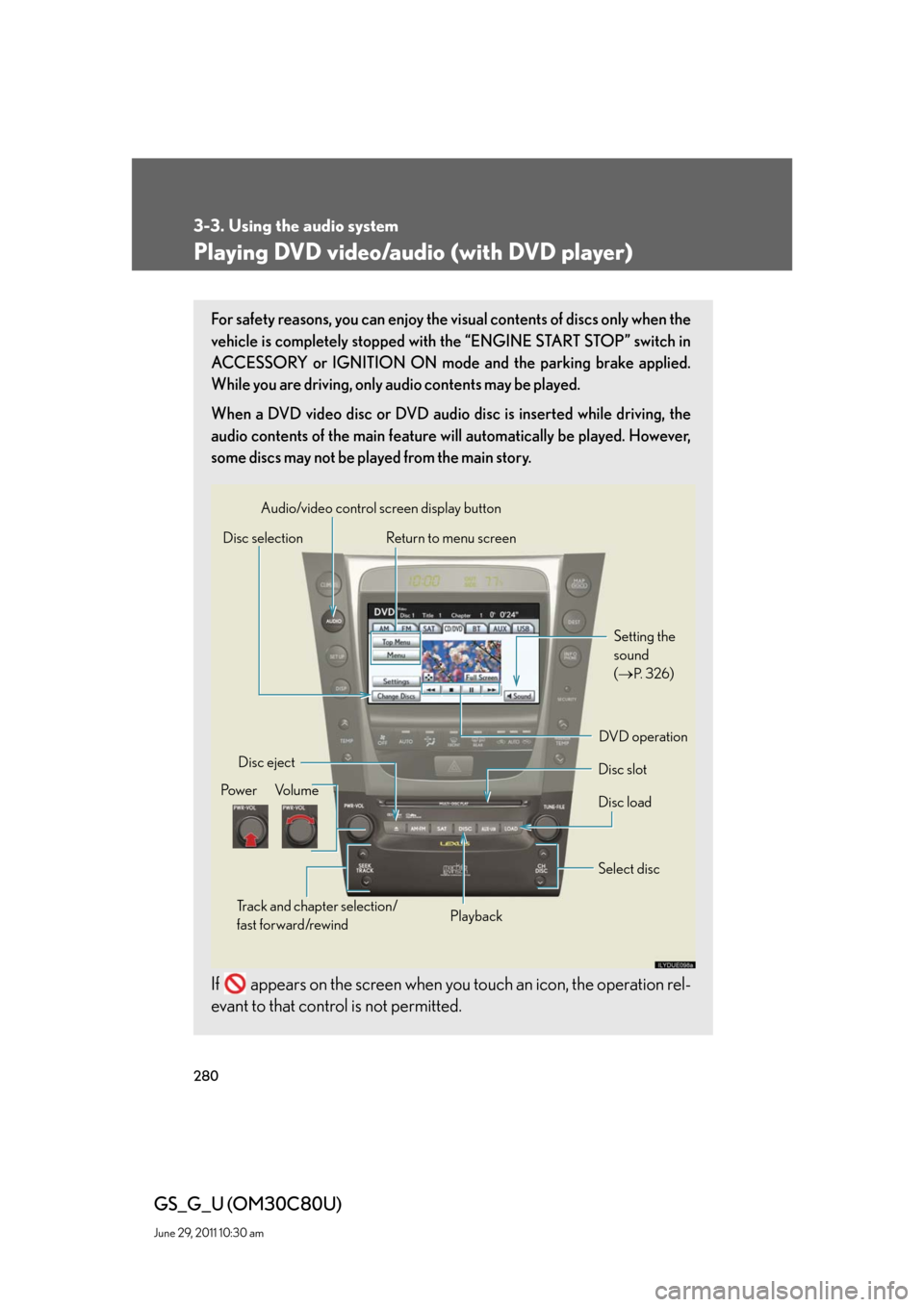

Playing DVD video/audio (with DVD player)
For safety reasons, you can enjoy the visual contents of discs only when the
vehicle is completely stopped with the “ENGINE START STOP” switch in
ACCESSORY or IGNITION ON mode and the parking brake applied.
While you are driving, only audio contents may be played.
When a DVD video disc or DVD audio disc is inserted while driving, the
audio contents of the main feature will automatically be played. However,
some discs may not be played from the main story.
If appears on the screen when you touch an icon, the operation rel-
evant to that control is not permitted.
Disc selection
Disc slot Disc eject
PlaybackDisc load Audio/video control screen display button
Po w e r Vo l u m e
Select disc
Track and chapter selection/ 
fast forward/rewind
DVD operationSetting the 
sound 
(
P. 3 2 6) Return to menu screen
