Page 449 of 654
448
4-3. Do-it-yourself maintenance
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Engine compartment
GS460
Engine oil level dipstick(→P. 4 5 1 )
Engine oil filler cap (→P. 4 5 2 )
Brake fluid reservoir (→P. 4 5 7 )
Fuse box ( →P. 484)
Washer fluid tank ( →P. 4 6 2 )Engine coolant reservoir
(→P. 455)
Electric cooling fans
Condenser ( →P. 4 5 7 )
Radiator ( →P. 4 5 7 )
Fuse box ( →P. 4 8 4 )
12 volt battery ( →P. 4 5 9 )
Page 450 of 654
449
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
GS350
Engine oil level dipstick(→P. 4 5 1 )
Engine oil filler cap (→P. 4 5 2 )
Brake fluid reservoir (→P. 4 5 7 )
Fuse box ( →P. 484)
Washer fluid tank ( →P. 4 6 2 )Engine coolant reservoir
(→P. 455)
Electric cooling fans
Condenser ( →P. 4 5 7 )
Radiator ( →P. 4 5 7 )
Fuse box ( →P. 4 8 4 )
12 volt battery ( →P. 4 5 9 )
Page 485 of 654
484
4-3. Do-it-yourself maintenance
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Remove the engine compartment cover if necessary.
→P. 4 5 0
Open the fuse box cover.
■ Engine compartment
Ty p e A
Push the tabs in and lift the lid
off.
Ty p e B Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3
Page 486 of 654
485
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
■Front controller in the engine compartment fuse box
(engine compartment: type B)
Lift the lid off while pushing the
tabs on either side.
■ Left side instrument panel
Remove the lid.
■ Right side instrument panel
Remove the lid.
Page 488 of 654
487
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
STEP6
Page 502 of 654
501
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm

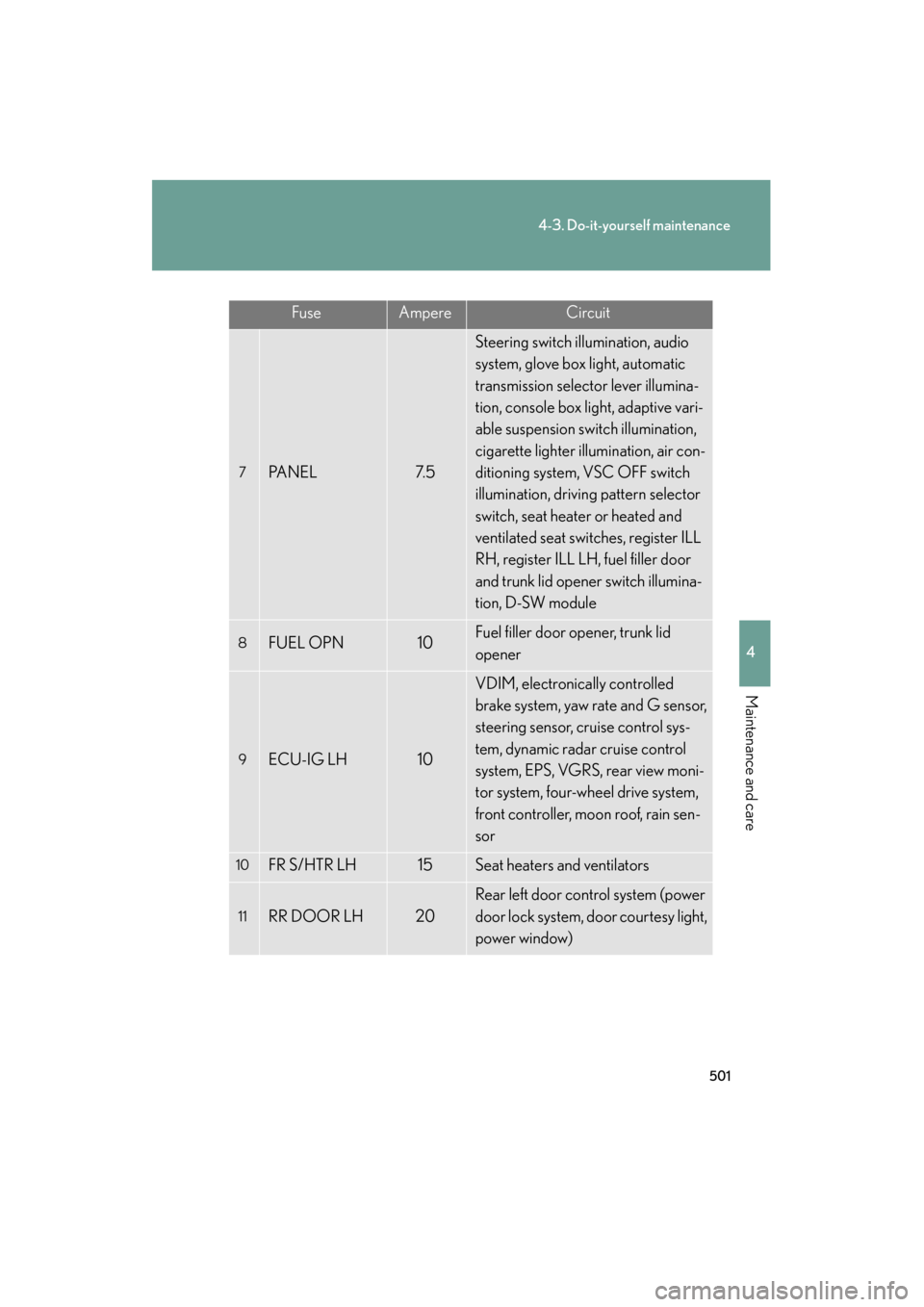

FuseAmpereCircuit
7PA N E L7. 5
Steering switch illumination, audio
system, glove box light, automatic
transmission selector lever illumina-
tion, console box light, adaptive vari-
able suspension switch illumination,
cigarette lighter illumination, air con-
ditioning system, VSC OFF switch
illumination, driving pattern selector
switch, seat heater or heated and
ventilated seat switches, register ILL
RH, register ILL LH, fuel filler door
and trunk lid opener switch illumina-
tion, D-SW module
8FUEL OPN10Fuel filler door opener, trunk lid
opener
9ECU-IG LH10
VDIM, electronically controlled
brake system, yaw rate and G sensor,
steering sensor, cruise control sys-
tem, dynamic radar cruise control
system, EPS, VGRS, rear view moni-
tor system, four-wheel drive system,
front controller, moon roof, rain sen-
sor
10FR S/HTR LH15Seat heaters and ventilators
11RR DOOR LH20
Rear left door control system (power
door lock system, door courtesy light,
power window)
Page 509 of 654
508
4-3. Do-it-yourself maintenance
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
Page 642 of 654
641

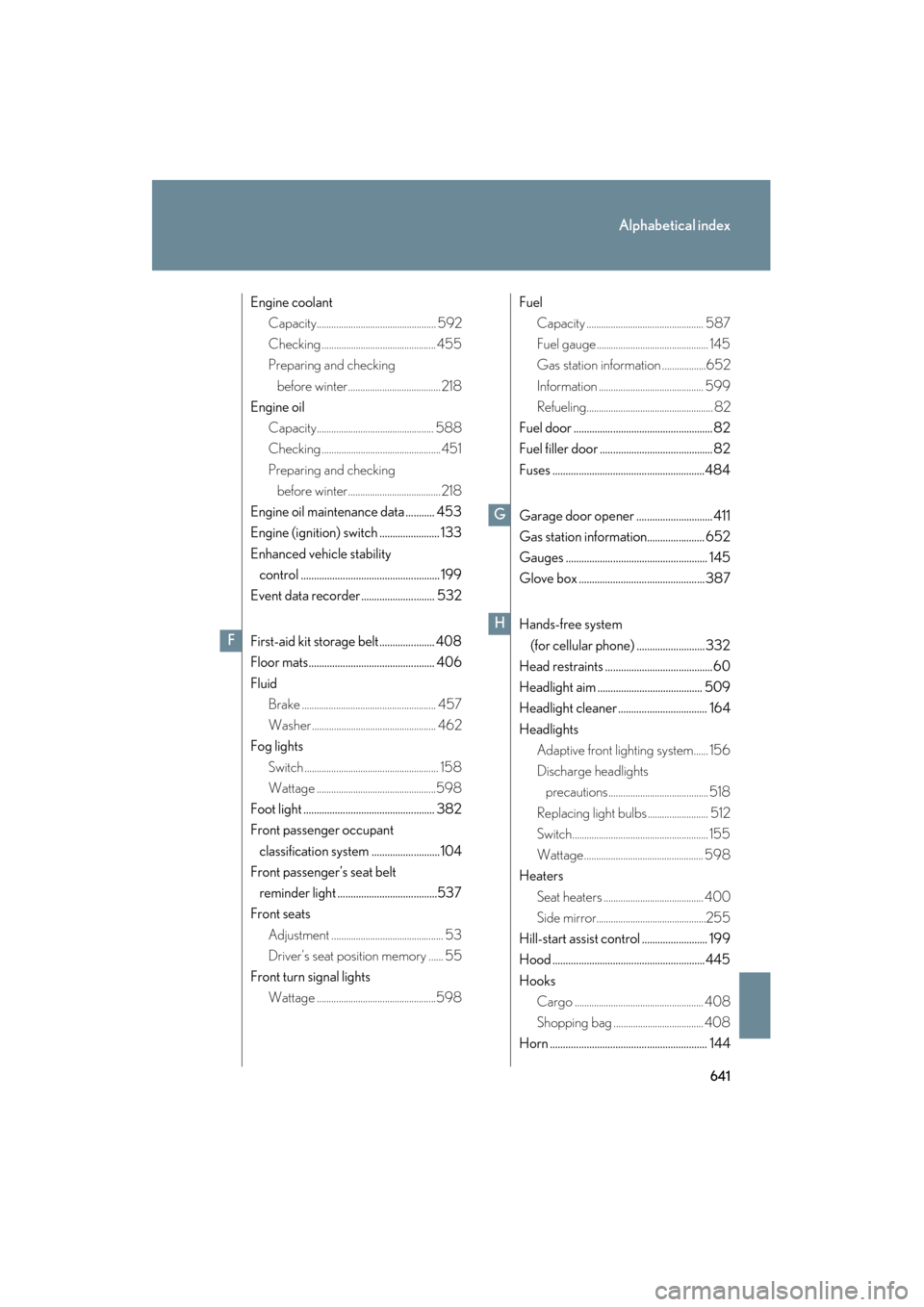

Alphabetical index
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Engine coolantCapacity................................................. 592
Checking ............................................... 455
Preparing and checking
before winter...................................... 218
Engine oil
Capacity................................................ 588
Checking ................................................. 451
Preparing and checking before winter...................................... 218
Engine oil maintenance data ........... 453
Engine (ignition) switch ....................... 133
Enhanced vehicle stability control ..................................................... 199
Event data recorder ............................ 532
First-aid kit storage belt..................... 408
Floor mats................................................ 406
Fluid Brake ....................................................... 457
Washer ................................................... 462
Fog lights
Switch ....................................................... 158
Wattage .................................................598
Foot light .................................................. 382
Front passenger occupant classification system ..........................104
Front passenger’s seat belt
reminder light ......................................537
Front seats
Adjustment .............................................. 53
Driver’s seat position memory ...... 55
Front turn signal lights Wattage .................................................598 Fuel
Capacity ................................................ 587
Fuel gauge.............................................. 145
Gas station information ..................652
Information ........................................... 599
Refueling.................................................... 82
Fuel door ..................................................... 82
Fuel filler door ........................................... 82
Fuses ..........................................................484
Garage door opener ............................. 411
Gas station information...................... 652
Gauges ...................................................... 145
Glove box ................................................ 387
Hands-free system (for cellular phone) .......................... 332
Head restraints .........................................60
Headlight aim ........................................ 509
Headlight cleaner .................................. 164
Headlights Adaptive front lighting system...... 156
Discharge headlights precautions......................................... 518
Replacing light bulbs ......................... 512
Switch........................................................ 155
Wattage................................................. 598
Heaters
Seat heaters ......................................... 400
Side mirror.............................................255
Hill-start assist control ......................... 199
Hood .......................................................... 445
Hooks Cargo ..................................................... 408
Shopping bag ..................................... 408
Horn ............................................................ 144
