navigation system Lexus GS350 2011 Owner's Manual

15
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Audio remote control switches P. 329
Cruise control switch
P. 165, 169
Telephone switch
P. 332
“DISP” switch P. 153
Distance switch∗ P. 172
Talk switch* P. 347
∗: If equipped
*: Refer to “Navigation System Owner’s Manual”.
A
Tilt and telescopic steering
control switch
P. 70

16
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Pictorial indexInstrument panel
Rear window and outside
rear view mirror defoggers
P. 255
Emergency flashers P. 520
Air conditioning
system
P. 246
Audio system

P. 257
Navigation system∗*Touch screen

P. 228
Security indicator
P. 85, 87
Clock P. 395Outside temperature display
P. 396
B

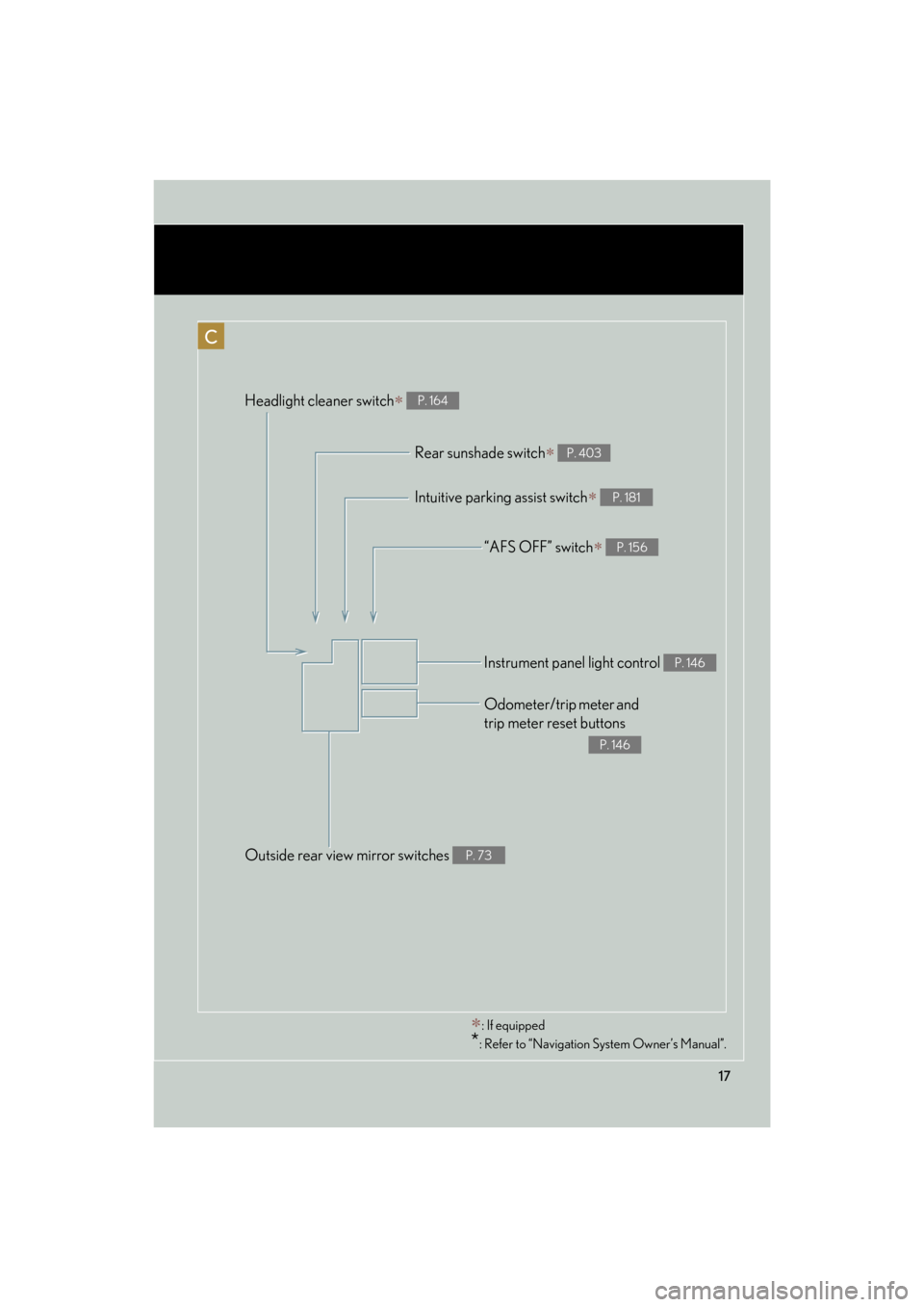

17
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
“AFS OFF” switch∗ P. 156
Rear sunshade switch∗ P. 403
Headlight cleaner switch∗ P. 164
Intuitive parking assist switch∗ P. 181
Odometer/trip meter and
trip meter reset buttons
P. 146
Instrument panel light control P. 146
Outside rear view mirror switches P. 73
∗: If equipped
*: Refer to “Navigation System Owner’s Manual”.
C

71
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Inside rear view mirror
In the auto mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
Without navigation systemTurns auto mode on/off
The indicator comes on when
auto mode is turned on.
The mirror is automatically set
to auto whenever the “ENGINE
START STOP” switch is turned
IGNITION ON mode.
With navigation system Auto mode on
Auto mode off
The indicator comes on when
auto mode is turned on.
The mirror is automatically set
to auto whenever the “ENGINE
START STOP” switch is turned
IGNITION ON mode.

228
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
3-1. Using the touch screen
Touch screen
By touching the screen with your finger, you can control the audio system
and air conditioning system, and adjust the screen display etc.
Press or to display the following screen.
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner’s Manual”.
The illustrations below are for vehicles with navigation system.
The display and button positions will differ depending on the type of the sys-
tem.
■ Display
“Setup” screen

229
3-1. Using the touch screen
3
Interior features
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
“Information” screen
■ Reference
Display buttons
ButtonPa g e
“CLIMATE”P. 2 4 6
“A U D I O ”P. 2 5 7
“MAP VOICE”/”DEST”Navigation System Owner’s Manual
“INFO PHONE” (Displaying the
“Information” screen)P. 2 2 8
“DISP” (Adjusting the display)P. 2 3 2
“SETUP”
(Displaying the “Setup” screen)P. 2 3 5

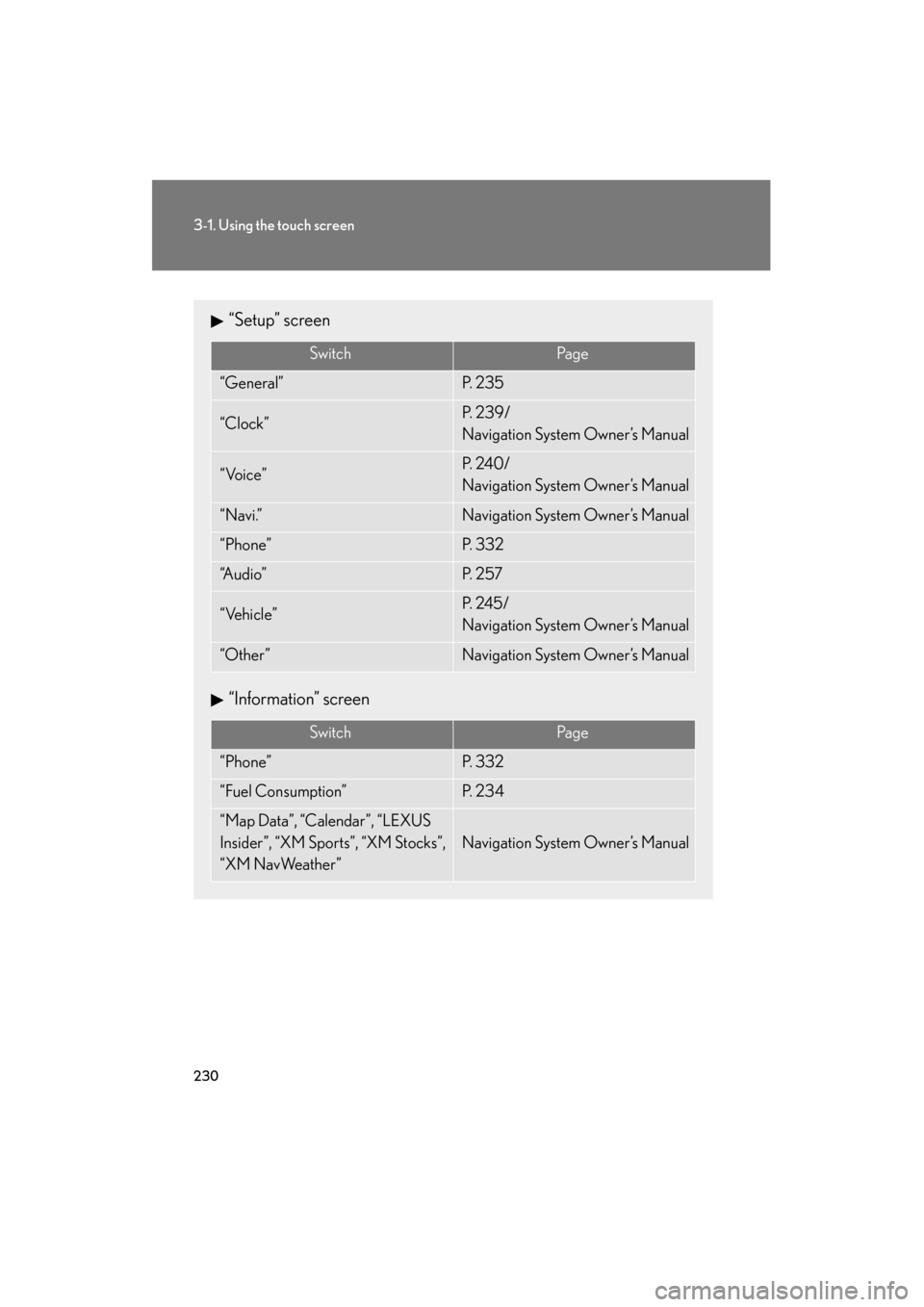

230
3-1. Using the touch screen
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
“Setup” screen
“Information” screen
SwitchPa g e
“General”P. 2 3 5
“Clock”P. 2 3 9 /
Navigation System Owner’s Manual
“Voice”P. 2 4 0 /
Navigation System Owner’s Manual
“Navi.”Navigation System Owner’s Manual
“Phone”P. 3 3 2
“A u d i o ”P. 2 5 7
“Vehicle”P. 2 4 5 /
Navigation System Owner’s Manual
“Other”Navigation System Owner’s Manual
SwitchPa g e
“Phone”P. 3 3 2
“Fuel Consumption”P. 2 3 4
“Map Data”, “Calendar”, “LEXUS
Insider ”, “XM Sports”, “XM Stocks”,
“XM NavWeather”
Navigation System Owner’s Manual

234
3-1. Using the touch screen
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Fuel consumption■ Consumption
Press .
Touch “Fuel Consumption” on the “Information” screen.
If the “Consumption” screen does not appear, touch “Consumption”.
Fuel consumption in the past 30
minutes
Cruising range
■ Past record (with navigation system)
Press .
Touch “Fuel Consumption” on the “Information” screen.
If the “Past Record” screen does not appear, touch “Past Record”.
Average fuel consumption
(today)
Average fuel consumption
(past 5 days)
Best past fuel consumption
STEP1
STEP2
STEP1
STEP2
■Resetting the data
Selecting “Clear” on the “Consumption” screen will reset the consumption data.
Selecting “Clear” on the “Past Record” screen will reset the past record data.

235
3-1. Using the touch screen
3
Interior features
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Setting the touch screen
General settingsThis screen is used for language selection, and for setting operation
sounds, automatic screen change to on or off, etc.
Touch “General” on the “Setup” screen. Pa g e 1 Select language
Beep on/off
Automatic transition on/off
(with navigation system)
Select keyboard layout
Select the unit
Save settings
Make sure to save after changing
settings.
Delete personal data
Pa g e 2
You can change the touch screen to your desired settings.

238
3-1. Using the touch screen
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
■Delete personal data
Touch “Delete Personal Data” on the “General Settings” screen.
Touch “Delete”.
Check carefully beforehand, as
data cannot be retrieved once
deleted.
A confirmation screen will be displayed. Touch “Yes”.
The following personal data can be deleted or turned to their default settings:
• Radio preset stations
•Phonebook data
•Call history data
• Speed dial data
• Voice tag data
• Bluetooth
® phone data
• Volume setting
• Details setting
• Maintenance conditions
*
• Maintenance information “off” setting*
• Address book*
• Areas to avoid*
•Previous points*
•Route guidance*
•Route trace*
*
: If the navigation system is equipped
STEP1
STEP2
STEP3
