Lexus GS350 2013 Owners Manual

90
GS350_U (OM30C34U)
2. Instrument cluster
Head-up display∗
The head-up display can be used to project vehicle speed and other infor-
mation onto the windshield.Head-up display
Display brightness will change auto-
matically according to the brightness
of the surrounding area.
“HUD” button
Display position adjustment
switch
Display brightness adjustment
switch
Display brightness can be adjusted to
the desired level.
“DISP” button
∗
: If equipped
Summary of functions
1
2
3
4
5

GS350_U (OM30C34U)
912. Instrument cluster
2
Instrument cluster

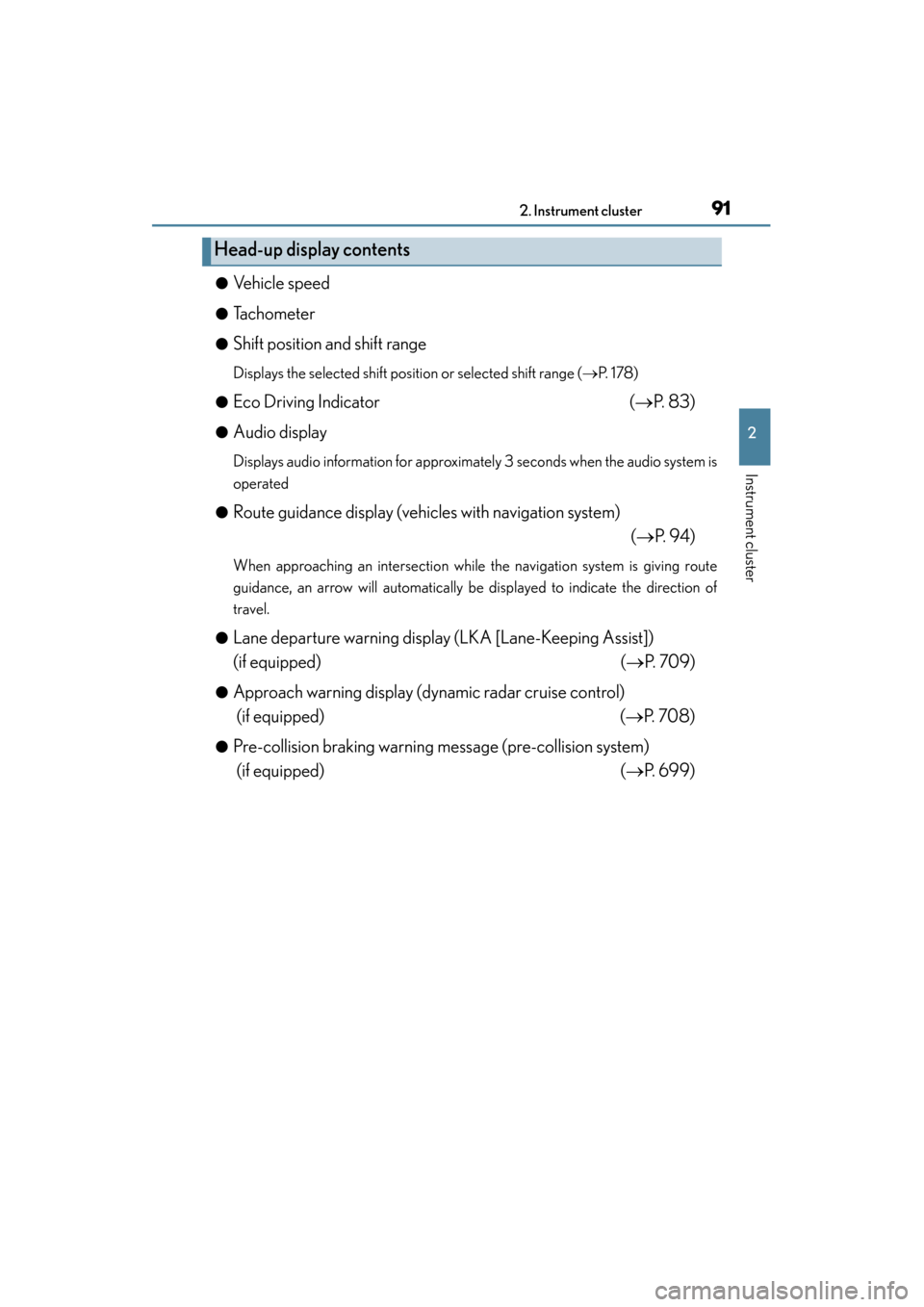

●Ve h i c l e s p e e d
●Tachometer
●Shift position and shift range
Displays the selected shift position or selected shift range (→P. 1 7 8 )
●
Eco Driving Indicator (→ P. 8 3 )
●Audio display
Displays audio information for approximately 3 seconds when the audio system is
operated
●
Route guidance display (vehicles with navigation system) (→P. 9 4 )
When approaching an intersection while the navigation system is giving route
guidance, an arrow will automatically be displayed to indicate the direction of
travel.
●
Lane departure warning display (LKA [Lane-Keeping Assist])
(if equipped) ( →P. 7 0 9 )
●Approach warning display (dynamic radar cruise control)
(if equipped) ( →P. 7 0 8 )
●Pre-collision braking warning message (pre-collision system)
(if equipped) ( →P. 6 9 9 )
Head-up display contents

92
GS350_U (OM30C34U)
2. Instrument cluster
■“HUD” button
Pressing the switch turns the
head-up display on/off and
changes the vehicle speed dis-
play units as follows:
XU.S.A.
OFF → ON (MPH) →
ON (km/h) → OFF
XCanada
OFF → ON (km/h) →
ON (MPH) → OFF
■“DISP” button
Pressing the button changes the
display items (except vehicle
speed).
Off
Eco Driving Indicator
Tachometer
Switching the head-up display
1
2
3

GS350_U (OM30C34U)
932. Instrument cluster
2
Instrument cluster
■Adjusting the display positionHigher
Lower
■Setting the brightness
The brightness of the display is automatically adjusted in accordance
with the brightness of the surrounding environment. However, the
brightness can also be manu ally adjusted in 9 stages.
Brighter
Darker
Making the display easier to see
1
2
1
2

94
GS350_U (OM30C34U)
2. Instrument cluster

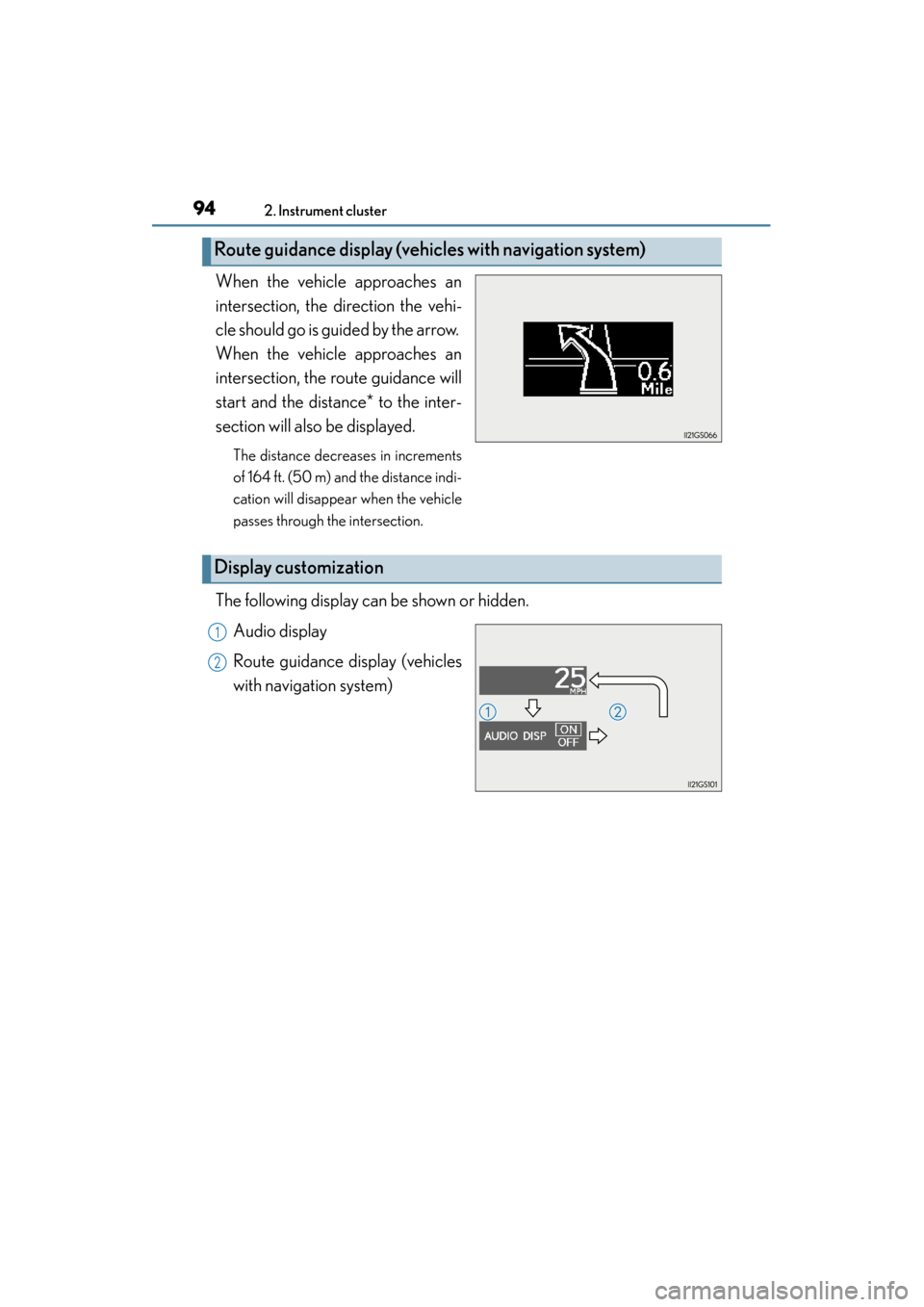

When the vehicle approaches an
intersection, the direction the vehi-
cle should go is guided by the arrow.
When the vehicle approaches an
intersection, the route guidance will
start and the distance* to the inter-
section will also be displayed.
The distance decreases in increments
of 164 ft. (50 m) and the distance indi-
cation will disappear when the vehicle
passes through the intersection.
The following display can be shown or hidden.Audio display
Route guidance display (vehicles
with navigation system)
Route guidance display (vehicles with navigation system)
Display customization
1
2

GS350_U (OM30C34U)
952. Instrument cluster
2
Instrument cluster
■Customizing the displayPress and hold the “DISP” but-
ton until the screen changes,
then press and hold repeatedly
until the item you wish to
change is displayed.
Customization can be performed
when the head-up display is on and
the vehicle is traveling at less than 5
mph (8 km/h).
Press the “DISP” button to
switch between on and off.
On and off will be switched
between each time the button is
pressed.
If the button is left alone without
being operated for a short time,
setting will be finished automati-
cally.
1
2

96
GS350_U (OM30C34U)
2. Instrument cluster
■Head-up display
●The head-up display may seem dark and hard to see when viewed through sun-
glasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
●When the head-up display is turned off, it will remain off even if the engine switch is
turned to IGNITION ON mode after the engine switch has been turned off.
■When the battery is disconnected
The customize settings of the head-up display will be reset.
CAUTION
■Before using the head-up display
Check that the position and brightness of the head-up display image does not
interfere with safe driving. Incorrect adjustment of the image’s position or bright-
ness may obstruct the driver’s view and lead to an accident, resulting in death or
serious injury.
NOTICE
■To prevent damage to components
●Do not place any drinks near the head-up
display projector. If the projector gets wet,
electrical malfunctions may result.
●Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up display
indications.
●Do not touch the inside of the head-up dis-
play projector or thrust sharp edges or the
like into the projector.
Doing so could cause mechanical malfunc-
tions.

97
GS350_U (OM30C34U)

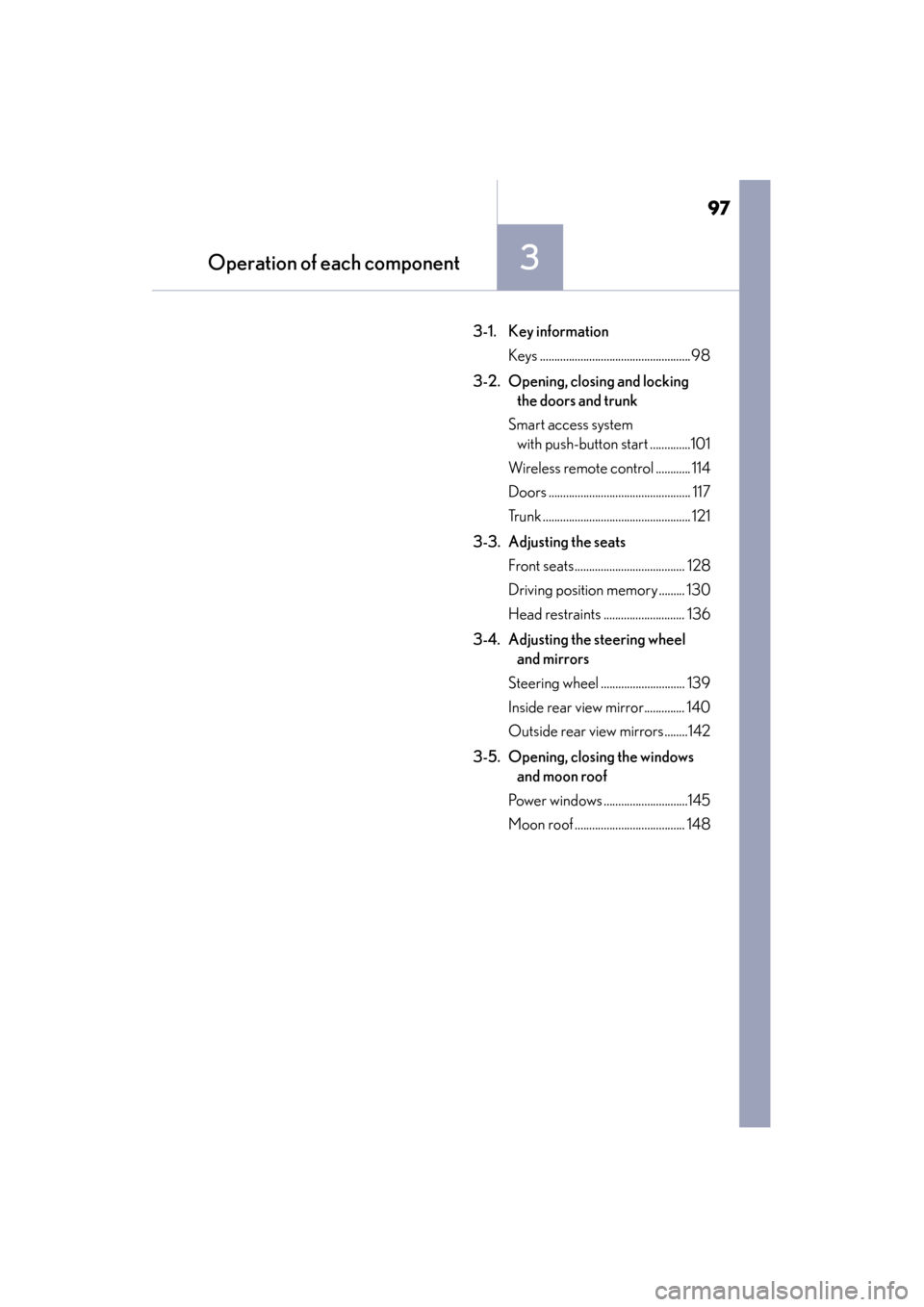

Operation of each component3
3-1. Key information Keys ....................................................98
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start ..............101
Wireless remote control ............ 114
Doors ................................................. 117
Trunk ................................................... 121
3-3. Adjusting the seats Front seats...................................... 128
Driving position memory ......... 130
Head restraints ............................ 136
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 139
Inside rear view mirror.............. 140
Outside rear view mirrors ........142
3-5. Opening, closing the windows and moon roof
Power windows .............................145
Moon roof ...................................... 148

98
GS350_U (OM30C34U)
3-1. Key information
Keys
The following keys are provided with the vehicle.Electronic keys
• Operating the smart access systemwith push-button start ( →P. 1 0 1 )
• Operating the wireless remote control function ( →P. 114)
Mechanical keys
Key number plate
To take out the mechanical key, push
the release button and take the key
out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cylin-
der, turn it over and re-attempt to
insert it.
After using the mechanical key, store
it in the electronic key. Carry the
mechanical key together with the
electronic key. If the electronic key
battery is depleted or the entry func-
tion does not operate properly, you
will need the mechanical key.
( → P. 74 0 )
The keys
1
2
3
Using the mechanical key

GS350_U (OM30C34U)
993-1. Key information
3
Operation of each component

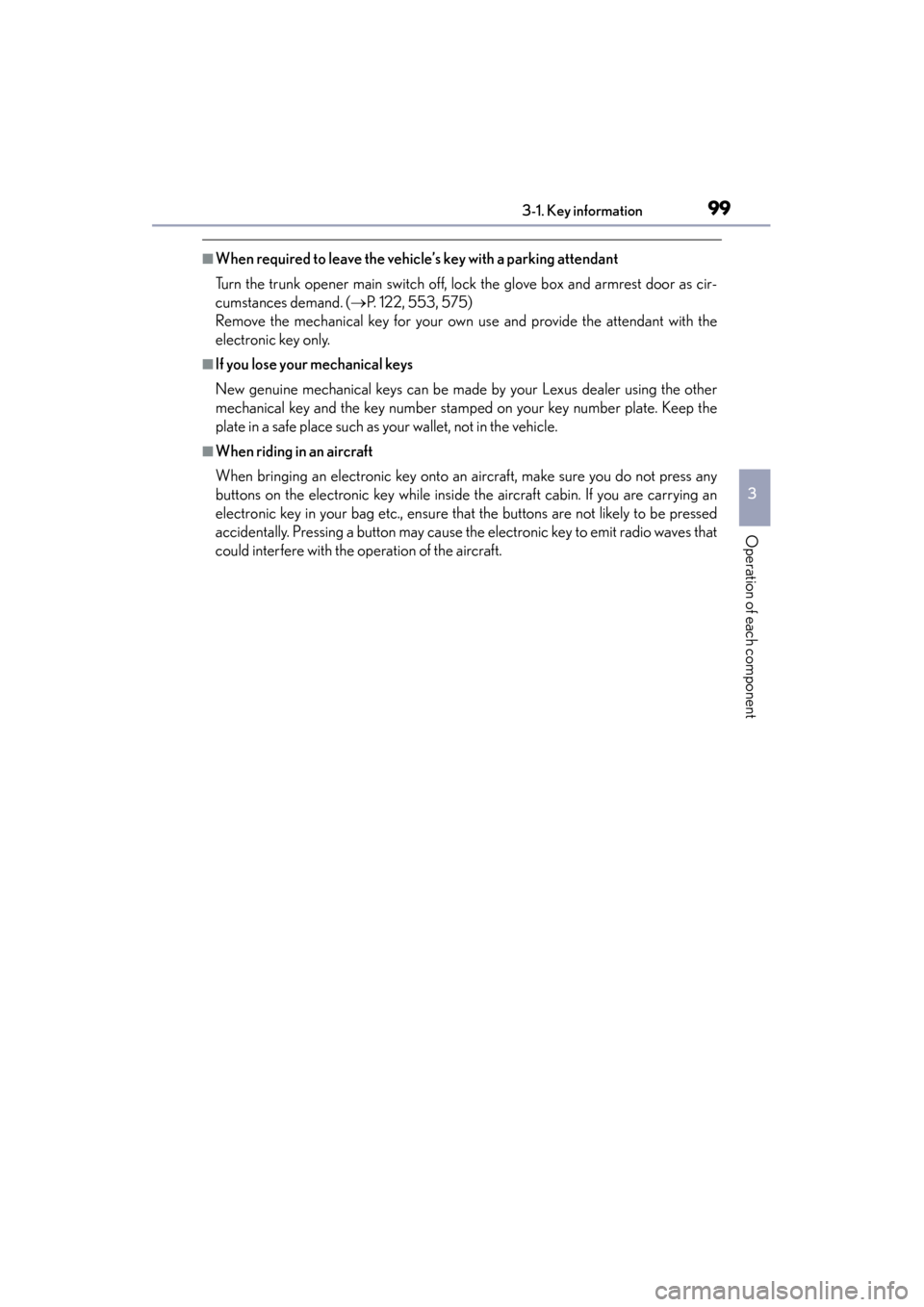

■When required to leave the vehicle’s key with a parking attendant
Turn the trunk opener main switch off, lock the glove box and armrest door as cir-
cumstances demand. (→P. 122, 553, 575)
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■If you lose your mechanical keys
New genuine mechanical keys can be made by your Lexus dealer using the other
mechanical key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves that
could interfere with the operation of the aircraft.
