701-2. Theft deterrent system
GS350_U (OM30C34U)
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than
using the entry function, wireless remote control or mechanical key.
(The doors will lock again automatically.)
●The hood is opened.
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the system
is set.
Do one of the following to deactivate or stop the alarms:
●Unlock the doors or open the trunk.
●Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a few
seconds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm

711-2. Theft deterrent system
GS350_U (OM30C34U)
1
For safety and security
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the fol-
lowing:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to prevent intrud-
ers.
●A person inside the vehicle opens a door,
the trunk or hood.
●The battery is recharged or replaced when
the vehicle is locked. (→P. 74 5 )
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.

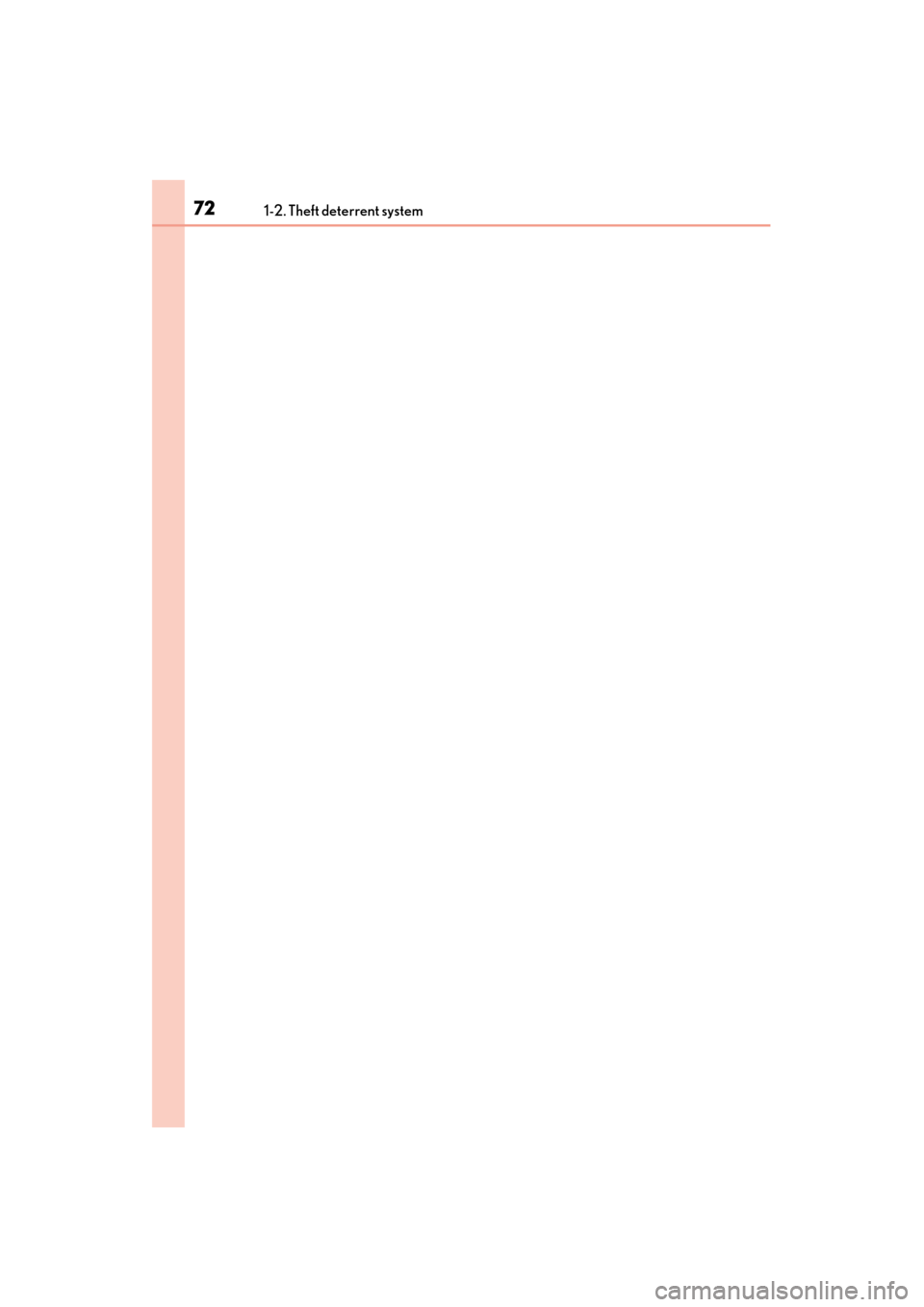

721-2. Theft deterrent system
GS350_U (OM30C34U)

73
GS350_U (OM30C34U)

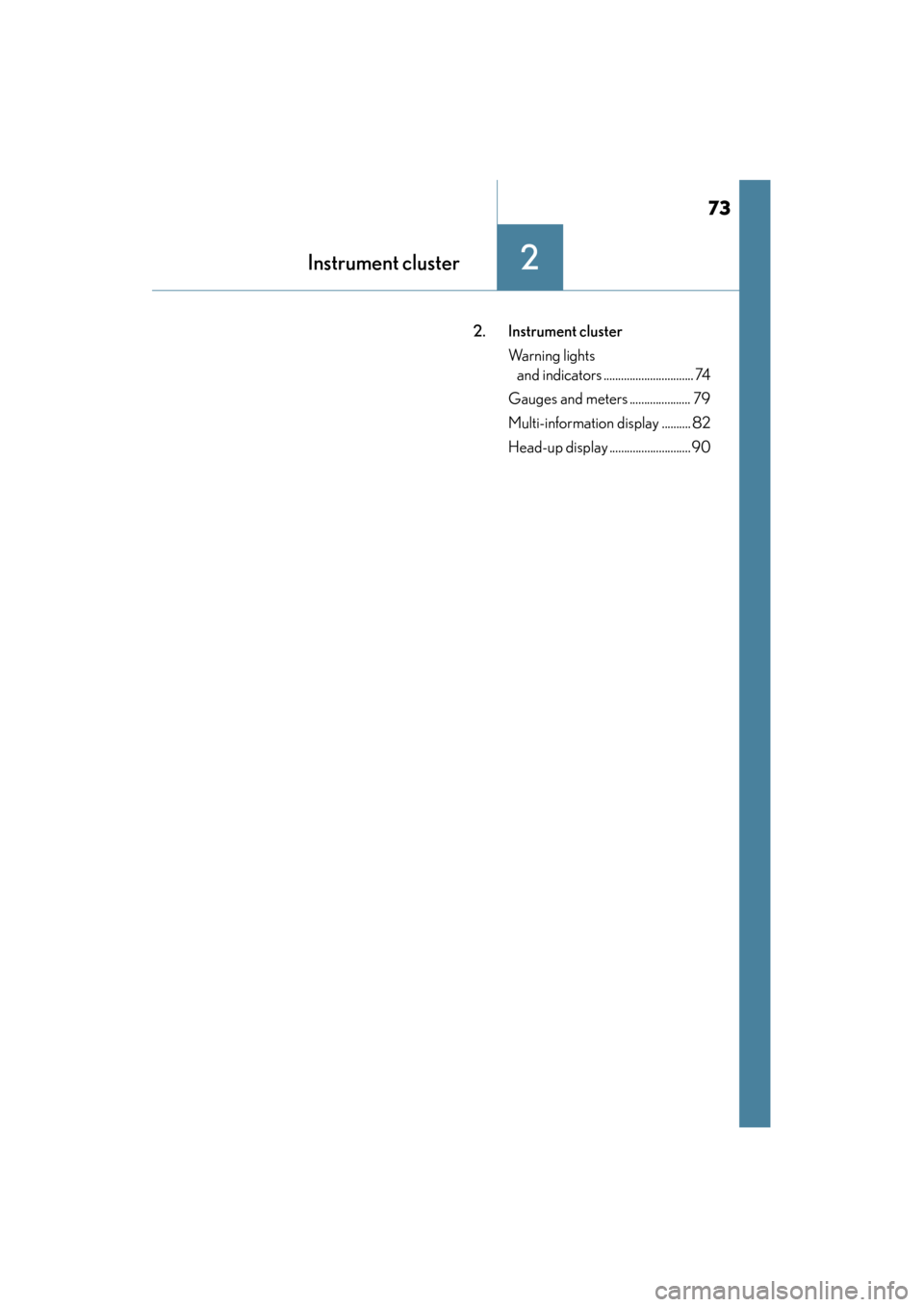

Instrument cluster2
2. Instrument cluster Warning lights and indicators ............................... 74
Gauges and meters ..................... 79
Multi-information display .......... 82
Head-up display ............................ 90

74
GS350_U (OM30C34U)
2. Instrument cluster
Warning lights and indicators
◆Instrument cluster
The units used on the speedometer and some indicators may differ depending on
the target region.
◆Center panel
The warning lights and indicators on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all
warning lights and in dicators illuminated.

GS350_U (OM30C34U)
752. Instrument cluster
2
Instrument cluster

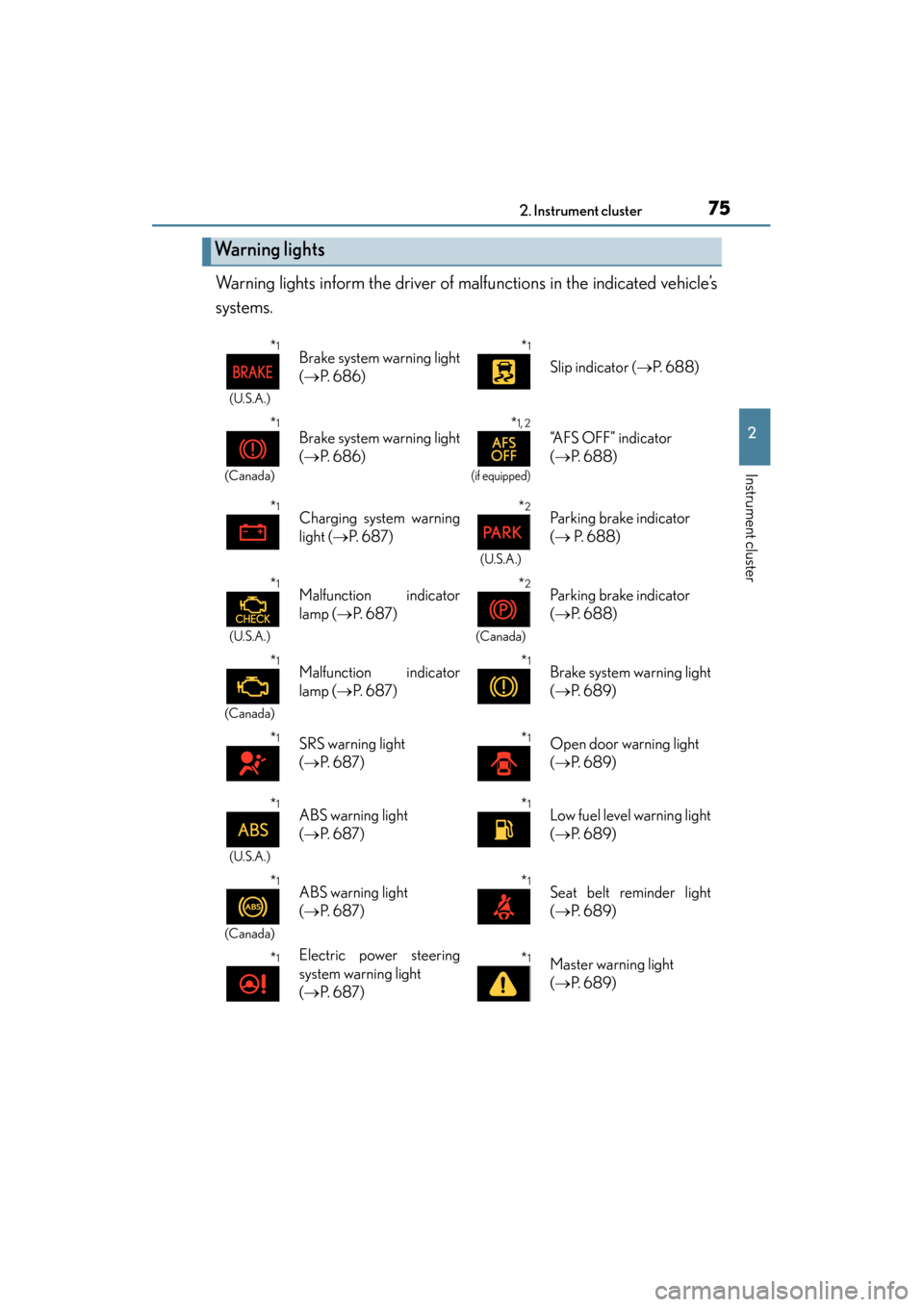

Warning lights inform the driver of malfunctions in the indicated vehicle’s
systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
(→ P. 686)*1
Slip indicator ( →P. 6 8 8 )
*1
(Canada)
Brake system warning light
(→ P. 686)*1, 2
(if equipped)
“AFS OFF” indicator
(→ P. 6 8 8 )
*1Charging system warning
light ( →P. 6 8 7 )*2
(U.S.A.)
Parking brake indicator
(→ P. 6 8 8 )
*1
(U.S.A.)
Malfunction indicator
lamp ( →P. 6 8 7 )*2
(Canada)
Parking brake indicator
(→ P. 6 8 8 )
*1
(Canada)
Malfunction indicator
lamp ( →P. 6 8 7 )*1Brake system warning light
(→ P. 6 8 9 )
*1SRS warning light
(→ P. 6 8 7 )*1Open door warning light
(→ P. 6 8 9 )
*1
(U.S.A.)
ABS warning light
(→ P. 6 8 7 )*1Low fuel level warning light
(→ P. 6 8 9 )
*1
(Canada)
ABS warning light
(→ P. 6 8 7 )*1Seat belt reminder light
(→ P. 6 8 9 )
*1Electric power steering
system warning light
(→ P. 6 8 7 )*1Master warning light
(→ P. 6 8 9 )

76
GS350_U (OM30C34U)
2. Instrument cluster

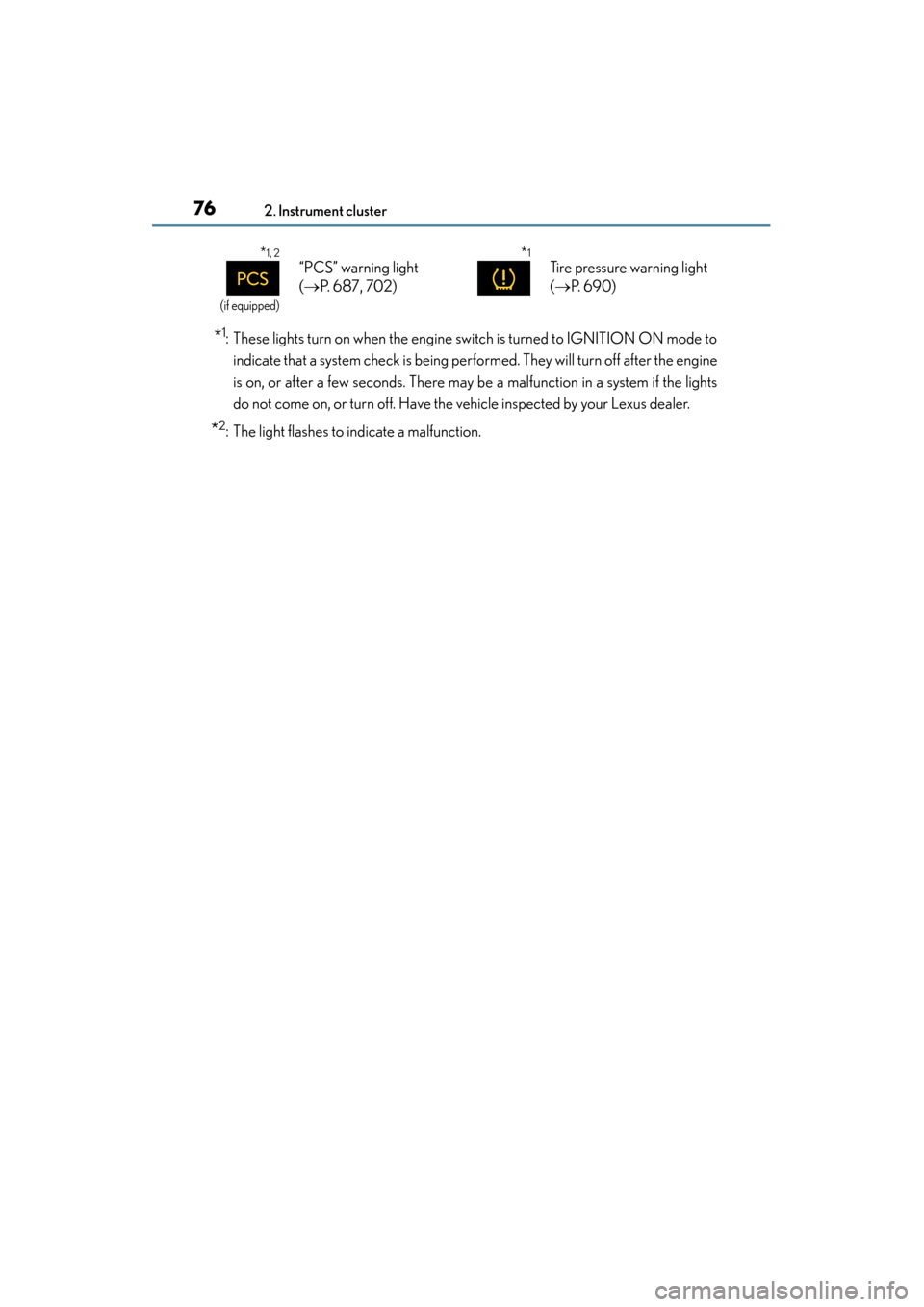

*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine
is on, or after a few seconds. There may be a malfunction in a system if the lights
do not come on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
*1, 2
(if equipped)
“PCS” warning light
(→ P. 6 8 7 , 7 0 2 )*1
Tire pressure warning light
(→ P. 6 9 0 )

GS350_U (OM30C34U)
772. Instrument cluster
2
Instrument cluster

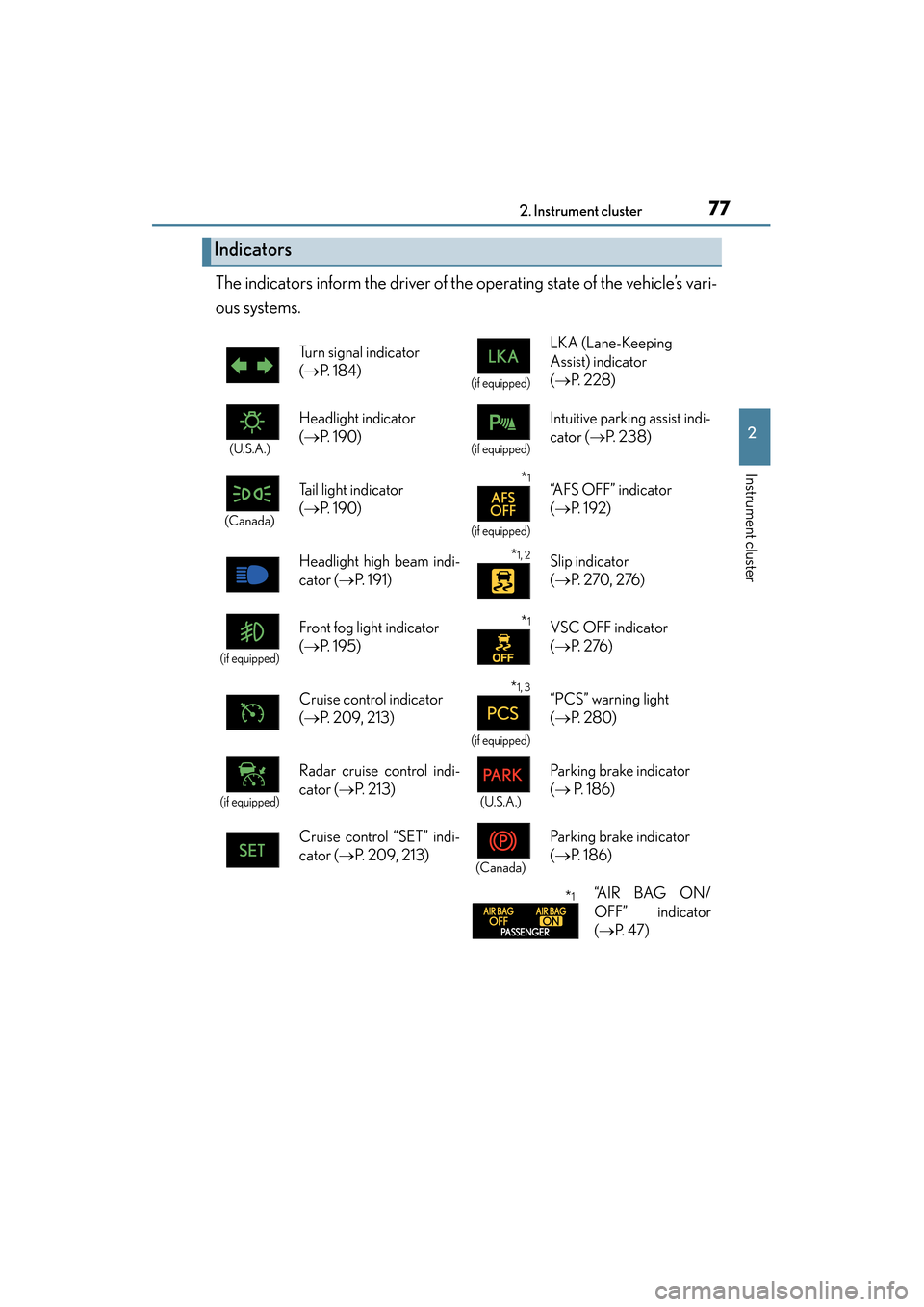

The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
(→ P. 1 8 4 )
(if equipped)
LKA (Lane-Keeping
Assist) indicator
(→ P. 2 2 8 )
(U.S.A.)
Headlight indicator
(→ P. 1 9 0 )

(if equipped)
Intuitive parking assist indi-
cator ( →P. 2 3 8 )
(Canada)
Tail light indicator
(→ P. 1 9 0 ) *1
(if equipped)
“AFS OFF” indicator
(→ P. 192)
Headlight high beam indi-
cator ( →P. 1 9 1 )
*1, 2 Slip indicator
(→ P. 270, 276)
(if equipped)
Front fog light indicator
(→ P. 1 9 5 )*1VSC OFF indicator
(→ P. 2 76 )
Cruise control indicator
( → P. 209, 213)
*1, 3
(if equipped)
“PCS” warning light
(→ P. 2 8 0 )
(if equipped)
Radar cruise control indi-
cator ( →P. 2 1 3 )
(U.S.A.)
Parking brake indicator
(→ P. 1 8 6 )
Cruise control “SET” indi-
cator ( →P. 209, 213)
(Canada)
Parking brake indicator
(→ P. 1 8 6 )
*1“A I R B A G O N /
OFF” indicator
(→ P. 4 7 )

78
GS350_U (OM30C34U)
2. Instrument cluster

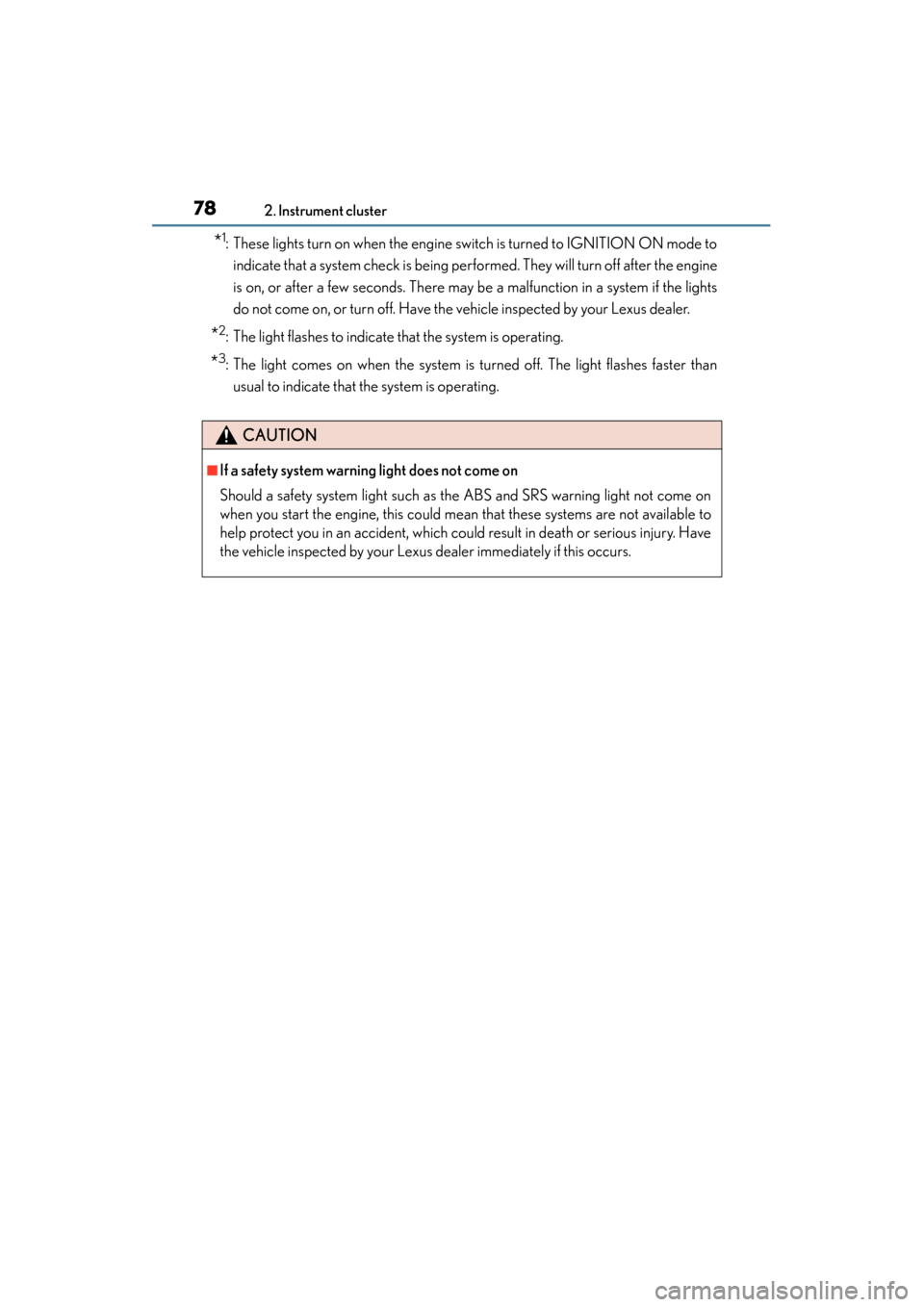

*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine
is on, or after a few seconds. There may be a malfunction in a system if the lights
do not come on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashes faster thanusual to indicate that the system is operating.
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.

79
GS350_U (OM30C34U)2. Instrument cluster
2
Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
ECO lamp and SPORT lamp
Changes colors according to driving mode
Multi-information display
Presents the driver with a variety of driving-related data ( →P. 8 2 )
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range ( →P. 1 7 8 )
1
2
3
4
5
6
7
