Lexus GS350 2013 Owner's Manual

560
GS350_U (OM30C34U)
5-6. Using the storage features
Loosen the belt
Tighten the belt
Warning reflector storage belt
1
2
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
NOTICE
■Luggage hook weight capacity
Do not hang any object heavier than 11 lb. (5 kg) on the luggage hook.

561
GS350_U (OM30C34U)5-7. Other interior features
5
Interior features
Sun visors and vanity mirrors
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and swing
it to the side.
To use the side extender, place
the visor in the side position, then
slide it backward.
Slide the cover to open.
The light turns on when the cover is
opened.
Sun visors
1
2
3
Va n i t y m i r r o r s
NOTICE
■To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off.

562
GS350_U (OM30C34U)
5-7. Other interior features
Clock
Pressing and holding will move
the clock hands backward.
Pressing and holding will move
the clock hands forward.
The clock can be adjusted by pressing the buttons.
1
2

563
GS350_U (OM30C34U)5-7. Other interior features
5
Interior features
Ashtrays∗
Open the ashtray lid.
To remove the ashtray, pull the ashtray
lid upwards.
∗: If equipped
CAUTION
■When not in use
Keep the ashtray closed. In the event of sudden braking or sudden swerving, an
accident may occur due to an occupant being struck by the open ashtray or ash
flying out.
■To p r e v e n t f i r e
●Fully extinguish matches and cigarettes before putting them in the ashtray, then
make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.

564
GS350_U (OM30C34U)
5-7. Other interior features
Powe r o u t l e t s
■Front
Open the lid.
■Rear
Open the lid.
■The power outlets can be used when
The engine switch is in ACCESSORY or IGNITION ON mode.
The power outlets can be used for 12V accessories that run on less than
10A.

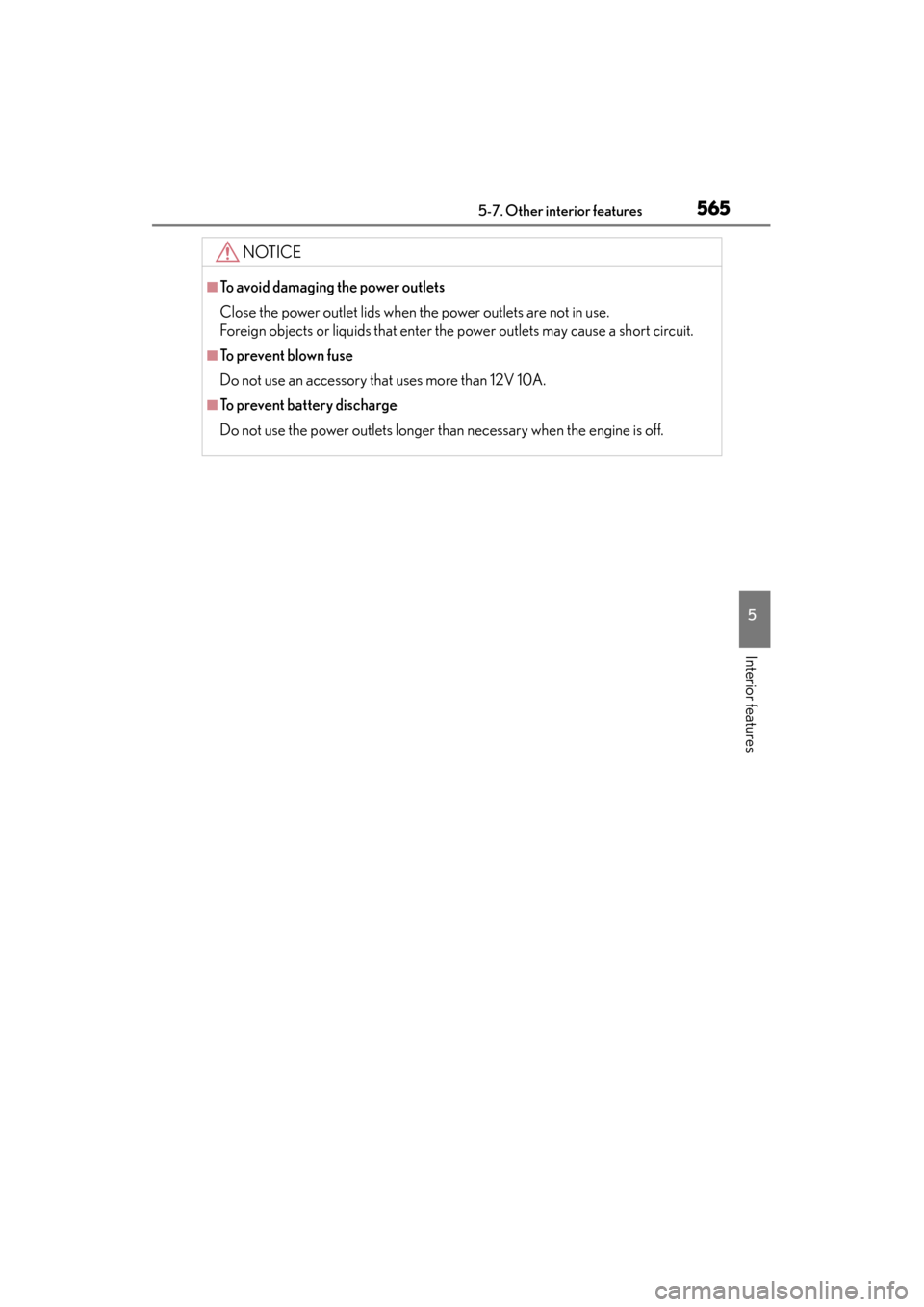

GS350_U (OM30C34U)
5655-7. Other interior features
5
Interior features
NOTICE
■To avoid damaging the power outlets
Close the power outlet lids when the power outlets are not in use.
Foreign objects or liquids that enter the power outlets may cause a short circuit.
■To prevent blown fuse
Do not use an accessory that uses more than 12V 10A.
■To prevent battery discharge
Do not use the power outlets longer than necessary when the engine is off.

566
GS350_U (OM30C34U)
5-7. Other interior features
Heated steering wheel∗
Turns the heater on/off
The indicator light comes on when the
heater is operating.
■Operating condition
The engine switch is in IGNITION ON mode.
■Timer
The heated steering wheel will automatically turn off after about 30 minutes.
■If the indicator light flashes
Press the button to turn the heated steering wheel off and then press the button
again. If the indicator light still flashes, a malfunction may be occurring. Turn the
heated steering wheel off and have the vehicle inspected by your Lexus dealer.
∗: If equipped
The heated steering wheel heats the side grips of the steering wheel.

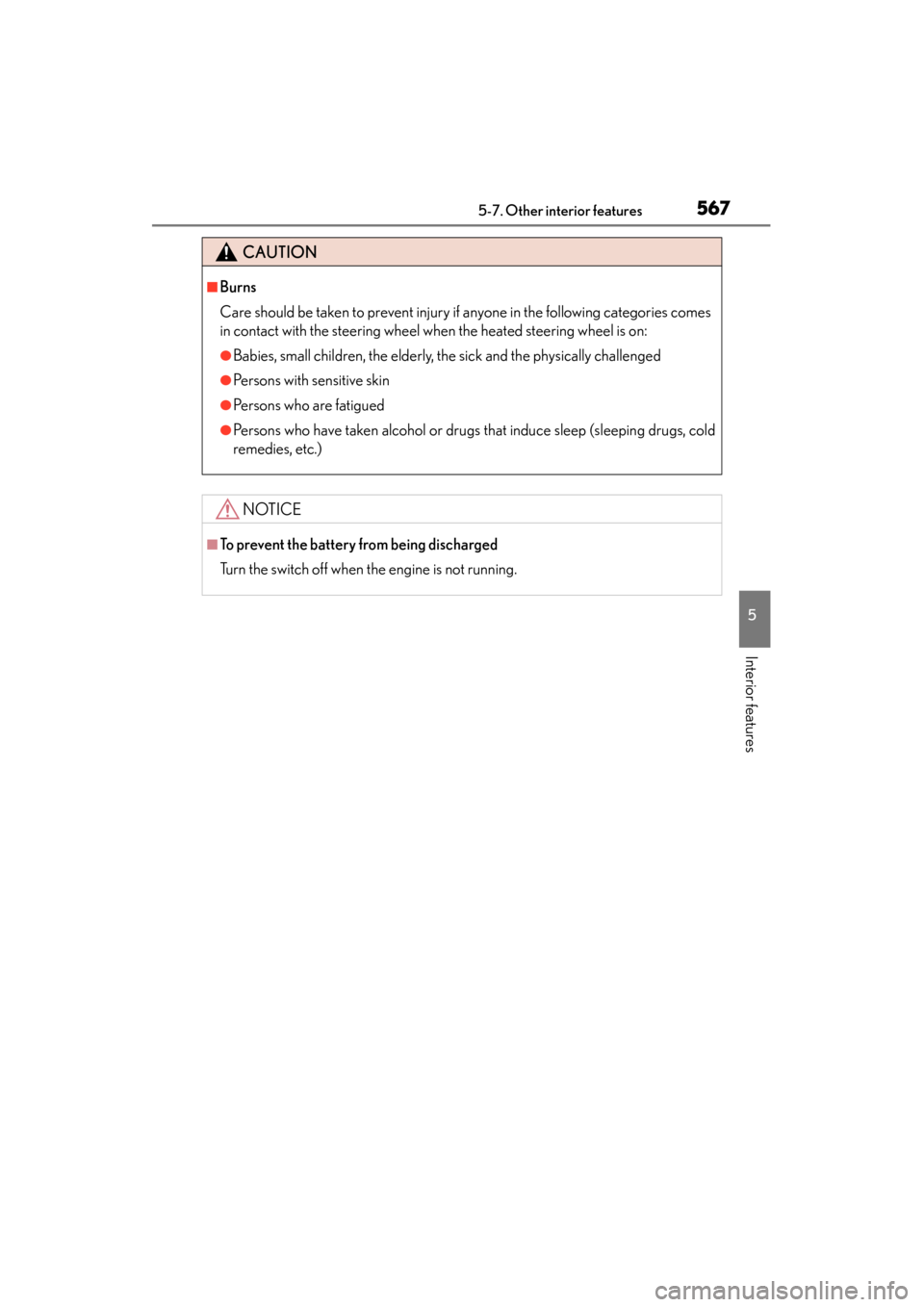

GS350_U (OM30C34U)
5675-7. Other interior features
5
Interior features
CAUTION
■Burns
Care should be taken to prevent injury if anyone in the following categories comes
in contact with the steering wheel when the heated steering wheel is on:
●Babies, small children, the elderly, the sick and the physically challenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
NOTICE
■To prevent the battery from being discharged
Turn the switch off when the engine is not running.

568
GS350_U (OM30C34U)
5-7. Other interior features
Seat heaters∗/s e a t v e n t i l a t o r s∗
■Front seats
Turns the seat heater onHi
Mid
Lo
Off
The indicator light (yellow) on the
switch and the level indicator lights
(green) come on.
■Rear seats (if equipped)
Turns the seat heater onHi
Mid
Lo
Off
The level indicator lights (yellow)
come on.
∗: If equipped
The seat heaters and ventilators heat the seats and maintain good air-
flow by blowing air from the seats.
Seat heaters
1
2
13
4
1
2
13
4

GS350_U (OM30C34U)
5695-7. Other interior features
5
Interior features
Blows air from the seatHi
Mid
Lo
Off
The indicator light (green) on the
switch and the level indicator lights
(green) come on.
■The seat heaters/seat ventilators can be used when
The engine switch is in IGNITION ON mode.
■The seat heater timer control
The seat heater automatically switches from Hi → Mid → Lo → Off. The switching
timing differs depending on the temperature inside the cabin etc. when the seat
heater was operated.
■Automatic operation of the seat heater during Eco drive mode
If the driving mode select switch is switched to Eco drive mode in cold temperatures,
the seat heater may be automatically operated to assist heating performance.
■Button lock function (vehicles with rear control panel)
To prevent inadvertent operation, some buttons on the rear armrest can be locked.
( → P. 3 6 4 )
■Rear control panel illumination off function (vehicles with rear control panel)
Control panel illumination on the rear armrest can be turned off. ( →P. 3 6 4 )
Seat ventilators (front seats only)
1
2
13
4
