Lexus GS350 2013 Owner's Manual

660
GS350_U (OM30C34U)
6-3. Do-it-yourself maintenance

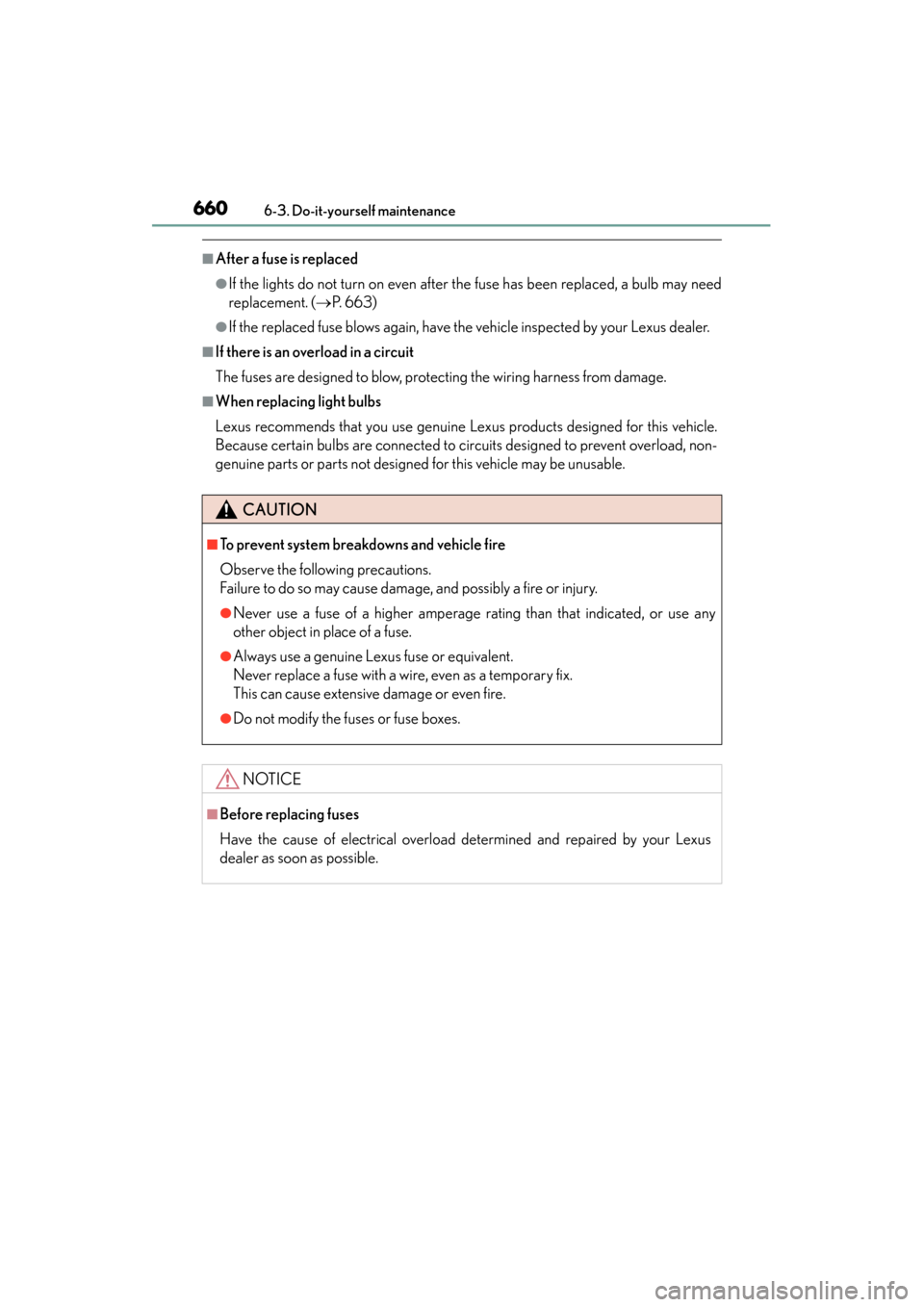

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 663)
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.

661
GS350_U (OM30C34U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Headlight aim
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Using a Phillips-head screw-
driver, turn bolt A in either direc-
tion.
Remember the turning direction and
the number of turns.
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
Adjusting the headlight aim
1
2
3
4
1

662
GS350_U (OM30C34U)
6-3. Do-it-yourself maintenance
Turn bolt B the same number of
turns and in the same direction as
step .
If the headlight cannot be adjusted
using this procedure, take the vehicle
to your Lexus dealer to adjust the
headlight aim.
2
1

663
GS350_U (OM30C34U)6-3. Do-it-yourself maintenance
6
Maintenance and care

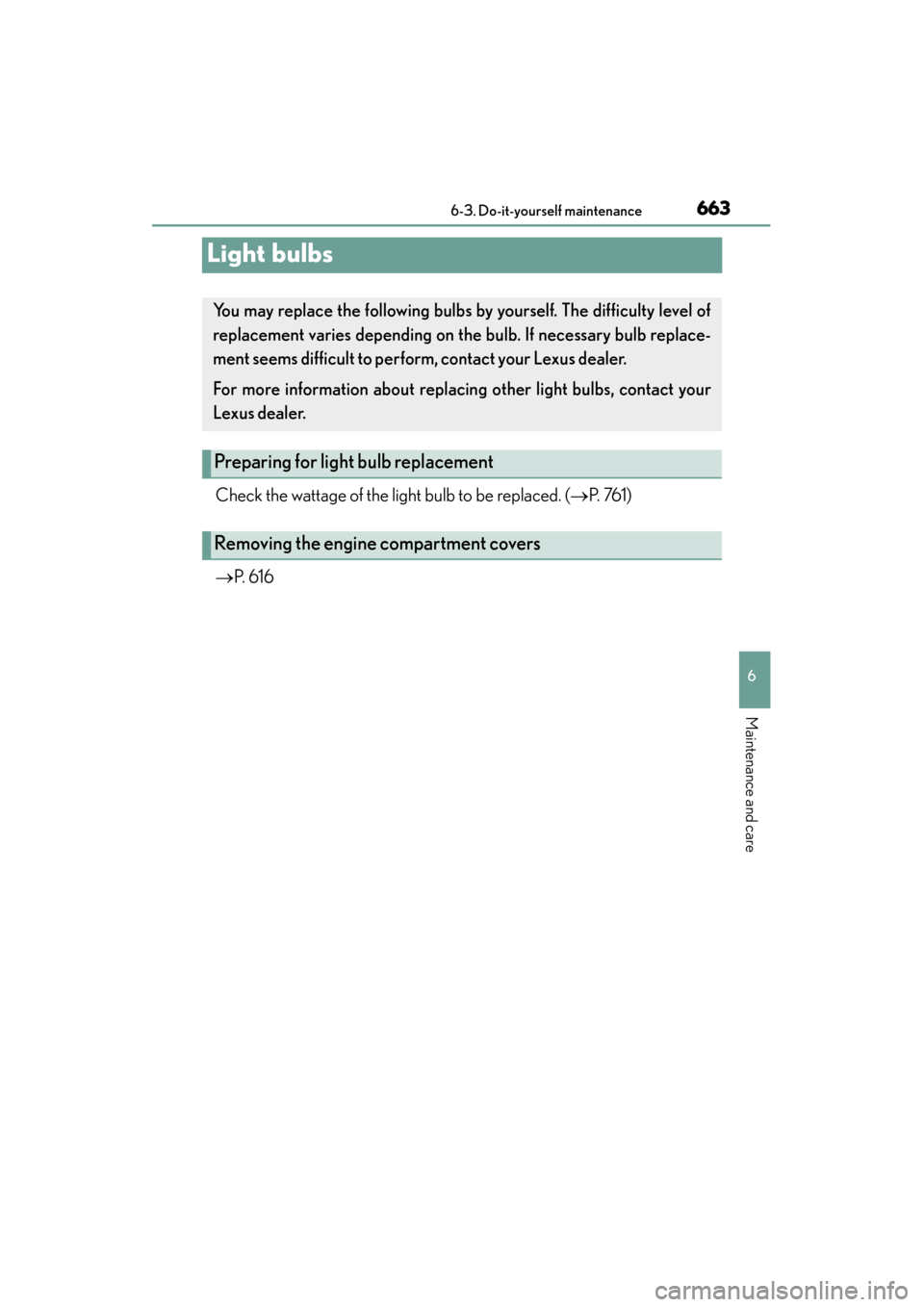

Light bulbs
Check the wattage of the light bulb to be replaced. ( →P. 76 1 )
→ P. 6 1 6
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replace-
ment seems difficult to perfor m, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replacement
Removing the engine compartment covers

664
GS350_U (OM30C34U)
6-3. Do-it-yourself maintenance
■Front
■Rear
Bulb locations
Front turn signal light
Fog light (if equipped)1
2
Back-up light
Rear turn signal light1
2

GS350_U (OM30C34U)
6656-3. Do-it-yourself maintenance
6
Maintenance and care
■Fog lights (if equipped)To allow enough working
space, turn the steering wheel
to the opposite side of the bulb
to be replaced.
Remove the 2 fender liner
clips.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left
side light bulb.
To take out the clips, turn the head
of the clip to unlock, then remove
by pulling.
While holding the clamp open,
pull and remove the tabs and
open the fender liner.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3

666
GS350_U (OM30C34U)
6-3. Do-it-yourself maintenance
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert. Turn
it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to check
that it is not loose, turn the fog lights
on once and visually confirm that
no light is leaking through the
mounting.
Reinstall the fender liner and
install the clips.
Insert the clips and turn to lock.
4
5
6
7

GS350_U (OM30C34U)
6676-3. Do-it-yourself maintenance
6
Maintenance and care
■Front turn signal lightsFor the left side only: To allow
enough working space, turn
the steering wheel all the way
to the right, then remove the
bolts and take off the cover.
Turn the bulb base counterclockwise.
1
2
XRight sideXLeft side

668
GS350_U (OM30C34U)
6-3. Do-it-yourself maintenance
Remove the light bulb.
When installing, reverse the
steps listed.
After installing the bulb base,
secure the cord with the clips and
install the cover
* in its original posi-
tion.
*: For the left side only
3
4

GS350_U (OM30C34U)
6696-3. Do-it-yourself maintenance
6
Maintenance and care
■Rear turn signal lightsOpen the trunk lid and remove
the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
After installing the bulb base,
secure the cord with the clips and
install the cover in its original posi-
tion.
1
2
3
4
