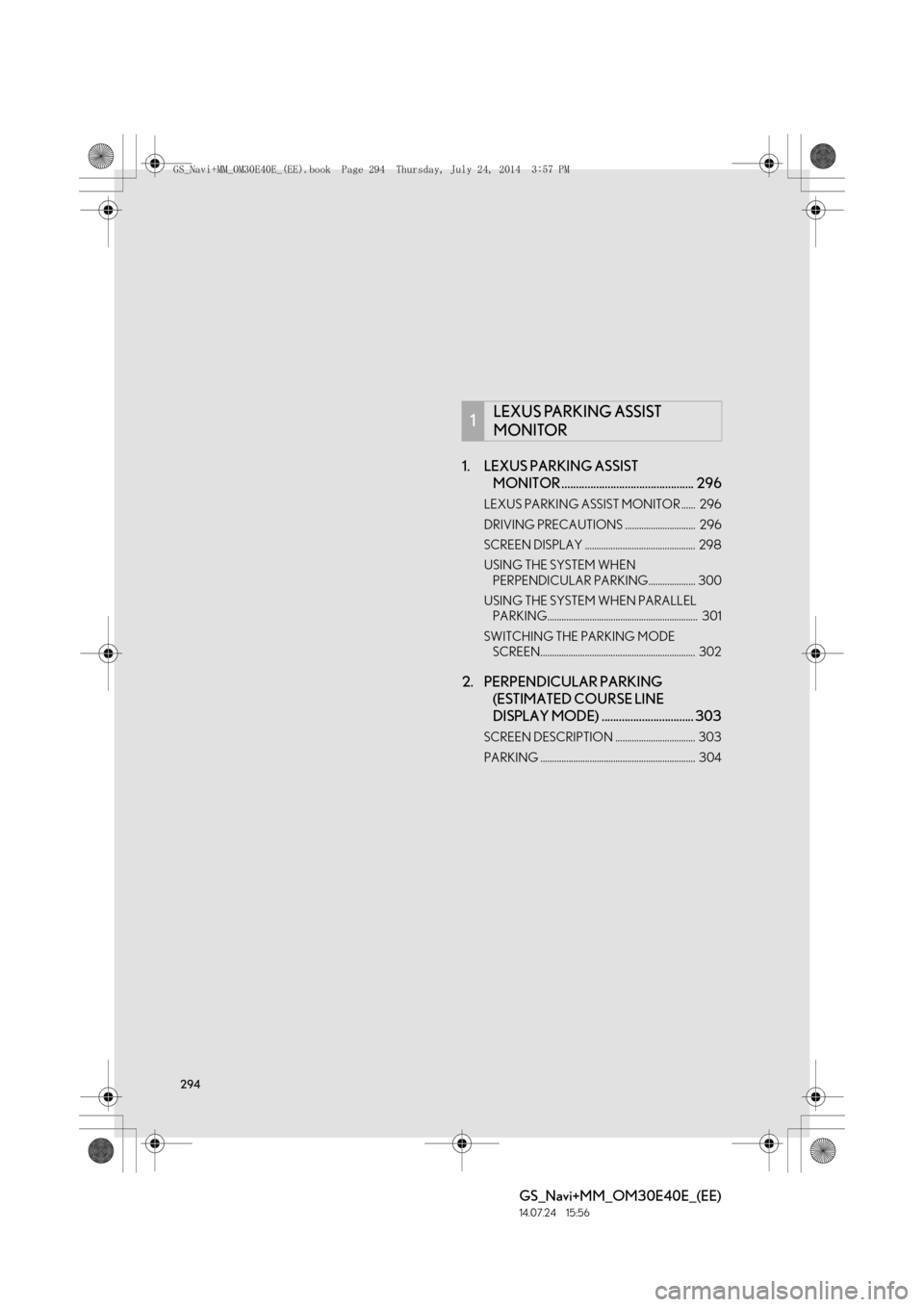

1. LEXUS PARKING ASSIST MONITOR .............................................. 296
LEXUS PARKING ASSIST MONITOR ...... 296
DRIVING PRECAUTIONS .............................. 296
SCREEN DISPLAY ............................................... 298
USING THE SYSTEM WHEN
PERPENDICULAR PARKING.................... 300
USING THE SYSTEM WHEN PARALLEL PARKING................................................................ 301
SWITCHING THE PARKING MODE SCREEN.................................................................. 302
2. PERPENDICULAR PARKING (ESTIMATED COURSE LINE
DISPLAY MODE) ................................ 303
SCREEN DESCRIPTION .................................. 303
PARKING .................................................................. 304
1LEXUS PARKING ASSIST
MONITOR
GS_Navi+MM_OM30E40E_(EE).book Page 294 Thursday, July 24, 201 4 3:57 PM

6
295
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5 6
7
8
9
3. PERPENDICULAR PARKING (PARKING ASSIST GUIDE LINE
DISPLAY MODE).................................305
SCREEN DESCRIPTION .................................. 305
PARKING .................................................................. 306
4. PARALLEL PARKING ........................... 307
VEHICLE MOVEMENT
PROCEDURE ...................................................... 307
PARKING .................................................................. 309
NARROW MODE .................................................. 314
5. LEXUS PARKING ASSIST MONITOR PRECAUTIONS..................................... 316
AREA DISPLAYED ON SCREEN.................. 316
THE CAMERA .......................................................... 317
DIFFERENCES BETWEEN THE SCREEN
AND THE ACTUAL ROAD ........................... 318
WHEN APPROACHING THREE-DIMENSIONAL OBJECTS .......... 319
6. THINGS YOU SHOULD KNOW ...... 321
IF YOU NOTICE ANY SYMPTOMS ........... 321
1. LEXUS PARKING ASSIST-SENSOR .................................. 324
TYPES OF SENSORS .......................................... 324
LEXUS PARKING ASSIST-SENSOR
SWITCH................................................................... 324
DISPLAY ..................................................................... 325
SENSOR DETECTION DISPLAY, OBSTACLE DISTANCE ................................. 327
DETECTION RANGE OF THE SENSORS .............................................................. 330
THE LEXUS PARKING ASSIST-SENSOR CAN BE OPERATED WHEN ....................... 331
LEXUS PARKING ASSIST-SENSOR DISPLAY .................................................................. 331
SENSOR DETECTION INFORMATION................................................... 331
LEXUS PARKING ASSIST-SENSOR FAILURE WARNING ...................................... 333
2. SETTING UP LEXUS PARKING ASSIST-SENSOR ..................................335
ALERT VOLUME SETTING ............................. 336
DISPLAY ON/OFF SETTING.......................... 336
ALERT DISTANCE SETTING .......................... 337
2LEXUS PARKING ASSIST-
SENSOR
PERIPHERAL MONITORING SYSTEM
For vehicles sold outside Europe, some of the functions cannot be operated while driving.
GS_Navi+MM_OM30E40E_(EE).book Page 295 Thursday, July 24, 201 4 3:57 PM

296
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1. LEXUS PARKING ASSIST MONITOR
1. LEXUS PARKING ASSIST MONITOR
LEXUS PARKING ASSIST
MONITOR
The parking assist monitor assists the
driver by displaying an image of the view
behind the vehicle while backing up, for
example while parking.
The parking assist monitor assists with
the following 2 backing-up operations:
(1) Perpendicular parking (parking in agarage, etc.)
(2)Parallel parking (parking at the side of the road, etc.)
INFORMATION
●
The screen illustrations used in this text
are intended as examples, and may differ
from the image that is actually displayed
on the screen.
DRIVING PRECAUTIONS
The parking assist monitor is a supple-
mental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the parking assist mon-
itor.
CAUTION
●Never depend on the parking assist mon-
itor entirely when backing up. The image
and the position of the guide lines dis-
played on the screen may differ from the
actual state.
Use caution, just as you would when
backing up any vehicle.
●Be sure to back up slowly, depressing the
brake pedal to control vehicle speed.
●If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the vehi-
cle, then disable the assist system by
selecting on the screen to cancel
the system.
GS_Navi+MM_OM30E40E_(EE).book Page 296 Thursday, July 24, 201 4 3:57 PM

297
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
6
CAUTION
●The instructions given are only guidelines.
When and how much to turn the steering
wheel will vary according to traffic condi-
tions, road surface conditions, vehicle
condition, etc. when parking. It is neces-
sary to be fully aware of this before using
the parking assist system.
●When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
●Do not use the parking assist monitor sys-
tem in the following cases:
• On icy or slick road surfaces, or in snow
• When using tyre chains or emergencytyres
• When the trunk is not closed com- pletely
• On roads that are not flat or straight, such as curves or slopes
CAUTION
●In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehicle
is moving, or you may become unable to
see the image on the screen. Be sure to
visually check all around the vehicle both
directly and using the mirrors before pro-
ceeding.
●If the tyre sizes are changed, the position
of the guide lines displayed on the screen
may change.
●The camera uses a special lens. The dis-
tances between objects and pedestrians
that appear in the image displayed on the
screen will differ from the actual dis-
tances. ( →P. 3 1 8 )
GS_Navi+MM_OM30E40E_(EE).book Page 297 Thursday, July 24, 201 4 3:57 PM

298
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
zThe parking assist monitor displays the last-used parking mode first.
XPerpendicular parking XParallel parking
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shift lever is shifted to the “R”
position while the engine switch is in IGNITION ON mode.
No.DisplayFunction
Display mode switch screen but-
tonSwitches the display mode.
Parking mode switch screen but-
tonSwitches the parking mode (between perpendic-
ular parking and parallel parking assist screens)
Narrow mode screen on-off but-
tonSwitch the narrow mode on and off. ( →P.302)
*Lexus parking assist-sensorIf an obstacle is detected while the Lexus parking
assist-sensor is on, a display is shown in the top
right corner of the screen.
*: Vehicles without navigation system
GS_Navi+MM_OM30E40E_(EE).book Page 298 Thursday, July 24, 201 4 3:57 PM

300
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
XEstimated course line display mode
(→ P.303) X
Parking assist guide line display mode
(→ P.305)
X Distance guide line display mode
USING THE SYSTEM WHEN
PERPENDICULAR PARKING
Use any of the following modes when
perpendicular parking (for example,
when parking in a garage).
Estimated course lines are displayed
which move in accordance with the op-
eration of the steering wheel.
The steering wheel return points (park-
ing assist guide lines) are displayed.
Distance guide lines only are displayed.
GS_Navi+MM_OM30E40E_(EE).book Page 300 Thursday, July 24, 201 4 3:57 PM

301
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
6
1Select the display mode switch screen
button.
zWith each select, the perpendicular park-
ing assist screen switches as follows:
SWITCHING THE DISPLAY
MODE
Distance guide line
display mode
Parking assist guide line display mode
Estimated course line display mode
USING THE SYSTEM WHEN
PARALLEL PARKING
Screen display and beep sounds pro-
vide an estimation of the point at which
you should turn the steering wheel when
parallel parking. If the position the vehi-
cle is to be parked in is narrower than
usual, narrow mode can be used.
GS_Navi+MM_OM30E40E_(EE).book Page 301 Thursday, July 24, 201 4 3:57 PM

302
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56

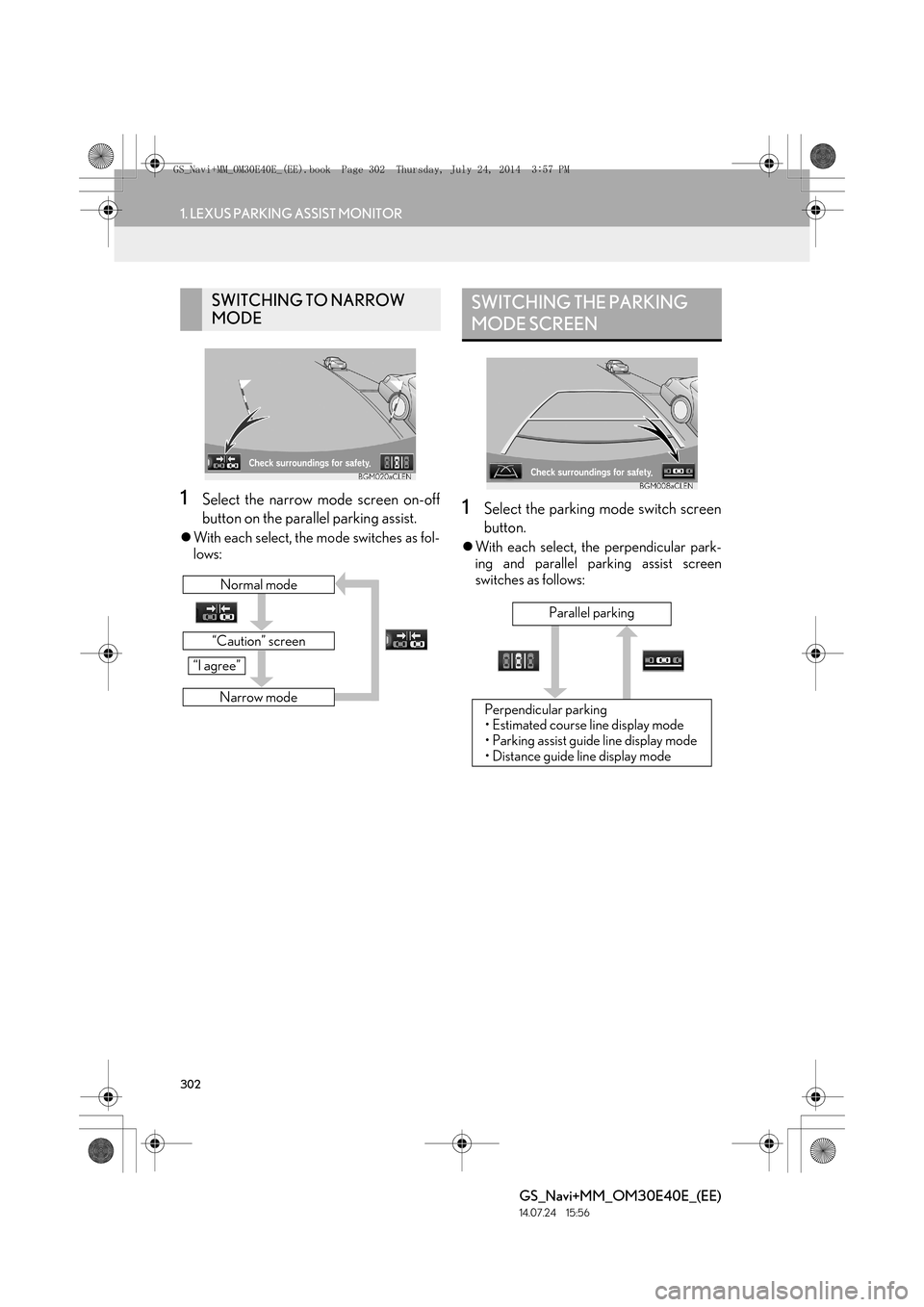

1Select the narrow mode screen on-off
button on the parallel parking assist.
zWith each select, the mode switches as fol-
lows:
1Select the parking mode switch screen
button.
zWith each select, the perpendicular park-
ing and parallel parking assist screen
switches as follows:
SWITCHING TO NARROW
MODE
“Caution” screen
Normal mode
Narrow mode
“I agree”
SWITCHING THE PARKING
MODE SCREEN
Perpendicular parking
• Estimated course line display mode
• Parking assist guide line display mode
• Distance guide line display mode Parallel parking
GS_Navi+MM_OM30E40E_(EE).book Page 302 Thursday, July 24, 201
4 3:57 PM

303
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
PERIPHERAL MONITORING SYSTEM
6
2. PERPENDICULAR PARKING (ESTIMATED COURSE LINE DISPLAY MODE)
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
• These guide lines align with the estimated course lines
when the vehicle is going straight ahead.
Estimated course linesShow a estimated course when the steering wheel is
turned.
Distance guide lines
Show distance behind the vehicle when the steering wheel
is turned.
•The guide lines move in conj unction with the estimated
course lines.
• The guide lines display points approximately 0.5 m (1.5
ft.) (red) and approximately 1 m (3 ft.) (yellow) from the
centre of the edge of the bumper.
Distance guide line
Shows distance behind the vehicle.
•Displays a point approximately 0.5 m (1.5 ft.) (blue)
from the edge of the bumper.
CAUTION
●If the steering wheel is straight and the vehicle width guide lines and the estimated course
lines are not in alignment, have the vehicle inspected by your Lexus dealer or repairer, or
another duly qualified and equipped professional.
GS_Navi+MM_OM30E40E_(EE).book Page 303 Thursday, July 24, 201 4 3:57 PM

305
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
PERIPHERAL MONITORING SYSTEM
6
3. PERPENDICULAR PARKING (PARKING ASSIST GUIDE LINE DISPLAY MODE)
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
Parking assist guide lines
Shows the path of the smallest turn possible behind the ve-
hicle.
•Shows the approximate position of the steering wheel
when parking.
Distance guide line
Shows distance behind the vehicle.
•Display points approximately 0.5 m (1.5 ft.) (red) from
the edge of the bumper.
GS_Navi+MM_OM30E40E_(EE).book Page 305 Thursday, July 24, 201 4 3:57 PM
