Lexus GS350 2014 Owner's Manual

130
GS350_OM_OM30D41U_(U)
3-3. Adjusting the seats

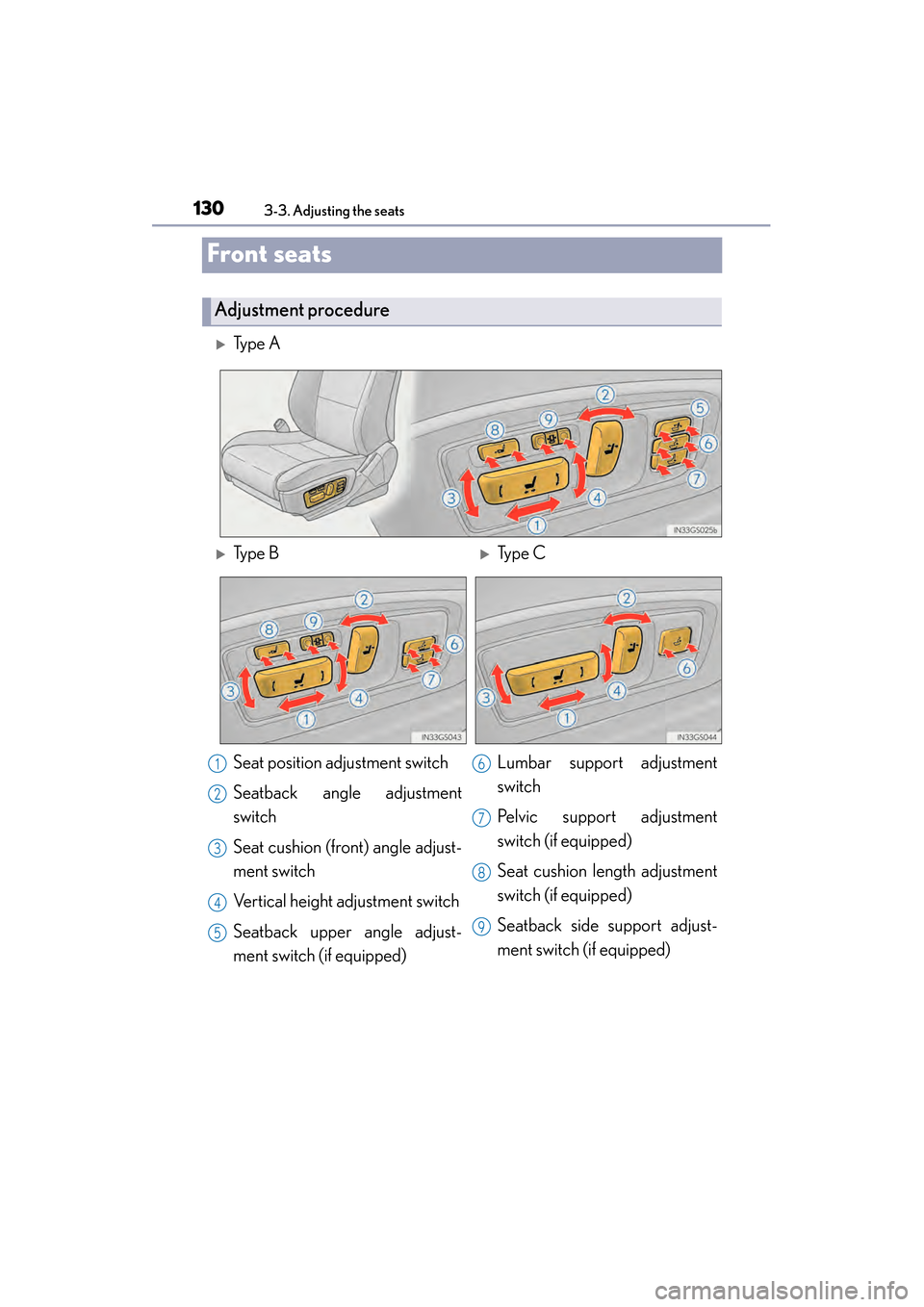

Front seats
XTy p e A
Adjustment procedure
XTy p e BXType C
Seat position adjustment switch
Seatback angle adjustment
switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch
Seatback upper angle adjust-
ment switch (if equipped) Lumbar support adjustment
switch
Pelvic support adjustment
switch (if equipped)
Seat cushion length adjustment
switch (if equipped)
Seatback side support adjust-
ment switch (if equipped)
1
2
3
4
5
6
7
8
9
GS350_OM_OM30D41U_(U).book Page 130 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
1313-3. Adjusting the seats
3
Operation of each component

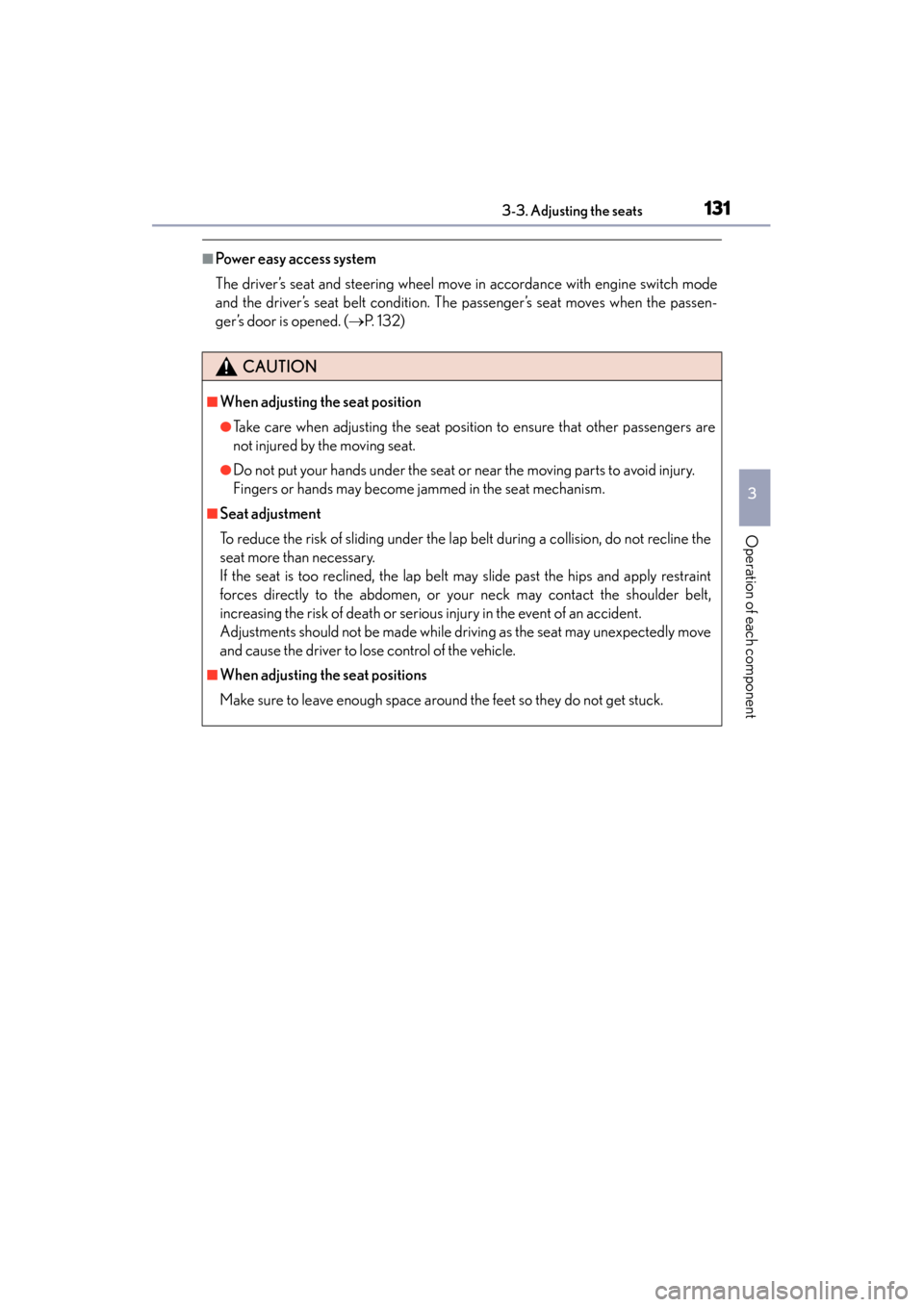

■Power easy access system
The driver’s seat and steering wheel move in accordance with engine switch mode
and the driver’s seat belt condition. The passenger’s seat moves when the passen-
ger’s door is opened. (→P. 1 3 2 )
CAUTION
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.
■When adjusting the seat positions
Make sure to leave enough space around the feet so they do not get stuck.
GS350_OM_OM30D41U_(U).book Page 131 Monday, July 29, 2013 2:22 PM

132
GS350_OM_OM30D41U_(U)
3-3. Adjusting the seats

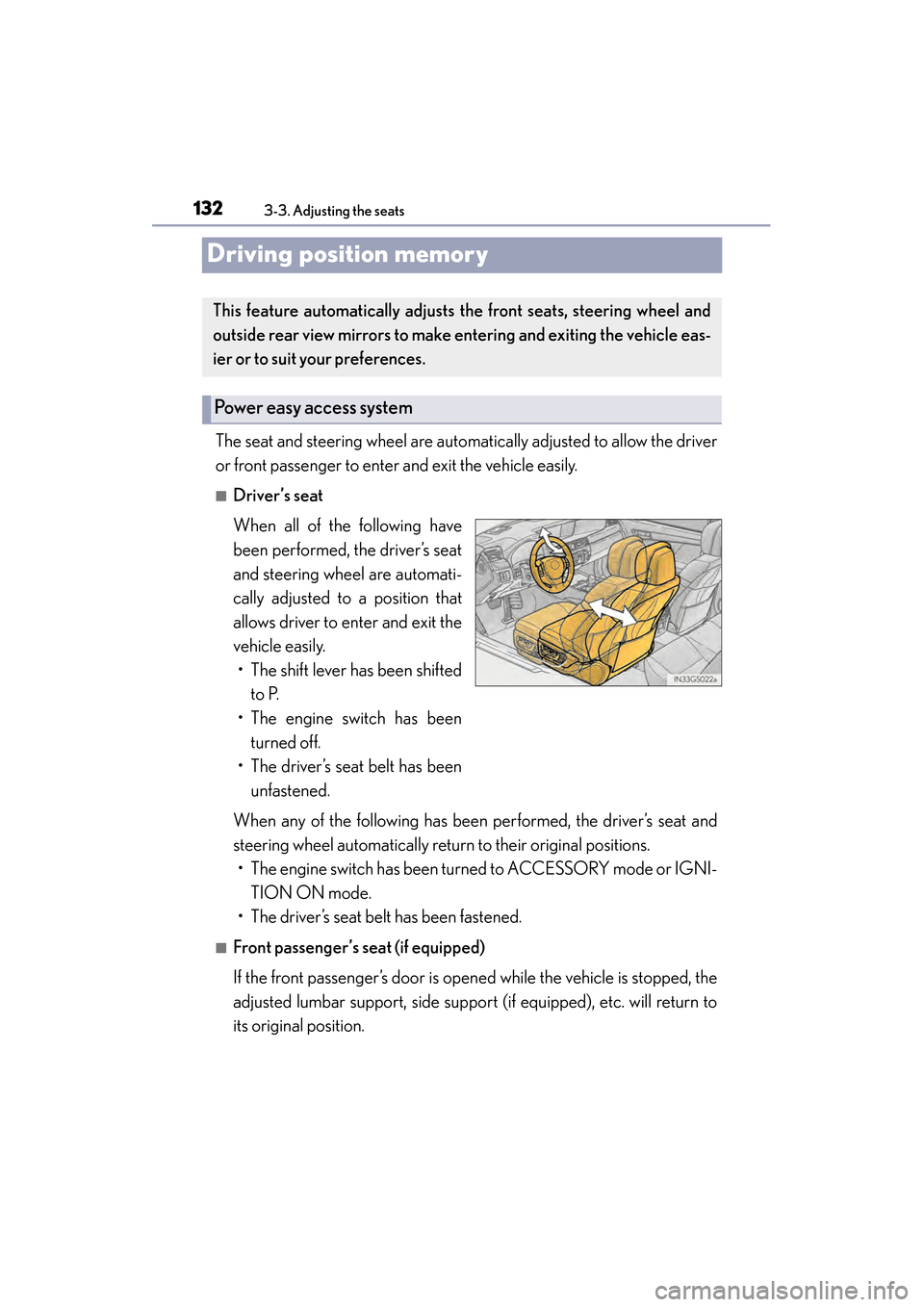

Driving position memory
The seat and steering wheel are automatically adjusted to allow the driver
or front passenger to enter and exit the vehicle easily.
■Driver’s seat
When all of the following have
been performed, the driver’s seat
and steering wheel are automati-
cally adjusted to a position that
allows driver to enter and exit the
vehicle easily.• The shift lever has been shifted to P.
• The engine switch has been turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been performed, the driver’s seat and
steering wheel automatically return to their original positions. • The engine switch has been turned to ACCESSORY mode or IGNI- TION ON mode.
• The driver’s seat belt has been fastened.
■Front passenger’s seat (if equipped)
If the front passenger’s door is open ed while the vehicle is stopped, the
adjusted lumbar support, side support (if equipped), etc. will return to
its original position.
This feature automatically adjusts the front seats, steering wheel and
outside rear view mirrors to make entering and exiting the vehicle eas-
ier or to suit your preferences.
Power easy access system
GS350_OM_OM30D41U_(U).book Page 132 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
1333-3. Adjusting the seats
3
Operation of each component

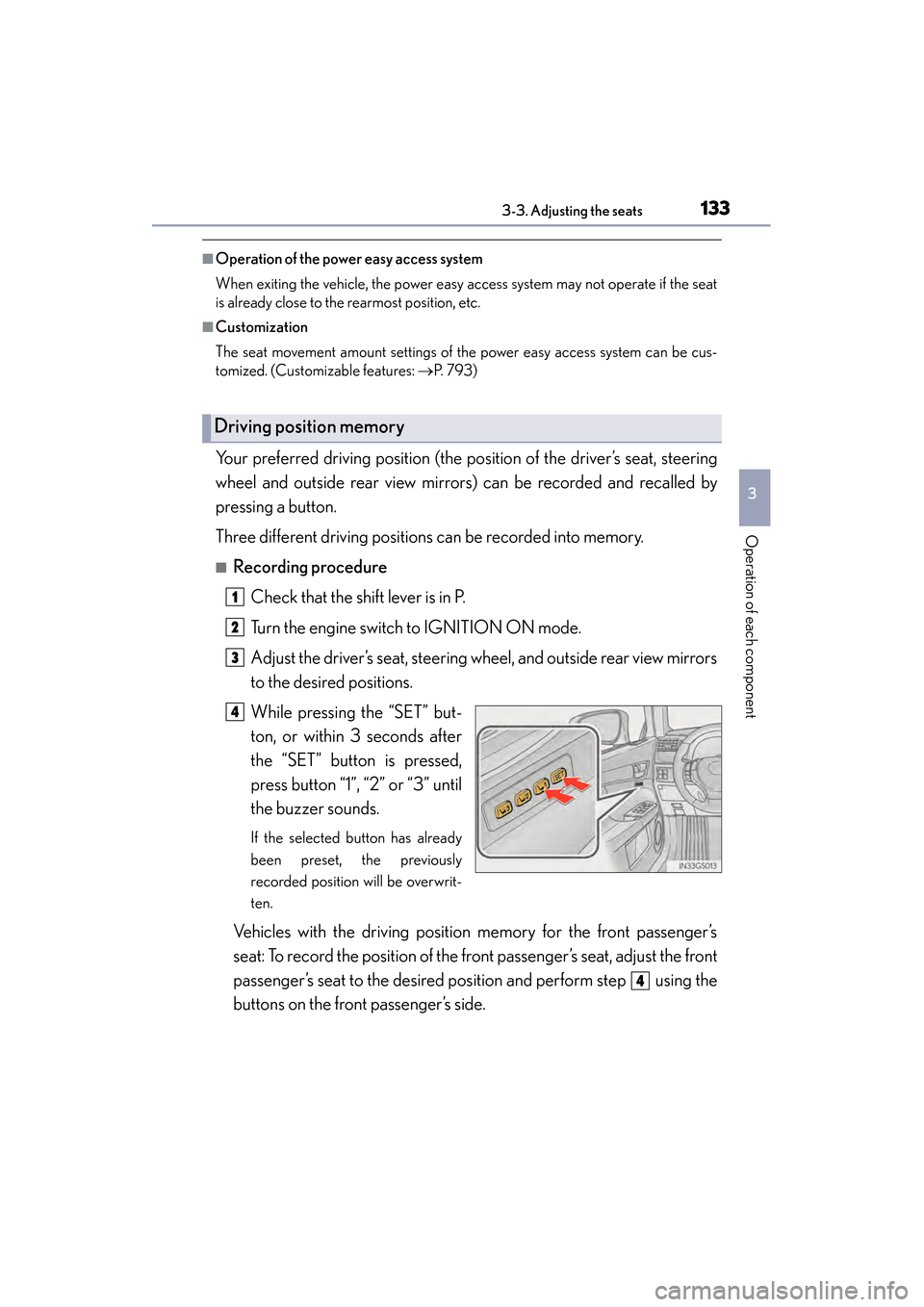

■Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat
is already close to the rearmost position, etc.
■Customization
The seat movement amount settings of the power easy access system can be cus-
tomized. (Customizable features: →P. 7 9 3 )
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be recorded and recalled by
pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors
to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button “1”, “2” or “3” until
the buzzer sounds.
If the selected button has already
been preset, the previously
recorded position will be overwrit-
ten.
Vehicles with the driving position memory for the front passenger’s
seat: To record the position of the front passenger’s seat, adjust the front
passenger’s seat to the desired position and perform step using the
buttons on the front passenger’s side.
Driving position memory
1
2
3
4
4
GS350_OM_OM30D41U_(U).book Page 133 Monday, July 29, 2013 2:22 PM

134
GS350_OM_OM30D41U_(U)
3-3. Adjusting the seats

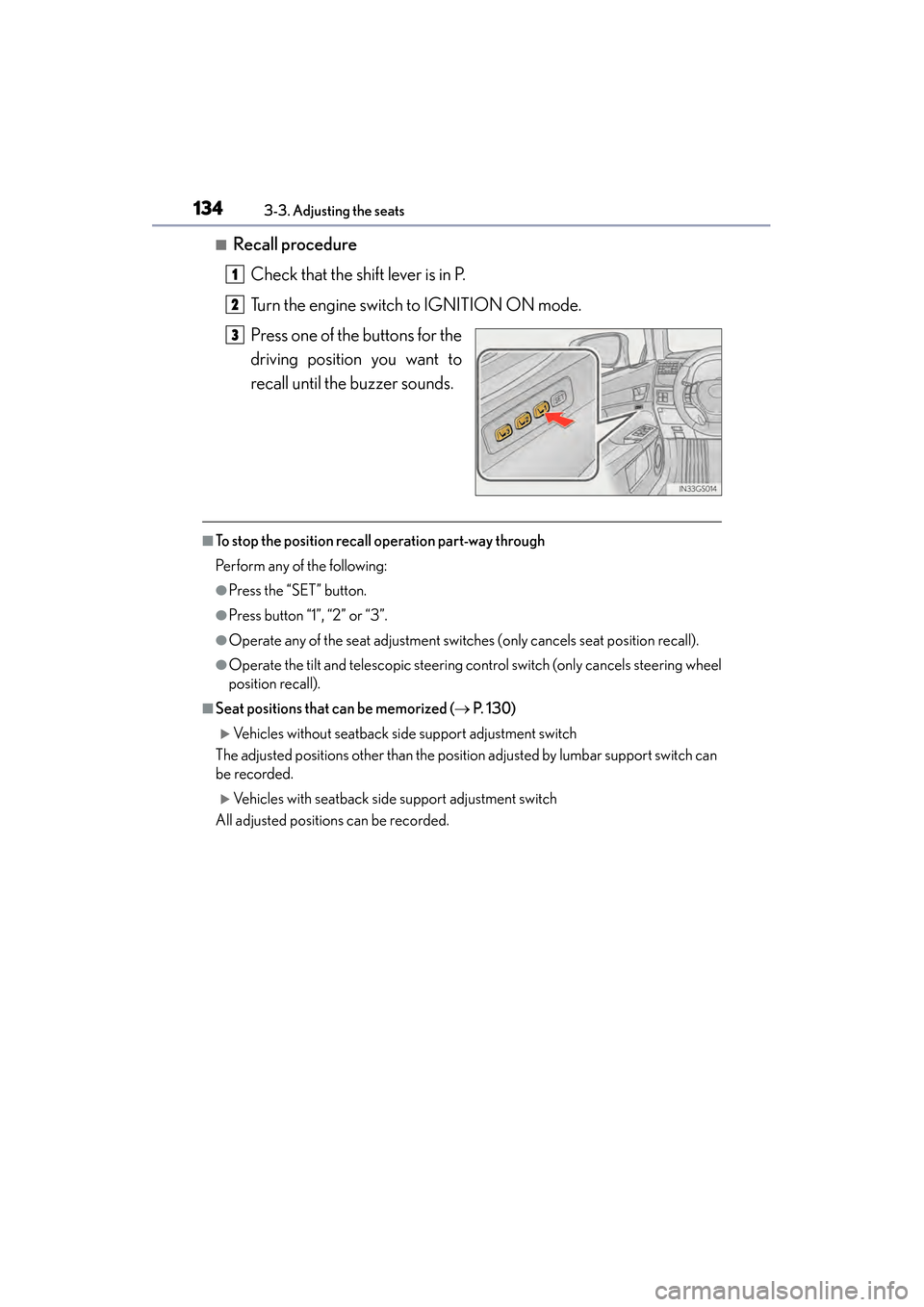

■Recall procedureCheck that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the buttons for the
driving position you want to
recall until the buzzer sounds.
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering wheel
position recall).
■Seat positions that can be memorized ( → P. 1 3 0 )
XVehicles without seatback side support adjustment switch
The adjusted positions other than the position adjusted by lumbar support switch can
be recorded.
XVehicles with seatback side support adjustment switch
All adjusted positions can be recorded.
1
2
3
GS350_OM_OM30D41U_(U).book Page 134 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
1353-3. Adjusting the seats
3
Operation of each component

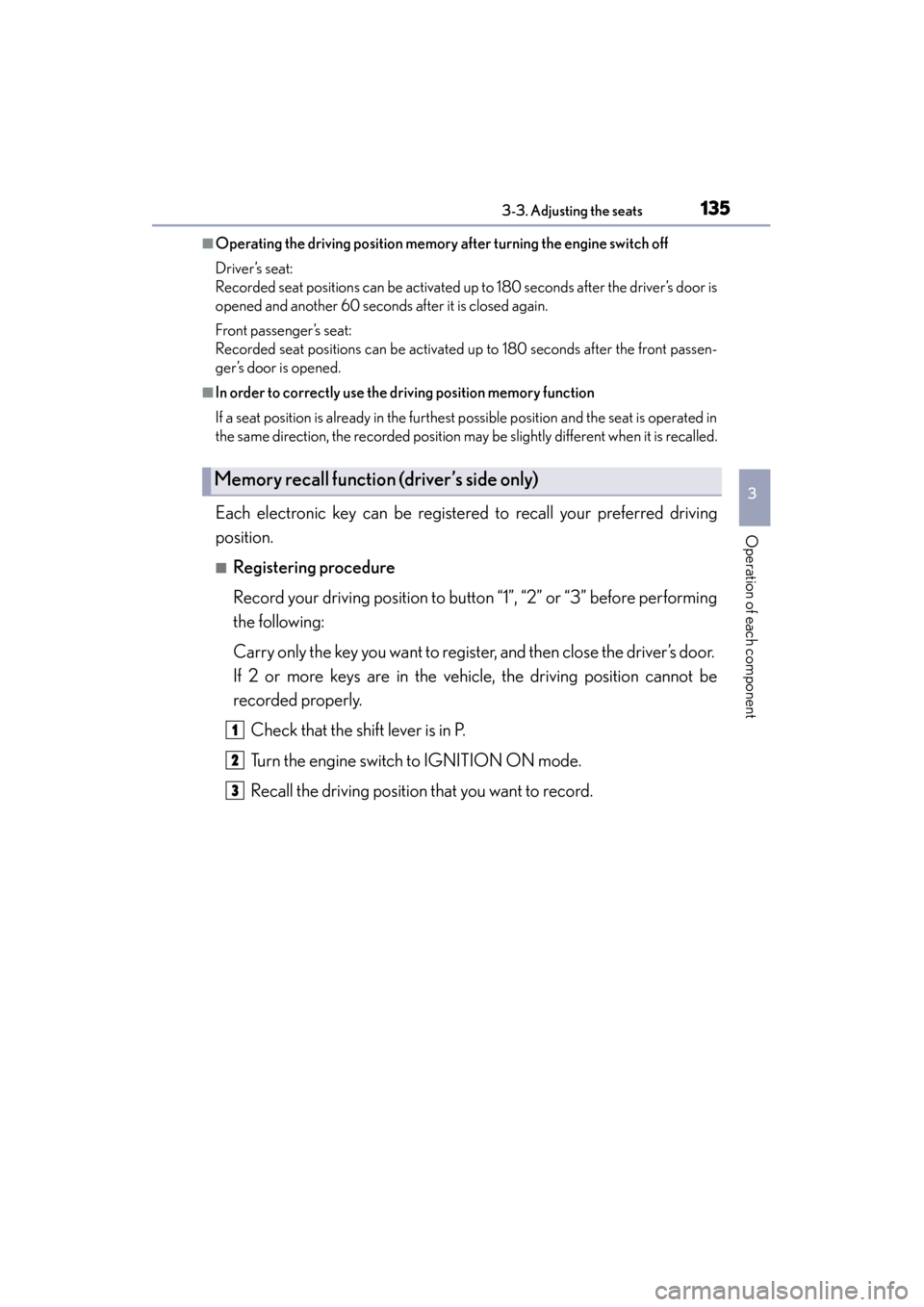

■Operating the driving position memory after turning the engine switch off
Driver’s seat:
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
Front passenger’s seat:
Recorded seat positions can be activated up to 180 seconds after the front passen-
ger’s door is opened.
■In order to correctly use the dr iving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
Each electronic key can be registered to recall your preferred driving
position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carry only the key you want to register, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be
recorded properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Recall the driving position that you want to record.
Memory recall function (driver’s side only)
1
2
3
GS350_OM_OM30D41U_(U).book Page 135 Monday, July 29, 2013 2:22 PM

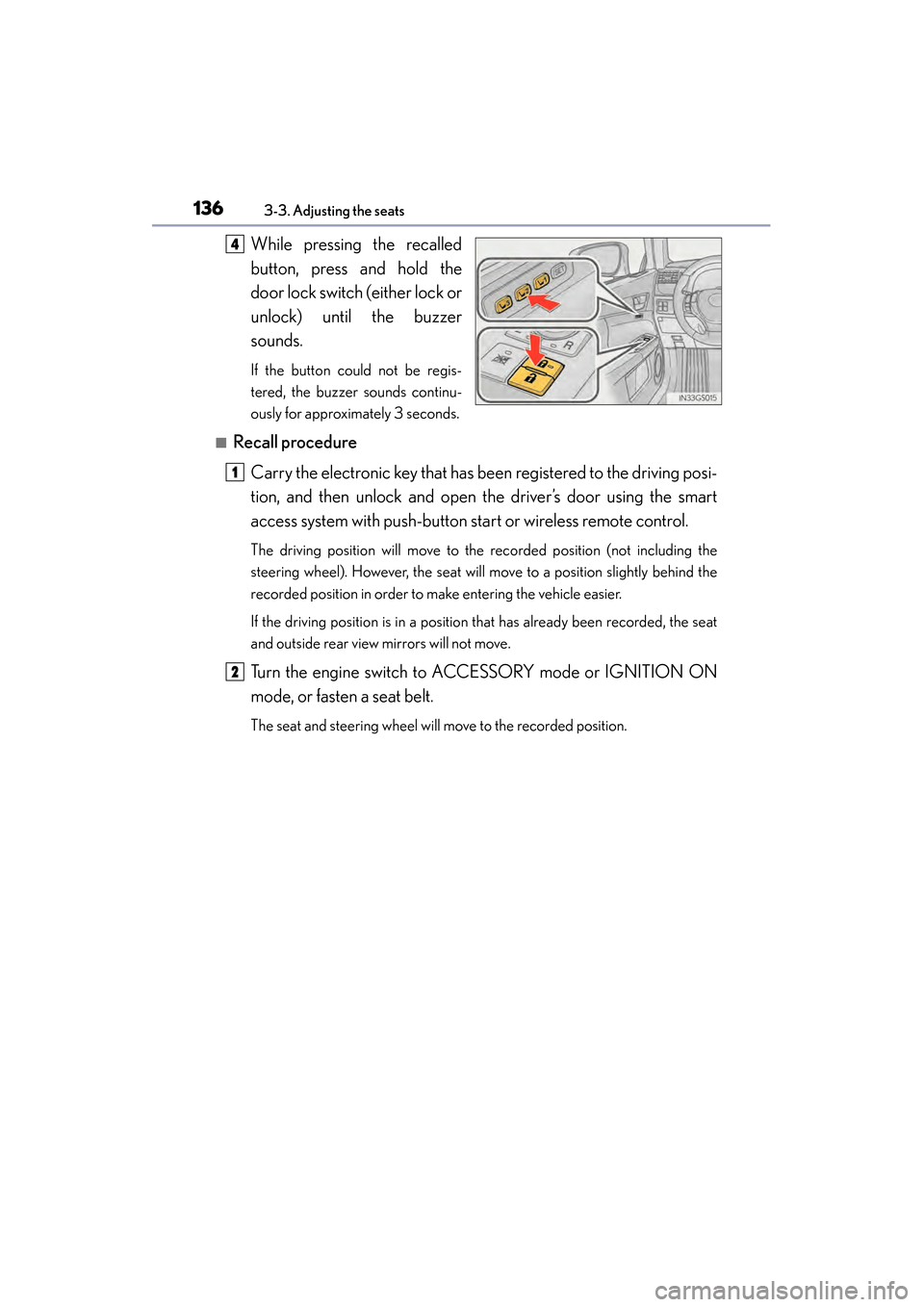

136
GS350_OM_OM30D41U_(U)
3-3. Adjusting the seats
While pressing the recalled
button, press and hold the
door lock switch (either lock or
unlock) until the buzzer
sounds.
If the button could not be regis-
tered, the buzzer sounds continu-
ously for approximately 3 seconds.
■Recall procedureCarry the electronic key that has been registered to the driving posi-
tion, and then unlock and open the driver’s door using the smart
access system with push-button start or wireless remote control.
The driving position will move to the recorded position (not including the
steering wheel). However, the seat will move to a position slightly behind the
recorded position in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat
and outside rear view mirrors will not move.
Turn the engine switch to ACCESSORY mode or IGNITION ON
mode, or fasten a seat belt.
The seat and steering wheel will move to the recorded position.
4
1
2
GS350_OM_OM30D41U_(U).book Page 136 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
1373-3. Adjusting the seats
3
Operation of each component

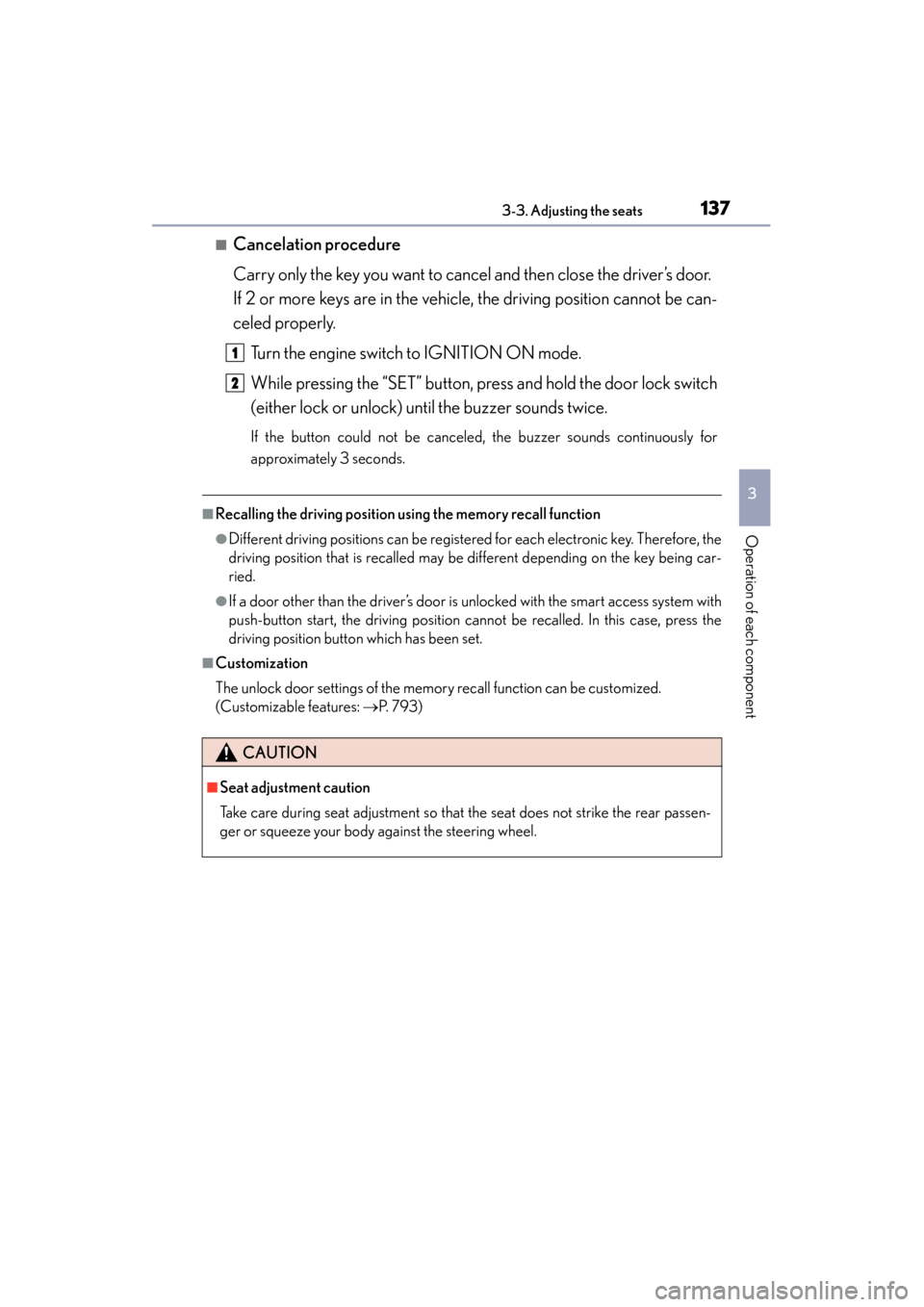

■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for
approximately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the
driving position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: → P. 7 9 3 )
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2
GS350_OM_OM30D41U_(U).book Page 137 Monday, July 29, 2013 2:22 PM

138
GS350_OM_OM30D41U_(U)
3-3. Adjusting the seats

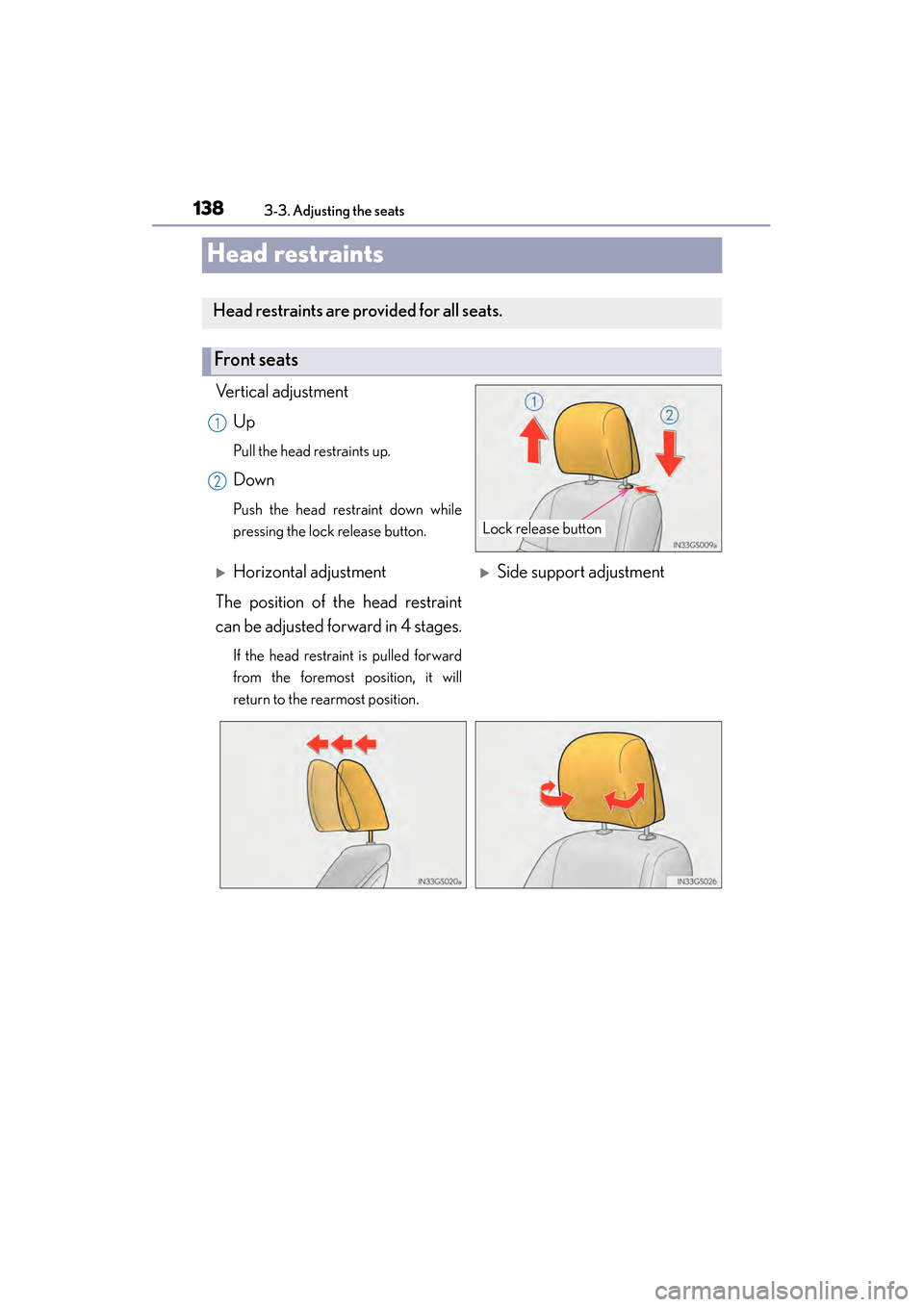

Head restraints
Vertical adjustmentUp
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Head restraints are provided for all seats.
Front seats
Lock release button
1
2
XHorizontal adjustmentXSide support adjustment
The position of the head restraint
can be adjusted forward in 4 stages.
If the head restraint is pulled forward
from the foremost position, it will
return to the rearmost position.
GS350_OM_OM30D41U_(U).book Page 138 Monday, July 29, 2013 2:22 PM

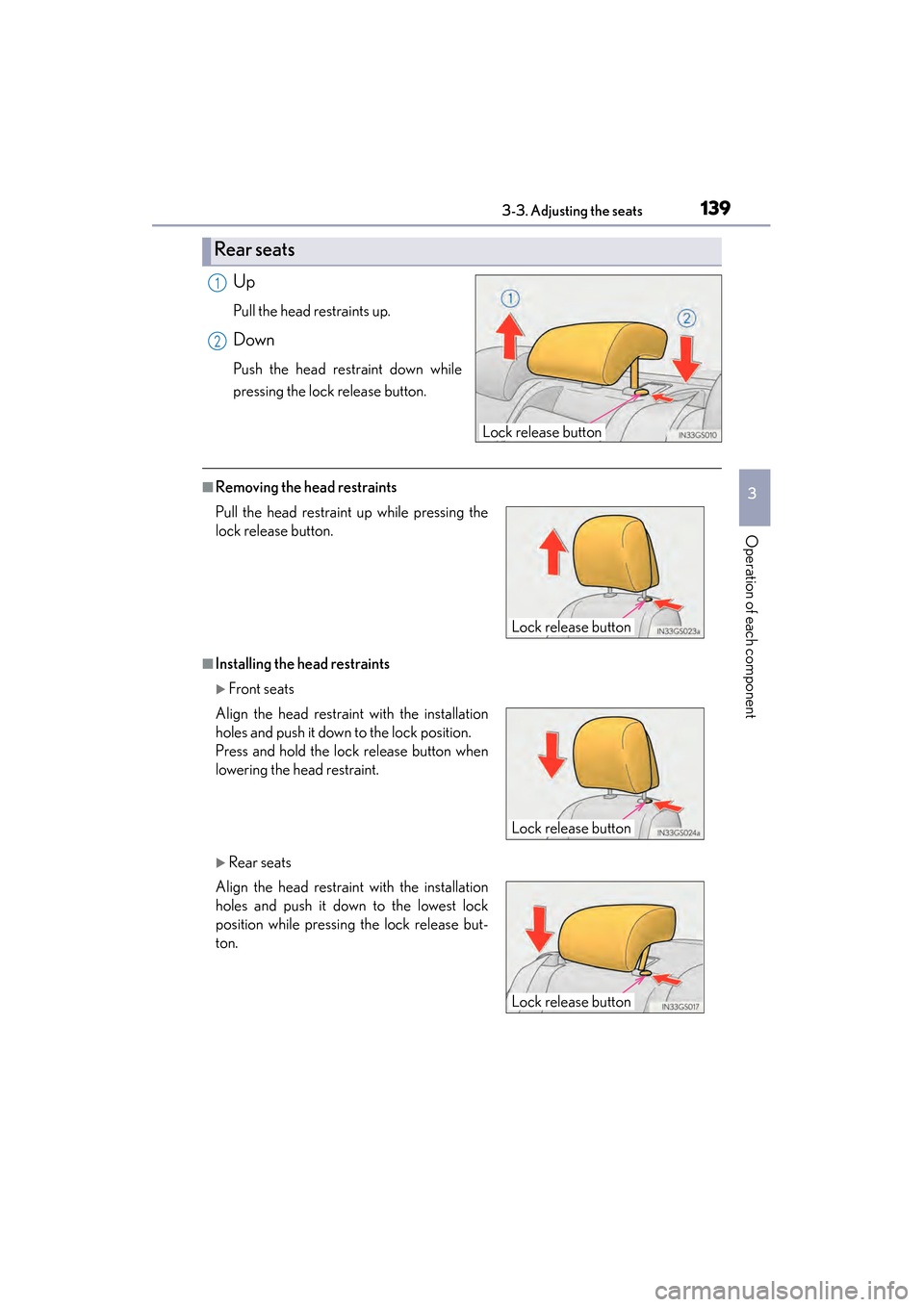

GS350_OM_OM30D41U_(U)
1393-3. Adjusting the seats
3
Operation of each component
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
■Installing the head restraints
XFront seats
XRear seats
Rear seats
Lock release button
1
2
Pull the head restraint up while pressing the
lock release button.
Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
Align the head restraint with the installation
holes and push it down to the lowest lock
position while pressing the lock release but-
ton.
Lock release button
Lock release button
Lock release button
GS350_OM_OM30D41U_(U).book Page 139 Monday, July 29, 2013 2:22 PM
