diagram Lexus GS350 2014 Owner's Manual

391-1. For safe use
GS350_OM_OM30D41U_(U)
1
For safety and security

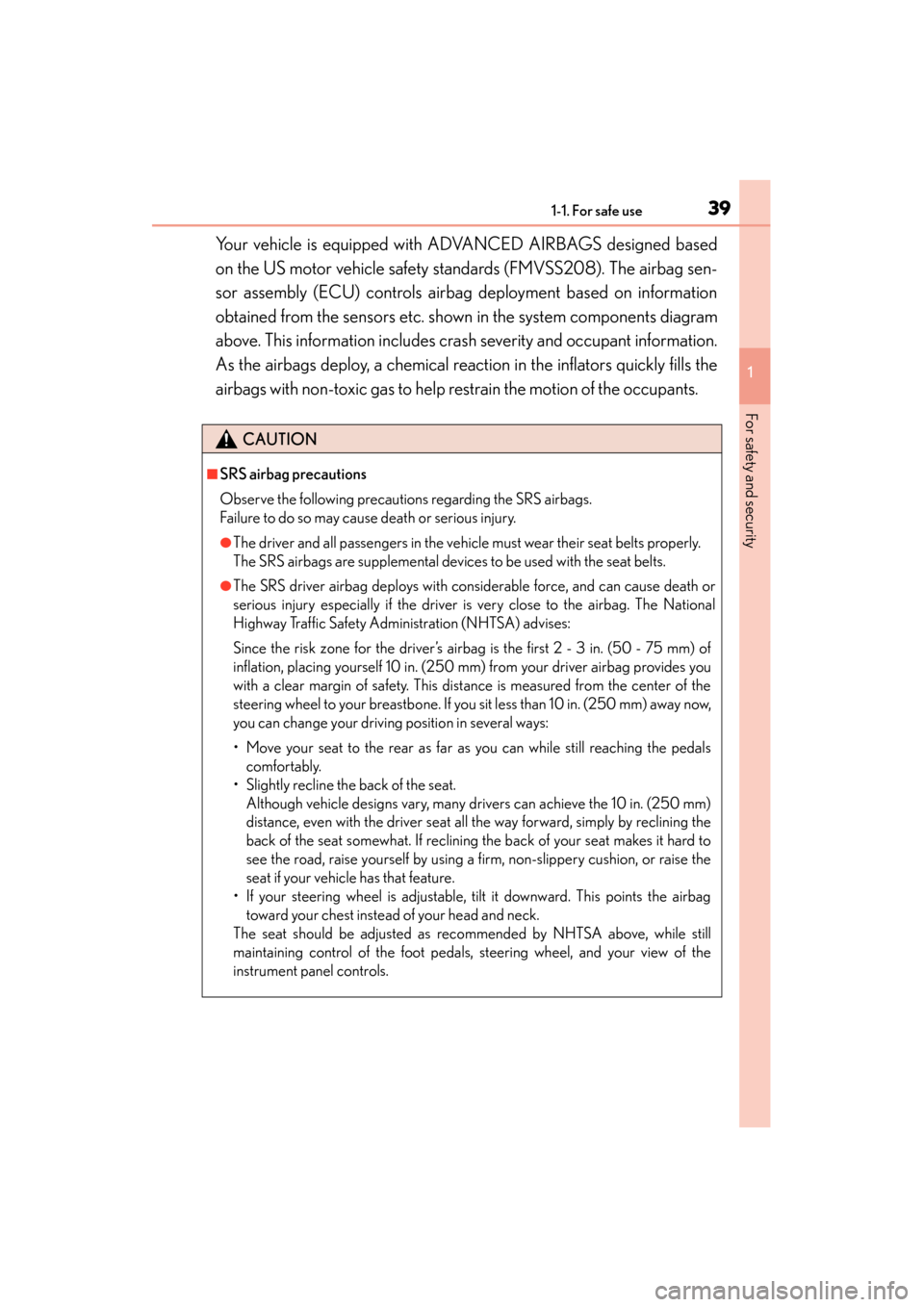

Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag sen-
sor assembly (ECU) controls airbag deployment based on information
obtained from the sensors etc. shown in the system components diagram
above. This information includes crash severity and occupant information.
As the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occupants.
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag. The National
Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of
inflation, placing yourself 10 in. (250 mm) from your driver airbag provides you
with a clear margin of safety. This distance is measured from the center of the
steering wheel to your breastbone. If you sit less than 10 in. (250 mm) away now,
you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedalscomfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while still
maintaining control of the foot pedals, steering wheel, and your view of the
instrument panel controls.
GS350_OM_OM30D41U_(U).book Page 39 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
2474-5. Using the driving support systems
4
Driving

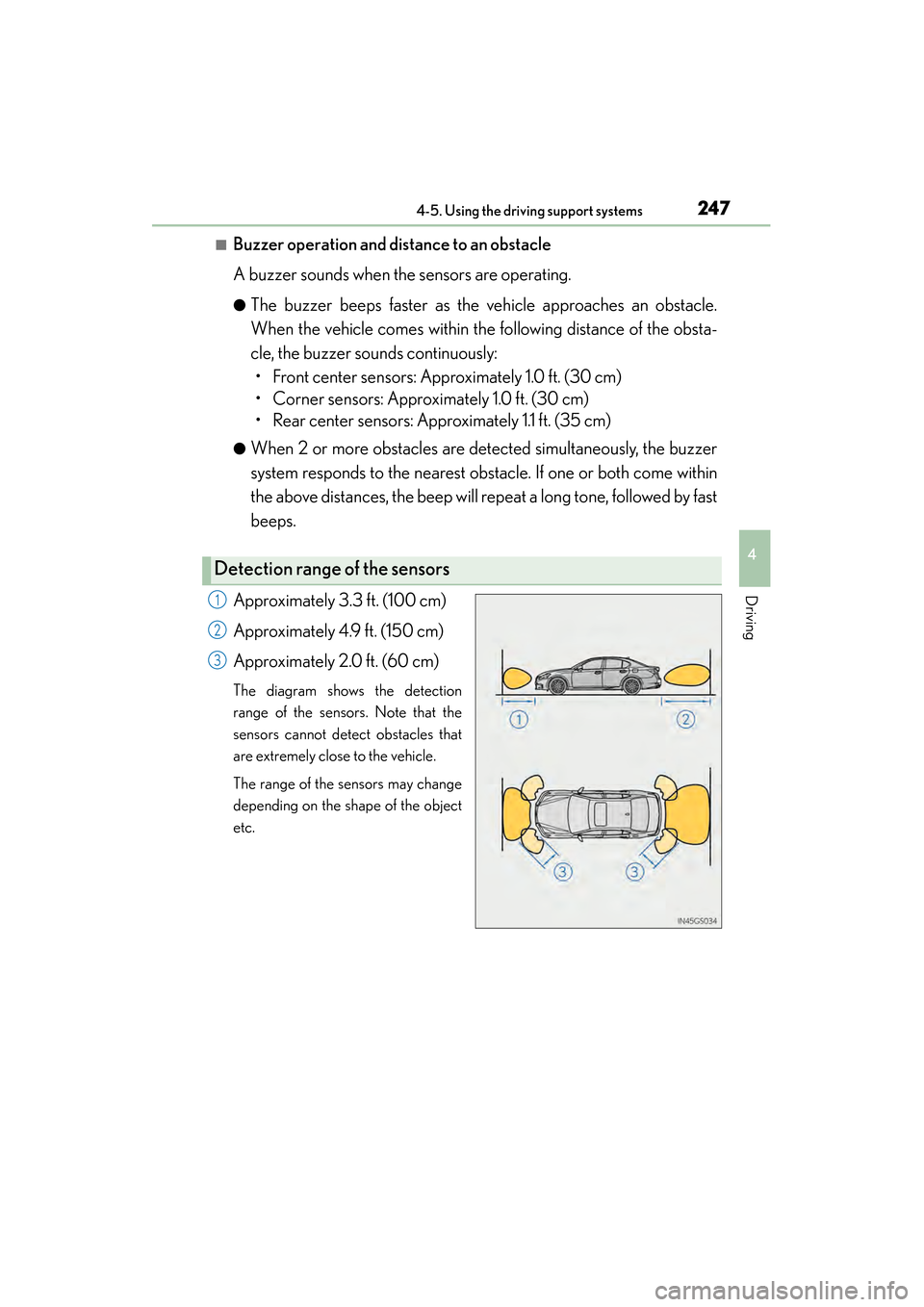

■Buzzer operation and distance to an obstacle
A buzzer sounds when the sensors are operating.
●The buzzer beeps faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the obsta-
cle, the buzzer sounds continuously:• Front center sensors: Approximately 1.0 ft. (30 cm)
• Corner sensors: Approximately 1.0 ft. (30 cm)
• Rear center sensors: Approximately 1.1 ft. (35 cm)
●When 2 or more obstacles are detected simultaneously, the buzzer
system responds to the nearest obstacle. If one or both come within
the above distances, the beep will repeat a long tone, followed by fast
beeps.
Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 2.0 ft. (60 cm)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles that
are extremely close to the vehicle.
The range of the sensors may change
depending on the shape of the object
etc.
Detection range of the sensors
1
2
3
GS350_OM_OM30D41U_(U).book Page 247 Monday, July 29, 2013 2:22 PM

812

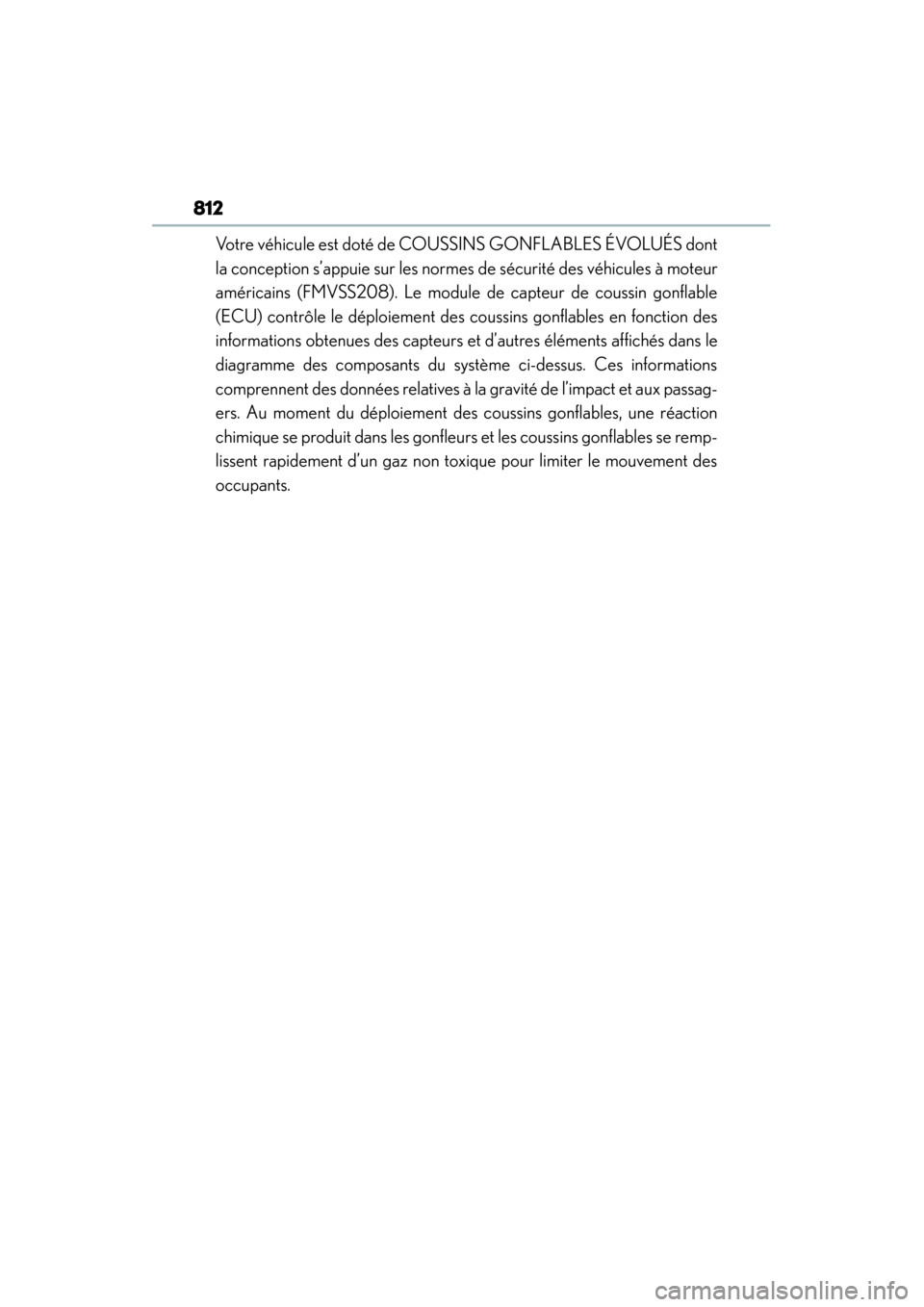

GS350_OM_OM30D41U_(U)Votre véhicule est doté de COUSSINS GONFLABLES ÉVOLUÉS dont
la conception s’appuie sur les normes de sécurité des véhicules à moteur
américains (FMVSS208). Le module de capteur de coussin gonflable
(ECU) contrôle le déploiement des coussins gonflables en fonction des
informations obtenues des capteurs et d’autres éléments affichés dans le
diagramme des composants du système ci-dessus. Ces informations
comprennent des données relatives à la
gravité de l’impact et aux passag-
ers. Au moment du déploiement des coussins gonflables, une réaction
chimique se produit dans les gonfleurs et les coussins gonflables se remp-
lissent rapidement d’un gaz non toxique pour limiter le mouvement des
occupants.
GS350_OM_OM30D41U_(U).book Page 812 Monday, July 29, 2013 2:22 PM
