5-4. Using the hands-free phone system (for cellular phone)
■While driving
You cannot change the state of “Bluetooth
* Power ” from “On” to “Off” while driving,
but it can be changed from “Off” to “On”.
■To return to the default Bluetooth® settings
Select “Default”, and then “Yes”.
If the state of “Bluetooth
* Power” is changed from “Off” to “On”, Bluetooth® con-
nection will begin.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
GS350_OM_OM30D41U_(U).book Page 560 Monday, July 29, 2013 2:22 PM

561
GS350_OM_OM30D41U_(U)5-5. Using the interior lights
5
Interior features

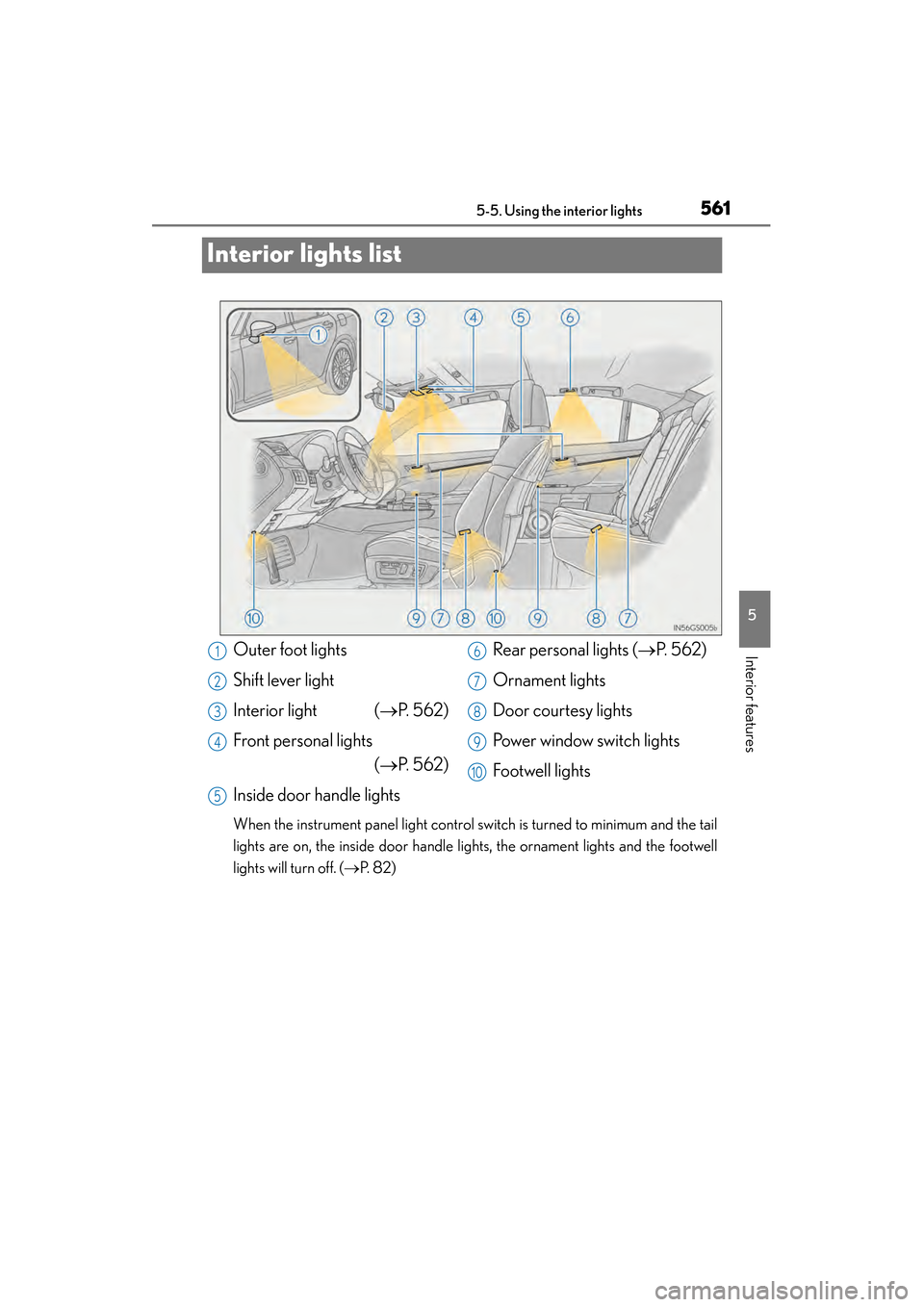

Interior lights list
When the instrument panel light control switch is turned to minimum and the tail
lights are on, the inside door handle lights, the ornament lights and the footwell
lights will turn off. ( →P. 8 2 )
Outer foot lights
Shift lever light
Interior light ( →P. 562)
Front personal lights (→P. 562)
Inside door handle lights Rear personal lights (
→P. 562)
Ornament lights
Door courtesy lights
Power window switch lights
Footwell lights1
2
3
4
5
6
7
8
9
10
GS350_OM_OM30D41U_(U).book Page 561 Monday, July 29, 2013 2:22 PM

562
GS350_OM_OM30D41U_(U)
5-5. Using the interior lights

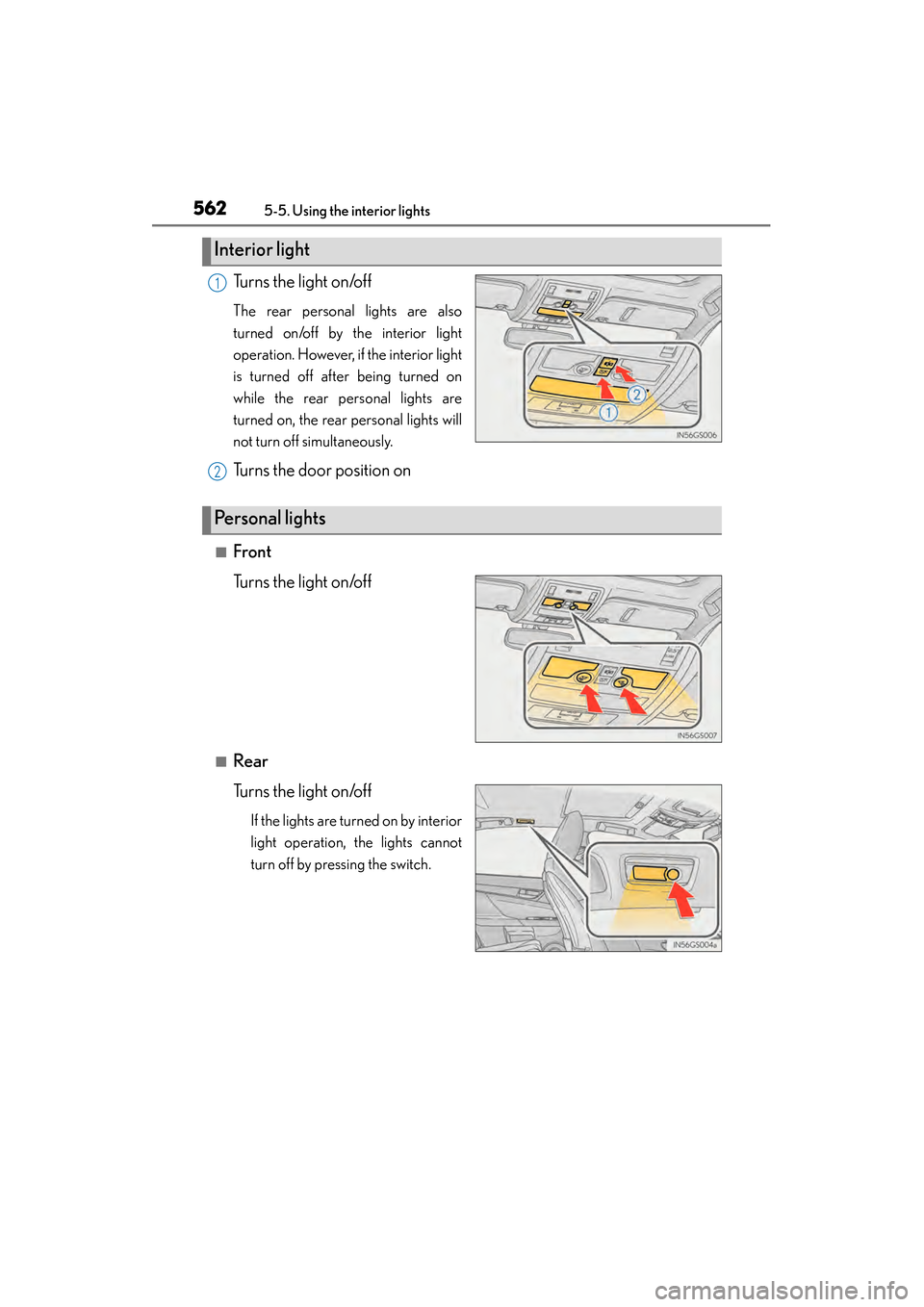

Turns the light on/off
The rear personal lights are also
turned on/off by the interior light
operation. However, if the interior light
is turned off after being turned on
while the rear personal lights are
turned on, the rear personal lights will
not turn off simultaneously.
Turns the door position on
■Front
Turns the light on/off
■Rear
Turns the light on/off
If the lights are turned on by interior
light operation, the lights cannot
turn off by pressing the switch.
Interior light
1
2
Personal lights
GS350_OM_OM30D41U_(U).book Page 562 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
5635-5. Using the interior lights
5
Interior features

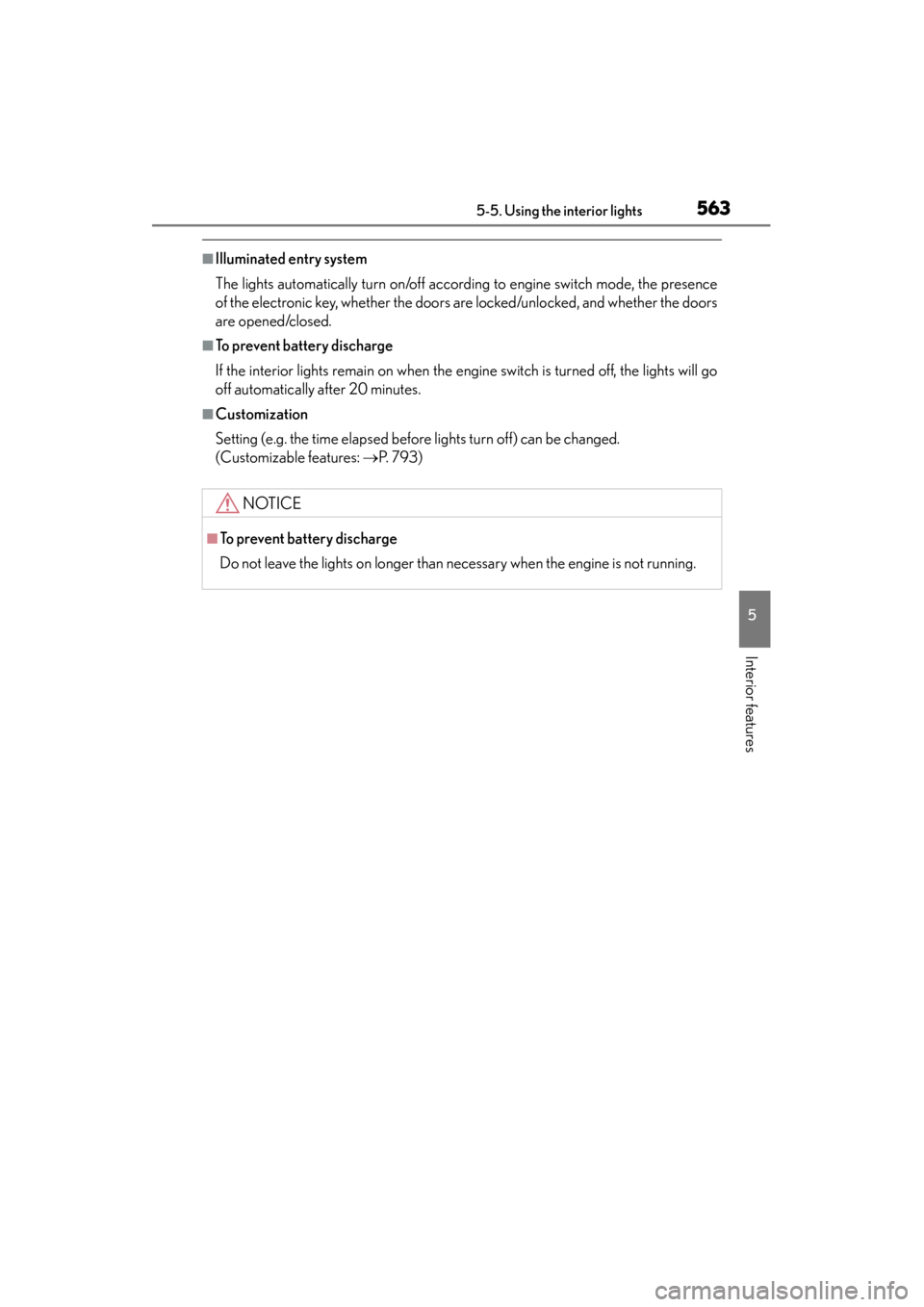

■Illuminated entry system
The lights automatically turn on/off according to engine switch mode, the presence
of the electronic key, whether the doors are locked/unlocked, and whether the doors
are opened/closed.
■To prevent battery discharge
If the interior lights remain on when the engine switch is turned off, the lights will go
off automatically after 20 minutes.
■Customization
Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: →P. 7 9 3 )
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.
GS350_OM_OM30D41U_(U).book Page 563 Monday, July 29, 2013 2:22 PM

564
GS350_OM_OM30D41U_(U)
5-6. Using the storage features

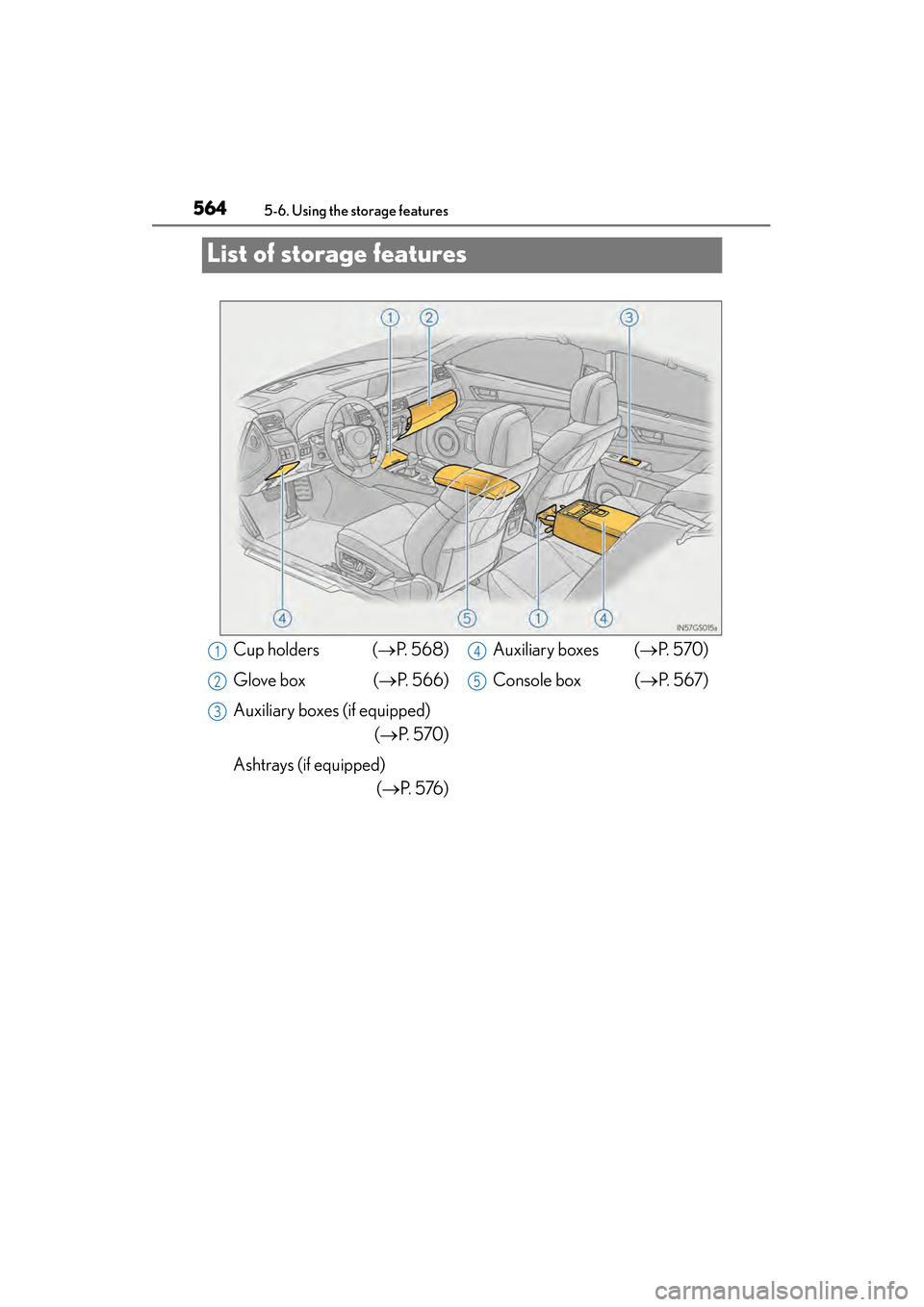

List of storage features
Cup holders (→P. 568)
Glove box ( →P. 566)
Auxiliary boxes (if equipped) (→P. 5 7 0 )
Ashtrays (if equipped) (→P. 5 76 ) Auxiliary boxes (
→P. 5 7 0 )
Console box ( →P. 567)1
2
3
4
5
GS350_OM_OM30D41U_(U).book Page 564 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
5655-6. Using the storage features
5
Interior features

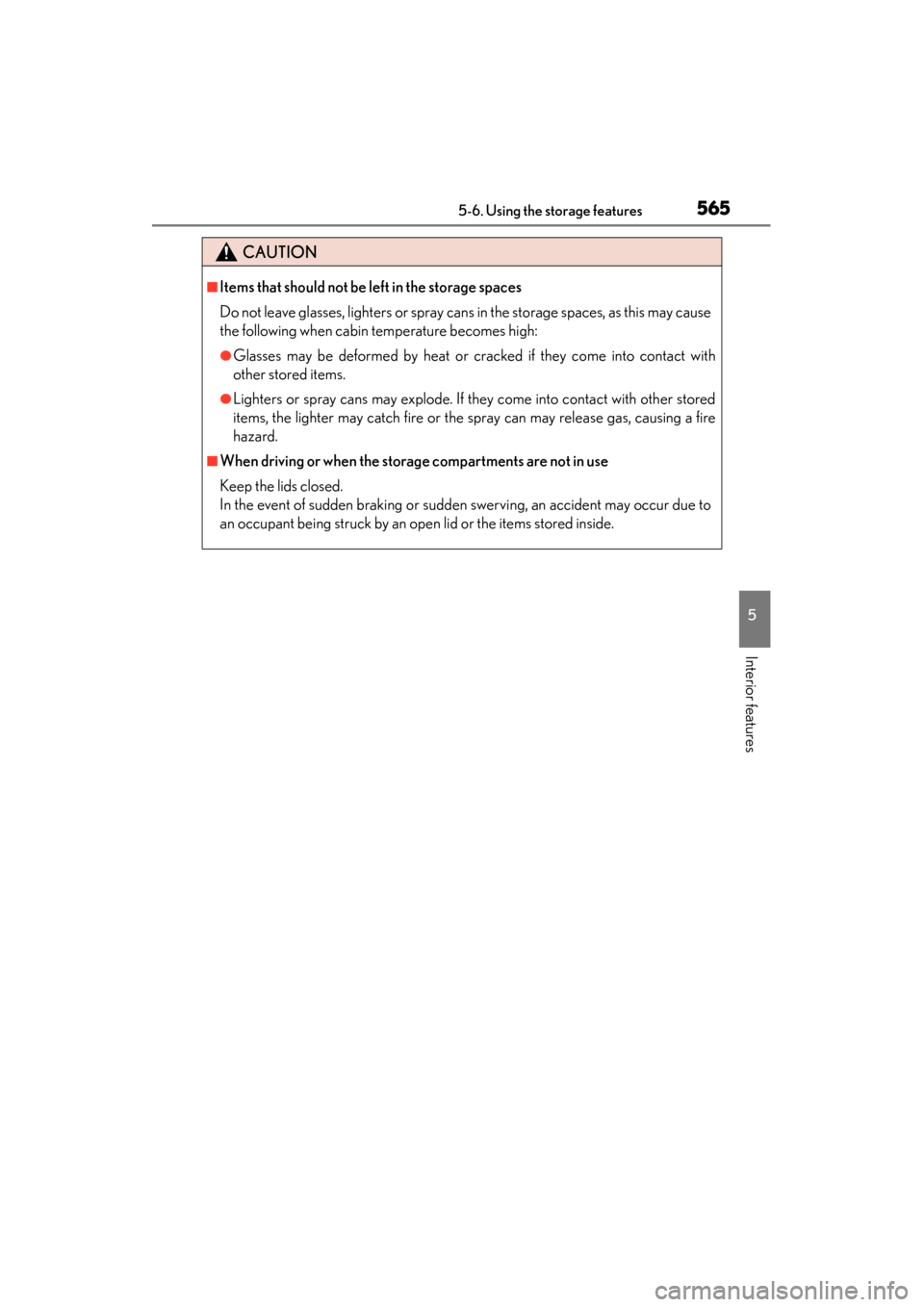

CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with
other stored items.
●Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
■When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to
an occupant being struck by an open lid or the items stored inside.
GS350_OM_OM30D41U_(U).book Page 565 Monday, July 29, 2013 2:22 PM

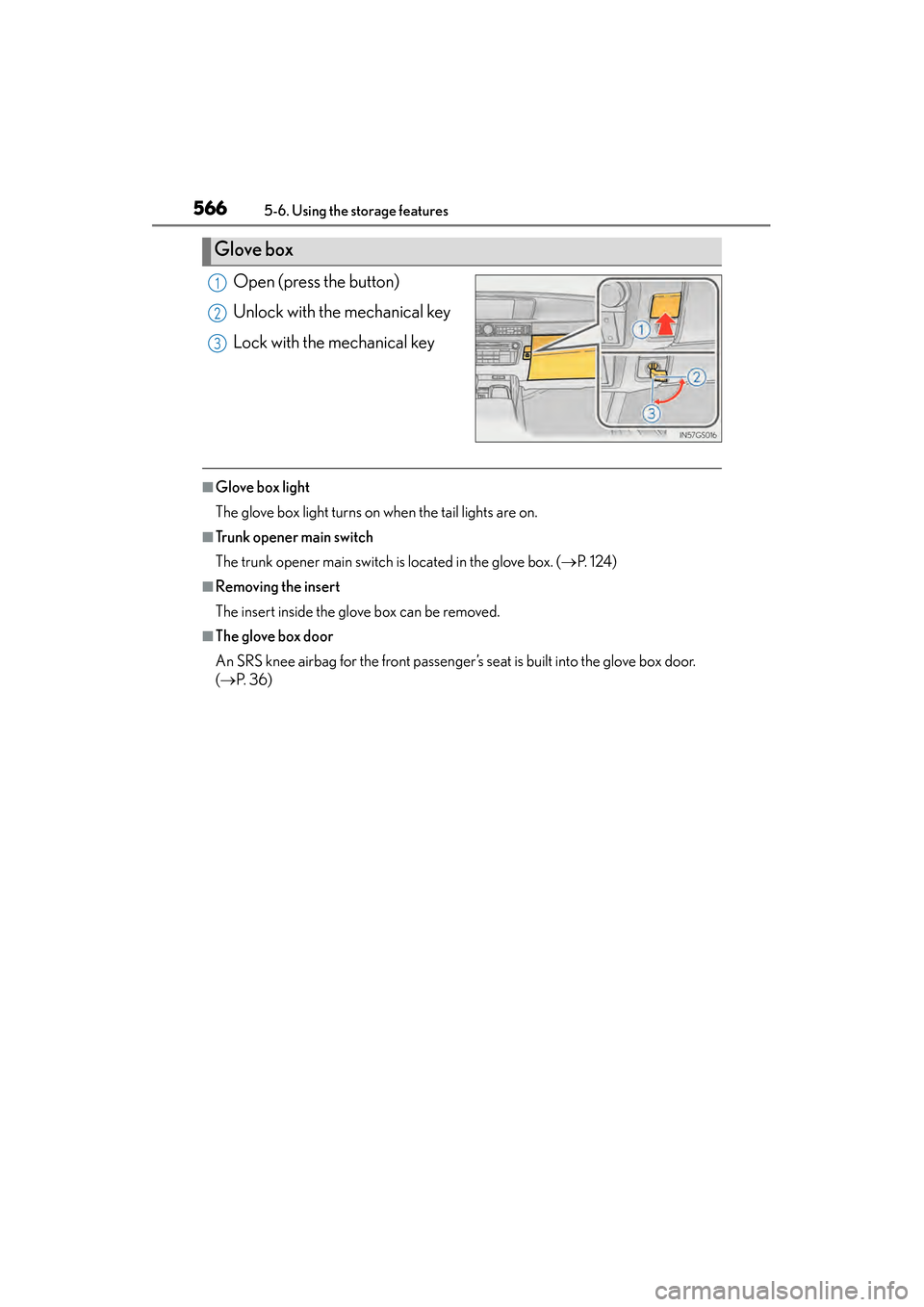

566
GS350_OM_OM30D41U_(U)
5-6. Using the storage features
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
■Glove box light
The glove box light turns on when the tail lights are on.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. (→P. 1 2 4 )
■Removing the insert
The insert inside the glove box can be removed.
■The glove box door
An SRS knee airbag for the front passenger’s seat is built into the glove box door.
(→ P. 3 6 )
Glove box
1
2
3
GS350_OM_OM30D41U_(U).book Page 566 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
5675-6. Using the storage features
5
Interior features

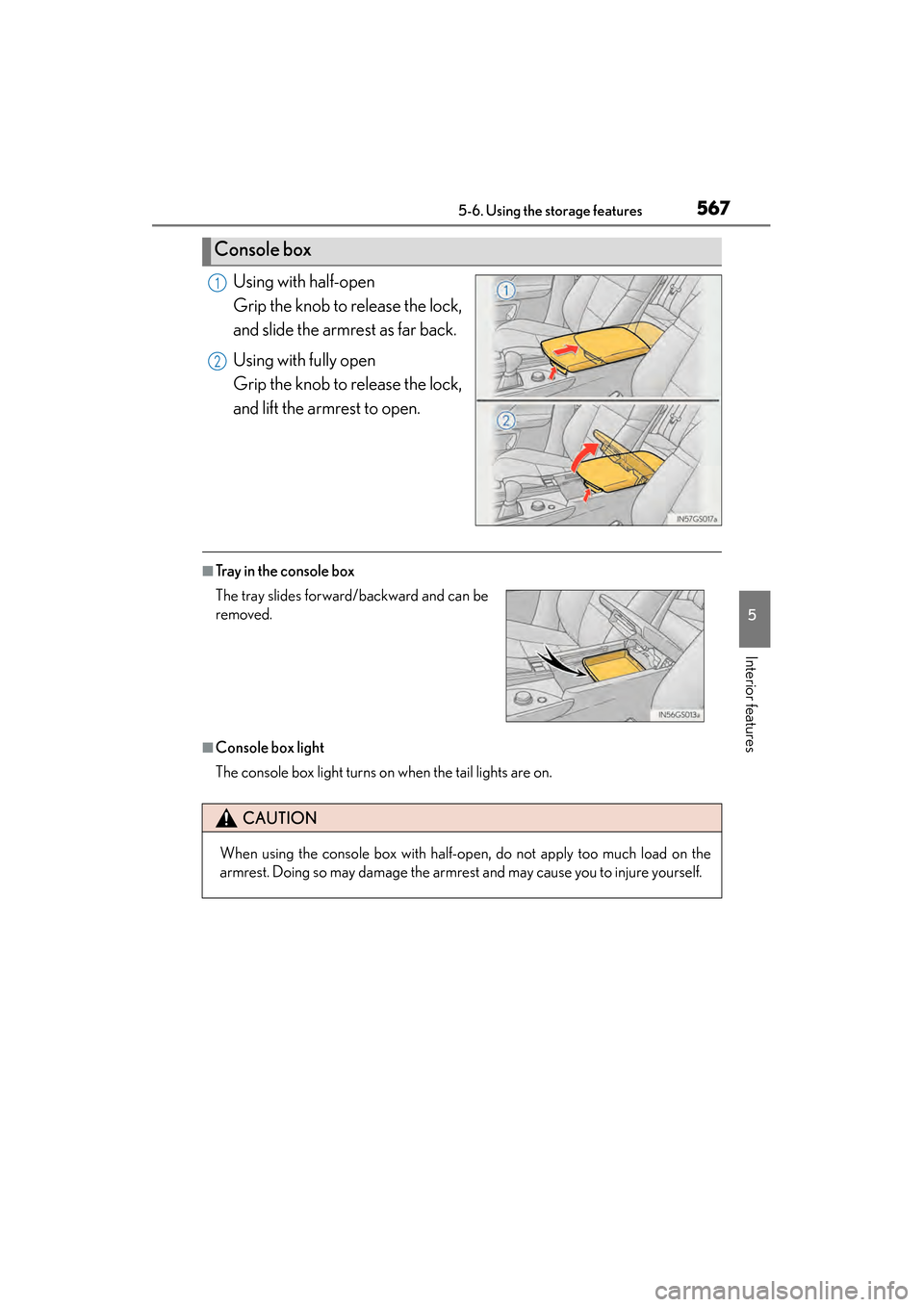

Using with half-open
Grip the knob to release the lock,
and slide the armrest as far back.
Using with fully open
Grip the knob to release the lock,
and lift the armrest to open.
■Tray in the console box
■Console box light
The console box light turns on when the tail lights are on.
Console box
1
2
The tray slides forward/backward and can be
removed.
CAUTION
When using the console box with half-open, do not apply too much load on the
armrest. Doing so may damage the armrest and may cause you to injure yourself.
GS350_OM_OM30D41U_(U).book Page 567 Monday, July 29, 2013 2:22 PM

568
GS350_OM_OM30D41U_(U)
5-6. Using the storage features

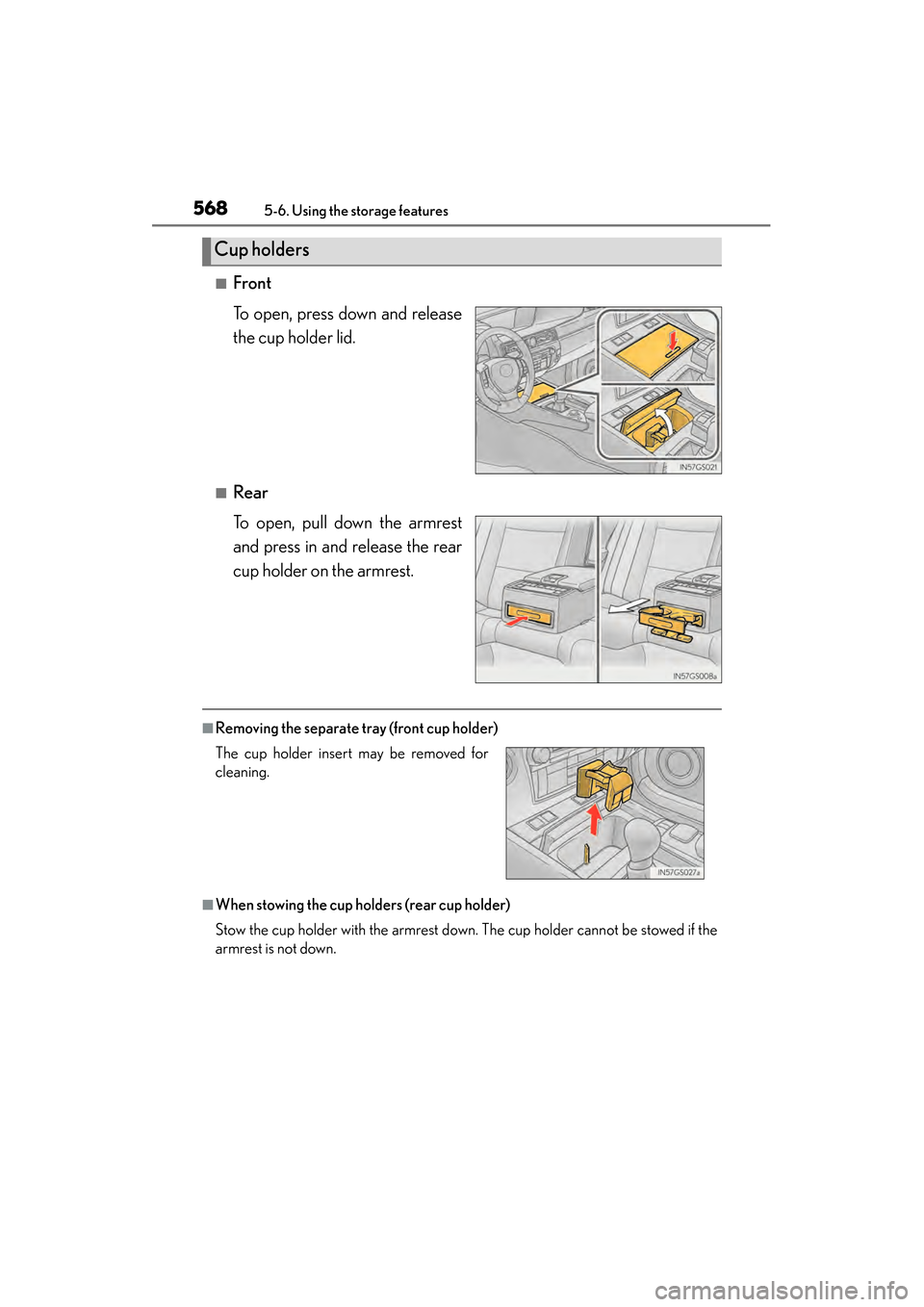

■Front
To open, press down and release
the cup holder lid.
■Rear
To open, pull down the armrest
and press in and release the rear
cup holder on the armrest.
■Removing the separate tray (front cup holder)
■When stowing the cup holders (rear cup holder)
Stow the cup holder with the armrest down. The cup holder cannot be stowed if the
armrest is not down.
Cup holders
The cup holder insert may be removed for
cleaning.
GS350_OM_OM30D41U_(U).book Page 568 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
5695-6. Using the storage features
5
Interior features

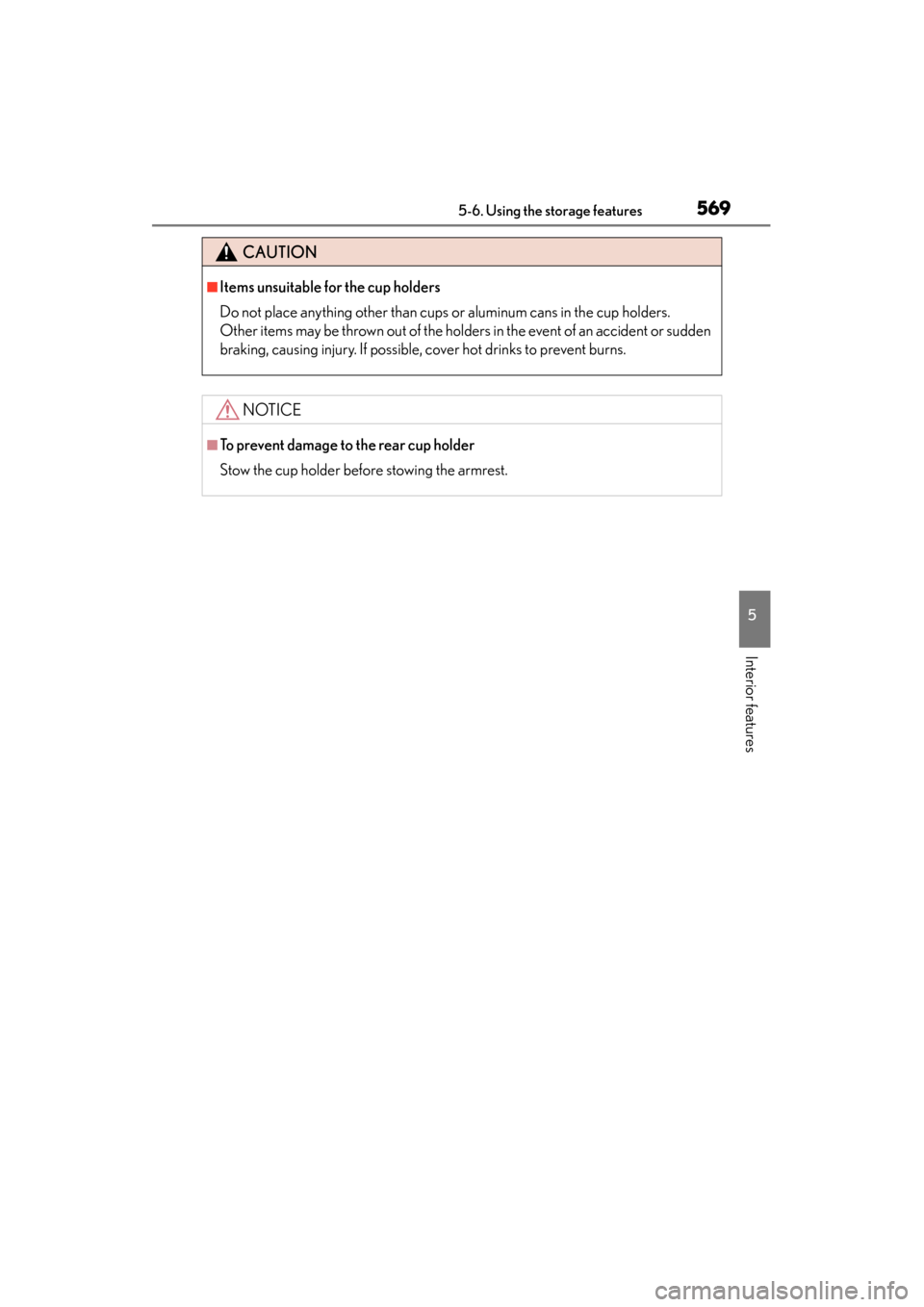

CAUTION
■Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking, causing injury. If possible, cover hot drinks to prevent burns.
NOTICE
■To prevent damage to the rear cup holder
Stow the cup holder before stowing the armrest.
