6-2. Maintenance

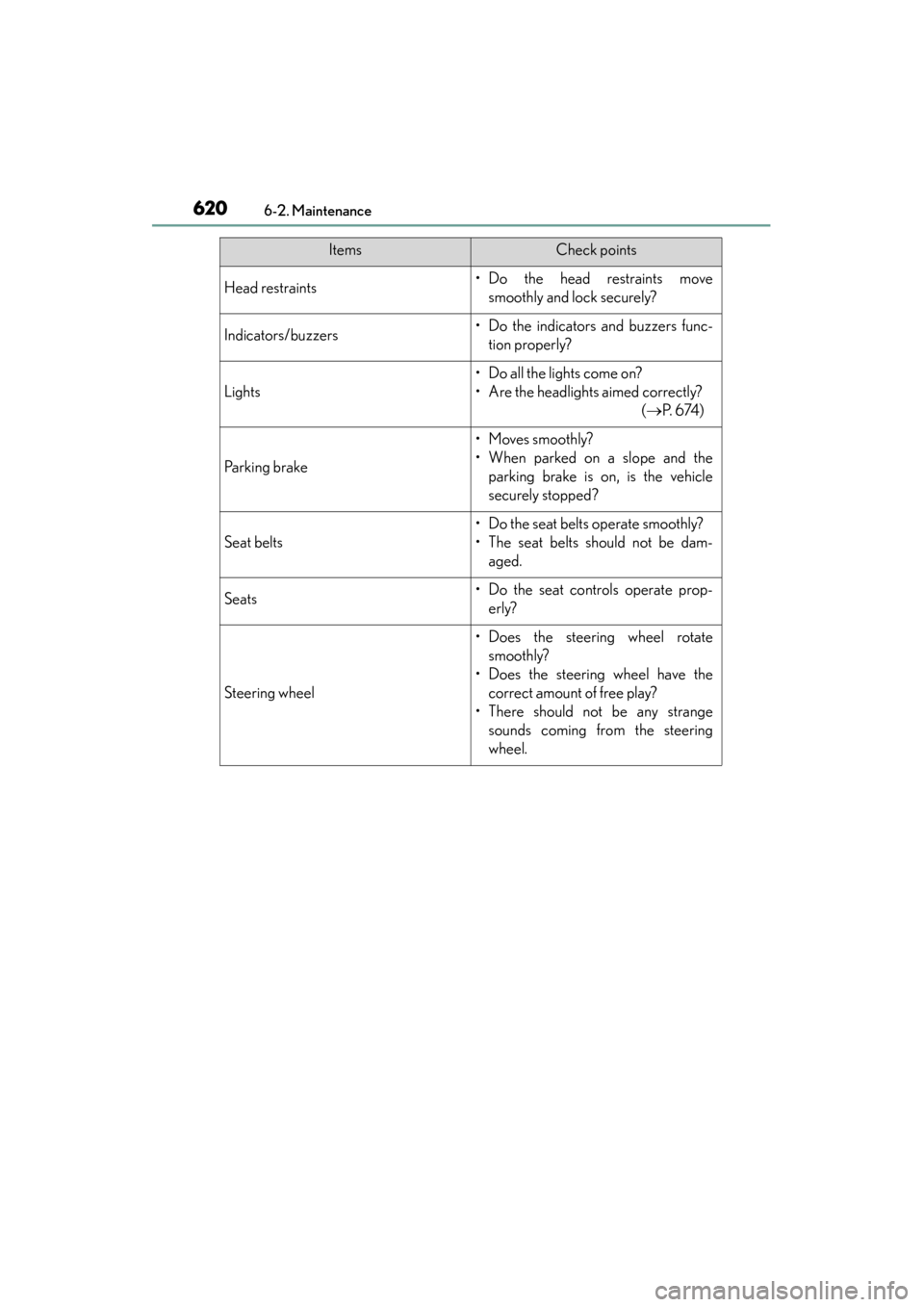

Head restraints• Do the head restraints movesmoothly and lock securely?
Indicators/buzzers• Do the indicators and buzzers func-tion properly?
Lights
• Do all the lights come on?
• Are the headlights aimed correctly? (→ P. 6 74 )
Parking brake
• Moves smoothly?
• When parked on a slope and the
parking brake is on, is the vehicle
securely stopped?
Seat belts
• Do the seat belts operate smoothly?
• The seat belts should not be dam-aged.
Seats• Do the seat controls operate prop-erly?
Steering wheel
• Does the steering wheel rotatesmoothly?
• Does the steering wheel have the correct amount of free play?
• There should not be any strange sounds coming from the steering
wheel.
ItemsCheck points
GS350_OM_OM30D41U_(U).book Page 620 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
6216-2. Maintenance
6
Maintenance and care

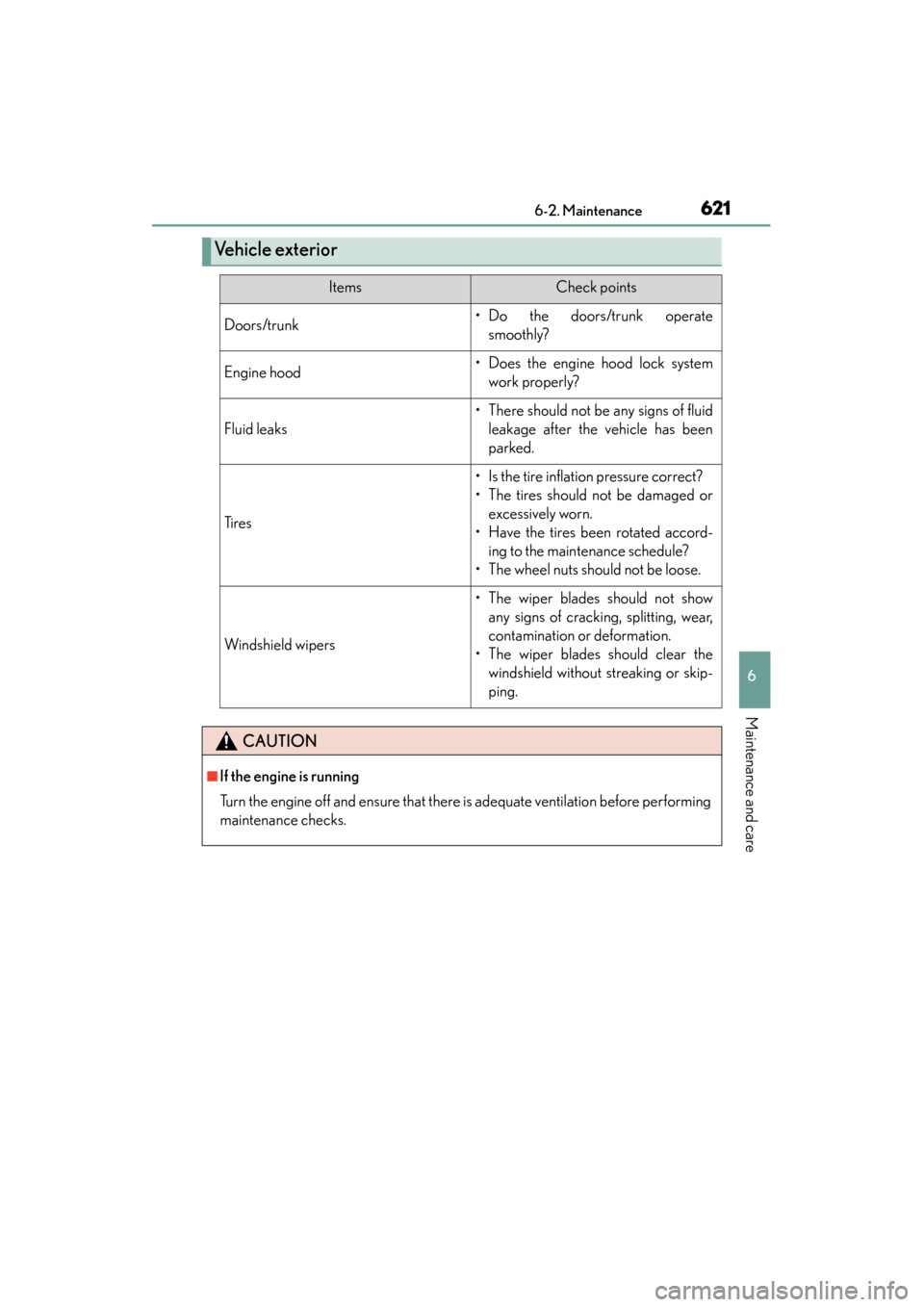

Ve h i c l e e x t e r i o r
ItemsCheck points
Doors/trunk• Do the doors/trunk operatesmoothly?
Engine hood• Does the engine hood lock systemwork properly?
Fluid leaks
• There should not be any signs of fluidleakage after the vehicle has been
parked.
Ti r e s
• Is the tire inflation pressure correct?
• The tires should not be damaged orexcessively worn.
• Have the tires been rotated accord- ing to the maintenance schedule?
• The wheel nuts should not be loose.
Windshield wipers
• The wiper blades should not show any signs of cracking, splitting, wear,
contamination or deformation.
• The wiper blades should clear the windshield without streaking or skip-
ping.
CAUTION
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation before performing
maintenance checks.
GS350_OM_OM30D41U_(U).book Page 621 Monday, July 29, 2013 2:22 PM

622
GS350_OM_OM30D41U_(U)
6-2. Maintenance

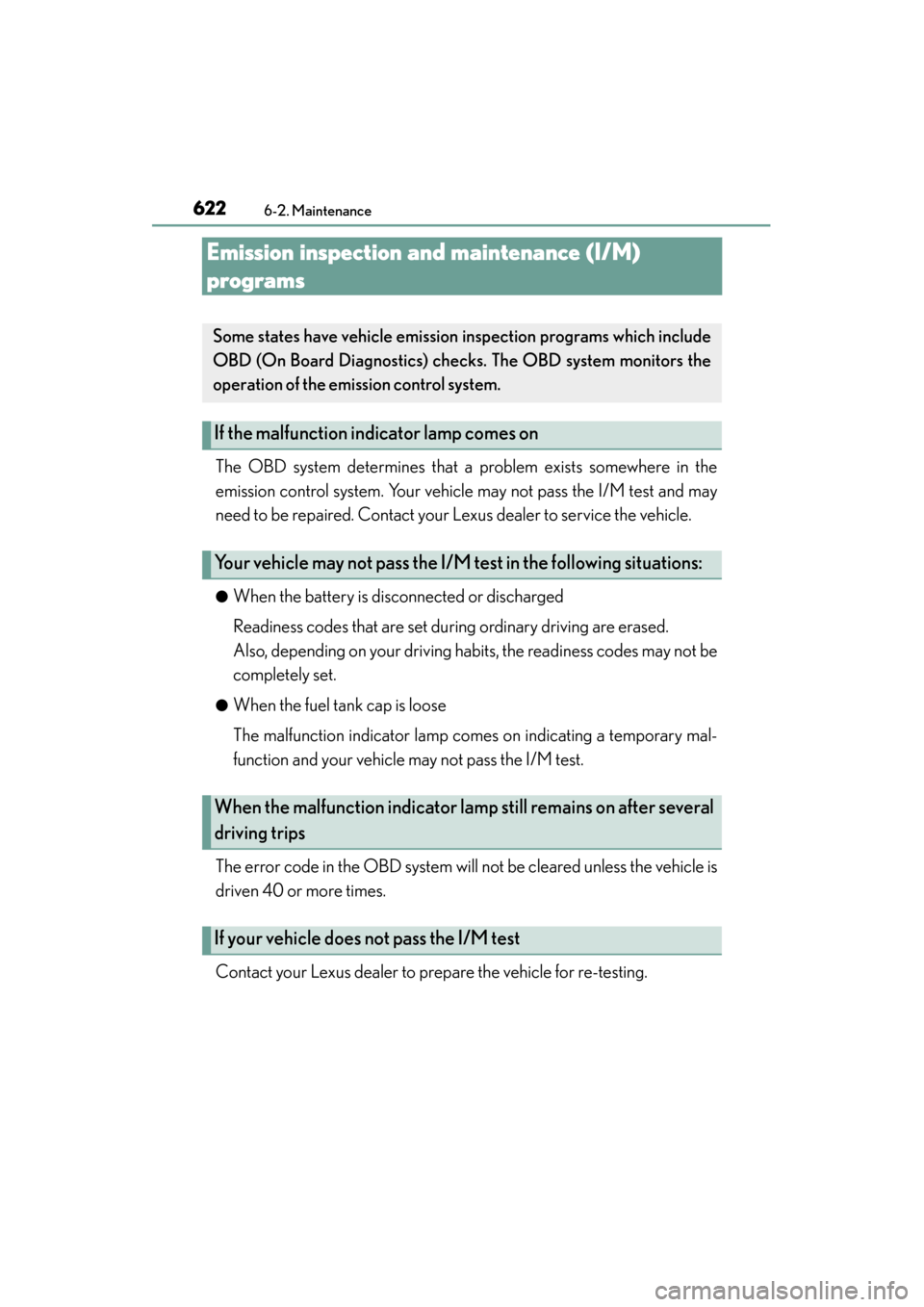

Emission inspection and maintenance (I/M)
programs
The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and may
need to be repaired. Contact your Lexus dealer to service the vehicle.
●When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may not be
completely set.
●When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary mal-
function and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehicle is
driven 40 or more times.
Contact your Lexus dealer to prepare the vehicle for re-testing.
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks . The OBD system monitors the
operation of the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator lamp still remains on after several
driving trips
If your vehicle does not pass the I/M test
GS350_OM_OM30D41U_(U).book Page 622 Monday, July 29, 2013 2:22 PM

623
GS350_OM_OM30D41U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

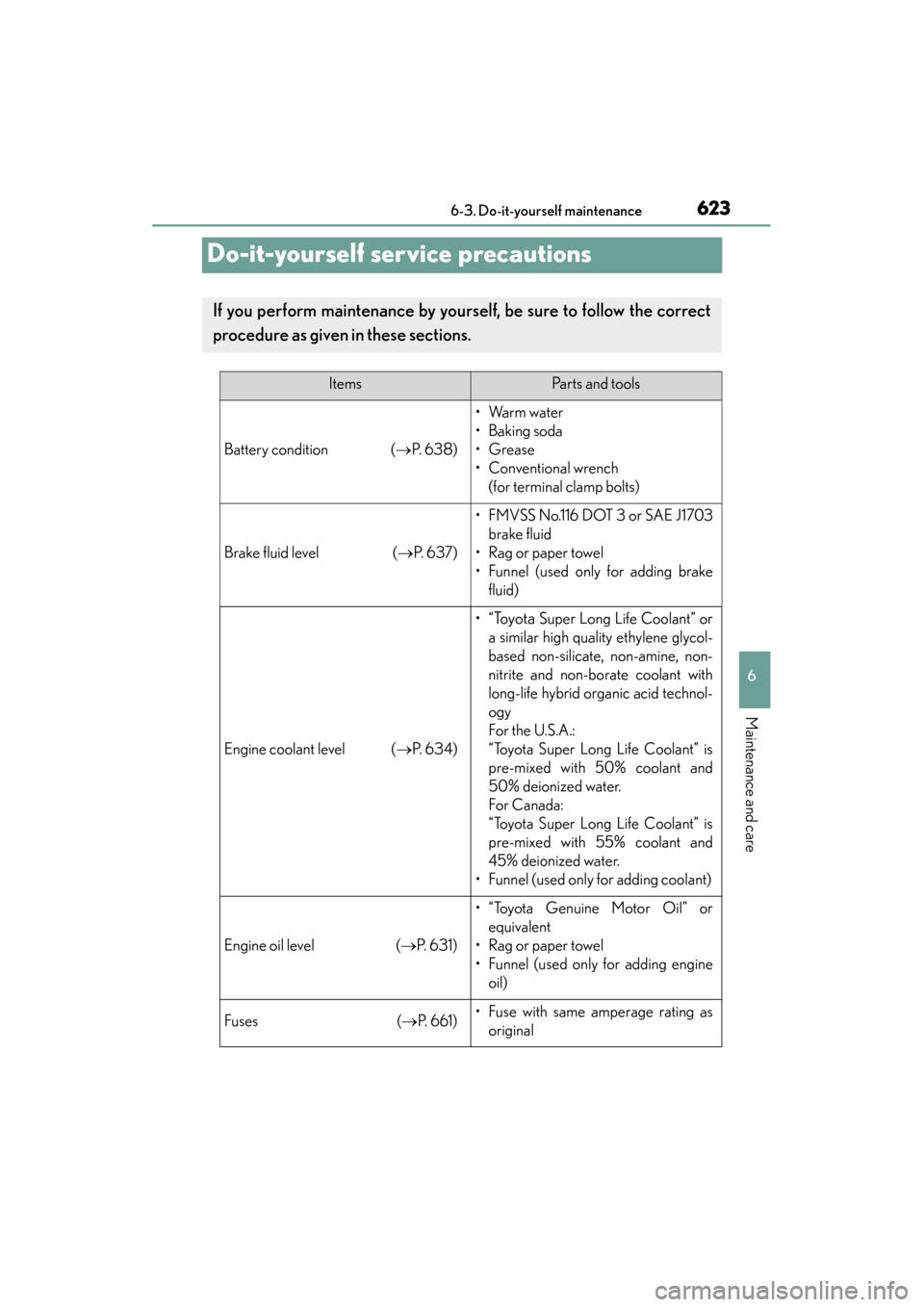

Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsPa r t s a n d t o o l s
Battery condition ( →P. 6 3 8 )
•Warm water
•Baking soda
•Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( →P. 6 3 7 )
•FMVSS No.116 DOT 3 or SAE J1703
brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level ( →P. 6 3 4 )
•“To y o t a Super Long Life Coolant” or
a similar high quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite and non-borate coolant with
long-life hybrid organic acid technol-
ogy
For the U.S.A.:
“Toyota Super Long Life Coolant” is
pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is
pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level (→ P. 6 3 1 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (→ P. 6 6 1 )• Fuse with same amperage rating as
original
GS350_OM_OM30D41U_(U).book Page 623 Monday, July 29, 2013 2:22 PM

624
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance

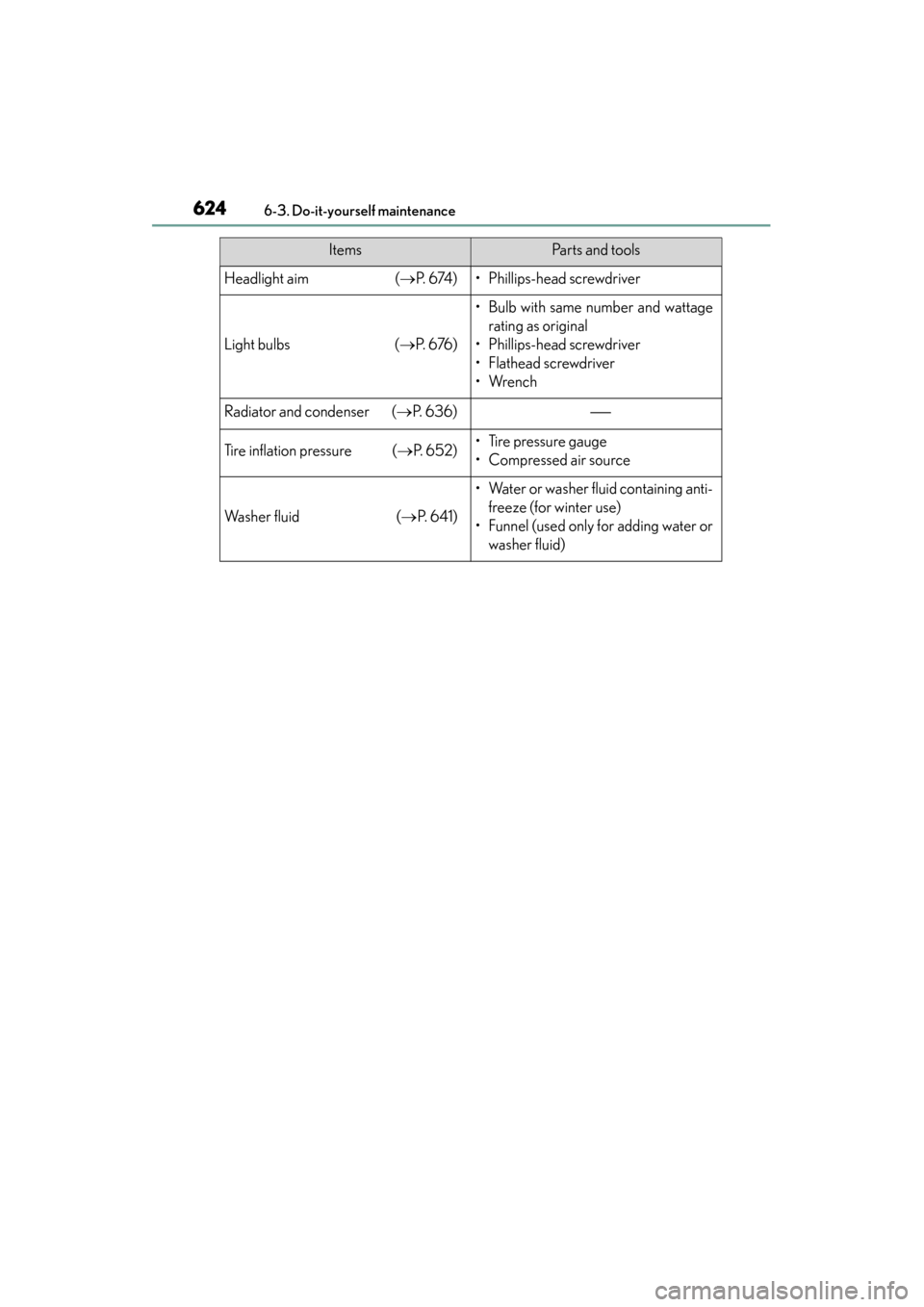

Headlight aim(→ P. 6 74 )• Phillips-head screwdriver
Light bulbs (→ P. 6 76 )
• Bulb with same number and wattage
rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator and condenser ( →P. 636)
Tire inflation pressure ( →P. 6 5 2 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d (→ P. 6 4 1 )
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or washer fluid)
ItemsPa r t s a n d t o o l s
GS350_OM_OM30D41U_(U).book Page 624 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
6256-3. Do-it-yourself maintenance
6
Maintenance and care

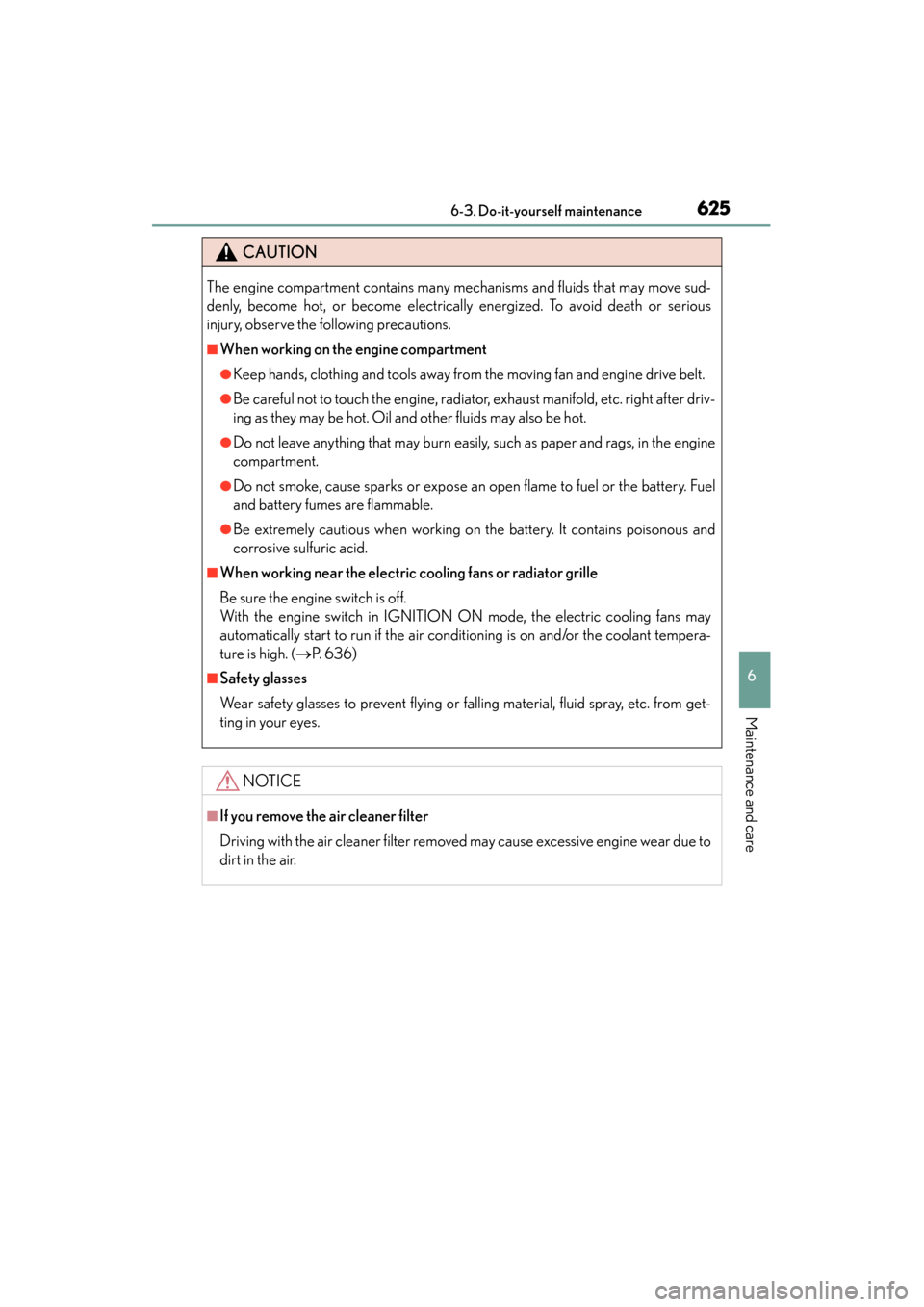

CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may
automatically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. (→P. 636)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air.
GS350_OM_OM30D41U_(U).book Page 625 Monday, July 29, 2013 2:22 PM

626
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance

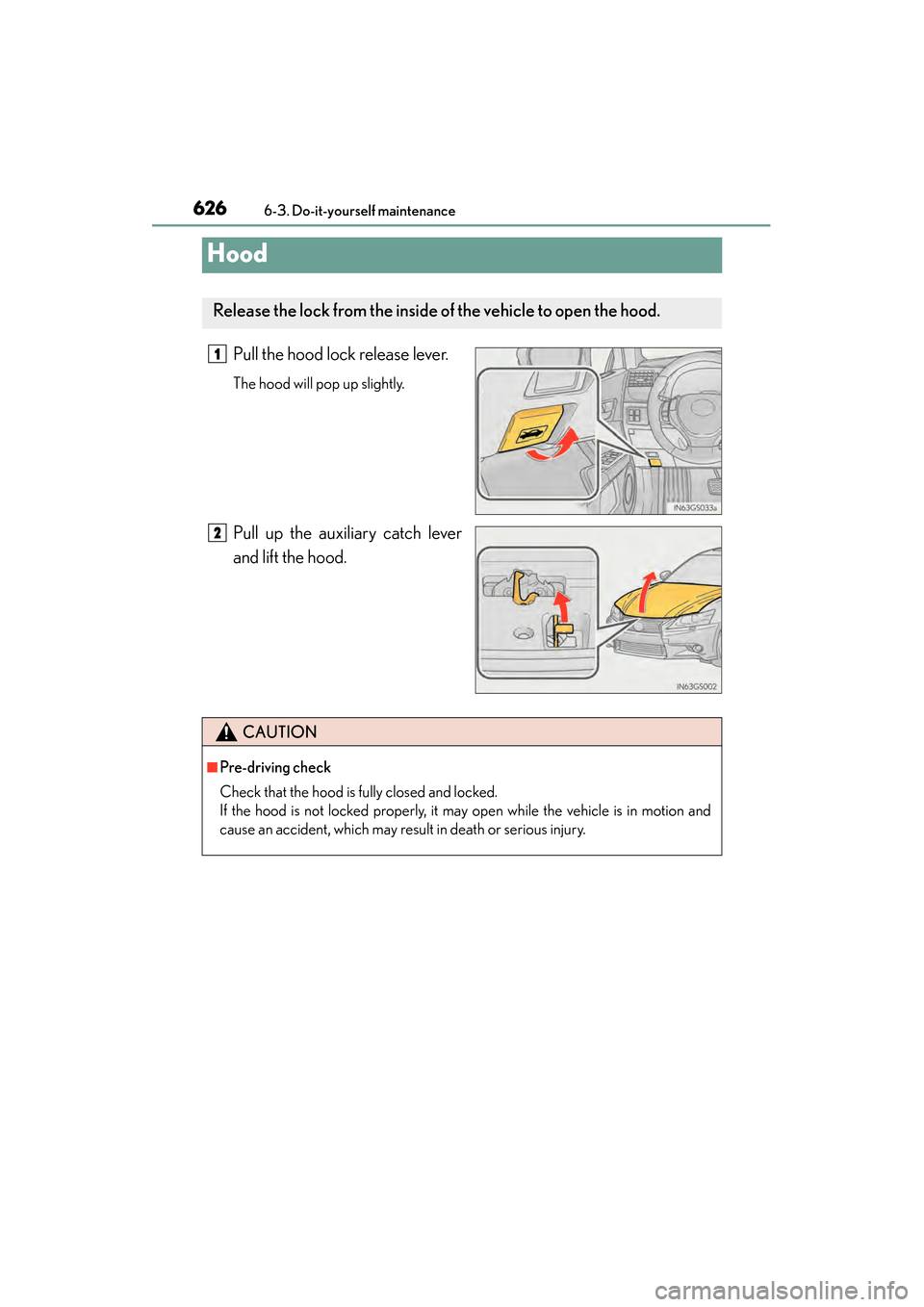

Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Release the lock from the inside of the vehicle to open the hood.
1
2
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
GS350_OM_OM30D41U_(U).book Page 626 Monday, July 29, 2013 2:22 PM

627
GS350_OM_OM30D41U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care

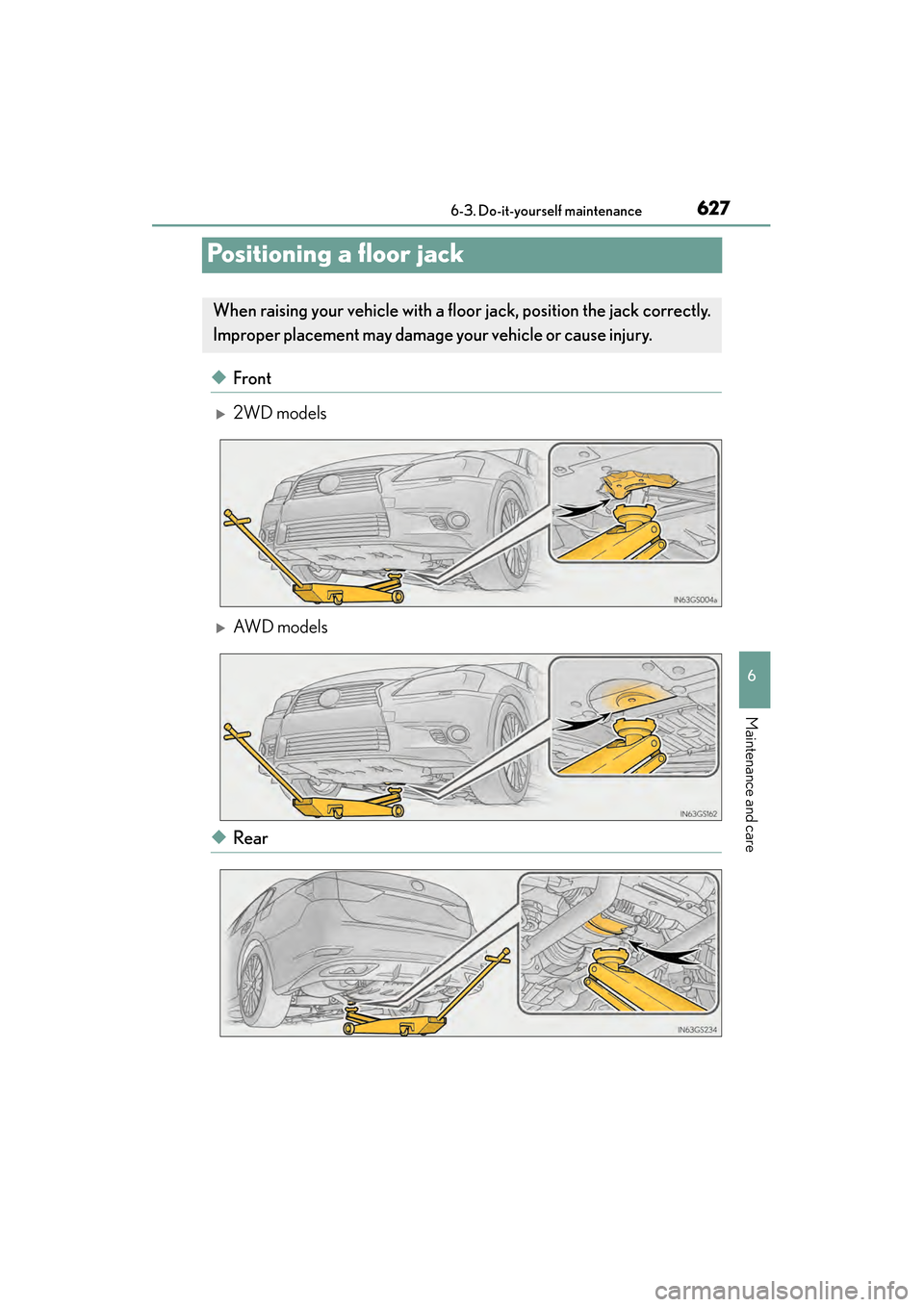

Positioning a floor jack
◆Front
X2WD models
XAW D m o d e l s
◆Rear
When raising your vehicle with a fl oor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
GS350_OM_OM30D41U_(U).book Page 627 Monday, July 29, 2013 2:22 PM

628
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance

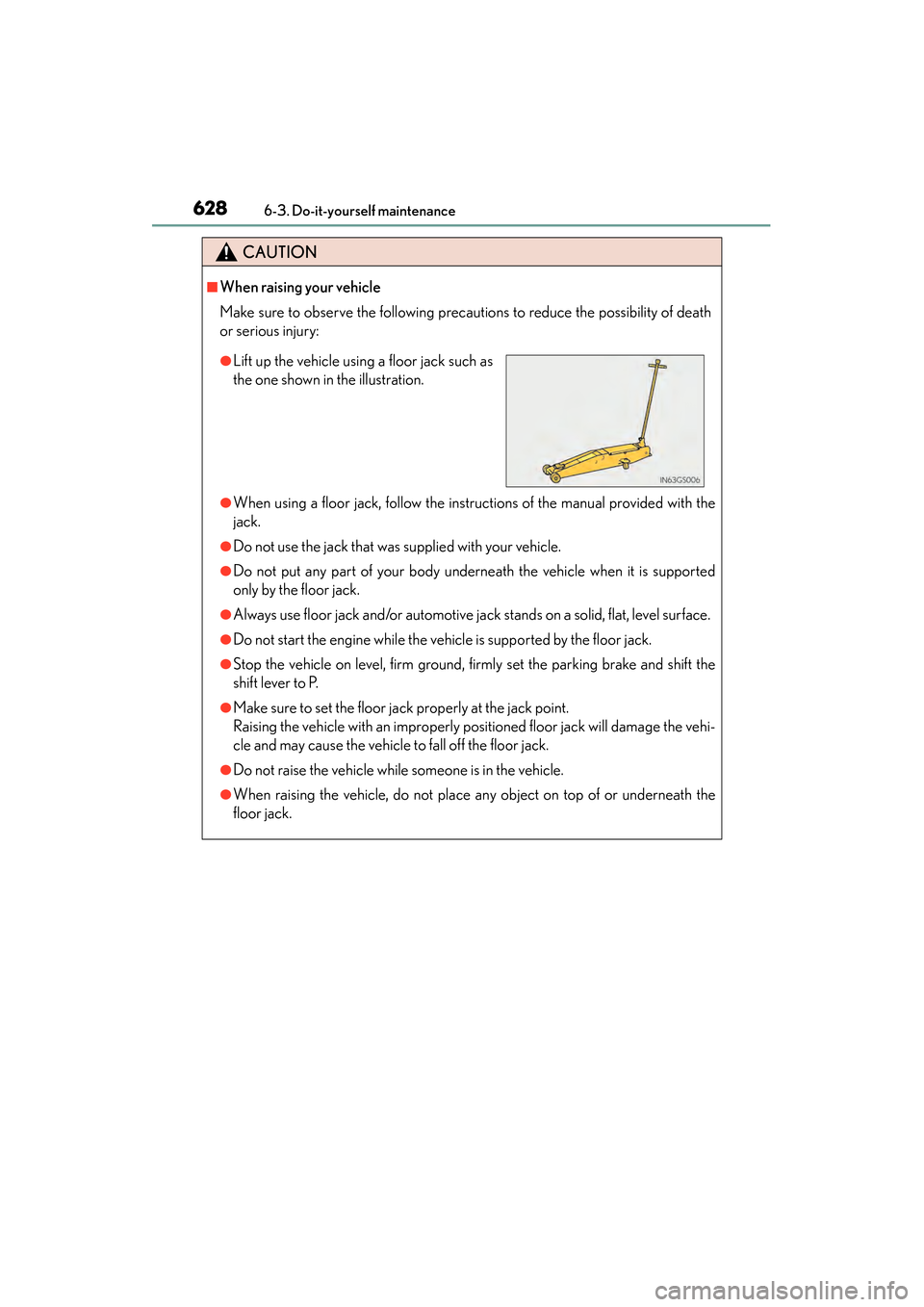

CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of death
or serious injury:
●When using a floor jack, follow the instructions of the manual provided with the
jack.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body underneath the vehicle when it is supported
only by the floor jack.
●Always use floor jack and/or automotive jack stands on a solid, flat, level surface.
●Do not start the engine while the vehicle is supported by the floor jack.
●Stop the vehicle on level, firm ground, firmly set the parking brake and shift the
shift lever to P.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any object on top of or underneath the
floor jack.
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.
GS350_OM_OM30D41U_(U).book Page 628 Monday, July 29, 2013 2:22 PM

629
GS350_OM_OM30D41U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Engine compartment
Fuse boxes ( →P. 6 6 1 )
Battery ( →P. 6 3 8 )
Engine oil level dipstick (→P. 6 3 1 )
Engine coolant reservoir (→P. 6 3 4 )
Engine oil filler cap ( →P. 6 3 2 ) Brake fluid reservoir
(→P. 6 3 7 )
Washer fluid tank ( →P. 6 4 1 )
Electric cooling fans
Condenser ( →P. 636)
Radiator ( →P. 636)1
2
3
4
5
6
7
8
9
10
