Lexus GS350 2014 Owner's Manual

670
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance

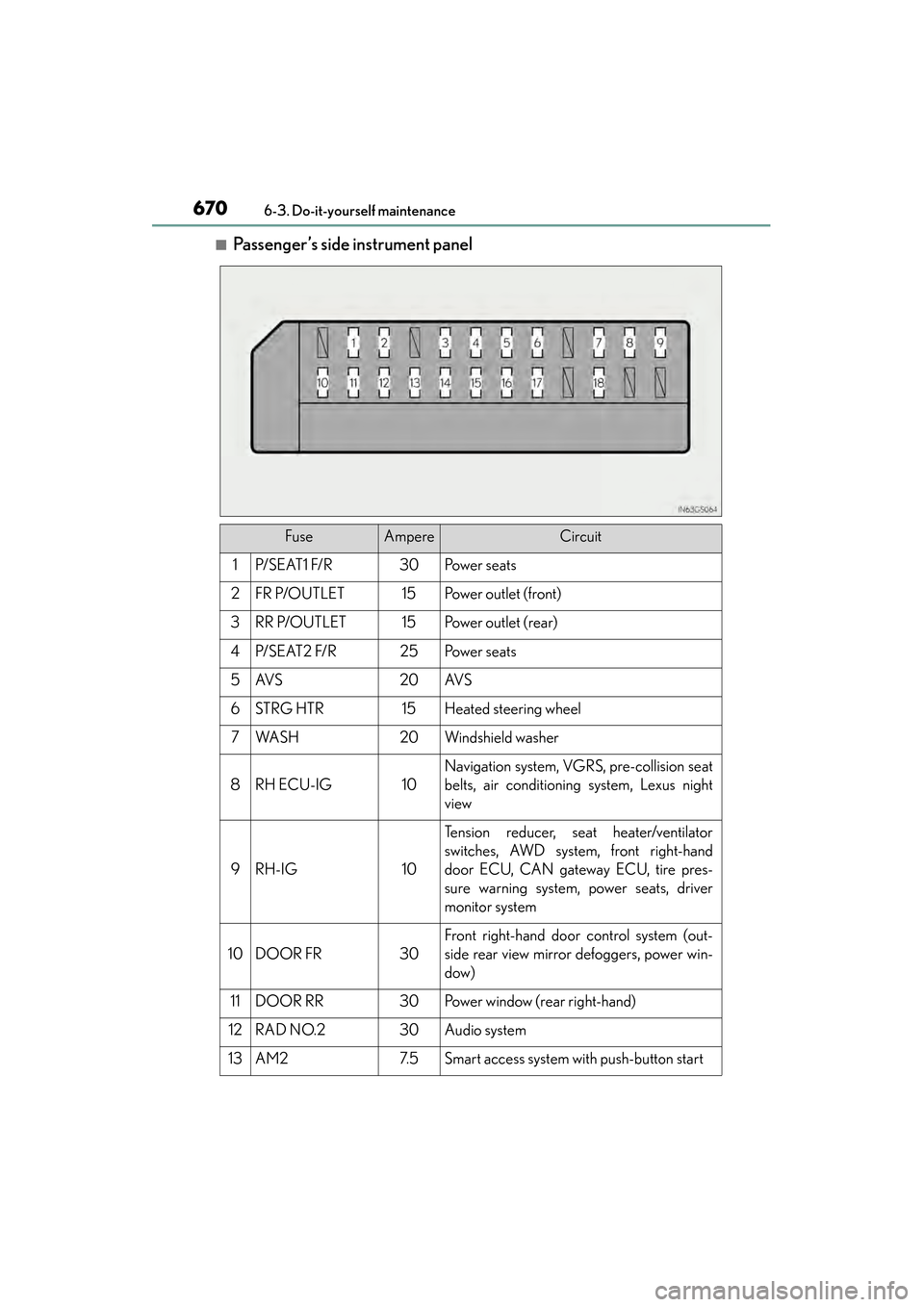

■Passenger’s side instrument panel
FuseAmpereCircuit
1P/ S E AT 1 F/ R30Po w e r s e a t s
2FR P/OUTLET15Po w e r o u t l e t ( f r o n t )
3RR P/OUTLET15Po w e r o u t l e t ( r e a r )
4P/ S E AT 2 F/ R25Po w e r s e a t s
5AV S20AV S
6STRG HTR15Heated steering wheel
7WA S H20Windshield washer
8RH ECU-IG10
Navigation system, VGRS, pre-collision seat
belts, air conditioning system, Lexus night
view
9RH-IG10
Tension reducer, seat heater/ventilator
switches, AWD system, front right-hand
door ECU, CAN gateway ECU, tire pres-
sure warning system, power seats, driver
monitor system
10DOOR FR30
Front right-hand door control system (out-
side rear view mirror defoggers, power win-
dow)
11DOOR RR30Power window (rear right-hand)
12RAD NO.230Audio system
13AM27. 5Smart access system with push-button start
GS350_OM_OM30D41U_(U).book Page 670 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
6716-3. Do-it-yourself maintenance
6
Maintenance and care

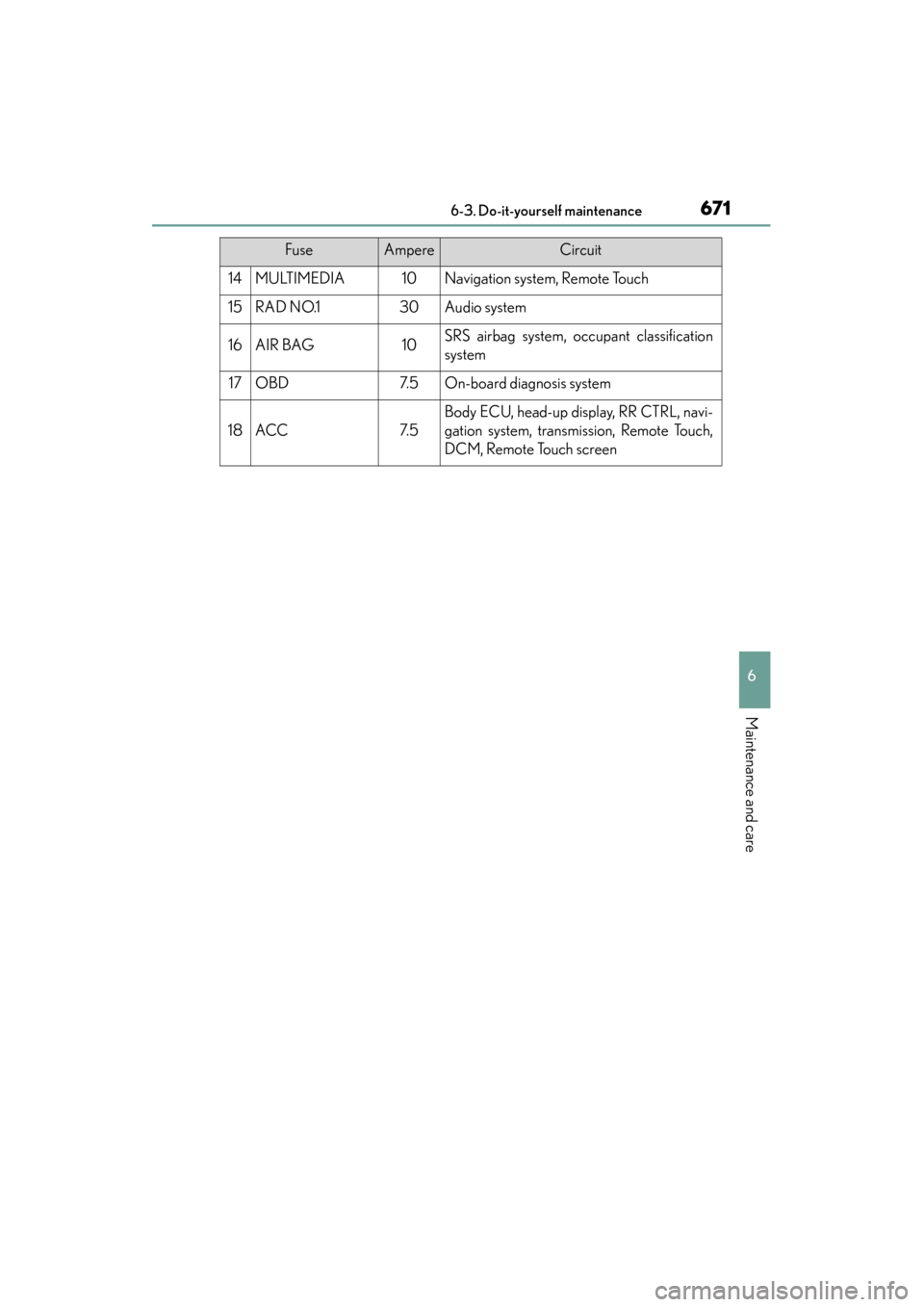

14MULTIMEDIA10Navigation system, Remote Touch
15RAD NO.130Audio system
16AIR BAG10SRS airbag system, occupant classification
system
17OBD7. 5On-board diagnosis system
18ACC7. 5
Body ECU, head-up display, RR CTRL, navi-
gation system, transmission, Remote Touch,
DCM, Remote Touch screen
FuseAmpereCircuit
GS350_OM_OM30D41U_(U).book Page 671 Monday, July 29, 2013 2:22 PM

672
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance
■Tr u n k
FuseAmpereCircuit
1PSB30Pre-collision seat belts
2PTL25Power trunk opener and closer
3RR J/B-B10Smart access system with push-button start
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10No circuit
7DC/DC-S (HV)7. 5No circuit
8BATT FAN (HV)20No circuit
9SECURITY7. 5SECURITY
10ECU-B NO.37. 5Pa r k i n g b r a ke
11TRK OPN7. 5Power trunk opener and closer
12DCM (HV)7. 5No circuit
13AC INV (HV)20No circuit
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk opener and closer, parking
brake, tension reducer (rear left-hand), RR
CTRL SW, tire pressure warning system,
DRS
16EPS-IG5Electric power steering system
17BACK UP7. 5Back-up lights
GS350_OM_OM30D41U_(U).book Page 672 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
6736-3. Do-it-yourself maintenance
6
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 6 76 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.
GS350_OM_OM30D41U_(U).book Page 673 Monday, July 29, 2013 2:22 PM

674
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance

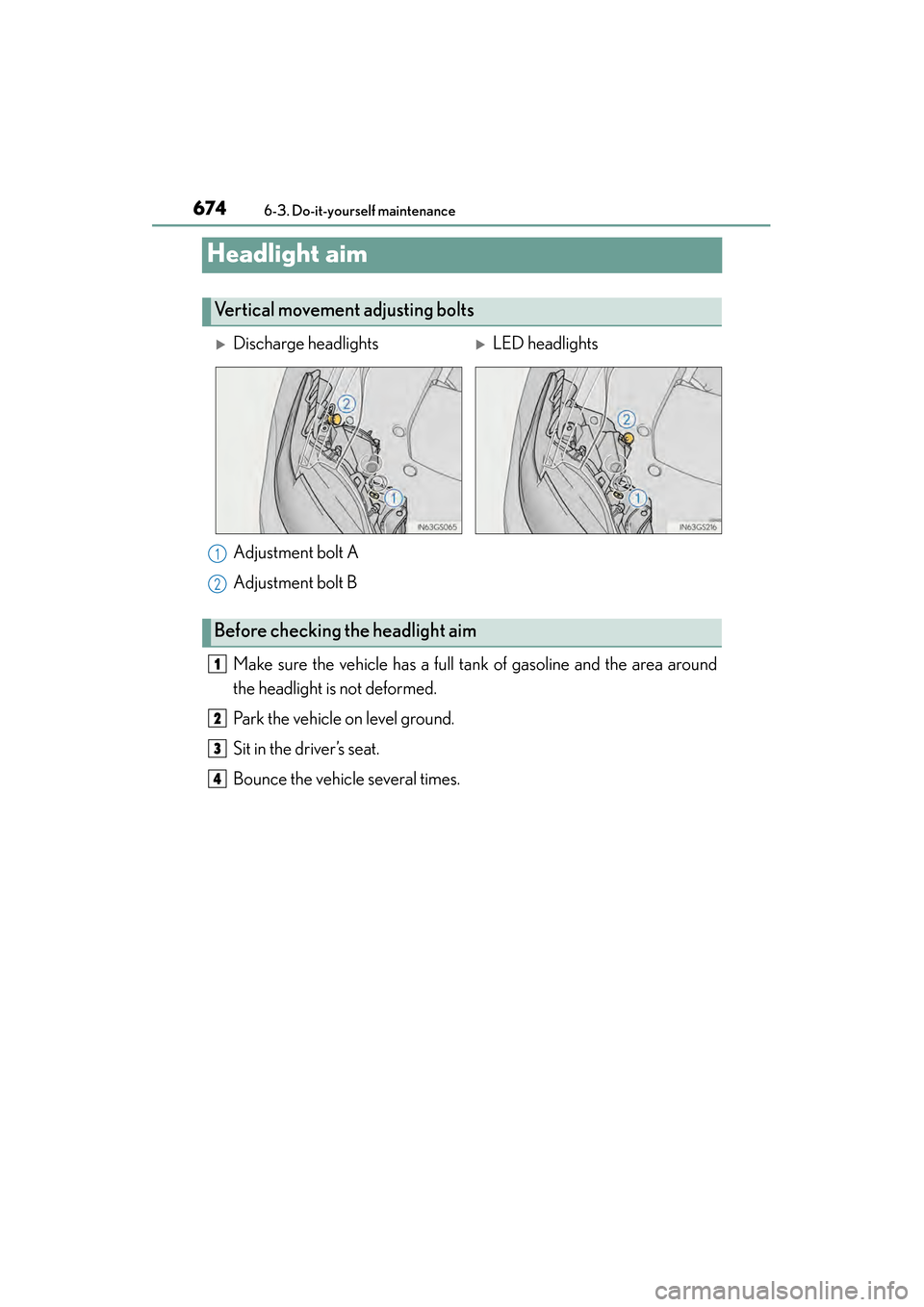

Headlight aim
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
XDischarge headlightsXLED headlights
1
2
Before checking the headlight aim
1
2
3
4
GS350_OM_OM30D41U_(U).book Page 674 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
6756-3. Do-it-yourself maintenance
6
Maintenance and care

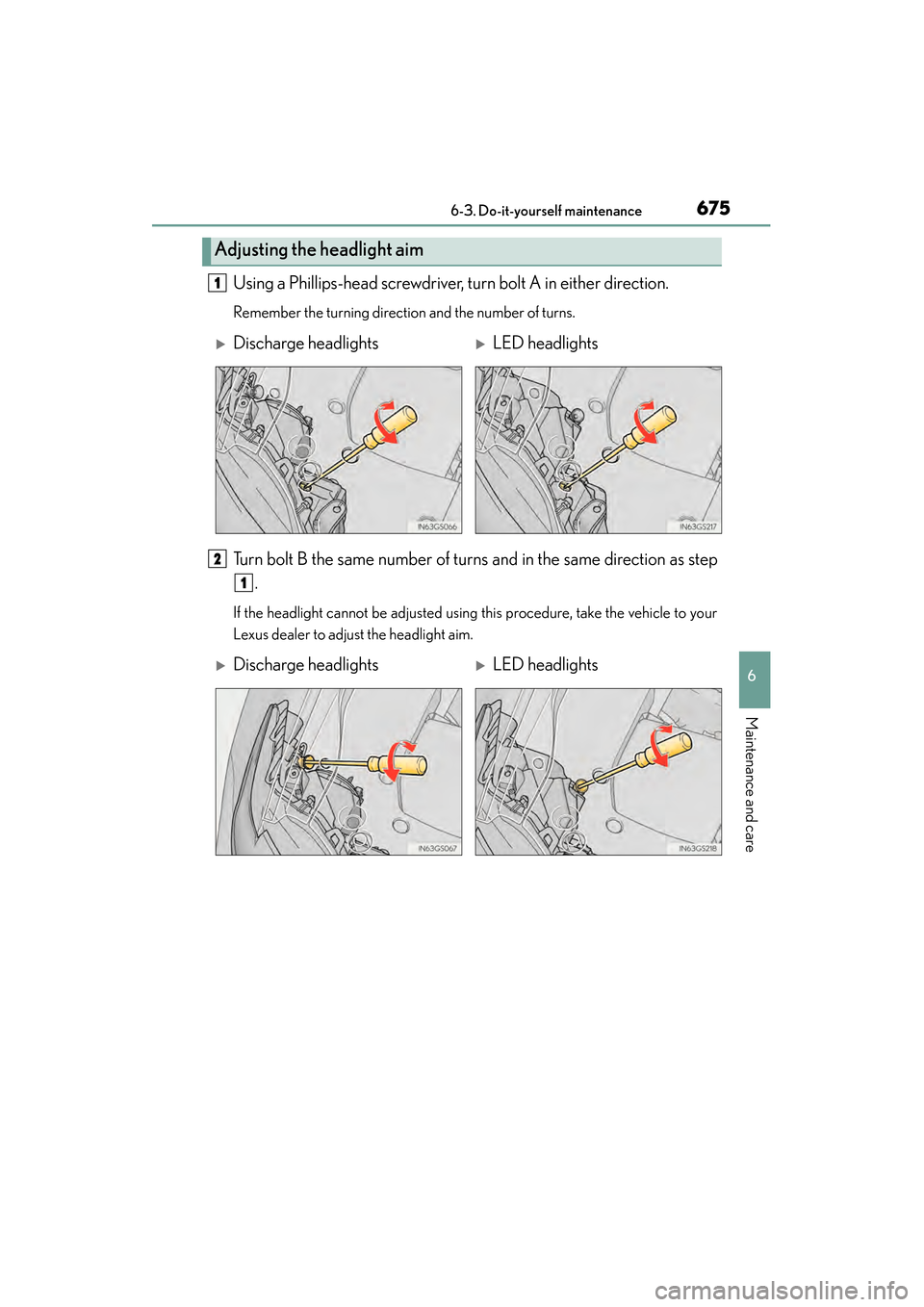

Using a Phillips-head screwdriver, turn bolt A in either direction.
Remember the turning direction and the number of turns.
Turn bolt B the same number of turns and in the same direction as step.
If the headlight cannot be adjusted using this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.
Adjusting the headlight aim
1
XDischarge headlightsXLED headlights
2
1
XDischarge headlightsXLED headlights
GS350_OM_OM30D41U_(U).book Page 675 Monday, July 29, 2013 2:22 PM

676
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance

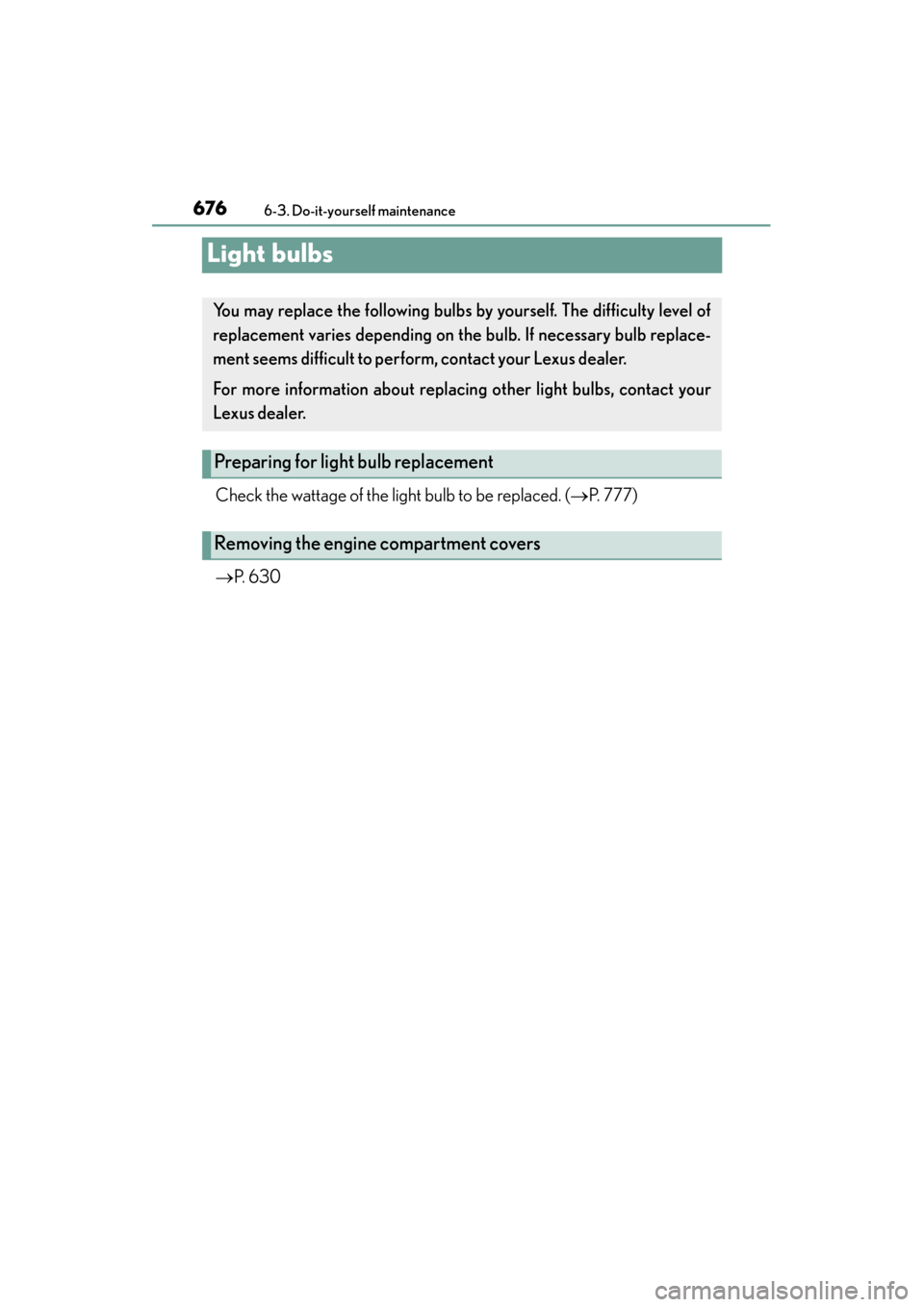

Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 777)
→ P. 6 3 0
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replace-
ment seems difficult to perfor m, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replacement
Removing the engine compartment covers
GS350_OM_OM30D41U_(U).book Page 676 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
6776-3. Do-it-yourself maintenance
6
Maintenance and care

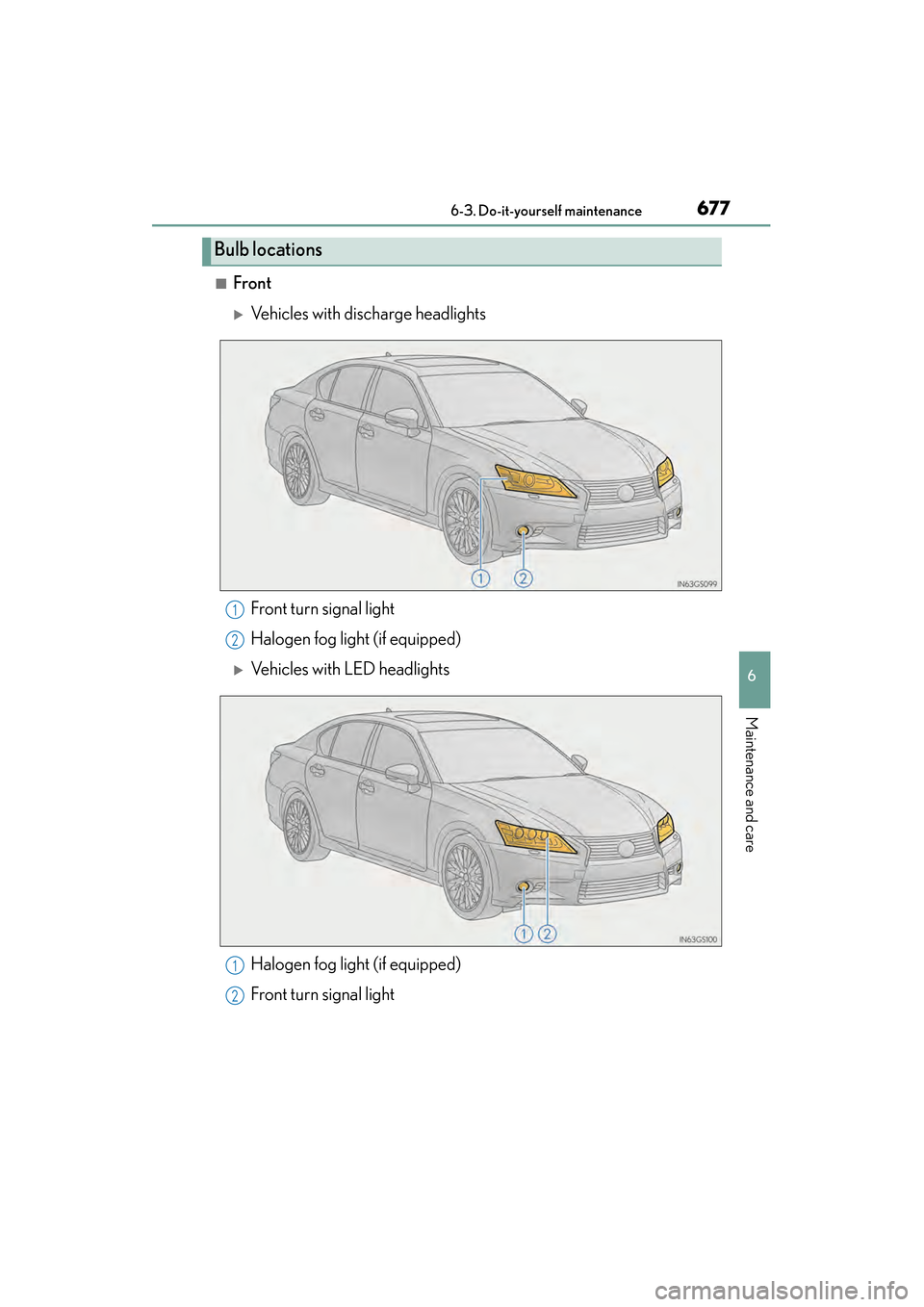

■Front
XVehicles with discharge headlights
Front turn signal light
Halogen fog light (if equipped)
XVehicles with LED headlights
Halogen fog light (if equipped)
Front turn signal light
Bulb locations
1
2
1
2
GS350_OM_OM30D41U_(U).book Page 677 Monday, July 29, 2013 2:22 PM

678
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance

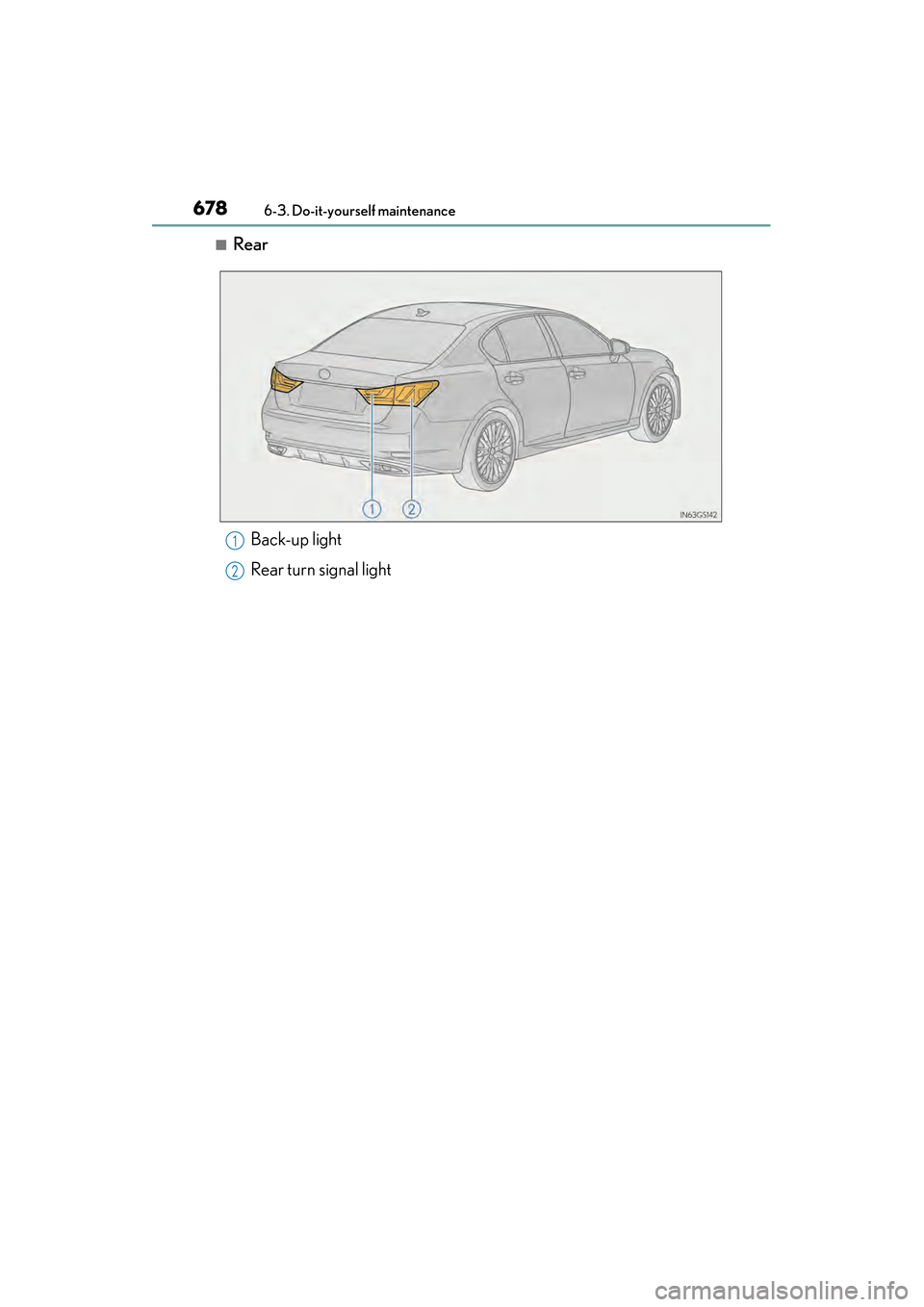

■RearBack-up light
Rear turn signal light
1
2
GS350_OM_OM30D41U_(U).book Page 678 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
6796-3. Do-it-yourself maintenance
6
Maintenance and care

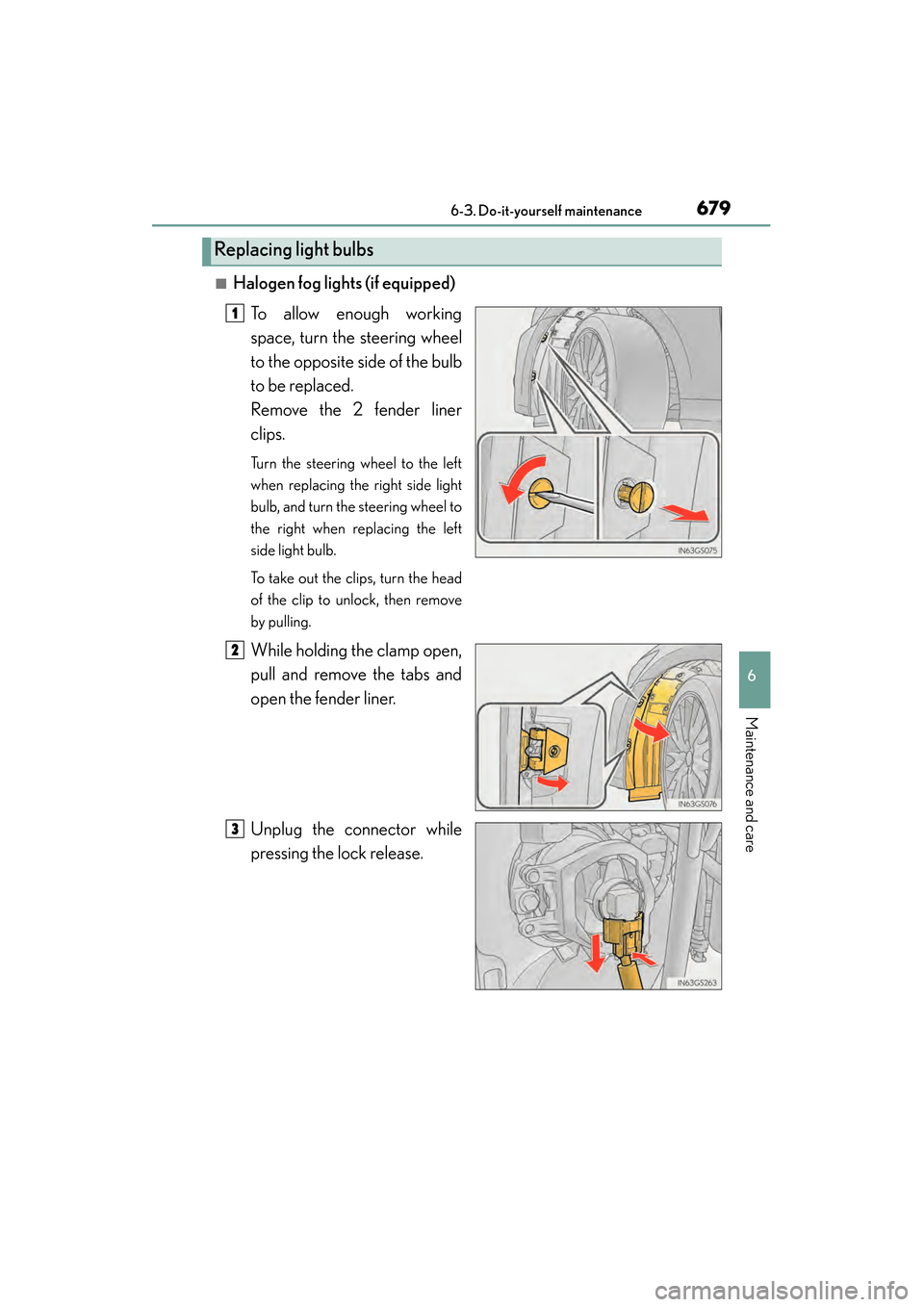

■Halogen fog lights (if equipped)To allow enough working
space, turn the steering wheel
to the opposite side of the bulb
to be replaced.
Remove the 2 fender liner
clips.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left
side light bulb.
To take out the clips, turn the head
of the clip to unlock, then remove
by pulling.
While holding the clamp open,
pull and remove the tabs and
open the fender liner.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3
GS350_OM_OM30D41U_(U).book Page 679 Monday, July 29, 2013 2:22 PM
