Lexus GS350 2014 Owner's Manual

7607-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)

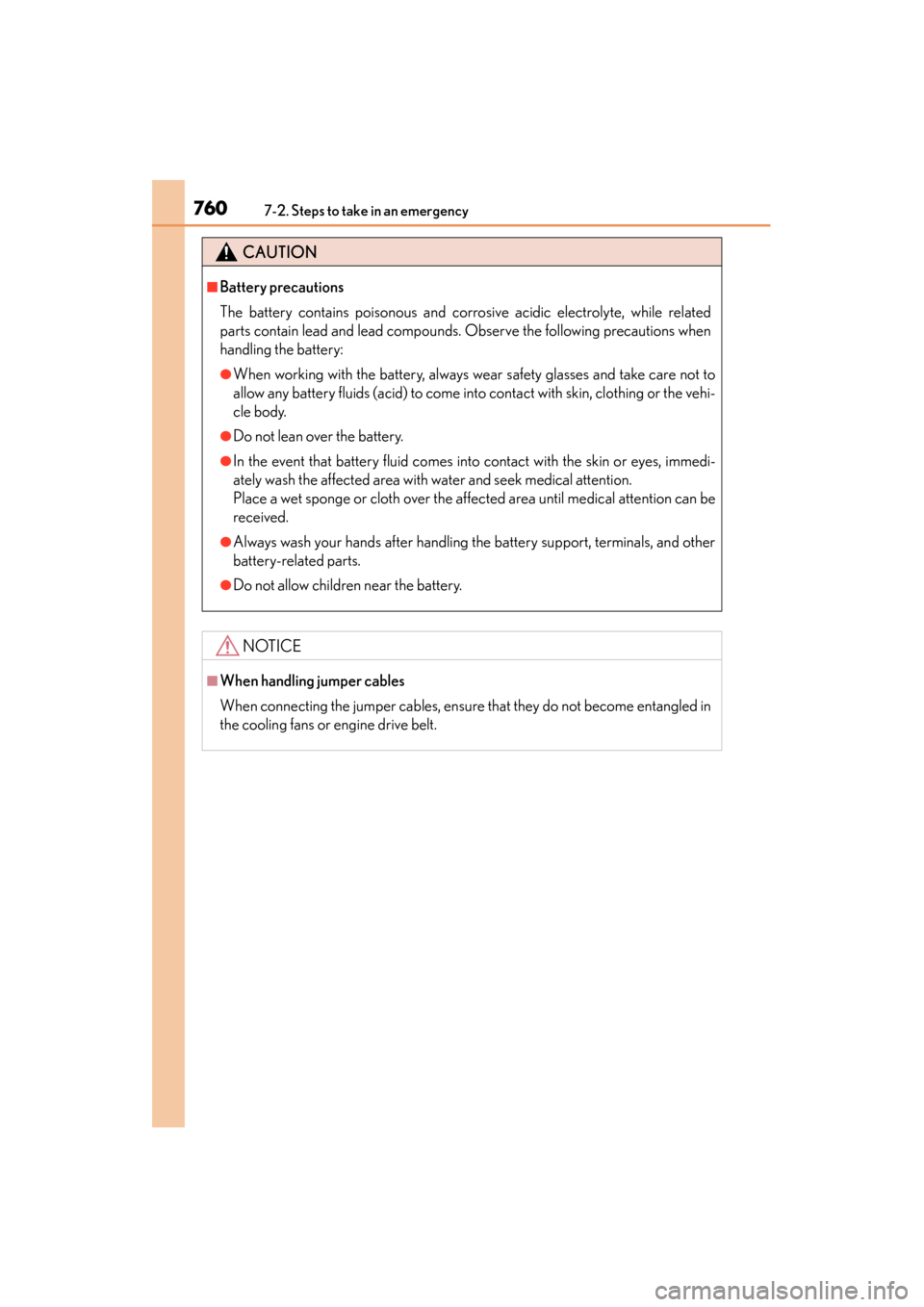

CAUTION
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related
parts contain lead and lead compounds. Observe the following precautions when
handling the battery:
●When working with the battery, always wear safety glasses and take care not to
allow any battery fluids (acid) to come into contact with skin, clothing or the vehi-
cle body.
●Do not lean over the battery.
●In the event that battery fluid comes into contact with the skin or eyes, immedi-
ately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the battery support, terminals, and other
battery-related parts.
●Do not allow children near the battery.
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in
the cooling fans or engine drive belt.
GS350_OM_OM30D41U_(U).book Page 760 Monday, July 29, 2013 2:22 PM

761
GS350_OM_OM30D41U_(U)
7
When trouble arises
7-2. Steps to take in an emergency

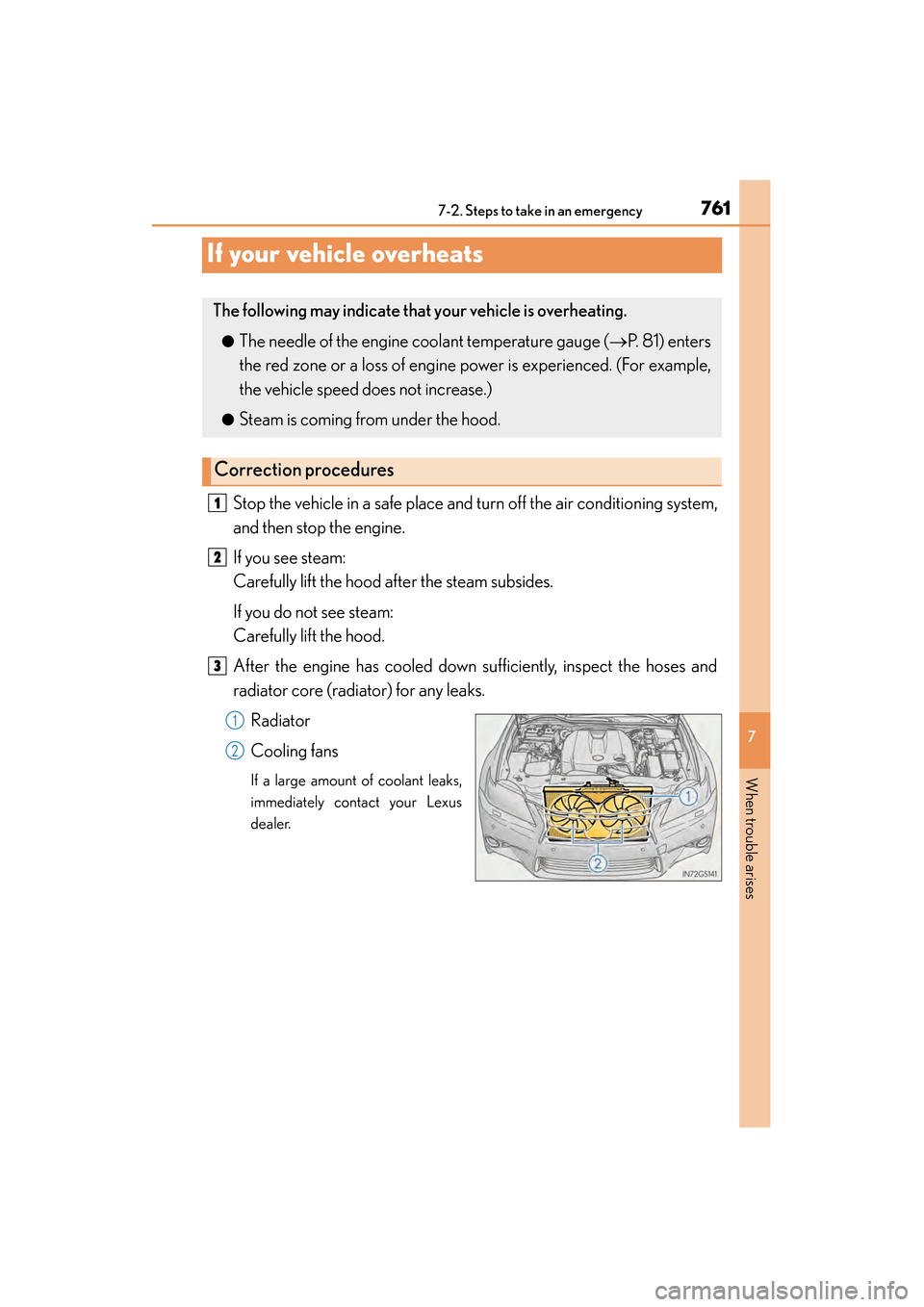

If your vehicle overheats
Stop the vehicle in a safe place and turn off the air conditioning system,
and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks. Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The following may indicate that your vehicle is overheating.
●The needle of the engine coolant temperature gauge ( →P. 81) enters
the red zone or a loss of engine power is experienced. (For example,
the vehicle speed does not increase.)
●Steam is coming from under the hood.
Correction procedures
1
2
3
1
2
GS350_OM_OM30D41U_(U).book Page 761 Monday, July 29, 2013 2:22 PM

7627-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir.
Reservoir
“FULL”
“LOW”
Coolant inlet cap
Add coolant if necessary.
Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditioning system on to check that
the radiator cooling fans operate and to check for coolant leaks from
the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately after
a cold start. Confirm that the fans are operating by checking the fan sound and air
flow. If it is difficult to check these, turn the air conditioning system on and off
repeatedly. (The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
4
1
2
3
4
5
6
7
GS350_OM_OM30D41U_(U).book Page 762 Monday, July 29, 2013 2:22 PM

7637-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)
7
When trouble arises

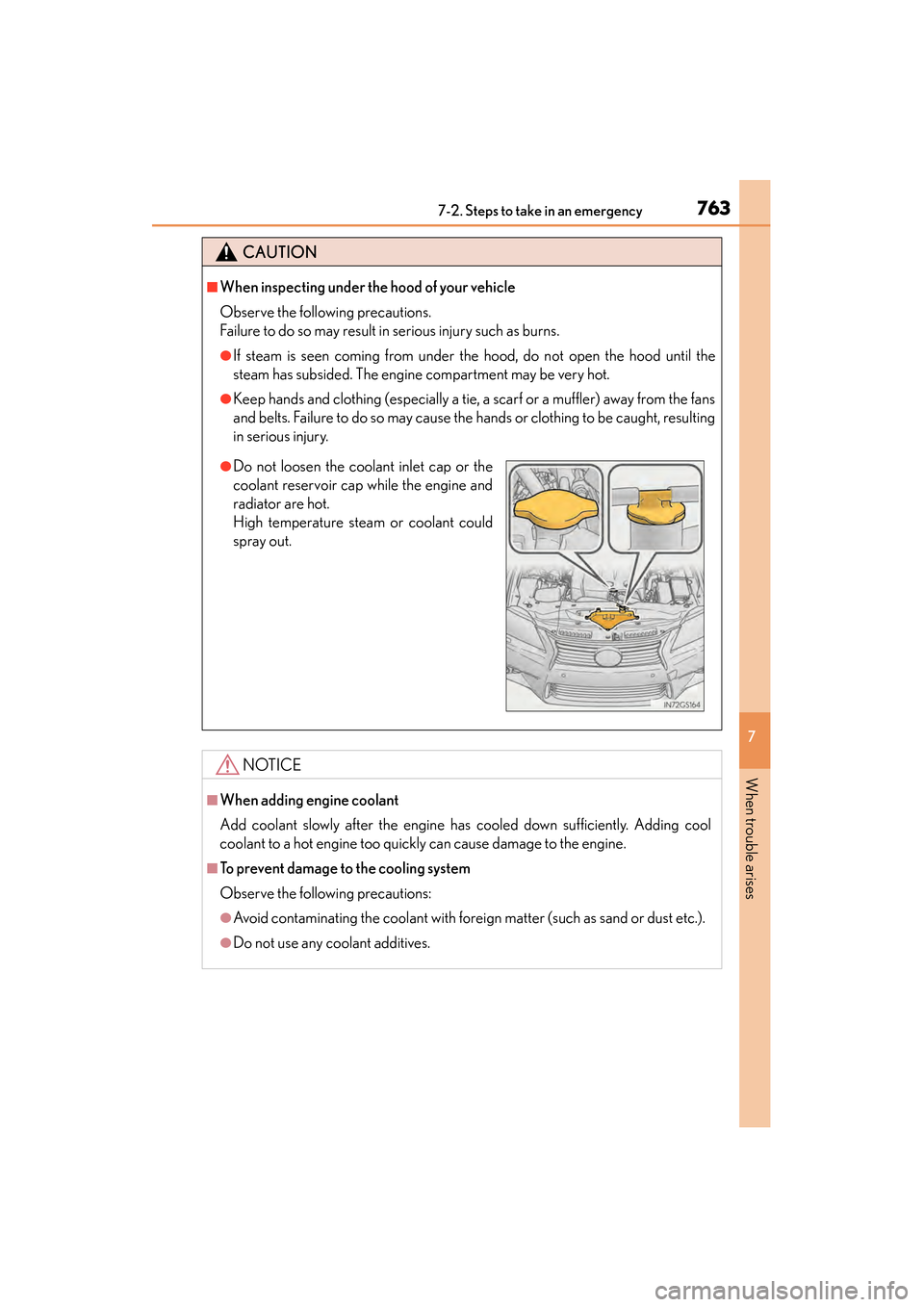

CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans
and belts. Failure to do so may cause the hands or clothing to be caught, resulting
in serious injury.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool
coolant to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
●Do not loosen the coolant inlet cap or the
coolant reservoir cap while the engine and
radiator are hot.
High temperature steam or coolant could
spray out.
GS350_OM_OM30D41U_(U).book Page 763 Monday, July 29, 2013 2:22 PM

764
GS350_OM_OM30D41U_(U)
7-2. Steps to take in an emergency

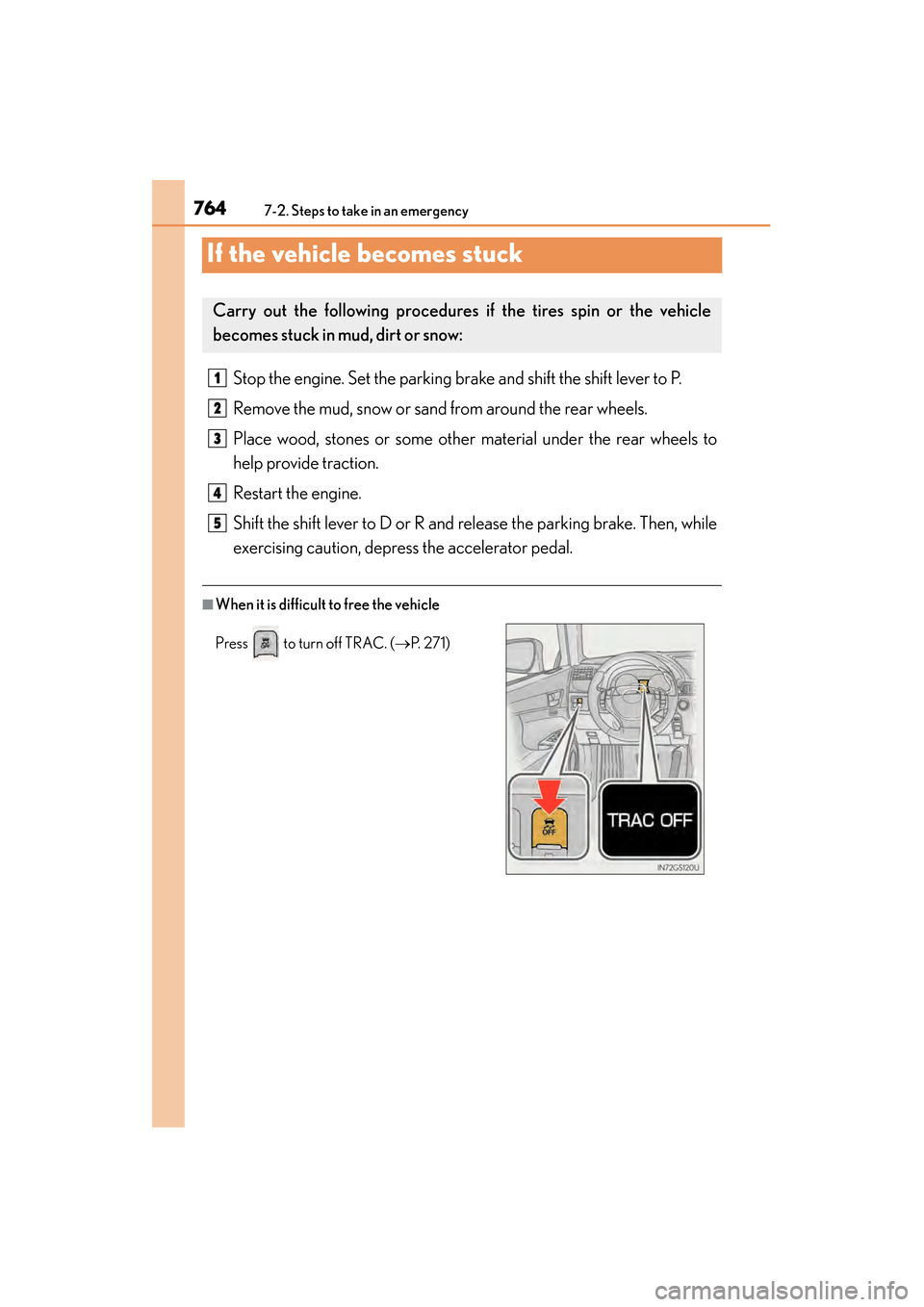

If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to
help provide traction.
Restart the engine.
Shift the shift lever to D or R and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC. ( →P. 2 7 1 )
1
2
3
4
5
GS350_OM_OM30D41U_(U).book Page 764 Monday, July 29, 2013 2:22 PM

7657-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)
7
When trouble arises

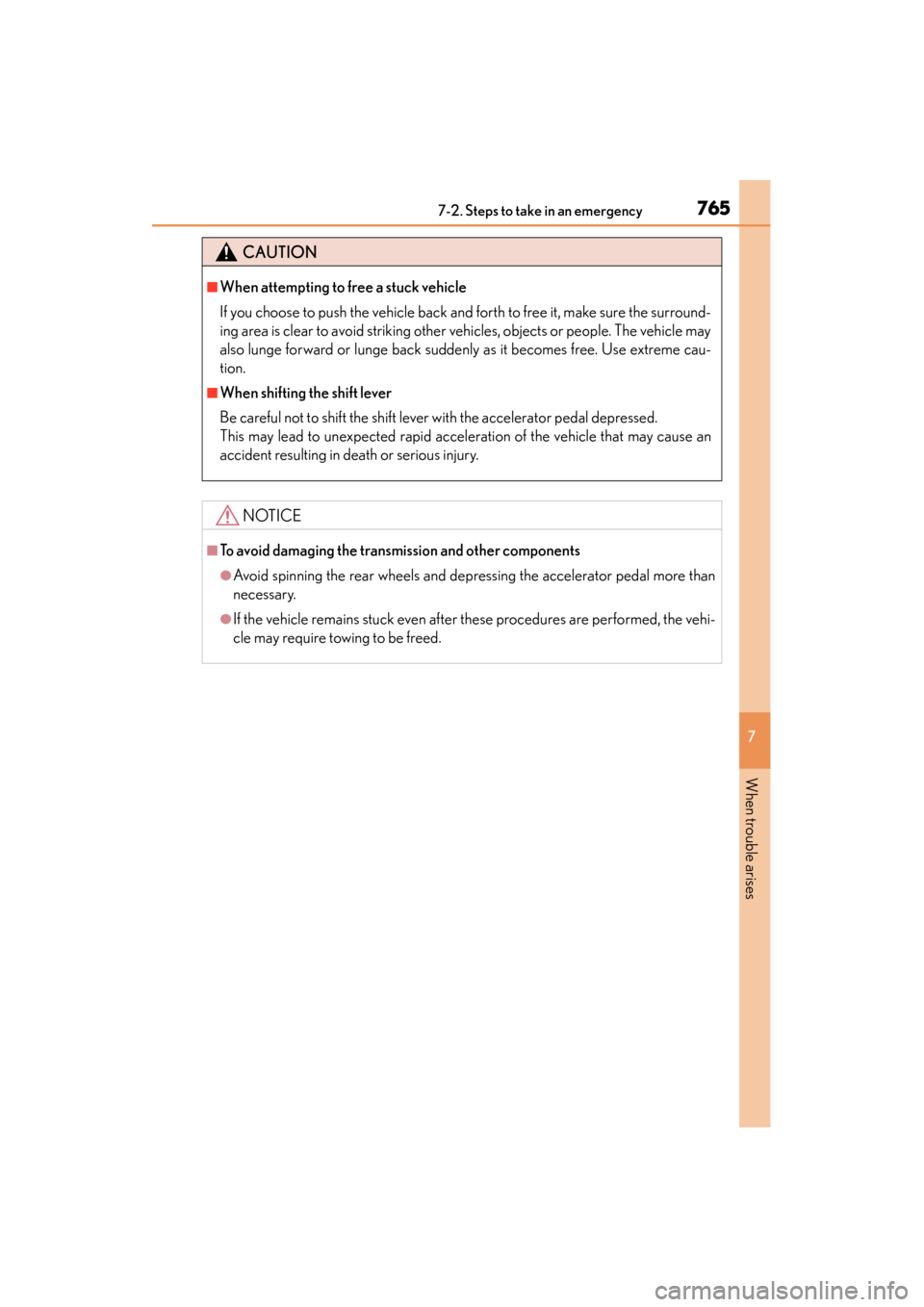

CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than
necessary.
●If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.
GS350_OM_OM30D41U_(U).book Page 765 Monday, July 29, 2013 2:22 PM

7667-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)
GS350_OM_OM30D41U_(U).book Page 766 Monday, July 29, 2013 2:22 PM

767
GS350_OM_OM30D41U_(U)

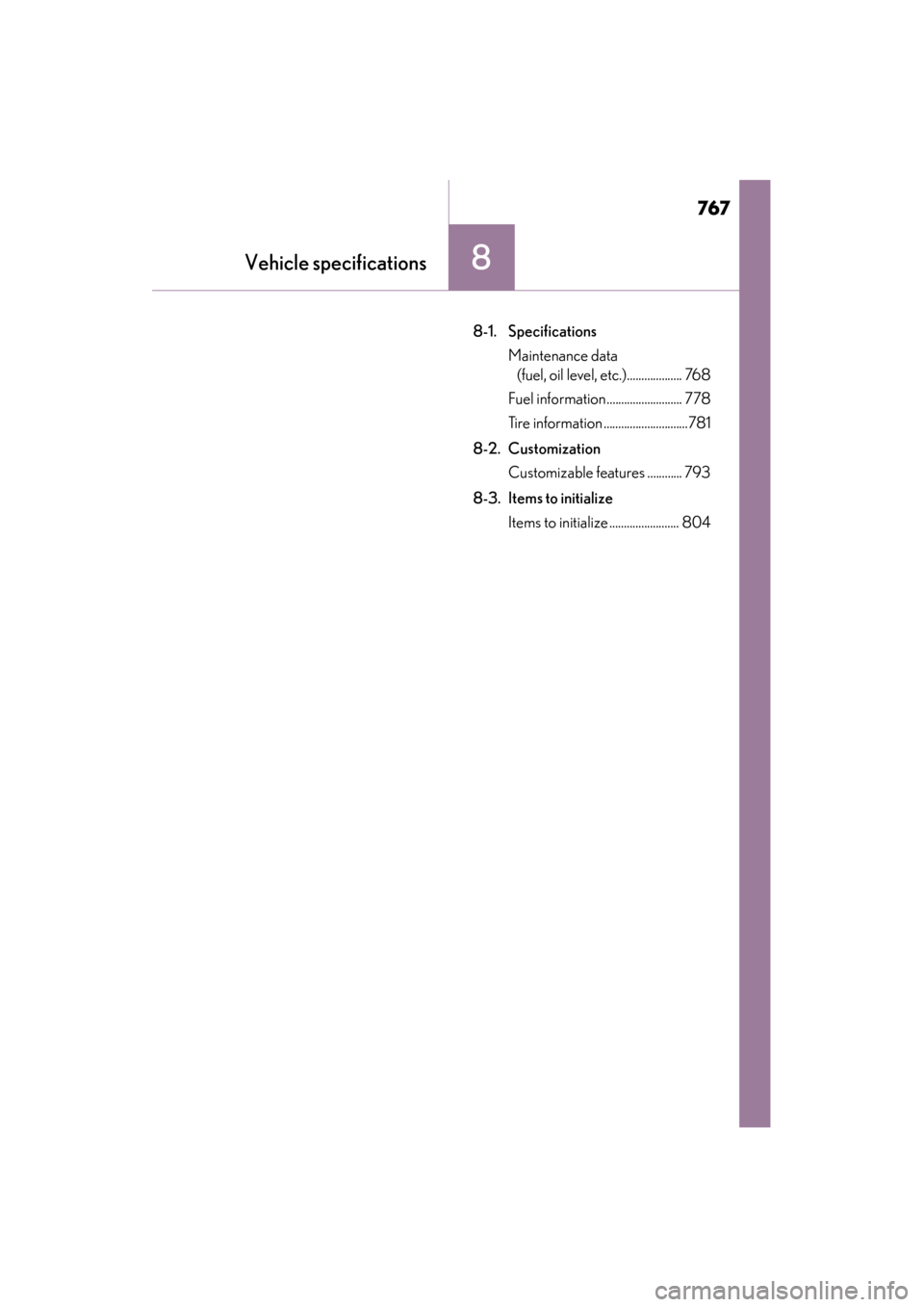

Vehicle specifications8
8-1. Specifications Maintenance data (fuel, oil level, etc.)................... 768
Fuel information.......................... 778
Tire information .............................781
8-2. Customization Customizable features ............ 793
8-3. Items to initialize Items to initialize ........................ 804
GS350_OM_OM30D41U_(U).book Page 767 Monday, July 29, 2013 2:22 PM

768
GS350_OM_OM30D41U_(U)
8-1. Specifications

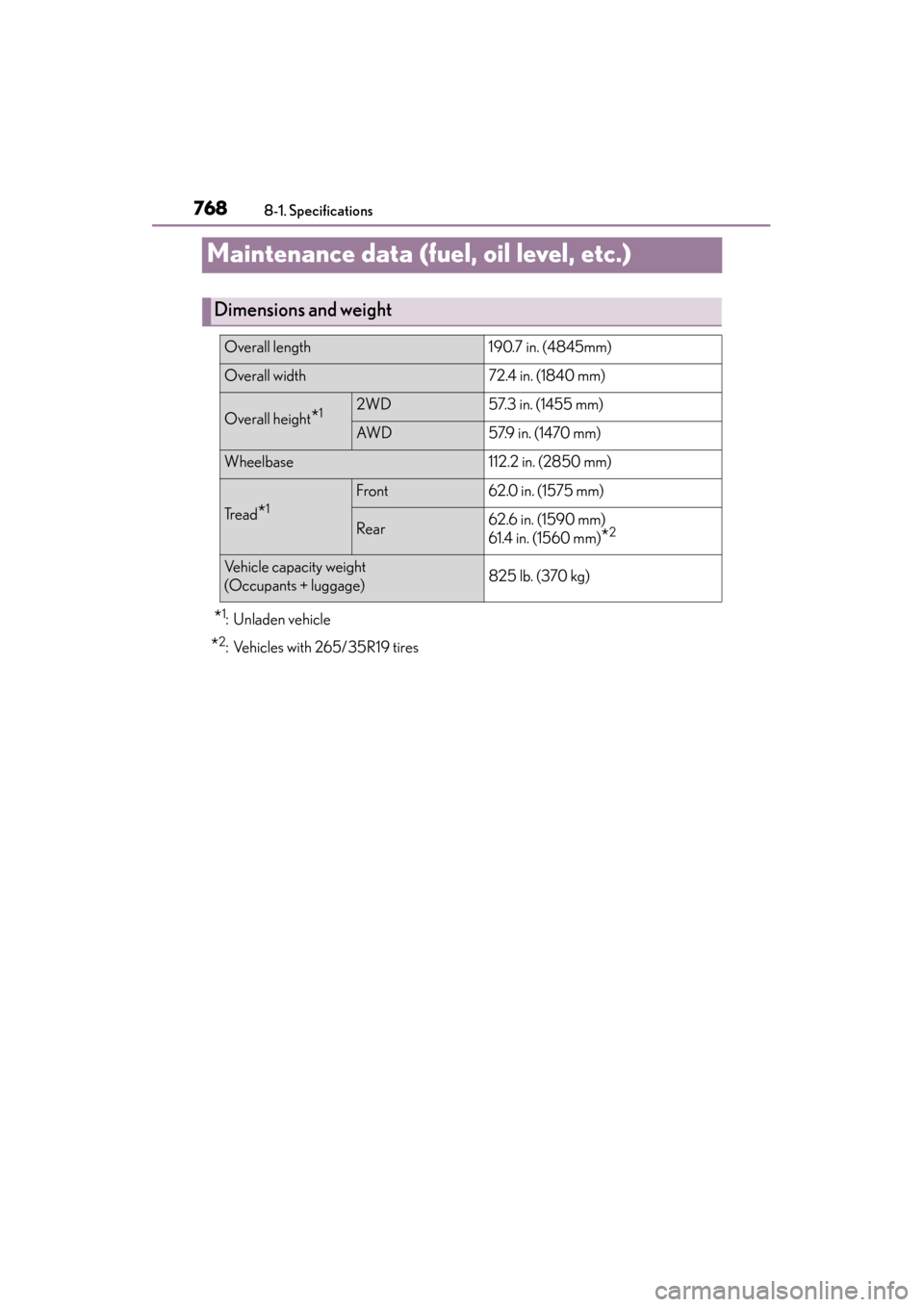

Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
Dimensions and weight
Overall length190.7 in. (4845mm)
Overall width72.4 in. (1840 mm)
Overall height*12WD57.3 in. (1455 mm)
AW D57.9 in. (1470 mm)
Wheelbase112.2 in. (2850 mm)
Tread*1
Front62.0 in. (1575 mm)
Rear62.6 in. (1590 mm)
61.4 in. (1560 mm)
*2
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
GS350_OM_OM30D41U_(U).book Page 768 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
7698-1. Specifications
8
Vehicle specifications

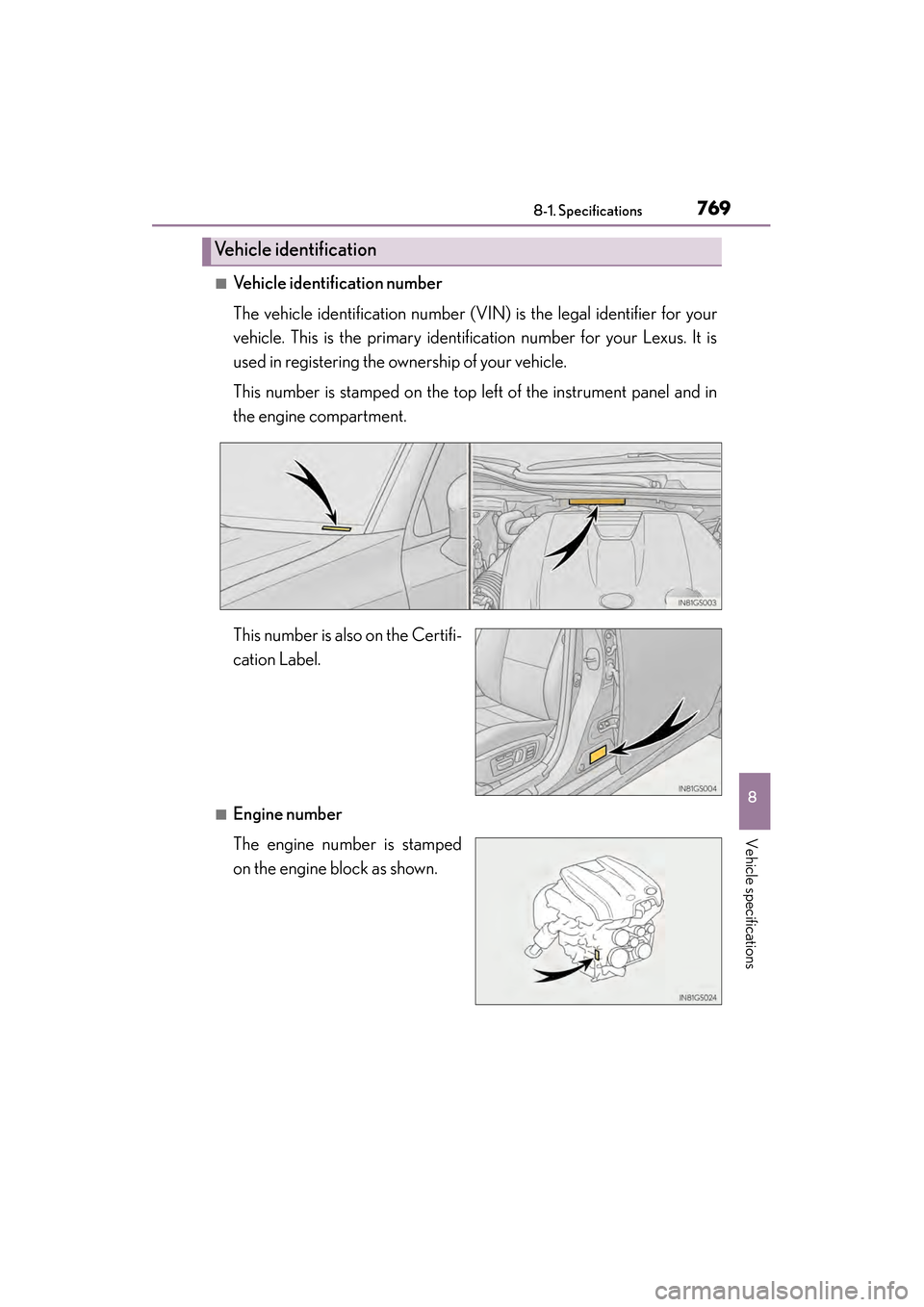

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification
GS350_OM_OM30D41U_(U).book Page 769 Monday, July 29, 2013 2:22 PM
