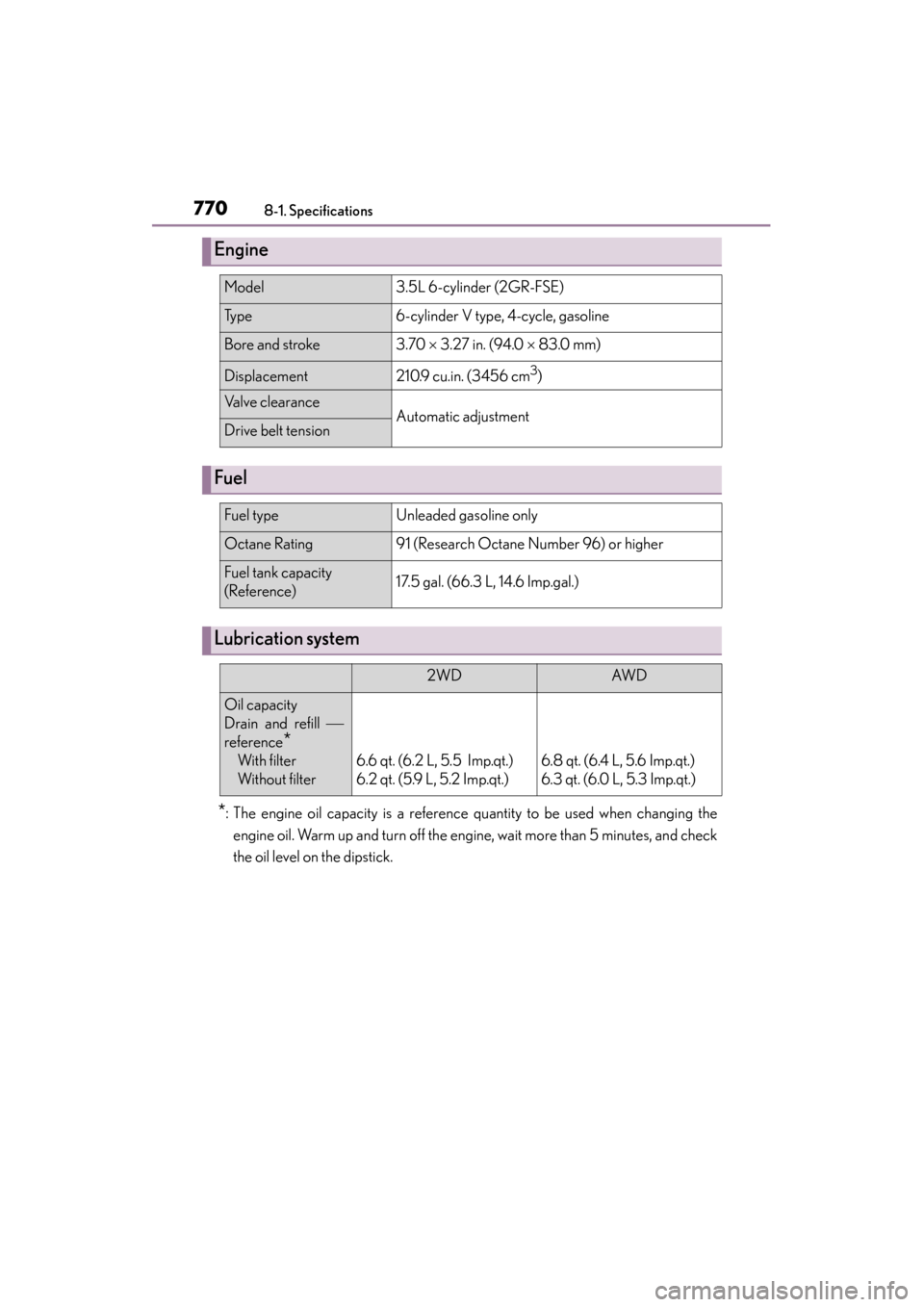

8-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
Engine
Model3.5L 6-cylinder (2GR-FSE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp.gal.)
Lubrication system
2WDAW D
Oil capacity
Drain and refill 
reference
*
Wi t h f il te r
Wi t h o u t fi lt er6.6 qt. (6.2 L, 5.5 Imp.qt.)
6.2 qt. (5.9 L, 5.2 Imp.qt.)6.8 qt. (6.4 L, 5.6 Imp.qt.)
6.3 qt. (6.0 L, 5.3 Imp.qt.)
GS350_OM_OM30D41U_(U).book Page 770 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
7718-1. Specifications
8
Vehicle specifications

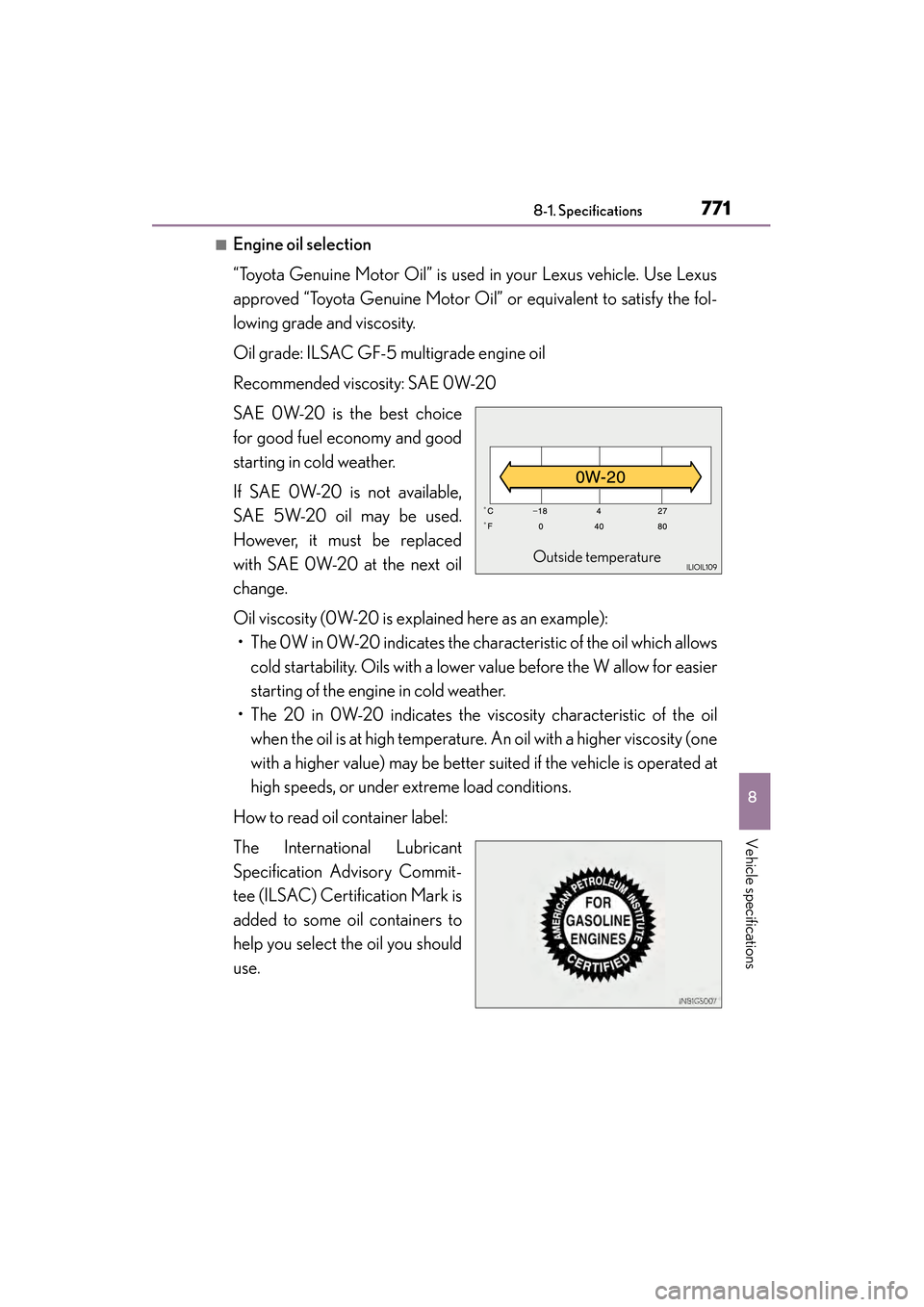

■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better suited if the vehicle is operated at
high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you should
use.
Outside temperature
GS350_OM_OM30D41U_(U).book Page 771 Monday, July 29, 2013 2:22 PM

772
GS350_OM_OM30D41U_(U)
8-1. Specifications

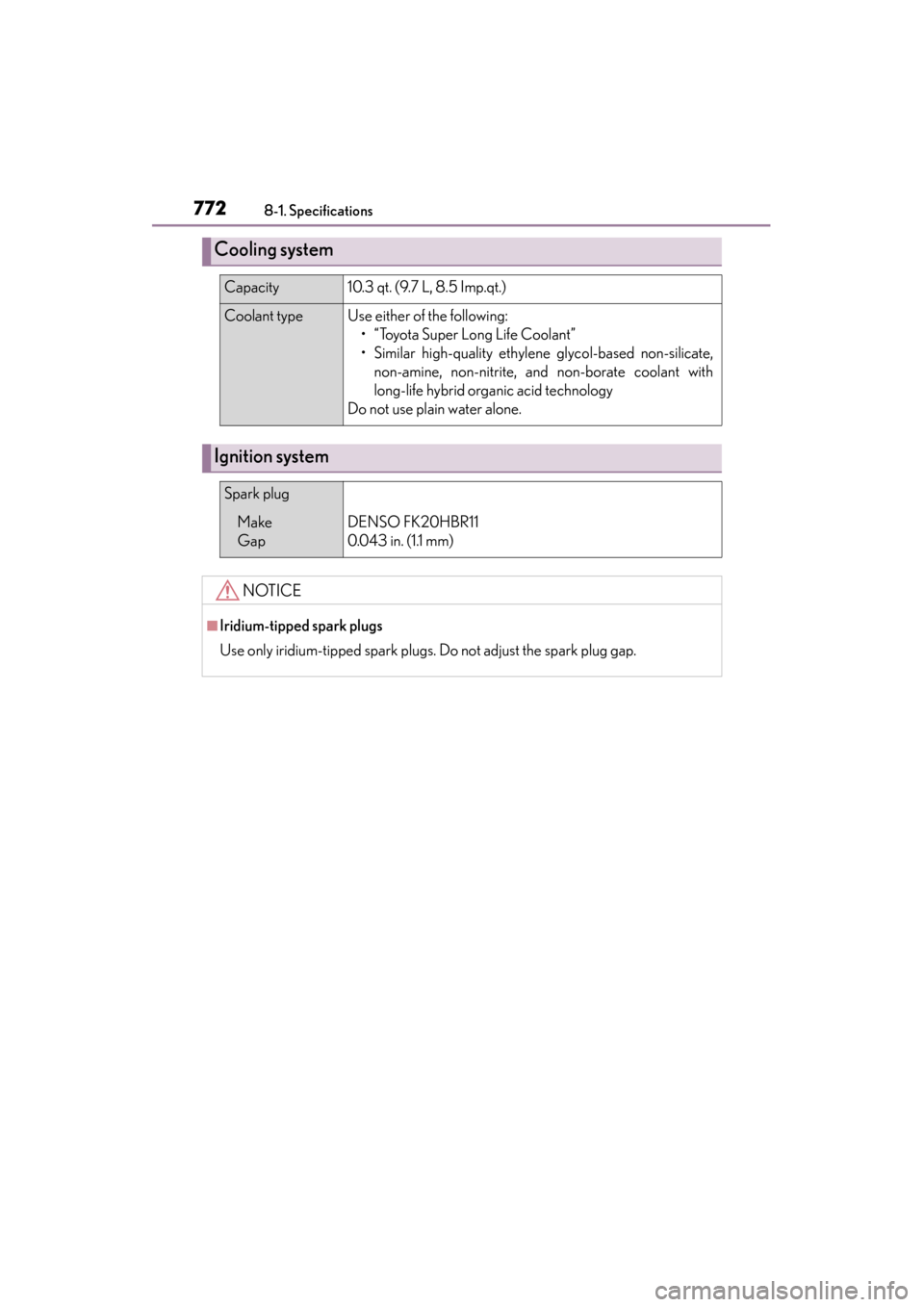

Cooling system
Capacity 10.3 qt. (9.7 L, 8.5 Imp.qt.)
Coolant typeUse either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate,non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make
GapDENSO FK20HBR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
GS350_OM_OM30D41U_(U).book Page 772 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
7738-1. Specifications
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.

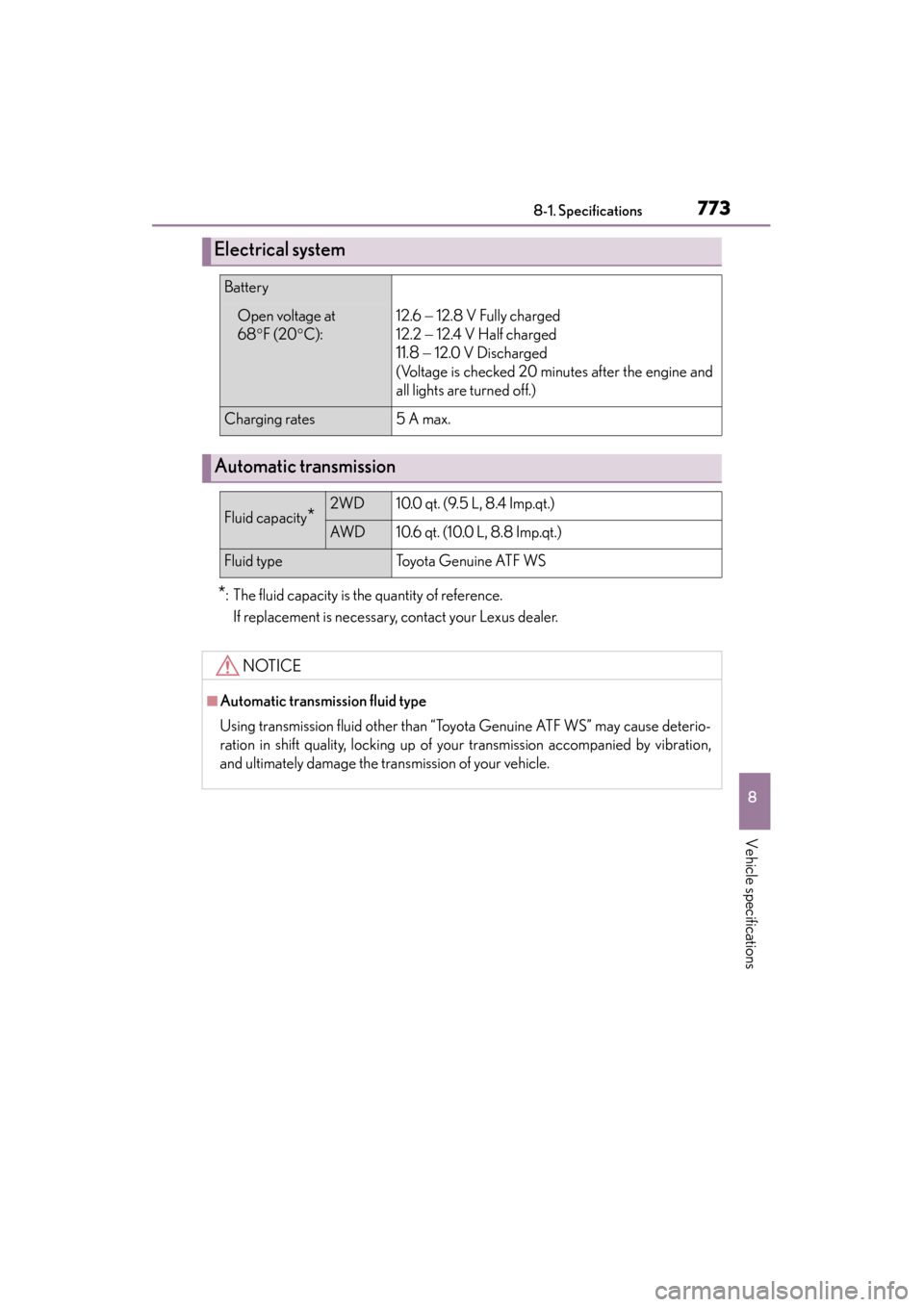

Electrical system
Battery
Open voltage at
68 °F (20 °C):12.6 − 12.8 V Fully charged
12.2
− 12.4 V Half charged
11.8 − 12.0 V Discharged
(Voltage is checked 20 minutes after the engine and
all lights are turned off.)
Charging rates5 A max.
Automatic transmission
Fluid capacity*2WD10.0 qt. (9.5 L, 8.4 Imp.qt.)
AW D10.6 qt. (10.0 L, 8.8 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of your transmission accompanied by vibration,
and ultimately damage the transmission of your vehicle.
GS350_OM_OM30D41U_(U).book Page 773 Monday, July 29, 2013 2:22 PM

774
GS350_OM_OM30D41U_(U)
8-1. Specifications
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N,51.0 kgf) while the engine is running.

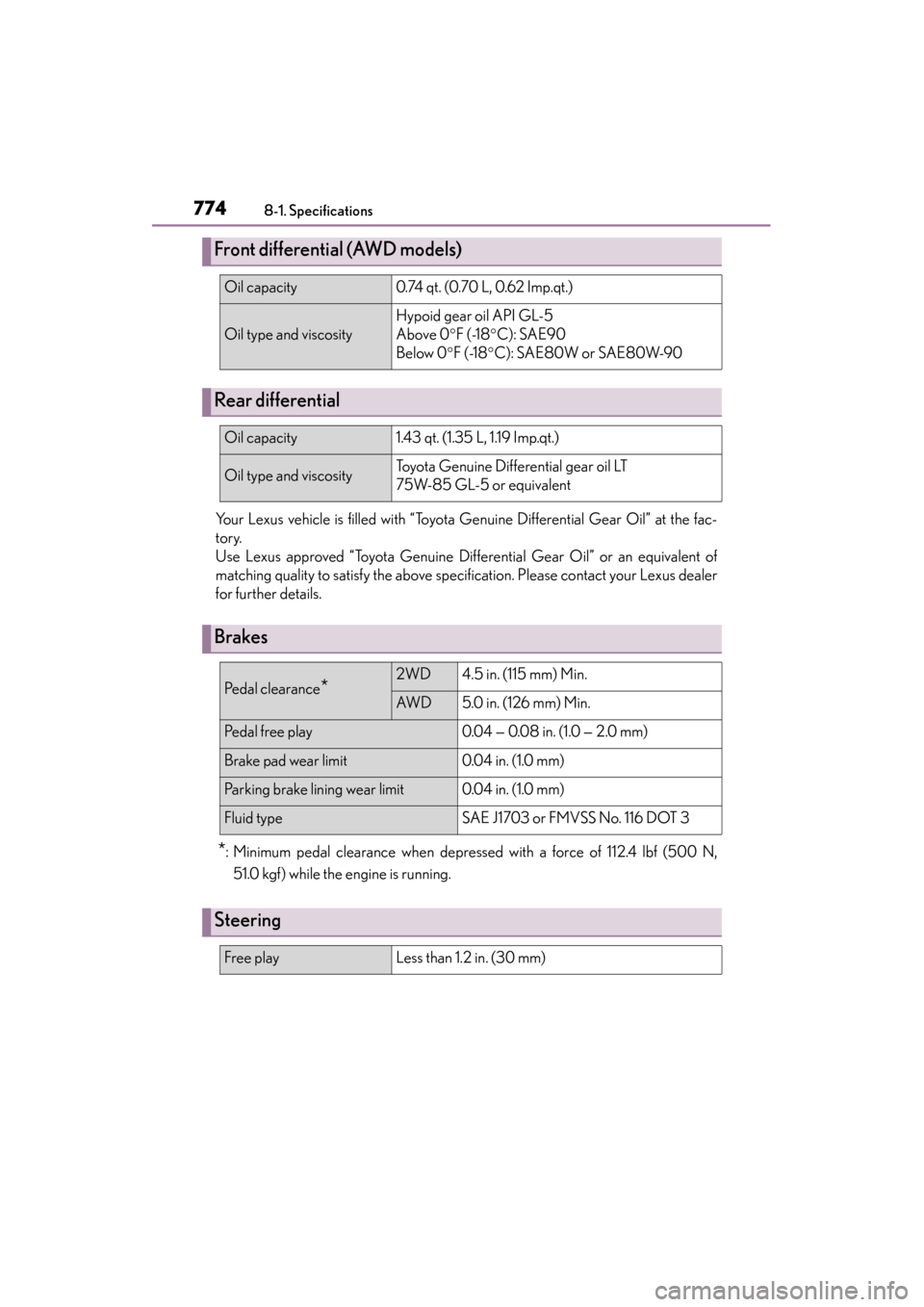

Front differential (AWD models)
Oil capacity 0.74 qt. (0.70 L, 0.62 Imp.qt.)
Oil type and viscosity
Hypoid gear oil API GL-5
Above 0°F (-18 °C): SAE90
Below 0 °F (-18 °C): SAE80W or SAE80W-90
Rear differential
Oil capacity1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pe d a l c l e a r a n c e*2WD4.5 in. (115 mm) Min.
AW D5.0 in. (126 mm) Min.
Pe d a l f r e e p l a y0.04 — 0.08 in. (1.0 — 2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
GS350_OM_OM30D41U_(U).book Page 774 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
7758-1. Specifications
8
Vehicle specifications
XTy p e A
XTy p e B
XTy p e C
Tires and wheels
Ti r e s i z e225/50R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size17 × 7 1 /2J
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z e235/45R18 94Y
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tire
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size18 × 8J
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z eP235/45R18 94V
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)2WD
Front tire
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear tire 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
AW D
Front tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size18 × 8J
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
GS350_OM_OM30D41U_(U).book Page 775 Monday, July 29, 2013 2:22 PM

776

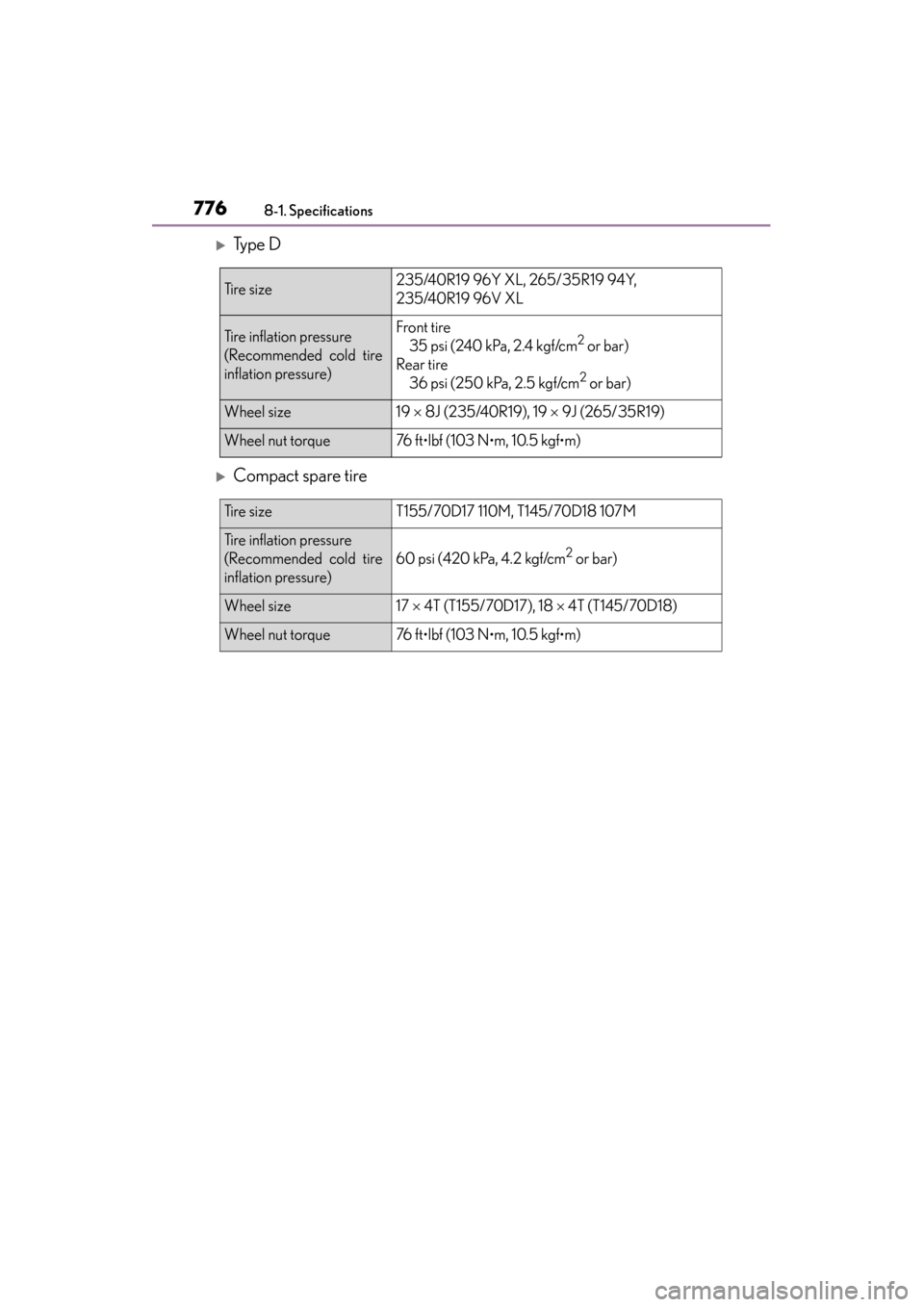

GS350_OM_OM30D41U_(U)
8-1. Specifications
XTy p e D
XCompact spare tire
Ti r e s i z e235/40R19 96Y XL, 265/35R19 94Y,
235/40R19 96V XL
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tire35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear tire 36 psi (250 kPa, 2.5 kgf/cm
2 or bar)
Wheel size19 × 8J (235/40R19), 19 × 9J (265/35R19)
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z eT155/70D17 110M, T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17 × 4T (T155/70D17), 18 × 4T (T145/70D18)
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
GS350_OM_OM30D41U_(U).book Page 776 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
7778-1. Specifications
8
Vehicle specifications
A: D4S discharge bulbsB: H16 halogen bulbs
C: Wedge base bulbs (amber) D: Wedge base bulbs (clear)
*: If equipped

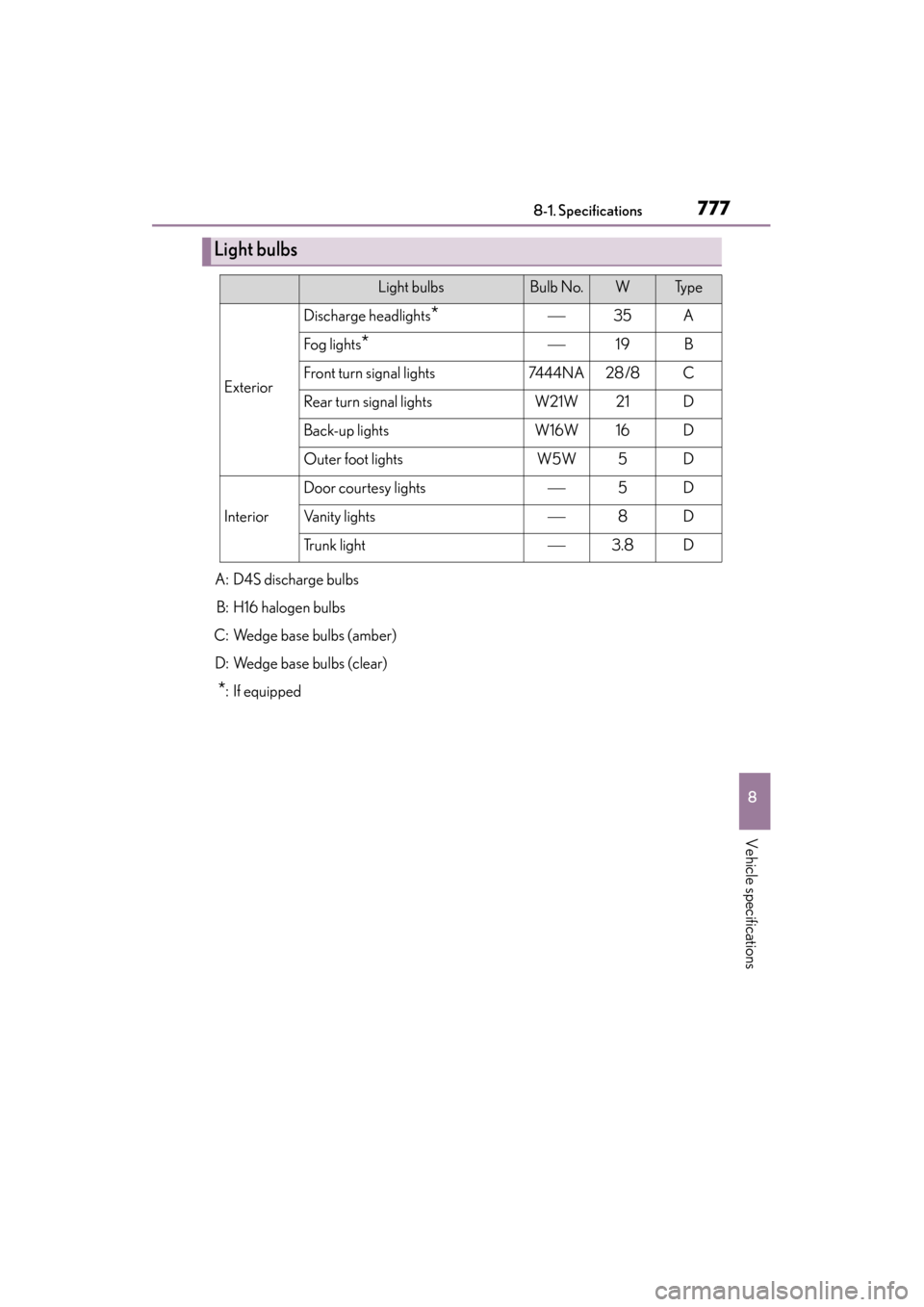

Light bulbs
Light bulbsBulb No.WTy p e
Exterior
Discharge headlights*35A
Fog lights*19B
Front turn signal lights7444NA28 /8C
Rear turn signal lightsW21W21D
Back-up lightsW16W16D
Outer foot lightsW5W5D
Interior
Door courtesy lights5D
Vanity lights8D
Tr u n k l i g h t3.8D
GS350_OM_OM30D41U_(U).book Page 777 Monday, July 29, 2013 2:22 PM

778
GS350_OM_OM30D41U_(U)
8-1. Specifications

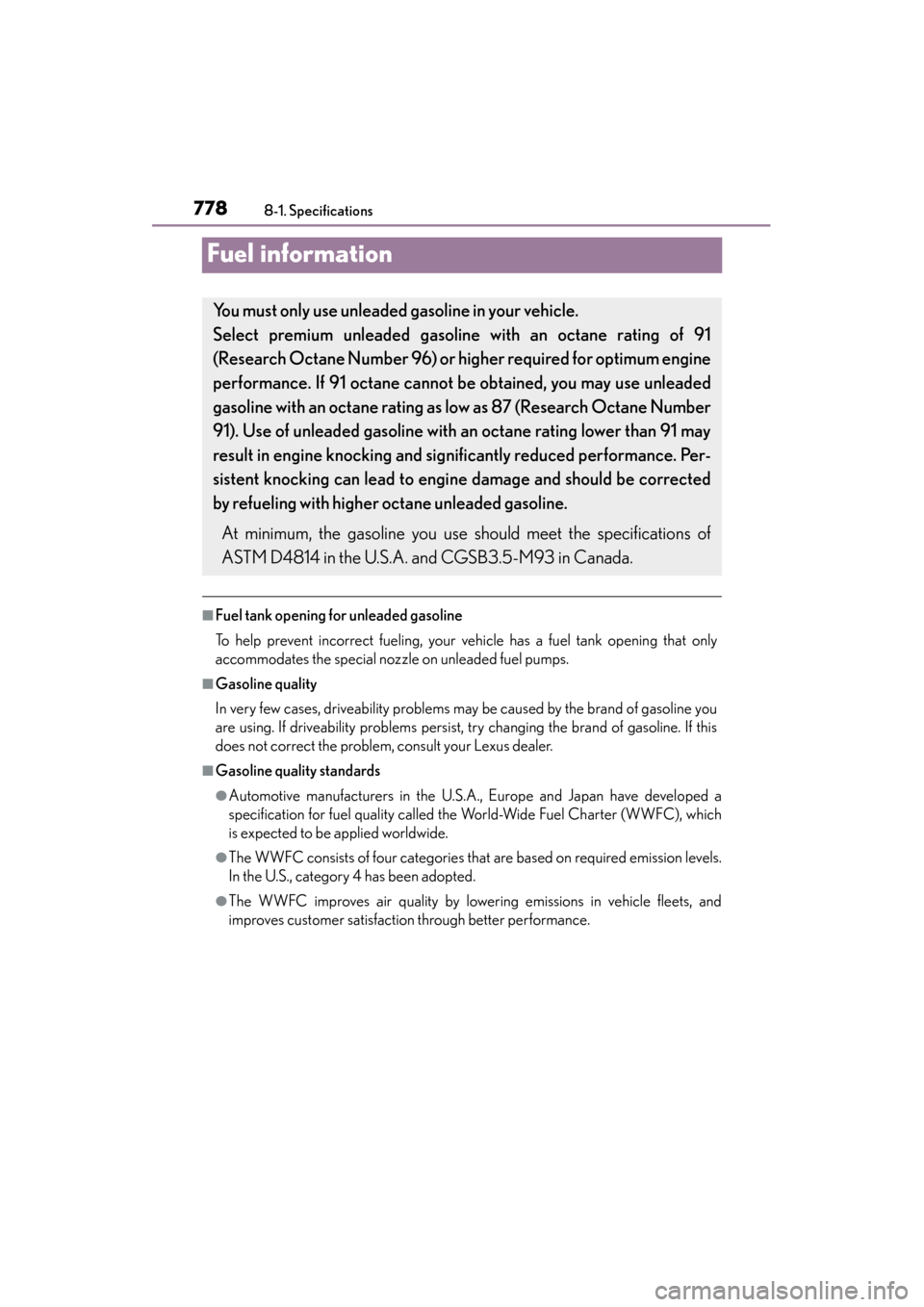

Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed a
specification for fuel quality called the World-Wide Fuel Charter (WWFC), which
is expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission levels.
In the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
You must only use unleaded gasoline in your vehicle.
Select premium unleaded gasoline with an octane rating of 91
(Research Octane Number 96) or higher required for optimum engine
performance. If 91 octane cannot be obtained, you may use unleaded
gasoline with an octane rating as low as 87 (Research Octane Number
91). Use of unleaded gasoline with an octane rating lower than 91 may
result in engine knocking and sign ificantly reduced performance. Per-
sistent knocking can lead to engi ne damage and should be corrected
by refueling with higher octane unleaded gasoline.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.
GS350_OM_OM30D41U_(U).book Page 778 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
7798-1. Specifications
8
Vehicle specifications

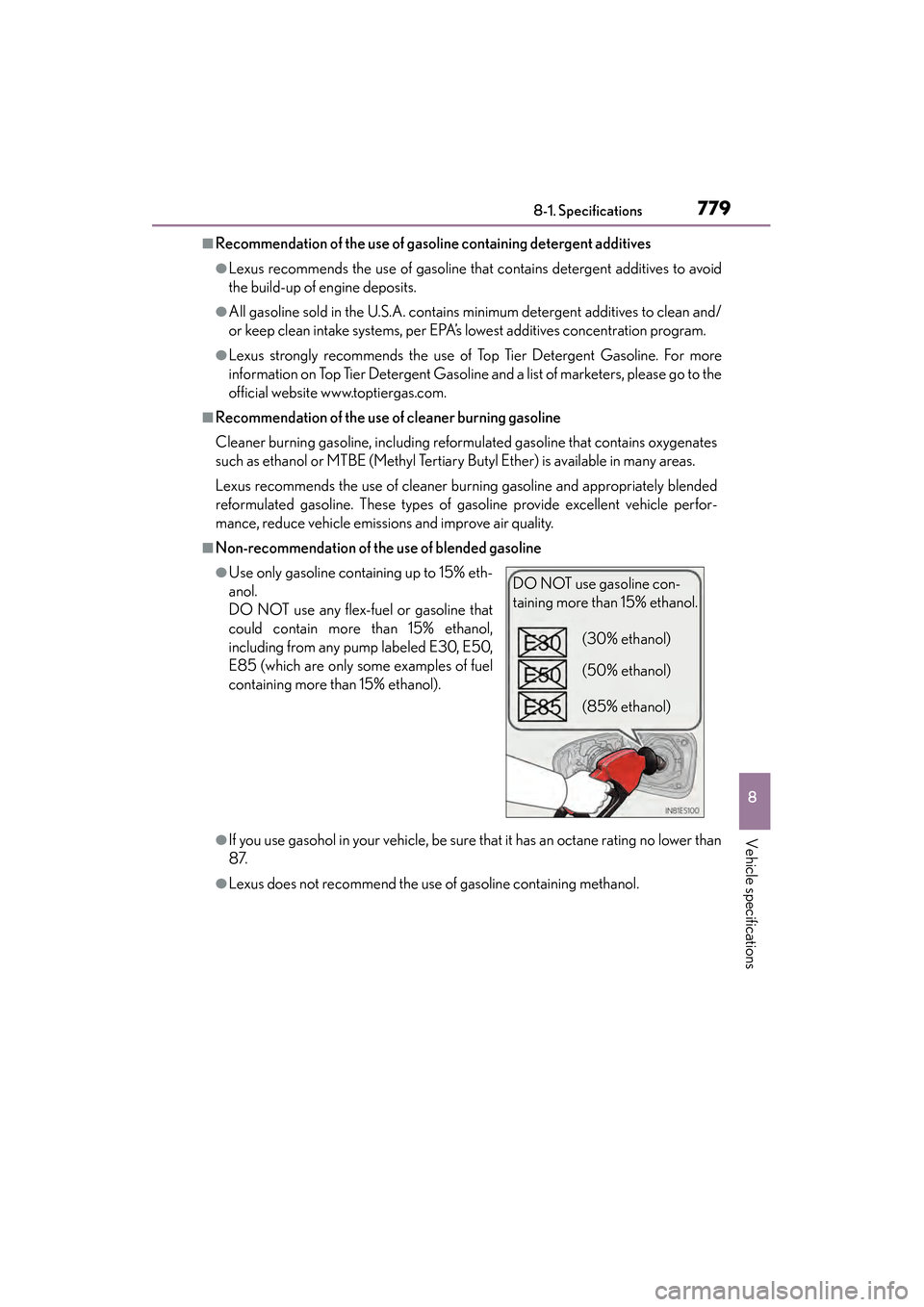

■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid
the build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/
or keep clean intake systems, per EPA’s lowest additives concentration program.
●Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more
information on Top Tier Detergent Gasoline and a list of marketers, please go to the
official website www.toptiergas.com.
■Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygenates
such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no lower than
87.
●Lexus does not recommend the use of gasoline containing methanol.
●Use only gasoline containing up to 15% eth-
anol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol,
including from any pump labeled E30, E50,
E85 (which are only some examples of fuel
containing more than 15% ethanol).DO NOT use gasoline con-
taining more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)
