Lexus GS350 2015 INTUITIVE PARKING ASSIST / LEXUS 2015 GS350 FROM MAR. 2015 PROD. OWNERS MANUAL (OM30F69U)

5317-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)
7
When trouble arises
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
■When shifting the shift lever
Be careful not to shift the shift leve r with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transm ission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than
necessary.
●If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.

5327-2. Steps to take in an emergency
GS350_OM_OM30F69U_(U)

533
GS350_OM_OM30F69U_(U)
Vehicle specifications8
8-1. Specifications Maintenance data (fuel, oil level, etc.)...................534
Fuel information.......................... 544
Tire information ........................... 547
8-2. Customization Customizable features ............ 559
8-3. Initialization Items to initialize ......................... 570

534
GS350_OM_OM30F69U_(U)
8-1. Specifications

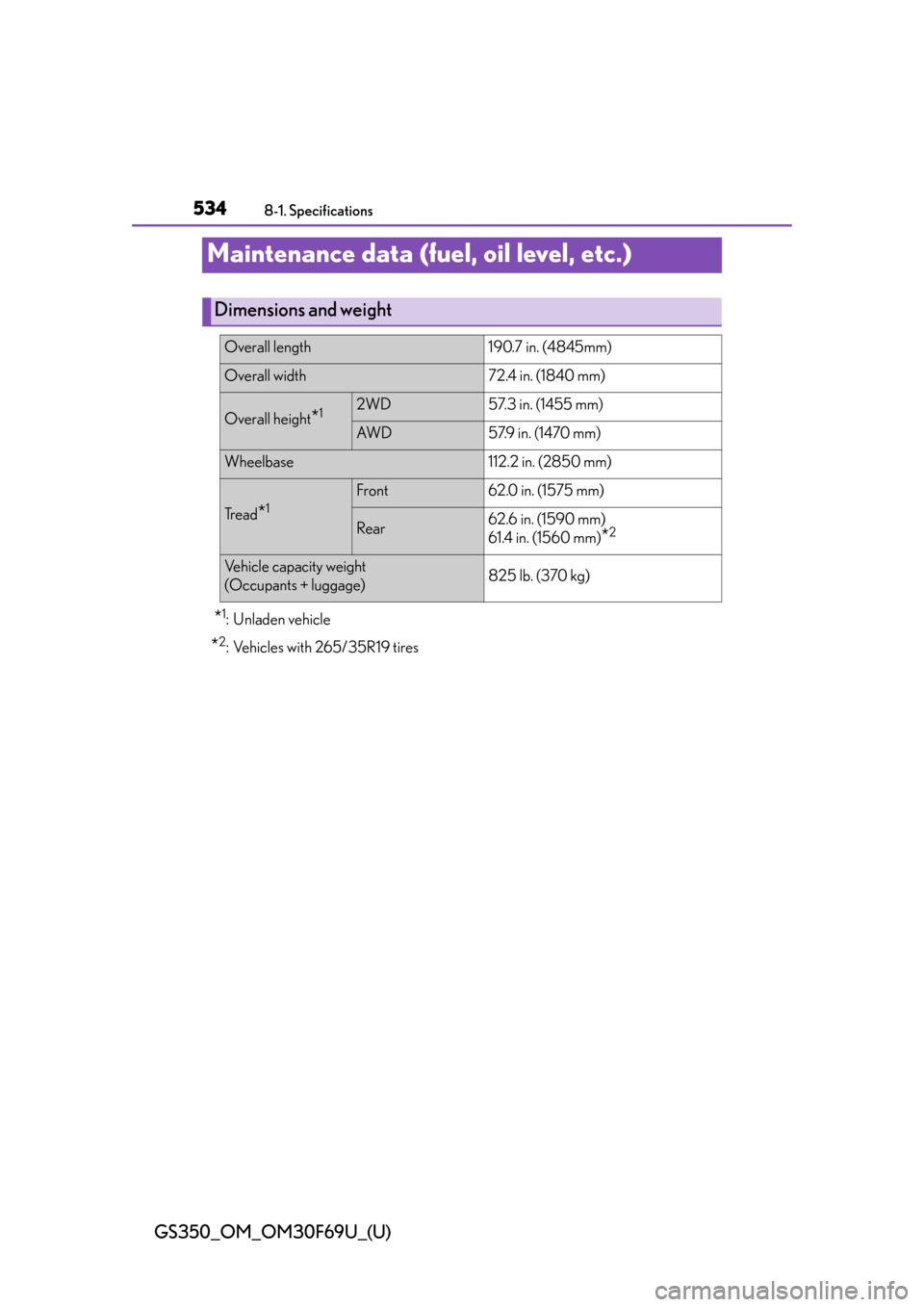

Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
Dimensions and weight
Overall length190.7 in. (4845mm)
Overall width72.4 in. (1840 mm)
Overall height*12WD57.3 in. (1455 mm)
AW D57.9 in. (1470 mm)
Wheelbase112.2 in. (2850 mm)
Tr e a d*1
Front62.0 in. (1575 mm)
Rear62.6 in. (1590 mm)
61.4 in. (1560 mm)
*2
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)

GS350_OM_OM30F69U_(U)
5358-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary ident ification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top le ft of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification

536
GS350_OM_OM30F69U_(U)
8-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.

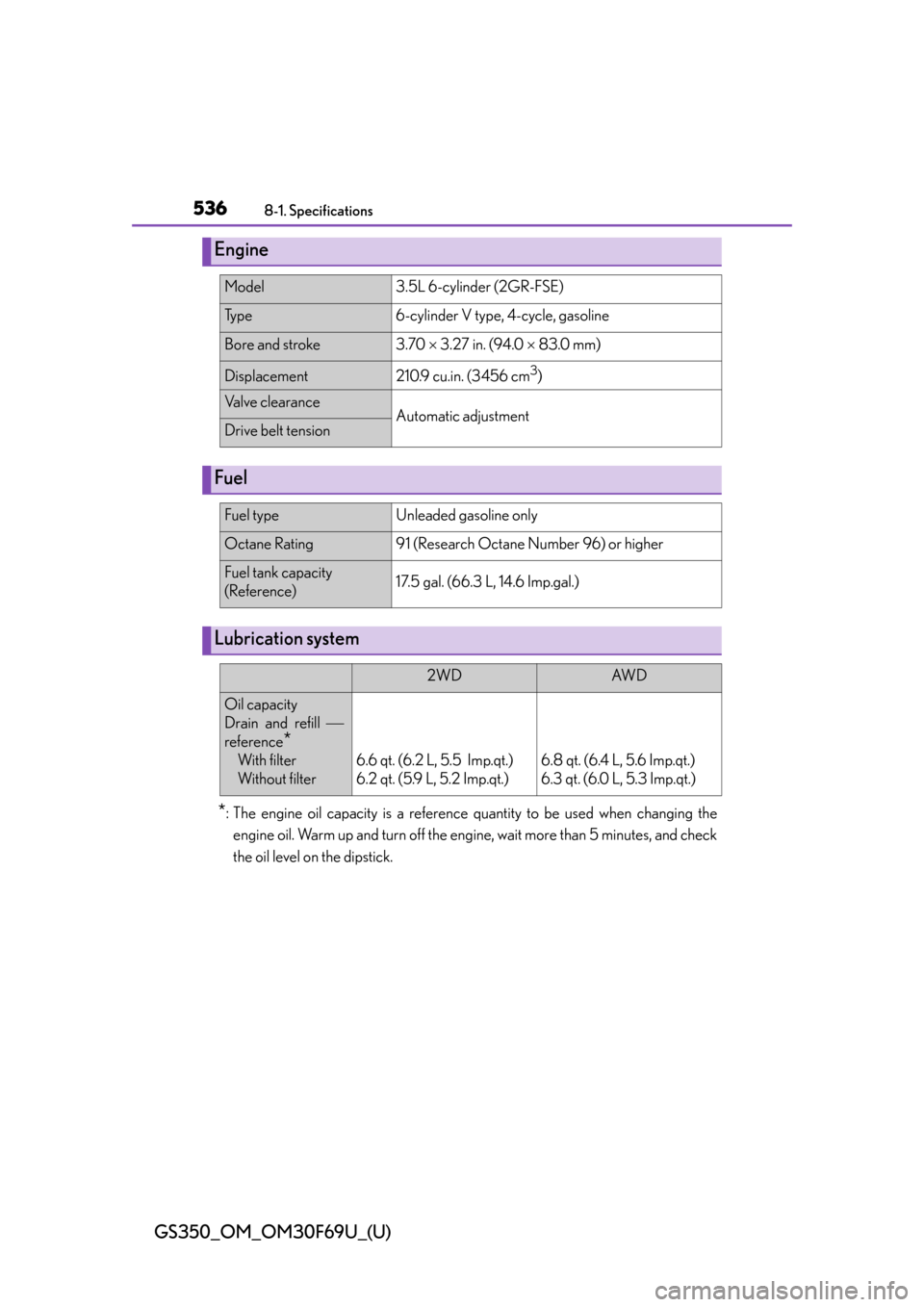

Engine
Model3.5L 6-cylinder (2GR-FSE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Va l v e c l e a r a n c eAutomatic adjustmentDrive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp.gal.)
Lubrication system
2WDAW D
Oil capacity
Drain and refill 
reference
*
With filter
Without filter6.6 qt. (6.2 L, 5.5 Imp.qt.)
6.2 qt. (5.9 L, 5.2 Imp.qt.)6.8 qt. (6.4 L, 5.6 Imp.qt.)
6.3 qt. (6.0 L, 5.3 Imp.qt.)

GS350_OM_OM30F69U_(U)
5378-1. Specifications
8
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is expl ained here as an example):
• The 0W in 0W-20 indicates the ch aracteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the visc osity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity (one
with a higher value) may be better su ited if the vehicle is operated at
high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you should
use.
Outside temperature

538
GS350_OM_OM30F69U_(U)
8-1. Specifications
Cooling system
Capacity 10.3 qt. (9.7 L, 8.5 Imp.qt.)
Coolant typeUse either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make
GapDENSO FK20HBR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

GS350_OM_OM30F69U_(U)
5398-1. Specifications
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Lexus dealer.

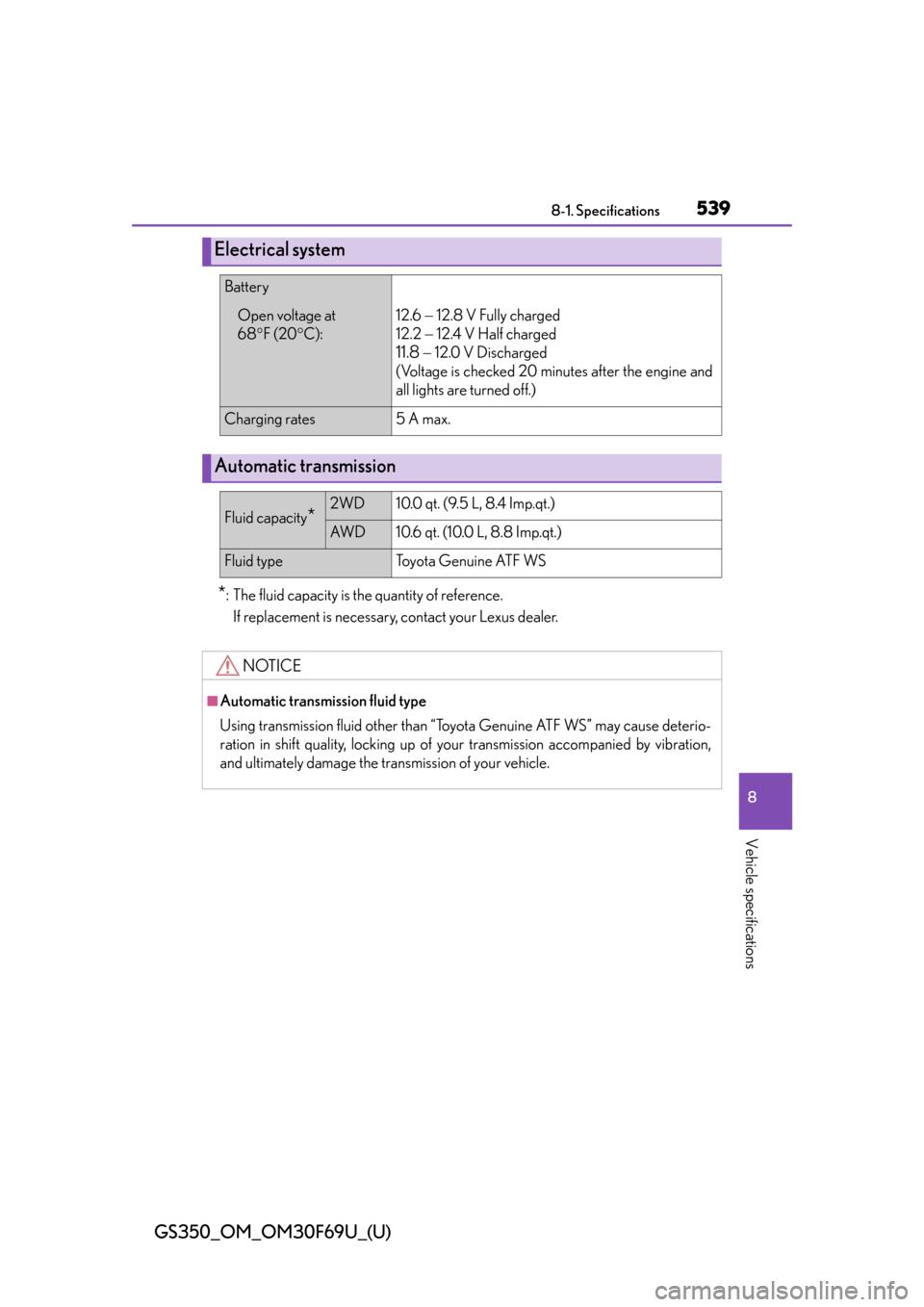

Electrical system
Battery
Open voltage at
68 F (20 C):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11.8  12.0 V Discharged
(Voltage is checked 20 mi nutes after the engine and
all lights are turned off.)
Charging rates5 A max.
Automatic transmission
Fluid capacity*2WD10.0 qt. (9.5 L, 8.4 Imp.qt.)
AW D10.6 qt. (10.0 L, 8.8 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of yo ur transmission accompanied by vibration,
and ultimately damage the tr ansmission of your vehicle.

540
GS350_OM_OM30F69U_(U)
8-1. Specifications
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*: Minimum pedal clearance when depressed with a force of 112.4 lbf (500 N,
51.0 kgf) while the engine is running.
Front differential (AWD models)
Oil capacity 0.74 qt. (0.70 L, 0.62 Imp.qt.)
Oil type and viscosity
Hypoid gear oil API GL-5
Above 0F (-18 C): SAE90
Below 0 F (-18 C): SAE80W or SAE80W-90
Rear differential
Oil capacity1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Brakes
Pe d a l c l e a r a n c e*2WD4.5 in. (115 mm) Min.
AW D5.0 in. (126 mm) Min.
Pedal free play0.04 — 0.08 in. (1.0 — 2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
