5418-1. Specifications
8
Vehicle specifications
Ty p e A
Ty p e B
Ty p e C

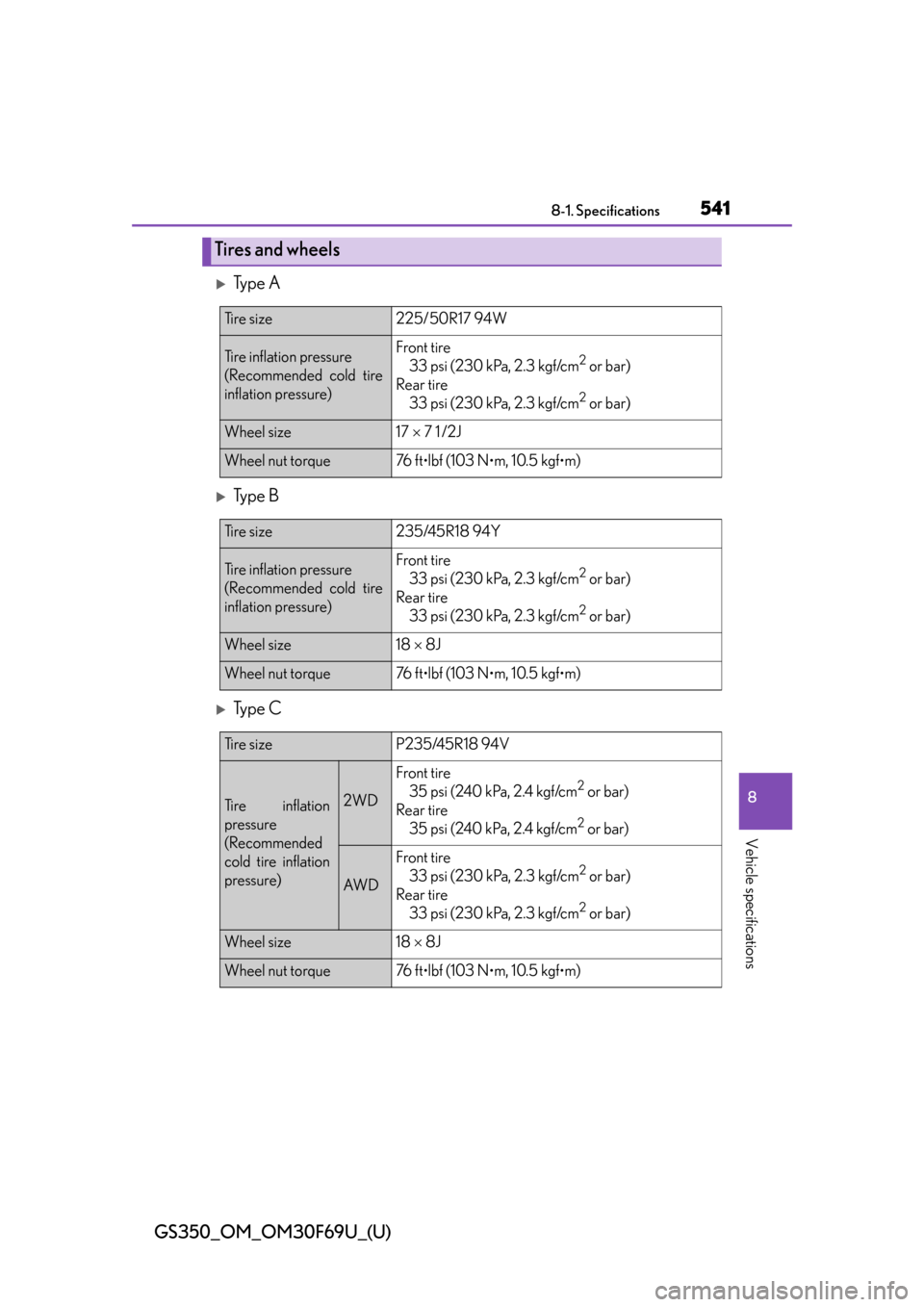

Tires and wheels
Ti r e s i z e225/50R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size17  7 1 /2J
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z e235/45R18 94Y
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tire
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size18  8J
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z eP235/45R18 94V
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)2WD
Front tire
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear tire 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
AW D
Front tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire 33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Wheel size18  8J
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)

542
GS350_OM_OM30F69U_(U)
8-1. Specifications
Ty p e D
Compact spare tire
Ti r e s i z e235/40R19 96Y XL, 265/ 35R19 94Y,
235/40R19 96V XL
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front tire35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear tire 36 psi (250 kPa, 2.5 kgf/cm
2 or bar)
Wheel size19  8J (235/40R19), 19  9J (265/35R19)
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z eT155/70D17 110M, T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  4T (T155/70D17), 18  4T (T145/70D18)
Wheel nut torque76 f t•lbf (103 N•m, 10.5 kgf•m)

GS350_OM_OM30F69U_(U)
5438-1. Specifications
8
Vehicle specifications
A: D4S discharge bulbsB: H16 halogen bulbs
C: Wedge base bulbs (amber) D: Wedge base bulbs (clear)
*: If equipped

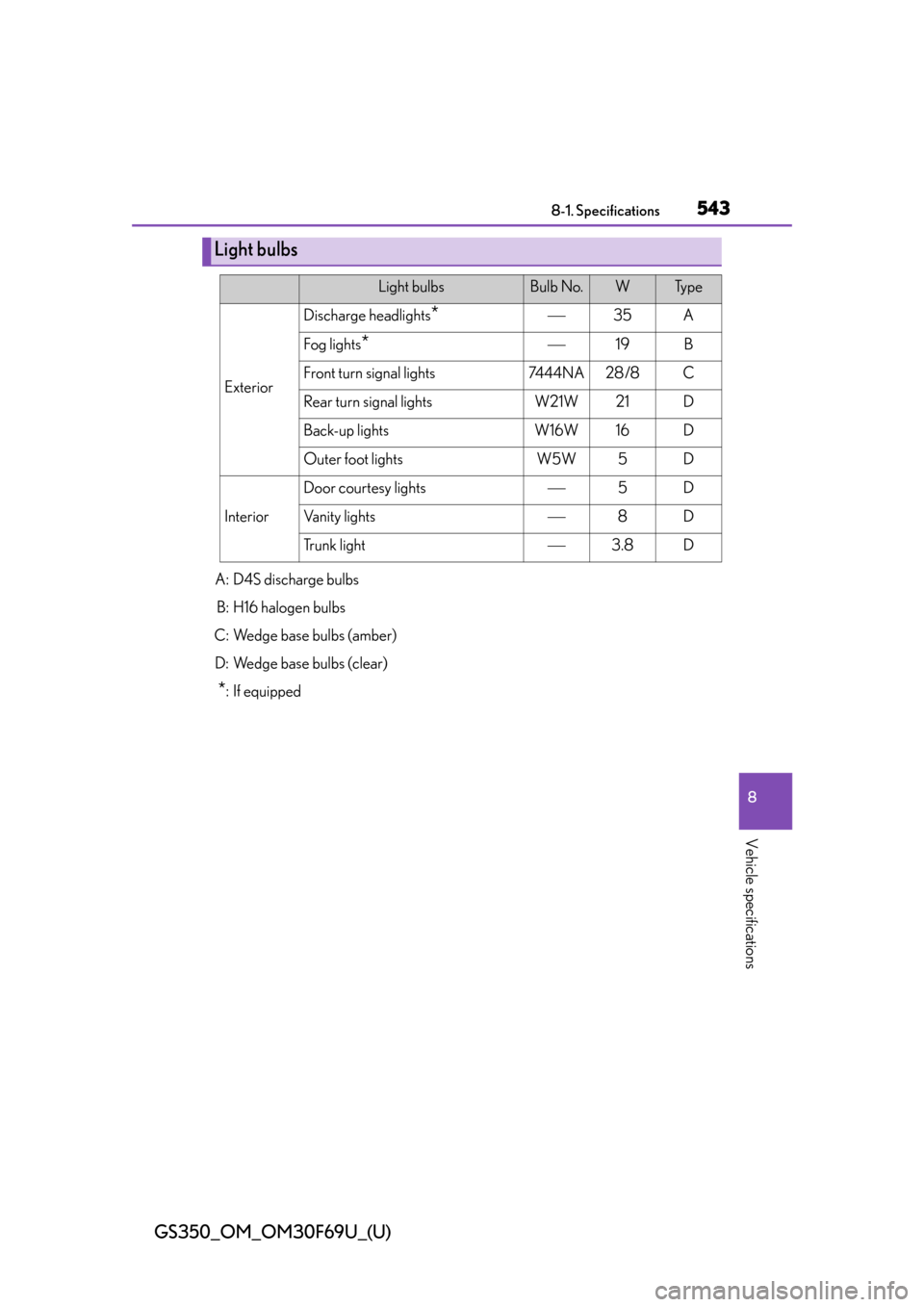

Light bulbs
Light bulbsBulb No.WTy p e
Exterior
Discharge headlights*35A
Fog lights*19B
Front turn signal lights7444NA28 /8C
Rear turn signal lightsW21W21D
Back-up lightsW16W16D
Outer foot lightsW5W5D
Interior
Door courtesy lights5D
Vanity lights8D
Tr u n k l i g h t3.8D

544
GS350_OM_OM30F69U_(U)
8-1. Specifications
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■Gasoline quality
In very few cases, driveability problems ma y be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed a
specification for fuel quality called the World-Wide Fuel Charter (WWFC), which
is expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission levels.
In the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
You must only use unleaded gasoline in your vehicle.
Select premium unleaded gasoline with an octane rating of 91
(Research Octane Number 96) or higher required for optimum engine
performance. If 91 octane cannot be obtained, you may use unleaded
gasoline with an octane rating as low as 87 (Research Octane Number
91). Use of unleaded gasoline with an octane rating lower than 91 may
result in engine knocking and signif icantly reduced performance. Per-
sistent knocking can lead to engine damage and should be corrected
by refueling with higher octane unleaded gasoline.
At minimum, the gasoline you us e should meet the specifications of
ASTM D4814 in the U.S.A..

GS350_OM_OM30F69U_(U)
5458-1. Specifications
8
Vehicle specifications
■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid
the build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/
or keep clean intake systems, per EPA’ s lowest additives concentration program.
●Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more
information on Top Tier Detergent Gasoline and a list of marketers, please go to the
official website www.toptiergas.com.
■Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformul ated gasoline that contains oxygenates
such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many areas.
Lexus recommends the use of cleaner burn ing gasoline and appropriately blended
reformulated gasoline. These types of ga soline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no lower than
87.
●Lexus does not recommend the use of gasoline containing methanol.
●Use only gasoline containing up to 15% eth-
anol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol,
including from any pump labeled E30, E50,
E85 (which are only some examples of fuel
containing more than 15% ethanol).DO NOT use gasoline con-
taining more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

546
GS350_OM_OM30F69U_(U)
8-1. Specifications
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhanc ing additive called MMT (Methylcyclo-
pentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoli ne that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating or
driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be dam-
aged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level
previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If poor driveability is encountered after us ing a different type of fuel (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

547
GS350_OM_OM30F69U_(U)8-1. Specifications
8
Vehicle specifications
Tire information
Full-size tire
Compact spare tire

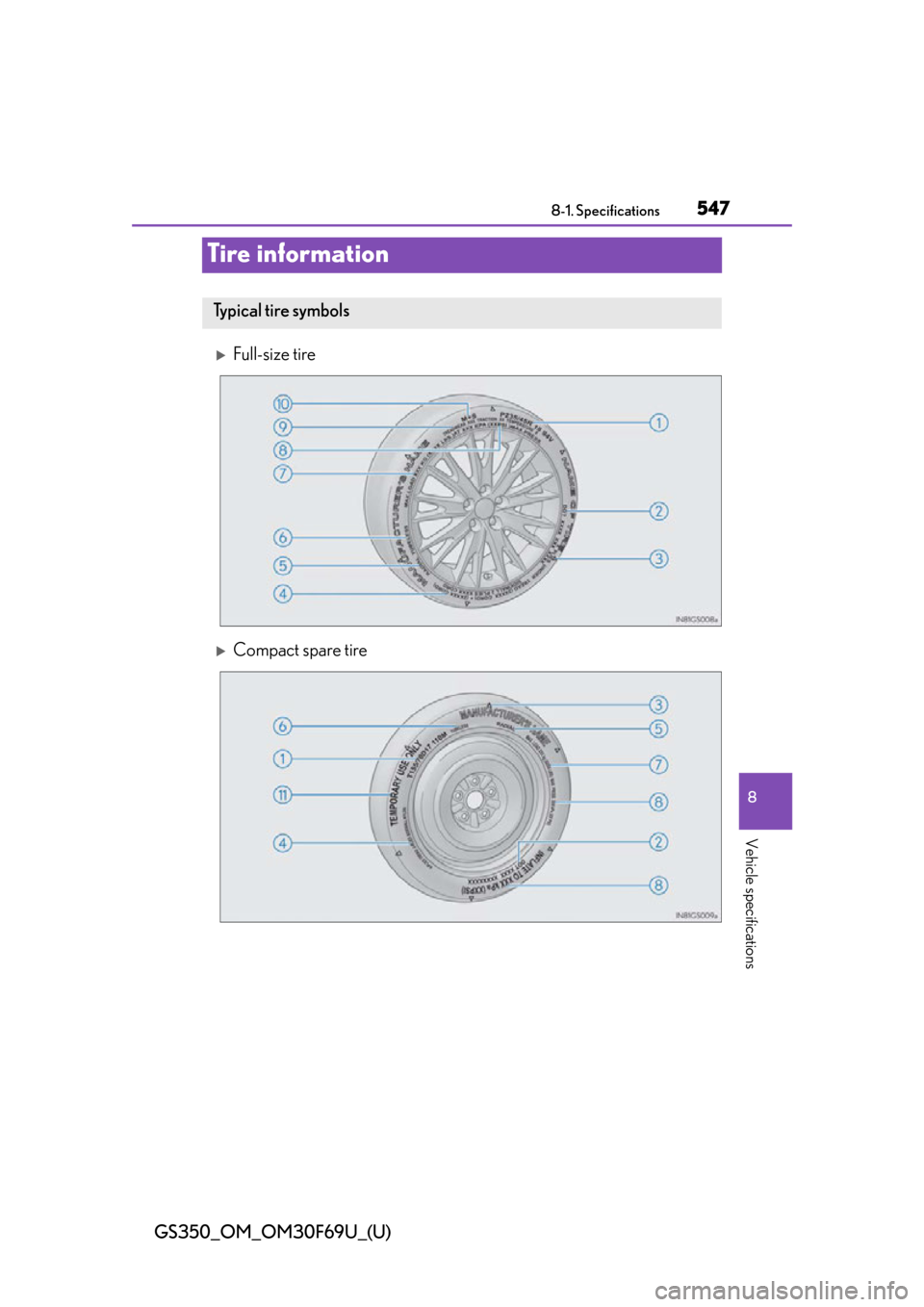

Typical tire symbols

548
GS350_OM_OM30F69U_(U)
8-1. Specifications
Tire size ( P. 550)
DOT and Tire Identification Number (TIN) ( P. 549)
Location of treadwear indicators ( P. 4 0 8 )
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands which form
the plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-
ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire. A tube type
tire has a tube inside the tire and the tube maintains the air pressure.
Load limit at maximum cold tire inflation pressure ( P. 5 5 4 )
Maximum cold tire inflation pressure ( P. 5 5 4 )
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Summer tires or all season tires ( P. 413)
An all season tire has “M+S” on the side wall. A tire not marked “M+S” is a summer
tire.
“TEMPORARY USE ONLY”
A compact spare tire is identified by the phrase “TEMPORARY USE ONLY”
molded on its sidewall. This tire is designed for temporary emergency use only.
1
2
3
4
5
6
7
8
9
10
11

GS350_OM_OM30F69U_(U)
5498-1. Specifications
8
Vehicle specifications
DOT symbol*
Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Ti r e s i z e c o d e
Manufacturer’s optional tire type
code (3 or 4 letters)
Manufacturing week
Manufacturing year
*: The DOT symbol certifies that the tireconforms to applicable Federal Motor
Vehicle Safety Standards.
Typical DOT and Tire Iden tification Number (TIN)
1
2
3
4
5
6
7

550
GS350_OM_OM30F69U_(U)
8-1. Specifications
■Typical tire size information
The illustration indicates typical
tire size.Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index
(2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
■Tire dimensionsSection width
Tire height
Wheel diameter
Tire size
1
2
3
4
5
6
7
1
2
3
