roof Lexus GS430 2006 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2005 PROD. OWNER'S MANUAL (OM30649U)

G00001
PICTORIAL INDEX
xx
EXTERIOR VIEW
Page
1 Fuel filler door 128
. . . . . . . . . . . . . . . .
2 Rear window defogger 56
. . . . . . . . . .
3 Trunk lid 125
. . . . . . . . . . . . . . . . . . . . . .
4 Moon roof 132
. . . . . . . . . . . . . . . . . . . .
5 Windshield wiper
and washer 49, 579
. . . . . . . . . . . . . . . .
6 Outside rear view mirror 205 . . . . . . .
7 Door 35
. . . . . . . . . . . . . . . . . . . . . . . . . .
8 Tire and wheel 539
. . . . . . . . . . . . . . . .
9 Headlights 44, 584
. . . . . . . . . . . . . . . . .
10 Hood 124
. . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.

KEYS AND DOORS
28For vehicles sold in Canada
This device complies with RSS− 210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.
(c) Wireless remote control*
G11014
1 Locking the doors
2Unlocking the doors and opening the windows and
moon roof
3Unlocking the trunk lid
4Sounding an alarm
5Indicator light
NOTE:
*This feature can be deactivated as vehicle theft deterrent
measure in case of the loss of the electronic key.
Ask your Lexus dealer for details.
When you operate any button on the electronic key, push it
slowly and firmly. At this time, the indicator light flashes once.

KEYS AND DOORS
32OPERATING THE WINDOWS AND MOON ROOF
The windows and moon roof can be operated using an
electronic key from outside the vehicle.*
NOTE:
*The windows can be deactivated. The moon roof can be
set to slide open, tilt up or deactivated.
Ask your Lexus dealer for details.
G11017
Push the “UNLOCK” button until the windows and moon roof
start to move. When you release the button, the windows and
moon roof stop operating.
This function will work even with the window lock switch
pressed in. For vehicles sold in U.S.A.
This device complies with
Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
NOTICE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and
receiver.
 Connect the equipment into an outlet on a circuit differ-
ent from that to which the receiver is connected.

KEYS AND DOORS
36If a wrong key is used, the key cylinder rotates freely to isolate
inside
mechanism. So, door locking is protected from thieves.
The windows and moon roof can be opened and closed from
outside the vehicle using a mechanical key. For details, see
“Power window switches” on page 57 and “Moon roof” on page
132.
Locking with inside lock button
G11002
 1 Lock 2Unlock
Push in the lock button to lock and unlock the door.
The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.
CAUTION
Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
85
Trunk Open Warning
G13007
When any door, hood or trunk is open with the engine
switch in “IGON” mode, a message appears to let you
know which door, the hood or trunk is open. If you
continue driving in this condition, the master warning
light flashes and a warning tone sounds when the vehicle
speed exceeds 5 km/h (3 mph).
If any of the above warning messages appears, stop your
vehicle and close the door, hood or trunk securely.
 Moon Roof Warning
G13013
If the driver’s door is opened with the engine switch
turned off and the moon roof opened, the master warning
light flashes, a warning tone sounds and the above
message appears.
When you leave your vehicle, be sure to close the moon roof.
Parking Brake Release Warning
G13009
If you start driving with the parking brake applied, the
master warning light flashes, a warning tone sounds and
the above message appears when the vehicle speed
exceeds 5 km/h (3 mph).
If the above warning message appears, stop your vehicle and
release the parking brake.
 Headlight Leveling System Failure Warning
G13010
If there is a problem in the automatic headlight leveling
system, the master warning light comes on, a warning
tone sounds and the above message appears.
If the above warning message appears, have your vehicle
checked by your Lexus dealer as soon as possible.

SECTION 1 – 5
123
INSTRUMENTS AND CONTROLS
Exterior equipment
Hood124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Trunk lid 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Fuel tank cap 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Moon roof 132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .

EXTERIOR EQUIPMENT
132

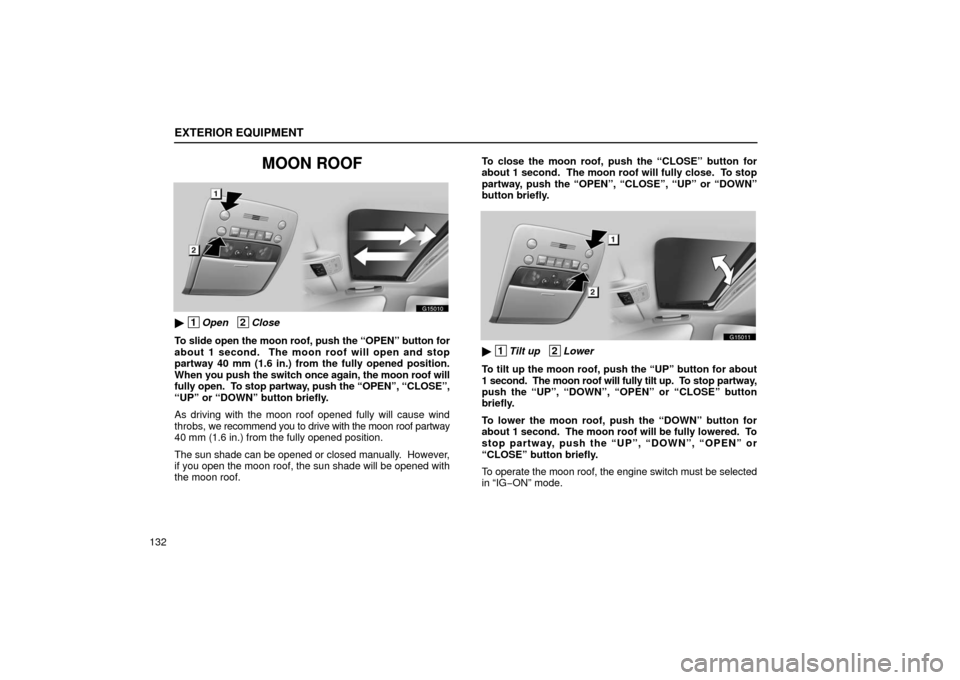

MOON ROOF
G15010
 1Open 2Close
To slide open the moon roof, push the “OPEN” button for
about 1 second. The moon roof will open and stop
partway 40 mm (1.6 in.) from the fully opened position.
When you push the switch once again, the moon roof will
fully open. To stop partway, push the “OPEN”, “CLOSE”,
“UP” or “DOWN” button briefly.
As driving with the moon roof opened fully will cause wind
throbs, we recommend you to drive with the moon roof partway
40 mm (1.6 in.) from the fully opened position.
The sun shade can be opened or closed manually. However,
if you open the moon roof, the sun shade will be opened with
the moon roof. To close the moon roof, push the “CLOSE” button for
about 1 second. The moon roof will fully close. To stop
partway, push the “OPEN”, “CLOSE”, “UP” or “DOWN”
button briefly.
G15011
 1
Tilt up 2Lower
To tilt up the moon roof, push the “UP” button for about
1 second. The moon roof will fully tilt up. To stop partway,
push the “UP”, “DOWN”, “O PEN” or “CLOSE” button
briefly.
To lower the moon roof, push the “DOWN” button for
about 1 second. The moon roof will be fully lowered. To
stop partway, push the “UP”, “DOWN”, “OPEN” or
“CLOSE” button briefly.
To operate the moon roof, the engine switch must be selected
in “IG− ON” mode.

EXTERIOR EQUIPMENT
133
If the moon roof is left open when you turn the engine switch
to “OFF” mode and open the driver’s door, a buzzer will remind
you to close the moon roof.
Retained accessory power operation:
Even if the engine
switch is off, the moon roof can be operated until any of the
doors is opened (or for about 45 seconds).
Operating the moon roof from outside the
vehicle
The moon roof can be closed or opened using a mechanical
key.*
NOTE:
*This feature can be deactivated, or sliding open or tilting up
can be selected.
Ask your Lexus dealer for details.
G15020
Insert the mechanical key into the key hole on the driver’s
door.
To close the moon roof: Turn the key in the locking direction
and hold it.
After the door is locked, the moon roof begins to close. To stop
in the middle, return the key.

EXTERIOR EQUIPMENT
134To open the moon roof:
Turn the key in the unlocking
direction and hold it.
After the door is unlocked, the moon roof begins to open. To
stop in the middle, return the key.
Jam protection function
If something gets caught into the roof opening during closing
operation, the moon roof stops and is open.
If the moon roof receives a strong impact, this function may
work even if nothing is caught.
If the battery is disconnected or run down
The moon roof may not operate automatically and the jam
protection function will not function correctly after you
reconnect, replace or recharge the battery. In any of these
cases, you should normalize the moon roof.
To normalize the moon roof, push and hold the “UP” button until
the moon roof tilts all the way up and then down a little
automatically.
Make sure the moon roof opens and closes automatically. If
the moon roof cannot be operated properly, have it checked by
your Lexus dealer.
CAUTION
To avoid serious personal injury, you must do the
following.
 While the vehicle is moving, always keep the heads,
hands and o ther parts of the bodies of all occupants
away from the roof opening. Otherwise, they could
be seriously injured if the vehicle stops suddenly or
if the vehicle is involved in an accident.
 Before you close the moon roof, always make sure
there is nobody around the moon roof. You must also
make sure nobody places his or her head, hands and
other parts of the body in the roof opening. If
someone’s neck, head or hands get caught in the
closing roof, it could result in death or serious injury.
When anyone closes the moon roof, first make sure
it is safe to do so.
 Be sure to turn the engine switch to “OFF” mode
when you leave your vehicle.
 Never leave anyone (particularly a small child) alone
in your vehicle, especially when the engine switch is
on. Otherwise, he/she could use the moon roof
switches and get trapped in the roof opening.
Unattended persons (particularly a small child) can
be involved in a serious accident.
 Never sit on top of the vehicle around the roof
opening.

EXTERIOR EQUIPMENT
135
Never try jamming any part of your body to activate
the jam protection function intentionally.
 The jam protection function may not work if
something gets caught just before the moon roof
fully closed.
