display Lexus GS450h 2007 Using the audio system / LEXUS 2007 GS450H FROM JULY 2006 PROD. OWNER'S MANUAL (OM30A05U)

389
4-3. Do-it-yourself maintenance
4
Maintenance and care
■If you push the tire pressure warning reset switch accidentally
If initialization is performed, adjust the tire inflation pressure to the specified level
and initialize the system again.
■When the initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases,
the settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
●When operating the tire pressure warnin g reset switch, the tire pressure warn-
ing light does not flash 3 times and the setting message does not appear on the
multi-information display.
●After carrying out the initia lization procedure, the tire pressure warning light
blinks for 1 minute after driving for 20 minutes.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.

When trouble arises5
427
5-1. Essential information............ 428If your vehicle needs to be 
towed .......................................... 428
If you think something is 
wrong .......................................... 435
Event data recorder ................. 436
5-2. Steps to take in an 
emergency............................ 438
If a warning light turns on or a 
warning buzzer sounds............ 438
If a warning message is 
displayed.................................... 444
If you have a flat tire (Vehicles 
with run-flat tires) ................... 460
If you have a flat tire (Vehicles 
with standard tires) .................. 461
If the hybrid system will not 
start ................................................ 471
If the shift lever cannot be 
shifted from P............................ 472
If you lose your keys .................. 473
When the electronic key 
battery is discharged ............. 474
If the 12 volt battery is 
discharged ................................. 476
If your vehicle overheats ....... 480
If the vehicle becomes  stuck ............................................ 483

5
When trouble arises
441
5-2. Steps to take in an emergency
*2: Open door warning buzzer:
P. 4 4 9
*3: Driver's and front passenger’s seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder sounds to alert the driver
and front passenger that his or her seat belt is not fastened. The buzzer sounds
intermittently for 10 seconds after the ve hicle has reached a speed of at lest 12
mph (20 km/h). Then, if the seat belt is still unfastened, the buzzer will sound in
a different tone for 20 more seconds.
Warning lightWarning light/DetailsCorrection procedure
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
Take appropriate action in
accordance with the message
displayed on the multi-infor-
mation display.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is your vehicle low on gas? 
If it is, refuel the vehicle immediately.
●Is the fuel tank cap loose? 
If it is, tighten it securely.
The light will go off after taking several driving trips. 
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■Front passenger detection sensor and passenger seat belt reminder
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash, even if a passenger is not sitting in
the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.

444
5-2. Steps to take in an emergency
If a warning message is displayed
Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warnings indicate the possibility of damage to
the vehicle that may lead to an acci dent. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
Malfunction in the hybrid system.
(Flashing)
Abnormal engine oil pressure.
The warning light may turn on if the engine oil pres-
sure is too low.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Multi-information display
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
If any of the warning li ght turns on again after pe rforming the following
actions, contact your Lexus dealer.

5
When trouble arises
445
5-2. Steps to take in an emergency
Have the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failing to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Malfunction in the automatic headlight leveling sys-
tem.
Malfunction in the rear lights system.
Malfunction in the tire pressure warning system.
The tire pressure warning light will blink for 1 minute
and then stay on.
(Flashing)
Malfunction in the steering lock system.

446
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetails
(If equipped)
Malfunction in the active stabilizer suspension sys-
tem.

(If equipped)Malfunction in the PCS.
(If equipped)
Intuitive parking assist malfunction. The malfunctioning sensor is shown flashing on the
display. (The illustration shows malfunctioning left
front sensor.)
(Flashing) 
(If equipped)
Malfunction in the radar cruise control system. Stop the vehicle in a safe place. Switch the power
switch to “OFF” and then to “IG-ON” mode again to
reset the cruise control system.

448
5-2. Steps to take in an emergency
Have the vehicle inspected by your Lexus dealer immediately.
Failing to investigate the cause of th e following warning may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
*: Electronically Controlled Brake System
Wa r n i n g m e s s a g eDetails
Malfunction in the TRAC, VSC or hill-start assist con-
trol system.
In some cases, only “CHECK VSC” or “CHECK
ECB
*” is displayed.
(U.S.A)
(Canada)
Malfunction in the ABS or BA.In some cases, only “CHECK VSC” or “CHECK
ECB
*” is displayed.
Malfunction in the VGRS.
(Steering guide symbol
and arrows are flashing)
The steering sensor cable is broken and signals can-
not be received.

5
When trouble arises

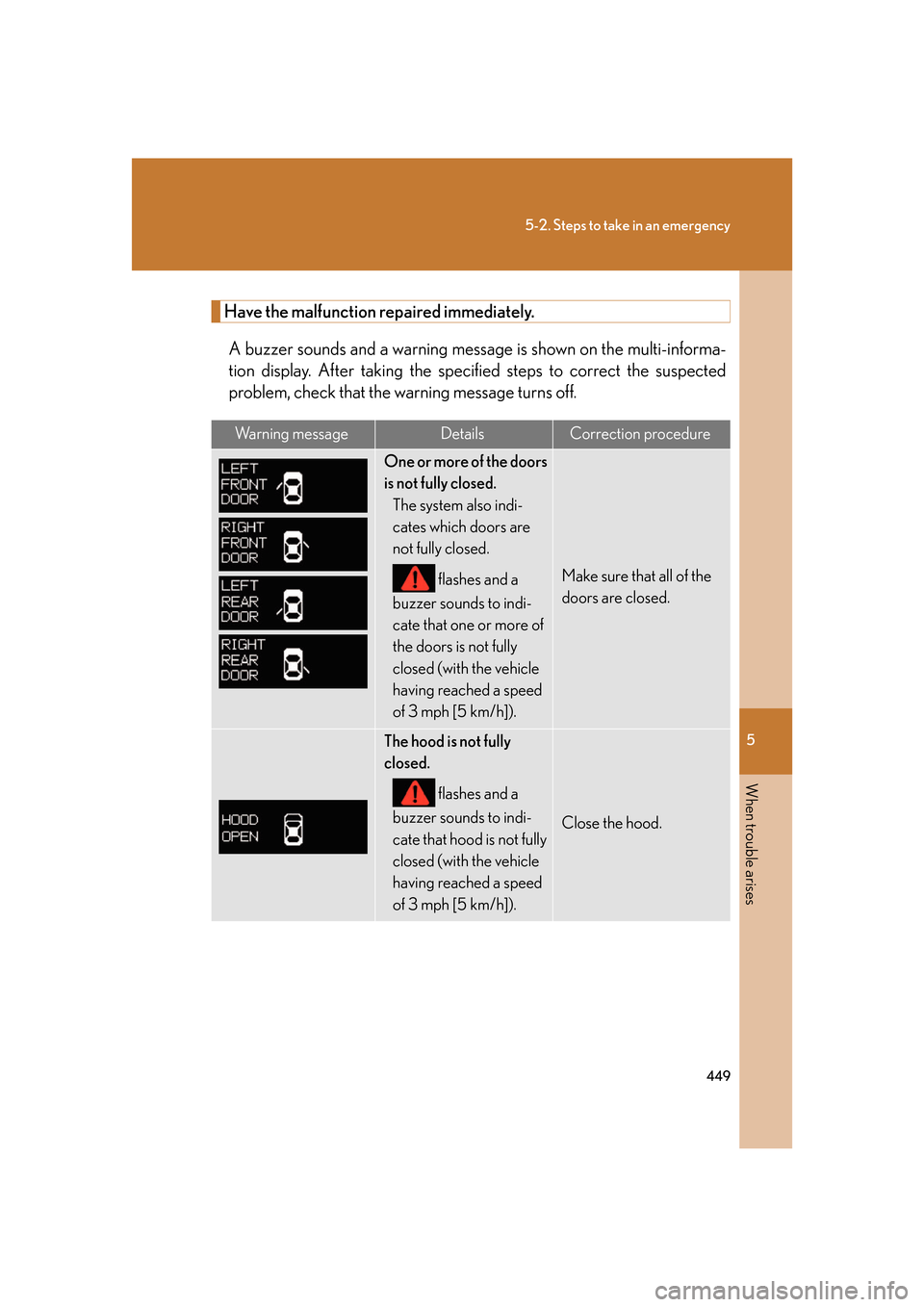

449
5-2. Steps to take in an emergency
Have the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
One or more of the doors
is not fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
The hood is not fully
closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.

456
5-2. Steps to take in an emergency
Messages displayed when refuelingThe following messages are displayed af ter the fuel lid opener is pressed.
If the messages do not change or are displayed continuously, have the
vehicle checked by your Lexus dealer.
Other messages
If the following message is displayed, take appropriate action and confirm
that the message has disappeared.
MessageDetails
Preparing the vehicle for refueling.
Wait a moment.
You may commence refueling.Finish refueling within 30 minutes.
Close the fuel lid.
MessageDetails
(Flashing)
The driver’s door is opened when the transmission is
out of “P” with the hybrid system on.Shift the shift lever to “P”.
(If equipped)
Calibrate the neutral position of the steering wheel.
( P. 1 5 3 )

458
5-2. Steps to take in an emergency
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once3 times
(Flashing)
An open door
other than the
driver's door is
closed while the
electronic key is
outside the detec-
tion range and the
power switch is in
“ACC” or “IG-
ON” mode with
the shift lever in
“P”.
Tu r n t h e
power
switch
“OFF” or
confirm the
location of
the elec-
tronic key.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashing)
An open door
other than the
driver's door is
closed while the
electronic key is
outside the detec-
tion range and the
power switch is in
“ACC” or “IG-
ON” mode with
the shift lever not
in “P”.
•Shift the shift lever
to “P”.
•Confirm the loca-
tion of the
electronic
key.
Once
(Flashing)
The electronic key
battery is low.Replace the
battery.
( P. 4 0 1 )
