fuse Lexus GS450h 2007 Using the audio system / LEXUS 2007 GS450H FROM JULY 2006 PROD. OWNER'S MANUAL (OM30A05U)

TABLE OF CONTENTSIndex
iv
3-4. Using the hands-free 
system......................................... 261
Hands-free system ....................... 261
Using the Bluetooth
® 
phone ............................................. 265
Setting the hands-free 
system ............................................ 278
3-5. Using the interior lights ......... 303 Interior lights list........................... 303
3-6. Using the storage 
features ..................................... 306
List of storage fe atures.............. 306
3-7. Other interior features............ 312 Sun visors.......................................... 312
Vanity mirror ................................... 313
Clock .................................................. 314
Outside temperature 
display ............................................. 315
Ashtrays ............................................ 316
Cigarette lighter ............................ 317
Power outlet .................................... 318
Seat heaters ..................................... 319
Seat heaters and 
ventilators ...................................... 321
Armrest ............................................ 323
Rear sunshade ............................... 324
Floor mats........................................ 326
Trunk features................................ 327
Garage door opener .................. 329
Compass........................................... 334
Lexus Link System ...................... 338 4-1. Maintenance and care............ 352
Cleaning and protecting the 
vehicle exterior .......................... 352
Cleaning and protecting the 
vehicle interior............................ 354
4-2. Maintenance.............................. 357 Maintenance requirements ..... 357
General maintena nce ............... 359
Emission inspection and 
maintenance (I/M) 
programs ...................................... 362
4-3. Do-it-yourself 
maintenance............................ 363
Do-it-yourself service 
precautions .................................. 363
Hood.................................................. 366
Positioning the jack ..................... 367
Engine compartm ent.................. 369
Tires .................................................. 383
Tire inflation pressure................. 393
Wheels.............................................. 397
Air conditioning filter.................. 399
Electronic key battery ................. 401
Checking and replacing 
fuses ............................................... 403
Headlight aim.................................. 419
Light bulbs ........................................ 421
4Maintenance and care

276
3-4. Using the hands-free system
■To refuse a call
Touch and hold .
■ To adjust the received call volume
Press the or . You can also ad just the volume using the steer-
ing switches.
Speaking on the phone
The following screen is displayed when speaking on the phone.
■ To adjust the received call volume
Press the or . You can also ad just the volume using the steer-
ing switches.
■ To prevent the other party from hearing your voice
To u c h .
■ Inputting a key
When using phone services such as an answering service or a bank,
you can store phone numbers and code numbers in the phone book.
■International calls
Received international calls may not be displayed correctly, depending on the
mobile phone in use.

318
3-7. Other interior features
Power outlet
■The power outlet can be used when
The power switch is in “ACC” or “IG-ON” mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when not in use. 
Foreign objects or liquids that enter th e power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12V/10A.
■To prevent 12 volt battery discharge
Do not use the power outlet longer than necessary when the hybrid system is off.
The power outlet can be used for 12V accessories that run on less than
10A.

Maintenance and care4
351
4-1. Maintenance and care ........ 352Cleaning and protecting the 
vehicle exterior........................ 352
Cleaning and protecting the 
vehicle interior......................... 354 4-2. Maintenance........................... 357
Maintenance requirements............................ 357
General maintena nce ............. 359
Emission inspection and 
maintenance (I/M) 
programs ................................... 362
4-3. Do-it-yourself 
maintenance......................... 363
Do-it-yourself service 
precautions ............................... 363
Hood .............................................. 366
Positioning the jack .................. 367
Engine compartment .............. 369
Tires ................................................. 383
Tire inflation pressure .............. 393
Wheels .......................................... 397
Air conditioning filter .............. 399
Electronic key battery .............. 401
Checking and replacing 
fuses ............................................. 403
Headlight aim .............................. 419
Light bulbs...................................... 421

364
4-3. Do-it-yourself maintenance
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, inverter, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily , such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
ItemsPa r t s a n d t o o l s
Engine oil level ( P. 3 7 1 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses ( P. 4 0 3 )• Fuse with same amperage rating as
original
Headlight aim ( P. 4 1 9 )• Phillips-head screwdriver
Radiator and condenser (P. 377)
Tire inflation pressure ( P. 393)• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 3 8 2 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
■12 volt battery
P. 3 7 9
Engine oil level dipstick 
( P. 371)
Engine oil filler cap 
( P. 3 7 2 )
Brake fluid reservoir (P. 3 7 8 )
Fuse box ( P. 403)Washer fluid tank 
( P. 382)
Gasoline engine/inverter 
coolant reservoir ( P. 3 76 )
Electric cooling fans
Condenser ( P. 377)
Radiator ( P. 377)

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the power switch to “OFF” mode.
Remove the engine compartment cover if necessary.
P. 3 7 0
Open the fuse box cover.
Engine compartment
Remove the clips.
Front controller in the engine compartment fuse box Lift the lid off while pushing the
tabs on either side.STEP1
STEP2
STEP3

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
Luggage compartment (vehicles with active stabilizer suspension
system)
Remove the lid.
After a system failure, see “Fuse la yout and amperage ratings”
( P. 408) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5

406
4-3. Do-it-yourself maintenance
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type CNormal fuse
Blown fuse
Contact your Lexus dealer.
STEP6

407
4-3. Do-it-yourself maintenance
4
Maintenance and care

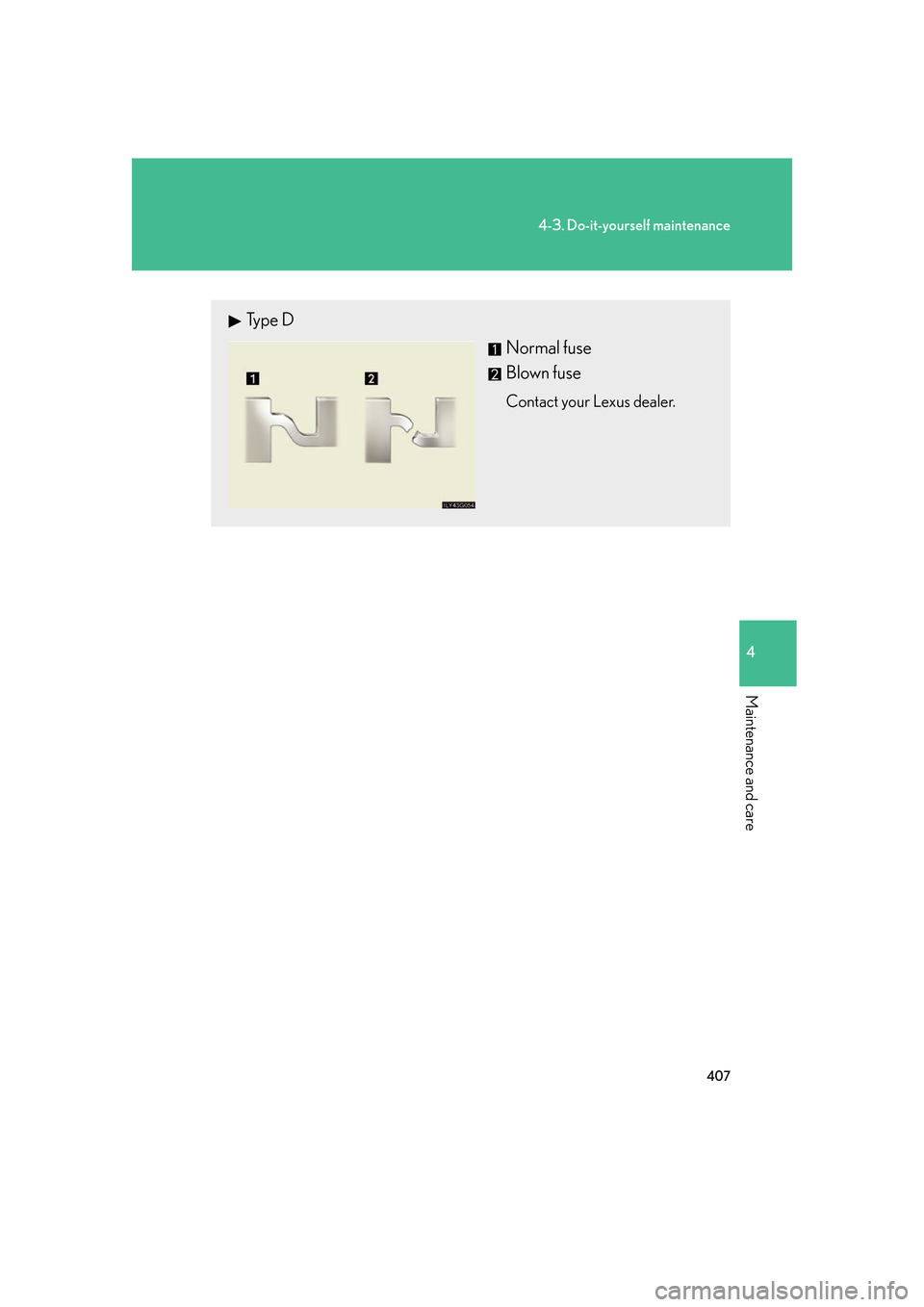

Type DNormal fuse
Blown fuse
Contact your Lexus dealer.
