408
4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1FR CTRL-B25H-LP HI, HORN
2RELIEF VLV10Fuel system
3ETCS10
Multiport fuel injection system/
sequential multiport fuel injection
system
4H-LP CLN30Headlight cleaner
5STB-AM30Active stabilizer suspension system
6DEICER25
7FR CTRL-AM30FR TAIL, FR FOG, WASH

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
8IG210
Multiport fuel injection system/
sequential multiport fuel injection
system, noise filter
9EFI No.210Fuel system, exhaust system
10H-LP R LWR15Headlight low beam (right)
11H-LP L LWR15Headlight low beam (left)
12D/C CUT30DOME, MPX-B
13IGCT No.37. 5Hybrid battery (traction battery)
14IGCT No.27. 5Hybrid system
15MPX-B7. 5
Power windows, door control system,
power seat, electronically controlled
brake system, combination switch,
electric tilt and telescopic steering,
gauges and meters
16DOME7. 5Interior lights, foot lights, vanity light,
gauges and meters
17ABS MAIN110Electronically controlled brake sys-
tem
18ABS MOTOR30ABS
19ABS MAIN210Electronically controlled brake sys-
tem
20F/ P M P25Fuel system
21EFI25
EFI2, multiport fuel injection system/
sequential multiport fuel injection
system
22INJ20
Multiport fuel injection system/
sequential multiport fuel injection
system

410
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
23A/F15Fuel system
24INV W/P10Hybrid system
25IGCT No.120Hybrid system, IGCT No.2, 
IGCT No.3
26FR FOG15Fog light
27FR TAIL10Tail light, rear side marker light
28WA S H20Windshield washer
29HORN10Horn
30H-LP HI20Headlight high beam
31DC/DC140Charging system
32RAD FAN60Electric cooling fans
33LH J/B AM80
S/ROOF, FR P/SEAT LH, TV, A/C,
FUEL OPN, FR WIP, H-LP LVL, 
FR S/HTR LH, A/C W/P
34E/G AM60H-LP CLN, FR CTRL-AM, DEICER,
STB AM
35HEATER50Air conditioning system
36DEFOG50Rear window defogger
37ABS230VSC, ABS
38RH J/B-AM80
AM1, OBD, STOP SW, TI & TE, 
FR P/SEAT RH, STR LOCK, 
SECURITY, ECU-IG R, RH-IG, 
F S/HTR RH, CIG, PWR OUTLET, 
AIR SUS

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
39RR J/B80STOP LP R, STOP LP L, RR TAIL,
PSB, RR FOG, RR-IG1
40OIL PUMP60Tr a n s m i s s i o n
41EPS80EPS
42P/ I - B 160EFI, F/PMP, INJ
43E/G-B30EM-VLV, FR CTRL-B, ETCS
44MAIN30H-LP R LWR, H-LP L LWR
45VGRS40VGRS
46ABS150ABS MOTOR, ABS MAIN1, 
ABS MAIN2
47P/ I - B 260A/F, BATT FAN, IGCT, INV W/P
48BATT FAN20Electric cooling fans
49RAD No.130Audio system
50RAD No.230Audio system
51IG2 MAIN20IG2, GAUGE, IGN
52TURN-HAZ15Front turn signal lights, rear turn 
signal lights
53ABS MAIN310Electronically controlled brake sys-
tem
54ECU-B10VGRS, EPS, Lexus Link System ECU

412
4-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
1FR WIP30Windshield wipers
2RR-IG7. 5RR-IG1
3LH-IG10
Emergency flashers, seat belt preten-
sioners, headlight cleaners, exhaust
system, rear window defogger, elec-
tric cooling fans, front left door con-
trol system, rear left door control
system
4H-LP LVL7. 5Adaptive front lighting system
5A/C W/P7. 5Air conditioning system
6RAD No.310Audio system
7FR DOOR LH20Front left door control system
8RR DOOR LH20Rear left door control system
9FR S/HTR LH15Seat heaters, seat heaters and venti-
lators
10ECU-IG LH10
VGRS, EPS, electronically con-
trolled brake system, yaw rate & G
sensor, dynamic radar cruise control
system, rear view monitor system,
moon roof

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
11PA N E L7. 5
Steering switches, distance control
switch, audio system, glove box light,
switch illumination, cigarette lighter,
shift lever light, touch screen, rear
personal lights
12S/ROOF25
13FUEL OPEN10Fuel lid opener, trunk opener
14LH-B10Theft deterrent system
15TRK OPN10Trunk opener
16TV7. 5Touch screen, rear view monitor sys-
tem
17A/C7. 5Air conditioning system
18FR P/SEAT LH30Po w e r s e a t

414
4-3. Do-it-yourself maintenance

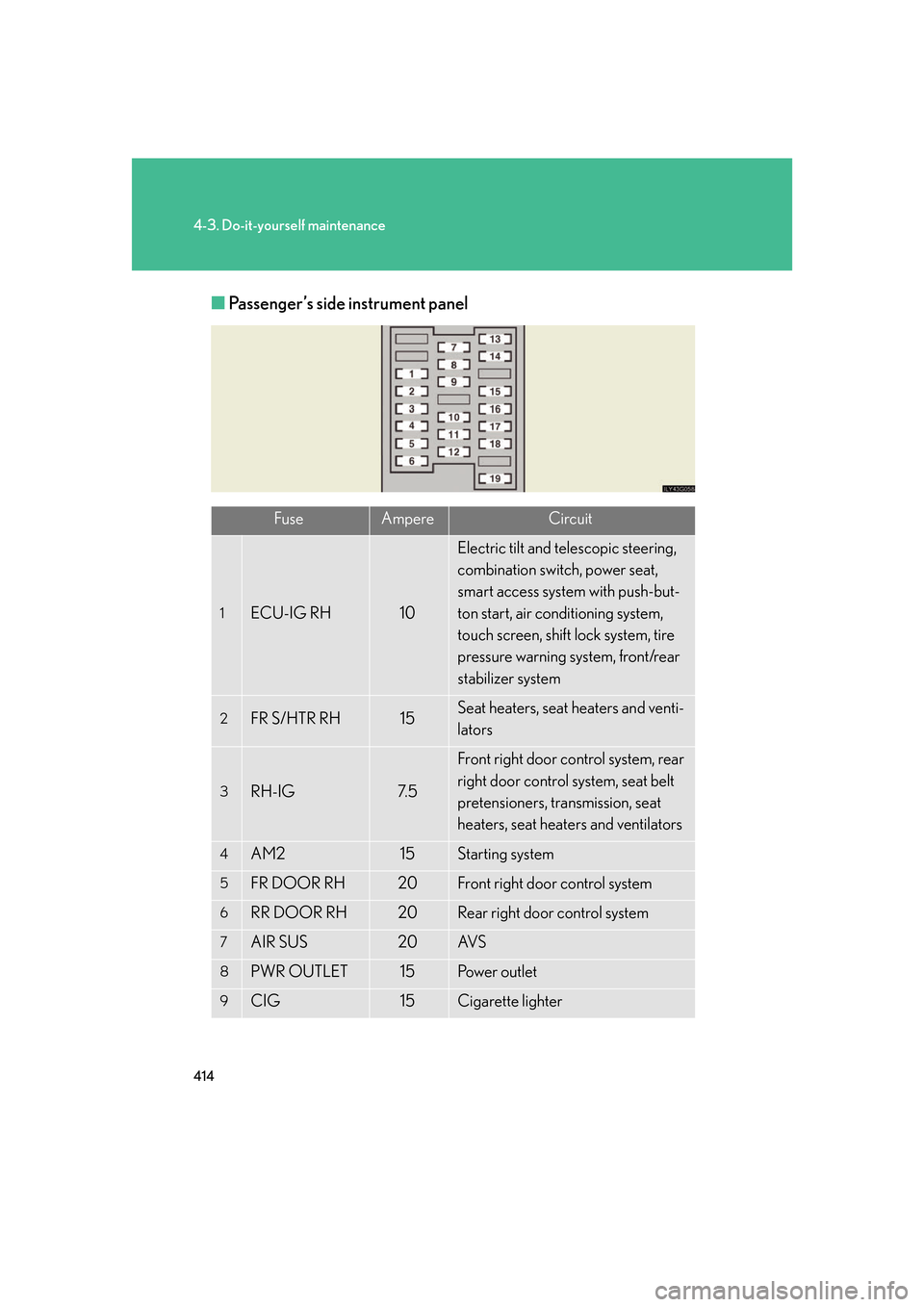

■Passenger’s side instrument panel
FuseAmpereCircuit
1ECU-IG RH10
Electric tilt and telescopic steering,
combination switch, power seat,
smart access system with push-but-
ton start, air conditioning system,
touch screen, shift lock system, tire
pressure warning system, front/rear
stabilizer system
2FR S/HTR RH15Seat heaters, seat heaters and venti-
lators
3RH-IG7. 5
Front right door control system, rear
right door control system, seat belt
pretensioners, transmission, seat
heaters, seat heaters and ventilators
4AM215Starting system
5FR DOOR RH20Front right door control system
6RR DOOR RH20Rear right door control system
7AIR SUS20AV S
8PWR OUTLET15Po w e r o u t l e t
9CIG15Cigarette lighter

415
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
10ACC7. 5
Audio system, smart access system
with push-button start, touch screen,
rear view monitor system, Lexus Link
System ECU
11IGN10
Smart access system with push-but-
ton start, SRS airbag system, stop-
lights, hybrid system, steering lock
system, electronically controlled
brake system, Lexus Link System
ECU, front passenger occupant clas-
sification system ECU
12GAUGE7. 5Gauges and meters
13STR LOCK25Steering lock system
14SECURITY7. 5Smart access system with push-but-
ton start
15TI & TE20Electric tilt and telescopic steering
16AM17. 5
17STOP SW7. 5Stoplights, shift lock system
18OBD7. 5On-board diagnosis system
19FR P/SEAT RH30Po w e r s e a t

416
4-3. Do-it-yourself maintenance
■Luggage compartment
FuseAmpereCircuit
1RR TAIL10Tail lights, license plate lights
2STOP LP R10High mounted stoplights, stoplights
3STOP LP L10Stoplights, back-up light
4RR FOG7. 5
5RR-B10Trunk light
6RR-IG110Pre-collision seat belt, seat belt pre-
tensioners
7RR-IG210
8PSB30Pre-collision seat belt
9RR S/SHADE7. 5Rear sunshade
10RH J/B-B30FR DOOR RH, RR DOOR RH,
AM2
11LH J/B-B30FR DOOR LH, RR DOOR LH, 
RAD No.3
12R/B-B15D/C cut

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Luggage compartment 
(vehicles with active stabilizer suspension system)
FuseAmpereCircuit
1STB FR50Front stabilizer
2STB RR30Rear stabilizer
3STB DC/DC30DC/DC converter
■After a fuse is replaced
●If the lights do not turn on even afte r the fuse has been replaced, a bulb may
need replacement. ( P. 4 2 1 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
