key Lexus GS450h 2007 Using the audio system / LEXUS 2007 GS450H FROM JULY 2006 PROD. (OM30A05U) Service Manual

5
When trouble arises
457
5-2. Steps to take in an emergency
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning massage and light turn off.
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once(Comes on for 8 seconds.)
(Flashing)
The electronic key
is not detected
when attempting
to start the hybrid
system.Confirm the
location of
the elec-
tronic key.
Once3 times
(Flashing)
An open door
other than the
driver's door is
closed while the
electronic key is
outside the detec-
tion range and the
power switch is in
“ACC” or “IG-
ON” mode.
Confirm the
location of
the elec-
tronic key.

458
5-2. Steps to take in an emergency
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once3 times
(Flashing)
An open door
other than the
driver's door is
closed while the
electronic key is
outside the detec-
tion range and the
power switch is in
“ACC” or “IG-
ON” mode with
the shift lever in
“P”.
Tu r n t h e
power
switch
“OFF” or
confirm the
location of
the elec-
tronic key.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashing)
An open door
other than the
driver's door is
closed while the
electronic key is
outside the detec-
tion range and the
power switch is in
“ACC” or “IG-
ON” mode with
the shift lever not
in “P”.
•Shift the shift lever
to “P”.
•Confirm the loca-
tion of the
electronic
key.
Once
(Flashing)
The electronic key
battery is low.Replace the
battery.
( P. 4 0 1 )

5
When trouble arises
471
5-2. Steps to take in an emergency
If the hybrid system will not start
If the hybrid system will not start even though correct starting procedures
are being followed (
P. 103), consider each of the following points.
■The hybrid system will not start ev en if you are carrying the cor-
rect electronic key
One of the following may be the cause of the problem.
● The electronic key battery may be discharged. ( P. 17)
● There may not be sufficient fuel in the vehicle’s tank. 
Add fuel to the vehicle.
● There may be a malfunction in the steering lock system.
● There may be a malfunction in the hybrid vehicle immobilizer sys-
tem. 
( P. 5 9 )
■ The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume
One of the following may be the cause of the problem.
● The 12 volt battery may be discharged. ( P. 4 76 )
● The 12 volt battery terminal connections may be loose or cor-
roded.
■ The interior lights and headlights do not turn on, or the horn does
not sound
One of the following may be the cause of the problem.
●One or both of the 12 volt battery terminals may be discon-
nected.
● The 12 volt battery may be discharged. ( P. 4 76 )
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises
473
5-2. Steps to take in an emergency
If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using one of
the other keys and the key number stamped on your key number plate.

474
5-2. Steps to take in an emergency

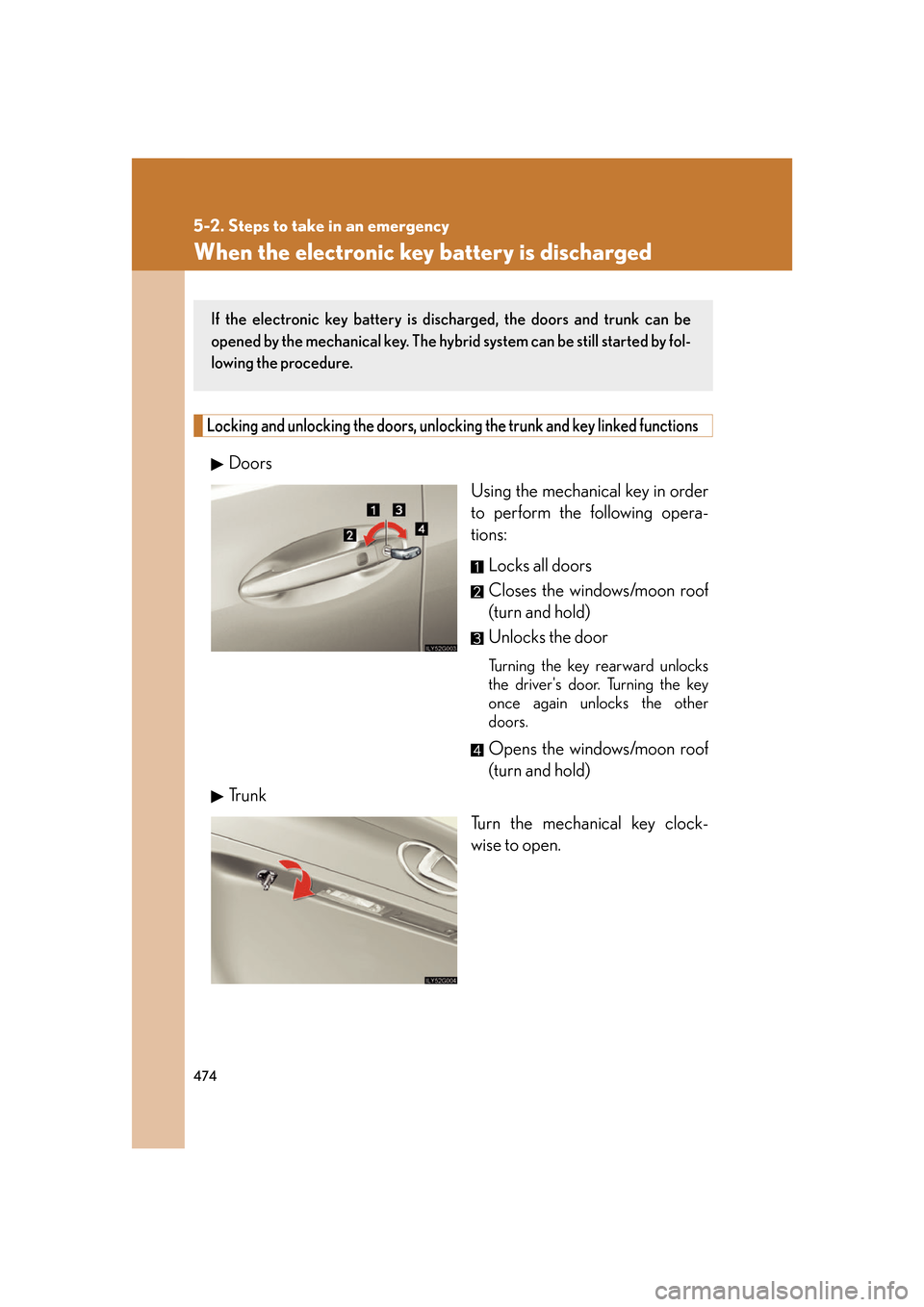

When the electronic key battery is discharged
Locking and unlocking the doors, unlocking the trunk and key linked functions
DoorsUsing the mechanical key in order
to perform the following opera-
tions:
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon roof
(turn and hold)
Tr u n k
Turn the mechanical key clock-
wise to open.
If the electronic key battery is di scharged, the doors and trunk can be
opened by the mechanical key. The hybrid system can be still started by fol-
lowing the procedure.

5
When trouble arises
475
5-2. Steps to take in an emergency
Starting the hybrid systemPut the shift lever in “P” and apply the brakes. Hold the electronic key close to
the power switch (within 0.4 in. [10
mm]). Make sure that the button
side of the key is facing away from
the power switch.
An alarm will sound to indicate that
the start function cannot detect the
key with the depleted battery if any
of the doors will be opened and
closed while this operation.
Press the power switch within 5 seconds after the buzzer sounds,
keeping the brake pedal depressed.
If the hybrid system still cannot be started, contact your Lexus dealer.
STEP1
STEP2
■Replacing the key battery
As this procedure is the temporary measure, it is recommended that the electronic
key battery be replaced immediately. ( P. 4 0 1 )
STEP3

476
5-2. Steps to take in an emergency
If the 12 volt battery is discharged
The following procedures may be used to start the hybrid system if the 12
volt battery is discharged.
You can call your Lexus dealer, Roadside Assistance or Lexus Customer
Service.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12 volt battery, you can jump start your Lexus following the steps
below.
Open the trunk using the mechanical key. ( P. 4 74 )
Connecting the jumper cables. If required, remove all vent pl ugs from the booster battery. Lay a
cloth over the open vents on the booster battery. (This helps reduce
the explosion hazard, personal injuries and burns.)
Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Negative (-) battery terminal on your vehicle.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the 12 volt battery of your vehicle.
Open and close any of the door s with the power switch “OFF”.
STEP1
STEP2
STEP3
STEP4

511
6-2. Customization
6
Vehicle specifications
ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol 
(
P. 22)
Operation indicator 
(Emergency flashers)ONOFF
Operation indicator
(Buzzer) ONOFF
Tr u n k u n l o c k i n g f u n c t i o nONOFF
Trunk unlocking operationPush and holdPush twice
One short push
Panic functionONOFF
Buzzer sounds when
pushing with any door
not closed
ONOFF
Door lock (
P. 2 5 )
Unlocking using a key
Driver's door
unlocked in 1-
step, all doors
unlocked 
in 2-step
All doors
unlocked in 1-step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doors OFFON
Shift the shift lever to “P”
unlocks all doorsONOFF
Shift the shift lever to posi-
tion other than “P” locks
all doors
ONOFF

512
6-2. Customization
*: Vehicles sold outside Canada
ItemFunctionDefault settingCustomizedsetting
Pow e r w i n -
dows 
(
P. 5 0 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationONOFF
Moon roof 
(
P. 5 2 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationONOFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Automatic
light control
system 
(
P. 122)
Light sensor sensitivityLevel 3Levels 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Daytime running lightONOFF*

519
Alphabetical index
Installing CRS with lower 
anchorages .......................................... 89
Installing CRS with seatbelts .......... 85
Installing CRS with top straps ........ 90
Child safety Airbag precautions .............................. 72
Child restraint system ........................ 82
Child-protectors....................................26
How your child should wear 
the seatbelt ............................................43
Installing child restraints .................... 85
Moon roof ................................................ 54
Power window lock switch ............. 50
Power window precautions.............. 51
Removed electronic key battery 
precautions ....................................... 402
Seat belt comfort guide....................... 41
Seat belt precautions...........................44
Seat heater precautions .........319, 321
Trunk............................................................32
Cigarette lighter ..................................... 317
Cleaning Exterior ................................................... 352
Interior..................................................... 354
Seat belts ............................................... 355
Clock........................................................... 314
Coin holder ............................................ 309
Compass ................................................. 334
Condenser............................................... 377
Console box........................................... 307
Cooling system Engine overheating ..........................480 Cruise control
Cruise control........................................129
Dynamic radar cruise control........132
Cup holders ............................................. 310
Curtain shield airbags............................ 66
Customizable features ........................ 510
Daytime running light system ........... 123
Defogger Rear window ......................................... 199
Side mirror.............................................. 199
Dimension................................................486
Dinghy towing ......................................... 182
Display Energy flow ................................................. 6
Multi-information display .................. 119
Touch screen ........................................ 184
Trip information ................................... 120
Warning message ............................. 444
Do-it-yourself maintenance .............363
Door courtesy lights ............................304
Door pocket............................................... 311
Doors Door lock .................................................. 25
Rear door child protector ................ 26
Driver's seat belt reminder light .....440
Driving Correct posture..................................... 64
Procedures ..............................................96
DVD player/changer.......................... 232
Electronic key Replacing battery................................ 401
When the electronic key battery 
is discharged..................................... 474
