glove box Lexus GS450h 2007 Using the hands-free system (for cellular phone) / LEXUS 2007 GS450H THROUGH JUNE 2006 PROD. OWNER'S MANUAL (OM30727U)

xii
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 120
P. 108
P. 123
Gauges and meters P. 110
Multi-information display P. 117
Windshield wipers and washer switch P. 124
Power switch P. 101
Trunk opener main switch P. 30
Glove box P. 312
Seat heater switches
Seat heater/ventilator switches

P. 324
P. 326
Tilt and telescopic steering 
control switch
P. 48
Parking brake pedal
P. 109
“TRAC OFF” switch P. 164
Coin holder P. 314
Mode select switch P. 105
“AVS” switch P. 161

31
1-3. Opening, closing and locking the doors and trunk
1
Before driving
Luggage security system
The trunk opener feature using the trunk opener switch, wireless remote
control and smart access system with push-button start can be disabled
by turning off a switch inside the glove box. This function allows you to
keep valuables safety locked in the trunk when leaving a key with a park -
ing attendant.
Enabled
Disabled
After turning off the trunk opener main s
witch, lock the glove box using
the mechanical key. Take the mechanic al key for your own use and pro-
vide the attendant with the electronic key only. ( P. 1 2 )

311
3
Interior features

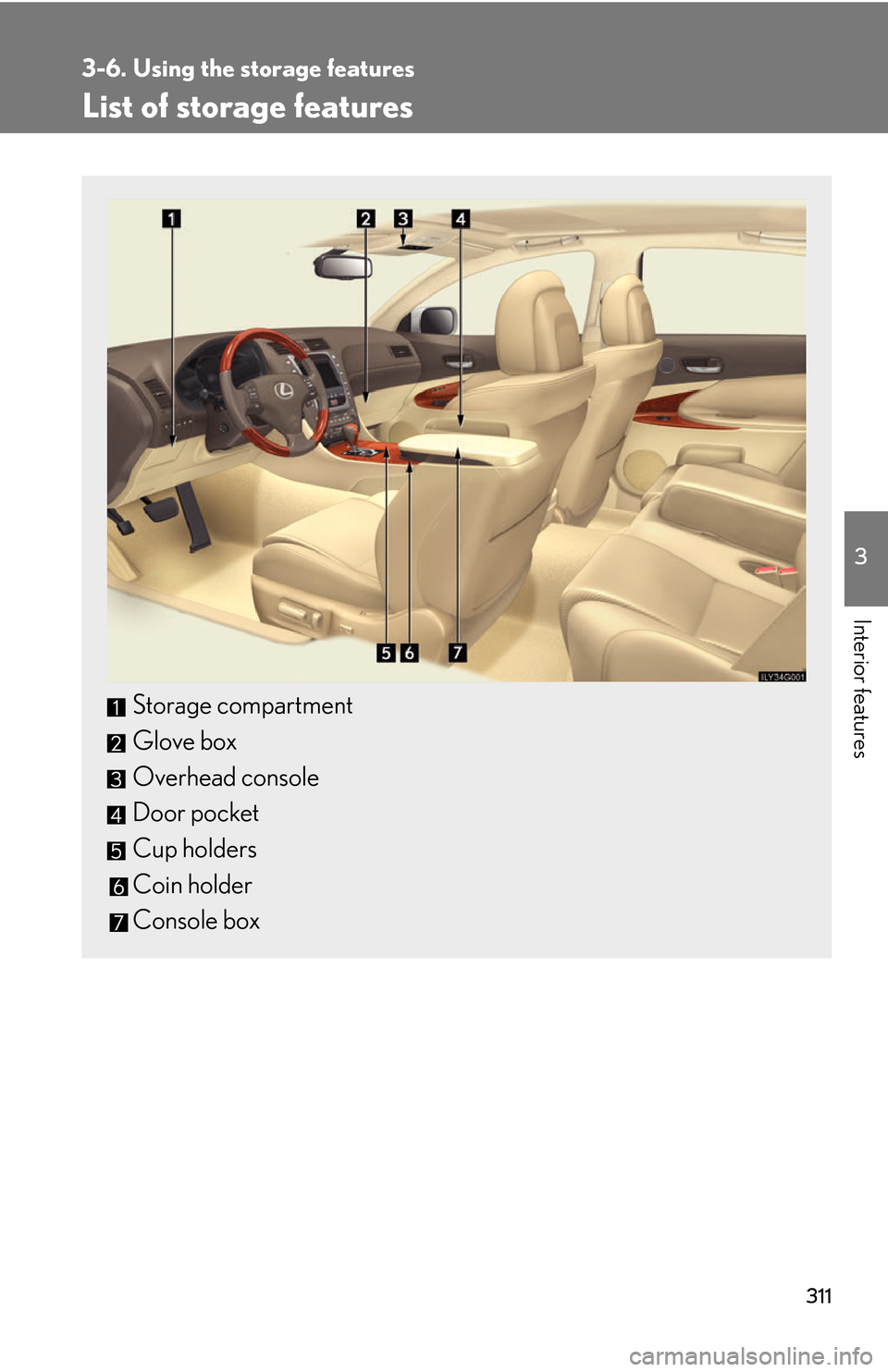

3-6. Using the storage features
List of storage features
Storage compartment
Glove box
Overhead console
Door pocket
Cup holders
Coin holder
Console box

312
3-6. Using the storage features
Glove box
Open (push button)
Lock with the mechanical key
Unlock with the mechanical key
Console box
Pull up the lever to release the
lock.
Slide armrest.
Lift the armrest to open.
■Glove box light
The glove box light turns on when the
headlight switch is on.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. (  P. 3 1 )
CAUTION
■Caution while driving
Keep the glove box closed. 
Injuries may result in the event of an accident or sudden braking.

391
4-3. Do-it-yourself maintenance
4
Maintenance and care
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
Set the air conditio ning system to recirculated mode.
The air conditioning filter case cannot be removed with the system in
the outside air mode.
Turn the power switch to “OFF” mode.
Open the glove box and
r
emove the partition.
Remove the filter cover.
Push the tabs and remove the
filter case.
STEP1
STEP2
STEP3
STEP4
STEP5

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
11PA N E L7. 5
Steering switches, distance control
switch, audio system, glove box light,
switch illumination, cigarette lighter,
shift lever light, touch screen, rear
personal lights
12S/ROOF25
13FUEL OPEN10Fuel lid opener, trunk opener
14LH-B10Anti-theft system
15TRK OPN10Trunk opener
16TV7. 5Touch screen, rear view monitor sys-
tem
17A/C7. 5Air conditioning system
18FR P/SEAT LH30Po w e r s e a t

513
Alphabetical index
Garage door opener..........................334
Gas station information ..................... 520
Gauges........................................................ 110
Glove box ................................................. 312
Hands-free system ............................... 263
Head restraints.......................................... 39
Headlight aim ............................................ 411
Headlight cleaner .................................. 126
Headlights AFS (Adaptive Front lighting 
System) ................................................... 121
Discharge headlights 
precautions .........................................418
Replacing light bulbs ......................... 413
Switch ........................................................ 120
Wattage ................................................. 488
Heaters Seat heaters.............................. 324, 326
Side mirror .............................................. 199
Hill-start assist control ......................... 162
Hood ......................................................... 358
Hooks
Cargo...................................................... 332
Shopping bag...................................... 332
Hybrid system ....
.............................................. 2
Emergency shut off syste
m .................6
Energy monitor/consumption 
screen .........................................................6
High voltage components ................... 5
Power meter ........................................... 110
Power switch .......................................... 101
Hybrid vehicle immobilizer 
system ........................................................62 Illuminated entry system ....................
307
I/M test...................................................... 354
Indicator lights........................................... 114
Initialization Items to initialize ................................ 505
Inside rear view mirror .......................... 49
Instrument panel light control ............. 111
Interior lights Interior lights ........................................ 309
Wattage ................................................. 488
Intuitive parking assist .......................... 139
Jack Positioning the jack .......................... 359
Replacing the wheel ........................ 456
Jack handle.............................................. 456
Keys If you lose your keys ........................ 468
Key number plate ................................... 12
Keys ............................................................... 12
Power switch........................................... 101
Mechanical key ........................................ 12
When the electronic key battery 
is discharged.................................... 469
Wireless remote control ................... 23
Light bulbs Replacing ................................................ 413
Wattage ................................................. 488
Light sensitive optitron meter............. 112
Lights Fog light switch ..................................... 123
Headlights switch................................ 120
Interior lights list .................................. 307
Replacing light bulbs ......................... 413
G
H
I
J
K
L
