4-2. Maintenance
GS_HV_U
June 19, 2008 1:15 pm

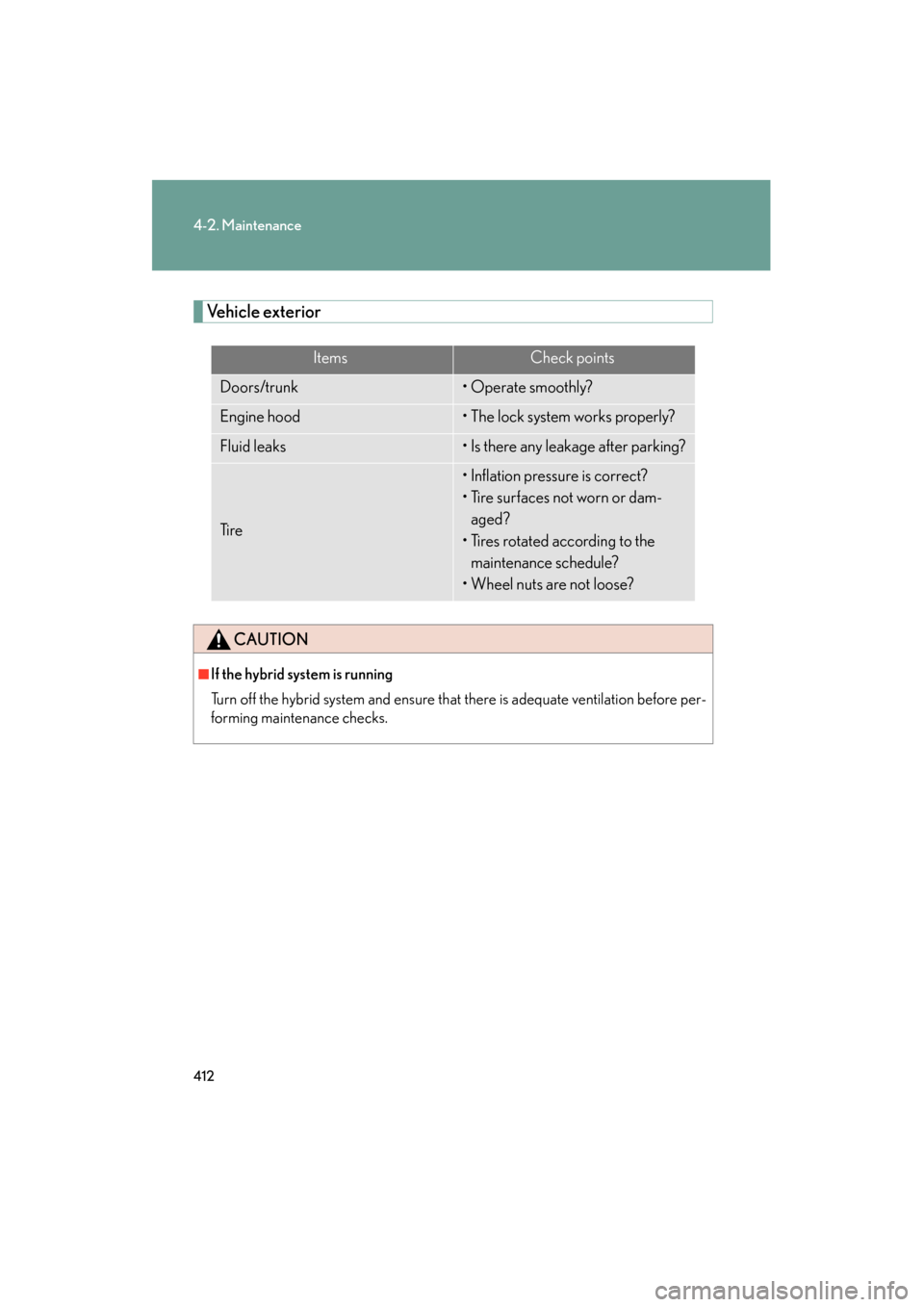

Vehicle exterior
ItemsCheck points
Doors/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Tires rotated according to the maintenance schedule?
• Wheel nuts are not loose?
CAUTION
■If the hybrid system is running
Turn off the hybrid system and ensure that there is adequate ventilation before per-
forming maintenance checks.
GS450h_HV_U.book Page 412 Thursday, June 19, 2008 1:44 PM

422
4-3. Do-it-yourself maintenance
GS_HV_U
June 19, 2008 1:15 pm

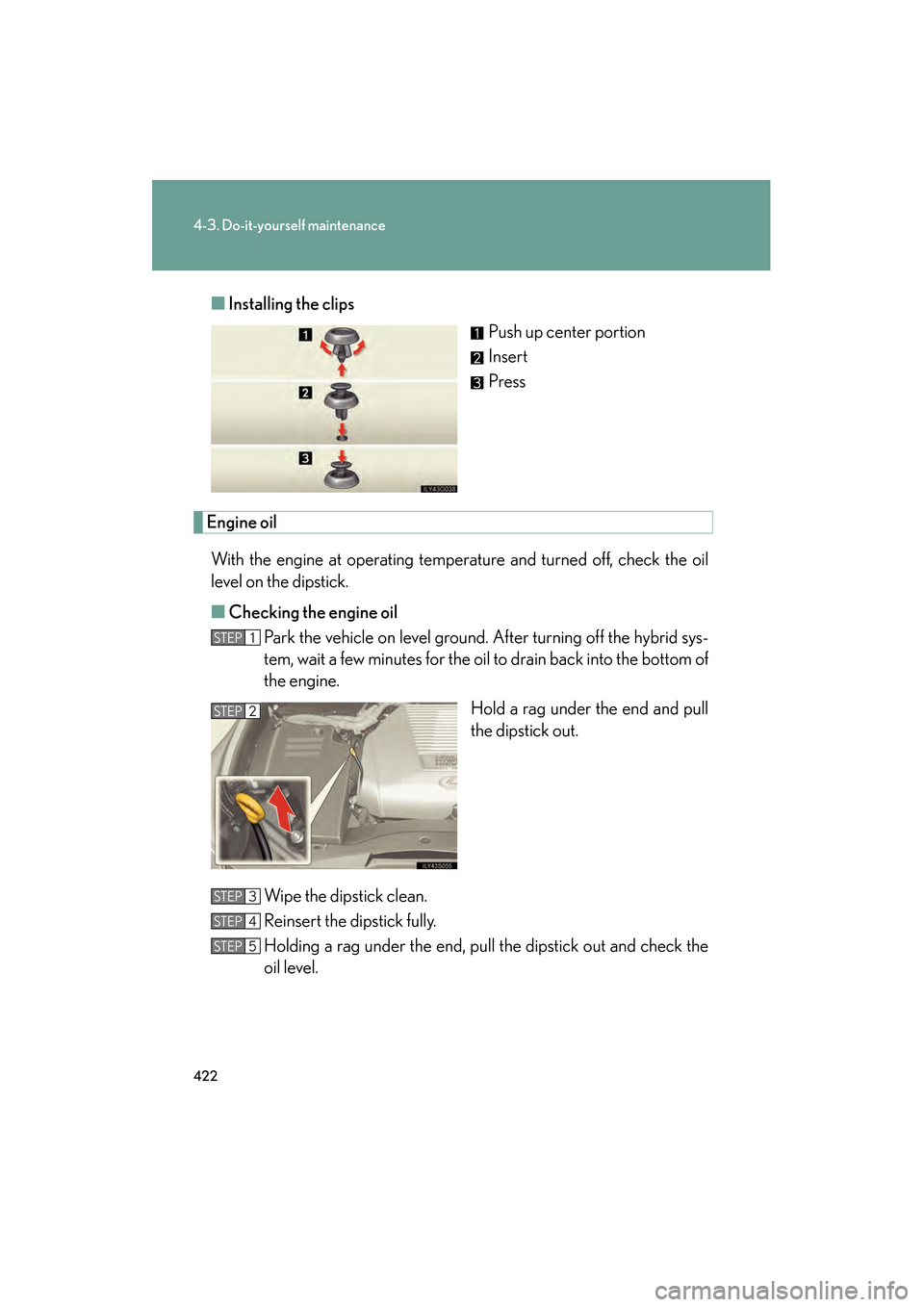

■Installing the clips
Push up center portion
Insert
Press
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the hybrid sys-
tem, wait a few minutes for the oil to drain back into the bottom of
the engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
STEP1
STEP2
STEP3
STEP4
STEP5
GS450h_HV_U.book Page 422 Thursday, June 19, 2008 1:44 PM

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U
June 19, 2008 1:15 pm
Wipe the dipstick and reinsert it fully.Low
Full

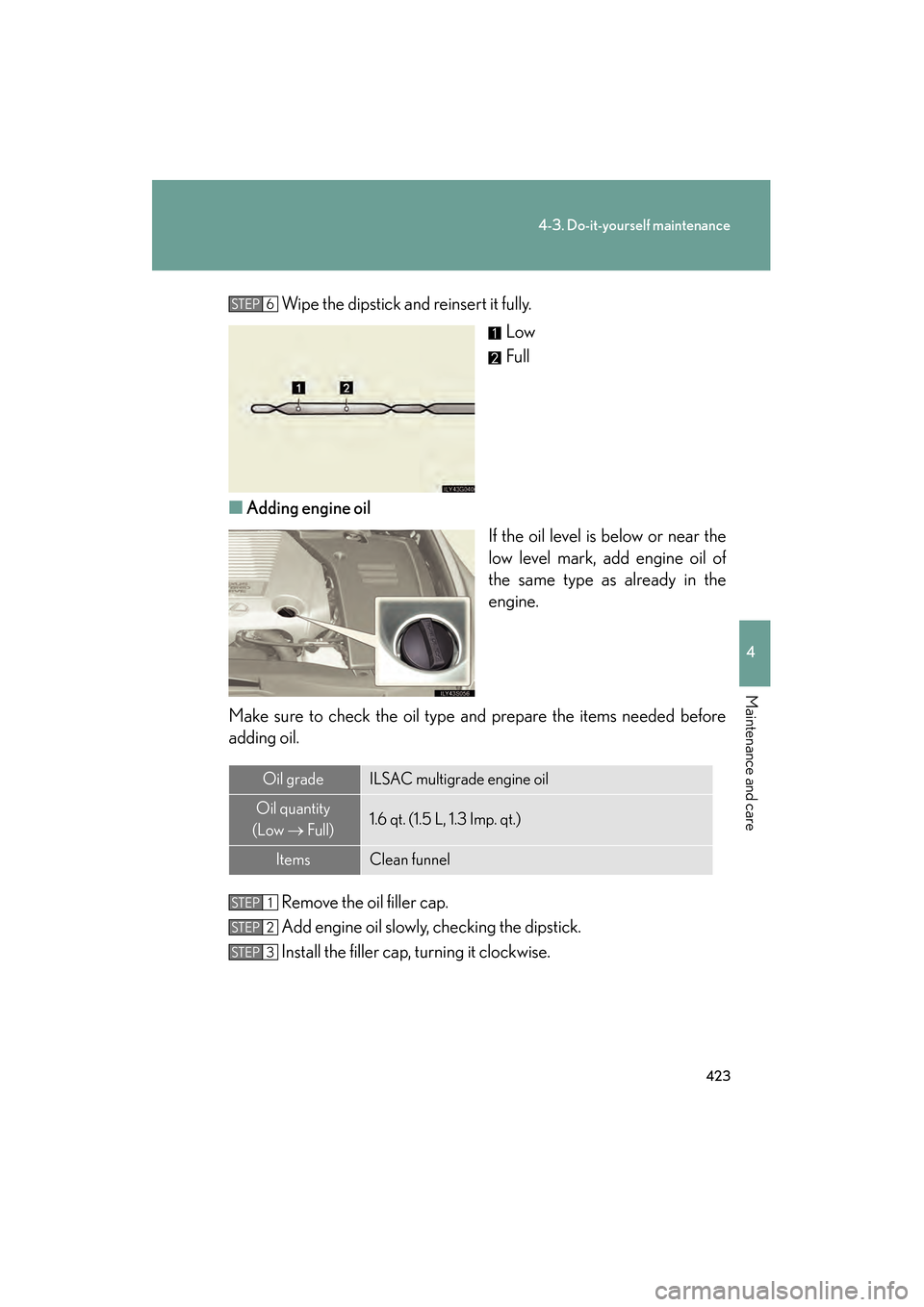

■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.STEP6
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low → Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 423 Thursday, June 19, 2008 1:44 PM

426
4-3. Do-it-yourself maintenance
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in household trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
GS450h_HV_U.book Page 426 Thursday, June 19, 2008 1:44 PM

456
4-3. Do-it-yourself maintenance
GS_HV_U
June 19, 2008 1:15 pm
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch to OFF.
Remove the engine compartment cover if necessary.
→P. 4 2 1
Open the fuse box cover.
■ Engine compartment
Remove the clips.
■ Front controller in the engine compartment fuse box
Lift the lid off while pushing the
tabs on either side.STEP1
STEP2
STEP3
GS450h_HV_U.book Page 456 Thursday, June 19, 2008 1:44 PM

474
4-3. Do-it-yourself maintenance
GS_HV_U
June 19, 2008 1:15 pm
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 5 5 2 )
■ Remove the engine compartment cover if necessary
→ P. 4 2 1
■ Front bulb locations
■ Rear bulb locations
Parking light
Headlight high beam
Rear turn signal light Back-up light
GS450h_HV_U.book Page 474 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
507
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm

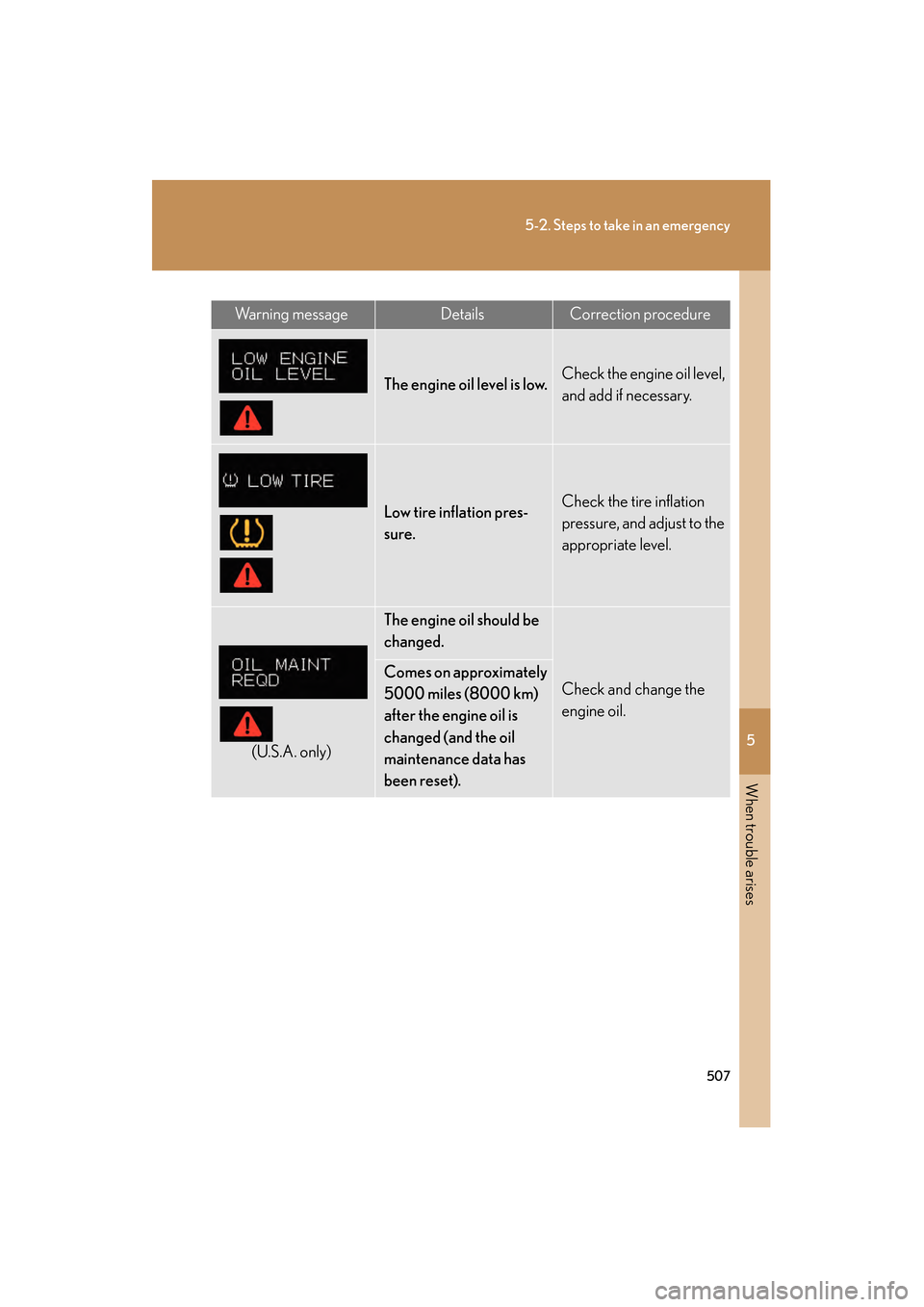

Wa r n i n g m e s s a g eDetailsCorrection procedure
The engine oil level is low.Check the engine oil level,
and add if necessary.
Low tire inflation pres-
sure.Check the tire inflation
pressure, and adjust to the
appropriate level.
(U.S.A. only)
The engine oil should be
changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
GS450h_HV_U.book Page 507 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
535
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Negative (-) battery terminal on your vehicle.Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the 12 volt battery of your vehicle.
Open and close any of the doors with the “POWER” switch is
OFF.
Maintain the engine speed on the second vehicle and turn the
“POWER” switch to the ON mode, then start the vehicle’s
hybrid system.
Make sure the “READY” light comes on. If the light does not
come on, contact your Lexus dealer.
Once the vehicle’s hybrid system has started, remove the
jumper cables in the exact reverse order in which they were
connected.
Once the hybrid system starts, have the vehicle checked at your Lexus
dealer as soon as possible.
STEP3
STEP4
STEP5
STEP6
STEP7
GS450h_HV_U.book Page 535 Thursday, June 19, 2008 1:44 PM

538
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm

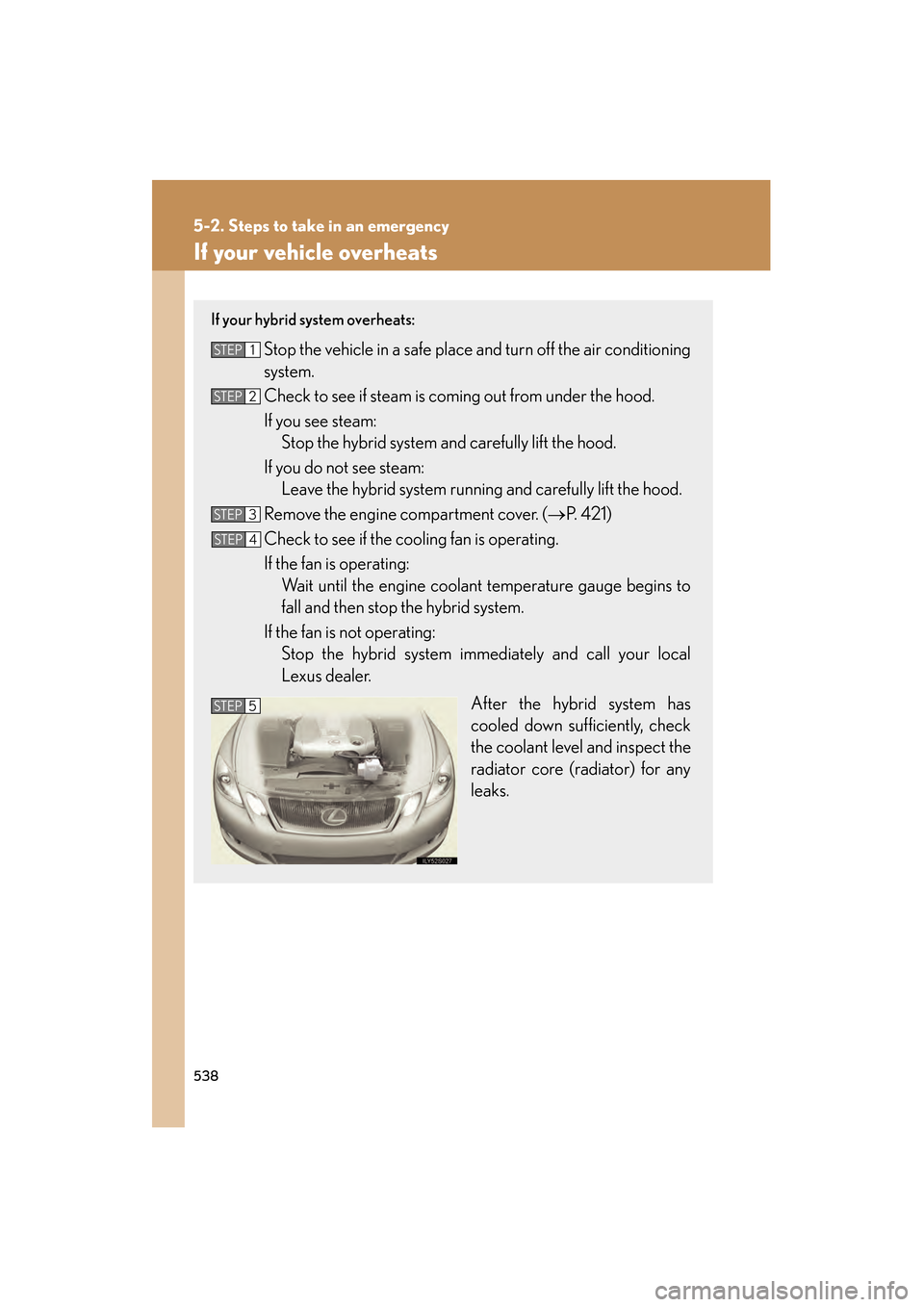

If your vehicle overheats
If your hybrid system overheats:
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the hybrid system and carefully lift the hood.
If you do not see steam: Leave the hybrid system running and carefully lift the hood.
Remove the engine compartment cover. ( →P. 4 2 1 )
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the hybrid system.
If the fan is not operating: Stop the hybrid system immediately and call your local
Lexus dealer.
After the hybrid system has
cooled down sufficiently, check
the coolant level and inspect the
radiator core (radiator) for any
leaks.STEP1
STEP2
STEP3
STEP4
STEP5
GS450h_HV_U.book Page 538 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
539
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm

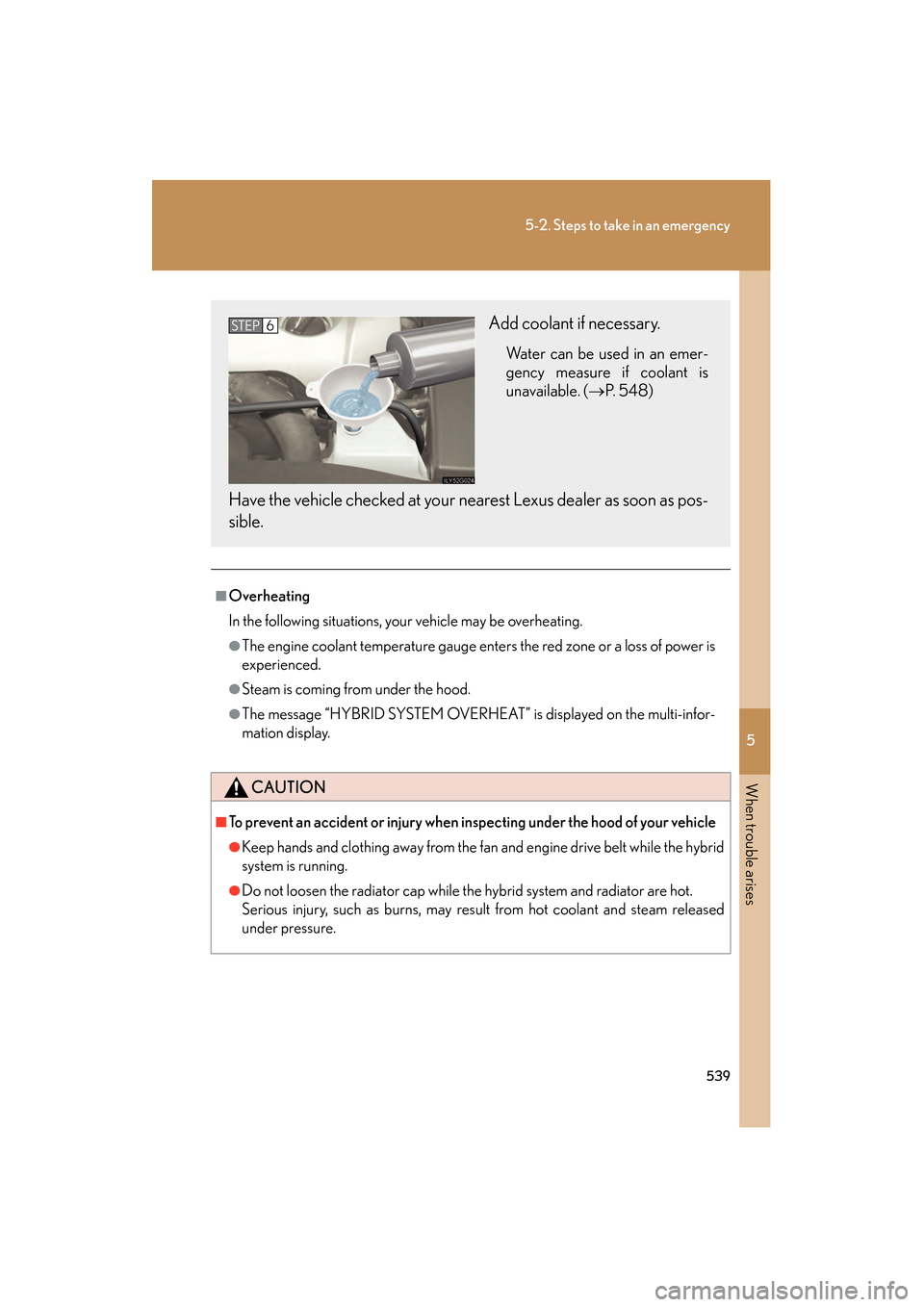

■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
●The message “HYBRID SYSTEM OVERHEAT” is displayed on the multi-infor-
mation display.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●Keep hands and clothing away from the fan and engine drive belt while the hybrid
system is running.
●Do not loosen the radiator cap while the hybrid system and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add coolant if necessary.
Water can be used in an emer-
gency measure if coolant is
unavailable. (→P. 5 4 8 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6
