TABLE OF CONTENTSIndex
4
GS_HV_U
December 12, 2007 3:33 pm
3-4. Using the hands-free system (for cellular phone)................ 306
Hands-free system (for cellular phone) .................. 306
Using the Bluetooth
® phone ..... 311
Setting the hands-free system ............................................ 326
3-5. Using the interior lights .......... 352 Interior lights list............................ 352
3-6. Using the storage features .... 355 List of storage features.............. 355
3-7. Other interior features........... 362 Sun visors......................................... 362
Vanity mirror .................................. 363
Clock ................................................. 364
Outside temperature display ........................................... 365
Ashtrays ........................................... 366
Cigarette lighter ........................... 367
Power outlet .................................. 368
Seat heaters/ventilators ............ 369
Armrest ............................................. 371
Rear sunshade ............................... 372
Floor mats........................................ 374
Trunk features................................ 375
Garage door opener.................. 377
Compass......................................... 383
Lexus Link System ....................... 387 4-1. Maintenance and care............ 402
Cleaning and protecting the vehicle exterior................... 402
Cleaning and protecting the vehicle interior ................... 405
4-2. Maintenance............................. 408 Maintenance requirements .... 408

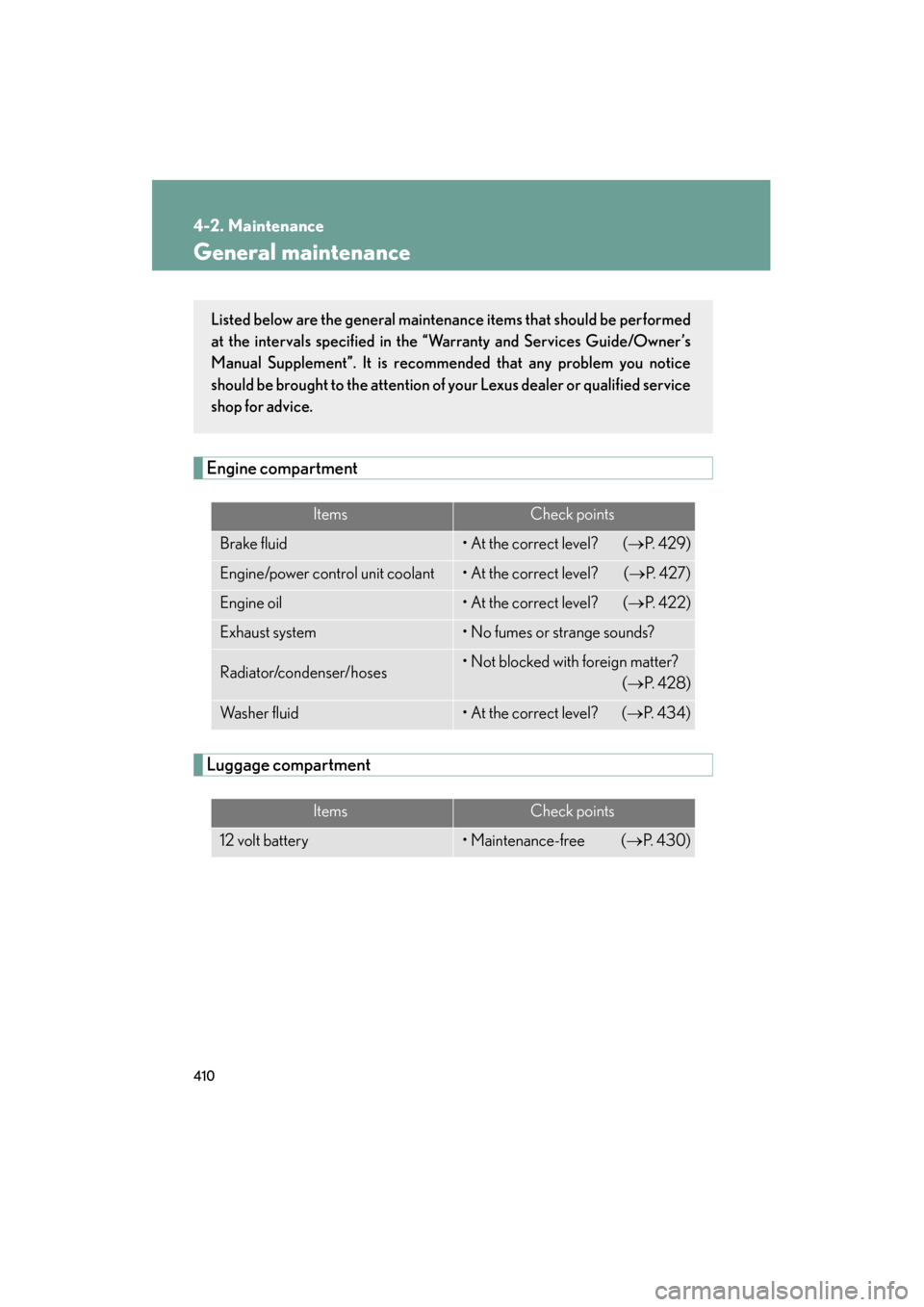

General maintenance ................. 410
Emission inspection and maintenance (I/M)
programs ....................................... 413
4-3. Do-it-yourself maintenance............................. 414
Do-it-yourself service precautions ................................... 414
Hood................................................... 417
Positioning a floor jack................ 418
Engine compartment.................. 420
Tires ................................................... 435
Tire inflation pressure................. 445
Wheels.............................................. 449
Air conditioning filter................... 451
Electronic key battery ................ 454
Checking and replacing fuses ................................................ 456
Headlight aim.................................. 471
Light bulbs ....................................... 474
4Maintenance and care
GS450h_HV_U.book Page 4 Thursday, June 19, 2008 1:44 PM

132
2-1. Driving procedures
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■When driving the vehicle
●Do not shift the shift lever to “N” while the vehicle is moving.
Doing so may cause the engine brake not to operate properly and lead to an
accident.
●Do not turn the hybrid system off while driving.
The power steering and brake actuator will not operate properly if the hybrid sys-
tem is off.
●Use engine braking (downshift) to maintain a safe speed when driving down a
steep hill.
Using the brakes continuously may cause the brakes to overheat and lose effec-
tiveness. (→P. 1 4 4 )
●When stopped on an inclined surface, use the brake pedal and parking brake to
prevent the vehicle from rolling backward or forward and causing an accident.
●Be careful when driving on slippery surfaces, as the vehicle may spin or skid when
downshifting, rapidly accelerating, braking or turning.
●Do not adjust the position of the steering wheel, the seat, or the inside or outside
rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents that may
result in death or serious injury.
●Always check that all passengers’ arms, heads or other parts of their bodies are
not outside the vehicle, as this may result in death or serious injury.
●Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do
not drive over 85 mph (140 km/h) unless your vehicle has high-speed capability
tires. Driving over 85 mph (140 km/h) may result in tire failure, loss of control and
possible injury. Be sure to consult a tire dealer to determine whether the tires on
your vehicle are high-speed capability tires or not before driving at such speeds.
●The driver should pay attention to pedestrians when the vehicle is powered only
by the electric motor (traction motor). Because there is no engine sounds, the
pedestrians may misjudge the vehicle’s movement.
GS450h_HV_U.book Page 132 Thursday, June 19, 2008 1:44 PM

133
2-1. Driving procedures
2
When driving
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce
your ability to control the vehicle, resulting in an accident.
●Sudden changes in engine speed, such as engine braking caused by up-shifting
or down-shifting, may cause the vehicle to skid, resulting in an accident.
●After driving through a puddle, lightly depress the brake pedal to make sure that
the brakes are functioning properly. Wet brake pads may prevent the brakes from
functioning properly. If the brakes on only one side are wet and not functioning
properly, steering control may be affected, resulting in an accident.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
■When the vehicle is stopped
●Do not race the hybrid system.
If the vehicle is in any positions other than “P” or “N” the vehicle may accelerate
suddenly and unexpectedly, and may cause an accident.
●Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do not enter the vehicle interior.
●Always keep a foot on the brake pedal while the hybrid system is operating to
prevent an accident caused by the vehicle moving.
GS450h_HV_U.book Page 133 Thursday, June 19, 2008 1:44 PM

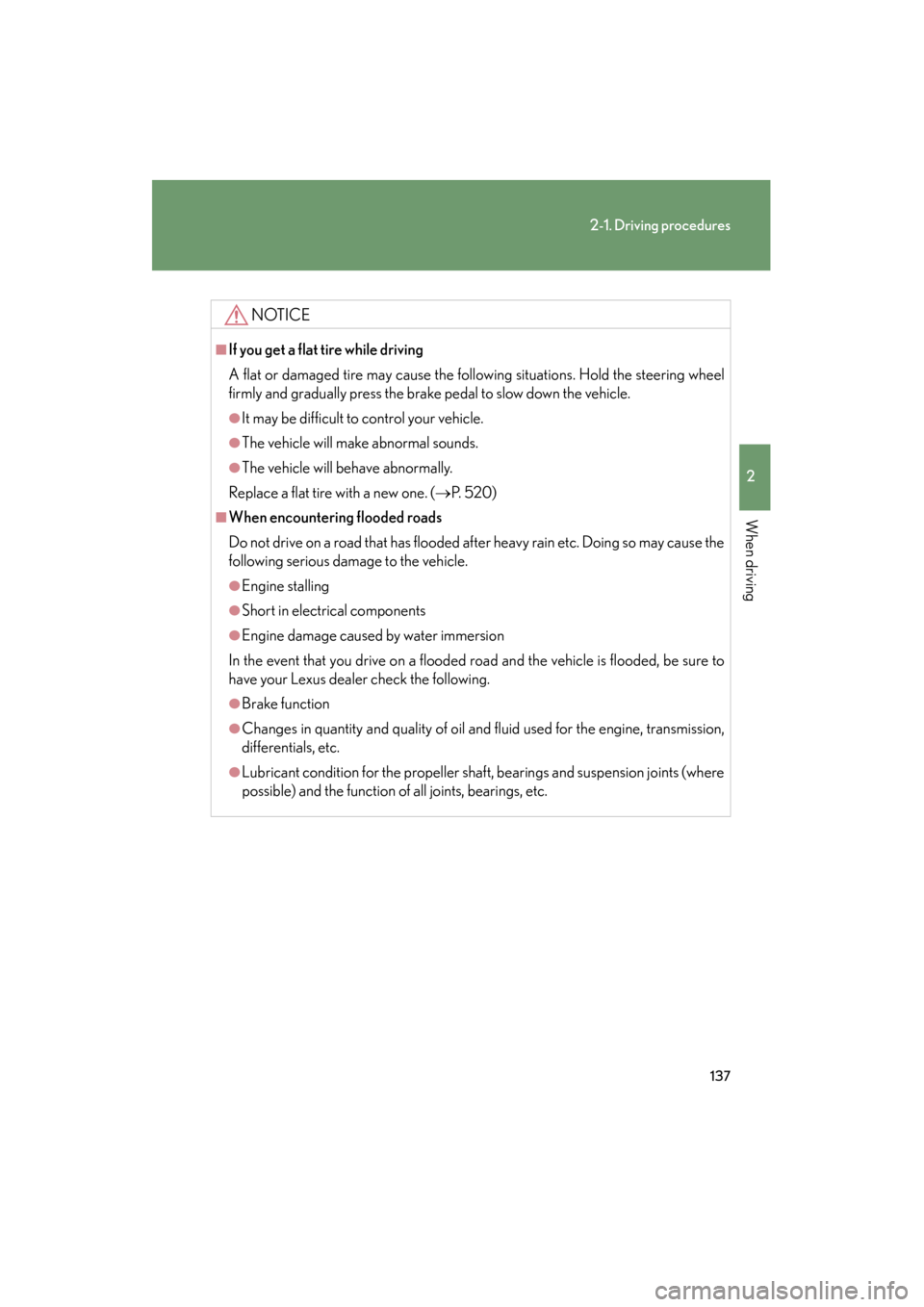

137
2-1. Driving procedures
2
When driving
GS_HV_U
June 19, 2008 1:15 pm
NOTICE
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( →P. 5 2 0 )
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle.
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following.
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
differentials, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible) and the function of all joints, bearings, etc.
GS450h_HV_U.book Page 137 Thursday, June 19, 2008 1:44 PM

138
2-1. Driving procedures
GS_HV_U
June 19, 2008 1:15 pm
Power (ignition) switch
■Starting the hybrid system
Check that the parking brake is set.
Check that the shift lever is set in “P”.
Sit in the driver’s seat and firmly depress the brake pedal.
The “POWER” switch indicator turns green.
Press the “POWER” switch.
After a few seconds, the
“READY” light will flash and
come on with a beep sound.
The vehicle can move when the
“READY” light is on, even if the
engine is stopped.
STEP1
STEP2
STEP3
STEP4
GS450h_HV_U.book Page 138 Thursday, June 19, 2008 1:44 PM

151
2-2. Instrument cluster
2
When driving
GS_HV_U
June 19, 2008 1:15 pm
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is in the
red zone (“H”). In this case, immediately stop the vehicle in a safe place. Check the
engine after it has cooled completely. ( →P. 5 3 8 )
■To activate the light sensitivity function properly
Do not affix a sticker or window tint to the rear window glass, or put an object
behind the rear seat.
GS450h_HV_U.book Page 151 Thursday, June 19, 2008 1:44 PM

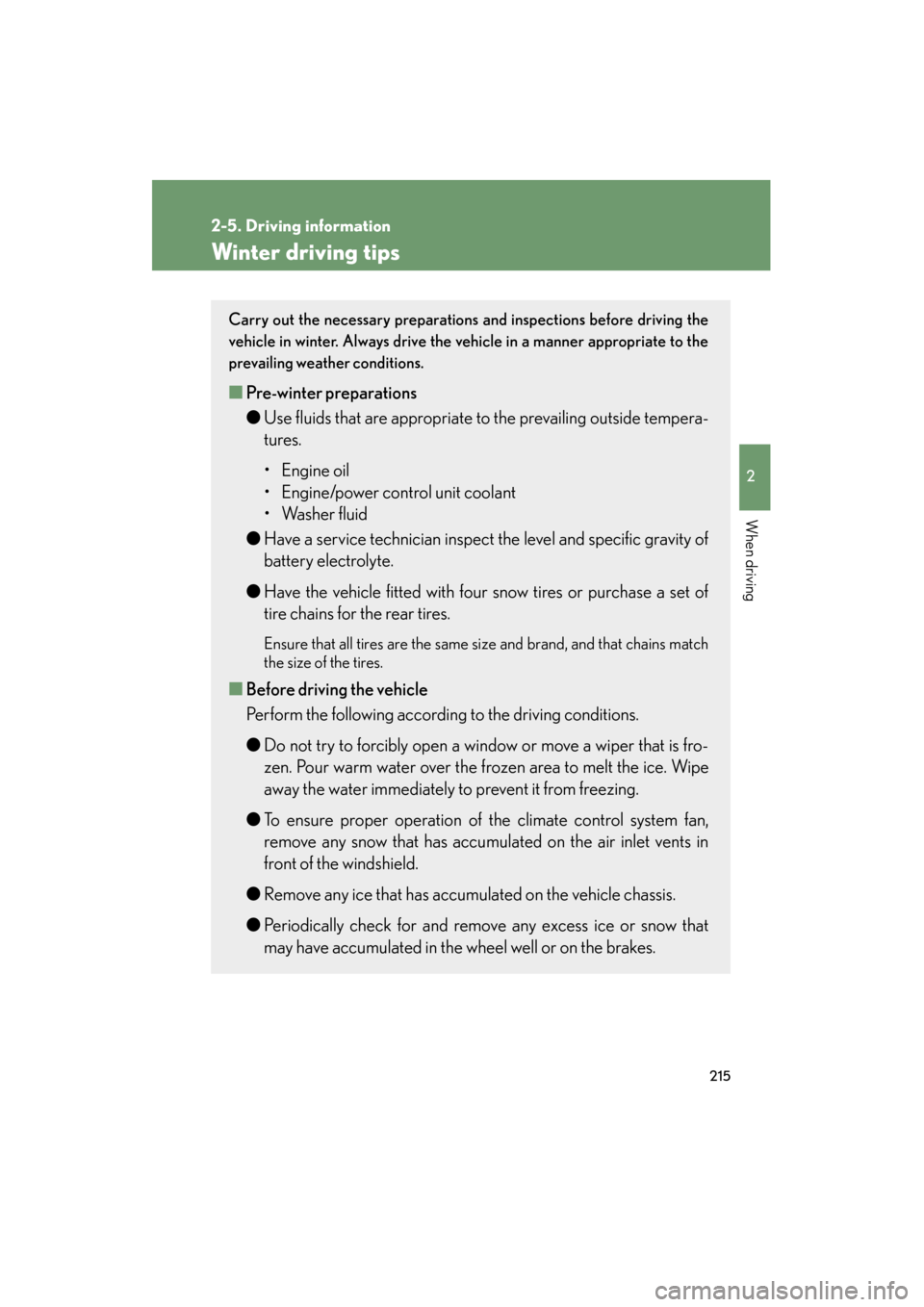

215
2-5. Driving information
2
When driving
GS_HV_U
June 19, 2008 1:15 pm
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
● Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■Before driving the vehicle
Perform the following according to the driving conditions.
● Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.
GS450h_HV_U.book Page 215 Thursday, June 19, 2008 1:44 PM

Maintenance and care4
401
GS_HV_U
December 12, 2007 3:30 pm
4-1. Maintenance and care ............................... 402
Cleaning and protecting the vehicle exterior............ 402
Cleaning and protecting the vehicle interior ............. 405 4-2. Maintenance .................. 408
Maintenance requirements........................ 408
General maintenance ........... 410
Emission inspection and maintenance (I/M)
programs ................................ 413
4-3. Do-it-yourself maintenance ................. 414
Do-it-yourself service precautions ............................ 414
Hood ............................................ 417
Positioning a floor jack .......... 418
Engine compartment ........... 420
Tires............................................ 435
Tire inflation pressure........... 445
Wheels ...................................... 449
Air conditioning filter ............ 451
Electronic key battery.......... 454
Checking and replacing fuses ........................................ 456
Headlight aim ........................... 471
Light bulbs................................. 474
GS450h_HV_U.book Page 401 Thursday, June 19, 2008 1:44 PM

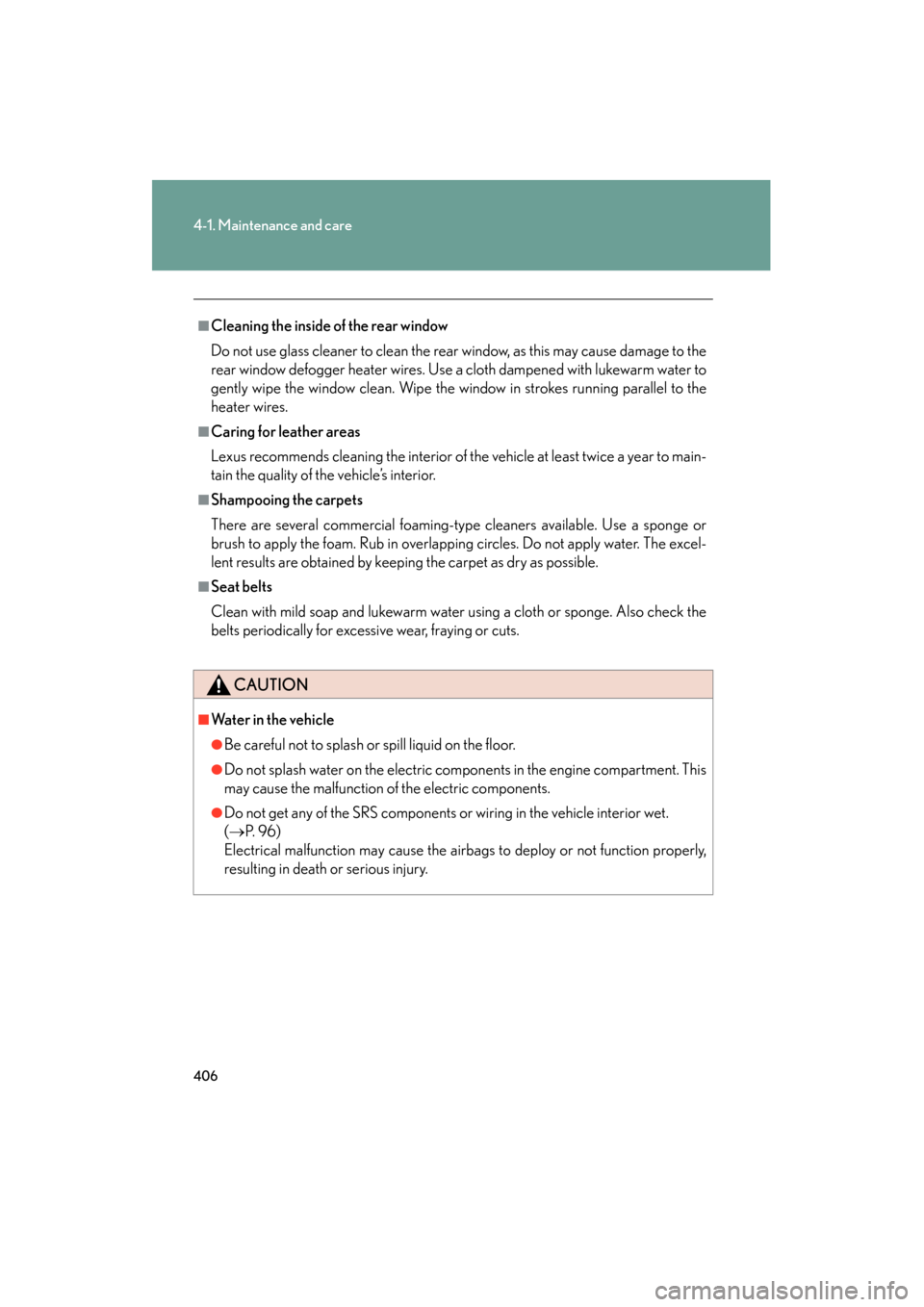

406
4-1. Maintenance and care
GS_HV_U
May 13, 2008 2:19 pm
■Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires. Use a cloth dampened with lukewarm water to
gently wipe the window clean. Wipe the window in strokes running parallel to the
heater wires.
■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to main-
tain the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or
brush to apply the foam. Rub in overlapping circles. Do not apply water. The excel-
lent results are obtained by keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the
belts periodically for excessive wear, fraying or cuts.
CAUTION
■Water in the vehicle
●Be careful not to splash or spill liquid on the floor.
●Do not splash water on the electric components in the engine compartment. This
may cause the malfunction of the electric components.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
(→ P. 9 6 )
Electrical malfunction may cause the airbags to deploy or not function properly,
resulting in death or serious injury.
GS450h_HV_U.book Page 406 Thursday, June 19, 2008 1:44 PM

410
4-2. Maintenance
GS_HV_U
June 19, 2008 1:15 pm
General maintenance
Engine compartment
Luggage compartment
ItemsCheck points
Brake fluid• At the correct level? (→P. 4 2 9 )
Engine/power control unit coolant• At the correct level? (→P. 4 2 7 )
Engine oil• At the correct level? (→ P. 422)
Exhaust system• No fumes or strange sounds?
Radiator/condenser/hoses• Not blocked with foreign matter?
(→ P. 4 2 8 )
Wa s h e r f l u i d• At the correct level? ( →P. 4 3 4 )
ItemsCheck points
12 volt battery•Maintenance-free ( →P. 4 3 0 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide/Owner’s
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.
GS450h_HV_U.book Page 410 Thursday, June 19, 2008 1:44 PM
