Lexus GS450h 2008 Owner's Manual

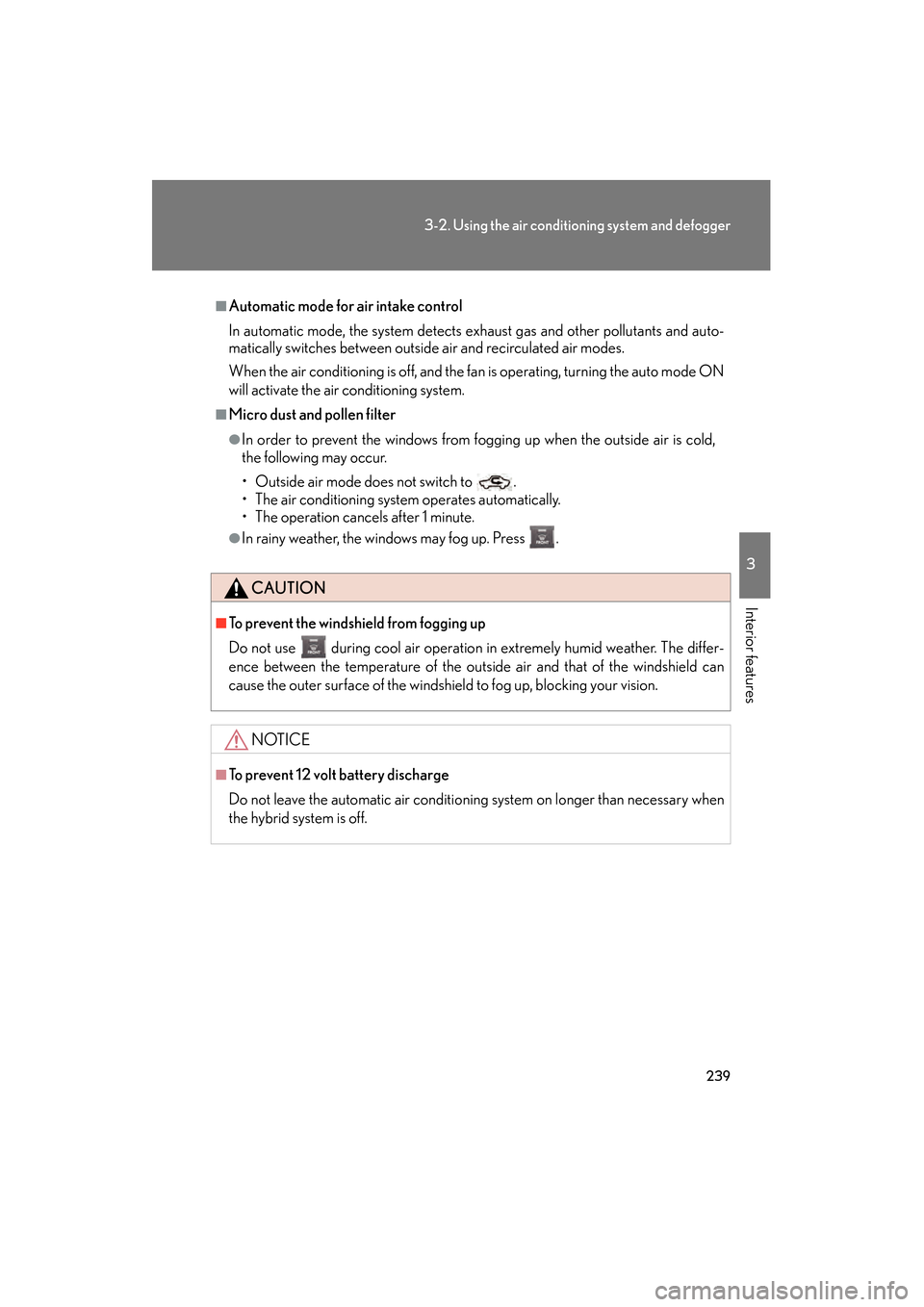

239
3-2. Using the air conditioning system and defogger
3
Interior features
GS_HV_U
December 12, 2007 3:30 pm
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the air conditioning is off, and the fan is operating, turning the auto mode ON
will activate the air conditioning system.
■Micro dust and pollen filter
●In order to prevent the windows from fogging up when the outside air is cold,
the following may occur.
• Outside air mode does not switch to .
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent 12 volt battery discharge
Do not leave the automatic air conditioning system on longer than necessary when
the hybrid system is off.
GS450h_HV_U.book Page 239 Thursday, June 19, 2008 1:44 PM

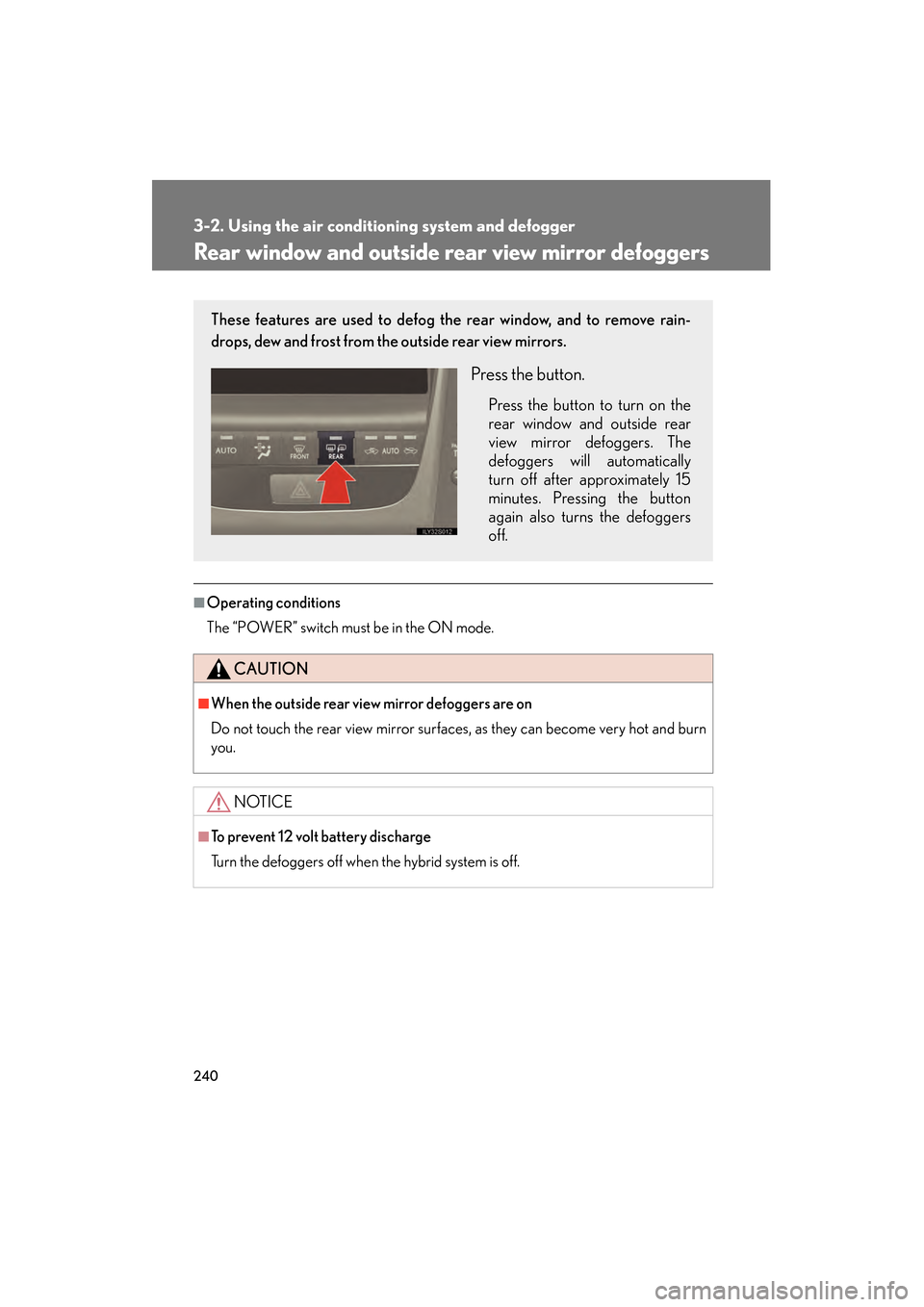

240
3-2. Using the air conditioning system and defogger
GS_HV_U
December 12, 2007 3:30 pm
Rear window and outside rear view mirror defoggers
■Operating conditions
The “POWER” switch must be in the ON mode.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■To prevent 12 volt battery discharge
Turn the defoggers off when the hybrid system is off.
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press the button.
Press the button to turn on the
rear window and outside rear
view mirror defoggers. The
defoggers will automatically
turn off after approximately 15
minutes. Pressing the button
again also turns the defoggers
off.
GS450h_HV_U.book Page 240 Thursday, June 19, 2008 1:44 PM

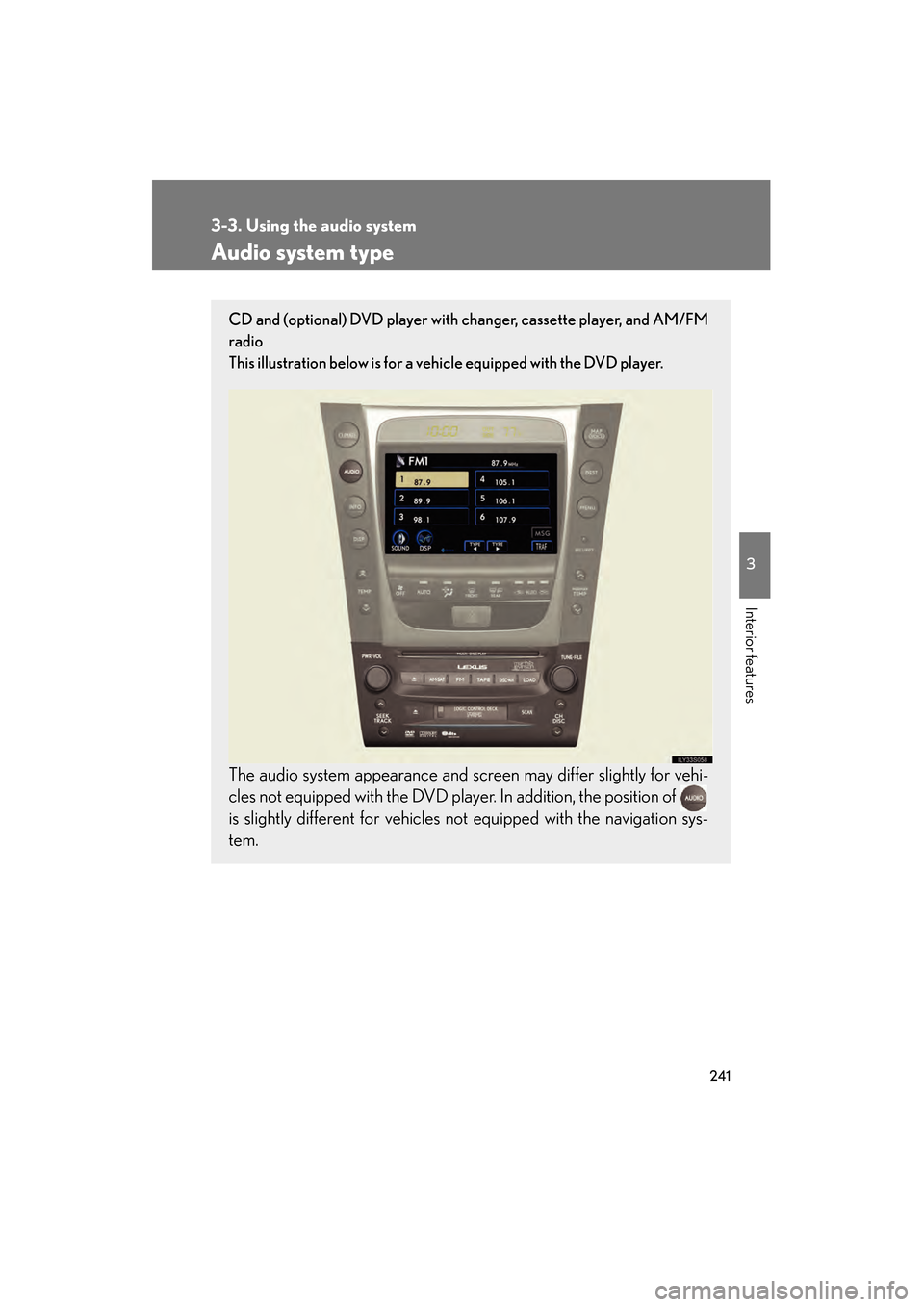

241
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm
3-3. Using the audio system
Audio system type
CD and (optional) DVD player with changer, cassette player, and AM/FM
radio
This illustration below is for a vehicle equipped with the DVD player.
The audio system appearance and screen may differ slightly for vehi-
cles not equipped with the DVD player. In addition, the position of
is slightly different for vehicles not equipped with the navigation sys-
tem.
GS450h_HV_U.book Page 241 Thursday, June 19, 2008 1:44 PM

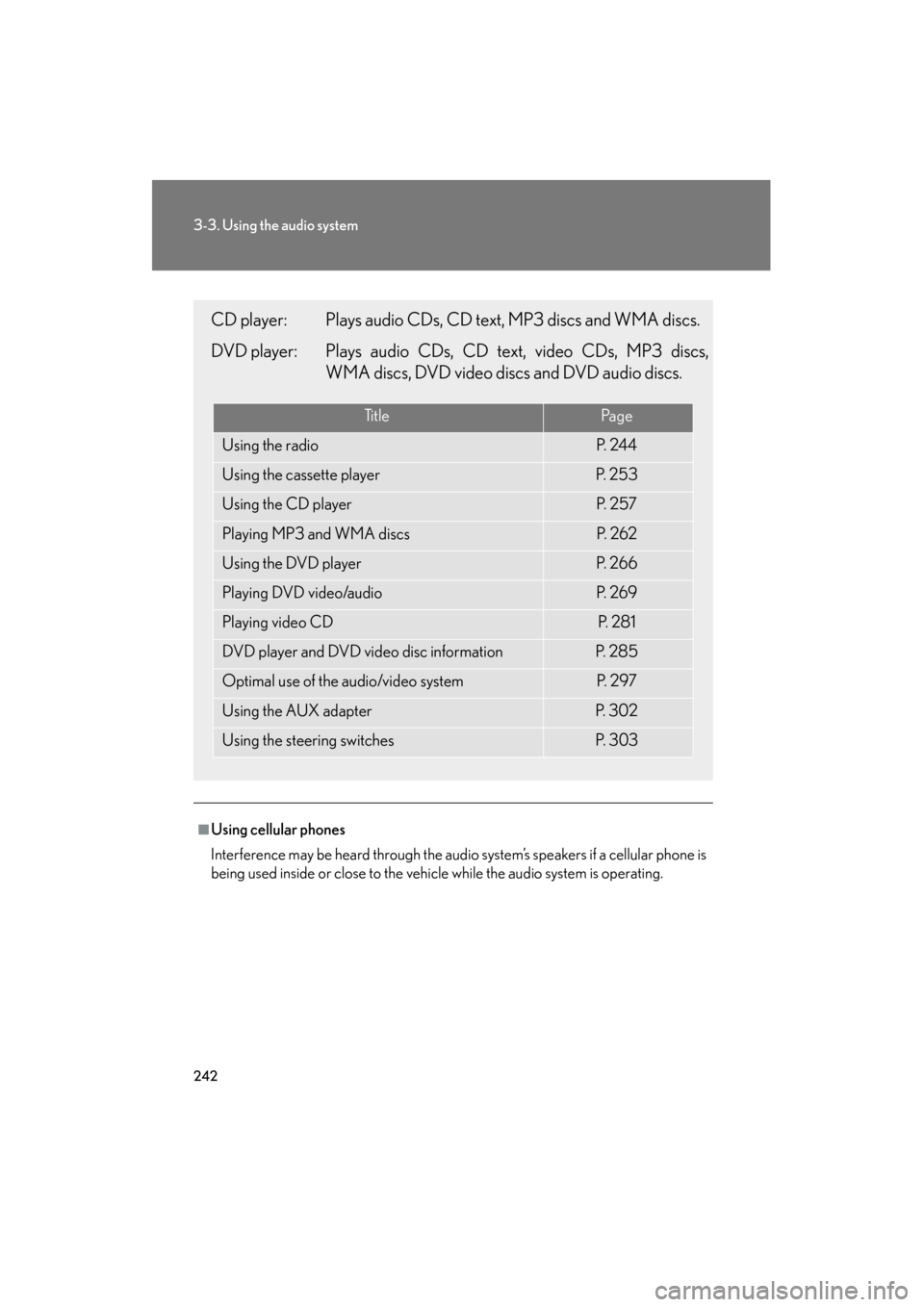

242
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
CD player: Plays audio CDs, CD text, MP3 discs and WMA discs.
DVD player: Plays audio CDs, CD text, video CDs, MP3 discs,WMA discs, DVD video discs and DVD audio discs.
Ti t l ePa g e
Using the radioP. 2 4 4
Using the cassette playerP. 2 5 3
Using the CD playerP. 2 5 7
Playing MP3 and WMA discsP. 2 6 2
Using the DVD playerP. 2 6 6
Playing DVD video/audioP. 2 6 9
Playing video CDP. 2 8 1
DVD player and DVD video disc informationP. 2 8 5
Optimal use of the audio/video systemP. 2 9 7
Using the AUX adapterP. 3 0 2
Using the steering switchesP. 3 0 3
GS450h_HV_U.book Page 242 Thursday, June 19, 2008 1:44 PM

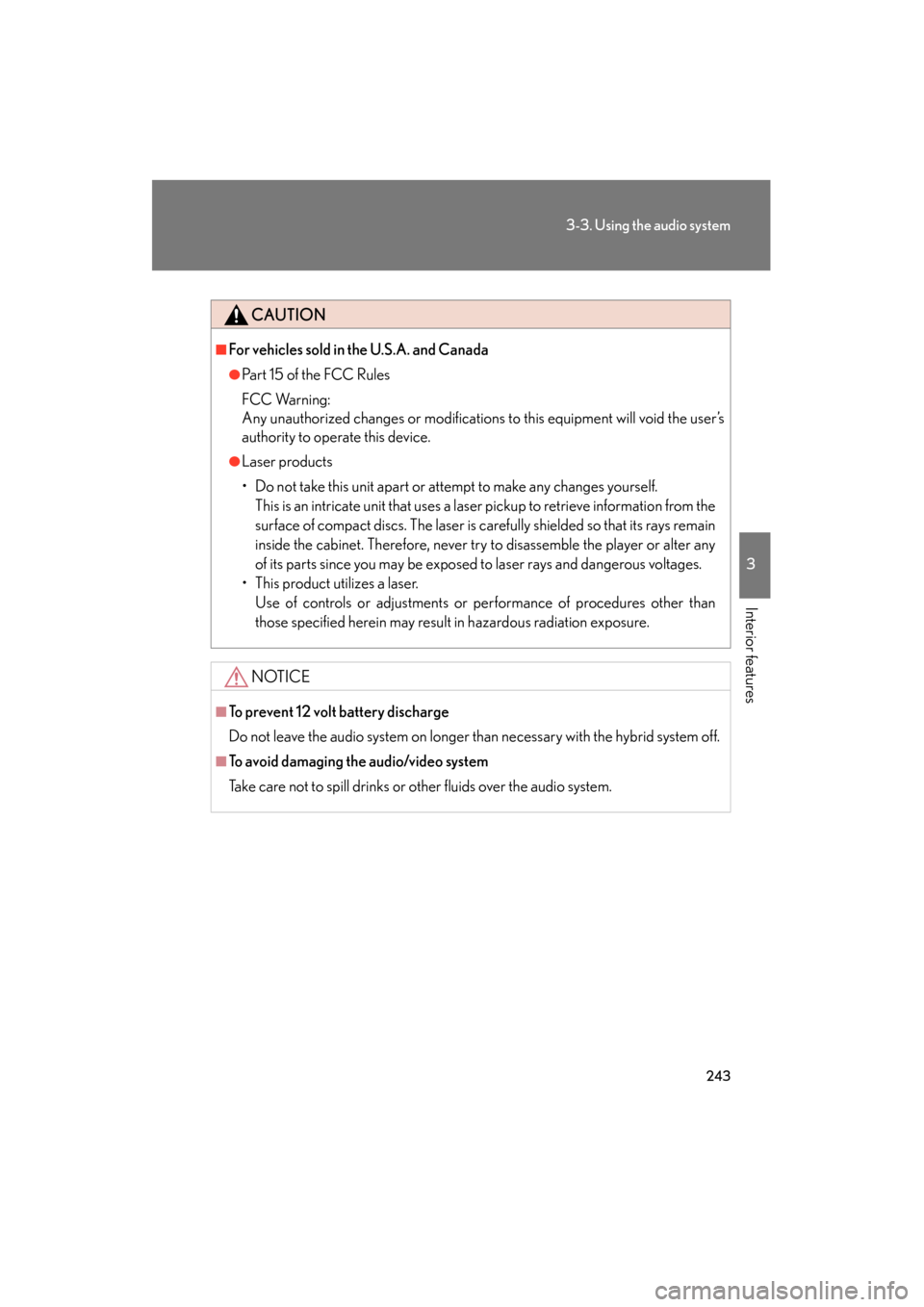

243
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm
CAUTION
■For vehicles sold in the U.S.A. and Canada
●Pa r t 1 5 o f t h e FCC Ru l e s
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
●Laser products
• Do not take this unit apart or attempt to make any changes yourself. This is an intricate unit that uses a laser pickup to retrieve information from the
surface of compact discs. The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to disassemble the player or alter any
of its parts since you may be exposed to laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
NOTICE
■To prevent 12 volt battery discharge
Do not leave the audio system on longer than necessary with the hybrid system off.
■To avoid damaging the audio/video system
Take care not to spill drinks or other fluids over the audio system.
GS450h_HV_U.book Page 243 Thursday, June 19, 2008 1:44 PM

244
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm
Using the radio
Press or to choose either an AM or FM band.
When you press while listening to the radio, the following audio con-
trol screen appears.
Display audio control screen
Po we r Vo l u m e Scan for receivable stations
Seek frequency Preset tuning
Adjust the
frequency
(AM, FM mode) or
channel (SAT mode)
AM ⋅SAT/FM mode buttons Preset stations
Scan for
receivable stations
(AM mode only)
GS450h_HV_U.book Page 244 Thursday, June 19, 2008 1:44 PM

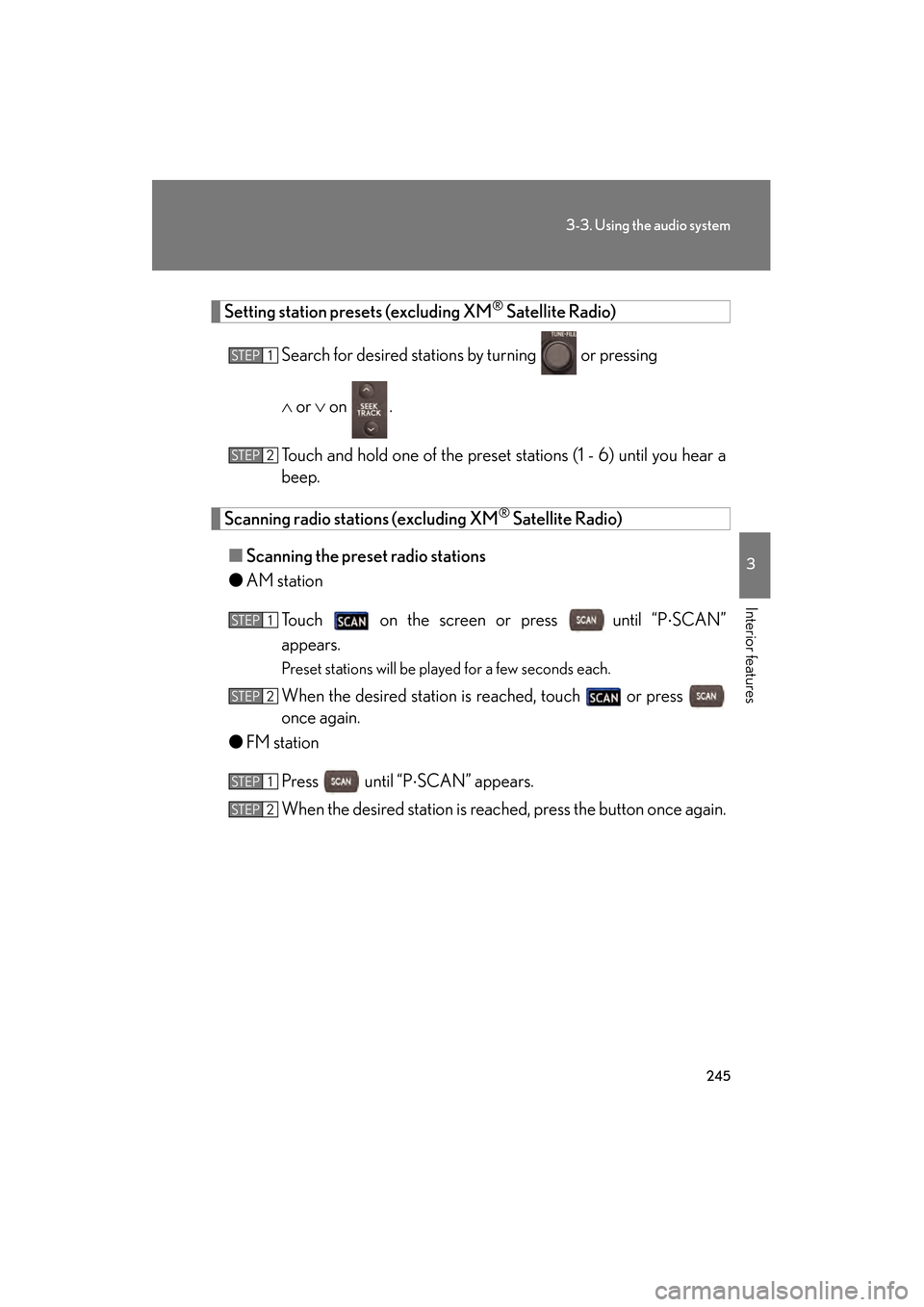

245
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm
Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning
or pressing
∧ or ∨ on .
Touch and hold one of the preset stations (1 - 6) until you hear a
beep.
Scanning radio stations (excluding XM® Satellite Radio)
■ Scanning the preset radio stations
● AM station
Touch on the screen or press
until “P ⋅SCAN”
appears.
Preset stations will be played for a few seconds each.
When the desired station is reached, touch or press
once again.
● FM station
Press until “P⋅SCAN” appears.
When the desired station is reached, press the button once again.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2
GS450h_HV_U.book Page 245 Thursday, June 19, 2008 1:44 PM

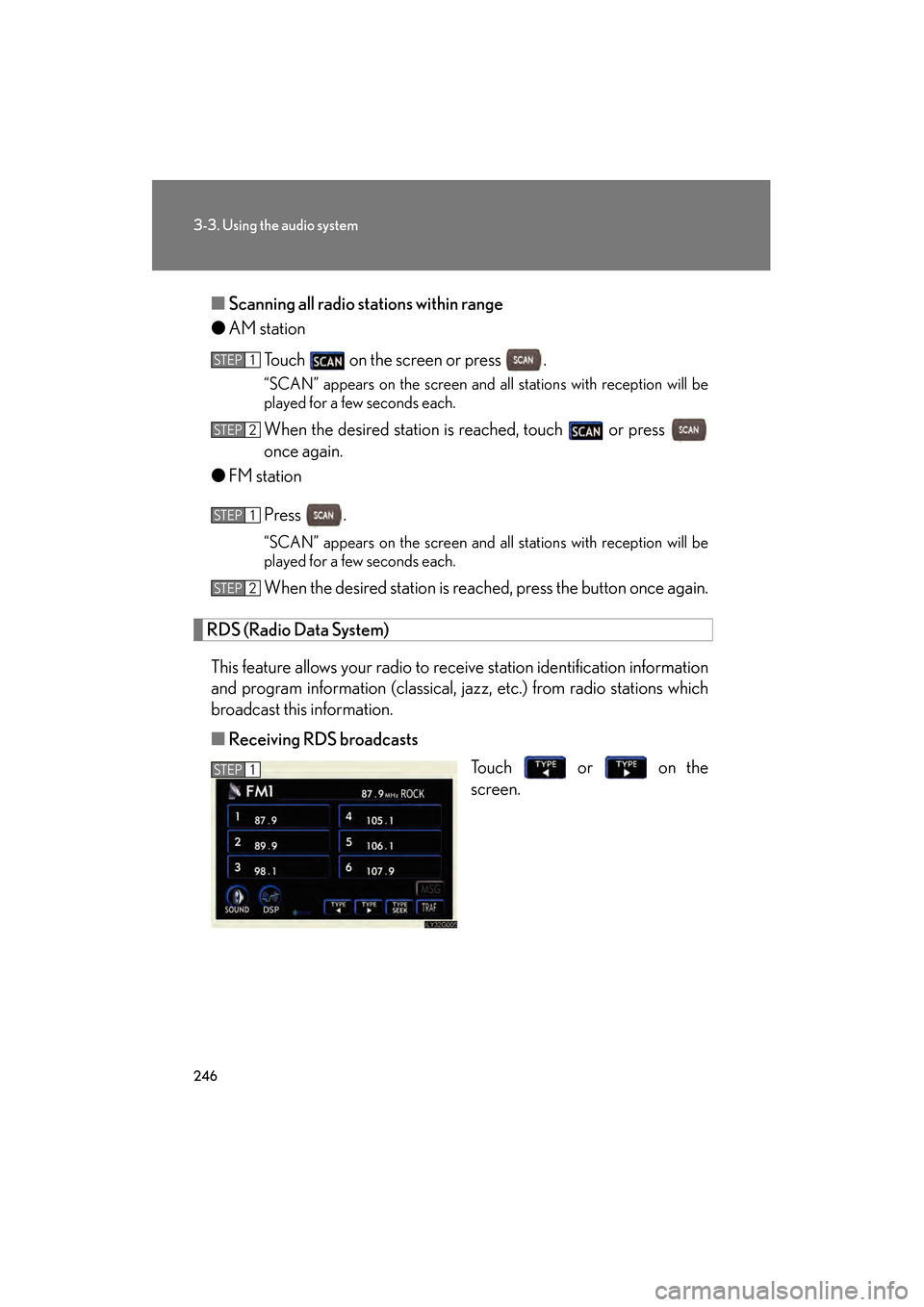

246
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm
■Scanning all radio stations within range
● AM station
Touch on the screen or press .
“SCAN” appears on the screen and all stations with reception will be
played for a few seconds each.
When the desired station is reached, touch or press
once again.
● FM station
Press .
“SCAN” appears on the screen and all stations with reception will be
played for a few seconds each.
When the desired station is reached, press the button once again.
RDS (Radio Data System) This feature allows your radio to receive station identification information
and program information (classical, jazz, etc.) from radio stations which
broadcast this information.
■ Receiving RDS broadcasts
Touch or on the
screen.
STEP1
STEP2
STEP1
STEP2
STEP1
GS450h_HV_U.book Page 246 Thursday, June 19, 2008 1:44 PM

247
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm
The type of program changes each time the button is pressed.
●ROCK
● EASYLIS (Easy listening)
● CLS/JAZZ (Classical music and Jazz)
● R & B (Rhythm and Blues)
● INFORM (Information)
● RELIGION
● MISC (Miscellaneous)
● ALARM (Emergency messages)
If the system receives no RDS stations, “NO PTY” appears on the display.
When a program is set, “TYPE SEEK” appears.
Touch on the screen or press ∧ or ∨ on .
The radio seeks or scans the station by the relevant program type.
If no radio station of that type is found, “NOTHING” appears on the
screen.
■ Displaying radio text messages
Touch on the screen.
If “MSG” appears on the screen, a
text message may be displayed.
STEP2
GS450h_HV_U.book Page 247 Thursday, June 19, 2008 1:44 PM

248
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm
■Traffic announcement
Touch on the screen.
“TRAF SEEK” appears on the dis-
play, and the radio will start seeking
any station broadcasting traffic
program information.
If no traffic program station is
found, “NOTHING” appears on
the display.
XM® Satellite Radio (if equipped)
■ Receiving XM
® Satellite Radio
Press until “SAT” appears
on the screen.
The display changes as follows
each time the switch is pressed.
AM → SAT1 → SAT2 → SAT3
Turn to select a desired channel from all the categories or
press ∧ or ∨ on to select a desired channel in the current
category.
■ Presetting XM
® Satellite Radio channels
Select the desired channel. Touch one of the preset stations (1 - 6) and
hold it until you hear a beep.
STEP1
STEP2
GS450h_HV_U.book Page 248 Thursday, June 19, 2008 1:44 PM
