Lexus GS450h 2008 Owner's Manual

259
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

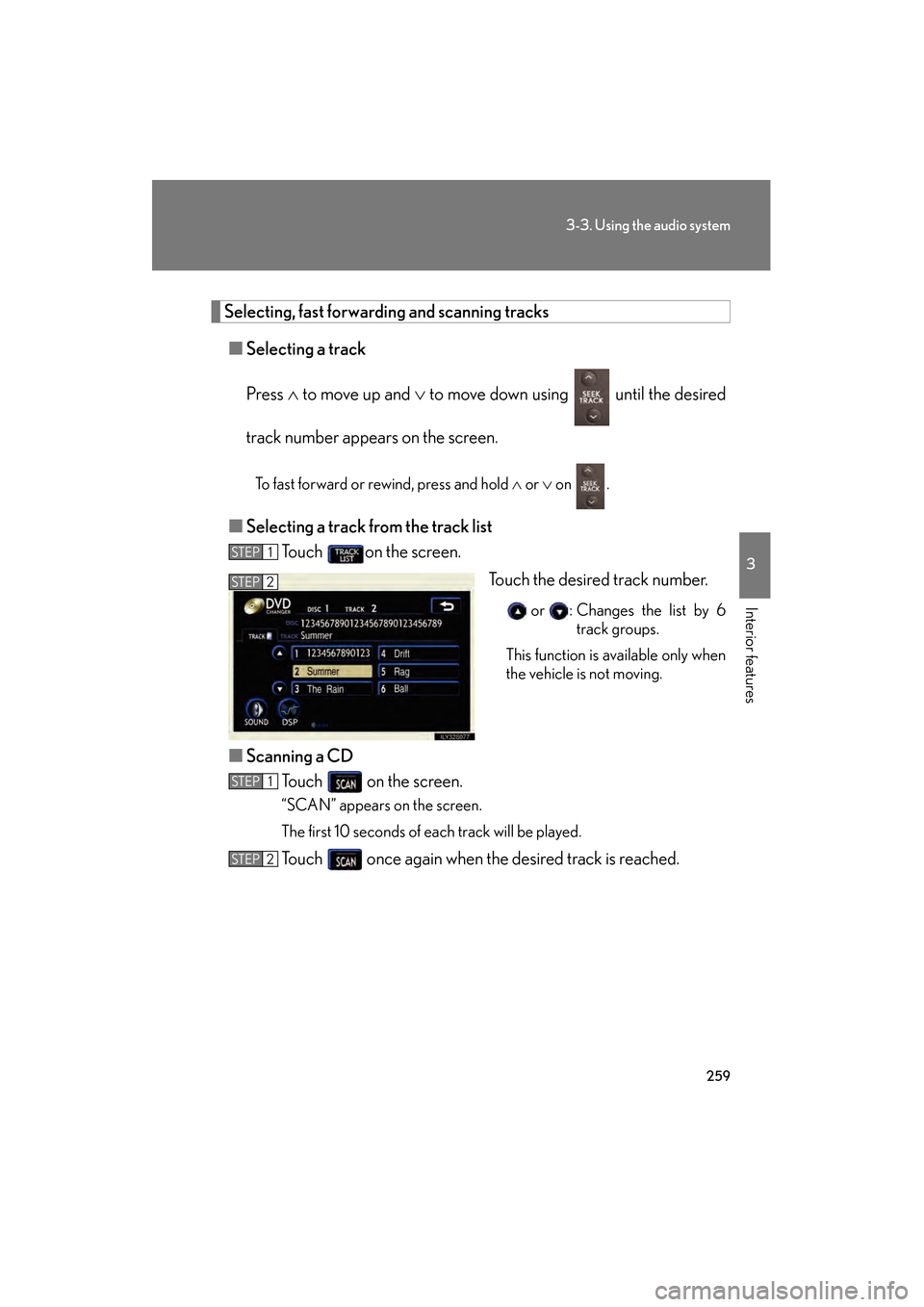

Selecting, fast forwarding and scanning tracks■ Selecting a track
Press ∧ to move up and ∨ to move down using until the desired
track number appears on the screen.
To fast forward or rewind, press and hold ∧ or ∨ on .
■ Selecting a track from the track list
Touch on the screen.
Touch the desired track number.
or : Changes the list by 6track groups.
This function is available only when
the vehicle is not moving.
■ Scanning a CD
Touch on the screen.
“SCAN” appears on the screen.
The first 10 seconds of each track will be played.
Touch once again when the desired track is reached.
STEP1
STEP2
STEP1
STEP2
GS450h_HV_U.book Page 259 Thursday, June 19, 2008 1:44 PM

260
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm

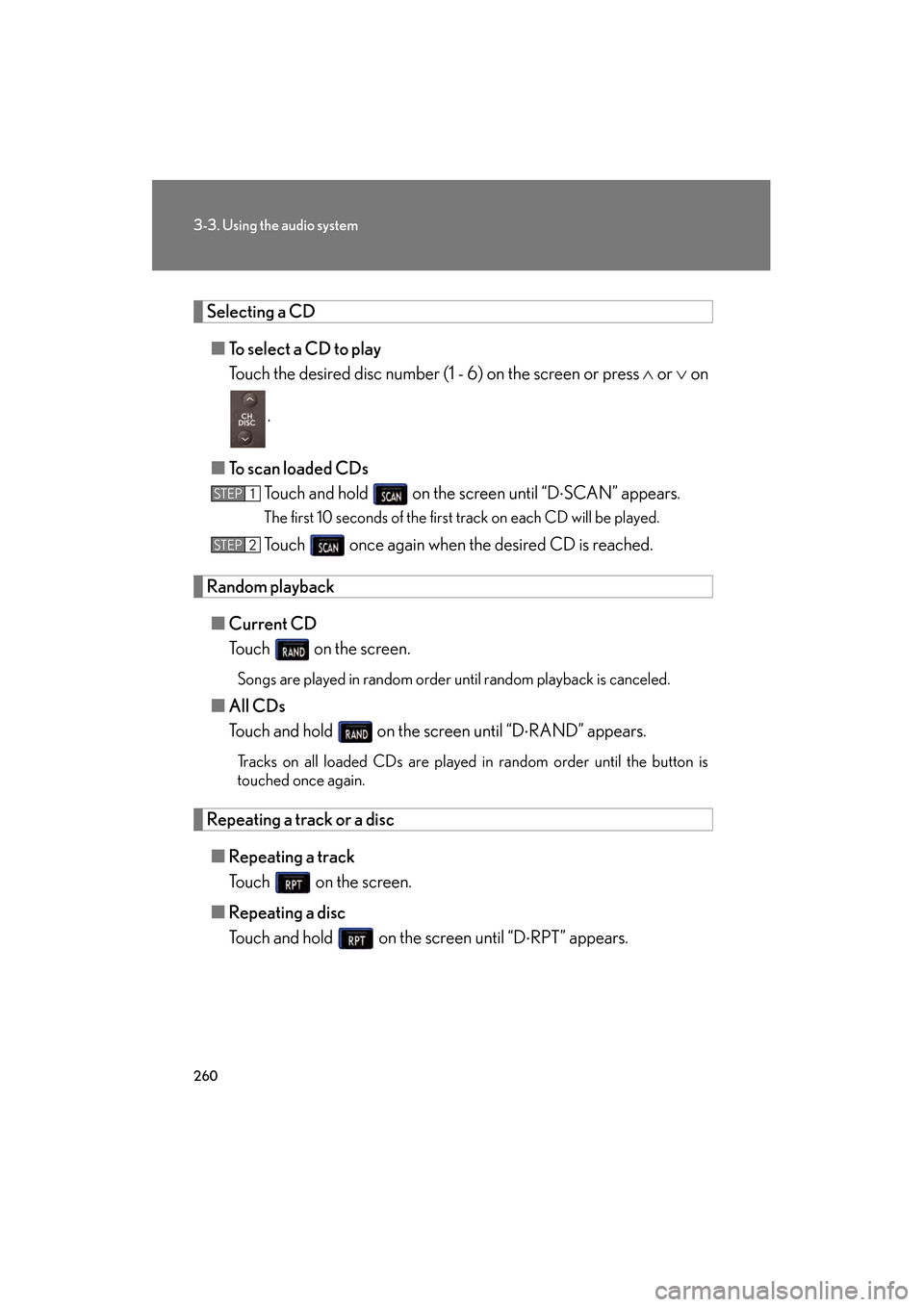

Selecting a CD■ To select a CD to play
Touch the desired disc number (1 - 6) on the screen or press ∧ or ∨ on
.
■ To scan loaded CDs
Touch and hold on the screen until “D ⋅SCAN” appears.
The first 10 seconds of the first track on each CD will be played.
Touch once again when the desired CD is reached.
Random playback
■ Current CD
Touch on the screen.
Songs are played in random order until random playback is canceled.
■All CDs
Touch and hold on the screen until “D ⋅RAND” appears.
Tracks on all loaded CDs are played in random order until the button is
touched once again.
Repeating a track or a disc
■ Repeating a track
Touch on the screen.
■ Repeating a disc
Touch and hold on the screen until “D ⋅RPT” appears.
STEP1
STEP2
GS450h_HV_U.book Page 260 Thursday, June 19, 2008 1:44 PM

261
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm
■Canceling random, repeat and scan playback
Touch , , or on the screen once again.
■Displaying the title and artist name
If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to
16 letters can be displayed.
■Error messages
→P. 2 8 5
GS450h_HV_U.book Page 261 Thursday, June 19, 2008 1:44 PM

262
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm
Playing MP3 and WMA discs
Insert an MP3 or WMA disc or press with a disc inserted.
When you press during playback of the disc, the following audio con-
trol screen appears.
Pow e r Vo l u m eCD ejectPlayback Select folder
Search playback
CD slot
Random playback
Repeat play
Select file
CD loadSelect CD
Display audio control screen
Select file
Display folder list
GS450h_HV_U.book Page 262 Thursday, June 19, 2008 1:44 PM

263
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm
Loading, ejecting and selecting MP3 and WMA discs
Refer to the section titled “Using the CD player” for details. ( →P. 2 5 7 )
Selecting a folder
■ Selecting a folder
Touch “FOLDER ” or “ ” on the screen to select the previ-
ous/next folder.
■ Selecting a folder from the folder list
Touch on the screen.
Touch the desired folder number.
or : Changes the list by 6folder groups.
: Displays the details of the file currently play-
ing.
: Displays the file list.
This function is available only when
the vehicle is not moving.
■ Selecting the desired folder by cuei ng the first file of each folder
Touch and hold on the screen until “FLD ⋅SCAN” appears. When
the desired folder is reached, touch once again.
STEP1
STEP2
GS450h_HV_U.book Page 263 Thursday, June 19, 2008 1:44 PM

264
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm
Selecting and scanning files■ Selecting one fi le at a time
Tu r n o r p r e s s ∧ or ∨ on to select the desired file.
■ Selecting a file fr om the file list
Touch on the screen to turn the folder list on.
Touch on the folder list
screen.
Touch the desired file number.
or : Changes the list by 6groups.
: Displays the folder list.
: Displays the details of the file currently play-
ing.
This function is available only when
the vehicle is not moving.
■ Selecting a desired file by cueing the files in the folder
Touch on the screen.
When the desired file is reached, touch once again.
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 264 Thursday, June 19, 2008 1:44 PM

265
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm
File repeatTouch on the screen.
Folder repeatTouch and hold on the screen until the “FLD RPT” appears.
Random playback■ To play files from a particular folder in random order
Touch on the screen.
■ To play all the files on a disc in random order
Touch and hold on the screen until the “FLD RAND” appears.
■Canceling random, repeat and scan playback
Touch , or on the screen once again.
■Error messages
→ P. 2 8 5
GS450h_HV_U.book Page 265 Thursday, June 19, 2008 1:44 PM

266
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm
Using the DVD player (if equipped)
Insert a disc or press with a disc inserted.
When you press during the playback of the disc, the following audio/
video control screen appears.
Po w e r Vo l u m e
Track, file and chapter
selection/fast forward/
rewind Disc eject
PlaybackDisc load Change disc
Display audio/video control screen
Select disc
Disc slot
Select file
GS450h_HV_U.book Page 266 Thursday, June 19, 2008 1:44 PM

267
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

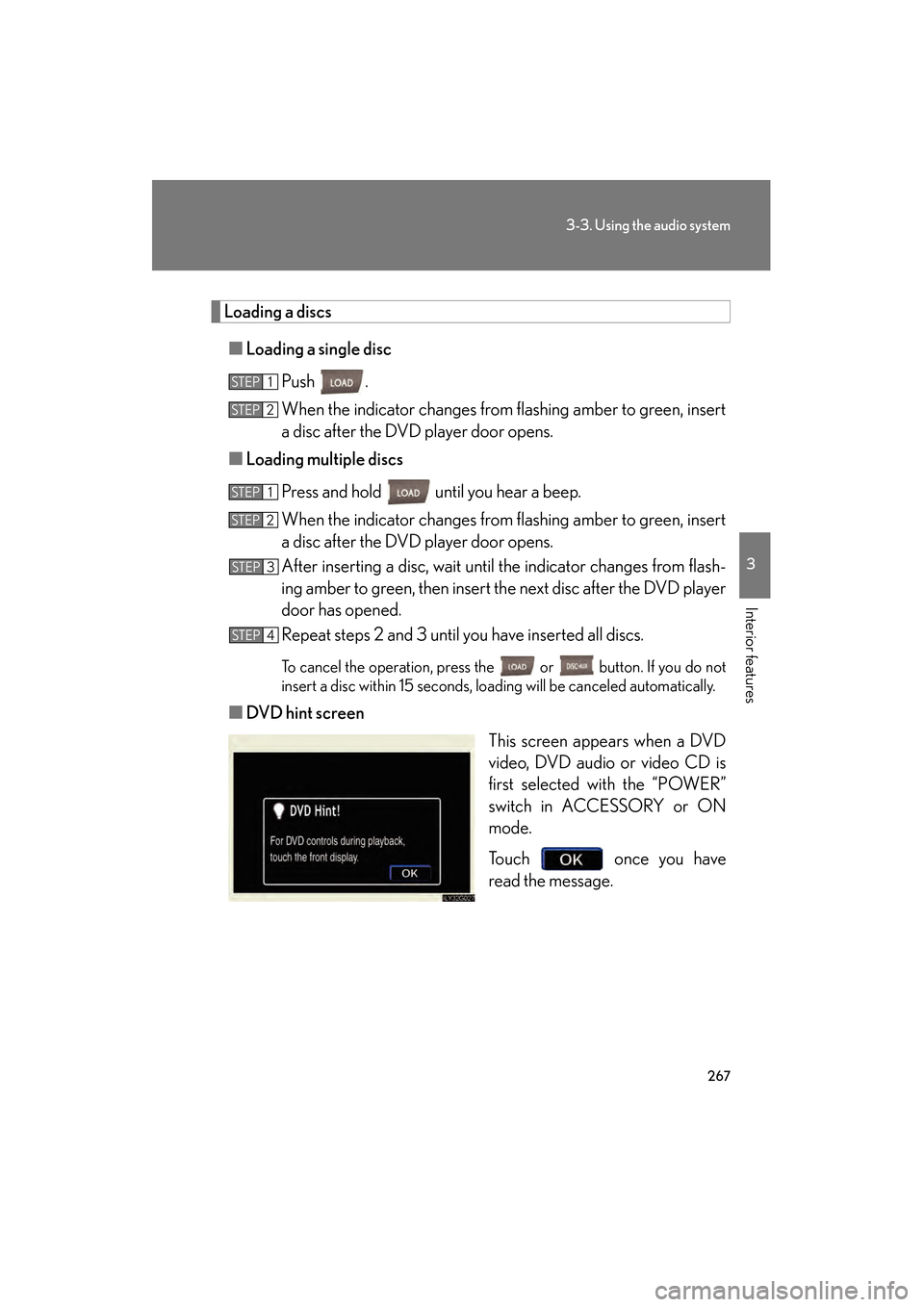

Loading a discs■ Loading a single disc
Push .
When the indicator changes from flashing amber to green, insert
a disc after the DVD player door opens.
■ Loading multiple discs
Press and hold until you hear a beep.
When the indicator changes from flashing amber to green, insert
a disc after the DVD player door opens.
After inserting a disc, wait until the indicator changes from flash-
ing amber to green, then insert th e next disc after the DVD player
door has opened.
Repeat steps 2 and 3 until you have inserted all discs.
To cancel the operation, press the or button. If you do not
insert a disc within 15 seconds, loading will be canceled automatically.
■ DVD hint screen
This screen appears when a DVD
video, DVD audio or video CD is
first selected with the “POWER”
switch in ACCESSORY or ON
mode.
Touch once you have
read the message.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
GS450h_HV_U.book Page 267 Thursday, June 19, 2008 1:44 PM

268
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm

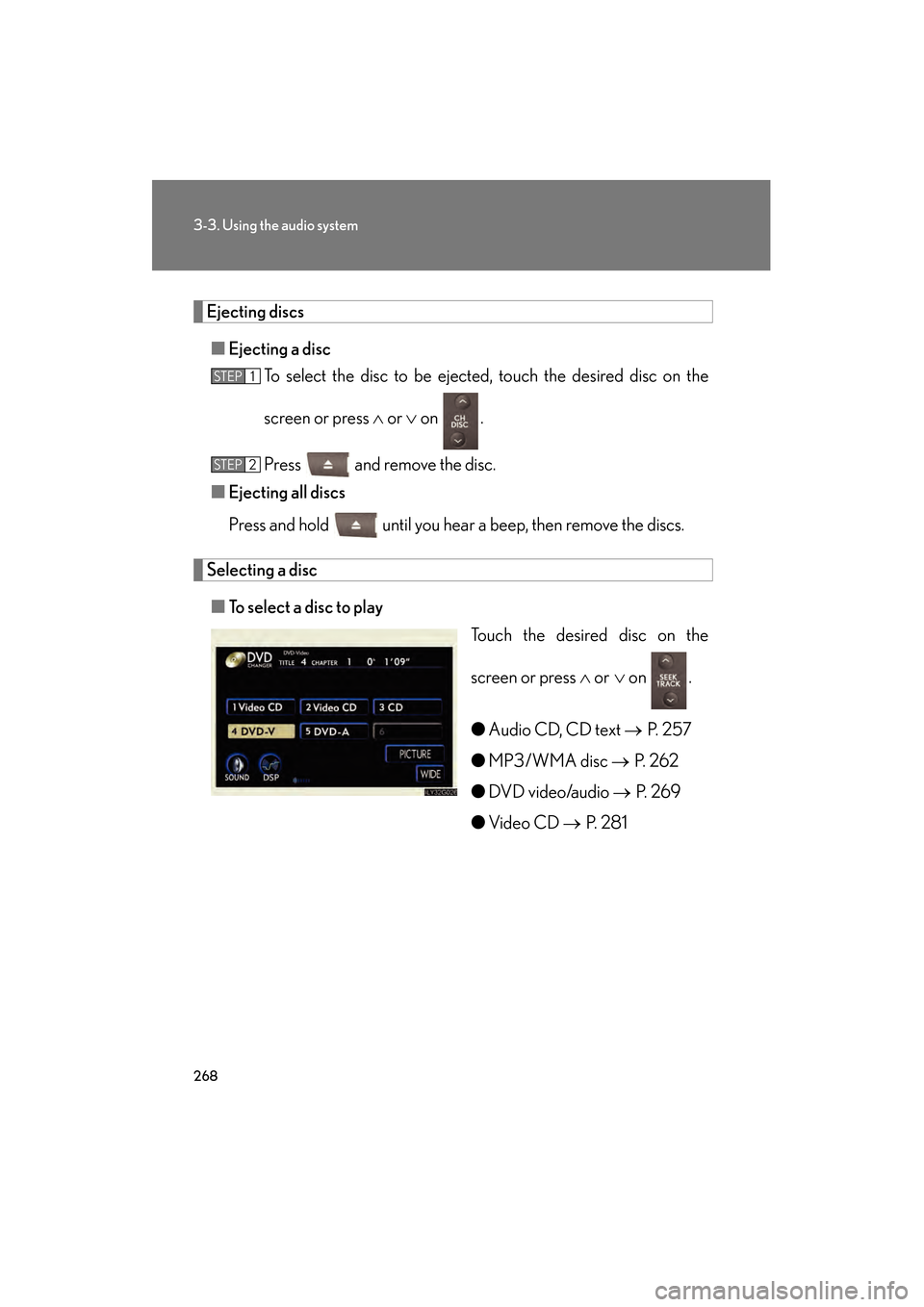

Ejecting discs■ Ejecting a disc
To select the disc to be ejected, touch the desired disc on the
screen or press ∧ or ∨ on .
Press and remove the disc.
■ Ejecting all discs
Press and hold until you hear a beep, then remove the discs.
Selecting a disc
■ To select a disc to play
Touch the desired disc on the
screen or press ∧ or ∨ on .
● Audio CD, CD text → P. 2 5 7
● MP3/WMA disc → P. 2 6 2
● DVD video/audio → P. 2 6 9
● Video CD → P. 2 8 1
STEP1
STEP2
GS450h_HV_U.book Page 268 Thursday, June 19, 2008 1:44 PM
