Lexus GS450h 2008 Owner's Manual

349
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm
■Displaying Bluetooth® information
You can check the device address and device name.
Press .
Touch on the “Information” screen.
Touch on the “Telephone” screen.
Touch on the “Settings” screen.
On the “Select Telephone” screen, select the desired phone and
touch . To change the device name, touch
in the “Device Name”
section, and input the name on the
“Name” screen (max. 20 charac-
ters).
■ To change the Bluetooth
® settings
You can change the device name and passkey.
Press .
Touch on the “Information” screen.
Touch on the “Telephone” screen.
Touch on the “Settings” screen.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP1
STEP2
STEP3
STEP4
GS450h_HV_U.book Page 349 Thursday, June 19, 2008 1:44 PM

350
3-4. Using the hands-free system (for cellular phone)
GS_HV_U
June 19, 2008 1:15 pm
To change the device name, touch
in the “Device Name”
section, and input the name on the
“Name” screen (max. 20 charac-
ters).
To change the passkey, touch
in the “Passkey” section,
and input 4 - 8 digits on the “Pass-
key” screen.
■ Setting the Bluetooth® settings to default
Press .
Touch on the “Information” screen.
Touch on the “Telephone” screen.
Touch on the “Settings” screen.
Touch on the “Bluetooth* Settings” screen.
A confirmation message is displayed. If everything is correct,
touch .
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP5
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
GS450h_HV_U.book Page 350 Thursday, June 19, 2008 1:44 PM

351
3-4. Using the hands-free system (for cellular phone)
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm
■To delete the Bluetooth® settings
Press .
Touch on the “Information” screen.
Touch on the “Telephone” screen.
Touch on the “Settings” screen.
Touch in the “Bluetooth* Telephone” section of the
“Bluetooth* Settings” screen.
On the “Delete Telephone” screen, select the phone to delete.
To check the device address, touch .
If you touch , a confirmation message is displayed. If every-
thing is correct, touch .
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7
GS450h_HV_U.book Page 351 Thursday, June 19, 2008 1:44 PM

352
GS_HV_U
June 19, 2008 1:15 pm
3-5. Using the interior lights
Interior lights list
Illuminated entry system: The various lights automatically turn on/off
according to the presence of the electronic key, whether the doors are
locked/unlocked, whether the doors are open/closed, and the “POWER”
switch mode.
When the instrument panel light control switch is turned to minimum, the foot
lights, inside door handle lights and shift lever light will turn off. (→P. 1 4 9 )
Outer foot light
Steering spot light
Front personal lights
(→P. 3 5 4 )
Shift lever light
Front interior lights ( →P. 353)
Inside door handle lightsRear personal lights (→P. 3 5 4 )
Rear interior lights
Door courtesy lights
Foot light
Front scuff light
GS450h_HV_U.book Page 352 Thursday, June 19, 2008 1:44 PM

353
3-5. Using the interior lights
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

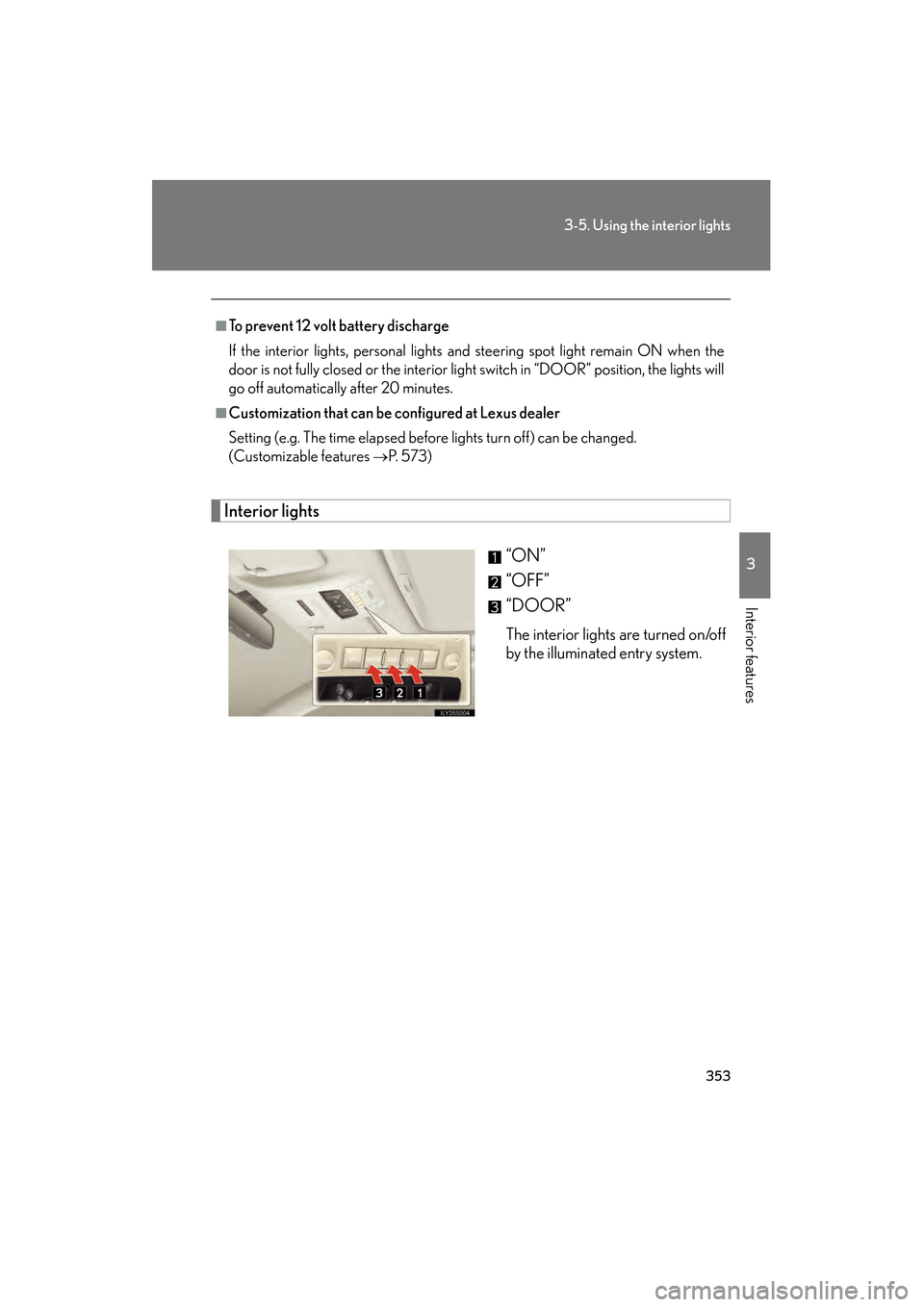

Interior lights“ON”
“OFF”
“DOOR”
The interior lights are turned on/off
by the illuminated entry system.
■To prevent 12 volt battery discharge
If the interior lights, personal lights and steering spot light remain ON when the
door is not fully closed or the interior light switch in “DOOR” position, the lights will
go off automatically after 20 minutes.
■Customization that can be configured at Lexus dealer
Setting (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
→P. 5 7 3 )
GS450h_HV_U.book Page 353 Thursday, June 19, 2008 1:44 PM

354
3-5. Using the interior lights
GS_HV_U
June 19, 2008 1:15 pm

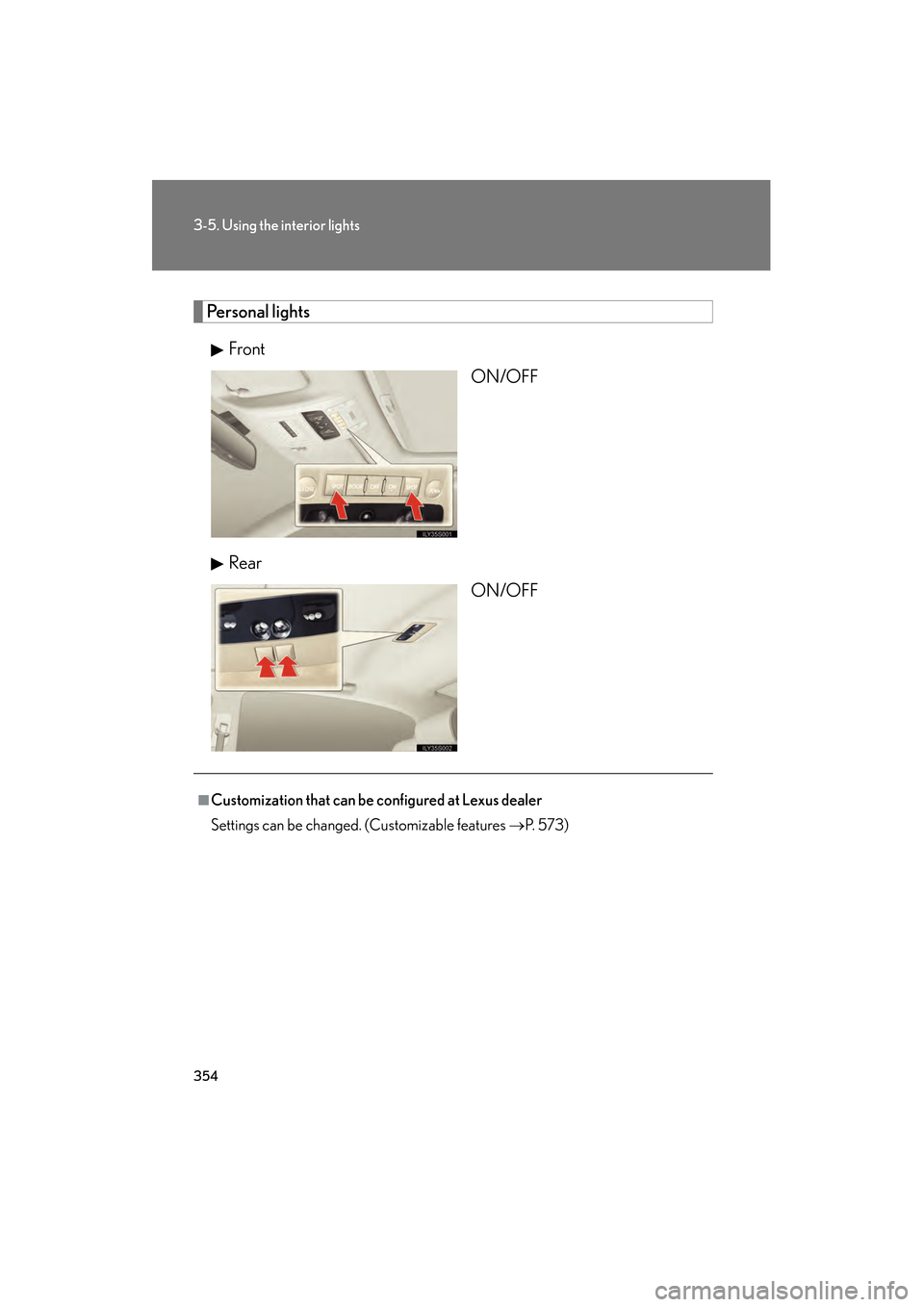

Personal lightsFront ON/OFF
Rear ON/OFF
■Customization that can be configured at Lexus dealer
Settings can be changed. (Customizable features →P. 5 7 3 )
GS450h_HV_U.book Page 354 Thursday, June 19, 2008 1:44 PM

355
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

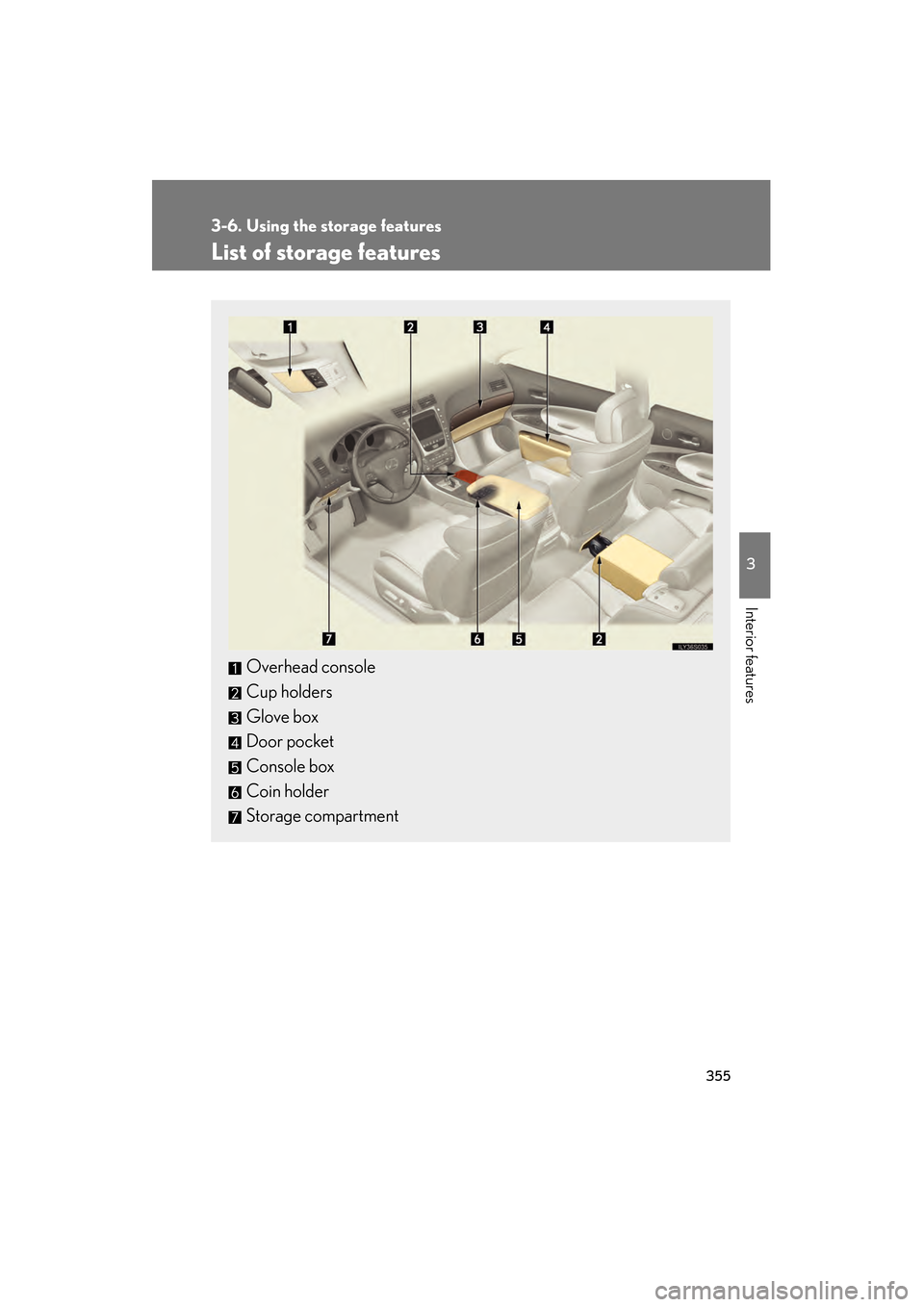

3-6. Using the storage features
List of storage features
Overhead console
Cup holders
Glove box
Door pocket
Console box
Coin holder
Storage compartment
GS450h_HV_U.book Page 355 Thursday, June 19, 2008 1:44 PM

356
3-6. Using the storage features
GS_HV_U
June 19, 2008 1:15 pm
Glove boxOpen (push button)
Unlock with the mechanical key
Lock with the mechanical key
■Glove box light
The glove box light turns on when the headlight switch is on.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( →P. 5 5 )
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
GS450h_HV_U.book Page 356 Thursday, June 19, 2008 1:44 PM

357
3-6. Using the storage features
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

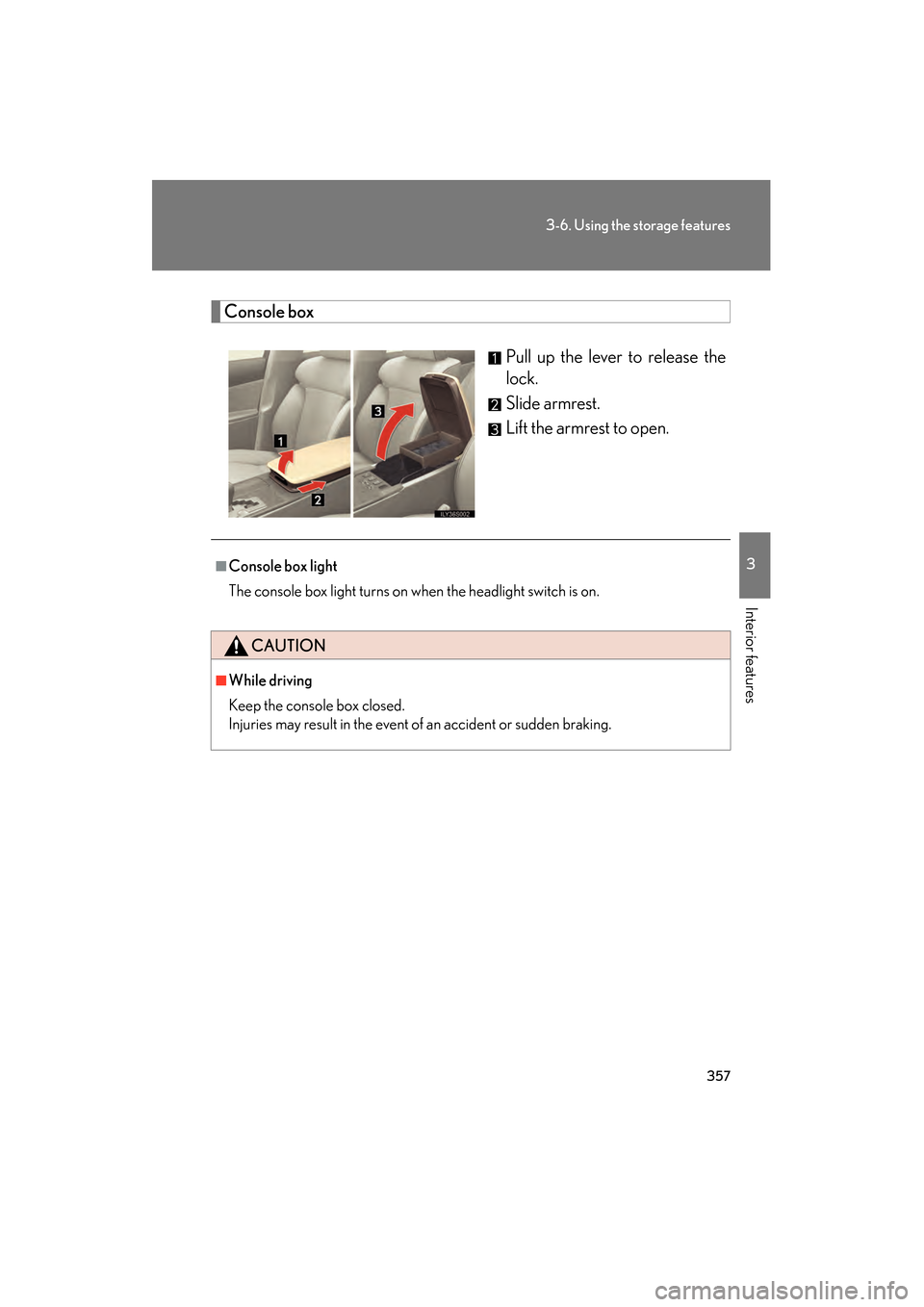

Console boxPull up the lever to release the
lock.
Slide armrest.
Lift the armrest to open.
■Console box light
The console box light turns on when the headlight switch is on.
CAUTION
■While driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
GS450h_HV_U.book Page 357 Thursday, June 19, 2008 1:44 PM

358
3-6. Using the storage features
GS_HV_U
June 19, 2008 1:15 pm

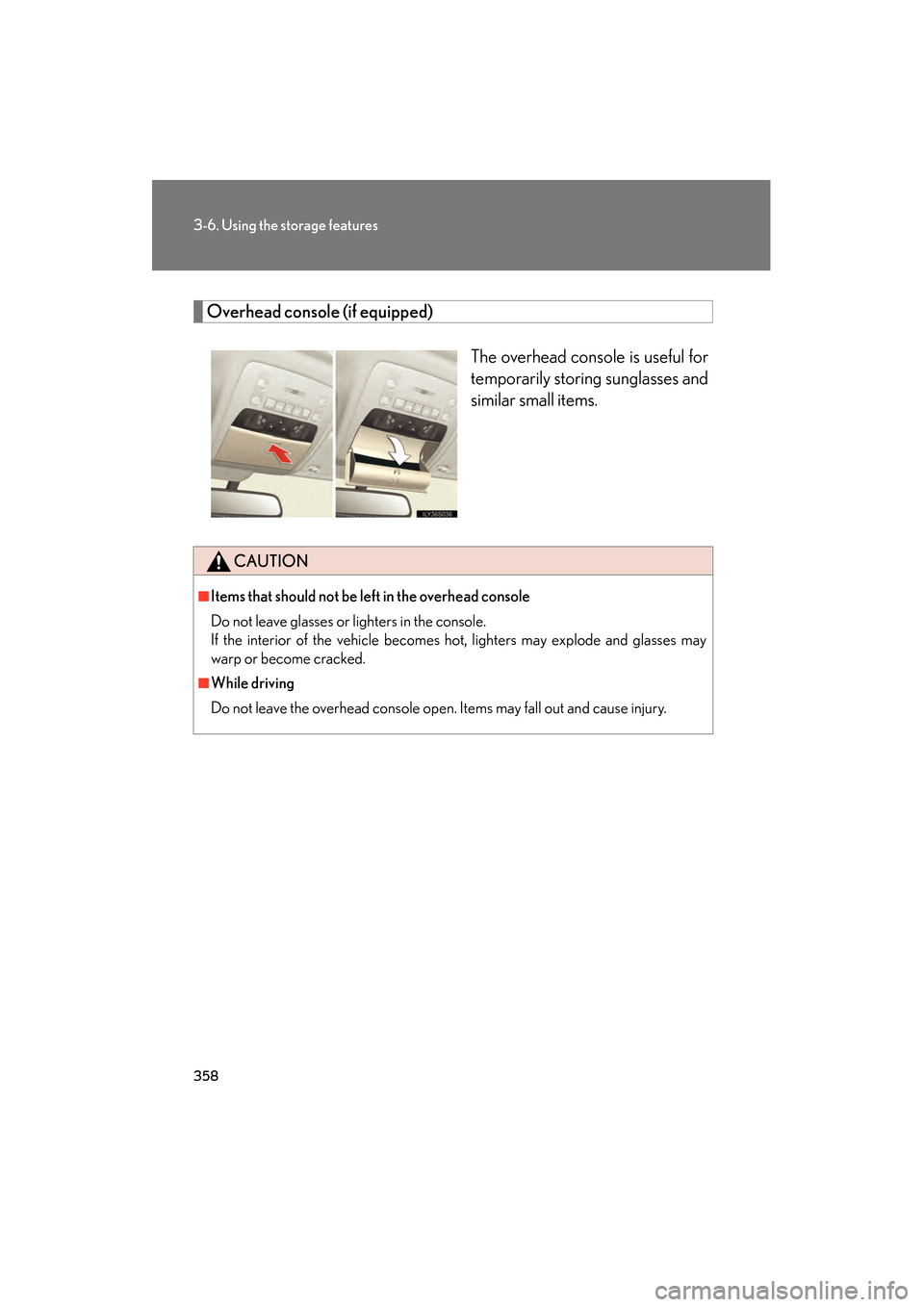

Overhead console (if equipped)
The overhead console is useful for
temporarily storing sunglasses and
similar small items.
CAUTION
■Items that should not be left in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses may
warp or become cracked.
■While driving
Do not leave the overhead console open. Items may fall out and cause injury.
GS450h_HV_U.book Page 358 Thursday, June 19, 2008 1:44 PM
