Lexus GS450h 2008 Owner's Manual

479
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U
June 19, 2008 1:15 pm

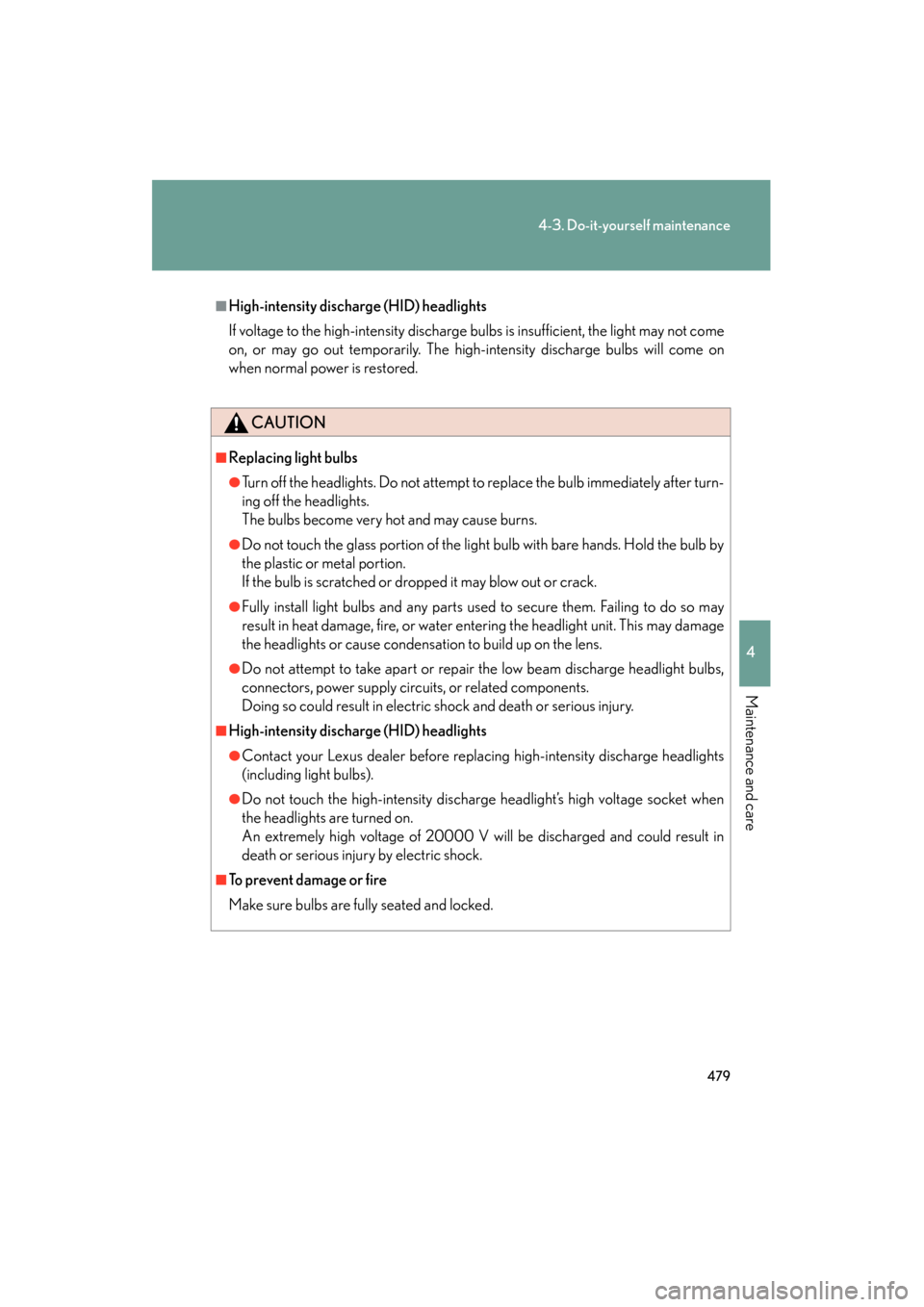

■High-intensity discharge (HID) headlights
If voltage to the high-intensity discharge bulbs is insufficient, the light may not come
on, or may go out temporarily. The high-intensity discharge bulbs will come on
when normal power is restored.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam discharge headlight bulbs,
connectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■High-intensity discharge (HID) headlights
●Contact your Lexus dealer before replacing high-intensity discharge headlights
(including light bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
death or serious injury by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
GS450h_HV_U.book Page 479 Thursday, June 19, 2008 1:44 PM

480
4-3. Do-it-yourself maintenance
GS_HV_U
June 19, 2008 1:15 pm
GS450h_HV_U.book Page 480 Thursday, June 19, 2008 1:44 PM

When trouble arises5
481
GS_HV_U
December 12, 2007 3:30 pm
5-1. Essential information..... 482If your vehicle needs to be towed ........................... 482
If you think something is wrong ..................................... 488
Event data recorder .............. 489 5-2. Steps to take in an
emergency .................... 491
If a warning light turns on or a warning buzzer sounds... ... 491
If a warning message is displayed................................ 500
If you have a flat tire (Vehicles with standard tires) ............... 517
If you have a flat tire (Vehicles with run-flat tires)................ 527
If the hybrid system will not start .................................. 528
If the shift lever cannot be shifted from “P”.................... 529
If you lose your keys .............. 530
If the electronic key does not operate properly........... 531
If the 12 volt battery is discharged ............................ 534
If your vehicle overheats ..... 538
If the vehicle becomes stuck......................................... 541
GS450h_HV_U.book Page 481 Thursday, June 19, 2008 1:44 PM

482
GS_HV_U
June 19, 2008 1:15 pm
5-1. Essential information

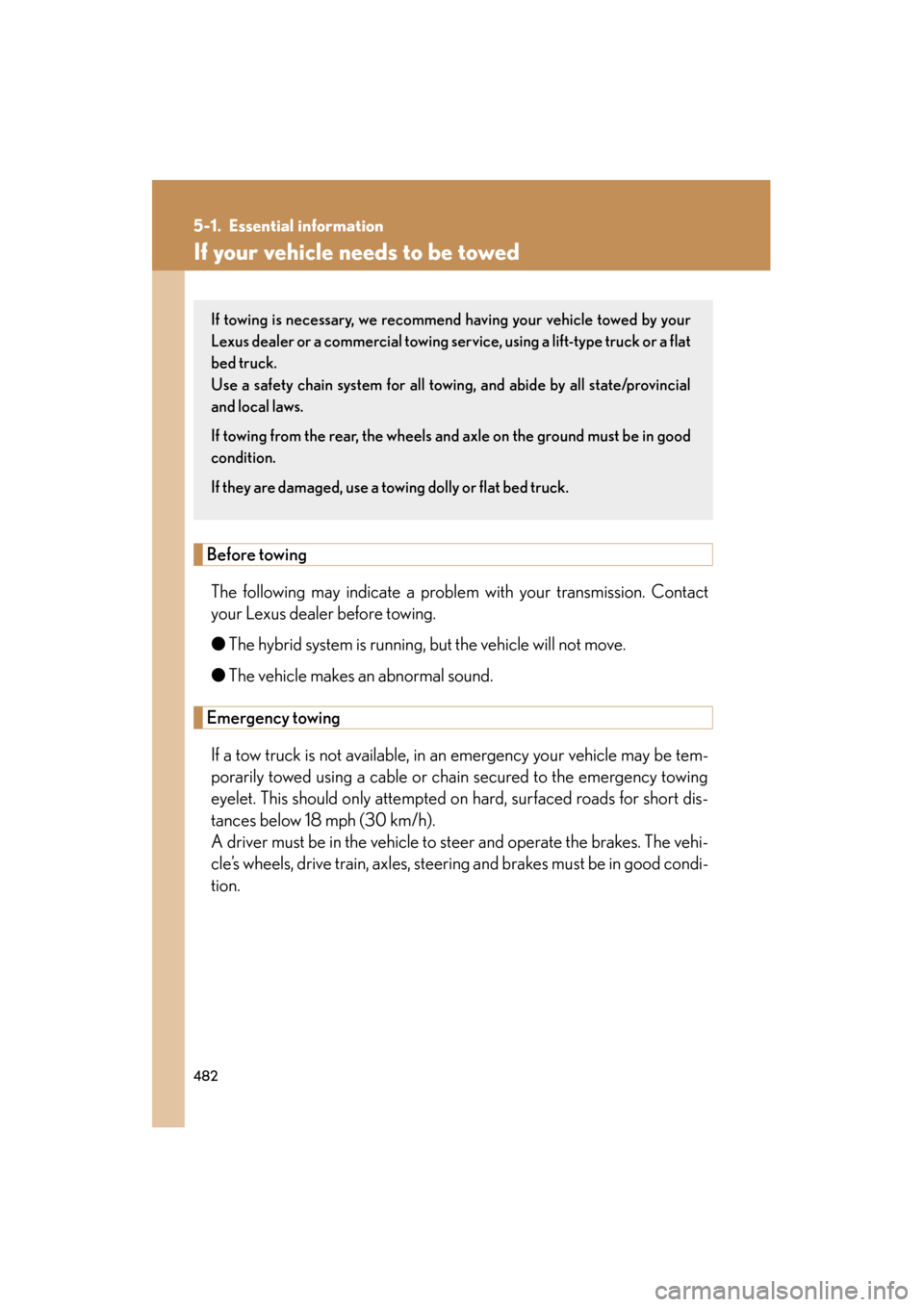

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The hybrid system is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only attempted on hard, surfaced roads for short dis-
tances below 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steer ing and brakes must be in good condi-
tion.
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the rear, the wheels and axle on the ground must be in good
condition.
If they are damaged, use a towing dolly or flat bed truck.
GS450h_HV_U.book Page 482 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
483
5-1. Essential information
GS_HV_U
June 19, 2008 1:15 pm

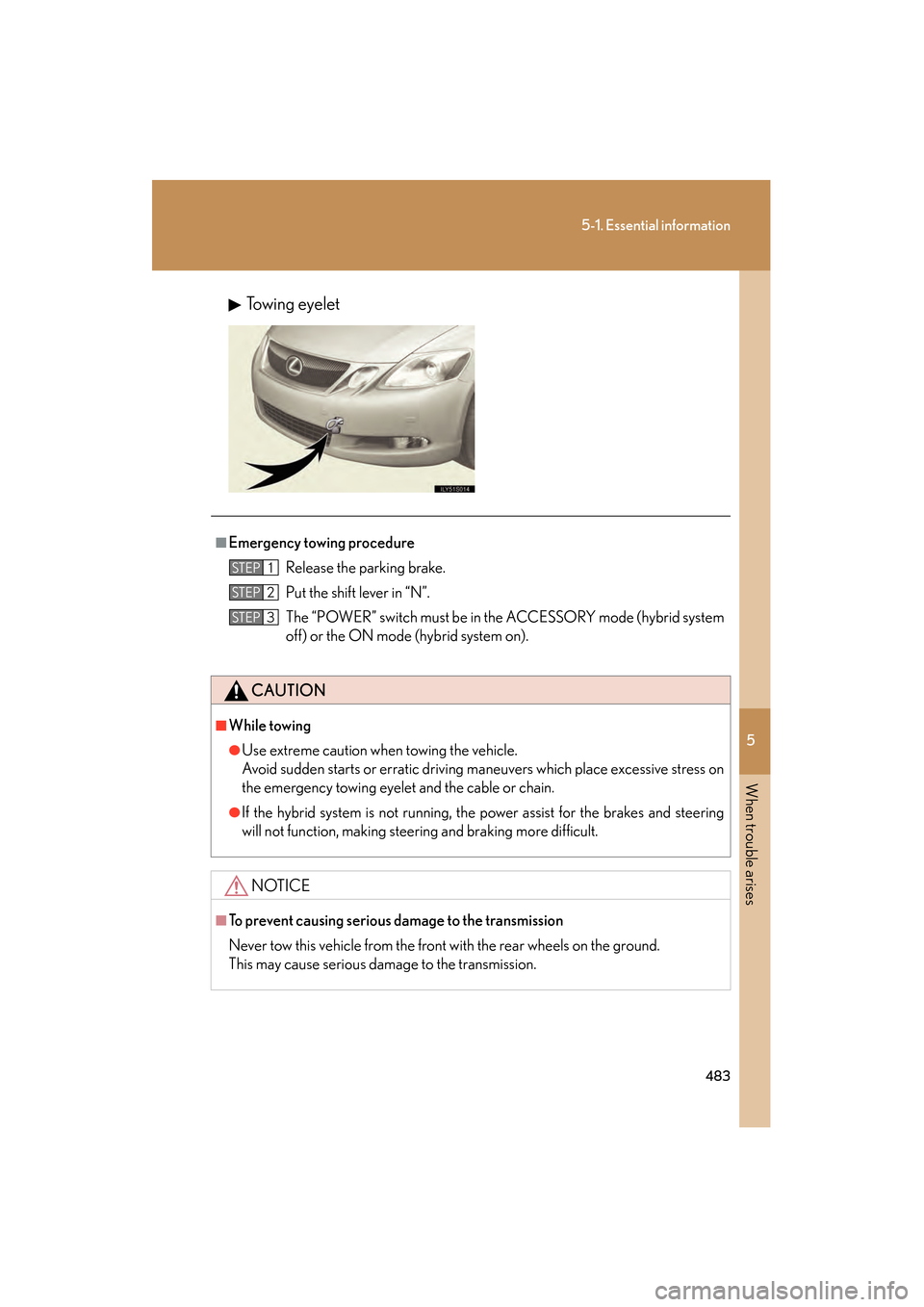

Towing eyelet
■Emergency towing procedureRelease the parking brake.
Put the shift lever in “N”.
The “POWER” switch must be in the ACCESSORY mode (hybrid system
off) or the ON mode (hybrid system on).
CAUTION
■While towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain.
●If the hybrid system is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the front with the rear wheels on the ground.
This may cause serious damage to the transmission.
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 483 Thursday, June 19, 2008 1:44 PM

484
5-1. Essential information
GS_HV_U
June 19, 2008 1:15 pm

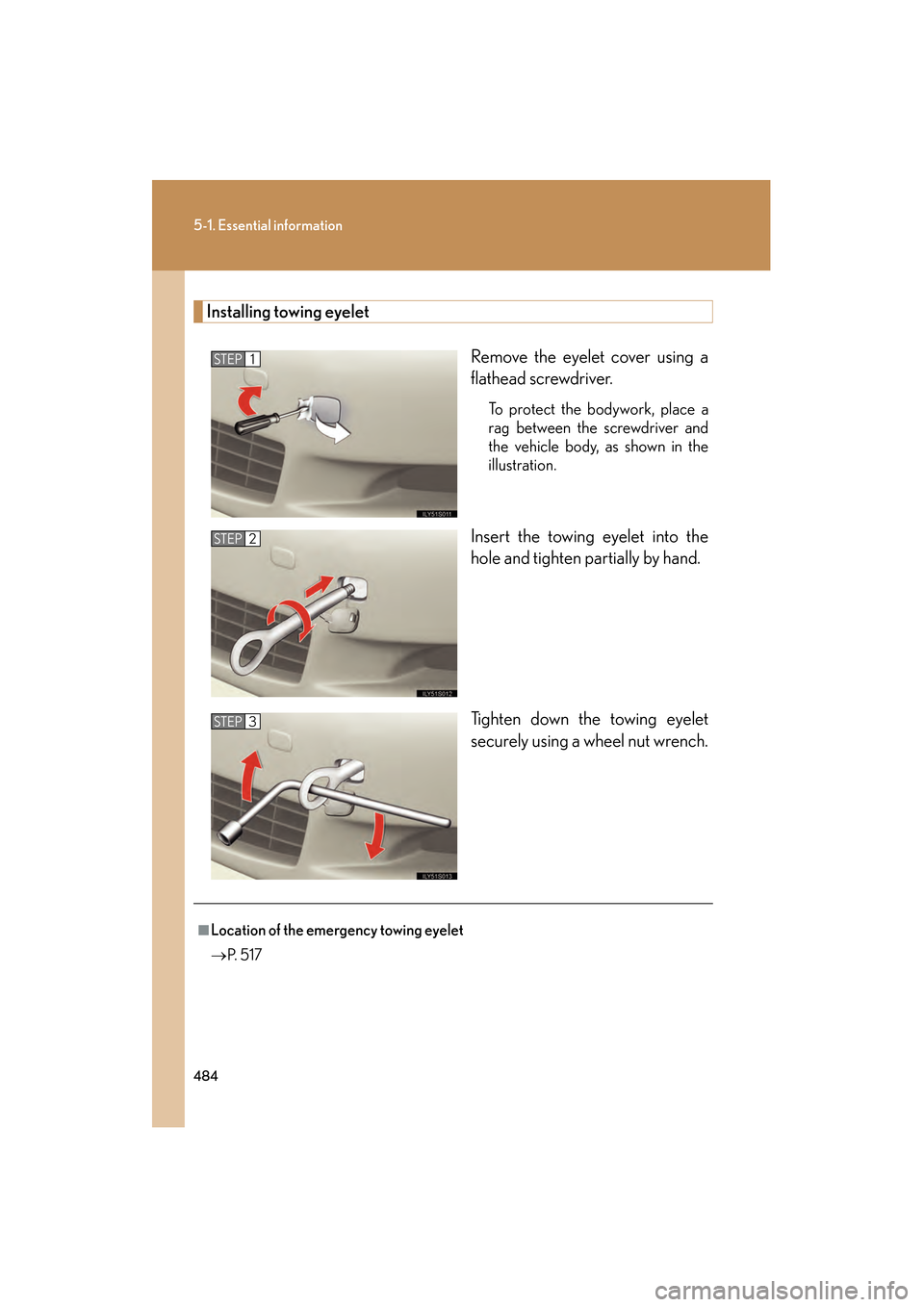

Installing towing eyeletRemove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut wrench.
STEP1
STEP2
STEP3
■Location of the emergency towing eyelet
→P. 5 1 7
GS450h_HV_U.book Page 484 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
485
5-1. Essential information
GS_HV_U
June 19, 2008 1:15 pm

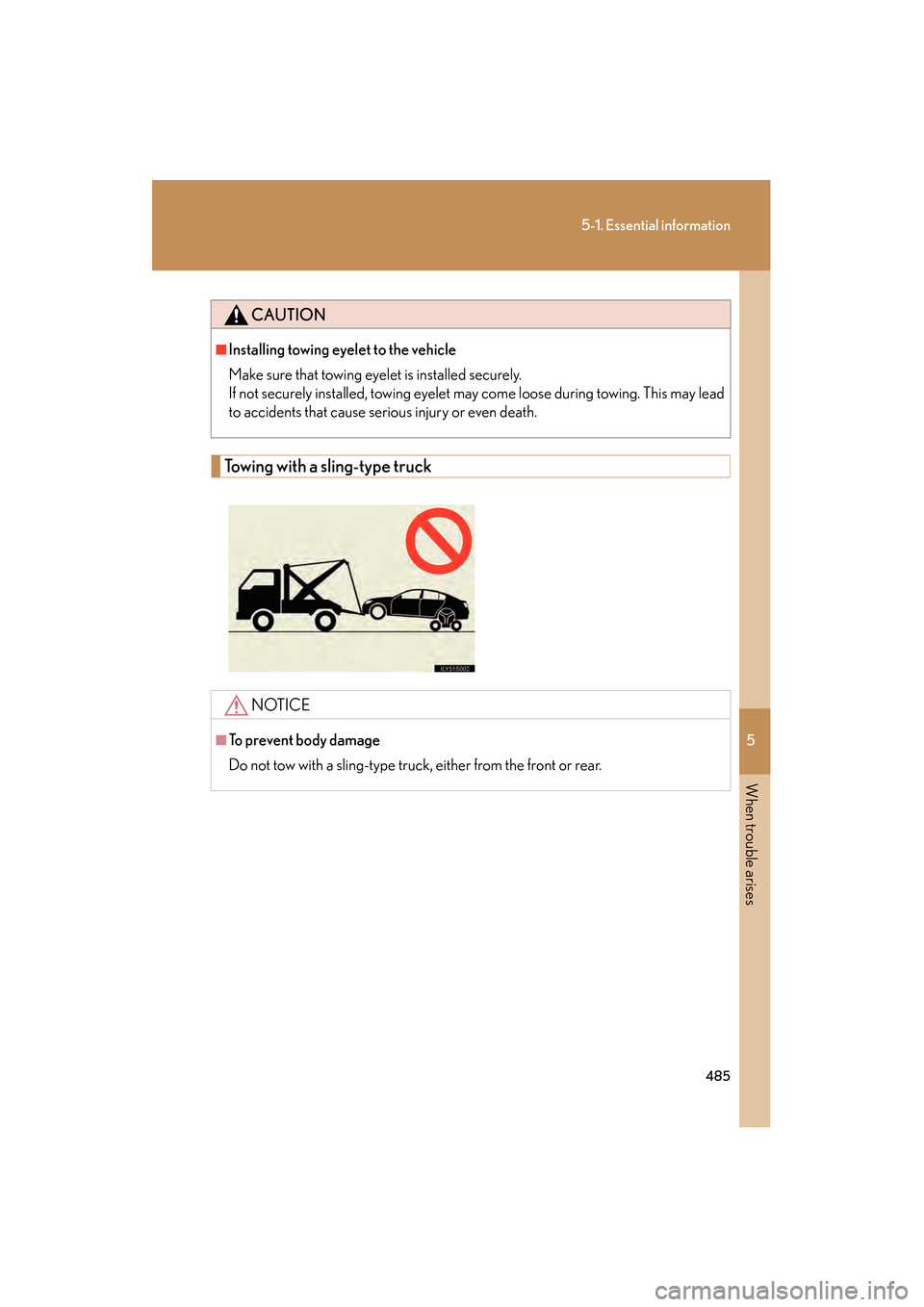

Towing with a sling-type truck
CAUTION
■Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing. This may lead
to accidents that cause serious injury or even death.
NOTICE
■To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.
GS450h_HV_U.book Page 485 Thursday, June 19, 2008 1:44 PM

486
5-1. Essential information
GS_HV_U
June 19, 2008 1:15 pm

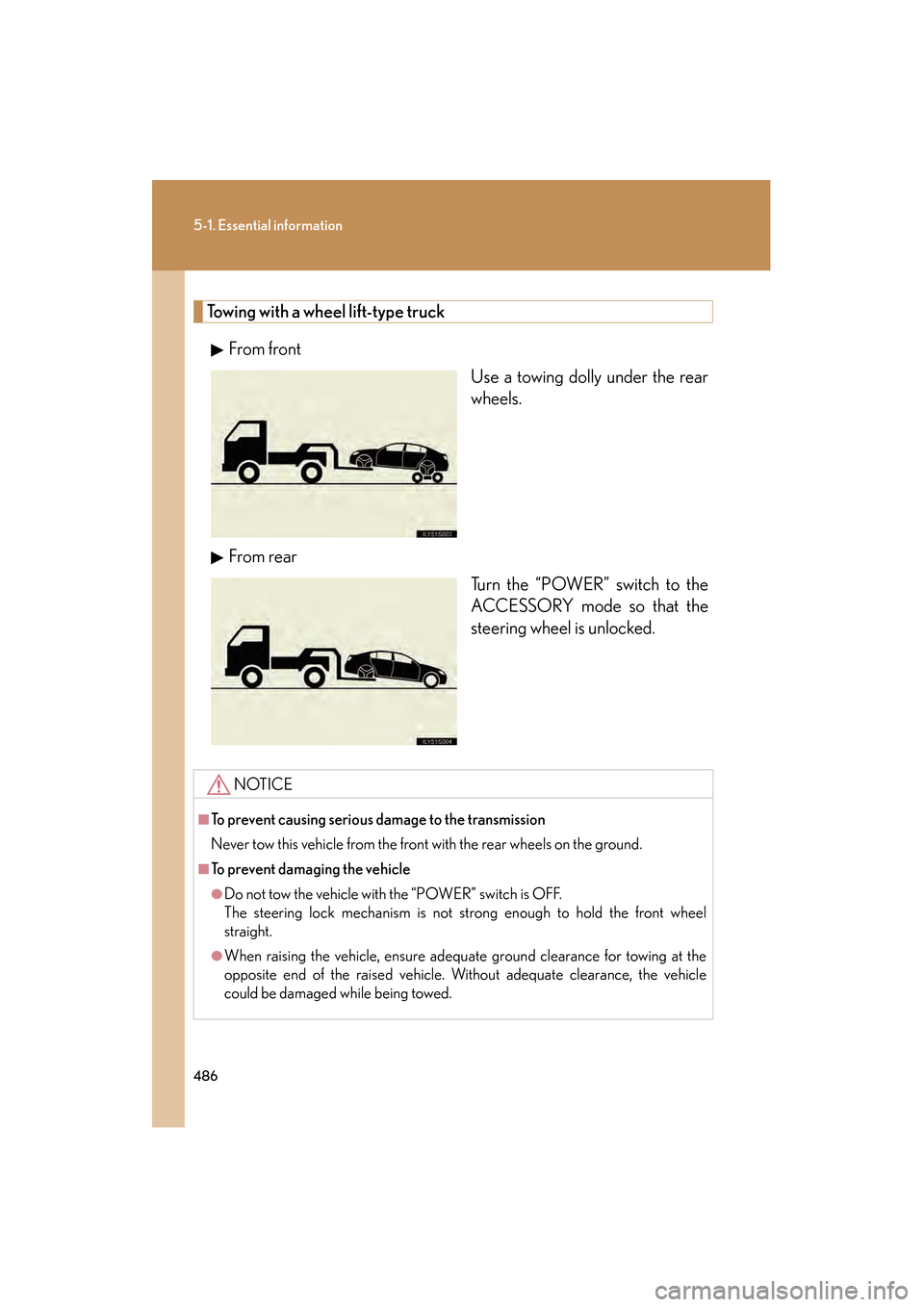

Towing with a wheel lift-type truckFrom front Use a towing dolly under the rear
wheels.
From rear Turn the “POWER” switch to the
ACCESSORY mode so that the
steering wheel is unlocked.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the front with the rear wheels on the ground.
■To prevent damaging the vehicle
●Do not tow the vehicle with the “POWER” switch is OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle
could be damaged while being towed.
GS450h_HV_U.book Page 486 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
487
5-1. Essential information
GS_HV_U
June 19, 2008 1:15 pm

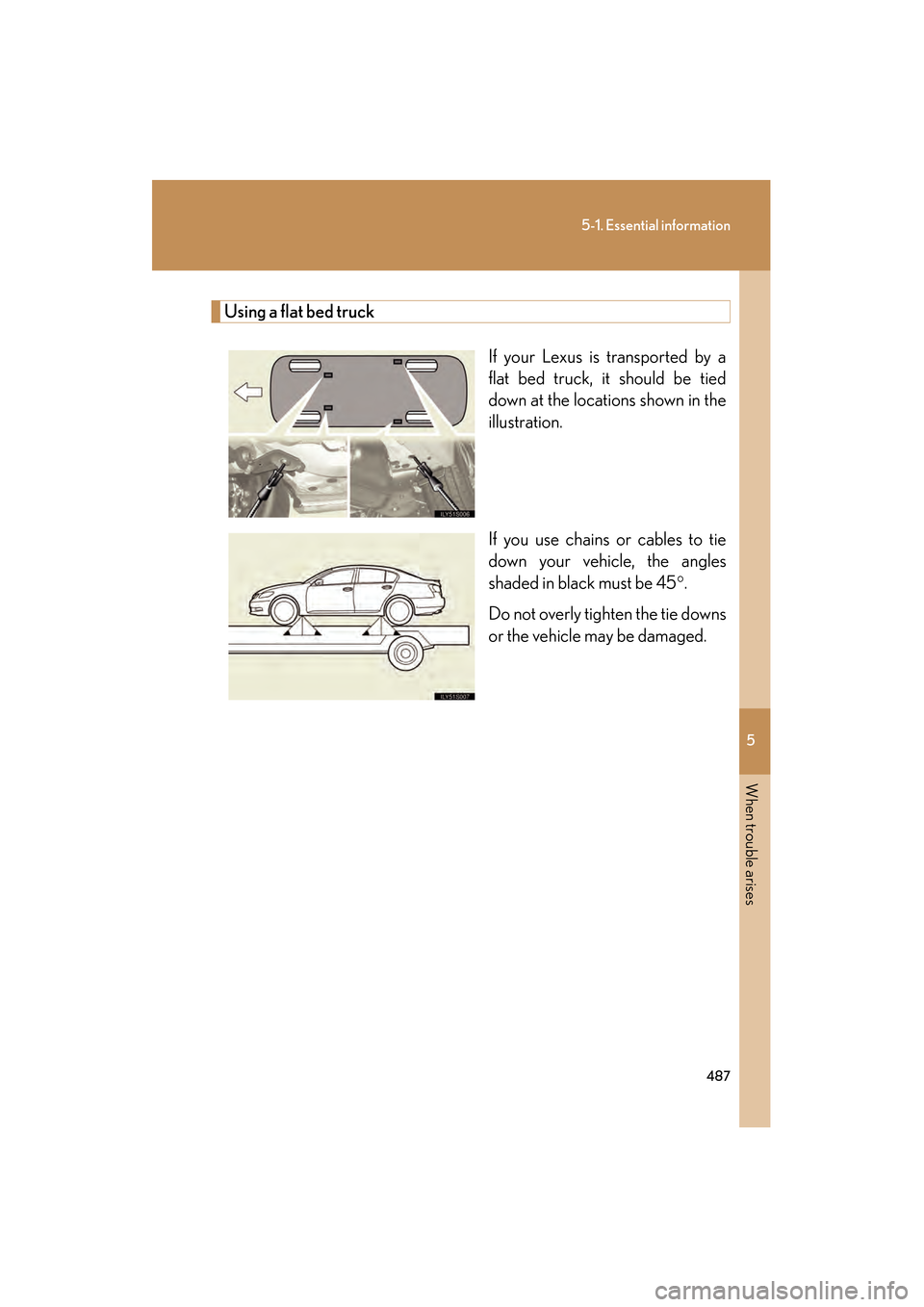

Using a flat bed truckIf your Lexus is transported by a
flat bed truck, it should be tied
down at the locations shown in the
illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie downs
or the vehicle may be damaged.
GS450h_HV_U.book Page 487 Thursday, June 19, 2008 1:44 PM

488
5-1. Essential information
GS_HV_U
June 19, 2008 1:15 pm
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor
