Lexus GS450h 2008 Owner's Manual

5
When trouble arises
499
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm

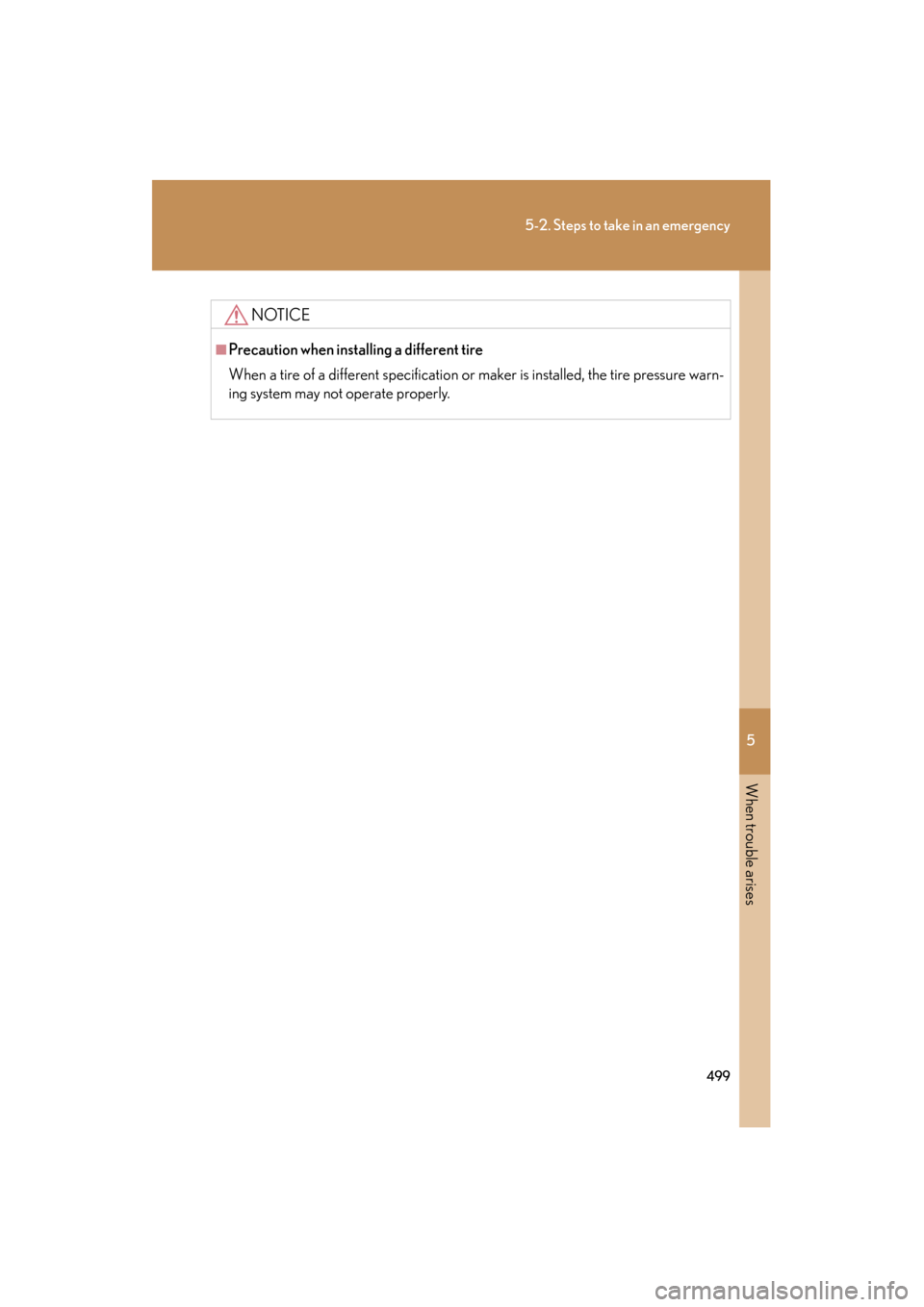

NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.
GS450h_HV_U.book Page 499 Thursday, June 19, 2008 1:44 PM

500
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
If a warning message is displayed
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warnings indicate the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
(Flashing)
Abnormal engine oil pressure. The warning light may turn on if the engine oil pres-
sure is too low.
Malfunction in the hybrid system.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Multi-information display
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
If any of the warning light turns on again after performing the following
actions, contact
your Lexus dealer.
GS450h_HV_U.book Page 500 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
501
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Have the vehicle inspected immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failing to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Malfunction in the automatic headlight leveling sys-
tem.
Malfunction in the rear lights system.
Malfunction in the tire pressure warning system. The tire pressure warning light comes on after blink-
ing for 1 minute.
(Flashing)
Malfunction in the steering lock system.
GS450h_HV_U.book Page 501 Thursday, June 19, 2008 1:44 PM

502
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Wa r n i n g m e s s a g eDetails
(If equipped)
Intuitive parking assist malfunction.The malfunctioning sensor is shown flashing on the
display.
(If equipped)
Malfunction in the active stabilizer suspension sys-
tem.
(If equipped)
Malfunction in the PCS.
(Flashing)
(If equipped)
Malfunction in the radar cruise control system. Stop the vehicle in a safe place. Turn the “POWER”
switch to OFF and then to ON mode again to reset
the cruise control system.
GS450h_HV_U.book Page 502 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
503
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm

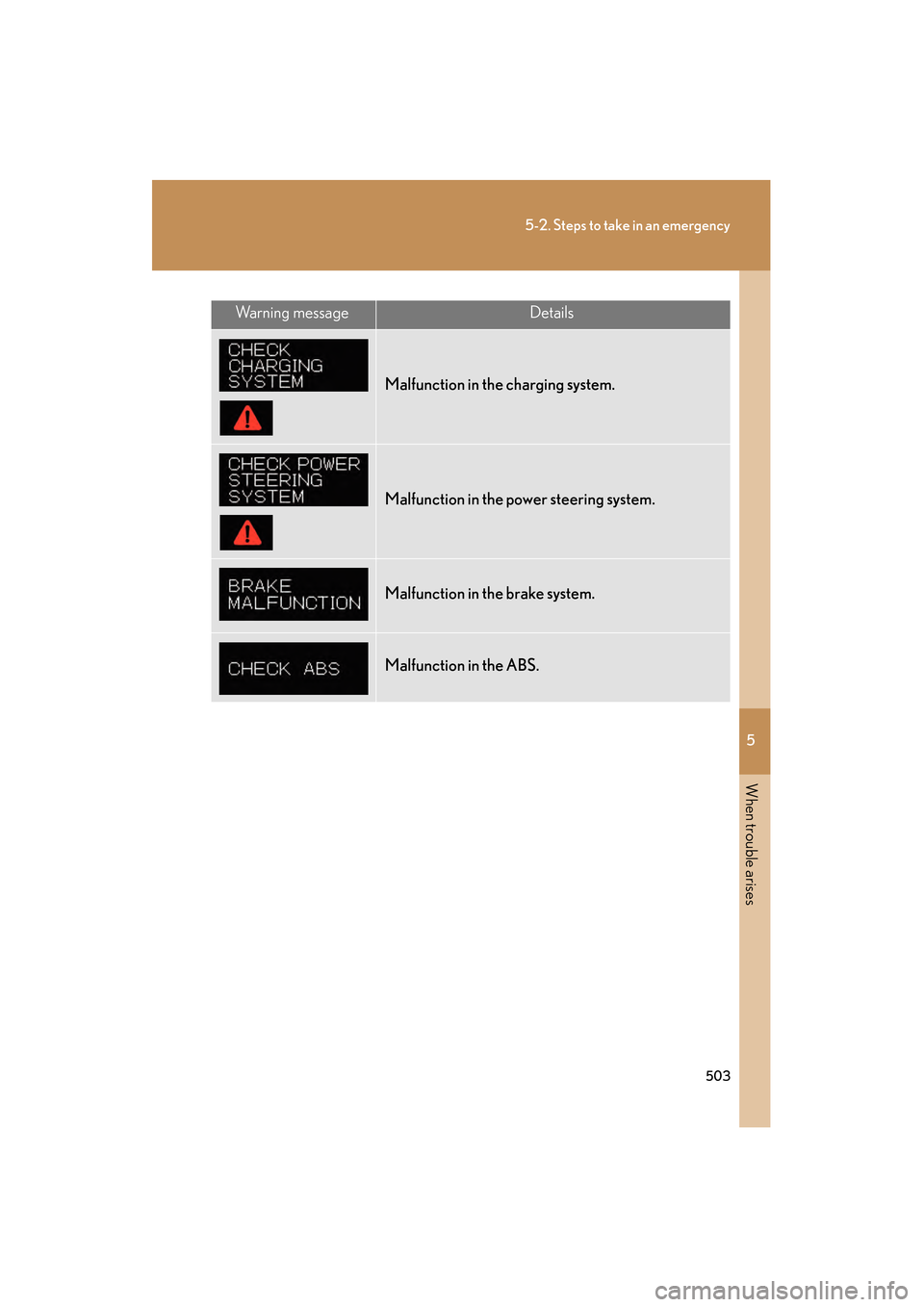

Wa r n i n g m e s s a g eDetails
Malfunction in the charging system.
Malfunction in the power steering system.
Malfunction in the brake system.
Malfunction in the ABS.
GS450h_HV_U.book Page 503 Thursday, June 19, 2008 1:44 PM

504
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Have the vehicle inspected immediately.Failing to investigate the cause of the following warning may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
*: Electronically Controlled Brake System
Wa r n i n g m e s s a g eDetails
Malfunction in the TRAC, VSC or hill-start assist con-
trol system. “CHECK ECB
*” may be displayed at the same time,
or on its own.
(U.S.A.)
(Canada)
Malfunction in the ABS or brake assist system.
“CHECK ECB*” may be displayed at the same time,
or on its own.
Malfunction in the VGRS.
(If equipped, steering guide symbol and
arrows are flashing)
The steering sensor cable is broken and signals can-
not be received.
GS450h_HV_U.book Page 504 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
505
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Have the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
One or more of the doors
is not fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
The hood is not fully
closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.
GS450h_HV_U.book Page 505 Thursday, June 19, 2008 1:44 PM

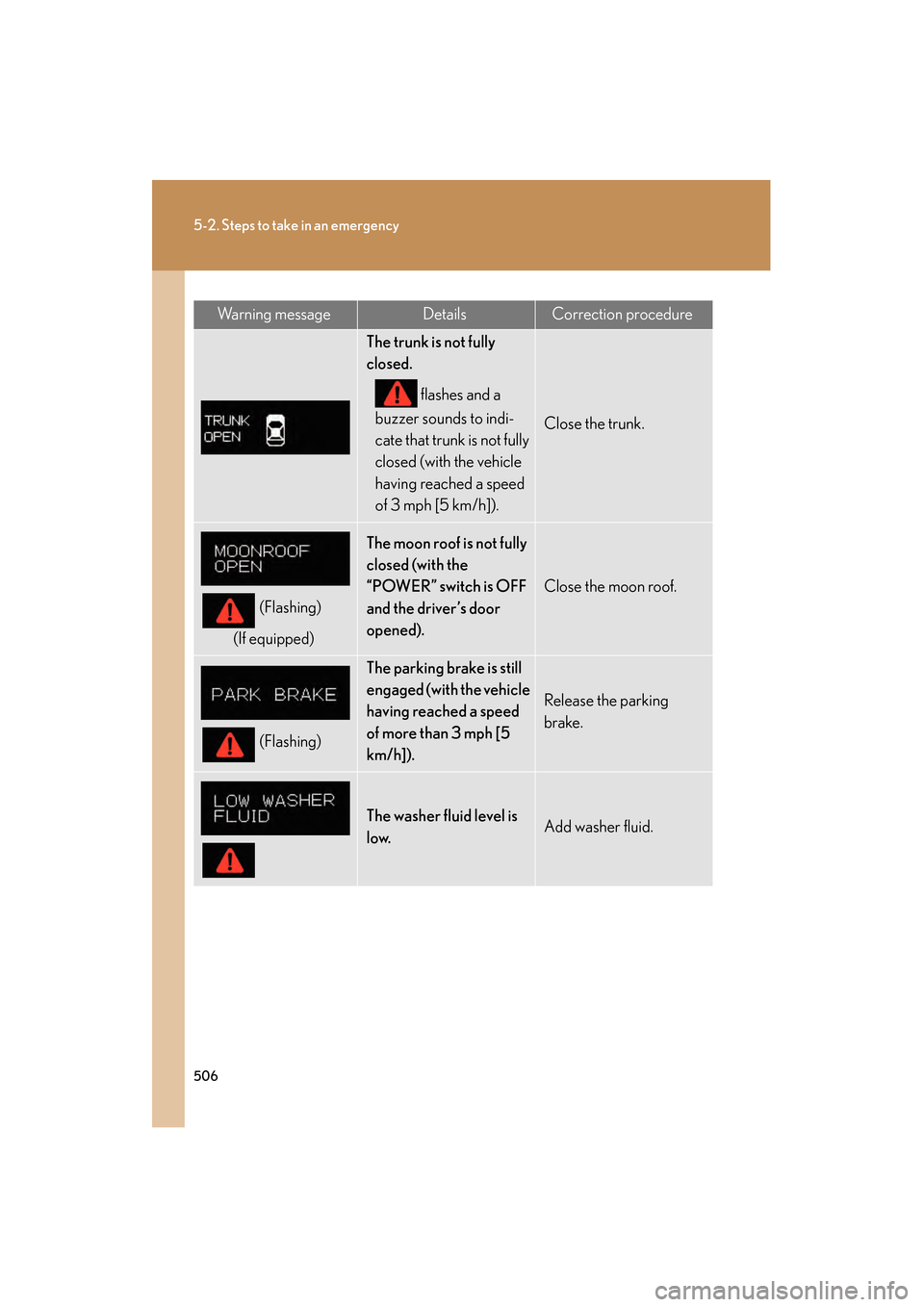

506
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
The trunk is not fully
closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
(If equipped)
The moon roof is not fully
closed (with the
“POWER” switch is OFF
and the driver’s door
opened).
Close the moon roof.
(Flashing)
The parking brake is still
engaged (with the vehicle
having reached a speed
of more than 3 mph [5
km/h]).
Release the parking
brake.
The washer fluid level is
low.Add washer fluid.
GS450h_HV_U.book Page 506 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
507
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
The engine oil level is low.Check the engine oil level,
and add if necessary.
Low tire inflation pres-
sure.Check the tire inflation
pressure, and adjust to the
appropriate level.
(U.S.A. only)
The engine oil should be
changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
GS450h_HV_U.book Page 507 Thursday, June 19, 2008 1:44 PM

508
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped)
Intuitive parking assist is
dirty or covered with ice.Clean the sensor.
(Flashing)
(If equipped)
The PCS is not currently
functional.
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(Flashing)
(If equipped)
The radar cruise control
sensor is dirty or covered
with ice.
Clean the sensor.
(Flashing)
(If equipped)
The radar cruise control
system is unable to judge
vehicle-to-vehicle dis-
tance.
•Turn the mode select switch to either the nor-
mal or power mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
GS450h_HV_U.book Page 508 Thursday, June 19, 2008 1:44 PM
