■Overheating
In the following situations, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
●The message “HYBRID SYSTEM OVERHEAT” is displayed on the multi-infor-
mation display.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●Keep hands and clothing away from the fan and engine drive belt while the hybrid
system is running.
●Do not loosen the radiator cap while the hybrid system and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add coolant if necessary.
Water can be used in an emer-
gency measure if coolant is
unavailable. (→P. 5 4 8 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6
GS450h_HV_U.book Page 539 Thursday, June 19, 2008 1:44 PM

540
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
NOTICE
■When adding coolant
Wait until the hybrid system has cooled down before adding coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid system too
quickly can cause damage to the hybrid system.
GS450h_HV_U.book Page 540 Thursday, June 19, 2008 1:44 PM

5
When trouble arises
541
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
Stop the hybrid system. Set the parking brake and shift the shift
lever in “P”.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the hybrid system.
Shift the shift lever to the “D” or “R” position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC/VSC if these functions are hampering your attempts
to free the vehicle. (→P. 202)
STEP1
STEP2
STEP3
STEP4
STEP5
GS450h_HV_U.book Page 541 Thursday, June 19, 2008 1:44 PM

542
5-2. Steps to take in an emergency
GS_HV_U
June 19, 2008 1:15 pm

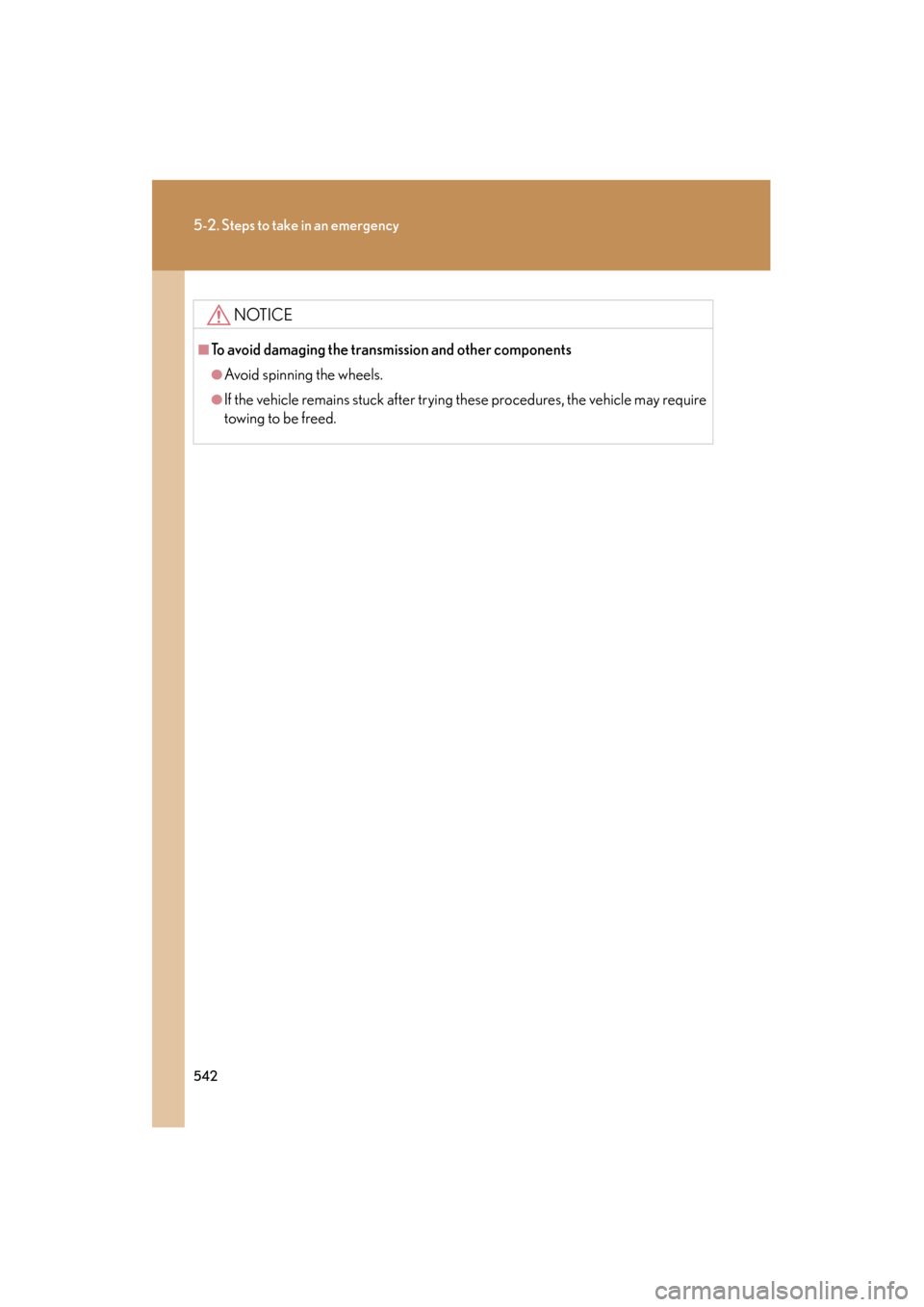

NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.
GS450h_HV_U.book Page 542 Thursday, June 19, 2008 1:44 PM

Vehicle specifications6
543
GS_HV_U
December 12, 2007 3:30 pm
6-1. Specifications................. 544Maintenance data (fuel, oil level, etc.) .............. 544
Fuel information ..................... 553
Tire information...................... 556
6-2. Customization................ 569 Customizable features ........ 569
6-3. Initialization ................... 575 Items to initialize ..................... 575
GS450h_HV_U.book Page 543 Thursday, June 19, 2008 1:44 PM

544
GS_HV_U
June 19, 2008 1:15 pm
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length190.7 in. (4845 mm)
Overall width71.6 in. (1820 mm)
Overall height *56.1 in. (1425 mm)
Wheelbase112.2 in. (2850 mm)
Tr e a dFront60.4 in. (1535 mm)
Rear60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage)815 lb. (370 kg)
GS450h_HV_U.book Page 544 Thursday, June 19, 2008 1:44 PM

545
6-1. Specifications
6
Vehicle specifications
GS_HV_U
June 19, 2008 1:15 pm

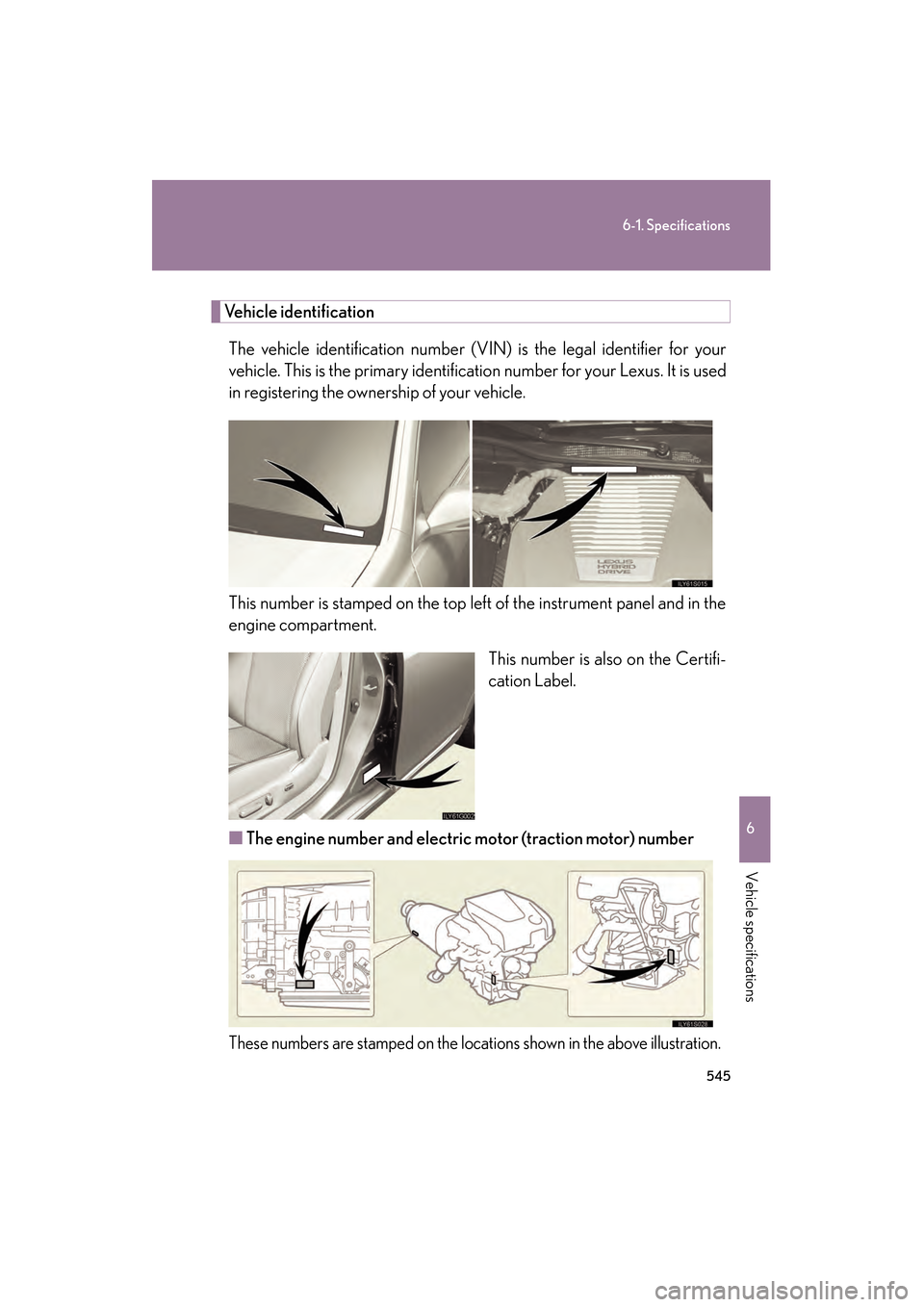

Vehicle identificationThe vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the Certifi-
cation Label.
■ The engine number and electric motor (traction motor) number
These numbers are stamped on the locations shown in the above illustration.
GS450h_HV_U.book Page 545 Thursday, June 19, 2008 1:44 PM

546
6-1. Specifications
GS_HV_U
June 19, 2008 1:15 pm

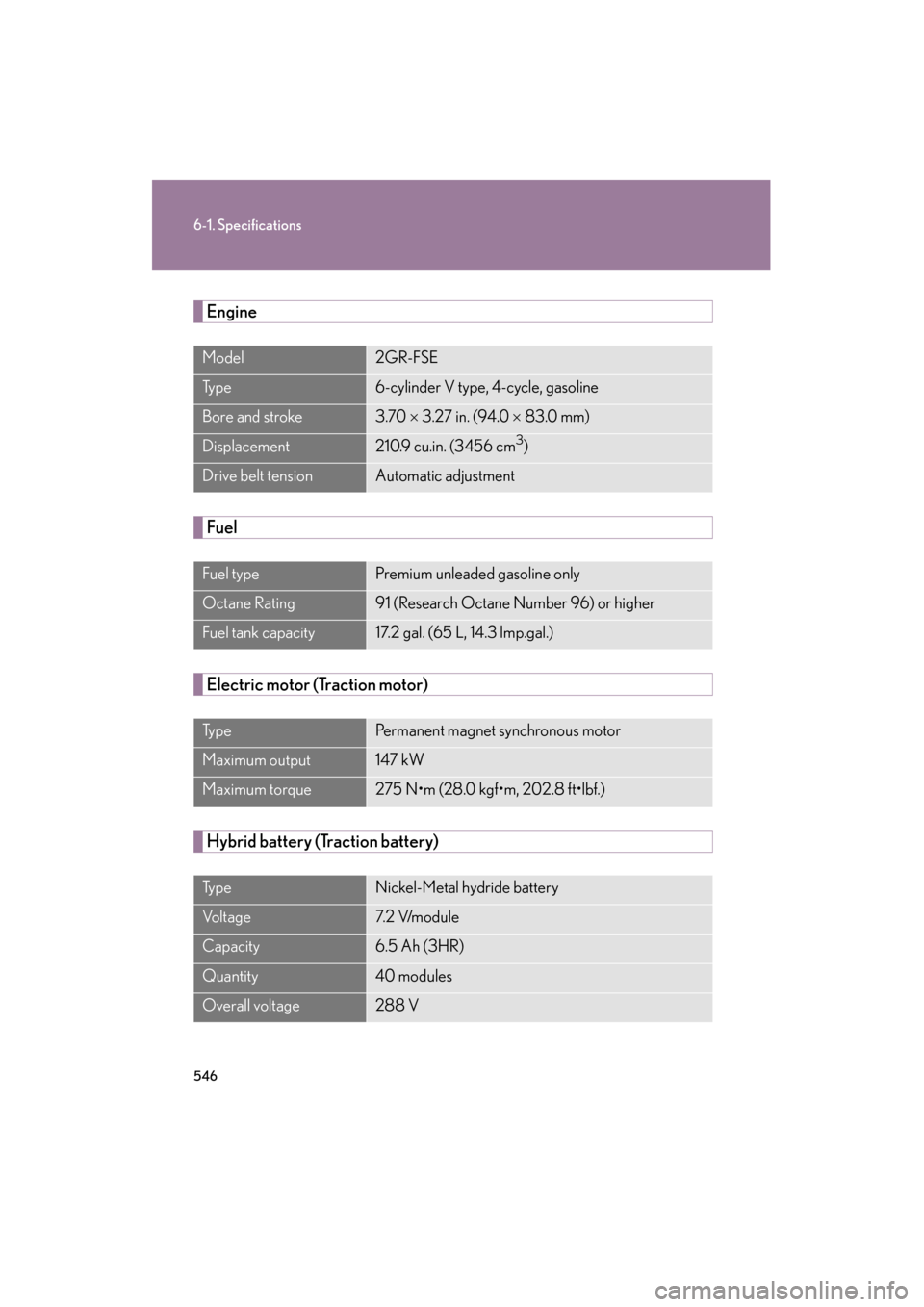

Engine
Fuel
Electric motor (Traction motor)
Hybrid battery (Traction battery)
Model2GR-FSE
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity17.2 gal. (65 L, 14.3 lmp.gal.)
Ty p ePermanent magnet synchronous motor
Maximum output147 kW
Maximum torque275 N•m (28.0 kgf•m, 202.8 ft•lbf.)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity40 modules
Overall voltage288 V
GS450h_HV_U.book Page 546 Thursday, June 19, 2008 1:44 PM

547
6-1. Specifications
6
Vehicle specifications
GS_HV_U
June 19, 2008 1:15 pm

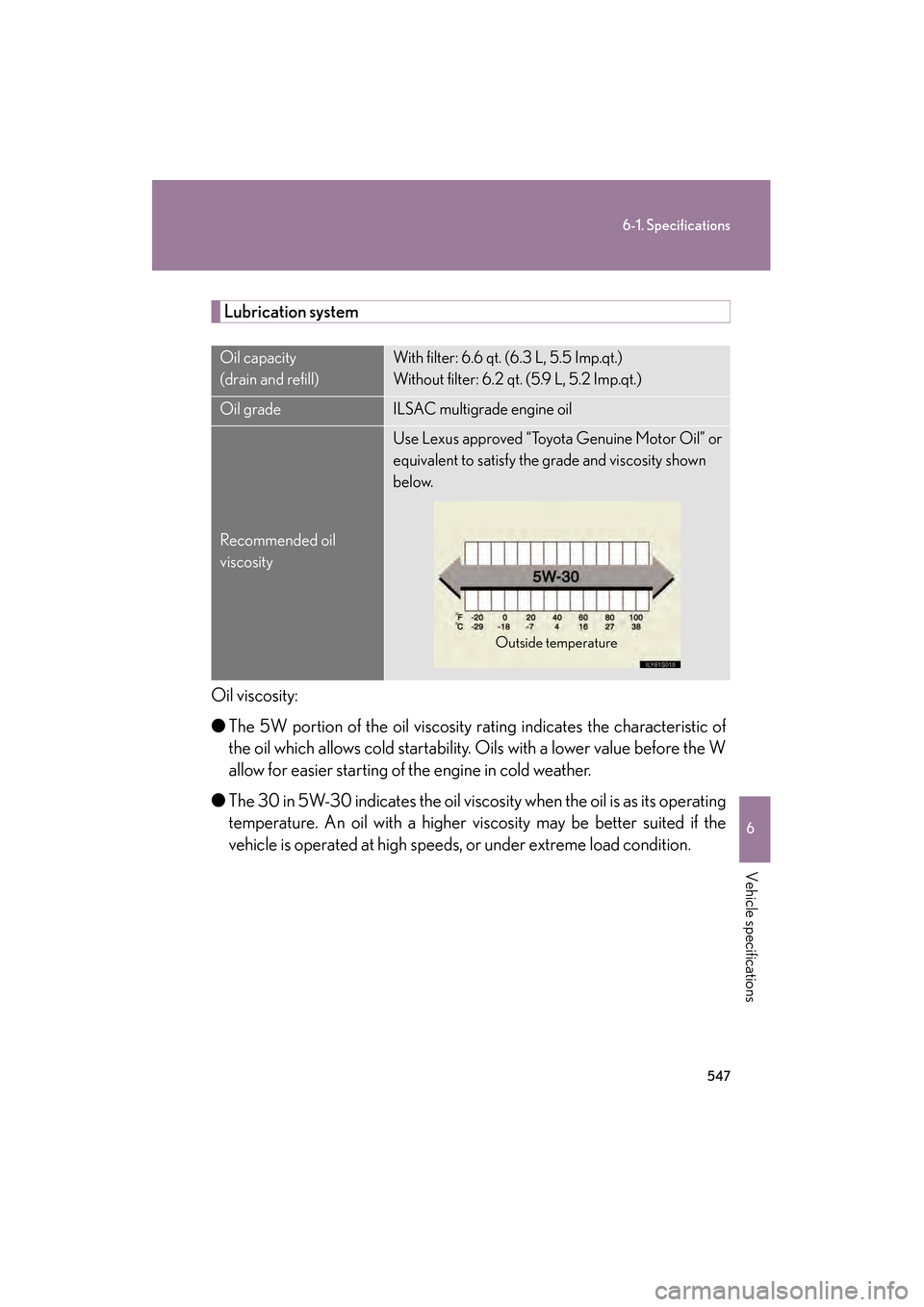

Lubrication system
Oil viscosity:
● The 5W portion of the oil viscosity rating indicates the characteristic of
the oil which allows cold startability. Oils with a lower value before the W
allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is as its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load condition.
Oil capacity
(drain and refill)With filter: 6.6 qt. (6.3 L, 5.5 Imp.qt.)
Without filter: 6.2 qt. (5.9 L, 5.2 Imp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil
viscosity
Use Lexus approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the grade and viscosity shown
below.
Outside temperature
GS450h_HV_U.book Page 547 Thursday, June 19, 2008 1:44 PM

548
6-1. Specifications
GS_HV_U
June 19, 2008 1:15 pm
Cooling system
Ignition system
Capacity
Gasoline engine
Po w e r c o n t ro l u n i t9.8 qt. (9.3 L, 8.1 lmp.qt.)
3.0 qt. (2.9 L, 2.5 lmp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
