display Lexus GS450h 2008 Workshop Manual

249
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

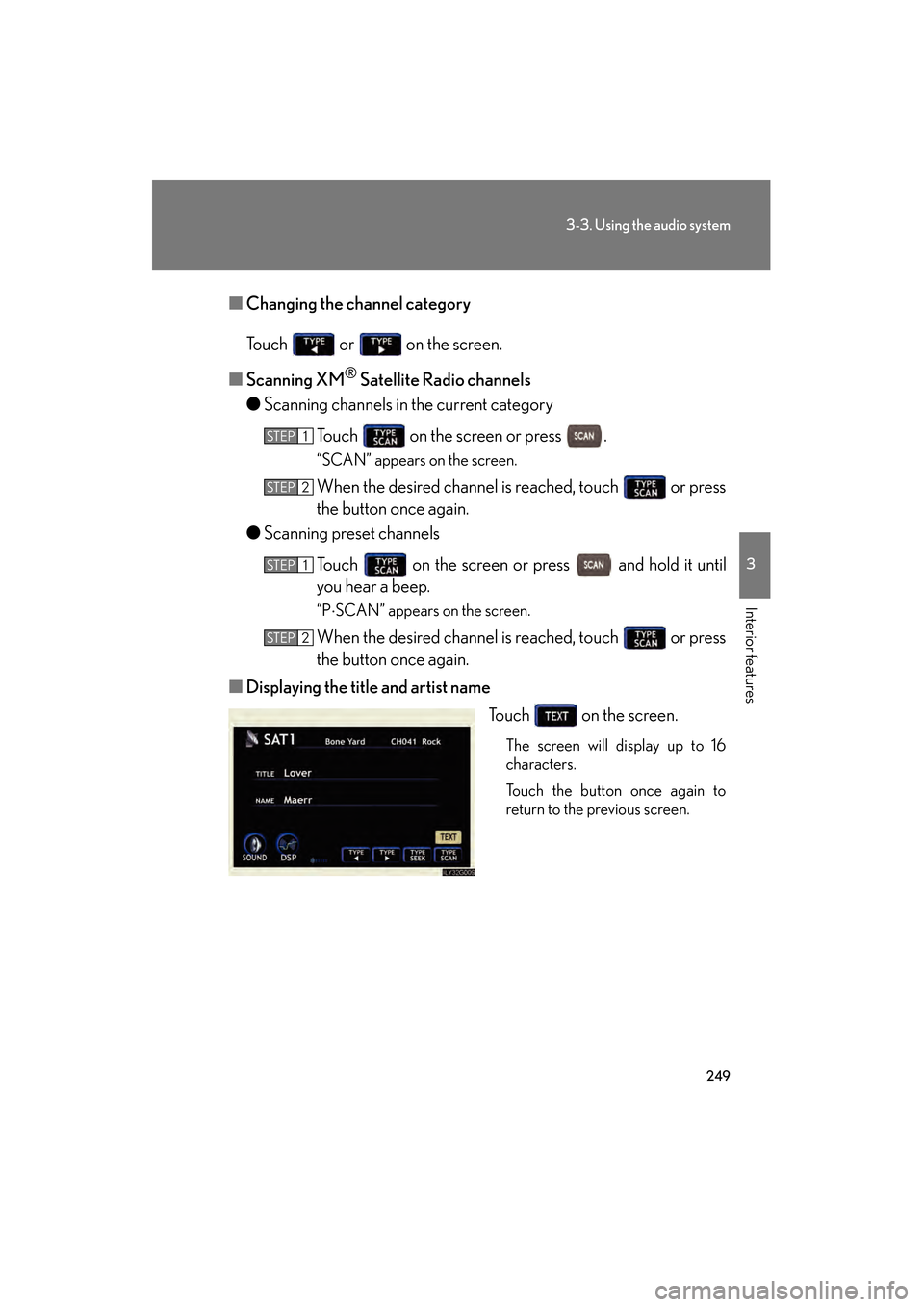

■Changing the channel category
Touch or on the screen.
■ Scanning XM
® Satellite Radio channels
● Scanning channels in the current category
Touch on the screen or press .
“SCAN” appears on the screen.
When the desired channel is reached, touch or press
the button once again.
● Scanning preset channels
Touch on the screen or press and hold it until
you hear a beep.
“P⋅SCAN” appears on the screen.
When the desired channel is reached, touch or press
the button once again.
■ Displaying the title and artist name
Touch on the screen.
The screen will display up to 16
characters.
Touch the button once again to
return to the previous screen.
STEP1
STEP2
STEP1
STEP2
GS450h_HV_U.book Page 249 Thursday, June 19, 2008 1:44 PM

253
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

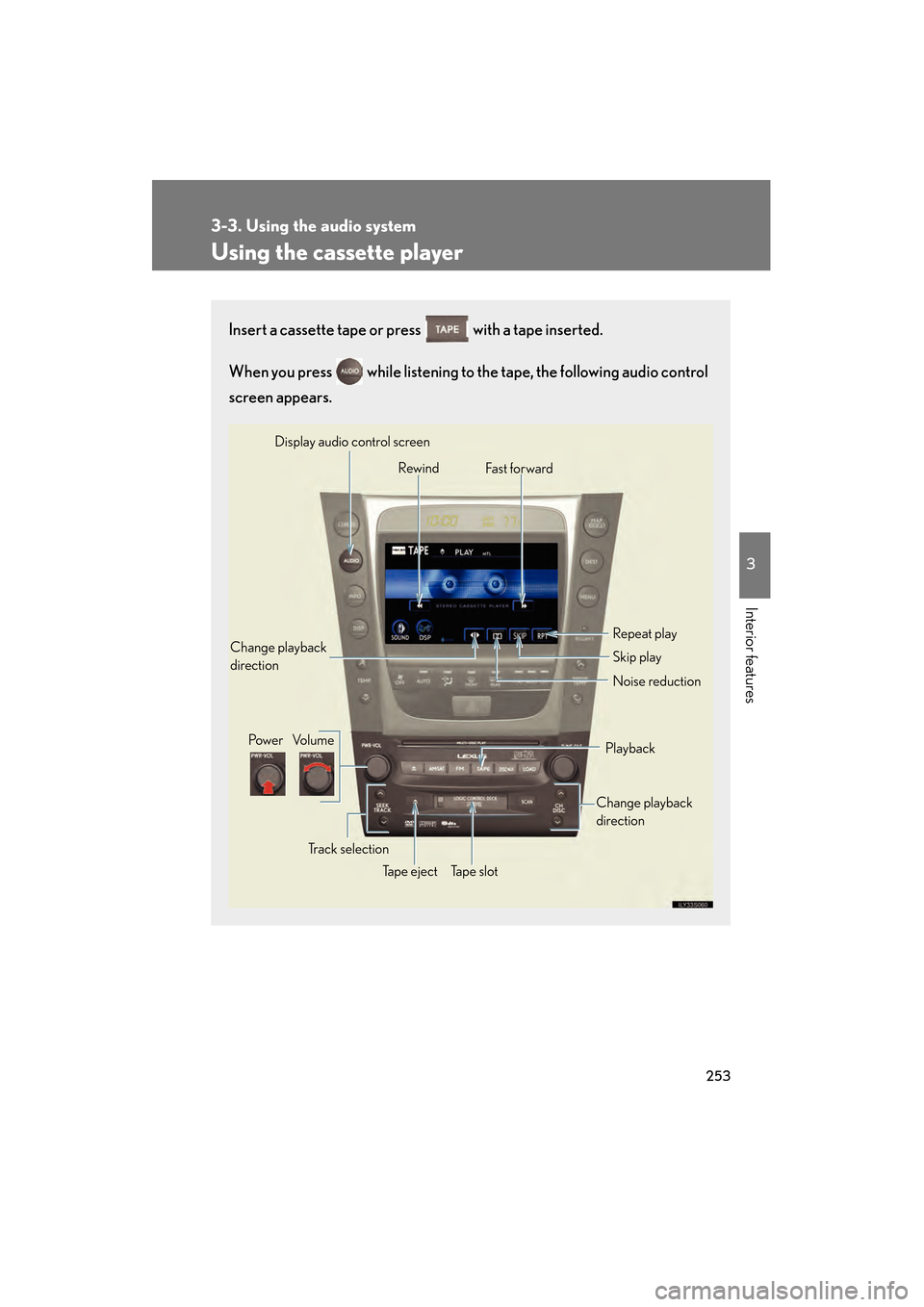

Using the cassette player
Insert a cassette tape or press with a tape inserted.
When you press while listening to the tape, the following audio control
screen appears.
Display audio control screen
Powe r Vo l u m e Change playback
direction
Tape eject Playback
Skip play
Ta p e s l o t Repeat play
Track selection
Change playback
direction
Noise reduction
Rewind
Fas t for ward
GS450h_HV_U.book Page 253 Thursday, June 19, 2008 1:44 PM

257
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

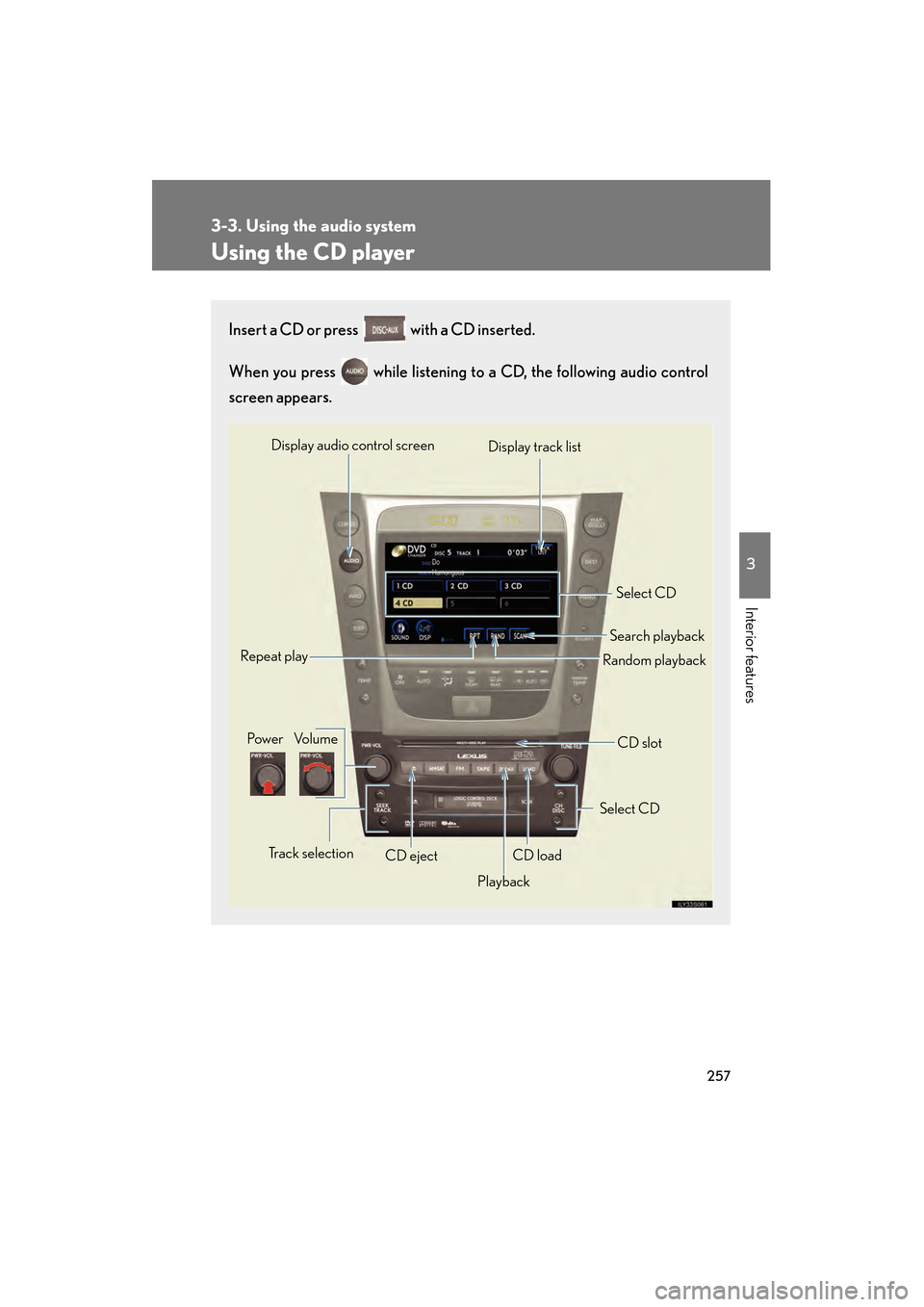

Using the CD player
Insert a CD or press with a CD inserted.
When you press while listening to a CD, the following audio control
screen appears.
Select CD
Display track list
Select CD
Search playback
CD slot
Random playback
Repeat play
Pow e r Vo l u m e
CD ejectPlayback
Track selection CD load
Display audio control screen
GS450h_HV_U.book Page 257 Thursday, June 19, 2008 1:44 PM

261
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

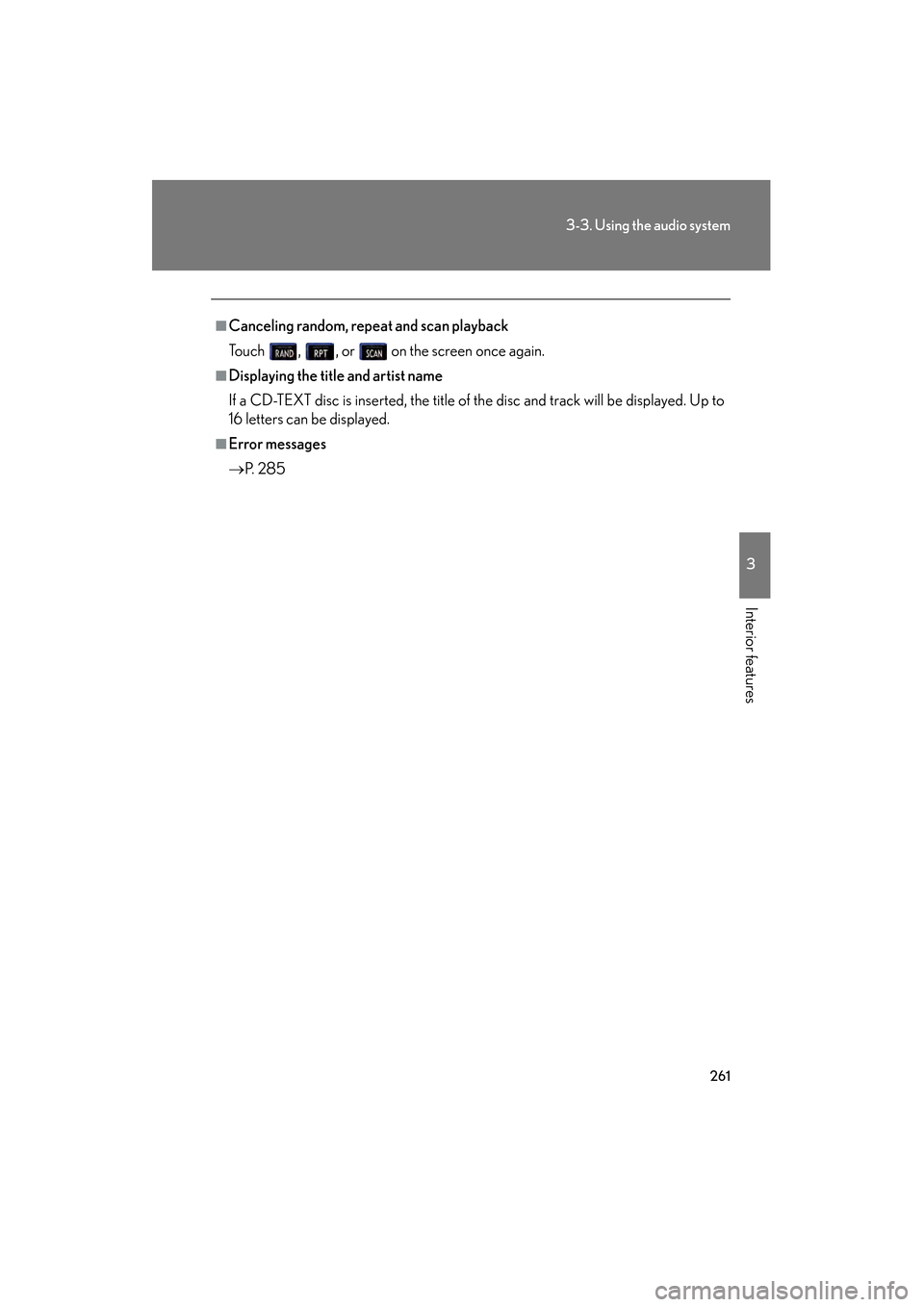

■Canceling random, repeat and scan playback
Touch , , or on the screen once again.
■Displaying the title and artist name
If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to
16 letters can be displayed.
■Error messages
→P. 2 8 5
GS450h_HV_U.book Page 261 Thursday, June 19, 2008 1:44 PM

262
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm

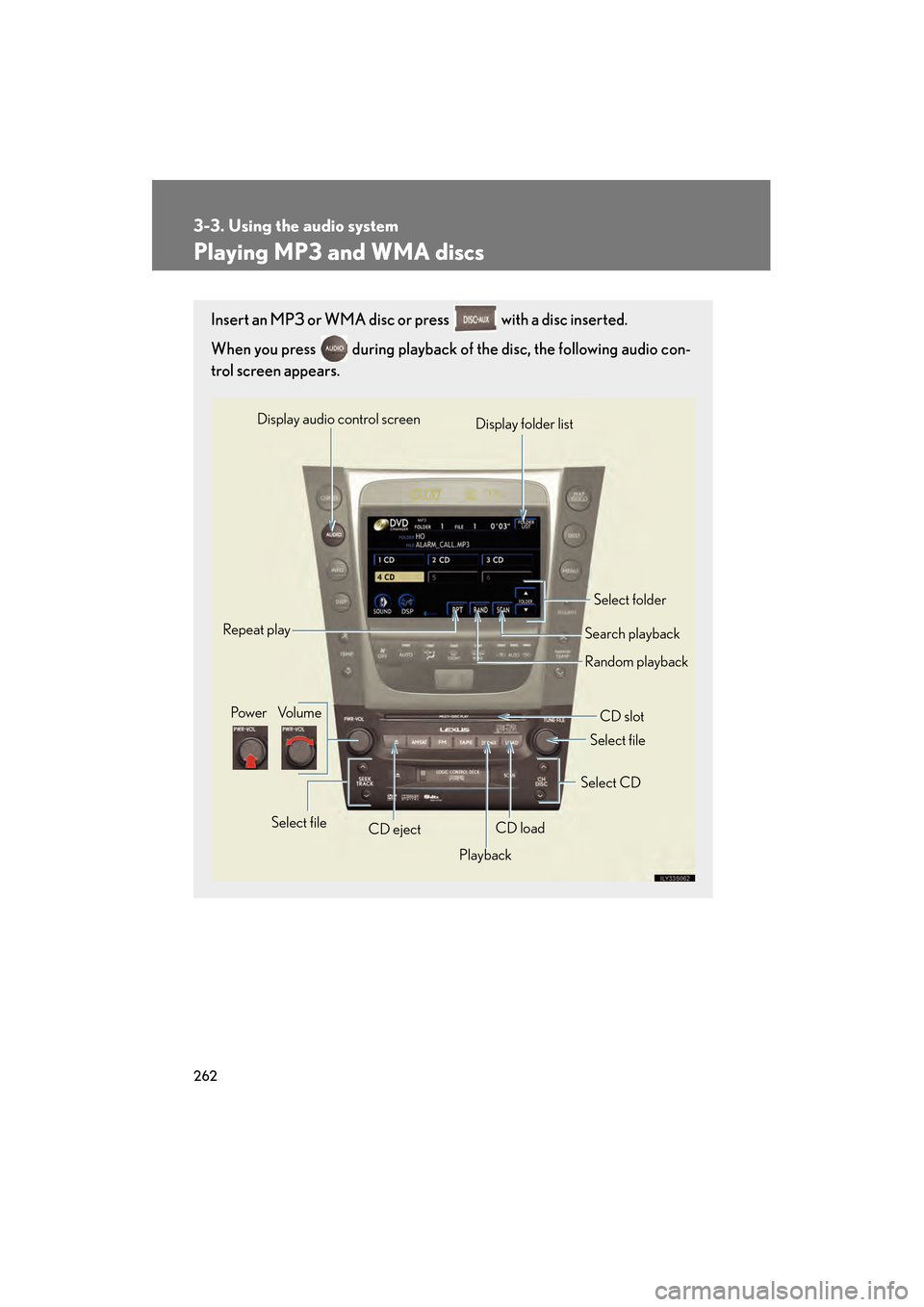

Playing MP3 and WMA discs
Insert an MP3 or WMA disc or press with a disc inserted.
When you press during playback of the disc, the following audio con-
trol screen appears.
Pow e r Vo l u m eCD ejectPlayback Select folder
Search playback
CD slot
Random playback
Repeat play
Select file
CD loadSelect CD
Display audio control screen
Select file
Display folder list
GS450h_HV_U.book Page 262 Thursday, June 19, 2008 1:44 PM

263
3-3. Using the audio system
3
Interior features
GS_HV_U
June 19, 2008 1:15 pm

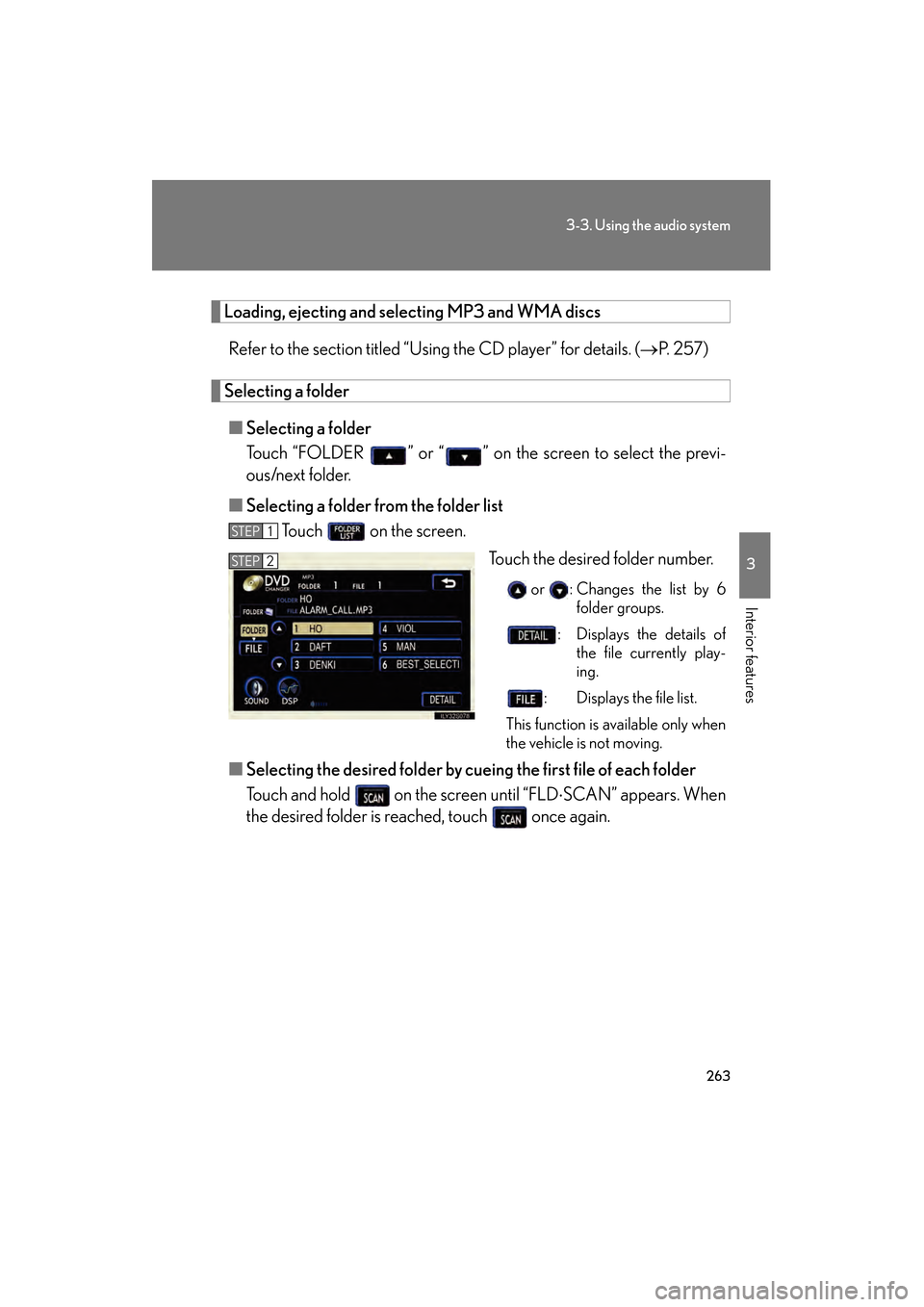

Loading, ejecting and selecting MP3 and WMA discs
Refer to the section titled “Using the CD player” for details. ( →P. 2 5 7 )
Selecting a folder
■ Selecting a folder
Touch “FOLDER ” or “ ” on the screen to select the previ-
ous/next folder.
■ Selecting a folder from the folder list
Touch on the screen.
Touch the desired folder number.
or : Changes the list by 6folder groups.
: Displays the details of the file currently play-
ing.
: Displays the file list.
This function is available only when
the vehicle is not moving.
■ Selecting the desired folder by cuei ng the first file of each folder
Touch and hold on the screen until “FLD ⋅SCAN” appears. When
the desired folder is reached, touch once again.
STEP1
STEP2
GS450h_HV_U.book Page 263 Thursday, June 19, 2008 1:44 PM

264
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm

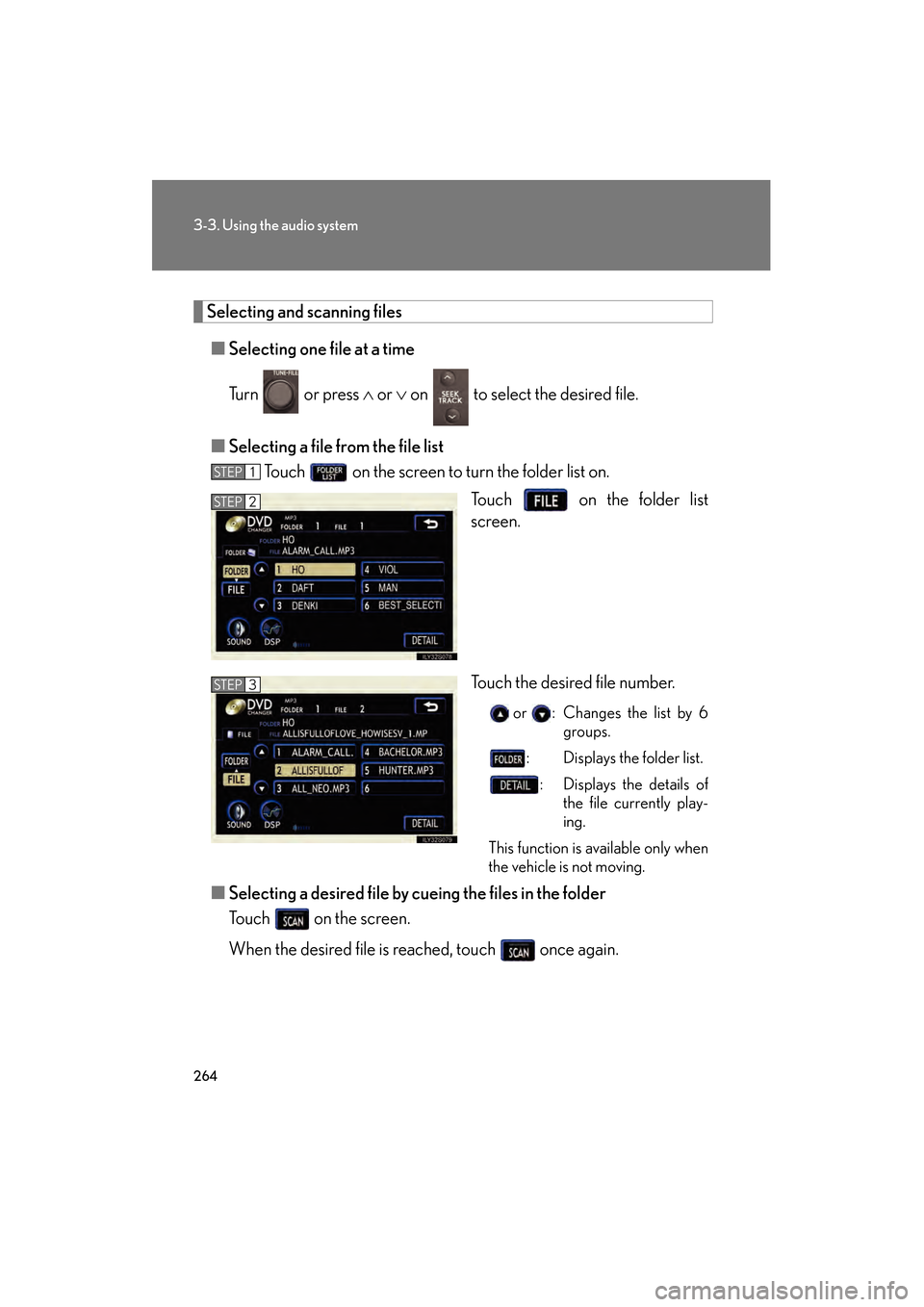

Selecting and scanning files■ Selecting one fi le at a time
Tu r n o r p r e s s ∧ or ∨ on to select the desired file.
■ Selecting a file fr om the file list
Touch on the screen to turn the folder list on.
Touch on the folder list
screen.
Touch the desired file number.
or : Changes the list by 6groups.
: Displays the folder list.
: Displays the details of the file currently play-
ing.
This function is available only when
the vehicle is not moving.
■ Selecting a desired file by cueing the files in the folder
Touch on the screen.
When the desired file is reached, touch once again.
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 264 Thursday, June 19, 2008 1:44 PM

266
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm

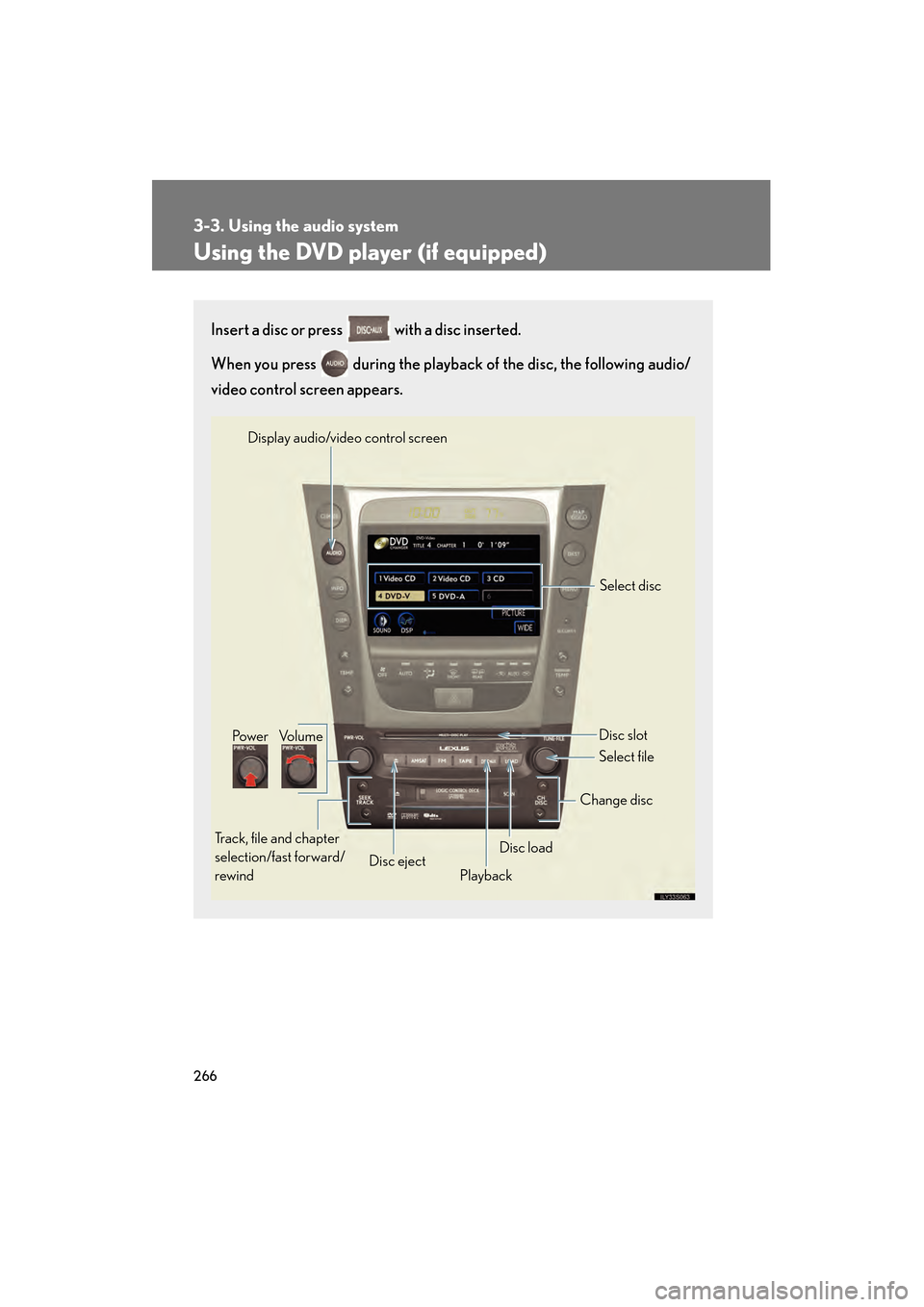

Using the DVD player (if equipped)
Insert a disc or press with a disc inserted.
When you press during the playback of the disc, the following audio/
video control screen appears.
Po w e r Vo l u m e
Track, file and chapter
selection/fast forward/
rewind Disc eject
PlaybackDisc load Change disc
Display audio/video control screen
Select disc
Disc slot
Select file
GS450h_HV_U.book Page 266 Thursday, June 19, 2008 1:44 PM

274
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm
■Selecting a menu number (DVD audio mode only)
Touch in the control icons.
Input the desired menu number on
the screen and touch .
Using the DVD menu
Touch or in the control icons.
Touch if the menu control key does not appear on the
menu screen. Touch , , or to select a
menu item, then touch to
select.
: Moves icons up or down.
: Hides icons. To displayicons, touch .
:Returns to previous screen.
Note that specific items or the oper ating method differs from one DVD to
another. Refer to the manual that comes with the DVD disc. (The above image is
an example.)
STEP1
STEP2
STEP1
STEP2
GS450h_HV_U.book Page 274 Thursday, June 19, 2008 1:44 PM

276
3-3. Using the audio system
GS_HV_U
June 19, 2008 1:15 pm
Changing the angle (If the angle option is available)
Touch in the control icons. Touch the button.
Each time you touch the button,
the next available angle is selected.
: Returns to previous screen.
Initial DVD setup
■ Displaying “Setup Menu” screen
Touch in the control icons.
After you change the initial set-
tings, touch .
: Restores default settings.
■Setting audio language
Touch .
Select the desired language.
If you cannot find the desired language, touch and input the
desired language code. ( →P. 2 7 8 )
: Returns to previous screen.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2
GS450h_HV_U.book Page 276 Thursday, June 19, 2008 1:44 PM
