Lexus GS450h 2009 Owner's Manual

170
2-3. Operating the lights and windshield wipers
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
AFS (Adaptive Front lighting System)
AFS improves visibility at intersections and on curves by automatically
adjusting the level of the headlights according to vehicle speed and the
degree of the tire angle that are controlled by steering input.
Operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Press the switch to turn it off.
The indicator turns on when
the AFS is deactivated.
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the hybrid system is started and the parking
brake is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
GS450h_HV_U.book Page 170 Monday, April 27, 2009 10:10 AM

171
2-3. Operating the lights and windshield wipers
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Automatic light off system
The headlights and tail lights turn off 30 seconds after all doors are closed if the
“POWER” switch has been switched to ACCESSORY mode or turned OFF while
the headlights are turned on. (The lights turn off immediately if the button on the
key is pressed after all doors are locked.)
To turn the lights on again, switch to ON mode, or turn the light switch off once and
then back to the or position.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the indicator flashes...
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization that can be configured at Lexus dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 5 9 3 )
NOTICE
■To prevent 12 volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.
GS450h_HV_U.book Page 171 Monday, April 27, 2009 10:10 AM

172
2-3. Operating the lights and windshield wipers
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

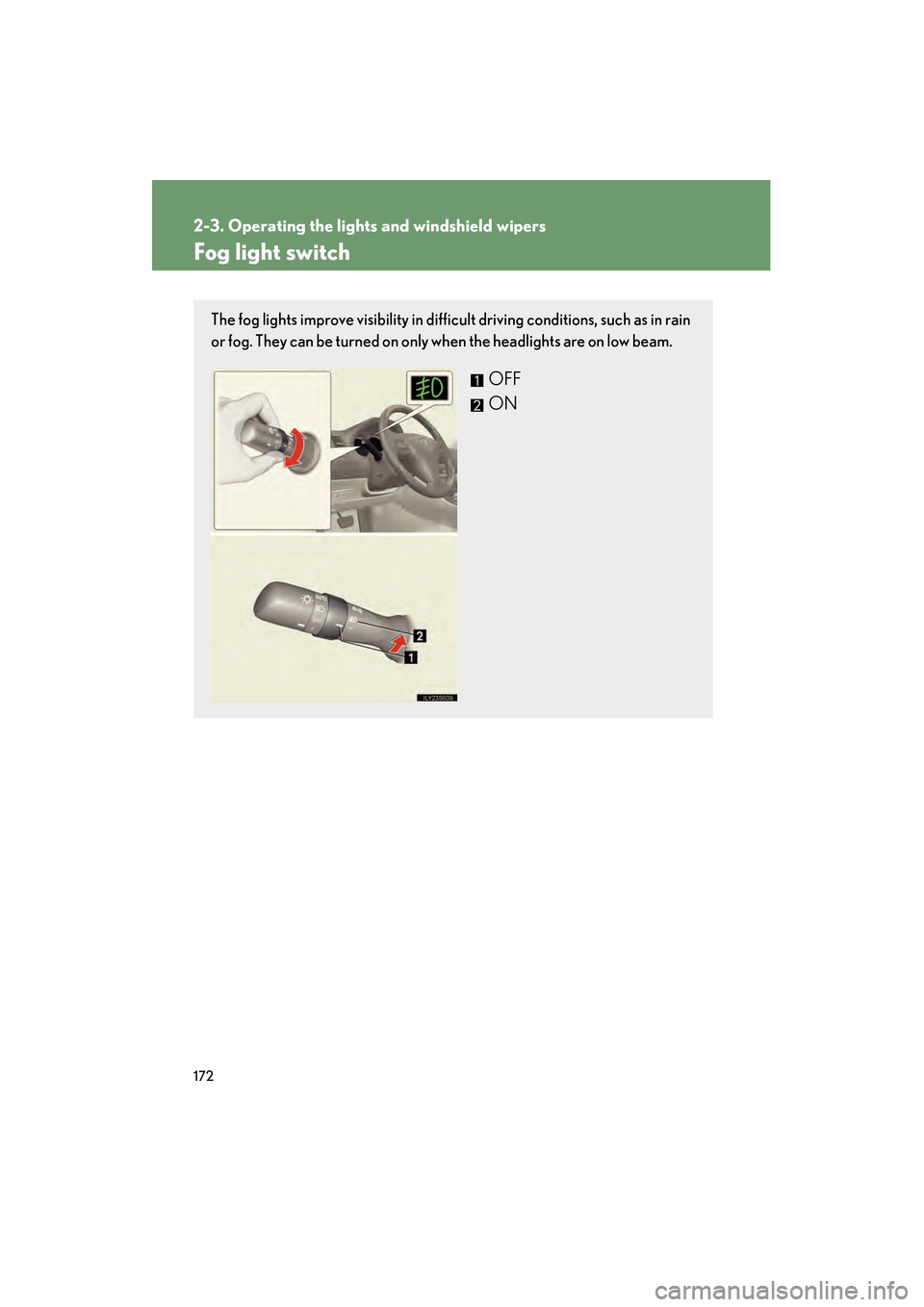

Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
OFF
ON
GS450h_HV_U.book Page 172 Monday, April 27, 2009 10:10 AM

173
2-3. Operating the lights and windshield wipers
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

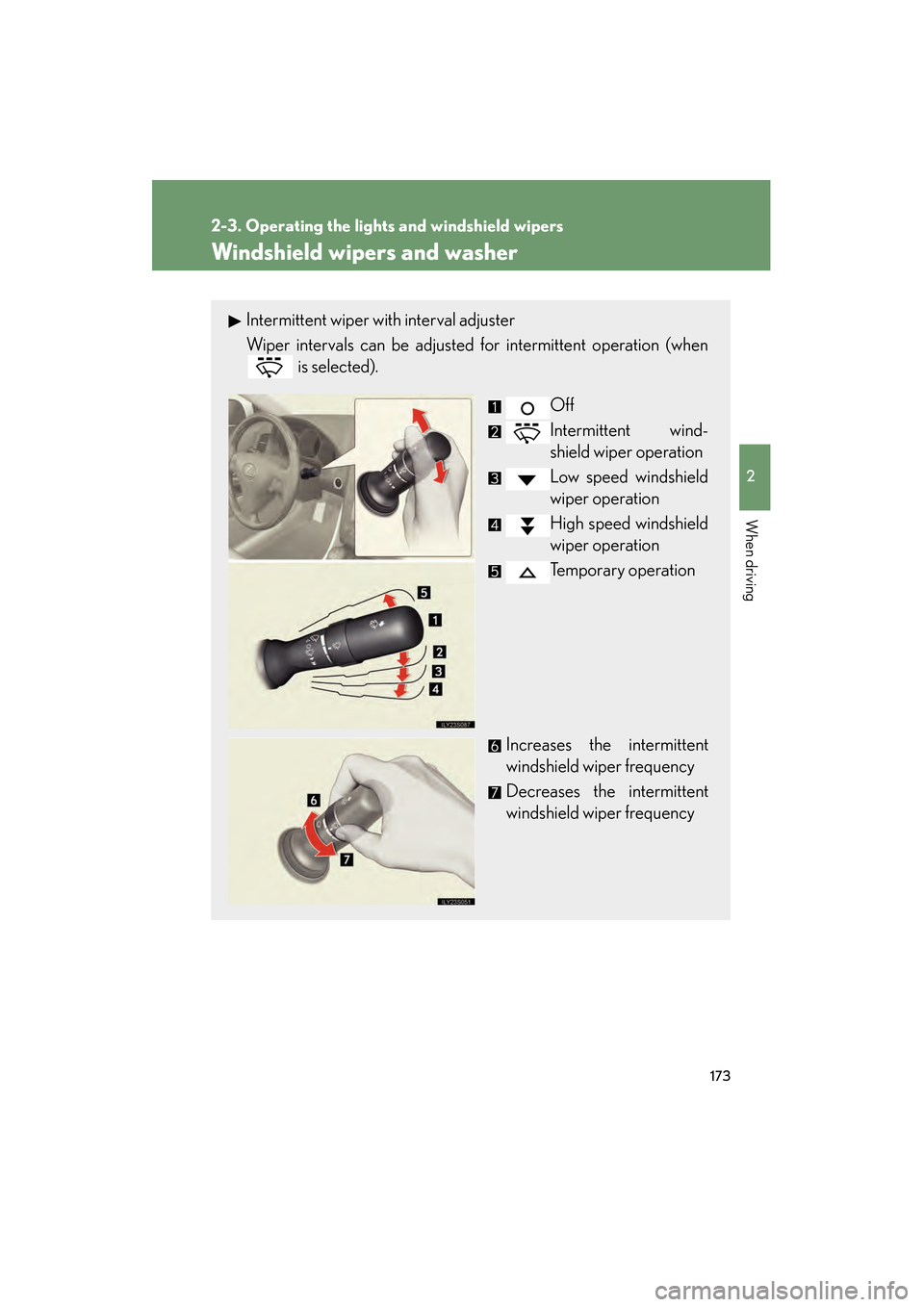

Windshield wipers and washer
Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when is selected).
Off
Intermittent wind-
shield wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
GS450h_HV_U.book Page 173 Monday, April 27, 2009 10:10 AM

174
2-3. Operating the lights and windshield wipers
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Washer/wiper dual operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.
Rain-sensing windshield wipers
With selected, the wipers will operate automatically when the
sensor detects falling rain. The system automatically adjusts wiper
timing in accordance with rain volume and vehicle speed.Off
Rain-sensing wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation
GS450h_HV_U.book Page 174 Monday, April 27, 2009 10:10 AM

175
2-3. Operating the lights and windshield wipers
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■The windshield wiper and washer can be operated when
The “POWER” switch is in ON mode.
■Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one more
time after a short delay to prevent dripping.
However, the last sweep will not happen if the vehicle is traveling above 106 mph
(170 km/h).
■Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not “AUTO” mode.
●Intermittent wiper interval ( mode)
●Wiper operation when the washer is being used (delay until drip prevention
wiper sweep occurs)
With selected, wiper operation will be switched from low speed to intermit-
tent wiper operation only when the vehicle is stationary.
Sensor sensitivity (high)
Sensor sensitivity (low)
Washer/wiper dual operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.
GS450h_HV_U.book Page 175 Monday, April 27, 2009 10:10 AM

176
2-3. Operating the lights and windshield wipers
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Rain drop sensor (vehicles equipped with rain-sensing windshield wipers)
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
■If the components get extremely hot or cold
The system will turn off if the components get extremely hot (more than 194°F
[90 °C]) or cold (less than -22 °F [-30 °C]).
■Customization that can be configured at Lexus dealer
Settings (e.g. drip prevention function) can be changed.
(Customizable features →P. 5 9 3 ) The sensor judges the amount of raindrops.
GS450h_HV_U.book Page 176 Monday, April 27, 2009 10:10 AM

177
2-3. Operating the lights and windshield wipers
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in “AUTO” mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
GS450h_HV_U.book Page 177 Monday, April 27, 2009 10:10 AM

178
2-3. Operating the lights and windshield wipers
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Headlight cleaner switch∗
■The headlight cleaner can be operated when
The “POWER” switch is in ON mode and the headlight switch is turned ON.
NOTICE
■When the washer fluid tank is empty
Do not press the switch continually, as the washer fluid pump may overheat.
∗: If equipped
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
GS450h_HV_U.book Page 178 Monday, April 27, 2009 10:10 AM

179
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
2-4. Using other driving systems

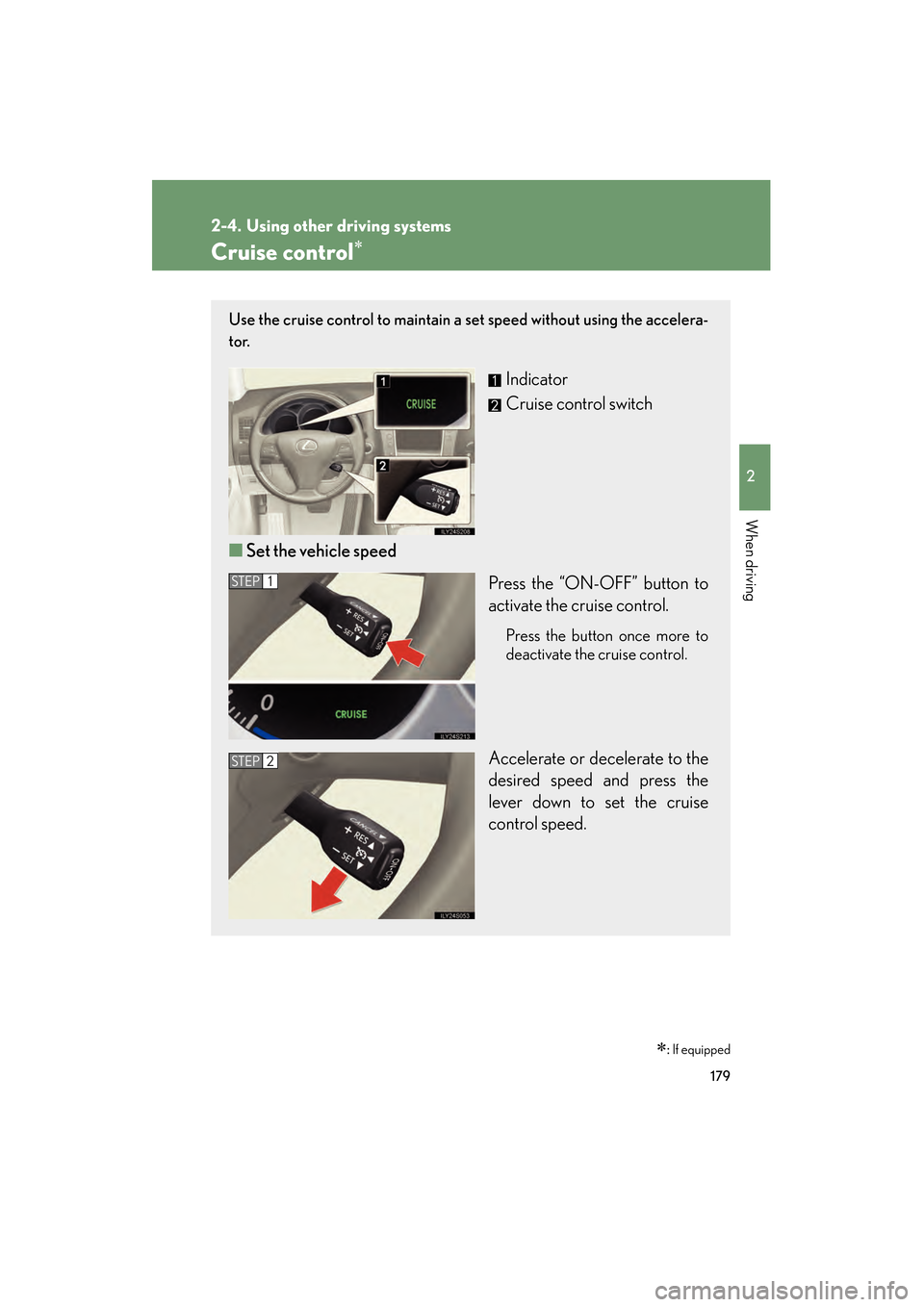

Cruise control∗
∗: If equipped
Use the cruise control to maintain a set speed without using the accelera-
tor.
Indicator
Cruise control switch
■ Set the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Press the button once more to
deactivate the cruise control.
Accelerate or decelerate to the
desired speed and press the
lever down to set the cruise
control speed.
STEP1
STEP2
GS450h_HV_U.book Page 179 Monday, April 27, 2009 10:10 AM
