Lexus GS450h 2009 Owner's Guide

30
1-1. Hybrid system
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
To u c h s c r e e nMulti-information display
When the vehicle is
powered by the elec-
tric motor (traction
motor)
When the vehicle is
powered by the
gasoline engine
When the vehicle is
powered by both the
gasoline engine and the
electric motor (traction
motor)
When the vehicle is
charging the hybrid
battery (traction
battery)
When there is no
energy flow
Hybrid battery
(traction battery) statusLowFullLowFull
GS450h_HV_U.book Page 30 Monday, April 27, 2009 10:10 AM

31
1-1. Hybrid system
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Consumption
Press .
Touch on the “Information” screen.
If the “Energy Monitor” screen is displayed, touch .
Fuel consumption in the past 30
minutes
Regenerated energy in the past
30 minutes
One symbol indicates 50 Wh. Up
to 4 symbols are shown.
Best past fuel consumption
Average fuel consumption
Cruising range
Hybrid warning message
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted. If a warning message is shown on
the multi-information display and
the touch screen, read the mes-
sage and follow the instructions.
(→P. 5 1 9 )
STEP1
STEP2
■Resetting the consumption data
Touching will reset the “Average fuel consumption”. Touching
will reset all the data (except the “Cruising Range”) on the “Consumption” screen.
GS450h_HV_U.book Page 31 Monday, April 27, 2009 10:10 AM

32
1-1. Hybrid system
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■If a warning light comes on or a warning message is displayed, or the 12 volt bat-
tery is disconnected
The hybrid system may not start. In that case, try to start the system again. If the
“READY” light does not come on, contact your Lexus dealer.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of the
hybrid battery (traction battery) can change in accordance with driving style and
driving conditions.
CAUTION
■High voltage precautions
The vehicle has high voltage DC and AC systems as well as a 12 volt system. DC
and AC high voltage is very dangerous and can cause severe burns and electric
shock that may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables and
their connectors.
●The hybrid system will become hot after starting as the system uses high voltage.
Be careful of both the high voltage and the high temperature, and always obey
the caution labels attached to the vehicle.
●Never try to open the service plug access hole located in the luggage compart-
ment. The service plug is used only when the vehicle is serviced and is subject to
high voltage.
■Nickel-metal hydride battery
Your vehicle contains a sealed nickel-metal hydride battery. If disposed of improp-
erly, it is hazardous to the environment and there is a risk of severe burns and elec-
trical shock that may result in death or serious injury.
GS450h_HV_U.book Page 32 Monday, April 27, 2009 10:10 AM

33
1-1. Hybrid system
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
CAUTION
■Road accident cautions
Observe the following precautions to reduce the risk of injury.
●Pull your vehicle off the road, put the shift lever in “P”, apply the parking brake,
turn the hybrid system off.
●Do not touch the high voltage parts, cables and connectors.
●If electric wires are exposed inside or outside your vehicle, an electric shock may
occur. Never touch exposed electric wires.
●If a fluid leak occurs, do not touch it as it may be strong alkaline electrolyte from
the hybrid battery (traction battery). If it comes into contact with your skin or
eyes, wash it off immediately with a large amount of water or if possible, boric
acid solution. Seek immediate medical attention.
●If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never
use a fire extinguisher that is not meant for electric fires. Using even a small
amount of water may be dangerous.
●If your vehicle needs to be towed, do so with the rear wheels raised. If the wheels
with the electric motor (traction motor) are on the ground when towing, the
motor may continue to generate electricity. This may cause an electricity leakage
leading to a fire. (
→P. 5 0 1 )
●Carefully inspect the ground under the vehicle. If you find that liquid has leaked
onto the ground, the fuel system may have been damaged. Leave the vehicle as
soon as possible.
GS450h_HV_U.book Page 33 Monday, April 27, 2009 10:10 AM

34
1-1. Hybrid system
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

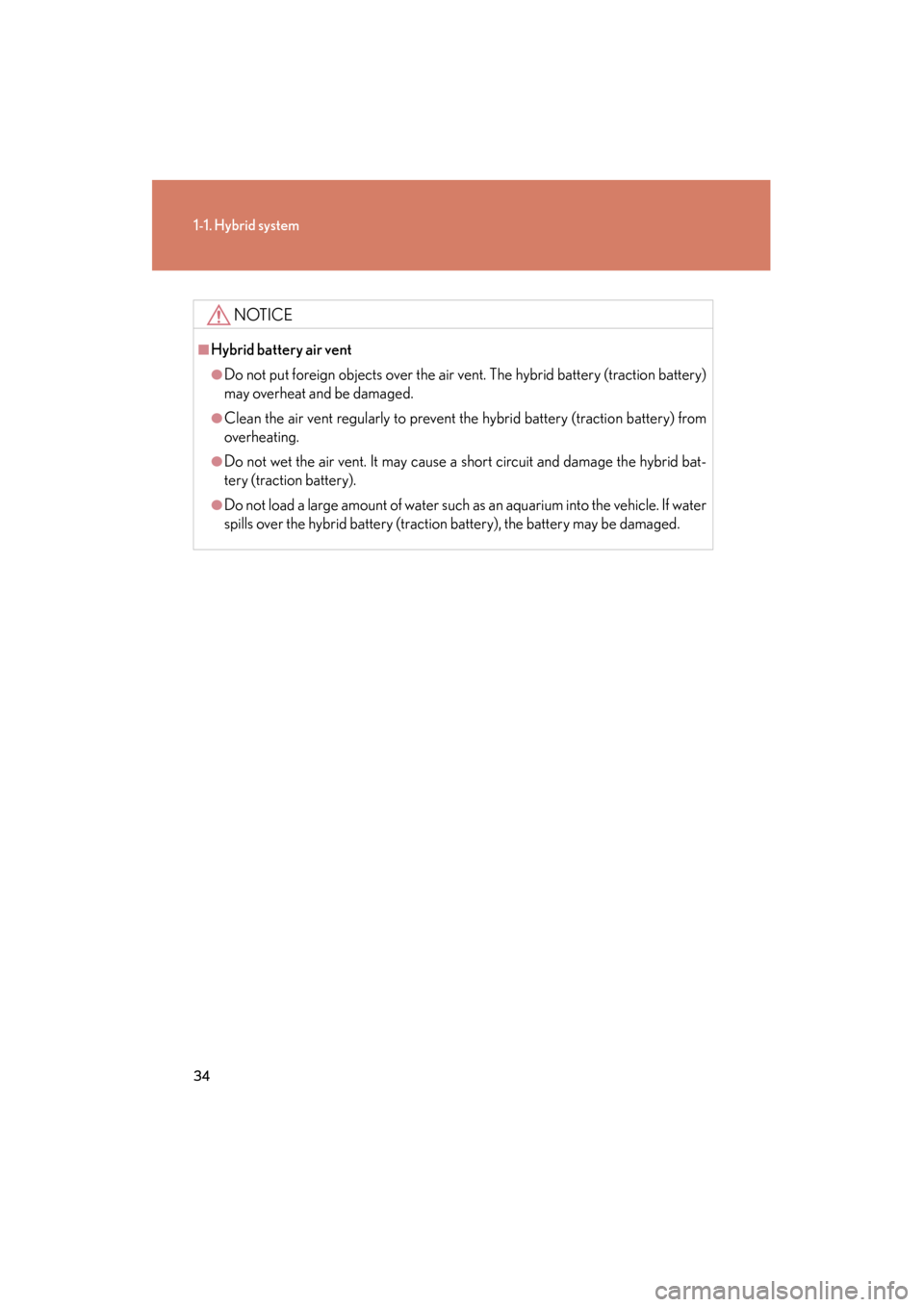

NOTICE
■Hybrid battery air vent
●Do not put foreign objects over the air vent. The hybrid battery (traction battery)
may overheat and be damaged.
●Clean the air vent regularly to prevent the hybrid battery (traction battery) from
overheating.
●Do not wet the air vent. It may cause a short circuit and damage the hybrid bat-
tery (traction battery).
●Do not load a large amount of water such as an aquarium into the vehicle. If water
spills over the hybrid battery (traction battery), the battery may be damaged.
GS450h_HV_U.book Page 34 Monday, April 27, 2009 10:10 AM

35
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
1-2. Key information
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
(→ P. 3 9 )
• Operating the wireless remote control function
(→ P. 5 1 )
Mechanical keys
Key number plate
■ Card key (if equipped)
Electronic key
Operating the smart access sys-
tem with push-button start
(→ P. 3 9 )
Mechanical key
The card key comes with an information card that includes instructions
for use. Lexus recommends that you carry the information card with
the card key.
GS450h_HV_U.book Page 35 Monday, April 27, 2009 10:10 AM

36
1-2. Key information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Using the mechanical keyTake out the mechanical key.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock
cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the smart
access system with push-button
start does not operate properly,
you will need the mechanical key.
(→ P. 5 5 0 )
■Card key
●The mechanical key that is stored inside the card key should be used only if a
problem arises, such as when the key does not operate properly.
●If it is difficult to take out the mechanical key, push down the lock release button
using a pen tip etc. If it is difficult to pull it out, use a coin etc.
●To store the mechanical key in the card
key, insert it inside while pressing the
lock release button.
GS450h_HV_U.book Page 36 Monday, April 27, 2009 10:10 AM

37
1-2. Key information
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
●The card key is not waterproof.
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch OFF and lock the glove box as circumstances
demand. (→P. 5 9 , 3 7 3 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( →P. 5 4 9 )
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.
●If the battery cover is not installed and
the battery falls out or if the battery was
removed because the key got wet, rein-
stall the battery with the positive termi-
nal facing the Lexus emblem.
GS450h_HV_U.book Page 37 Monday, April 27, 2009 10:10 AM

38
1-2. Key information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
NOTICE
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the keys.
●Do not place the keys near objects that produce magnetic fields, such as TVs,
audio system, glass top ranges, or medical electrical equipment, such as low-fre-
quency therapy equipment.
■Precautions for handling the card keys
●Do not apply excess force when inserting the mechanical key to the card key.
Doing so may damage the card key.
●If the battery or card key terminals get wet, the battery may corrode.
If the key is dropped into water, or if drinking water etc. is spilled on the key,
immediately remove the battery cover and wipe the battery and terminals. (To
remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have
your Lexus dealer replace the battery.
●Do not crush the battery cover or use a screwdriver to remove the battery cover.
Forcibly removing the battery cover may bend or damage the key.
●If the battery cover is frequently removed, the battery cover may become loose.
●When installing the battery, make sure to check the direction of the battery.
Installing the battery in the wrong direction may cause the battery to deplete rap-
idly.
●The surface of the card key may be damaged, or its coating may peel off in the
following situations:
• The card key is carried together with hard objects, such as coins or keys.
• The card key is scraped with a sharp object, such as a tip of mechanical pencil.
• The surface of the card key is wiped with thinners or benzene.
GS450h_HV_U.book Page 38 Monday, April 27, 2009 10:10 AM

39
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
1-3. Opening, closing and locking the doors and trunk
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (→P. 4 0 )
Unlocks the trunk ( →P. 4 0 )
Starts and stops the hybrid system ( →P. 1 4 8 )
GS450h_HV_U.book Page 39 Monday, April 27, 2009 10:10 AM
