Lexus GS450h 2009 Owner's Manual

490
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
■ Adjusting the headlight aim
Low beam (vertical adjustment)
Using a Phillips-head screw-
driver, turn adjustment bolt A so
that the bubble is within the 2
center lines.
Remember the turning direction
and the number of turns.
Turn bolt B the same number of
turns and in the same direction
as step 1.
STEP1
STEP2
STEP3
STEP4
GS450h_HV_U.book Page 490 Monday, April 27, 2009 10:10 AM

491
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

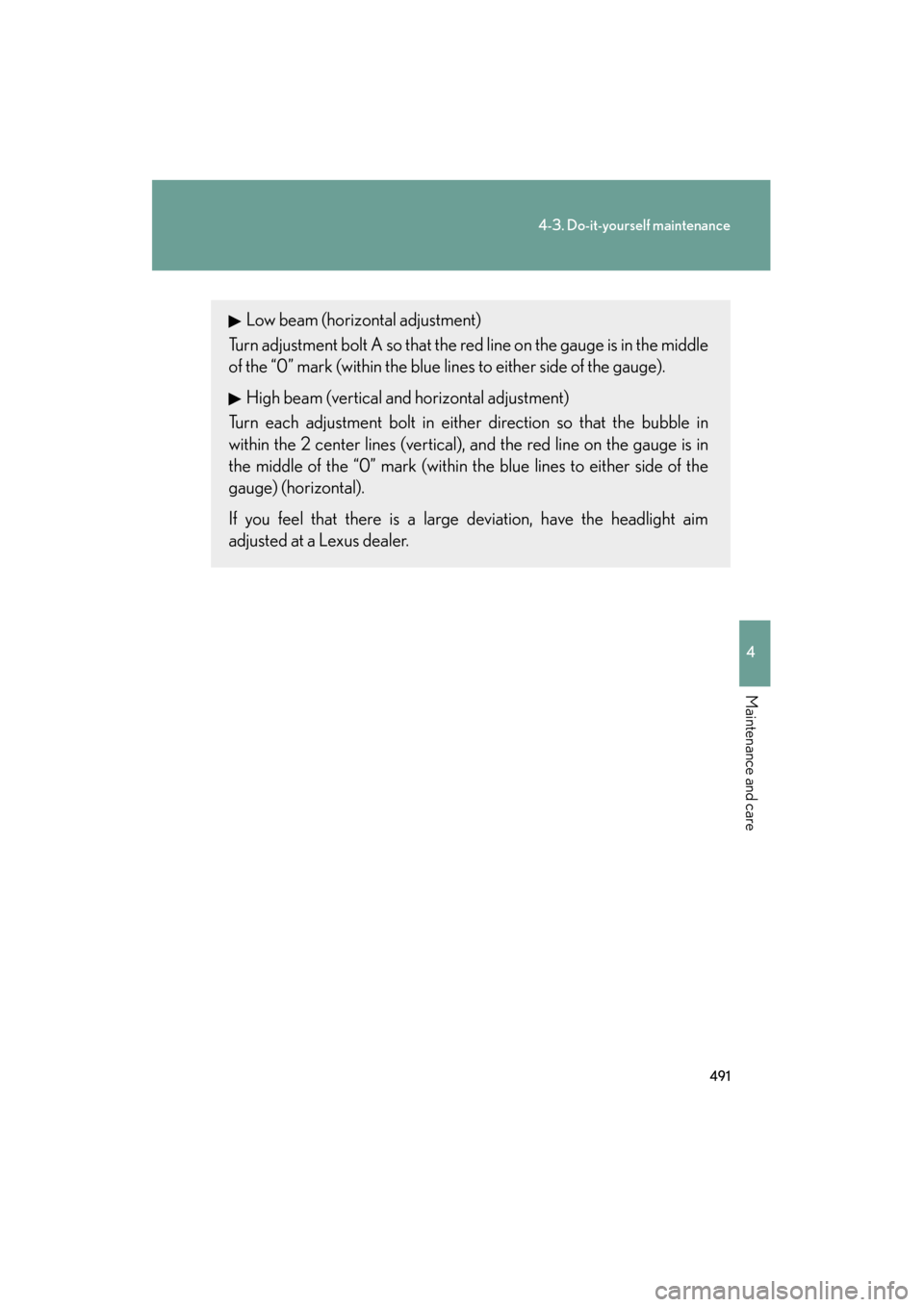

Low beam (horizontal adjustment)
Turn adjustment bolt A so that the red line on the gauge is in the middle
of the “0” mark (within the blue lines to either side of the gauge).
High beam (vertical and horizontal adjustment)
Turn each adjustment bolt in either direction so that the bubble in
within the 2 center lines (vertical), and the red line on the gauge is in
the middle of the “0” mark (within the blue lines to either side of the
gauge) (horizontal).
If you feel that there is a large deviation, have the headlight aim
adjusted at a Lexus dealer.
GS450h_HV_U.book Page 491 Monday, April 27, 2009 10:10 AM

492
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 573)
■ Remove the engine compartment cover if necessary
→ P. 4 3 9
■ Front bulb locations
■ Rear bulb locations
Parking light
Headlight high beam
Rear turn signal light Back-up light
GS450h_HV_U.book Page 492 Monday, April 27, 2009 10:10 AM

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Replacing light bulbs■ Headlight high beam
Left-hand side: Remove the fuse
box cover.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise to remove it.
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 493 Monday, April 27, 2009 10:10 AM

494
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

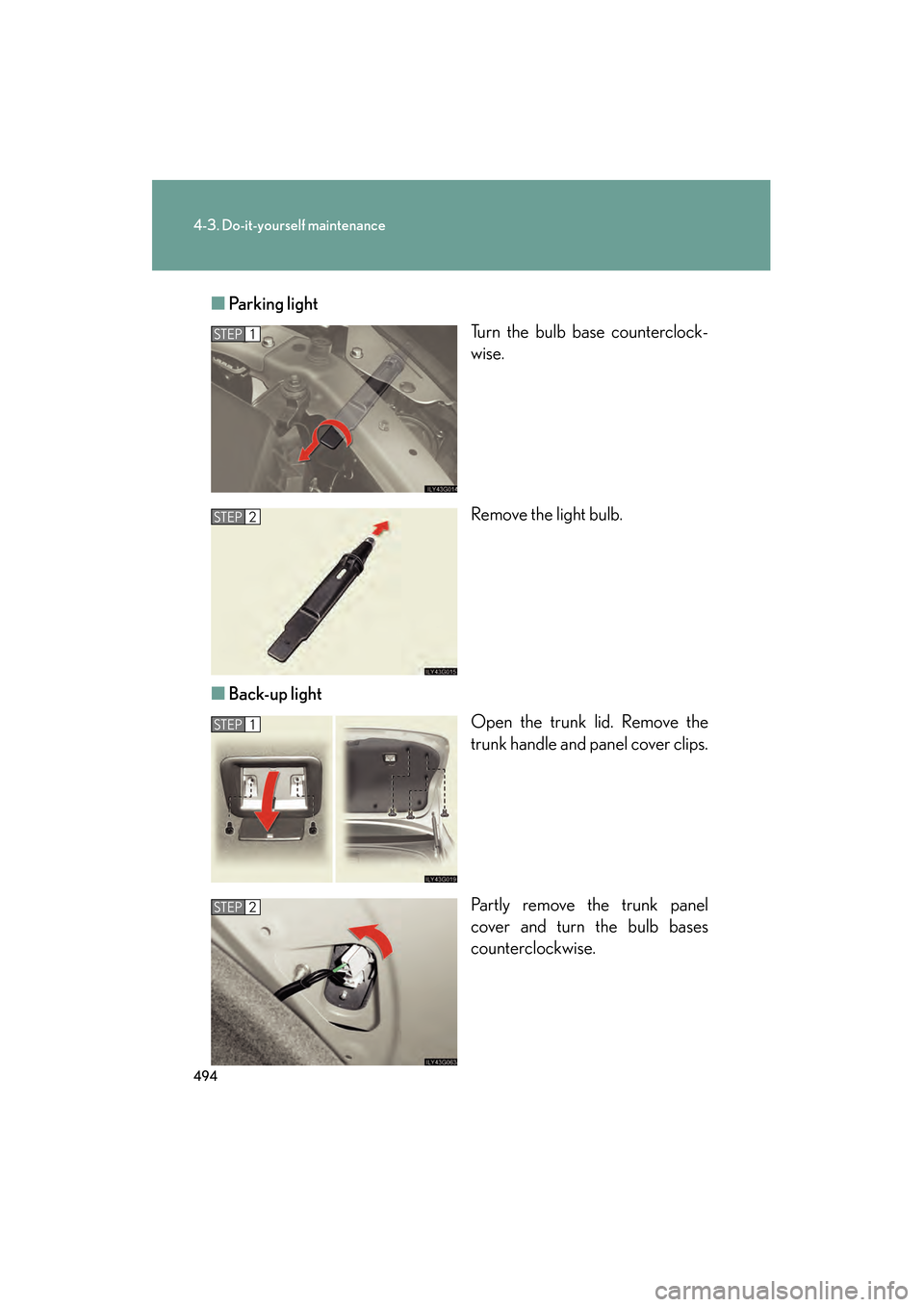

■Parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Back-up light
Open the trunk lid. Remove the
trunk handle and panel cover clips.
Partly remove the trunk panel
cover and turn the bulb bases
counterclockwise.
STEP1
STEP2
STEP1
STEP2
GS450h_HV_U.book Page 494 Monday, April 27, 2009 10:10 AM

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

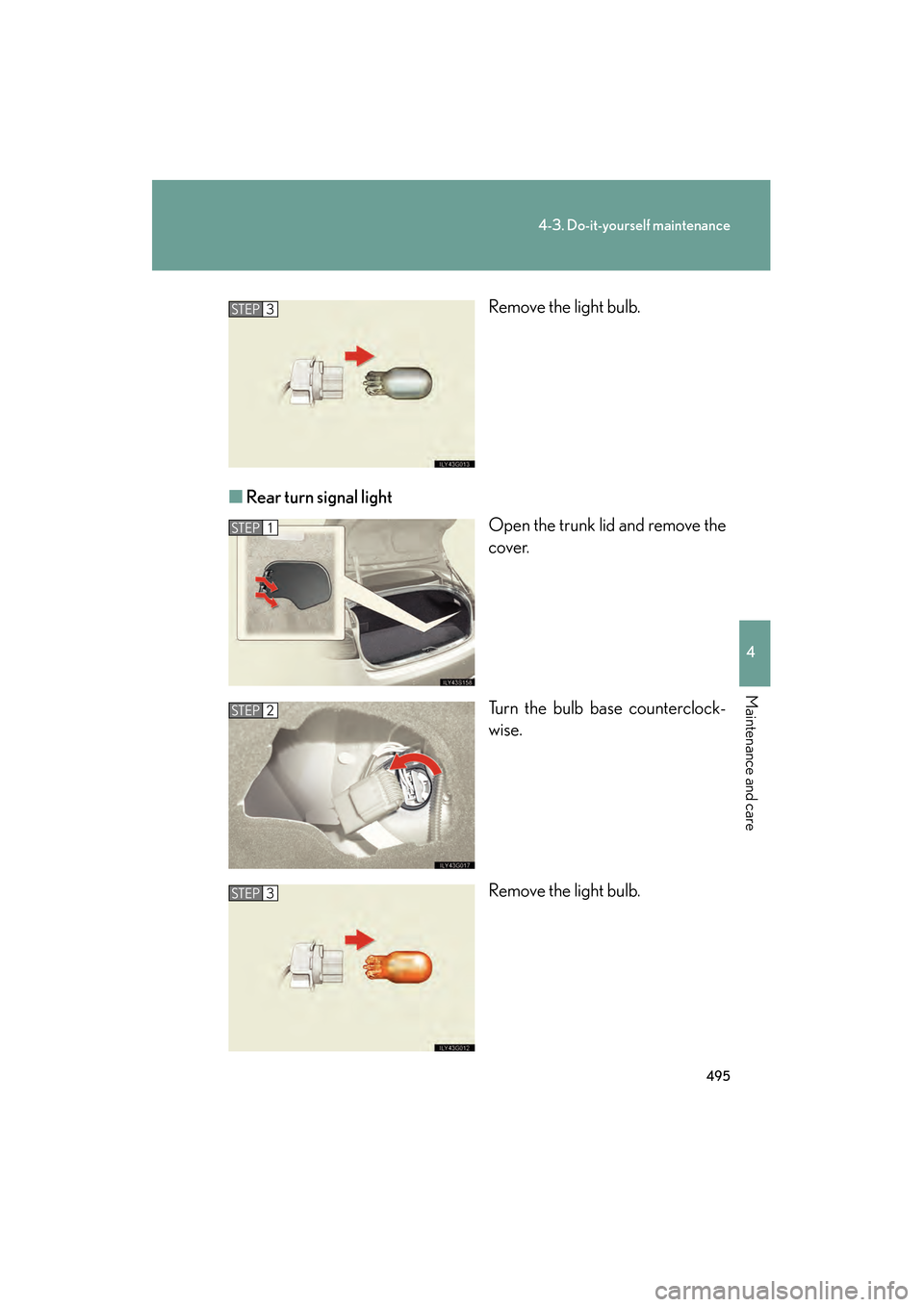

Remove the light bulb.
■ Rear turn si gnal light
Open the trunk lid and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP3
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 495 Monday, April 27, 2009 10:10 AM

496
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (high-intensity discharge bulbs)
● Fog lights
● Front turn signal lights
● Front side marker lights
● Side turn signal lights
● Tail/stop lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■LED light bulbs
The side turn signal lights, rear side marker lights, tail lights, tail/stop lights and high
mounted stoplights consist of a number of LEDs. If any of the LEDs burn out, take
your vehicle to your Lexus dealer to have the light replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to local
laws (SAE).
GS450h_HV_U.book Page 496 Monday, April 27, 2009 10:10 AM

497
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

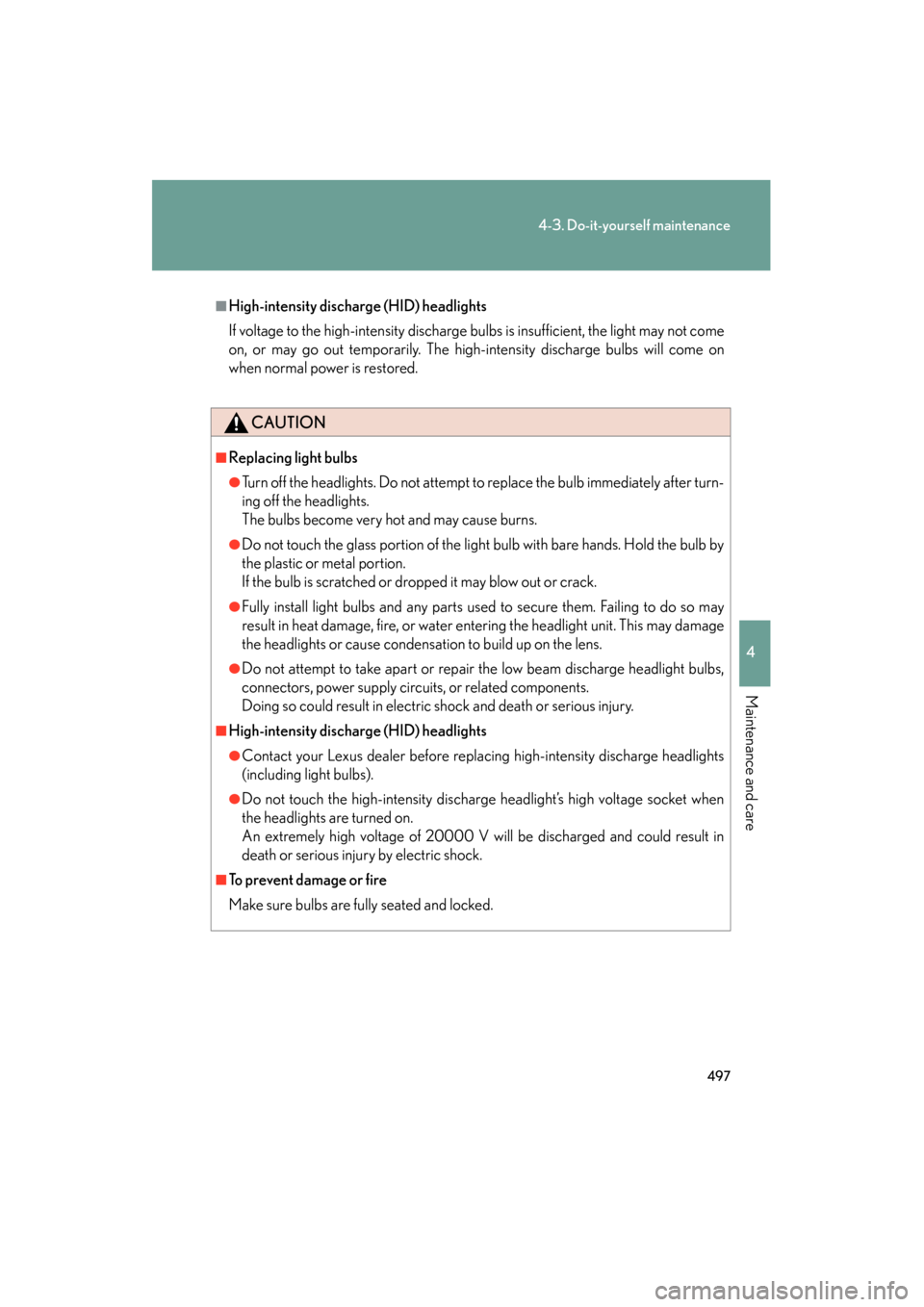

■High-intensity discharge (HID) headlights
If voltage to the high-intensity discharge bulbs is insufficient, the light may not come
on, or may go out temporarily. The high-intensity discharge bulbs will come on
when normal power is restored.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam discharge headlight bulbs,
connectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■High-intensity discharge (HID) headlights
●Contact your Lexus dealer before replacing high-intensity discharge headlights
(including light bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
death or serious injury by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
GS450h_HV_U.book Page 497 Monday, April 27, 2009 10:10 AM

498
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
GS450h_HV_U.book Page 498 Monday, April 27, 2009 10:10 AM

When trouble arises5
499
GS_HV_U (OM30B44U)
April 27, 2009 11:57 am
5-1. Essential informationEmergency flashers.............. 500
If your vehicle needs to be towed ............................. 501
If you think something is wrong ...................................... 507
Event data recorder ............. 508 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds...................................... 510
If a warning message is displayed................................. 519
If you have a flat tire (Vehicles with standard tires) ............ 536
If you have a flat tire (Vehicles with run-flat tires) ............... 546
If the hybrid system will not start........................... 547
If the shift lever cannot be shifted
from “P”.................................. 548
If you lose your keys .............. 549
If the electronic key does not operate properly ................. 550
If the 12 volt battery is discharged ............................ 553
If your vehicle overheats ..... 557
If the vehicle becomes stuck........................................ 560
Sec_05TOC.fm Page 499 Monday, April 27, 2009 11:57 AM
