Lexus GS450h 2009 Manual Online

80
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

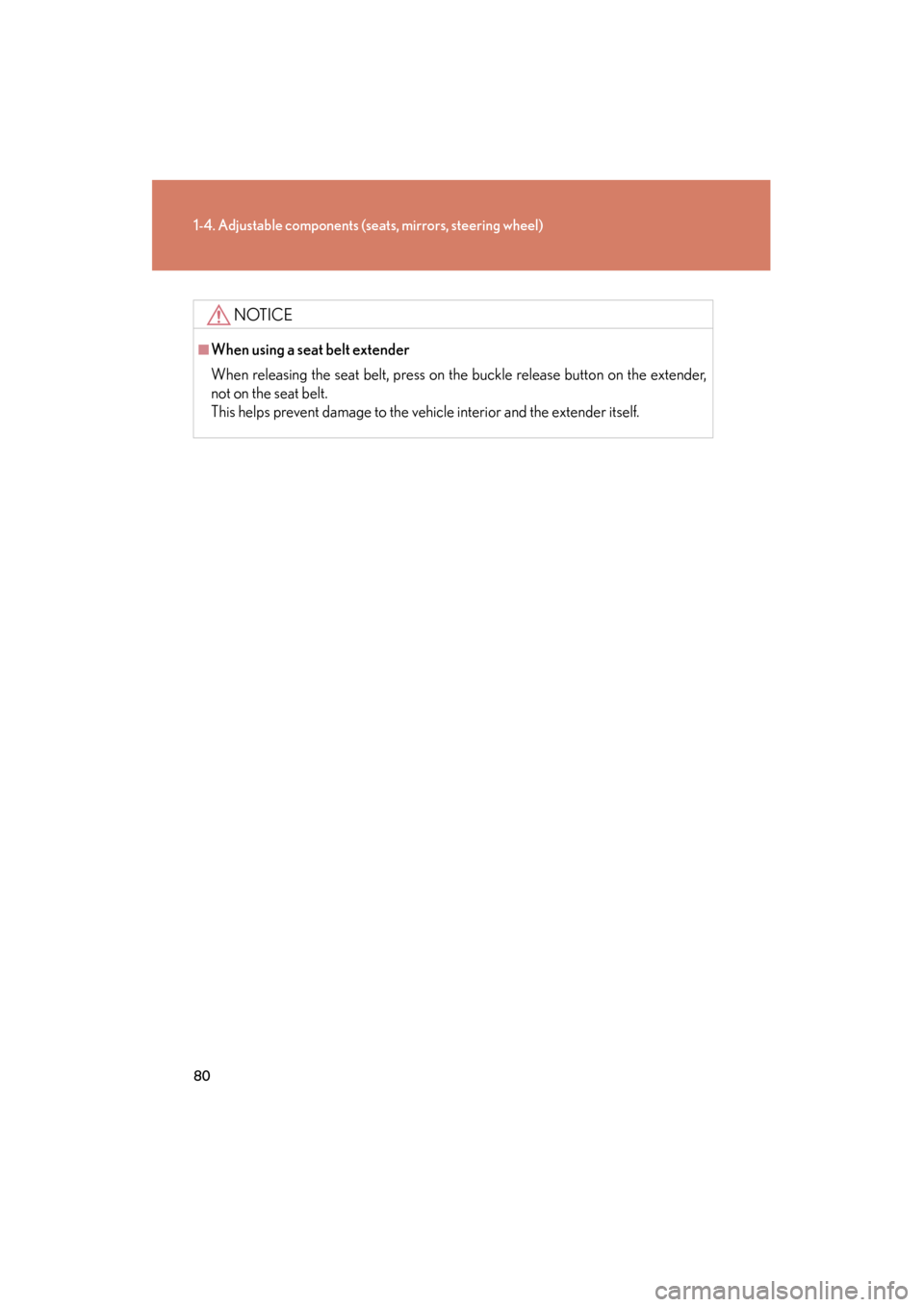

NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
GS450h_HV_U.book Page 80 Monday, April 27, 2009 10:10 AM

81
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

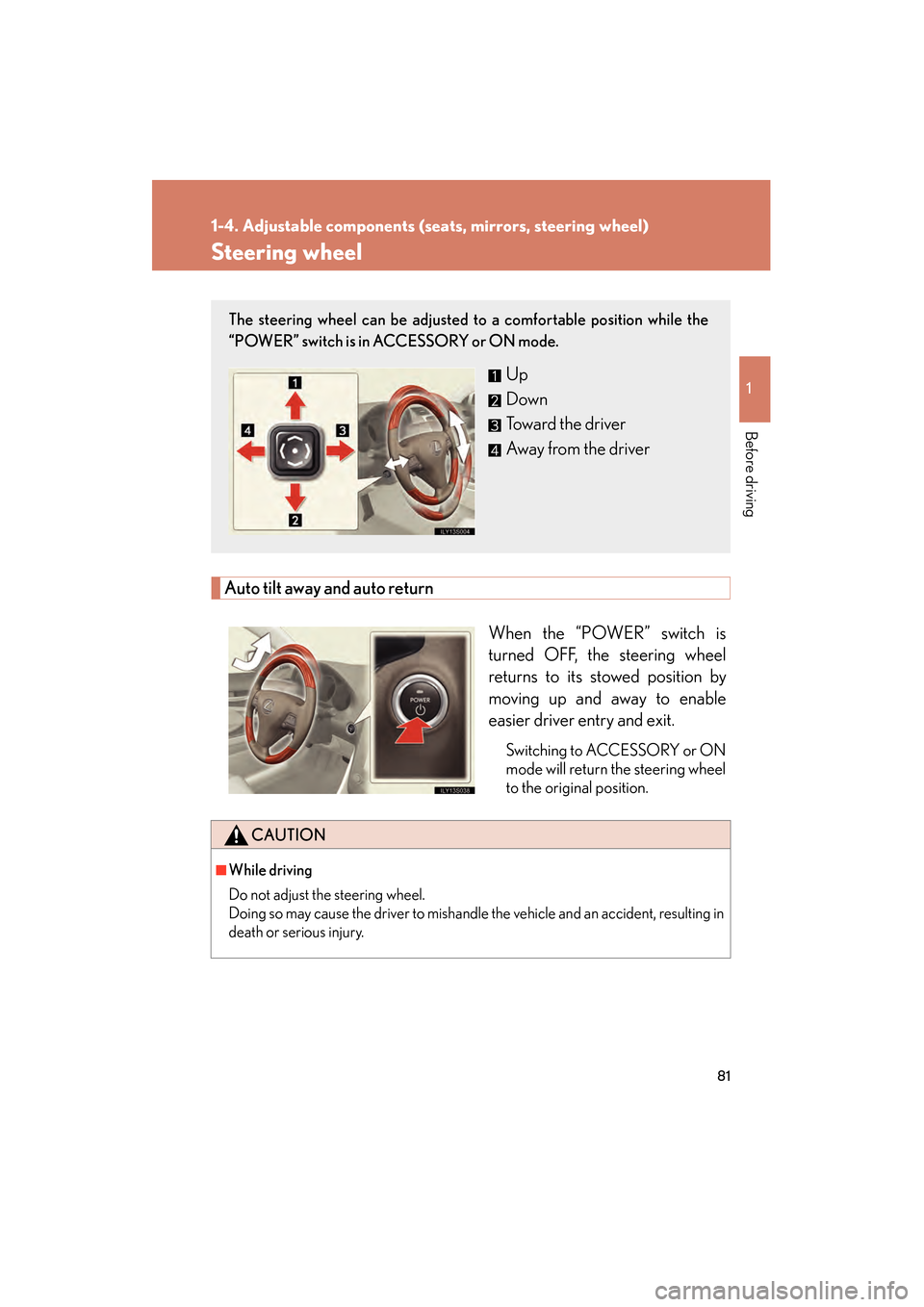

Steering wheel
Auto tilt away and auto returnWhen the “POWER” switch is
turned OFF, the steering wheel
returns to its stowed position by
moving up and away to enable
easier driver entry and exit.
Switching to ACCESSORY or ON
mode will return the steering wheel
to the original position.
The steering wheel can be adjusted to a comfortable position while the
“POWER” switch is in ACCESSORY or ON mode.
Up
Down
Toward the driver
Away from the driver
CAUTION
■While driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.
GS450h_HV_U.book Page 81 Monday, April 27, 2009 10:10 AM

82
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Inside rear view mirror
■To prevent sensor error
CAUTION
■While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death
or serious injury.
In the auto mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
Turns auto mode on/off
The indicator comes on when
auto mode is turned on.
The mirror is automatically set to
auto whenever the “POWER”
switch is turned ON mode.
To ensure correct functioning of the sensors,
do not touch or cover the sensors.
GS450h_HV_U.book Page 82 Monday, April 27, 2009 10:10 AM

83
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Outside rear view mirrors
Folding and extending the mirrorsPress the switch
Pressing again will extend the mir-
rors.
Mirror angle can be adjusted using the switch when the “POWER” switch
is in ACCESSORY or ON mode.
Select the mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
■When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. ( →P. 2 5 6 )
■Auto anti-glare function
When the inside rear view mirror is set to auto mode, the outside rear view mirrors
will activate in conjunction with the inside rear view mirror to reduce reflected light.
(→ P. 8 2 )
GS450h_HV_U.book Page 83 Monday, April 27, 2009 10:10 AM

84
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (neither “L” nor
“R” selected).
■One-touch adjustment of the mirror angle
A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (→P. 66)
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors.
●Do not drive with the mirrors folded back.
●Before driving, be sure to extend mirrors and make an adjustment properly.
■When a mirror is moving
To avoid injury and mirror malfunction, be careful not to get your hand caught by
the moving mirror.
■When the mirror heaters are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
GS450h_HV_U.book Page 84 Monday, April 27, 2009 10:10 AM

85
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
1-5. Opening and closing the windows and moon roof

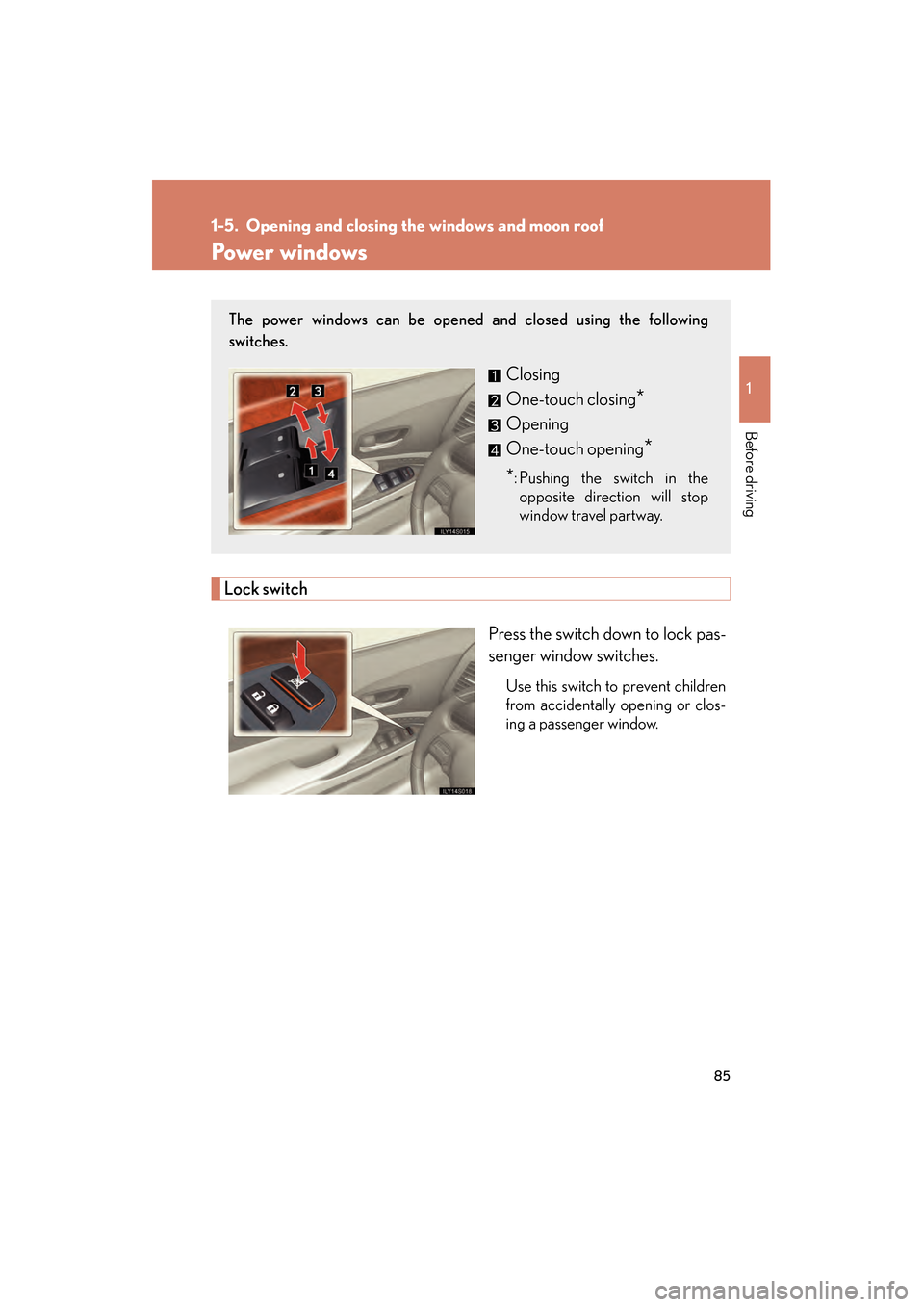

Power windows
Lock switchPress the switch down to lock pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pushing the switch in theopposite direction will stop
window travel partway.
GS450h_HV_U.book Page 85 Monday, April 27, 2009 10:10 AM

86
1-5. Opening and closing the windows and moon roof
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

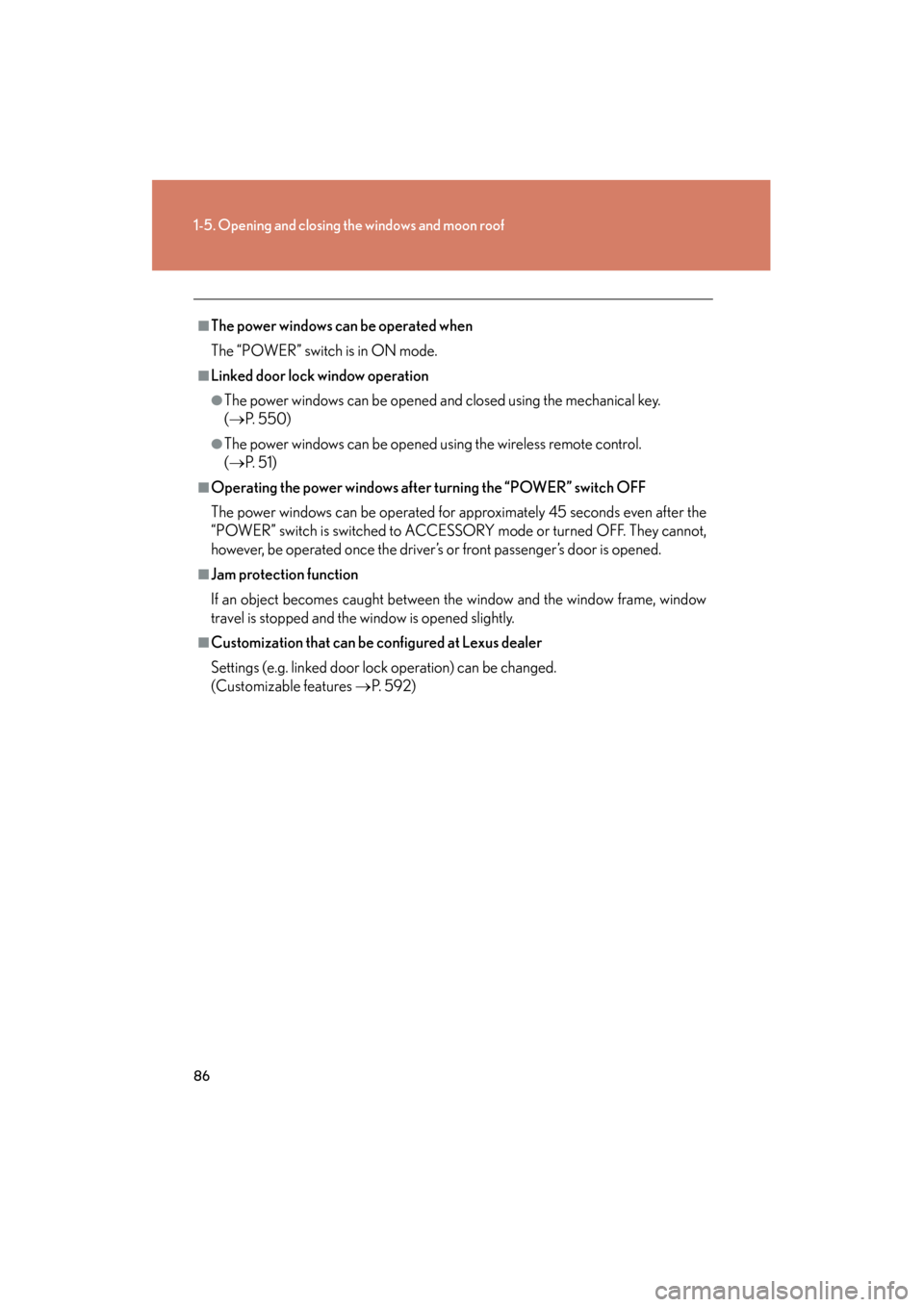

■The power windows can be operated when
The “POWER” switch is in ON mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key.
(→ P. 5 5 0 )
●The power windows can be opened using the wireless remote control.
(→ P. 5 1 )
■Operating the power windows after turning the “POWER” switch OFF
The power windows can be operated for approximately 45 seconds even after the
“POWER” switch is switched to ACCESSORY mode or turned OFF. They cannot,
however, be operated once the driver’s or front passenger’s door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 592)
GS450h_HV_U.book Page 86 Monday, April 27, 2009 10:10 AM

87
1-5. Opening and closing the windows and moon roof
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

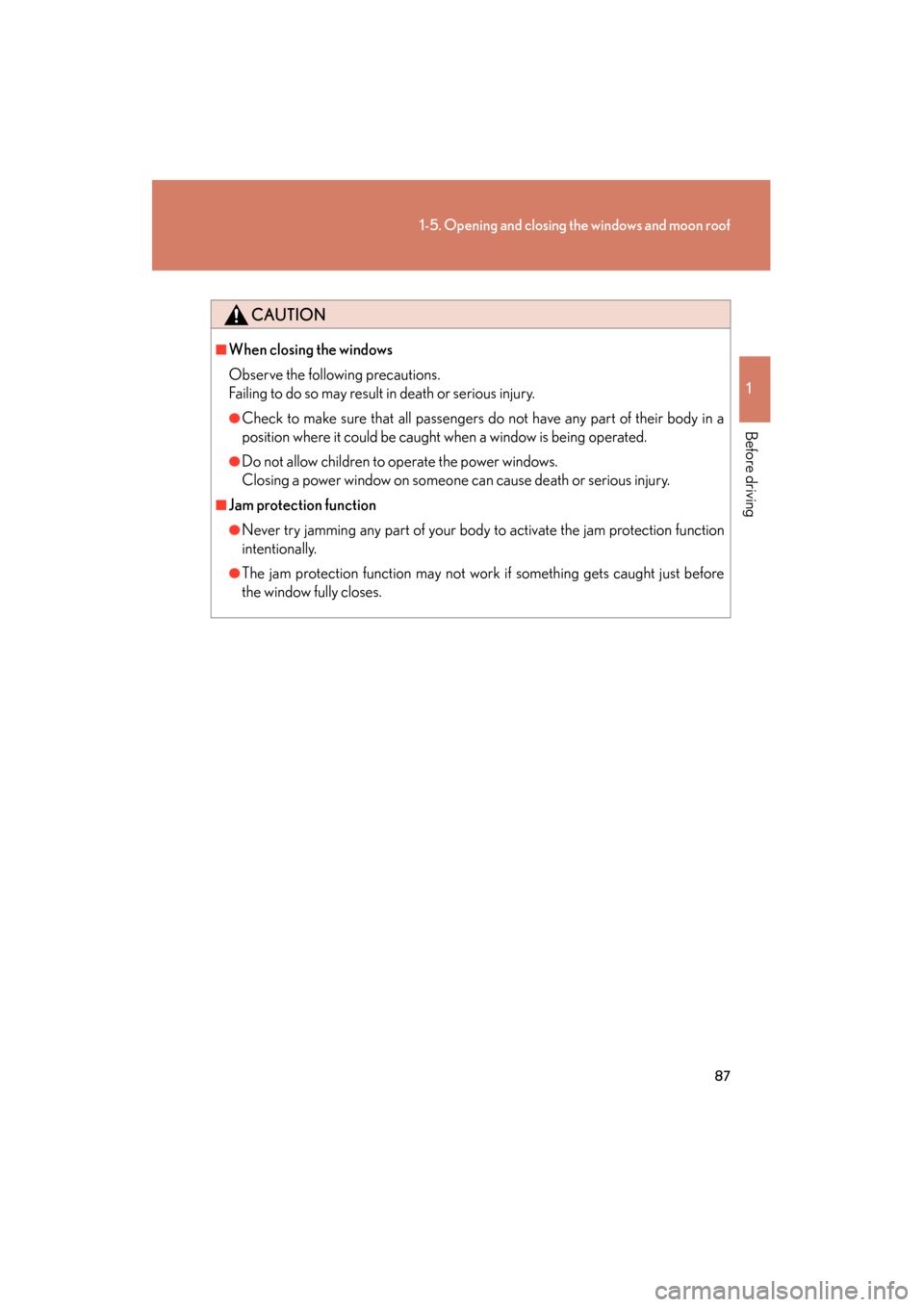

CAUTION
■When closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window fully closes.
GS450h_HV_U.book Page 87 Monday, April 27, 2009 10:10 AM

88
1-5. Opening and closing the windows and moon roof
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

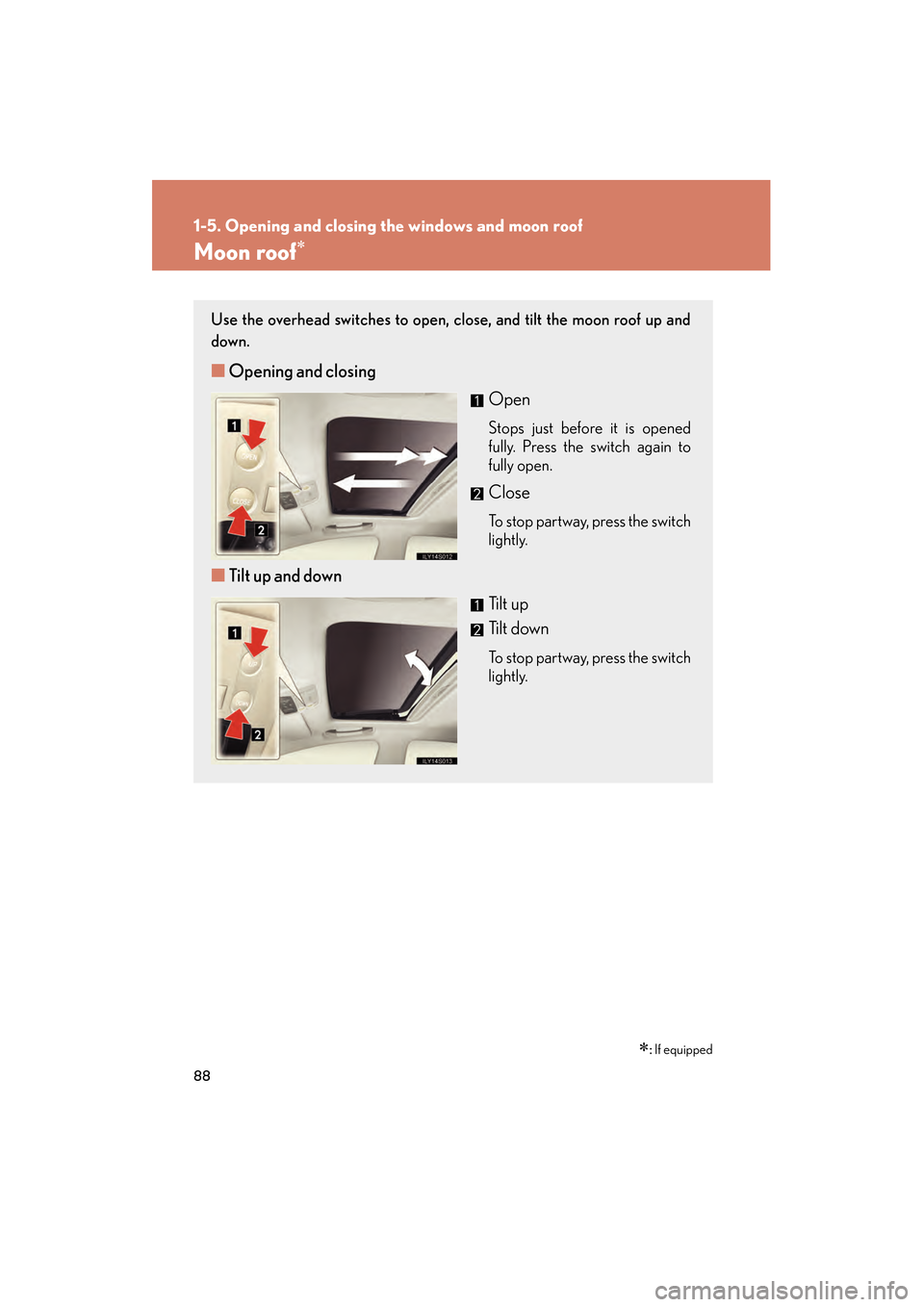

Moon roof∗
∗: If equipped
Use the overhead switches to open, close, and tilt the moon roof up and
down.
■ Opening and closing
Open
Stops just before it is opened
fully. Press the switch again to
fully open.
Close
To stop partway, press the switch
lightly.
■Tilt up and down
Tilt up
Tilt down
To stop partway, press the switch
lightly.
GS450h_HV_U.book Page 88 Monday, April 27, 2009 10:10 AM

89
1-5. Opening and closing the windows and moon roof
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

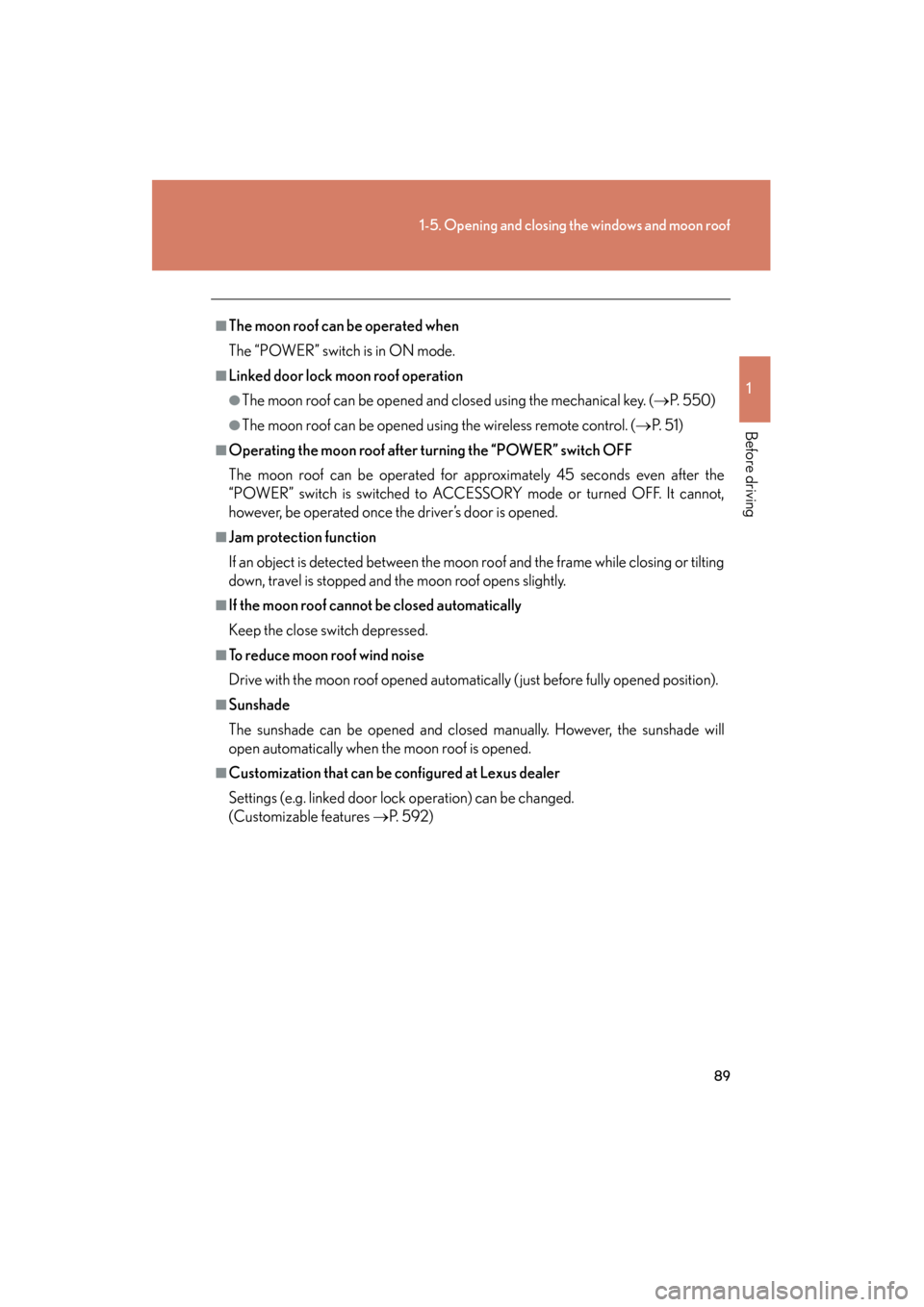

■The moon roof can be operated when
The “POWER” switch is in ON mode.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the mechanical key. (→P. 5 5 0 )
●The moon roof can be opened using the wireless remote control. ( →P. 5 1 )
■Operating the moon roof after turning the “POWER” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“POWER” switch is switched to ACCESSORY mode or turned OFF. It cannot,
however, be operated once the driver’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and th e moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the close switch depressed.
■To reduce moon roof wind noise
Drive with the moon roof opened automatically (just before fully opened position).
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 9 2 )
GS450h_HV_U.book Page 89 Monday, April 27, 2009 10:10 AM
