Lexus GS450h 2009 Owners Manual

90
1-5. Opening and closing the windows and moon roof
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

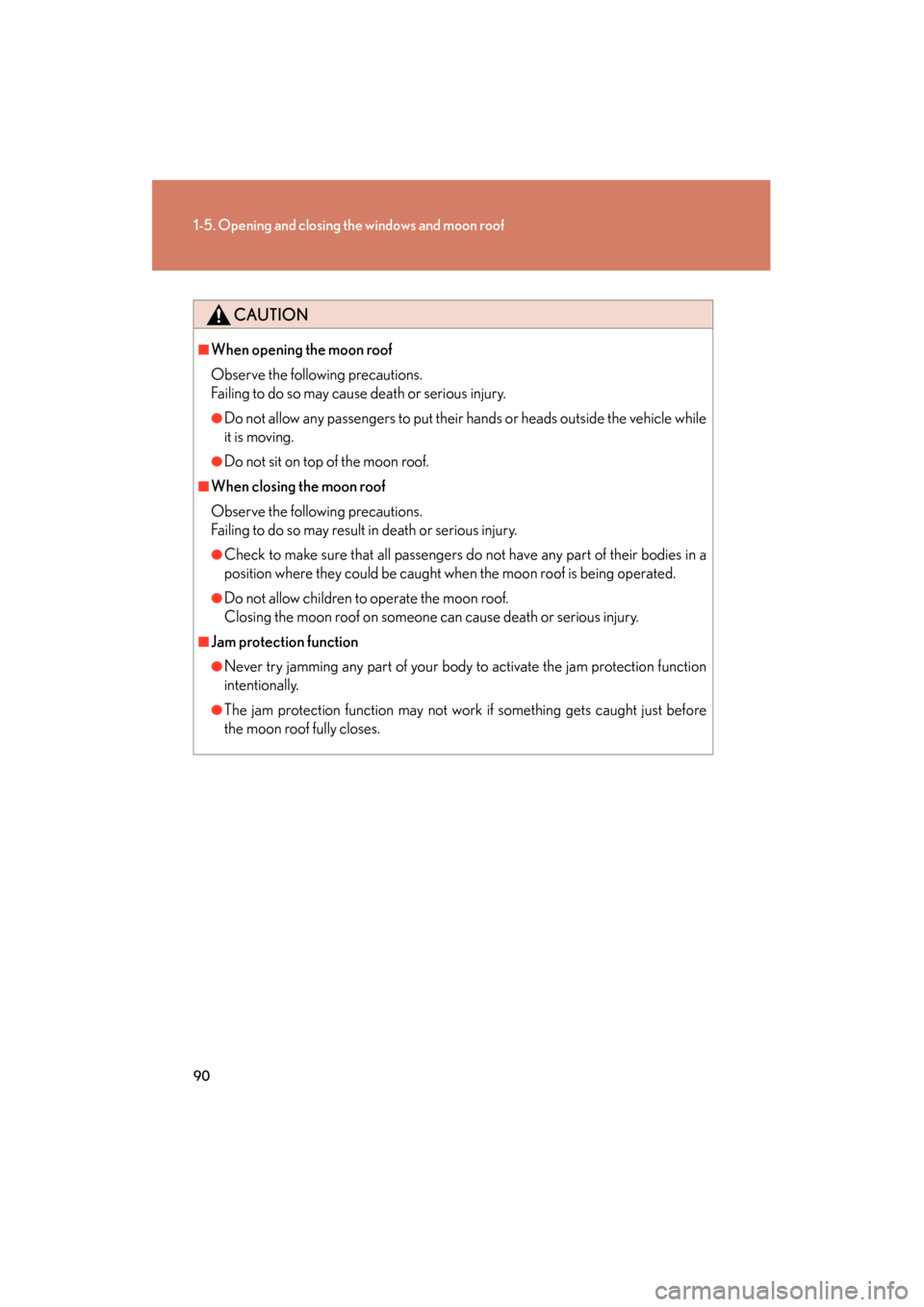

CAUTION
■When opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■When closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their bodies in a
position where they could be caught when the moon roof is being operated.
●Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes.
GS450h_HV_U.book Page 90 Monday, April 27, 2009 10:10 AM

91
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

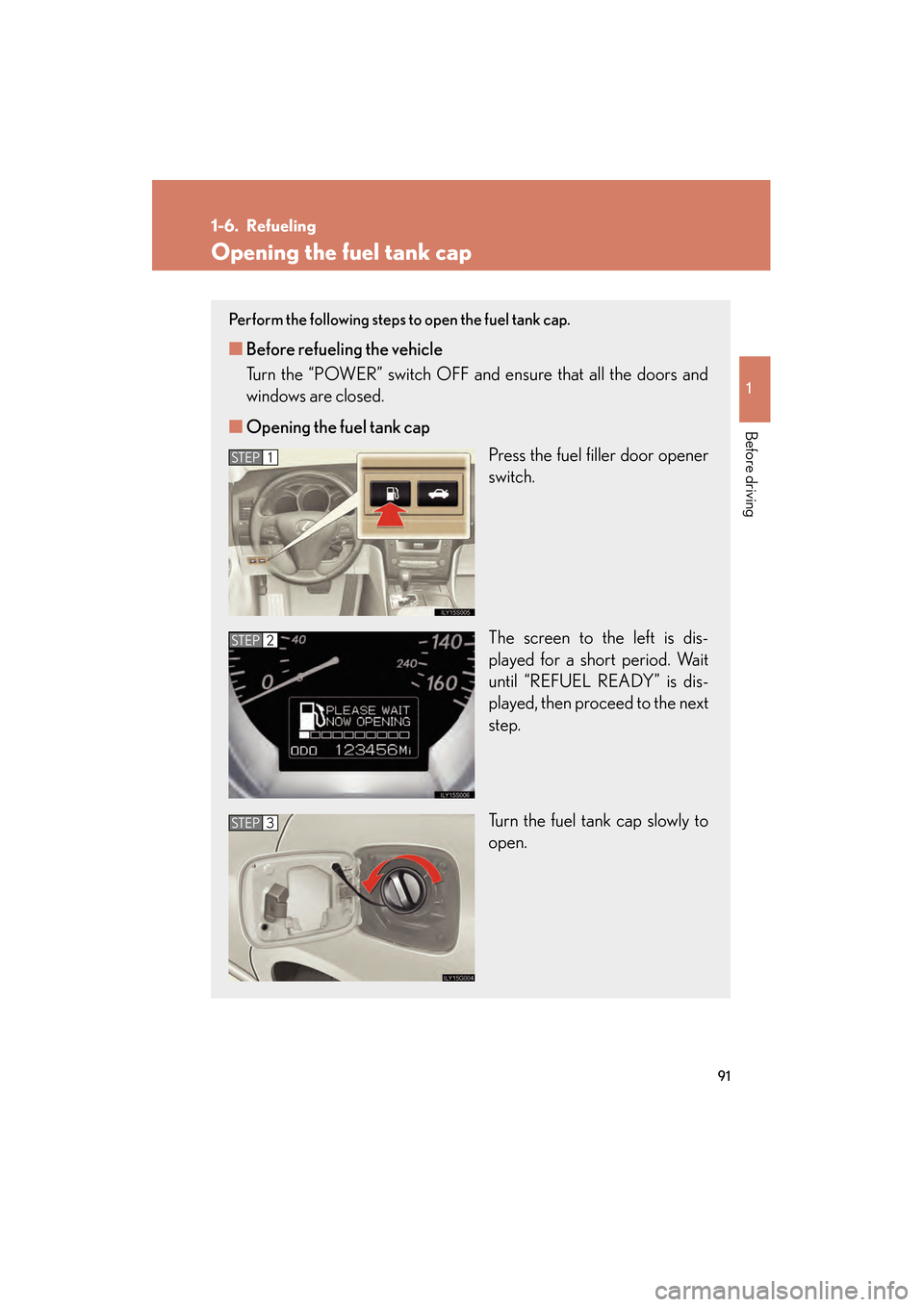

1-6. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Turn the “POWER” switch OFF and ensure that all the doors and
windows are closed.
■ Opening the fuel tank cap
Press the fuel filler door opener
switch.
The screen to the left is dis-
played for a short period. Wait
until “REFUEL READY” is dis-
played, then proceed to the next
step.
Turn the fuel tank cap slowly to
open.
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 91 Monday, April 27, 2009 10:10 AM

92
1-6. Refueling
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

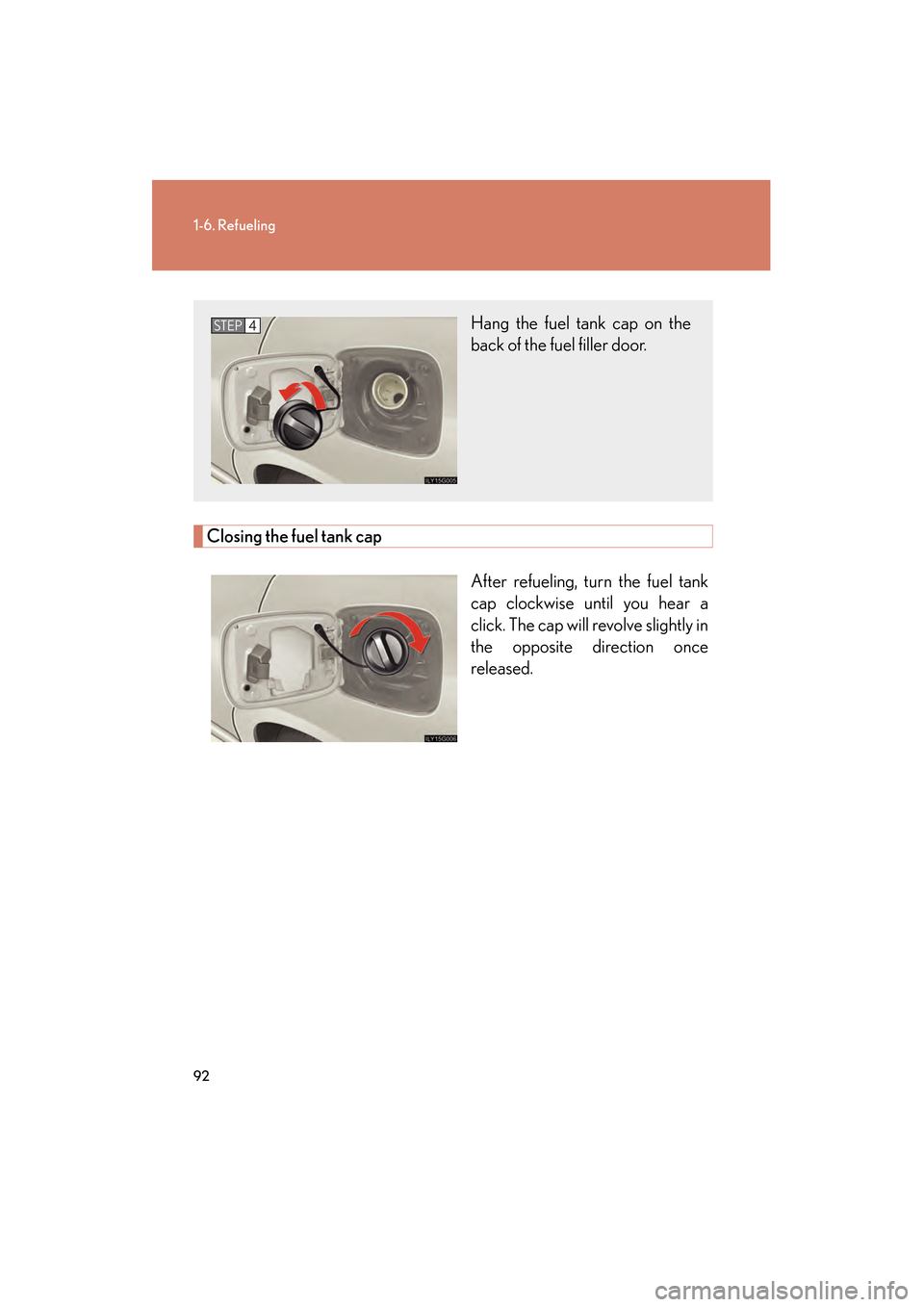

Closing the fuel tank capAfter refueling, turn the fuel tank
cap clockwise until you hear a
click. The cap will revolve slightly in
the opposite direction once
released.
Hang the fuel tank cap on the
back of the fuel filler door.STEP4
GS450h_HV_U.book Page 92 Monday, April 27, 2009 10:10 AM

93
1-6. Refueling
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

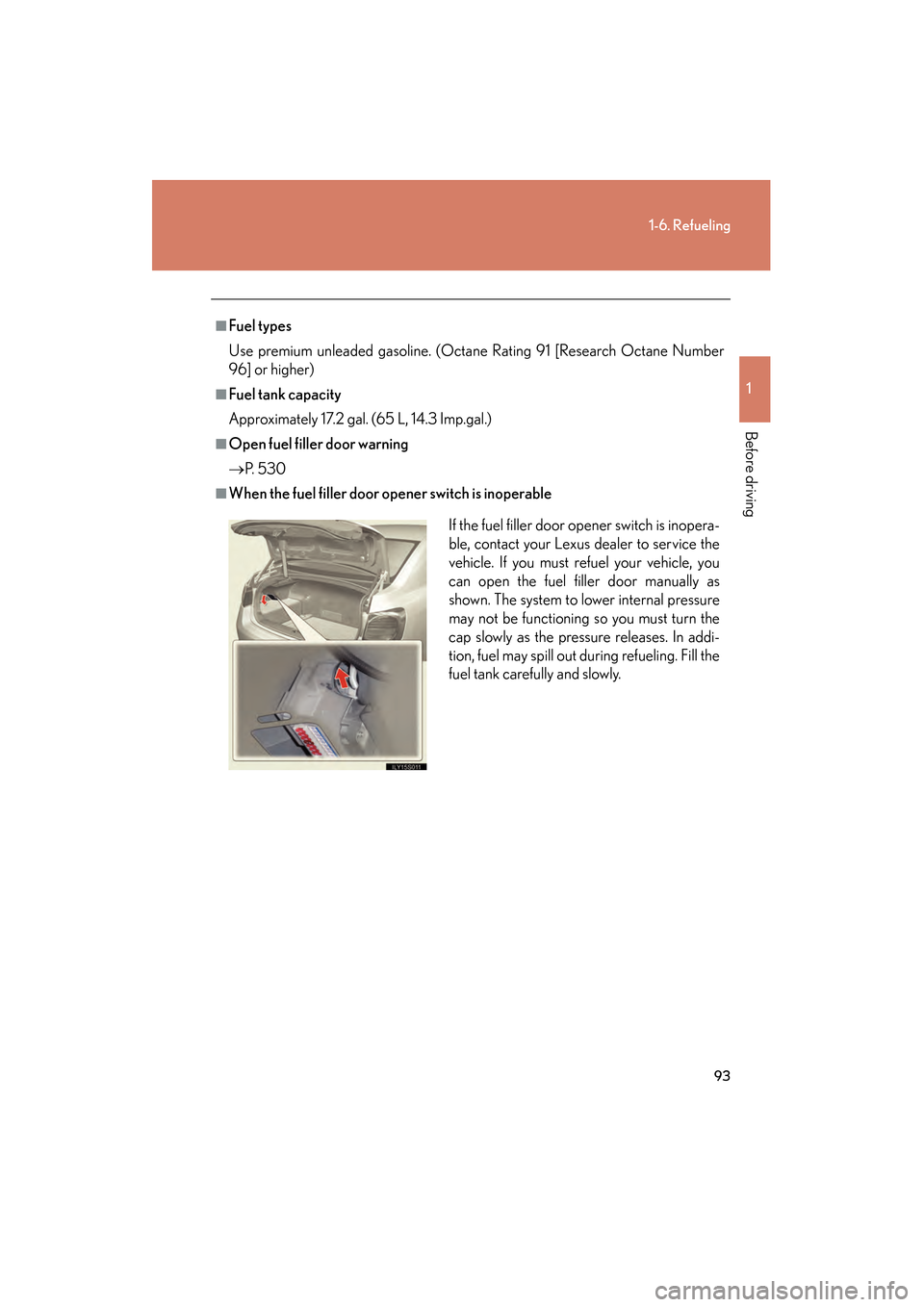

■Fuel types
Use premium unleaded gasoline. (Octane Rating 91 [Research Octane Number
96] or higher)
■Fuel tank capacity
Approximately 17.2 gal. (65 L, 14.3 Imp.gal.)
■Open fuel filler door warning
→P. 5 3 0
■When the fuel filler door opener switch is inoperable
If the fuel filler door opener switch is inopera-
ble, contact your Lexus dealer to service the
vehicle. If you must refuel your vehicle, you
can open the fuel filler door manually as
shown. The system to lower internal pressure
may not be functioning so you must turn the
cap slowly as the pressure releases. In addi-
tion, fuel may spill out during refueling. Fill the
fuel tank carefully and slowly.
GS450h_HV_U.book Page 93 Monday, April 27, 2009 10:10 AM

94
1-6. Refueling
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out of the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or seri-
ous injury.
GS450h_HV_U.book Page 94 Monday, April 27, 2009 10:10 AM

95
1-6. Refueling
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

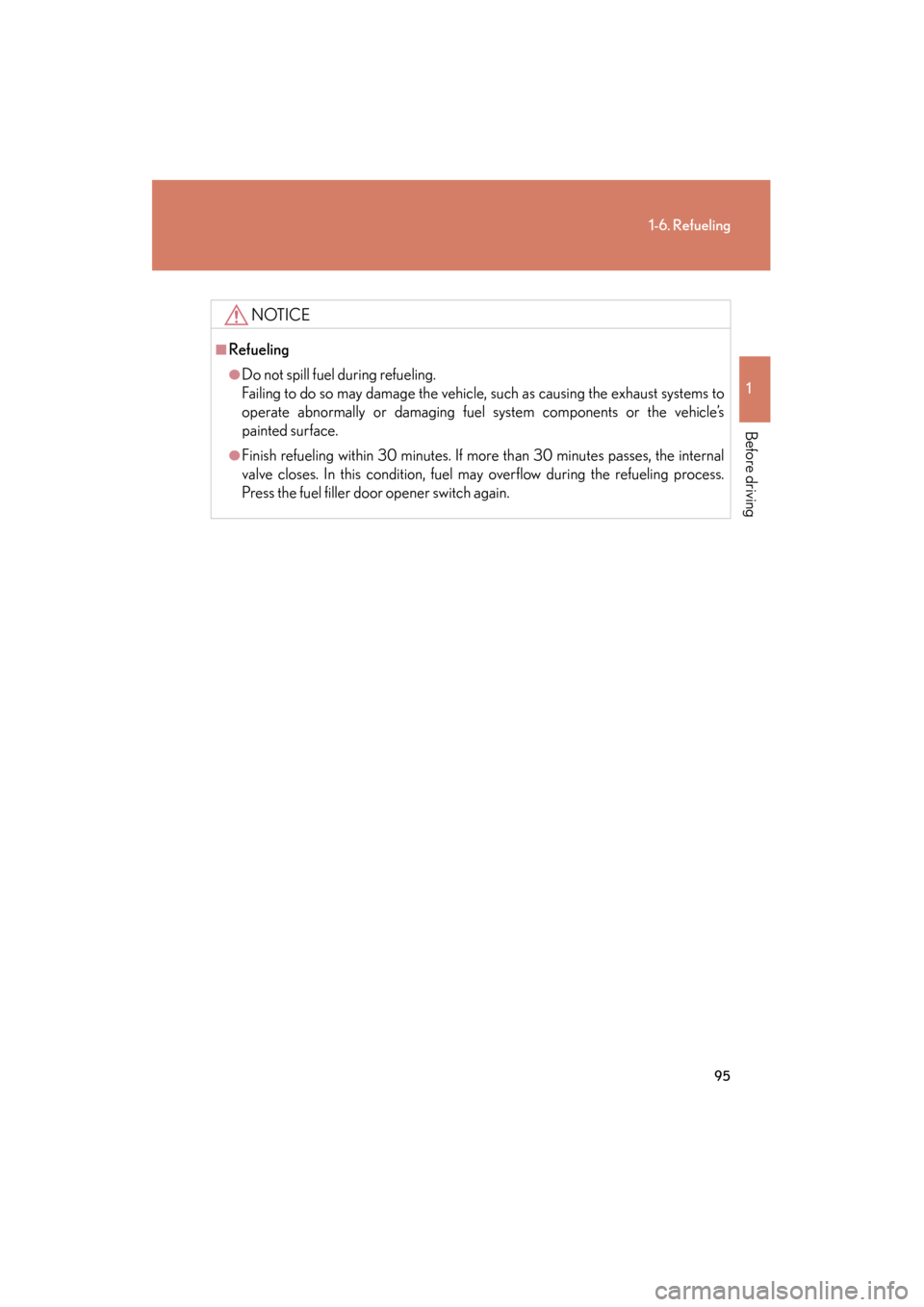

NOTICE
■Refueling
●Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle’s
painted surface.
●Finish refueling within 30 minutes. If more than 30 minutes passes, the internal
valve closes. In this condition, fuel may overflow during the refueling process.
Press the fuel filler door opener switch again.
GS450h_HV_U.book Page 95 Monday, April 27, 2009 10:10 AM

96
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

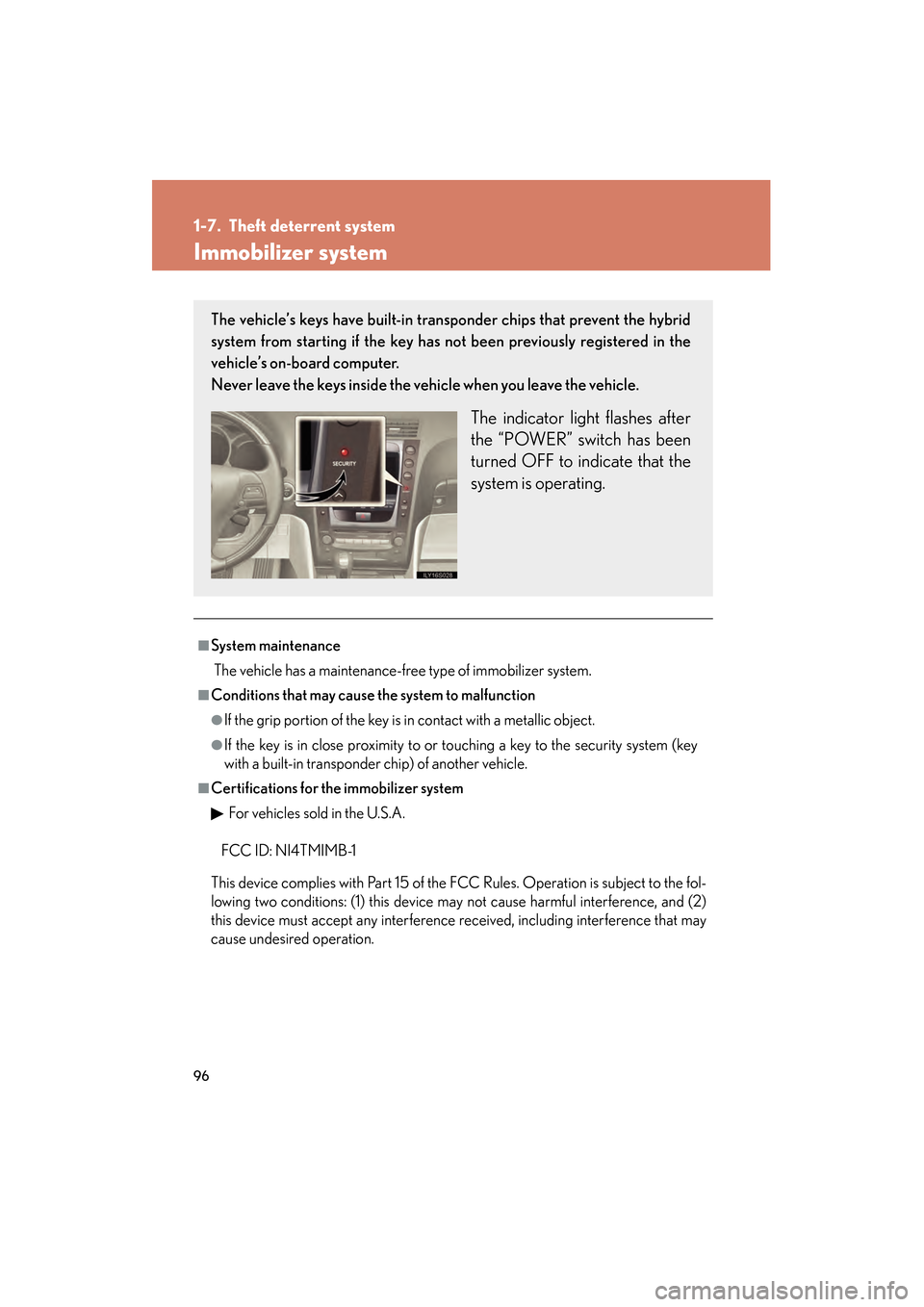

1-7. Theft deterrent system
Immobilizer system
■System maintenance
The vehicle has a maintenance-free type of immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object.
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
■Certifications for the immobilizer system For vehicles sold in the U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The vehicle’s keys have built-in transponder chips that prevent the hybrid
system from starting if the key has not been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “POWER” switch has been
turned OFF to indicate that the
system is operating.
FCC ID: NI4TMIMB-1
GS450h_HV_U.book Page 96 Monday, April 27, 2009 10:10 AM

97
1-7. Theft deterrent system
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

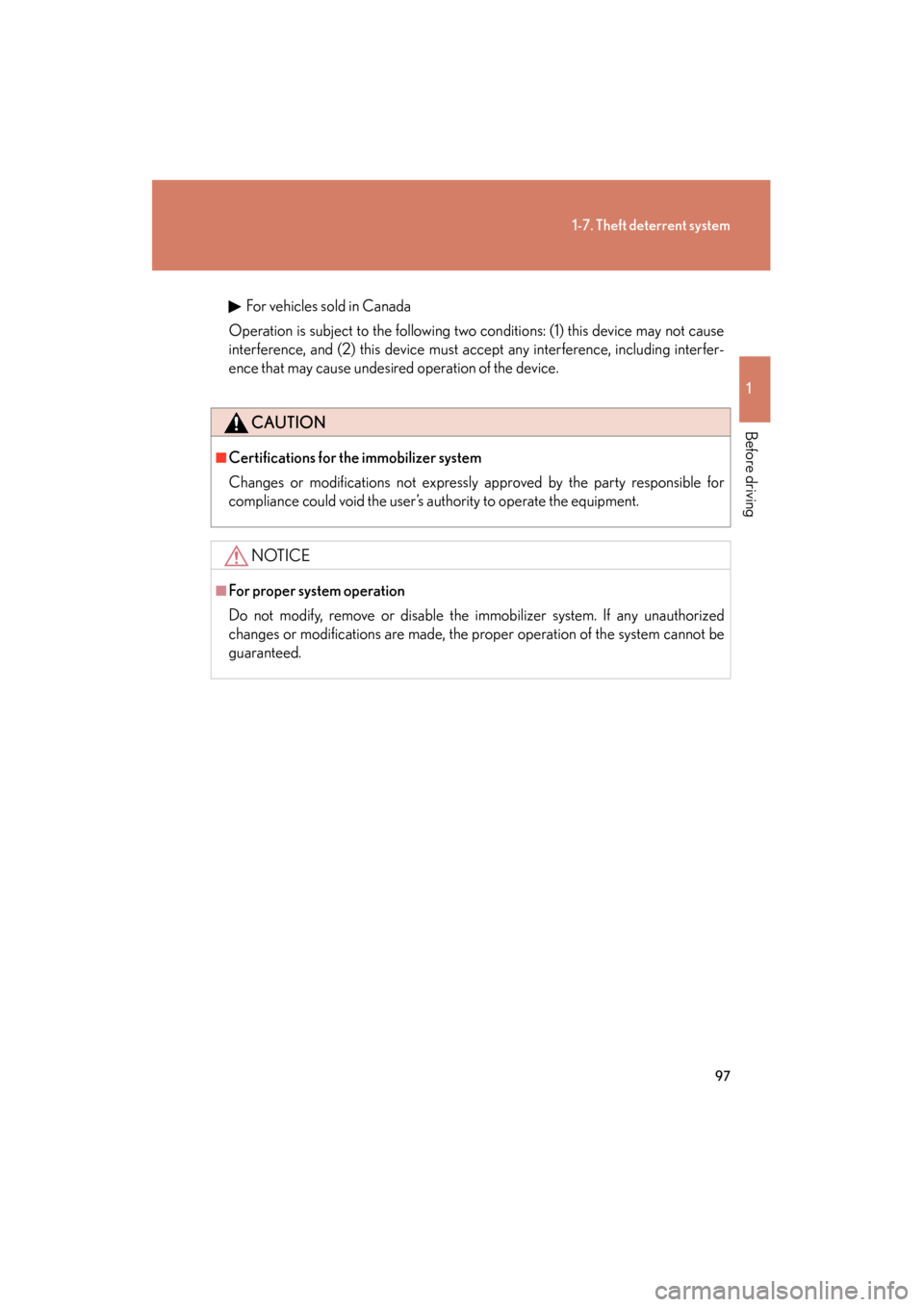

For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
CAUTION
■Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
■For proper system operation
Do not modify, remove or disable the immobilizer system. If any unauthorized
changes or modifications are made, the proper operation of the system cannot be
guaranteed.
GS450h_HV_U.book Page 97 Monday, April 27, 2009 10:10 AM

98
1-7. Theft deterrent system
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door or trunk is unlocked or opened in any way other
than by using the smart access system with push-button start,
wireless remote control or mechanical key. (The doors will lock
again automatically.)
● The hood is opened while the vehicle is locked.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors or trunk.
● Turn the “POWER” switch to the ACCESSORY or ON mode.
(The alarm will be deactivated or stopped after a few seconds.)
GS450h_HV_U.book Page 98 Monday, April 27, 2009 10:10 AM

99
1-7. Theft deterrent system
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Items to check before locking the vehicle
To prevent unintended triggering of the alarm and vehicle theft, make sure of the
following:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
●A person inside the vehicle opens a door, the trunk or hood.
●The 12 volt battery is recharged or replaced when the vehicle is locked.
■When the 12 volt battery is disconnected
Be sure to cancel the alarm system.
If the 12 volt battery is disconnected before canceling the alarm, the system may be
triggered when the battery is reconnected.
■Pa n i c m o d eWhen is pushed for longer than about
one second, the headlights/tail lights/emer-
gency flashers will flash, the front and rear
interior lights will come on, and an alarm will
sound for about 60 seconds to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, push any button on the
wireless remote control.
GS450h_HV_U.book Page 99 Monday, April 27, 2009 10:10 AM
