service indicator Lexus GS450h 2009 Owner's Manual

406
3-7. Other interior features
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

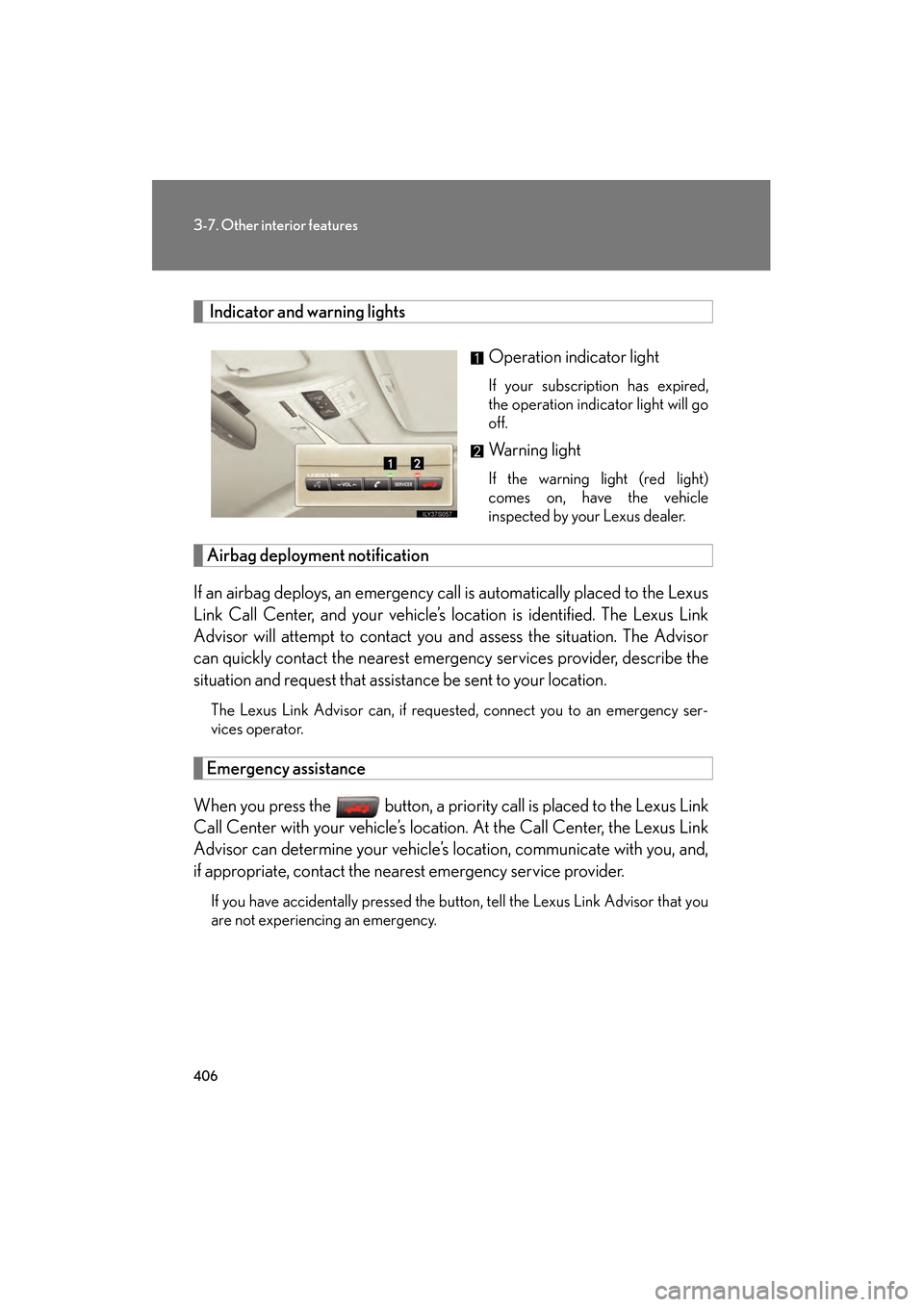

Indicator and warning lights
Operation indicator light
If your subscription has expired,
the operation indicator light will go
off.
Warning light
If the warning light (red light)
comes on, have the vehicle
inspected by your Lexus dealer.
Airbag deployment notification
If an airbag deploys, an emergency call is automatically placed to the Lexus
Link Call Center, and your vehicle’s location is identified. The Lexus Link
Advisor will attempt to contact you and assess the situation. The Advisor
can quickly contact the nearest emergency services provider, describe the
situation and request that assistance be sent to your location.
The Lexus Link Advisor can, if requested, connect you to an emergency ser-
vices operator.
Emergency assistance
When you press the button, a priority call is placed to the Lexus Link
Call Center with your vehicle’s location. At the Call Center, the Lexus Link
Advisor can determine your vehicle’s location, communicate with you, and,
if appropriate, contact the nearest emergency service provider.
If you have accidentally pressed the button, tell the Lexus Link Advisor that you
are not experiencing an emergency.
GS450h_HV_U.book Page 406 Monday, April 27, 2009 10:10 AM

431
4-2. Maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

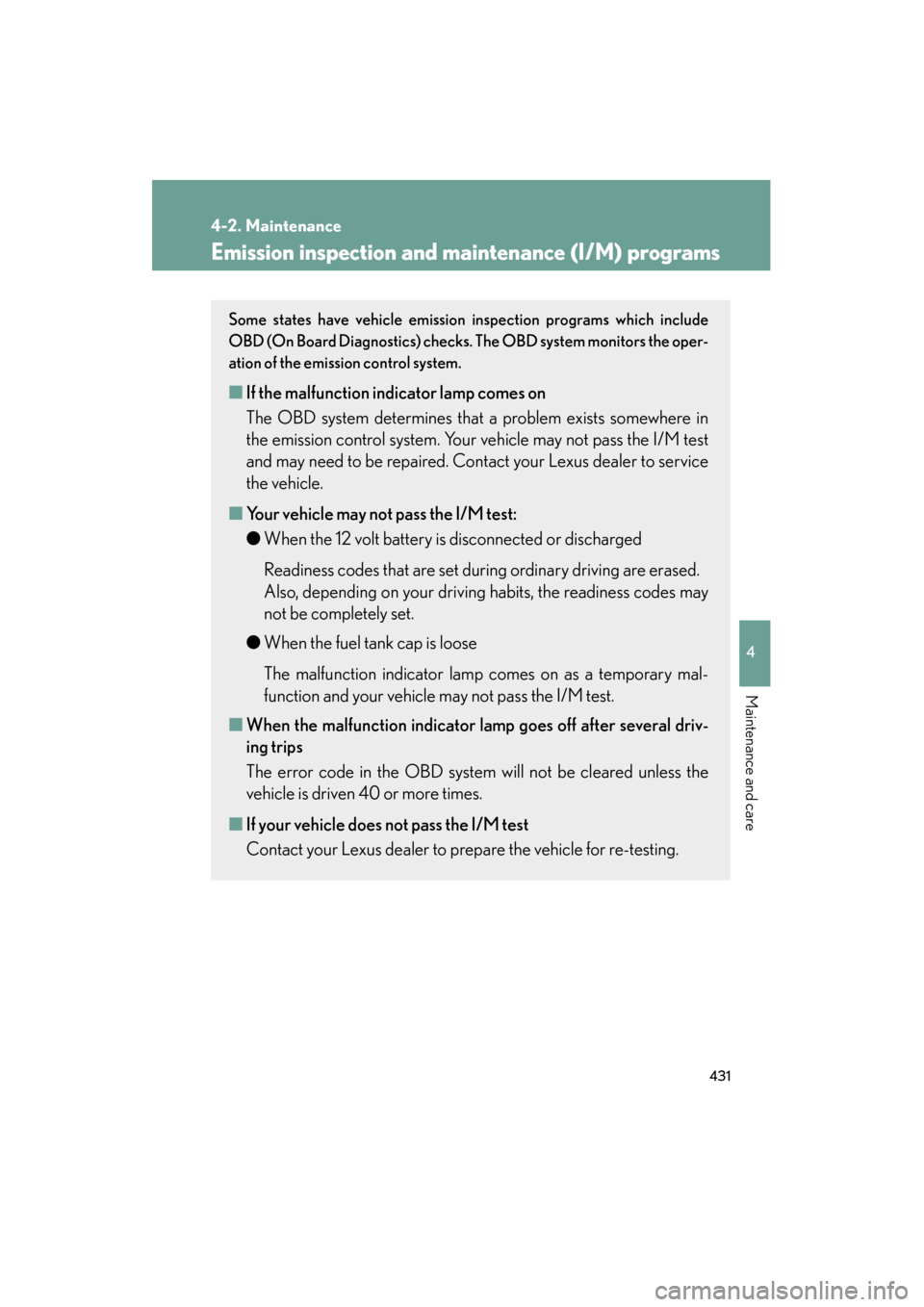

Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the oper-
ation of the emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M test
and may need to be repaired. Cont act your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test:
● When the 12 volt battery is disconnected or discharged
Readiness codes that are set du ring ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■ When the malfunction indicator la mp goes off after several driv-
ing trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prepare the vehicle for re-testing.
GS450h_HV_U.book Page 431 Monday, April 27, 2009 10:10 AM

576
6-1. Specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

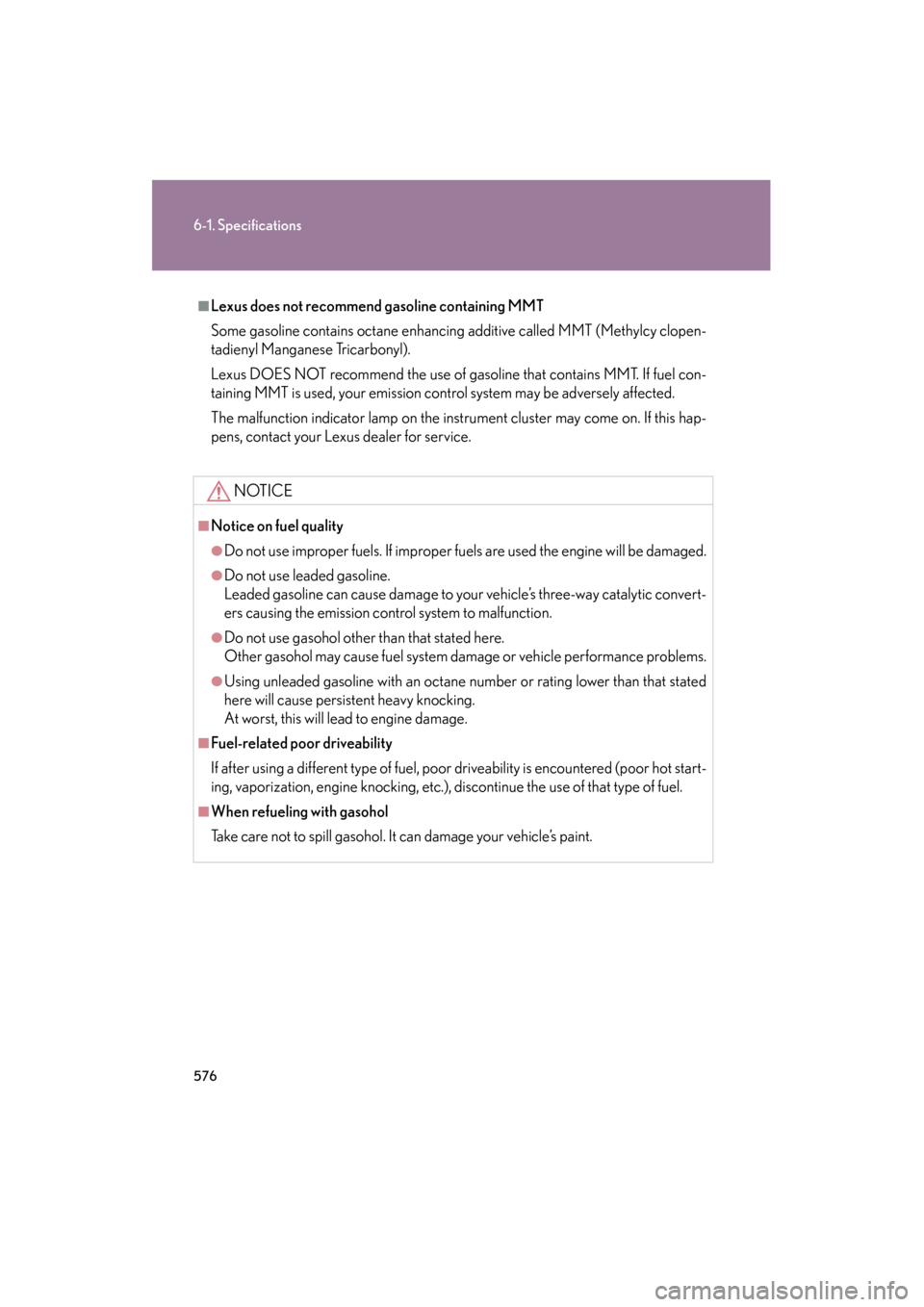

■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
GS450h_HV_U.book Page 576 Monday, April 27, 2009 10:10 AM

609
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Parking brake .......................................... 157
Parking lightsReplacing light bulbs ....................... 492
Switch ........................................................169
Wattage ................................................. 573
Personal lights ......................................... 371
Portable music player .......................... 319
Power meter ............................................ 159
Power outlet ........................................... 385
Power windows........................................ 85
Pre-collision system .............................. 221
Radar cruise control .............................183
Radiator.................................................... 445
Radio ........................................................... 261
Radio data system.................................263
Rear sunshade....................................... 389
Rear turn signal lights
Replacing light bulbs ....................... 492
Wattage ................................................. 573
Rear view monitor system .................. 210
Rear window defogger ...................... 256
Replacing Electronic key battery ......................472
Fuses .........................................................474
Light bulbs ............................................ 492
Reporting safety defects for U.S. owners ......................................... 598
Seat belts Adjusting the seat belt ........................ 74
Automatic locking retractor.............76
Child restraint system installation ............................................ 125
Cleaning and maintaining the seat belts......................................424 Emergency locking retractor.......... 76
How to wear your seat belt ............. 74
How your child should wear
the seat belt ...........................................77
Pre-collision seat belts ....................... 76
Pregnant women, proper seat belt use ......................... 76
Reminder light ...................................... 512
Seat belt extenders ...............................77
Seat belt pretensioners ...................... 75
Seat heaters/ventilators..................... 387
Seating capacity ....................................386
Seats Adjustment ............................................... 64
Adjustment precautions ....................65
Child seats/child restraint
system installation............................ 125
Cleaning ................................................. 423
Driver’s seat position memory .......66
Head restraint ......................................... 70
Properly sitting in the seat ................ 101
Seat heaters ......................................... 386
Service reminder indicators ............. 163
Shift lever If the shift lever cannot be shifted from “P” ............................... 548
Transmission.......................................... 152
Shift lock system ....................................548
Shopping bag hooks............................ 392
Side airbags.............................................. 103
Side marker lights Switch........................................................ 169
Side mirror Adjusting and folding..........................83
Mirror position memory....................66P
R
S
GS450h_HV_U.book Page 609 Monday, April 27, 2009 10:10 AM
