turn signal bulb Lexus GS450h 2009 Owner's Manual

156
2-1. Driving procedures
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

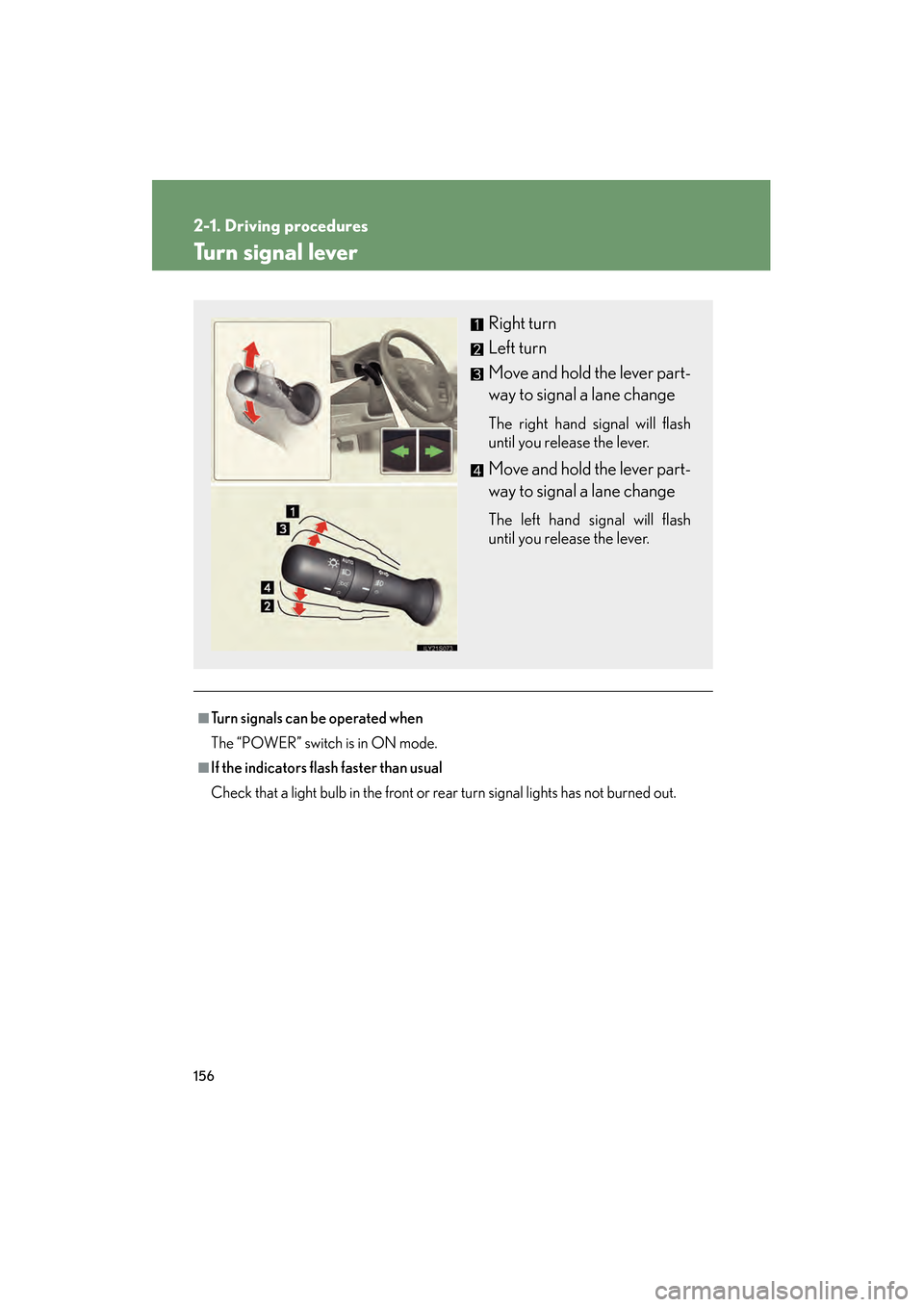

Turn signal lever
■Turn signals can be operated when
The “POWER” switch is in ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Right turn
Left turn
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
GS450h_HV_U.book Page 156 Monday, April 27, 2009 10:10 AM

492
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

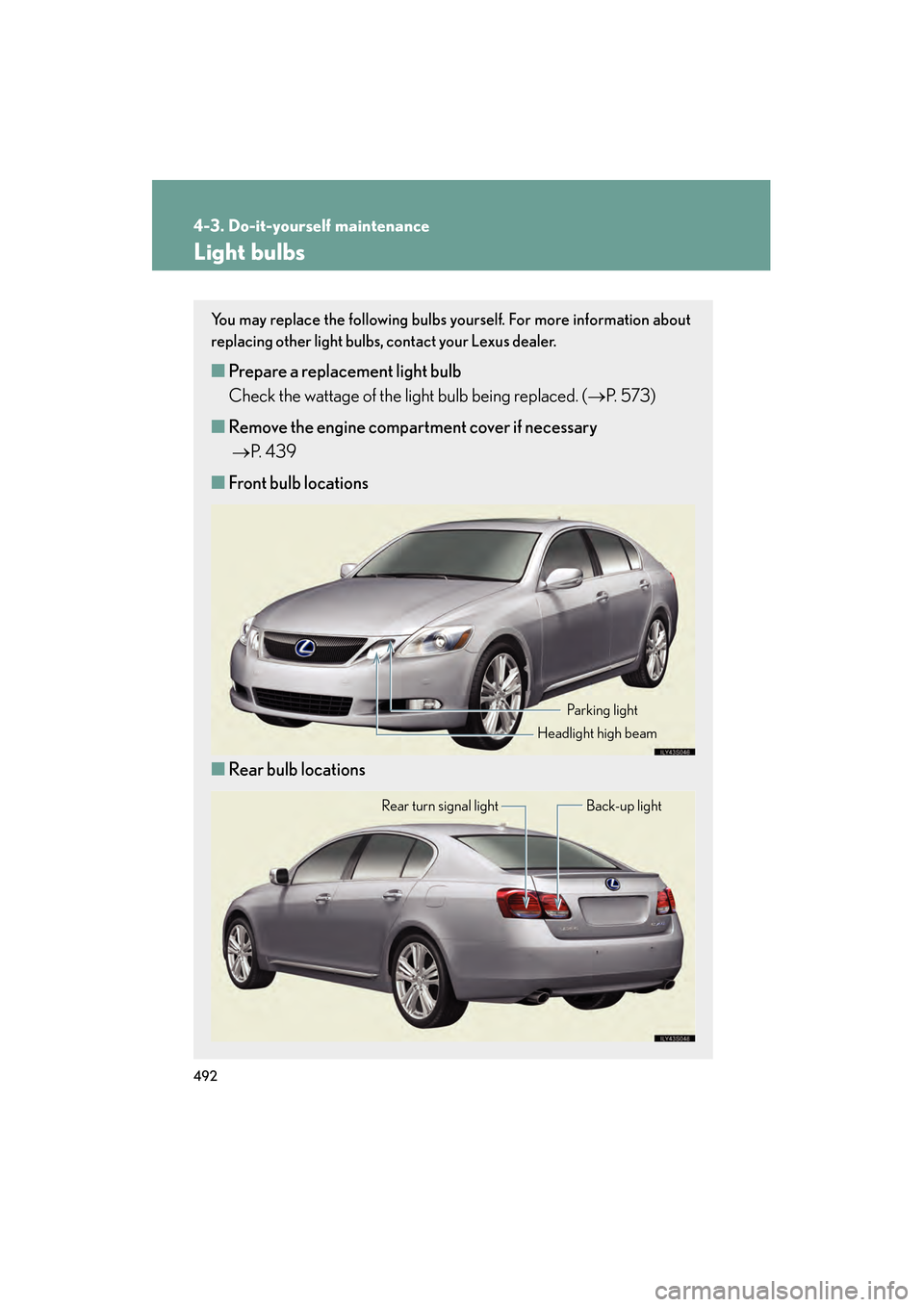

Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 573)
■ Remove the engine compartment cover if necessary
→ P. 4 3 9
■ Front bulb locations
■ Rear bulb locations
Parking light
Headlight high beam
Rear turn signal light Back-up light
GS450h_HV_U.book Page 492 Monday, April 27, 2009 10:10 AM

496
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

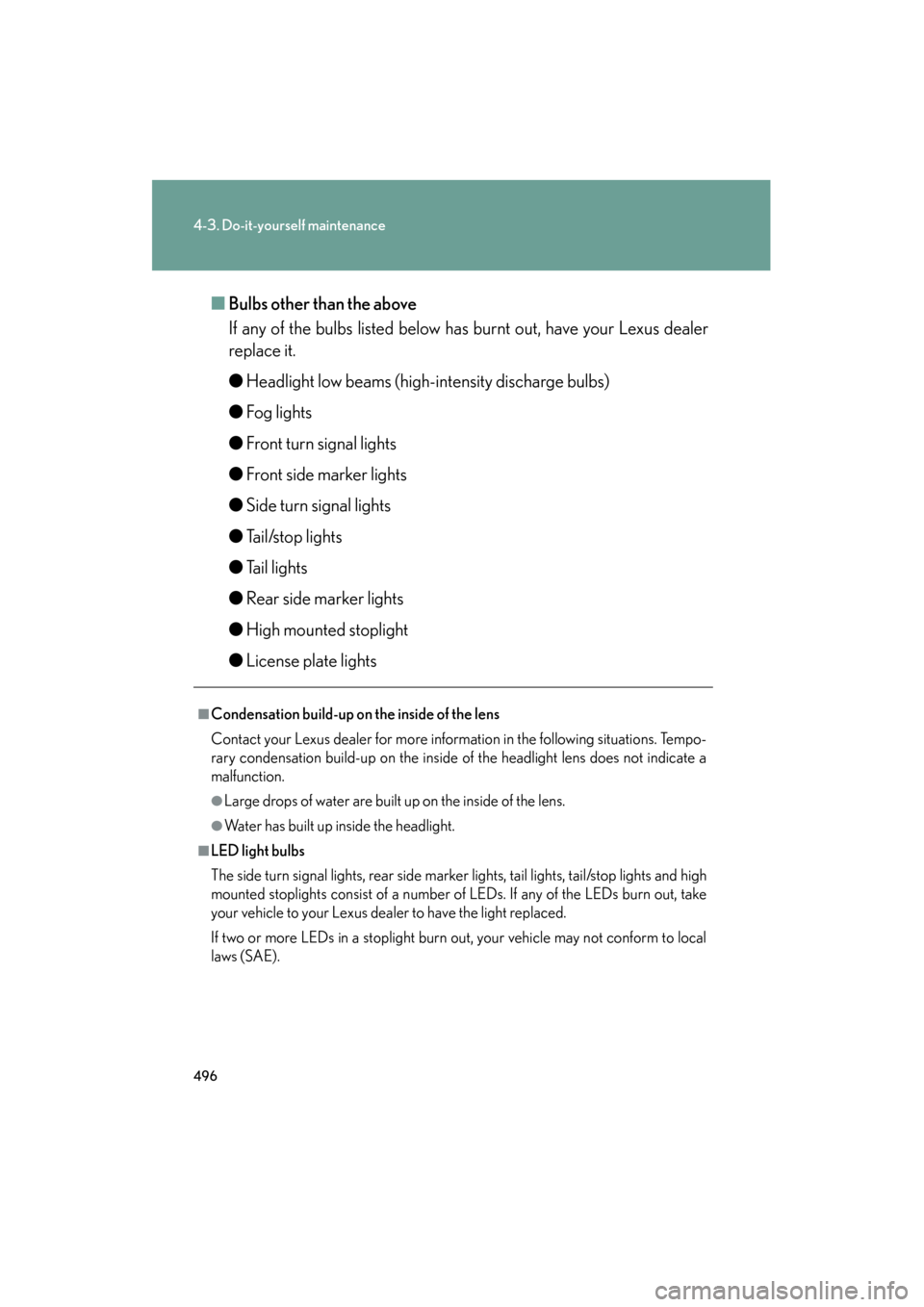

■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (high-intensity discharge bulbs)
● Fog lights
● Front turn signal lights
● Front side marker lights
● Side turn signal lights
● Tail/stop lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■LED light bulbs
The side turn signal lights, rear side marker lights, tail lights, tail/stop lights and high
mounted stoplights consist of a number of LEDs. If any of the LEDs burn out, take
your vehicle to your Lexus dealer to have the light replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to local
laws (SAE).
GS450h_HV_U.book Page 496 Monday, April 27, 2009 10:10 AM

573
6-1. Specifications
6
Vehicle specifications
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

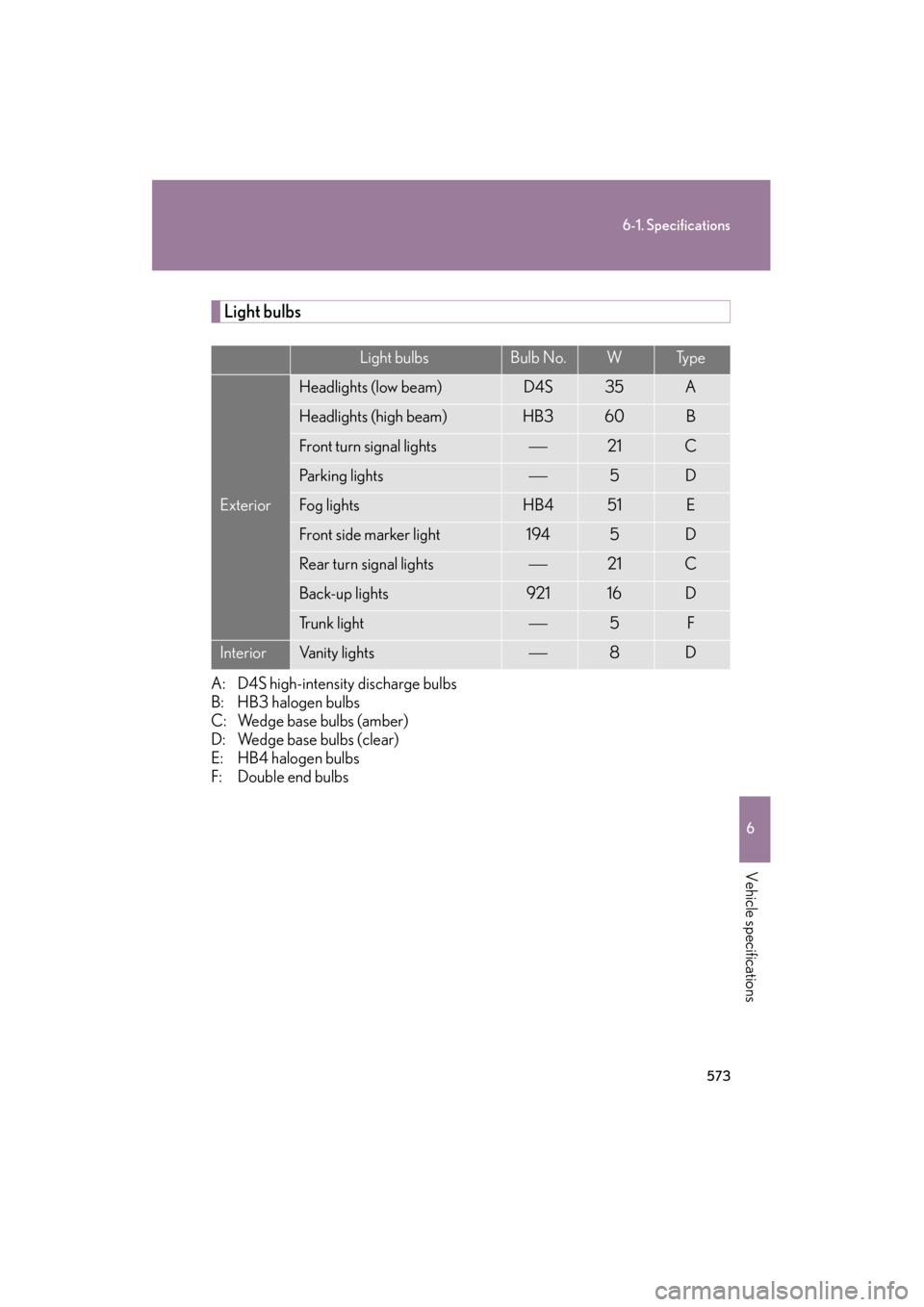

Light bulbs
A: D4S high-intensity discharge bulbs
B: HB3 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: HB4 halogen bulbs
F: Double end bulbs
Light bulbsBulb No.WTy p e
Exterior
Headlights (low beam)D4S35A
Headlights (high beam)HB360B
Front turn signal lights21C
Parking lights5D
Fog lightsHB451E
Front side marker light1945D
Rear turn signal lights21C
Back-up lights92116D
Tr u n k l i g h t5F
InteriorVanity lights8D
GS450h_HV_U.book Page 573 Monday, April 27, 2009 10:10 AM

607
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Foot light .................................................. 369
Front passenger occupant classification system ........................... 115
Front passenger’s seat belt
reminder light ....................................... 512
Front seats
Adjustment ...............................................64
Driver’s seat position memory ...... 66
Front turn signal lights Wattage ................................................. 573
Fuel Capacity.................................................566
Fuel gauge ..............................................159
Gas station information ................. 620
Information............................................ 574
Refueling ..................................................... 91
Messages ..............................................530
Fuel door....................................................... 91
Fuel filler door............................................. 91
Fuses........................................................... 474
Garage door opener.......................... 394
Gas station information ..................... 620
Gauges....................................................... 159
Glove box ................................................373
Hands-free system (for cellular phone).......................... 323
Head restraints..........................................70
Headlight aim ........................................ 489
Headlight cleaner .................................. 178 Headlights
Adaptive front lighting system...... 170
Discharge headlights precautions........................................ 497
Replacing light bulbs ........................ 492
Switch........................................................ 169
Wattage..................................................573
Heaters
Seat heaters ......................................... 386
Side mirror.............................................256
Hill-start assist control ......................... 214
Hood ..........................................................435
Hooks Cargo ...................................................... 392
Shopping bag ......................................392
Horn ............................................................ 158
Hybrid system ........................................... 24 Emergency shut off system.............. 29
Energy monitor/consumption screen...................................................... 29
High voltage components ............... 28
Power meter.......................................... 159
Power (ignition) switch .................... 148
Identification Engine..................................................... 565
Electric motor ..................................... 565
Vehicle ................................................... 565
Ignition switch Power switch......................................... 148
Illuminated entry system .................... 369
I/M test....................................................... 431
Immobilizer system ................................. 96
Indicator lights......................................... 163
Initialization Items to initialize ................................ 596
G
H
I
GS450h_HV_U.book Page 607 Monday, April 27, 2009 10:10 AM

608
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Inside rear view mirror ..........................82
Instrument panel light control........... 160
Interior lightsInterior lights......................................... 370
Wattage.................................................. 573
Intuitive parking assist .......................... 195
Jack
Positioning a floor jack.................... 436
Vehicle-equipped jack ...................536
Jack handle ..............................................536
Keyless entry............................................... 51
Keys If the electronic key does not operate properly ................... 550
If you lose your keys.........................549
Key number plate ................................. 35
Keys ............................................................. 35
Mechanical key...................................... 35
Power (ignition) switch.................... 148
Wireless remote control key ............ 51
Lexus Link System ................................404
Light bulbs Replacing ............................................... 492
Wattage.................................................. 573
Light sensitive optitron meter .............161
Lights Fog light switch..................................... 172
Headlights switch ................................169
Interior lights list.................................. 369
Replacing light bulbs........................ 492
Turn signal lever .................................. 156
Vanity lights ......................................... 380
Wattage.................................................. 573 Maintenance
Do-it-yourself ma intenance..........432
General maintenance..................... 428
Maintenance data ............................. 564
Maintenance requirements...........426
Meter
Instrument panel light control .......160
Meters....................................................... 159
Micro dust and pollen filter .............. 252
Mirrors Inside rear view mirror .......................82
Side mirror heater............................. 256
Side mirrors............................................. 83
Vanity mirrors .....................................380
Moon roof...................................................88
MP3 disc.................................................. 279
Multi-information display ....................166
Noise from under the vehicle...............18
Odometer ................................................ 159
Oil Engine oil............................................... 440
Opener
Fuel filler door .......................................... 91
Hood ....................................................... 435
Trunk........................................................... 59
Outer foot lights.................................... 369
Outside rear view mirrors Adjusting and folding ......................... 83
Mirror position memory ....................66
Outside temperature
display .................................................... 382
Overhead console ............................... 375
Overheating, Engine .......................... 557
J
K
L
M
N
O
GS450h_HV_U.book Page 608 Monday, April 27, 2009 10:10 AM

609
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

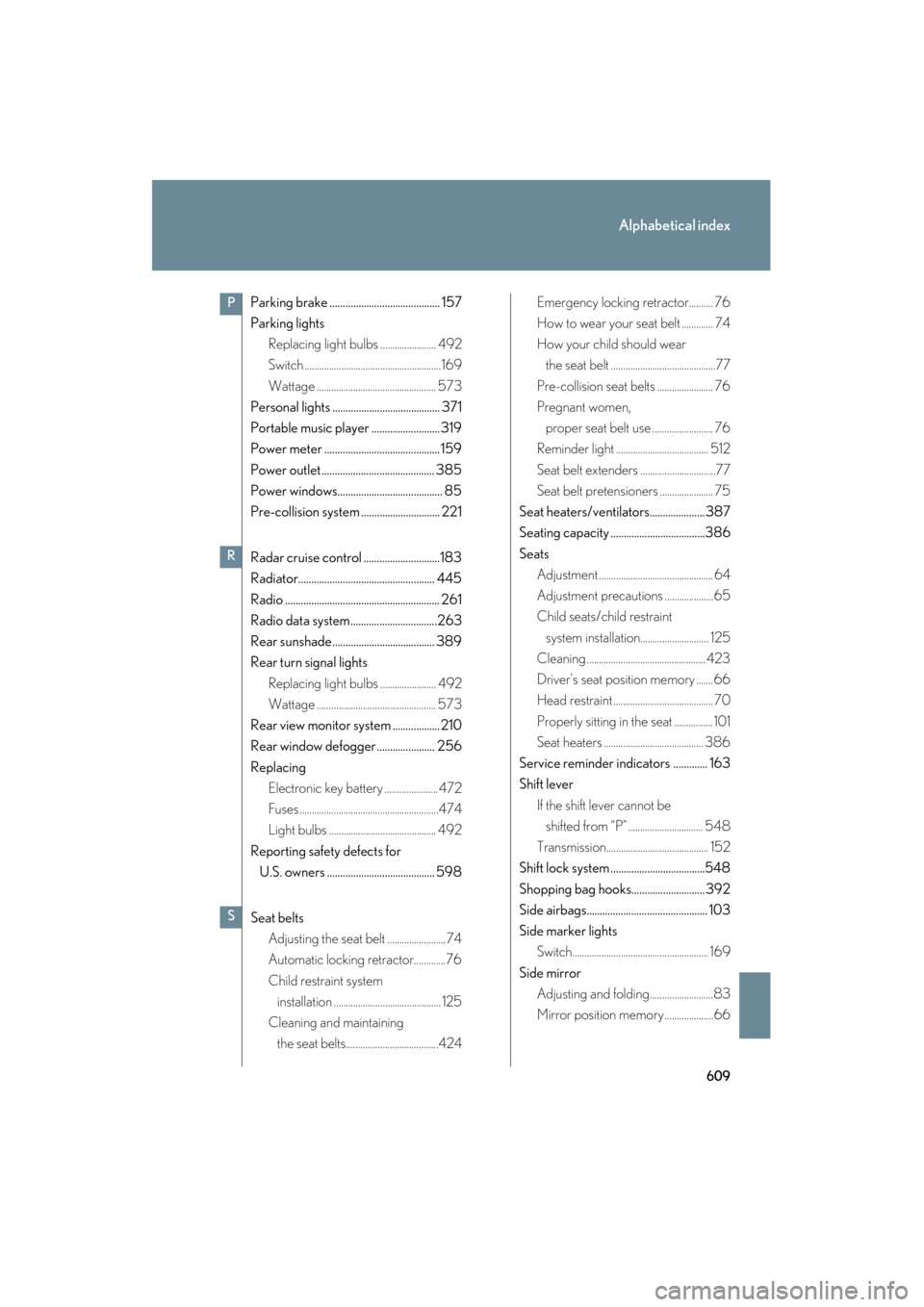

Parking brake .......................................... 157
Parking lightsReplacing light bulbs ....................... 492
Switch ........................................................169
Wattage ................................................. 573
Personal lights ......................................... 371
Portable music player .......................... 319
Power meter ............................................ 159
Power outlet ........................................... 385
Power windows........................................ 85
Pre-collision system .............................. 221
Radar cruise control .............................183
Radiator.................................................... 445
Radio ........................................................... 261
Radio data system.................................263
Rear sunshade....................................... 389
Rear turn signal lights
Replacing light bulbs ....................... 492
Wattage ................................................. 573
Rear view monitor system .................. 210
Rear window defogger ...................... 256
Replacing Electronic key battery ......................472
Fuses .........................................................474
Light bulbs ............................................ 492
Reporting safety defects for U.S. owners ......................................... 598
Seat belts Adjusting the seat belt ........................ 74
Automatic locking retractor.............76
Child restraint system installation ............................................ 125
Cleaning and maintaining the seat belts......................................424 Emergency locking retractor.......... 76
How to wear your seat belt ............. 74
How your child should wear
the seat belt ...........................................77
Pre-collision seat belts ....................... 76
Pregnant women, proper seat belt use ......................... 76
Reminder light ...................................... 512
Seat belt extenders ...............................77
Seat belt pretensioners ...................... 75
Seat heaters/ventilators..................... 387
Seating capacity ....................................386
Seats Adjustment ............................................... 64
Adjustment precautions ....................65
Child seats/child restraint
system installation............................ 125
Cleaning ................................................. 423
Driver’s seat position memory .......66
Head restraint ......................................... 70
Properly sitting in the seat ................ 101
Seat heaters ......................................... 386
Service reminder indicators ............. 163
Shift lever If the shift lever cannot be shifted from “P” ............................... 548
Transmission.......................................... 152
Shift lock system ....................................548
Shopping bag hooks............................ 392
Side airbags.............................................. 103
Side marker lights Switch........................................................ 169
Side mirror Adjusting and folding..........................83
Mirror position memory....................66P
R
S
GS450h_HV_U.book Page 609 Monday, April 27, 2009 10:10 AM

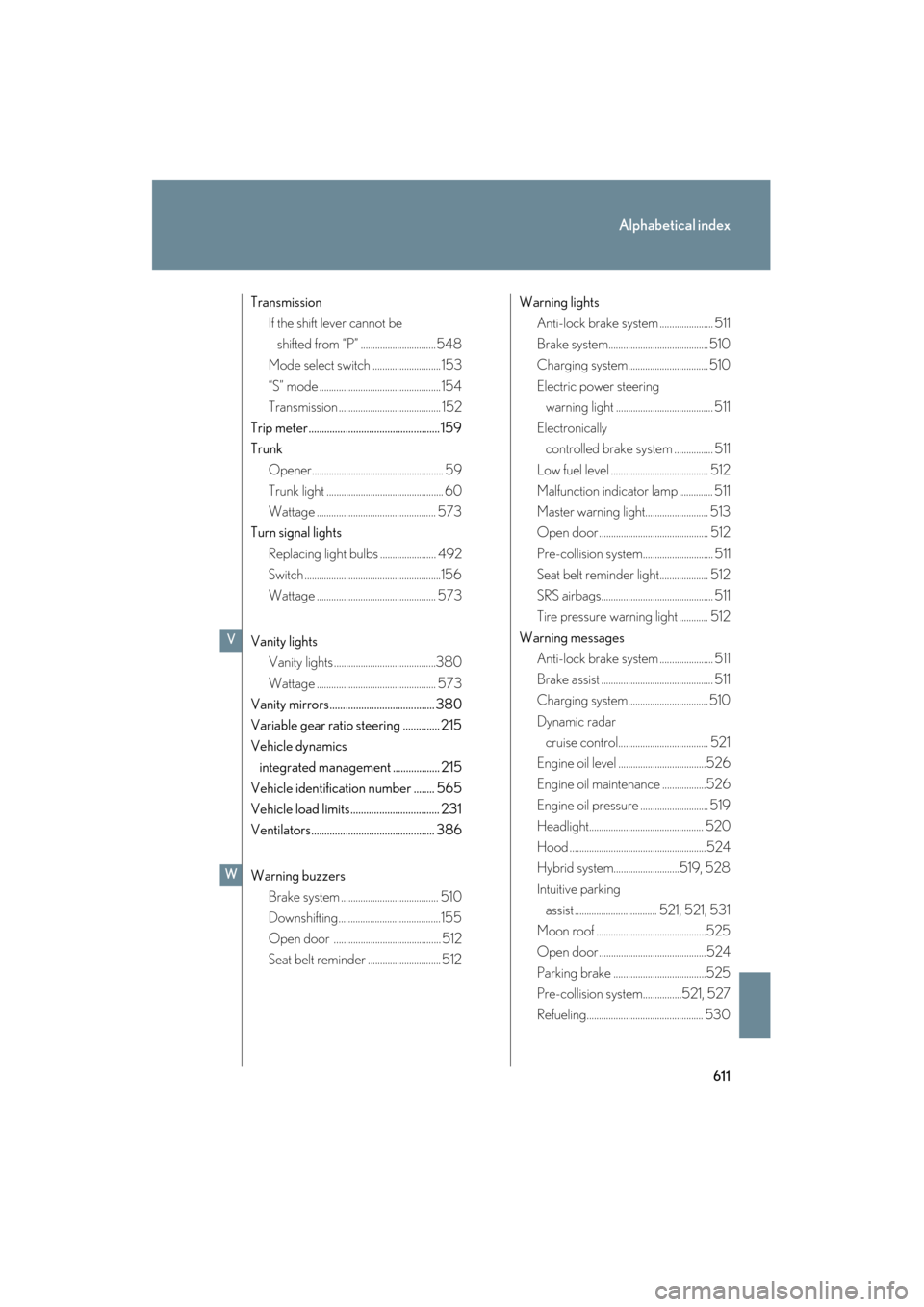

611
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
TransmissionIf the shift lever cannot be
shifted from “P” ...............................548
Mode select switch ............................ 153
“S” mode .................................................. 154
Transmission .......................................... 152
Trip meter.................................................. 159
Trunk Opener...................................................... 59
Trunk light ................................................ 60
Wattage ................................................. 573
Turn signal lights
Replacing light bulbs ....................... 492
Switch ........................................................156
Wattage ................................................. 573
Vanity lights Vanity lights ..........................................380
Wattage ................................................. 573
Vanity mirrors........................................ 380
Variable gear ratio steering .............. 215
Vehicle dynamics
integrated management .................. 215
Vehicle identification number ........ 565
Vehicle load limits.................................. 231
Ventilators............................................... 386
Warning buzzers
Brake system ........................................ 510
Downshifting..........................................155
Open door ............................................ 512
Seat belt reminder .............................. 512 Warning lights
Anti-lock brake system ...................... 511
Brake system......................................... 510
Charging system................................. 510
Electric power steering warning light ........................................ 511
Electronically controlled brake system ................ 511
Low fuel level ........................................ 512
Malfunction indicator lamp .............. 511
Master warning light.......................... 513
Open door ............................................. 512
Pre-collision system............................. 511
Seat belt reminder light.................... 512
SRS airbags.............................................. 511
Tire pressure warning light ............ 512
Warning messages Anti-lock brake system ...................... 511
Brake assist .............................................. 511
Charging system................................. 510
Dynamic radar cruise control..................................... 521
Engine oil level ....................................526
Engine oil maintenance ..................526
Engine oil pressure ............................ 519
Headlight............................................... 520
Hood ........................................................524
Hybrid system...........................519, 528
Intuitive parking assist .................................. 521, 521, 531
Moon roof .............................................525
Open door ............................................524
Parking brake ......................................525
Pre-collision system................521, 527
Refueling................................................ 530
V
W
GS450h_HV_U.book Page 611 Monday, April 27, 2009 10:10 AM
