Lexus GS450h 2013 Owners Manual

90
GS450h_U (OM30D01U)
2. Instrument cluster
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level (→P. 7 2 )
ECO lamp and SPORT lamp
Changes colors or brightness according to driving mode or way of driving
(→ P. 9 3 )
Multi-information display
Presents the driver with a variety of driving-related data ( →P. 9 4 )
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range ( →P. 199)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Tachometer
Displays the engine speed in revolutions per minute
1
2
3
4
5
6
7
8
9
GS450h_U.book Page 90 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
912. Instrument cluster
2
Instrument cluster
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
The brightness of the instrument panel lights can be adjusted.Darker
Brighter
Changing the display
Instrument panel light control
1
2
GS450h_U.book Page 91 Monday, January 23, 2012 10:20 AM

92
GS450h_U (OM30D01U)
2. Instrument cluster
■The meters and display illuminate when
The power switch is in ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be
adjusted individually. However, when the surroundings are bright (daytime, etc.),
turning on the tail lights will not change the instrument panel brightness. At this time,
any adjustments made to the instrument panel brightness levels will be applied to
both settings at once.
■Limitation of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the
light sensor detecting how bright the surroundings are. However, if the instrument
panel brightness has been manually set to either the brightest or darkest setting, the
automatic adjustment will not be performed.
■Hybrid System Indicator
●Hybrid System Indicator is displayed when the driving mode is other than the sport
mode.
●By keeping the indicator needle within Eco area, more Eco-friendly driving can be
achieved.
●Charge area indicates regeneration* status. Regenerated energy will be used to
charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into electrical energy. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
Po w e r a r e a
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
1
2
3
4
GS450h_U.book Page 92 Monday, January 23, 2012 10:20 AM

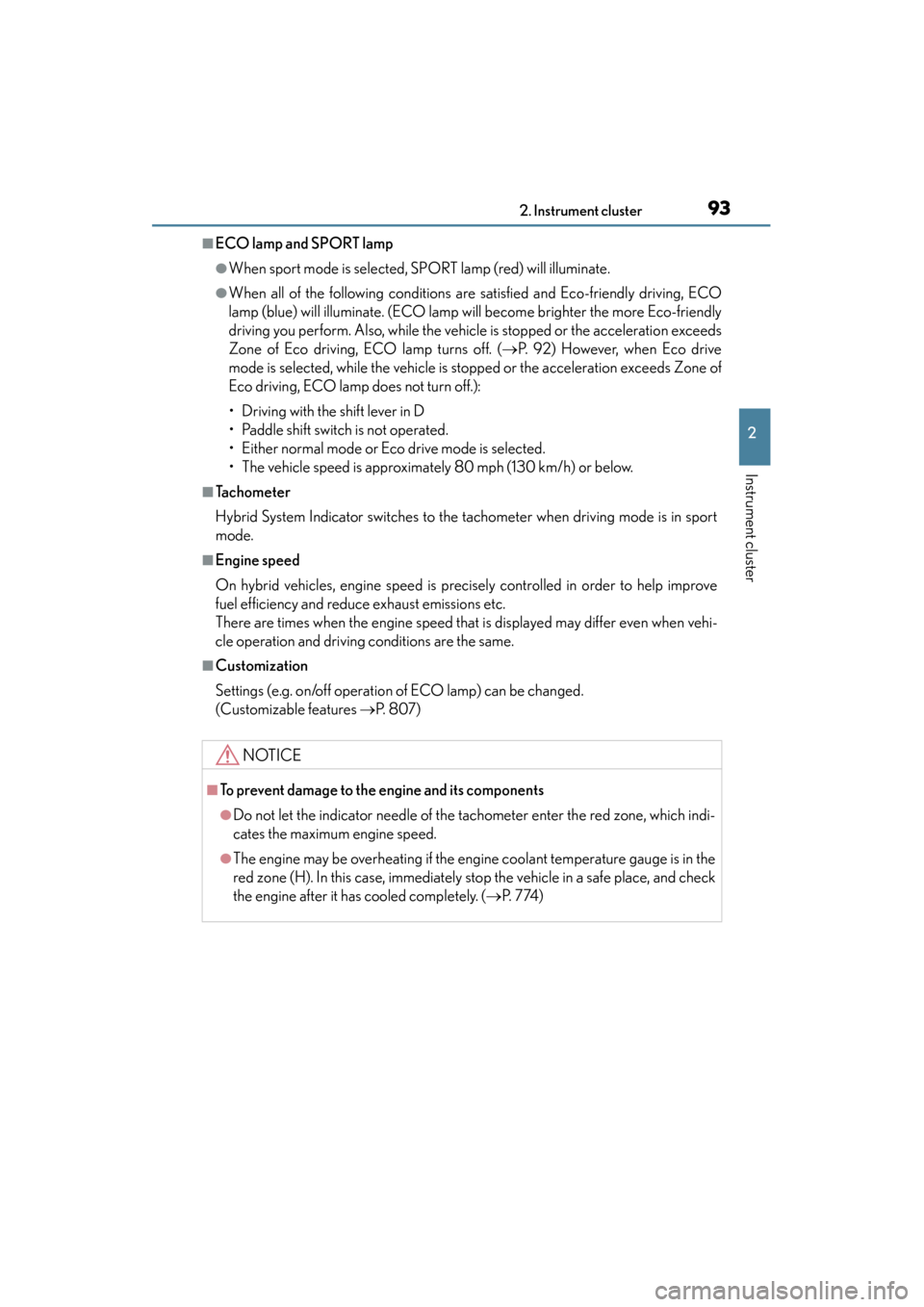

GS450h_U (OM30D01U)
932. Instrument cluster
2
Instrument cluster
■ECO lamp and SPORT lamp
●When sport mode is selected, SPORT lamp (red) will illuminate.
●When all of the following conditions are satisfied and Eco-friendly driving, ECO
lamp (blue) will illuminate. (ECO lamp will become brighter the more Eco-friendly
driving you perform. Also, while the vehicle is stopped or the acceleration exceeds
Zone of Eco driving, ECO lamp turns off. (→P. 92) However, when Eco drive
mode is selected, while the vehicle is stopped or the acceleration exceeds Zone of
Eco driving, ECO lamp does not turn off.):
• Driving with the shift lever in D
• Paddle shift switch is not operated.
• Either normal mode or Eco drive mode is selected.
• The vehicle speed is approximately 80 mph (130 km/h) or below.
■Tachometer
Hybrid System Indicator switches to the tachometer when driving mode is in sport
mode.
■Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehi-
cle operation and driving conditions are the same.
■Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features →P. 807)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 7 74 )
GS450h_U.book Page 93 Monday, January 23, 2012 10:20 AM

94
GS450h_U (OM30D01U)
2. Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
●Energy monitor (→P. 1 1 0 )
●Outside temperature display
(→ P. 9 5 )
●Trip information ( →P. 9 5 )
Displays driving range, fuel consump-
tion and other cruising related infor-
mation
●
Tire inflation pressure
(if equipped) ( →P. 6 6 1 )
●Drive monitor ( →P. 9 7 )
●Intuitive parking assist display*
(if equipped) ( →P. 263)
●Dynamic radar cruise control dis-
play
* (if equipped) ( →P. 2 3 6 )
●LKA (Lane-Keeping Assist) dis-
play
* (if equipped) ( →P. 255)
●Warning messages ( →P. 7 2 1 )
Automatically displayed when a mal-
function occurs in one of the vehicle’s
systems. Display can be switched by
pressing the “DISP” button. ( →P. 9 5 )
*: Automatically displayed when the sys-
tem is used. Display can be switched
by pressing the “DISP” button.
(→ P. 9 5 )
Display contents
GS450h_U.book Page 94 Monday, January 23, 2012 10:20 AM

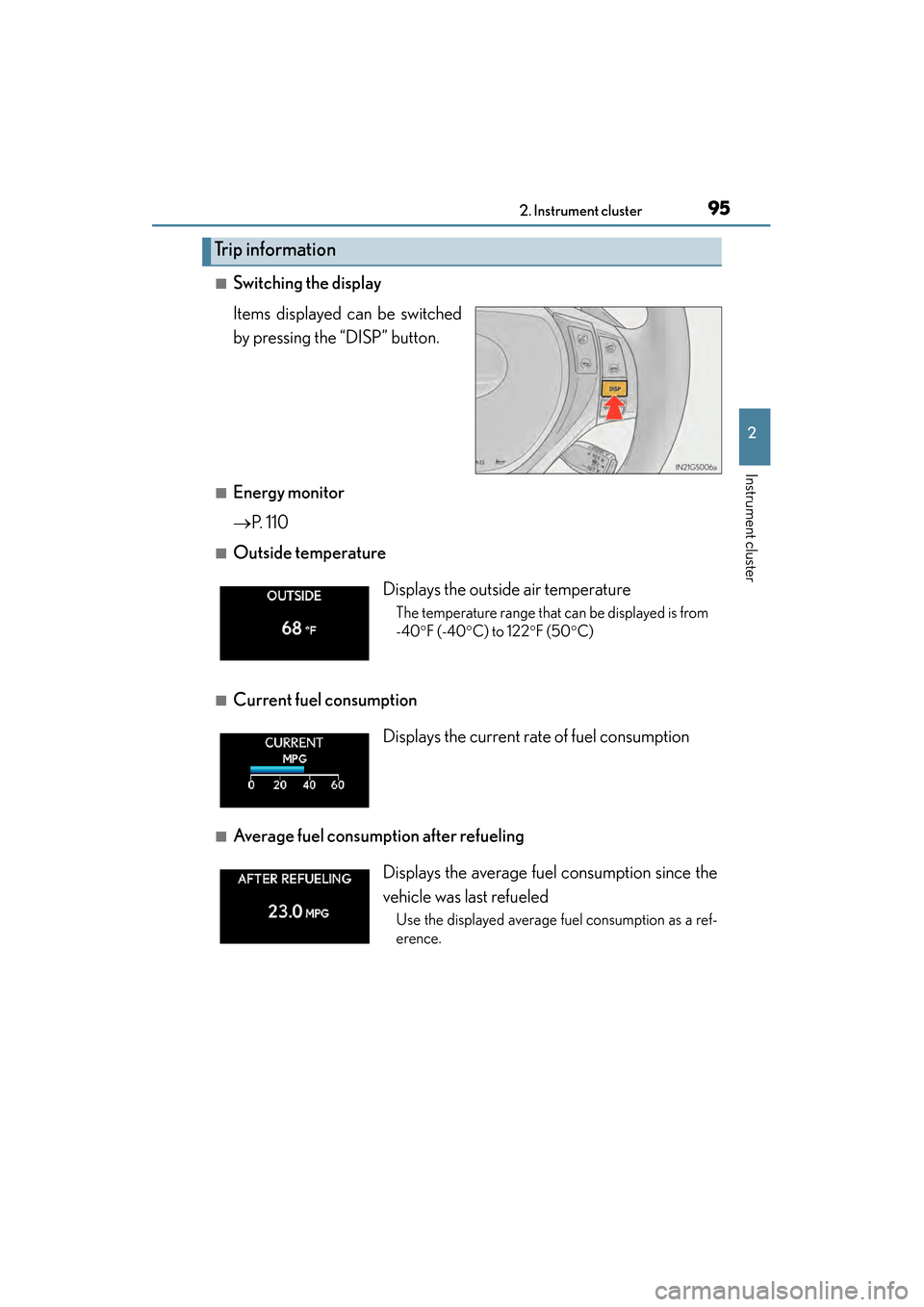

GS450h_U (OM30D01U)
952. Instrument cluster
2
Instrument cluster
■Switching the display
Items displayed can be switched
by pressing the “DISP” button.
■Energy monitor
→P. 1 1 0
■Outside temperature
■Current fuel consumption
■Average fuel consumption after refueling
Trip information
Displays the outside air temperature
The temperature range that can be displayed is from
-40° F (-40 °C) to 122 °F (50 °C)
Displays the current rate of fuel consumption
Displays the average fuel consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a ref-
erence.
GS450h_U.book Page 95 Monday, January 23, 2012 10:20 AM

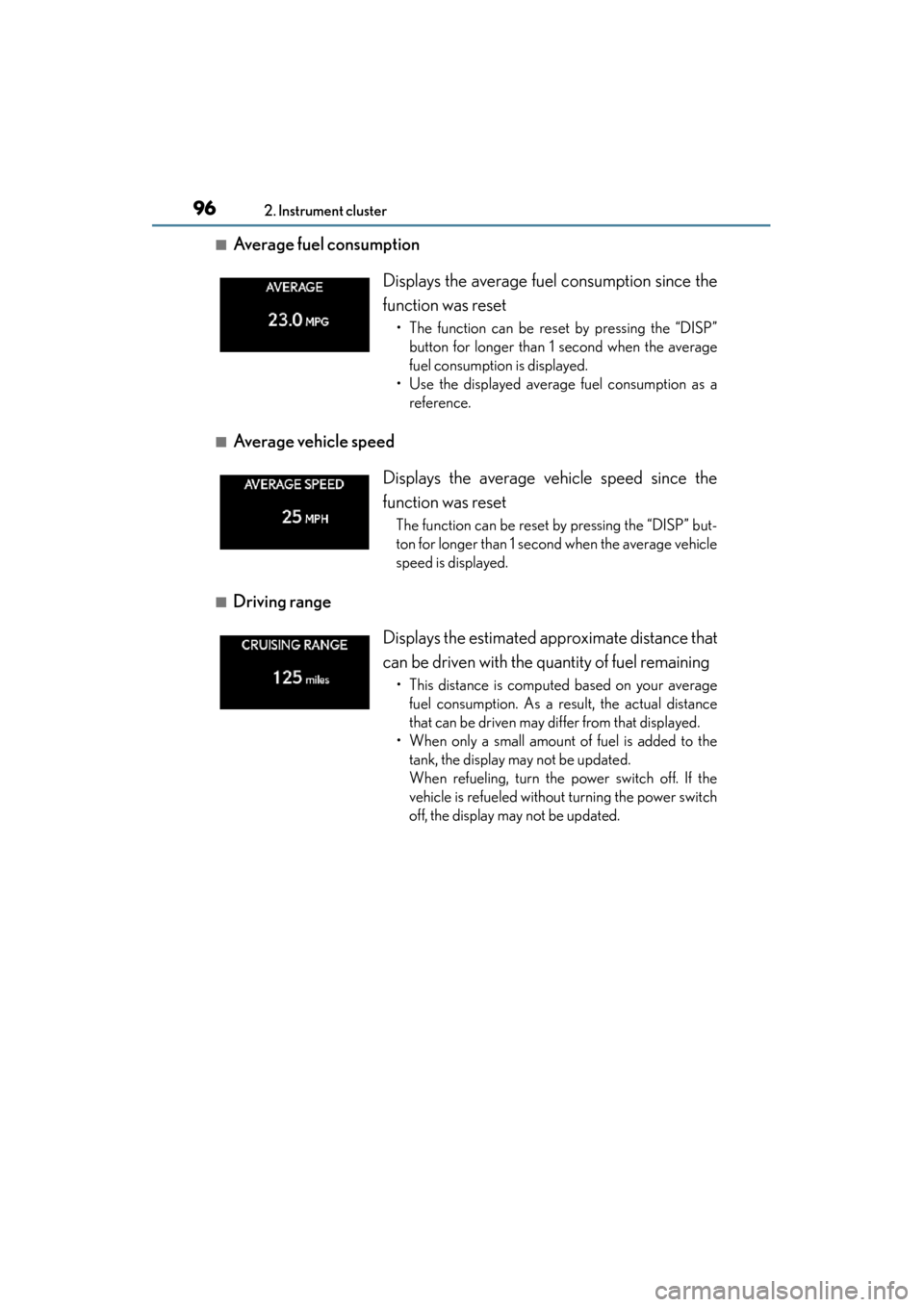

96
GS450h_U (OM30D01U)
2. Instrument cluster
■Average fuel consumption
■Average vehicle speed
■Driving range Displays the average fuel consumption since the
function was reset
• The function can be reset by pressing the “DISP”
button for longer than 1 second when the average
fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Displays the average vehicle speed since the
function was reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the average vehicle
speed is displayed.
Displays the estimated approximate distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your averagefuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the
vehicle is refueled without turning the power switch
off, the display may not be updated.
GS450h_U.book Page 96 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
972. Instrument cluster
2
Instrument cluster
■Tire inflation pressure (if equipped)
Outside temperature, average fuel
consumption after refueling or driv-
ing range can be selected and dis-
played.
If displayed on the drive monitor,
other trip information or warning
messages can be displayed simulta-
neously.
For display and selection proce-
dures, follow the “Setting up the dis-
plays”.
The information displayed on the drive
monitor will not be displayed on the
trip information screen.
Displays inflation pressure of each tire
The inflation pressure of the spare tire will not be dis-
played
Drive monitor
GS450h_U.book Page 97 Monday, January 23, 2012 10:20 AM

98
GS450h_U (OM30D01U)
2. Instrument cluster
While the vehicle is stopped,
press the “DISP” button until the
“Settings” screen appears.
Press and hold the “DISP” button
until the screen changes.
Press and hold the “DISP” button
after selecting the desired set-
ting item by pressing the “DISP”
button.
Setting up the displays
1
2
3
GS450h_U.book Page 98 Monday, January 23, 2012 10:20 AM

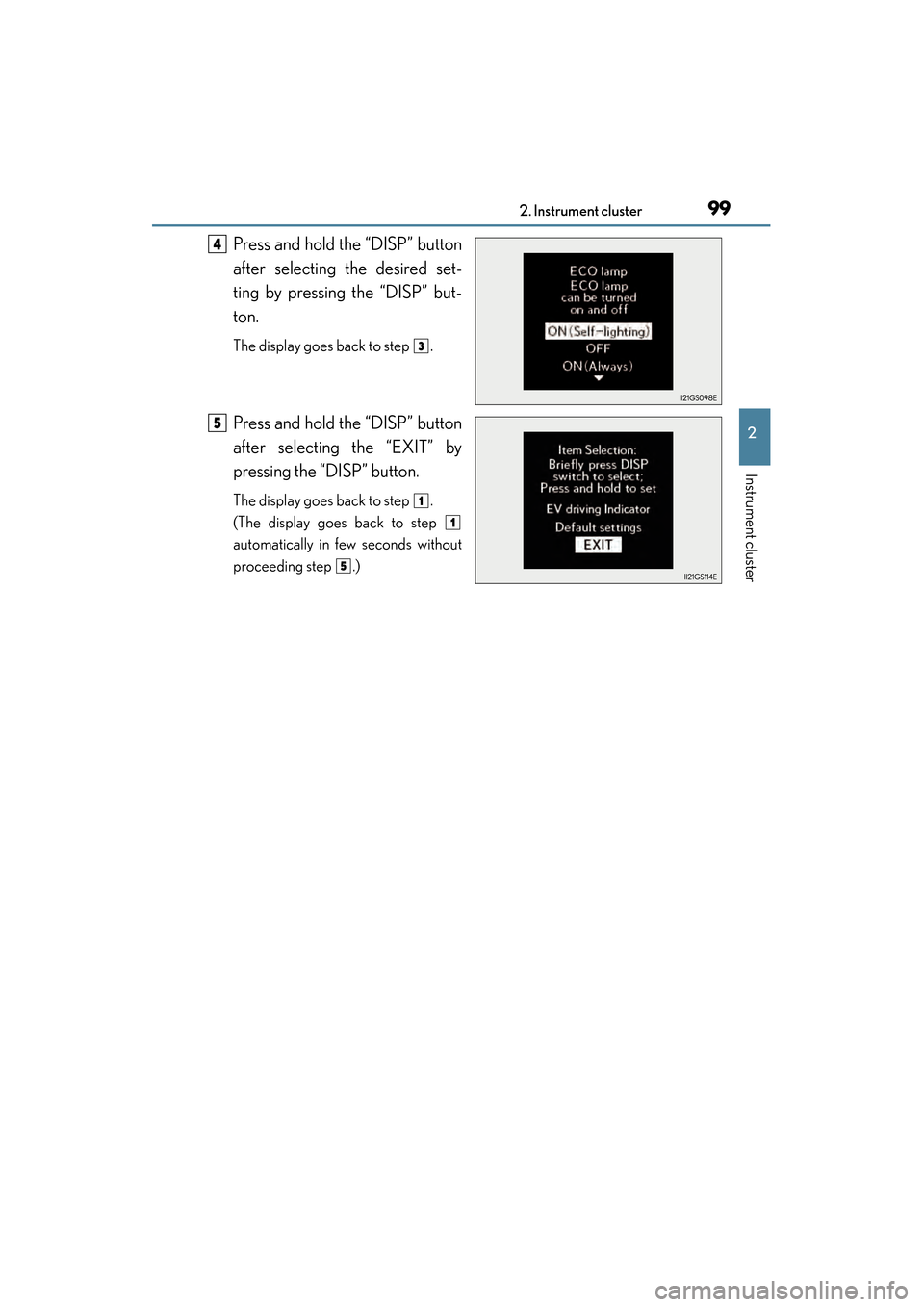

GS450h_U (OM30D01U)
992. Instrument cluster
2
Instrument cluster
Press and hold the “DISP” button
after selecting the desired set-
ting by pressing the “DISP” but-
ton.
The display goes back to step .
Press and hold the “DISP” button
after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
(The display goes back to step
automatically in few seconds without
proceeding step .)
4
3
5
1
1
5
GS450h_U.book Page 99 Monday, January 23, 2012 10:20 AM
