2. Instrument cluster
■System check display
After turning the power switch to ON mode, “SYSTEM CHECK” is displayed while
system operation is checked.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure (if equipped)
●It may take a few minutes to display the tire inflation pressure after the power switch
is turned to ON mode. It may also take a few minutes to display the tire inflation
pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavor-
able radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features →P. 807)
GS450h_U.book Page 100 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
1012. Instrument cluster
2
Instrument cluster

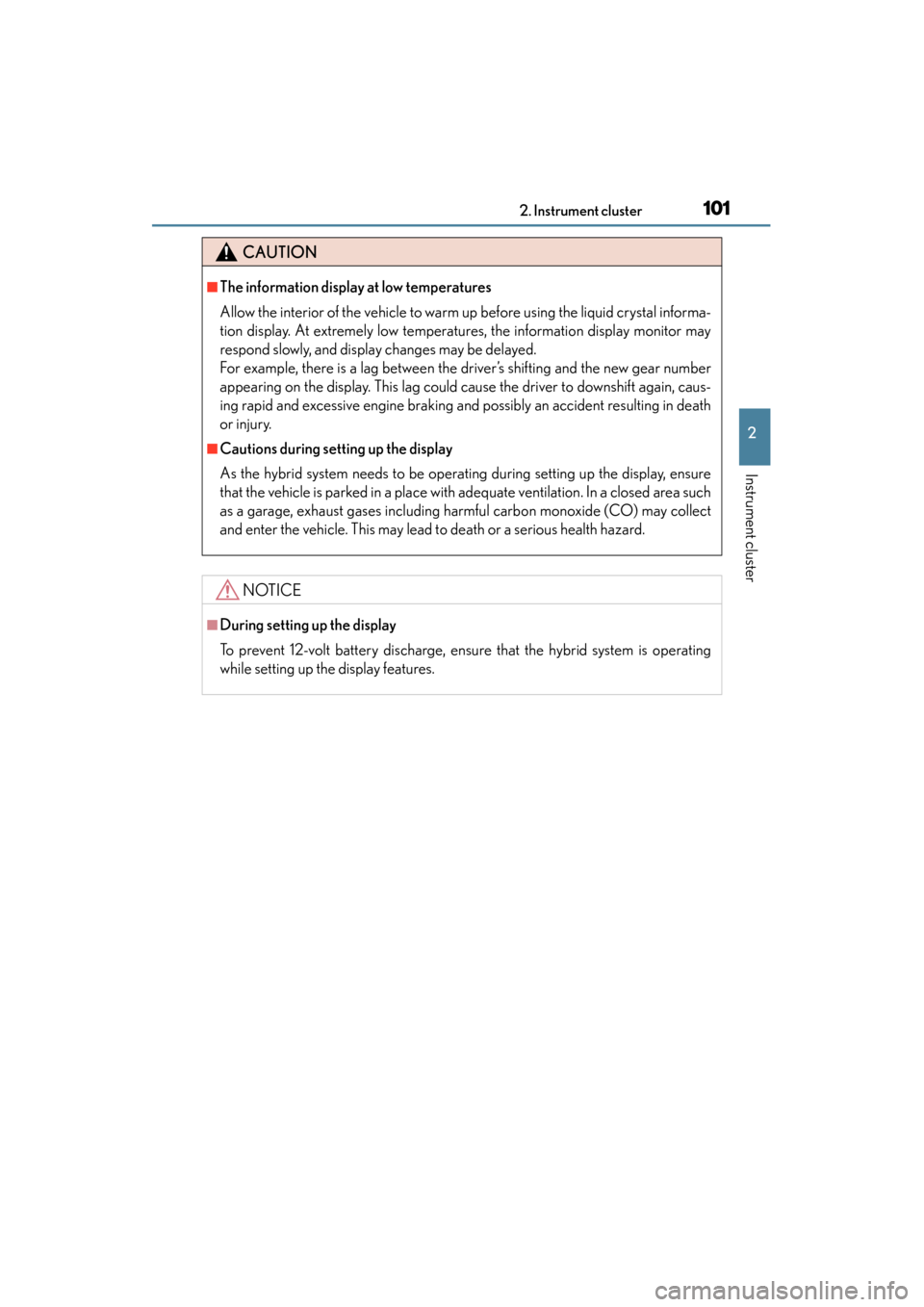

CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating
while setting up the display features.
GS450h_U.book Page 101 Monday, January 23, 2012 10:20 AM

102
GS450h_U (OM30D01U)
2. Instrument cluster

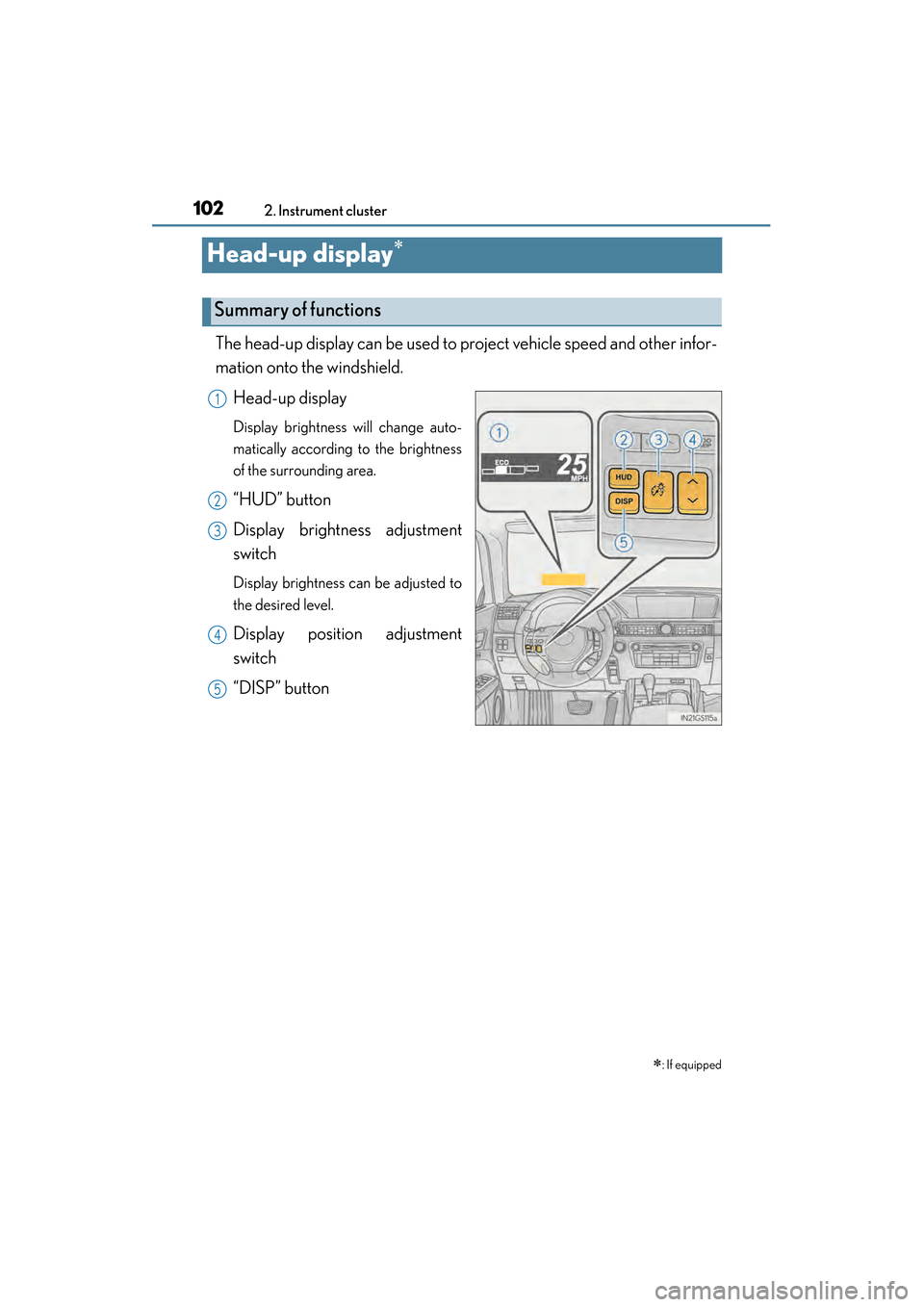

Head-up display∗
The head-up display can be used to project vehicle speed and other infor-
mation onto the windshield.Head-up display
Display brightness will change auto-
matically according to the brightness
of the surrounding area.
“HUD” button
Display brightness adjustment
switch
Display brightness can be adjusted to
the desired level.
Display position adjustment
switch
“DISP” button
∗
: If equipped
Summary of functions
1
2
3
4
5
GS450h_U.book Page 102 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
1032. Instrument cluster
2
Instrument cluster
●Ve h i c l e s p e e d
●Hybrid System Indicator(→P. 1 0 6 )
●Tachometer
●Shift position and shift range
Displays the selected shift position or selected shift range ( →P. 199)
●
Audio display
Displays audio information for approximately 3 seconds when the audio system is
operated
●
Route guidance display (vehicles with navigation system) (→P. 1 0 7 )
When approaching an intersection while the navigation system is giving route
guidance, an arrow will automatically be displayed to indicate the direction of
travel.
●
Lane departure warning display (LKA [Lane-Keeping Assist])
(if equipped) ( →P. 7 3 6 )
●Approach warning display (dynamic radar cruise control)
(if equipped) ( →P. 735)
●Pre-collision braking warning message (pre-collision system)
(if equipped) ( →P. 723)
Head-up display contents
GS450h_U.book Page 103 Monday, January 23, 2012 10:20 AM

104
GS450h_U (OM30D01U)
2. Instrument cluster

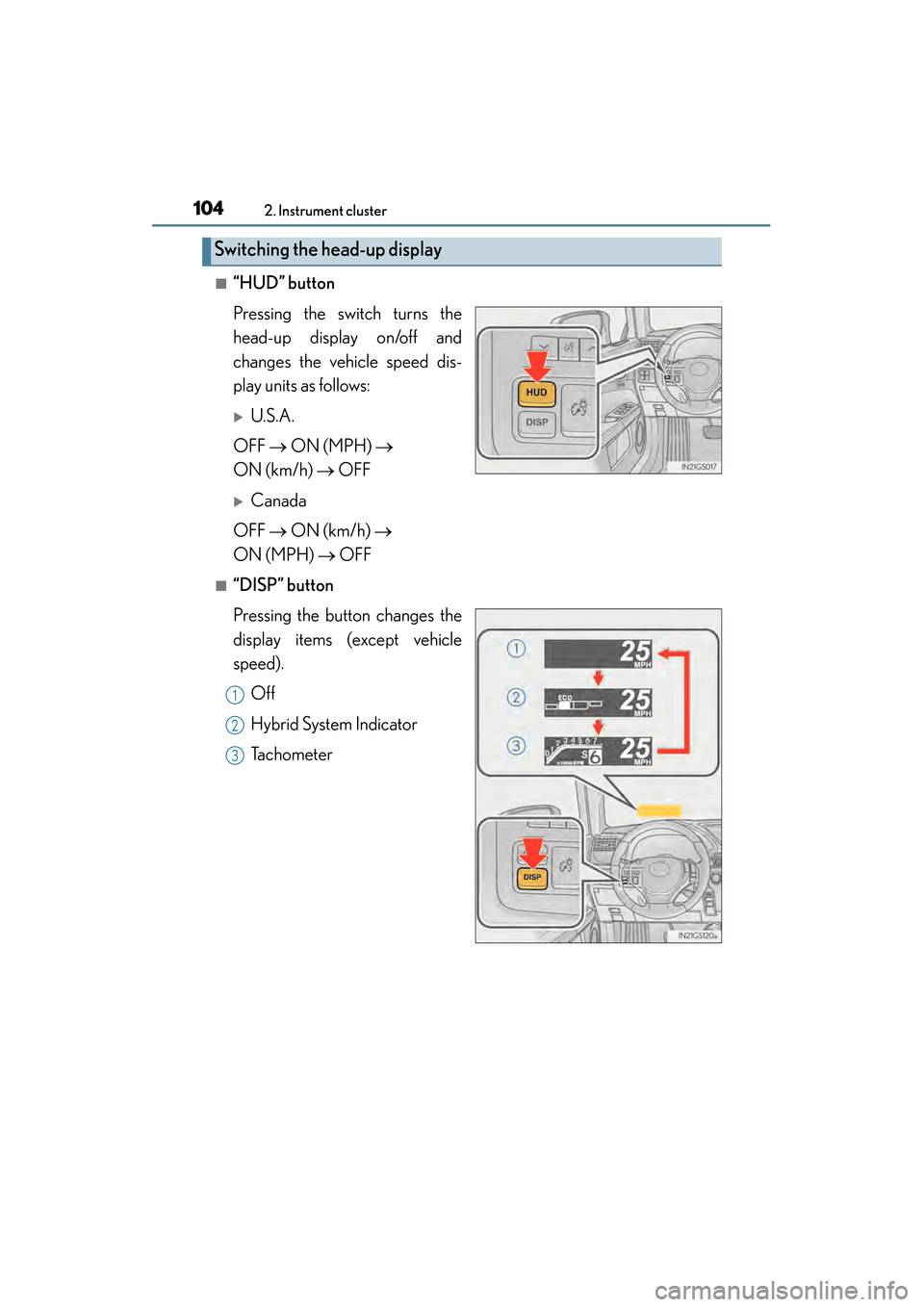

■“HUD” button
Pressing the switch turns the
head-up display on/off and
changes the vehicle speed dis-
play units as follows:
XU.S.A.
OFF → ON (MPH) →
ON (km/h) → OFF
XCanada
OFF → ON (km/h) →
ON (MPH) → OFF
■“DISP” button
Pressing the button changes the
display items (except vehicle
speed).
Off
Hybrid System Indicator
Tachometer
Switching the head-up display
1
2
3
GS450h_U.book Page 104 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
1052. Instrument cluster
2
Instrument cluster

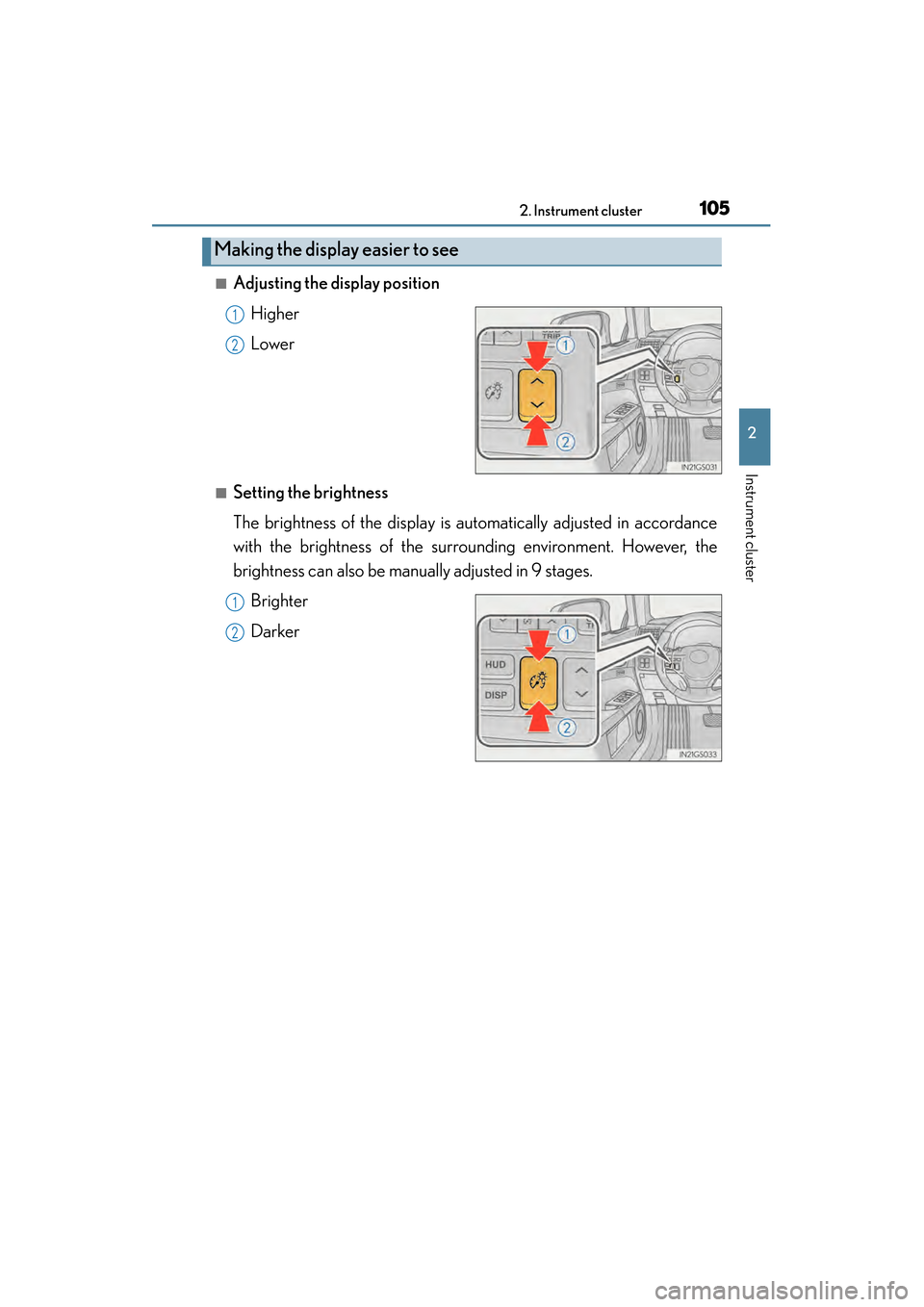

■Adjusting the display positionHigher
Lower
■Setting the brightness
The brightness of the display is automatically adjusted in accordance
with the brightness of the surrounding environment. However, the
brightness can also be manu ally adjusted in 9 stages.
Brighter
Darker
Making the display easier to see
1
2
1
2
GS450h_U.book Page 105 Monday, January 23, 2012 10:20 AM

106
GS450h_U (OM30D01U)
2. Instrument cluster

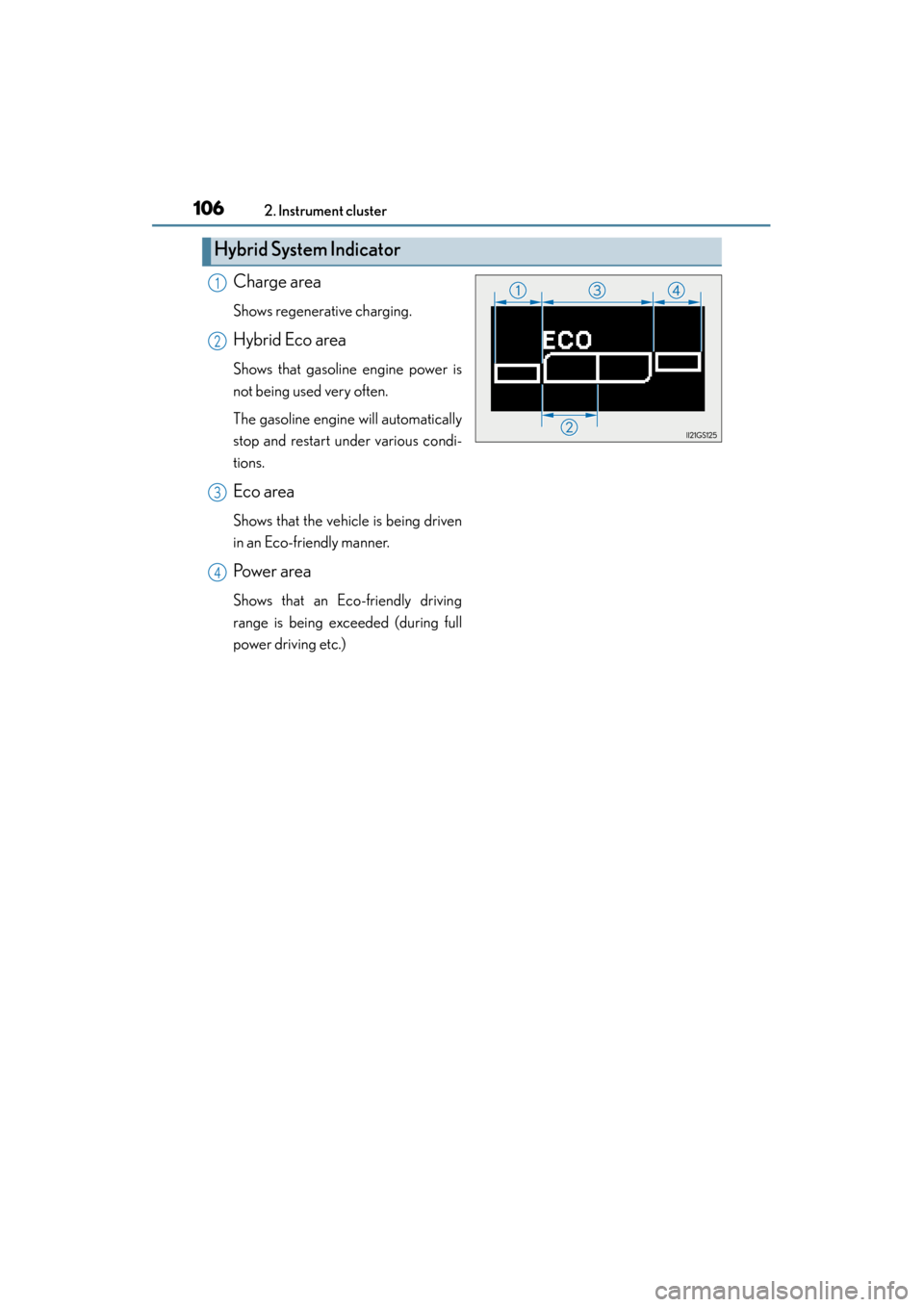

Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven
in an Eco-friendly manner.
Po we r a r e a
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
Hybrid System Indicator
1
2
3
4
GS450h_U.book Page 106 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
1072. Instrument cluster
2
Instrument cluster
When the vehicle approaches an
intersection, the direction the vehi-
cle should go is guided by the arrow.
When the vehicle approaches an
intersection, the route guidance will
start and the distance* to the inter-
section will also be displayed.*
: The distance decreases in increments of 164 ft. (50 m) and the distance indi-
cation will disappear when the vehicle
passes through the intersection.
The audio display can be shown or hidden.
Press and hold the “DISP” button
until the screen changes.
Customization can be performed
when the head-up display is on and
the vehicle is traveling at less than 5
mph (8 km/h).
Press the “DISP” button to switch
between on and off.
On and off will be switched between
each time the button is pressed.
If the button is left alone without being
operated for a short time, setting will
be finished automatically.
Route guidance display (vehicles with navigation system)
Display customization
1
2
GS450h_U.book Page 107 Monday, January 23, 2012 10:20 AM

108
GS450h_U (OM30D01U)
2. Instrument cluster

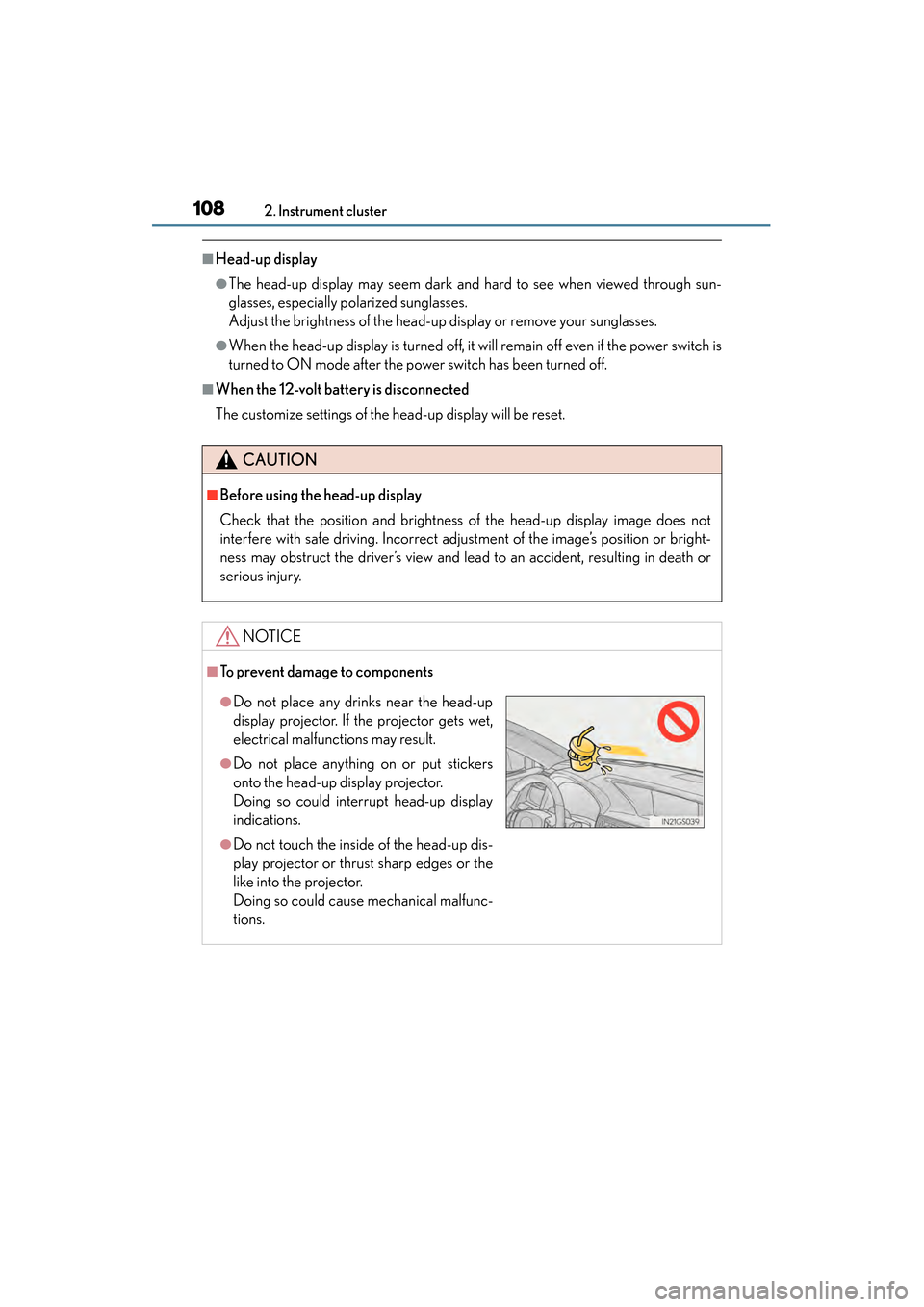

■Head-up display
●The head-up display may seem dark and hard to see when viewed through sun-
glasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
●When the head-up display is turned off, it will remain off even if the power switch is
turned to ON mode after the power switch has been turned off.
■When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
CAUTION
■Before using the head-up display
Check that the position and brightness of the head-up display image does not
interfere with safe driving. Incorrect adjustment of the image’s position or bright-
ness may obstruct the driver’s view and lead to an accident, resulting in death or
serious injury.
NOTICE
■To prevent damage to components
●Do not place any drinks near the head-up
display projector. If the projector gets wet,
electrical malfunctions may result.
●Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up display
indications.
●Do not touch the inside of the head-up dis-
play projector or thrust sharp edges or the
like into the projector.
Doing so could cause mechanical malfunc-
tions.
GS450h_U.book Page 108 Monday, January 23, 2012 10:20 AM

109
GS450h_U (OM30D01U)2. Instrument cluster
2
Instrument cluster

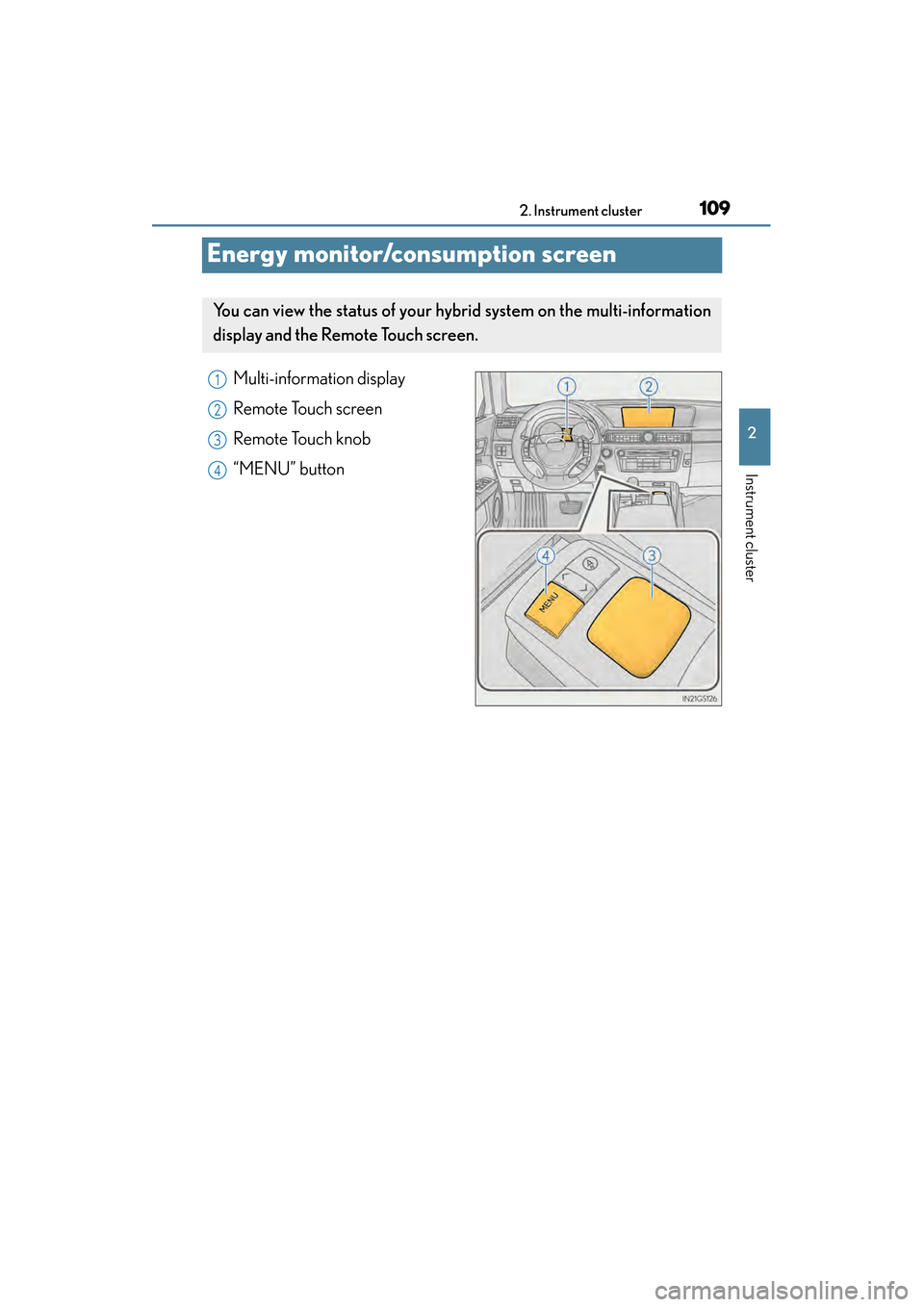

Energy monitor/consumption screen
Multi-information display
Remote Touch screen
Remote Touch knob
“MENU” button
You can view the status of your hy brid system on the multi-information
display and the Remote Touch screen.
1
2
3
