When trouble arises
7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes
on or flashes in order to indicate that a
message is currently being displayed
on the multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions have
been performed, contact your Lexus dealer.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
If a warning is shown on the multi- information display, stay calm and
perform the following actions:
1
2
Stop the vehicle immediately. Cont inuing to drive the vehicle may
be dangerous.
Wa r n i n g m e s s a g eDetails
Indicates the following: • The brake fluid level is low; or,
• The brake system is malfunctioning. A buzzer also sounds.
(U.S.A.)
(Canada)

7227-2. Steps to take in an emergency
GS450h_U (OM30D01U)A buzzer sounds and a warning messa
ge is shown on the multi-informa-
tion display. The following warning in dicates the possibility of damage to
the vehicle that may lead to an acci dent. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Indicates a malfunction in: • The regenerative brake system;
• The electronically controlled brake system; or
• The electric parking brake A buzzer also sounds.
Stop the vehicl e immediately.
Wa r n i n g m e s s a g eDetails
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil
pressure is too low.
Indicates a malfunction in the hybrid system

7237-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnorma lly and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer.
Have the vehicle inspected immediately.
Wa r n i n g m e s s a g eDetails
Indicates a malfunction in the pre-collision system
Indicates a malfunction in the intuitive parking assist The malfunctioning assist-sensor is flashing.
Indicates a malfunction in the dynamic radar cruise
control system (if equipped) or the cruise control sys-
tem Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
(Flashes)
(If equipped)
(If equipped)

7247-2. Steps to take in an emergency
GS450h_U (OM30D01U)

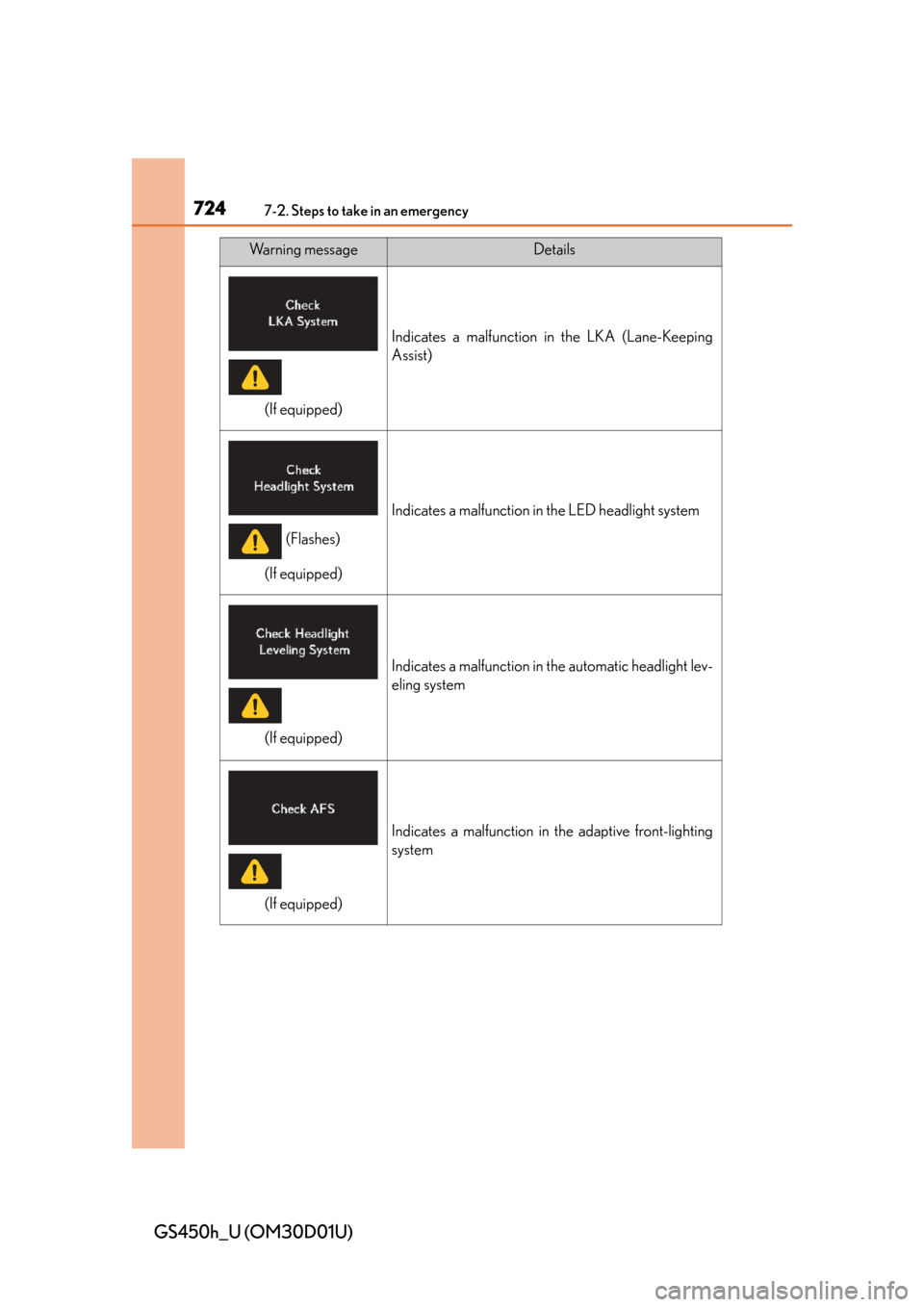

Indicates a malfunction in the LKA (Lane-Keeping
Assist)
Indicates a malfunction in the LED headlight system
Indicates a malfunction in the automatic headlight lev-
eling system
Indicates a malfunction in the adaptive front-lighting
system
Wa r n i n g m e s s a g eDetails
(If equipped)
(Flashes)
(If equipped)
(If equipped)
(If equipped)

7257-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

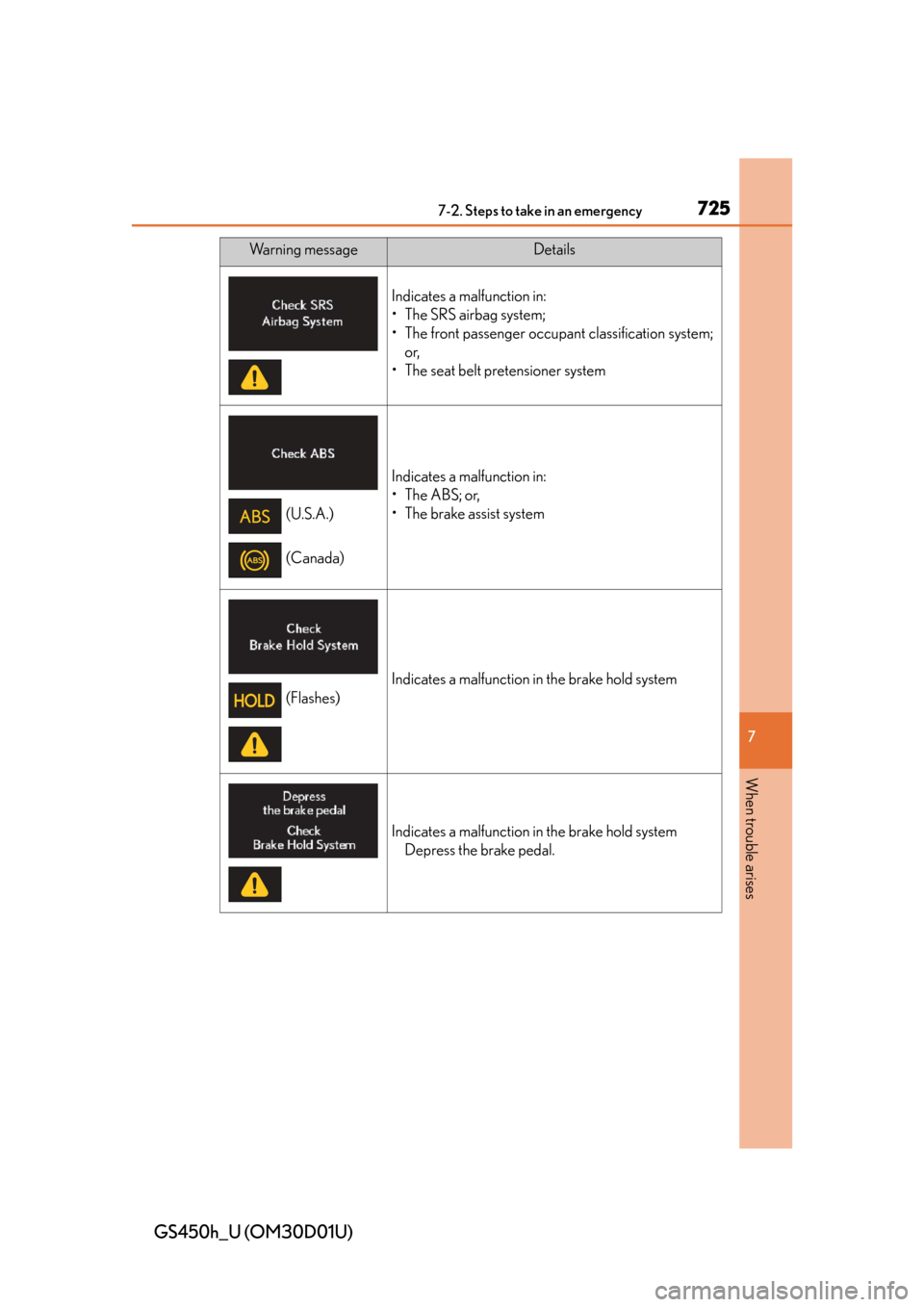

Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system;or,
• The seat belt pretensioner system
Indicates a malfunction in:
•The ABS; or,
• The brake assist system
Indicates a malfunction in the brake hold system
Indicates a malfunction in the brake hold system Depress the brake pedal.
Wa r n i n g m e s s a g eDetails
(U.S.A.)
(Canada)
(Flashes)

7267-2. Steps to take in an emergency
GS450h_U (OM30D01U)

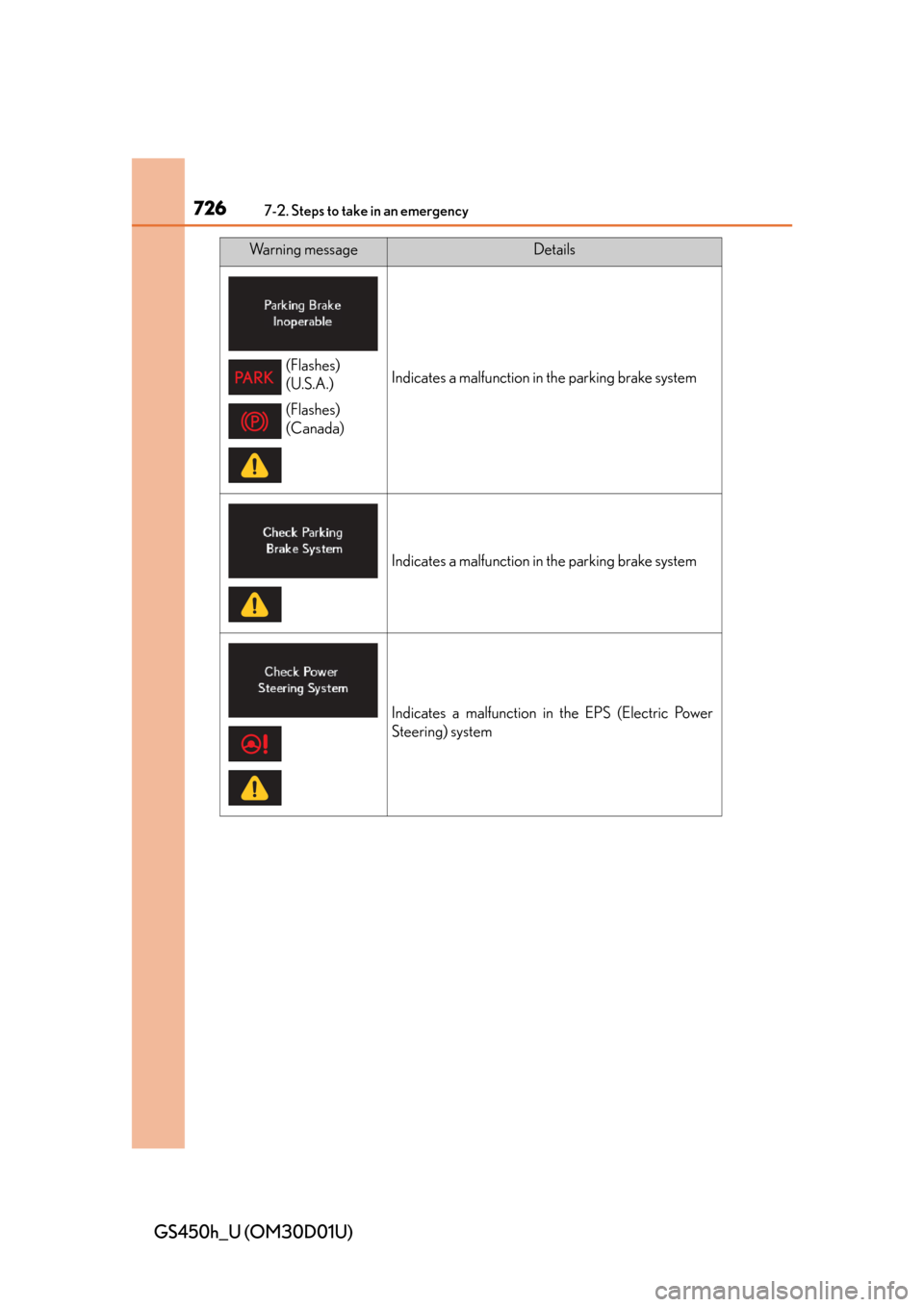

Indicates a malfunction in the parking brake system
Indicates a malfunction in the parking brake system
Indicates a malfunction in the EPS (Electric Power
Steering) system
Wa r n i n g m e s s a g eDetails
(Flashes)
(U.S.A.)
(Flashes)
(Canada)

7277-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

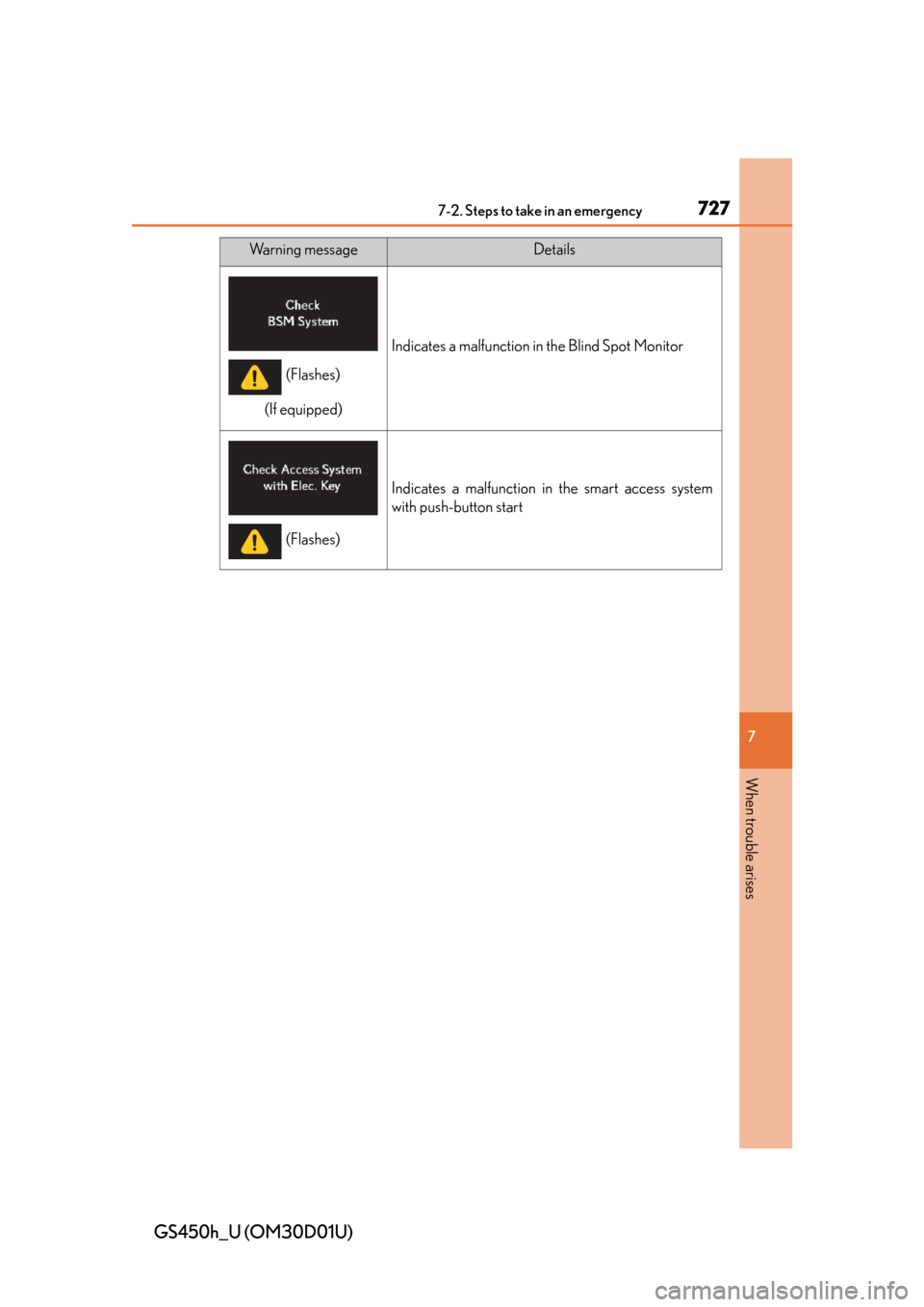

Indicates a malfunction in the Blind Spot Monitor
Indicates a malfunction in the smart access system
with push-button start
Wa r n i n g m e s s a g eDetails
(Flashes)
(If equipped)
(Flashes)

7287-2. Steps to take in an emergency
GS450h_U (OM30D01U)A buzzer sounds and a warning messa
ge is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message goes off.
Follow the correction procedures.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed
The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
door(s) are not yet
fully closed.
Make sure that all the
doors are closed.
Indicates that the hood is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
hood is not yet fully
closed.
Close the hood.

7297-2. Steps to take in an emergency
GS450h_U (OM30D01U)
7
When trouble arises

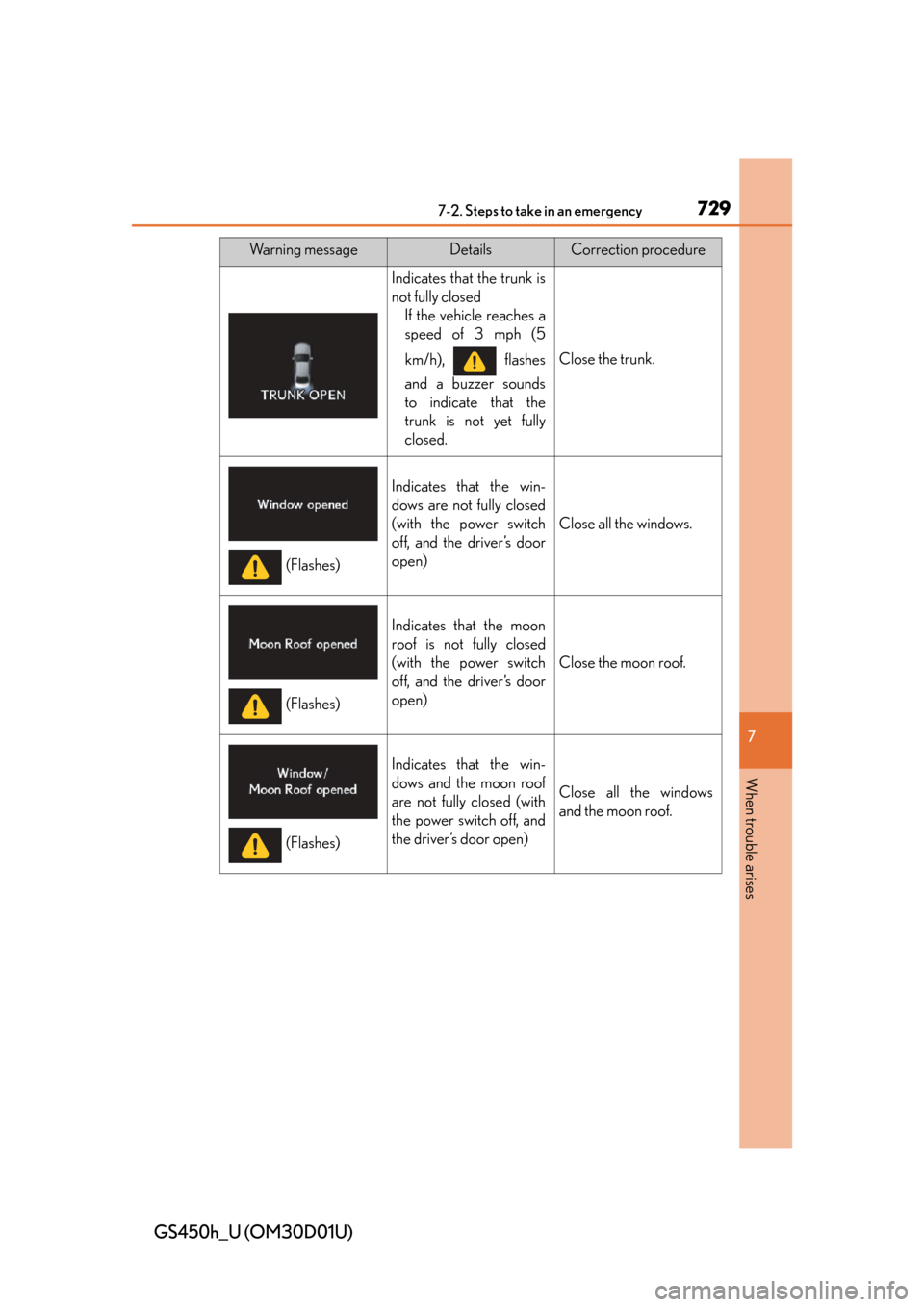

Indicates that the trunk is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
trunk is not yet fully
closed.
Close the trunk.
Indicates that the win-
dows are not fully closed
(with the power switch
off, and the driver’s door
open)
Close all the windows.
Indicates that the moon
roof is not fully closed
(with the power switch
off, and the driver’s door
open)
Close the moon roof.
Indicates that the win-
dows and the moon roof
are not fully closed (with
the power switch off, and
the driver’s door open)
Close all the windows
and the moon roof.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes)
(Flashes)
(Flashes)

7307-2. Steps to take in an emergency
GS450h_U (OM30D01U)

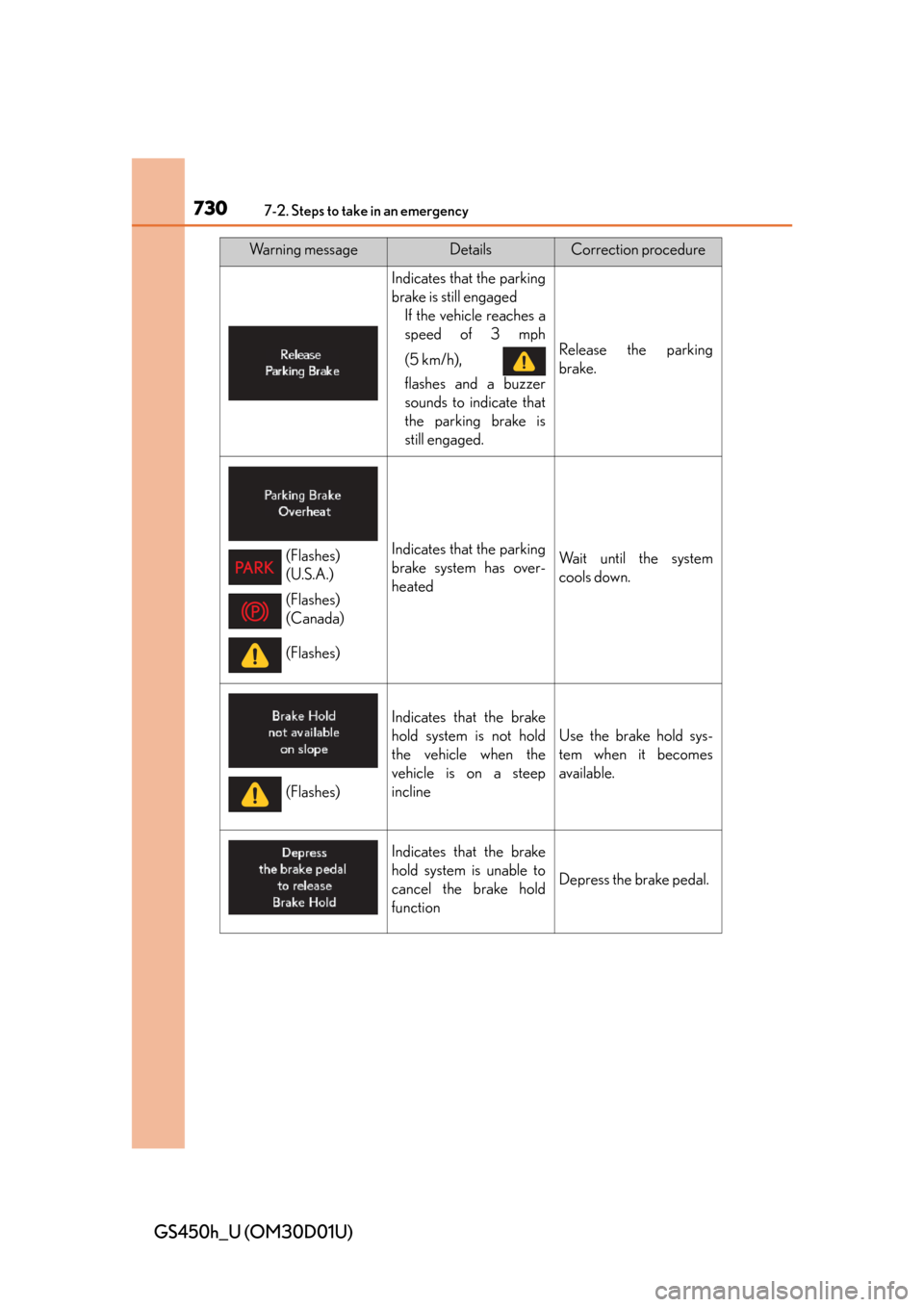

Indicates that the parking
brake is still engagedIf the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the parking brake is
still engaged.
Release the parking
brake.
Indicates that the parking
brake system has over-
heatedWait until the system
cools down.
Indicates that the brake
hold system is not hold
the vehicle when the
vehicle is on a steep
incline
Use the brake hold sys-
tem when it becomes
available.
Indicates that the brake
hold system is unable to
cancel the brake hold
function
Depress the brake pedal.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes)
(U.S.A.)
(Flashes)
(Canada)
(Flashes)
(Flashes)
